ZK30 Micro USB Dock Flex Test Board – Android & iPhone Charging Port Diagnostic Tool

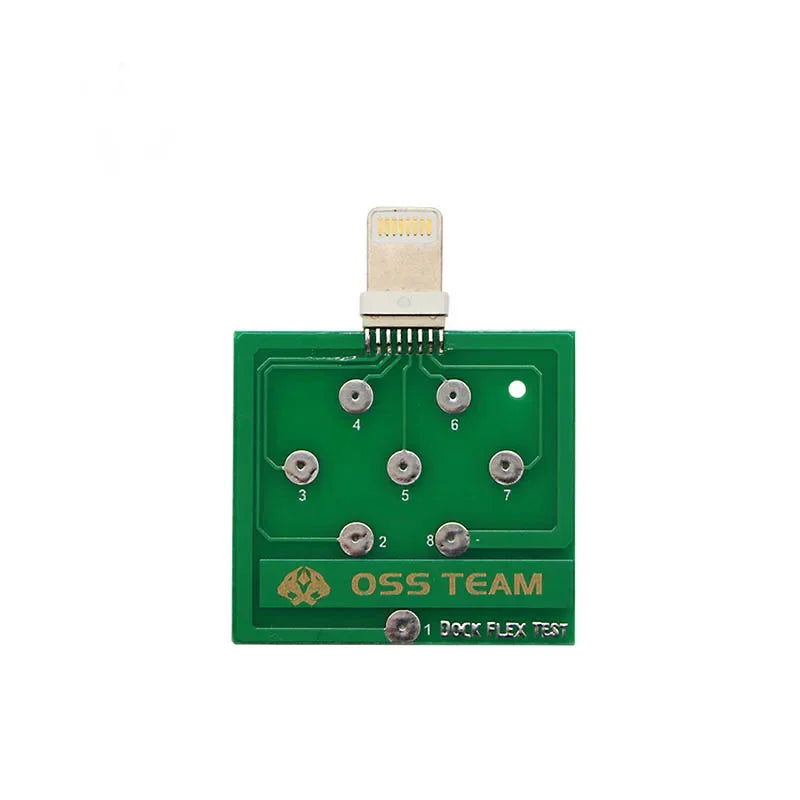

The ZK30 Micro USB Dock Flex Test Board is a professional-grade diagnostic tool designed for mobile phone technicians and DIY repair enthusiasts. This combo kit includes one board for Android (Micro USB) and one board for iPhone, allowing you to quickly verify battery performance, U2 IC functionality, and USB charging port operation — all without disassembling the phone.
Simply plug the test board directly into the phone's USB charging port and use your multimeter to read voltage, current, and connectivity data in seconds. It's the fast, reliable, non-invasive way to pinpoint charging faults before committing to a full teardown.
Key Features
- ✅ No disassembly required — plugs directly into the USB charging port

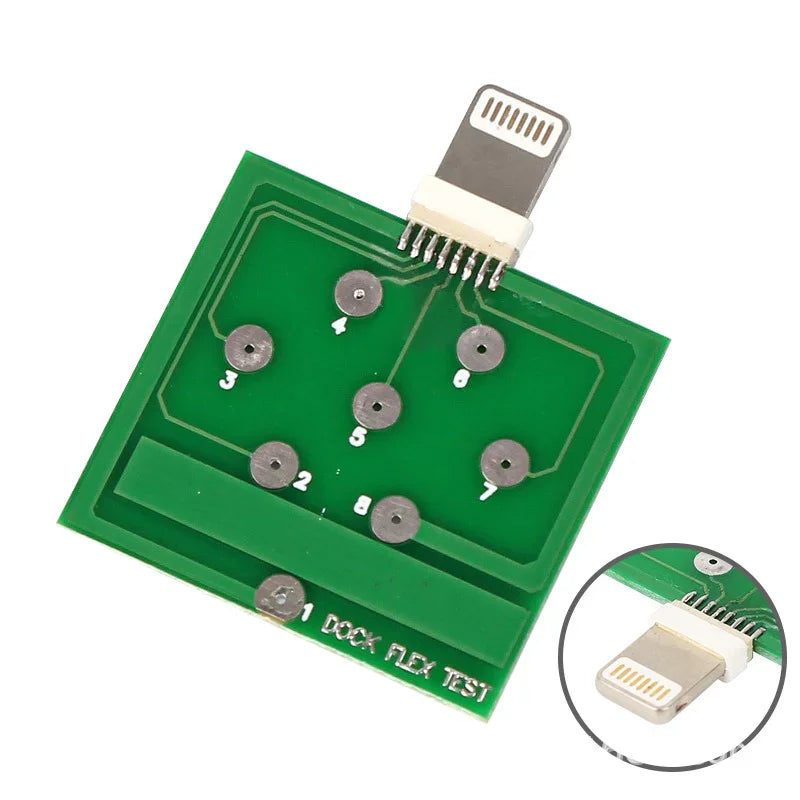

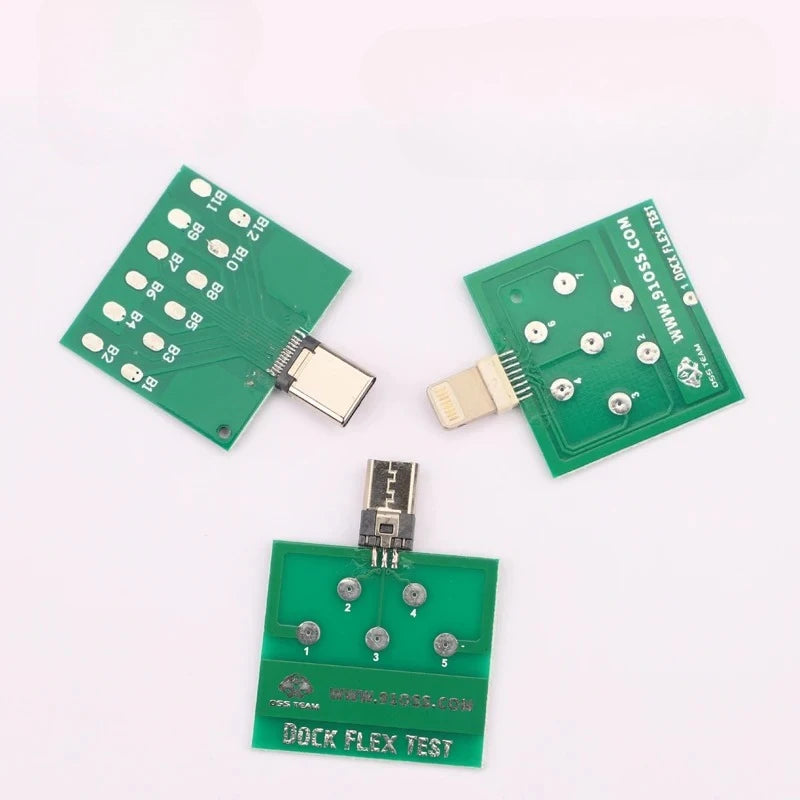

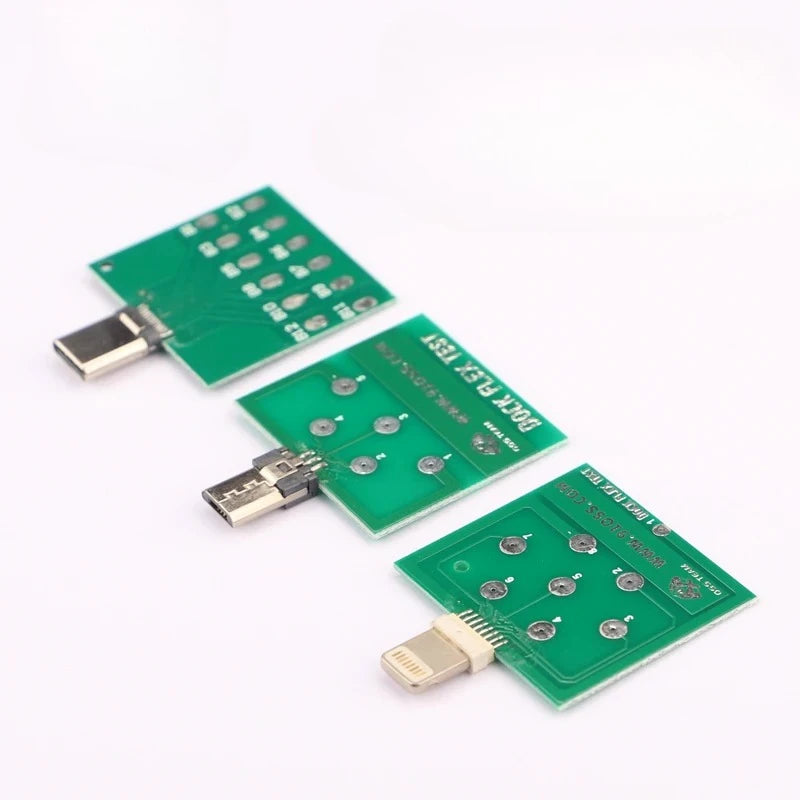

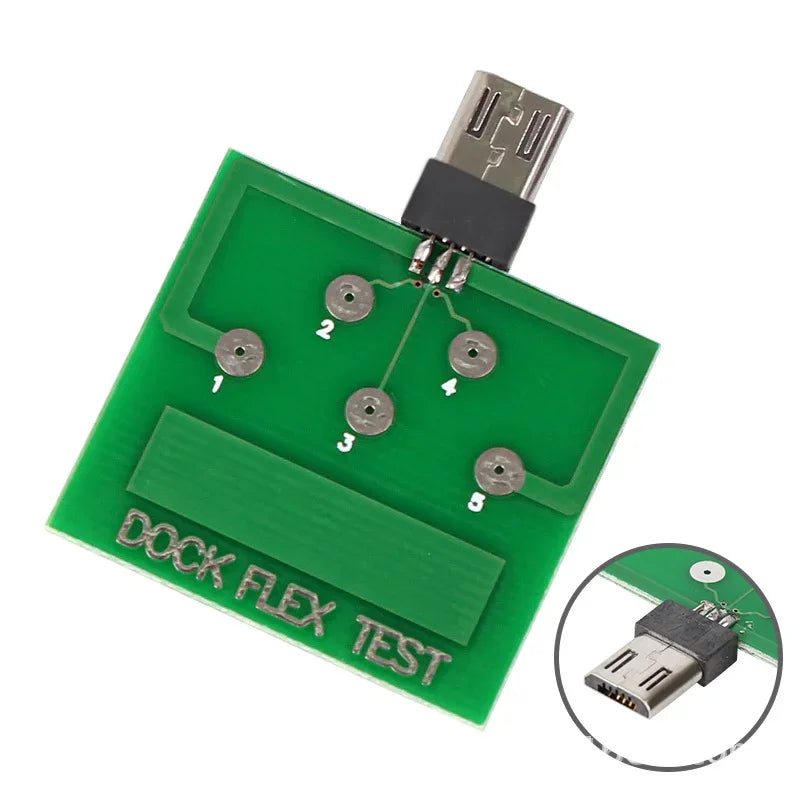

- ✅ Combo set — one Micro USB board for Android + one Lightning-compatible board for iPhone
- ✅ Multi-function testing — battery status, U2 IC, and USB charging port diagnostics
- ✅ Works with any standard multimeter — easy to integrate into your existing toolkit
- ✅ Durable metal construction for lasting professional use
- ✅ Compatible with a wide range of Android devices and Apple iPhone models including iPhone XS
Specifications
| Item Name | Dock Flex Test Board (Combo) |
| Model Number | ZK30 Micro |
| Compatible Devices | Android (Micro USB) & Apple iPhone (incl. iPhone XS) |
| Material | Metal |
| Size | 6 × 6 × 6 mm |
| Operation | Use with a multimeter for phone diagnostics |
| Country of Origin | Made in China |
Who Is This For?
Whether you're a professional mobile phone repair technician or a hands-on hobbyist, the ZK30 test board combo saves time and effort. Instead of opening a device just to check the charging circuit or battery, this board gives you instant diagnostic data at the port level — streamlining your workflow and reducing the risk of unnecessary disassembly.
How It Works
- Select the correct test board (Android Micro USB or iPhone Lightning).
- Plug the board into the phone's USB charging port.

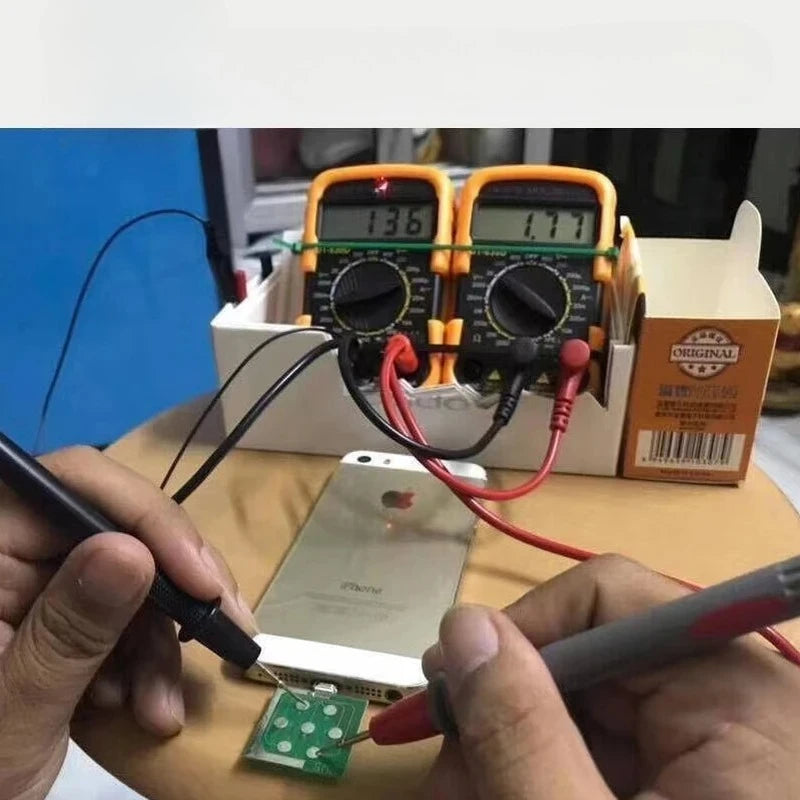

- Connect your multimeter probes to the board's test points.

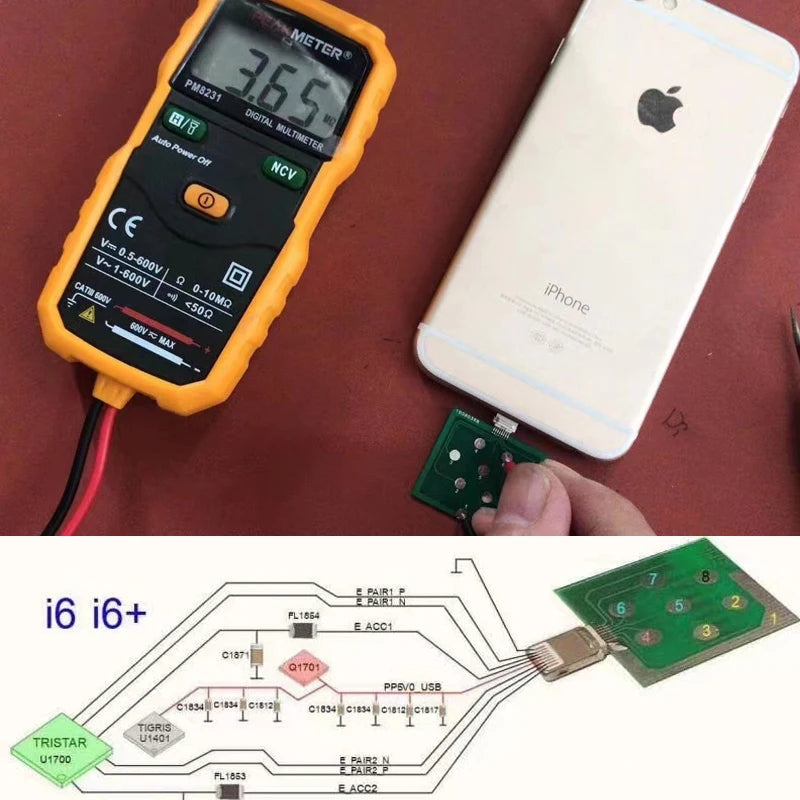

- Read voltage and current values to assess battery, U2 IC, and charging port health.
For guidance on electrical safety when working with diagnostic tools, visit the OSHA Electrical Safety resource.
Explore More Repair & DIY Tools
Frequently Asked Questions
Q: Does the ZK30 Dock Flex Test Board require any special software or equipment?
A: No special software is needed. The ZK30 Micro USB Dock Flex Test Board works with any standard digital multimeter. Simply plug the board into the phone's charging port and use your multimeter to take readings from the labeled test points.
Q: Is the ZK30 combo kit compatible with all iPhone models?
A: The combo set is compatible with a wide range of Apple iPhone models, including iPhone XS, as well as most Android smartphones that use a Micro USB charging port. Always verify your device's port type before use.
Q: Can I use this test board to diagnose a phone that won't charge?
A: Yes. The ZK30 Dock Flex Test Board is designed specifically to help technicians diagnose USB charging port issues, battery status, and U2 IC connectivity — all without opening the device. It's an ideal first step when troubleshooting a phone that isn't charging properly.
Q: Do I need to disassemble my phone to use this board?
A: No — that's one of the key advantages of this tool. The test board plugs directly into the phone's external USB charging port, so no disassembly is required. This makes it fast, non-invasive, and suitable for quick on-the-bench diagnostics.
