Measuring & Layout Tools – Accuracy You Can Count On
Whether you're a seasoned tradesperson or a passionate DIY enthusiast, having the right measuring and layout tools makes all the difference between a job done and a job done right. Our Measuring & Layout collection brings together precision instruments designed to help you cut, align, fit, and finish with confidence. From tile-setting accessories to digital calipers and contour gauges, every tool in this collection is built to deliver reliable, repeatable accuracy on every project — big or small.
Featured Products
Why Precise Measuring & Layout Matters
Inaccurate measurements are one of the leading causes of material waste, project delays, and costly rework. Investing in quality measuring and layout tools not only saves time and money — it also improves safety on the job site. Consistent, accurate layouts help prevent uneven surfaces, misfits, and structural irregularities that can compromise the integrity of a finished project. The National Institute of Standards and Technology (NIST) highlights the critical role of measurement accuracy in maintaining quality standards across trades and industries. Additionally, the Occupational Safety and Health Administration (OSHA) emphasizes that proper planning and layout are foundational to safe construction practices.
What's in Our Measuring & Layout Collection?
Our curated selection covers a wide range of measuring and layout needs:
Who Are These Tools For?
Our Measuring & Layout tools are ideal for:
- 🏠 Homeowners & DIYers tackling flooring, tiling, or home improvement projects
- 🔨 Contractors & Tradespeople who demand reliable, repeatable accuracy on every job
- 🪵 Woodworkers & Craftspeople needing fine measurement and profile-copying tools
- 🧱 Masons & Tile Setters working with brick, stone, or ceramic tile installations
Frequently Asked Questions
Q: What is a contour gauge duplicator and how is it used in measuring and layout?
A: A contour gauge duplicator is a profile measuring tool that uses a row of movable pins or needles to trace the exact shape of any irregular surface — such as door frames, pipes, moldings, or stairs. Once pressed against the surface, the pins lock into the profile's shape, which you can then transfer directly onto your material (tile, wood, carpet, etc.) for a precise cut. It eliminates guesswork and saves significant time compared to manual template methods.
Q: How does a tile leveling system improve floor and wall tile installations?
A: A tile leveling system ensures that adjacent tiles sit perfectly flush with one another during installation, preventing "lippage" (uneven tile edges) as the adhesive cures. The system typically includes spacer clips, wedges, and a wrench or pliers tool. You insert the clips beneath tile edges, then tighten wedges over them to pull the tiles level. Once the adhesive has set, the clips are snapped off, leaving a clean, professional finish. Our 326-Pc Tile Leveling System includes everything needed for a complete installation.
Q: What is the difference between a digital vernier caliper and a manual vernier caliper?
A: A digital vernier caliper features an LCD screen that displays measurements instantly and eliminates the need to read a sliding scale, making it faster and less prone to reading errors. A manual vernier caliper relies on a precision-engraved scale and requires the user to interpret the vernier graduation, which offers a good level of accuracy but demands more practice to read correctly. For most home DIY and workshop applications, a digital caliper like our LCD Digital Vernier Caliper provides the best combination of speed and accuracy.
Q: What should I look for when choosing measuring and layout tools for a home DIY project?

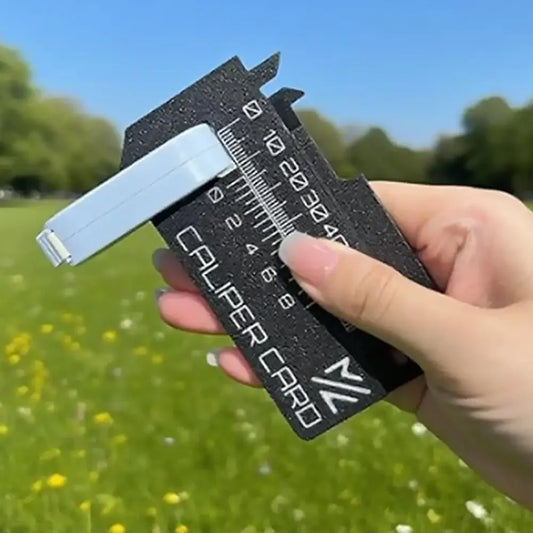

A: For home DIY projects, focus on ease of use, durability, and the specific tasks you'll be performing. For tiling jobs, a tile leveling system and contour gauge are essential. For woodworking or finish carpentry, a digital caliper and angle protractor/goniometer will deliver the precision you need. Always choose tools that are appropriately sized for your project scope — for example, a keychain mini caliper is perfect for small crafts, while a full-size digital caliper suits larger workshop tasks. Certified tools (look for CE markings) offer added assurance of quality and safety compliance.
