ZH 1.5mm JST Connector Kit 2–10 Pin | 10 Sets with 100mm Wires

10-Set Mini Micro ZH 1.5mm JST Connector Kit — 2 to 10 Pin with 100mm Wires

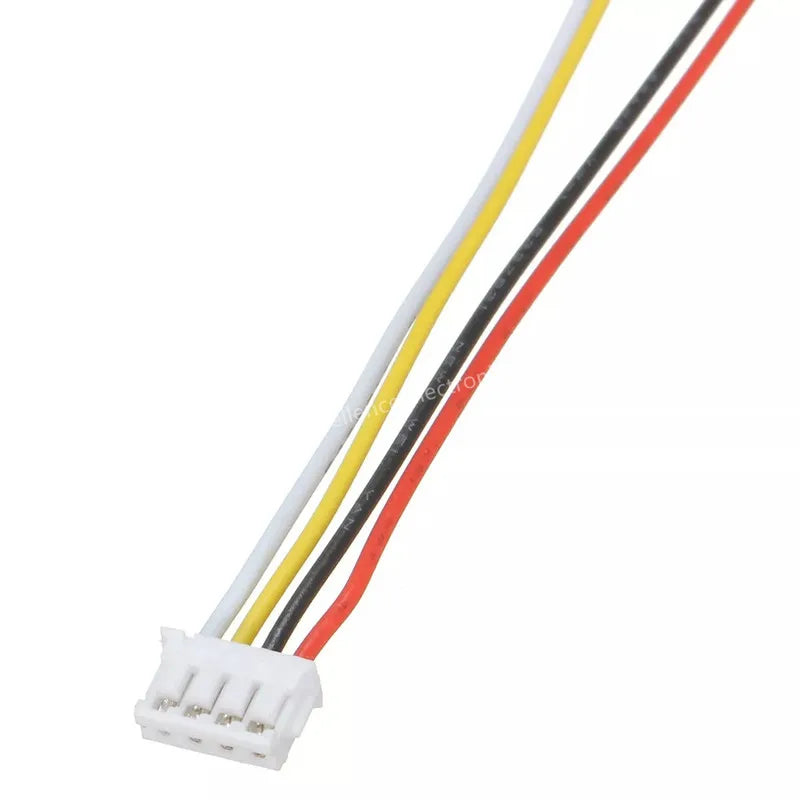

Build, repair, or prototype with confidence using this comprehensive ZH 1.5mm JST connector kit. Each set comes pre-wired with 100mm UL1007 28AWG cables, making them an ideal plug-and-play solution for electronics projects, RC models, drones, battery packs, DIY maker boards, and more.

Product Specifications

Connector Type: ZH (Mini Micro)
Pitch: 1.5mm

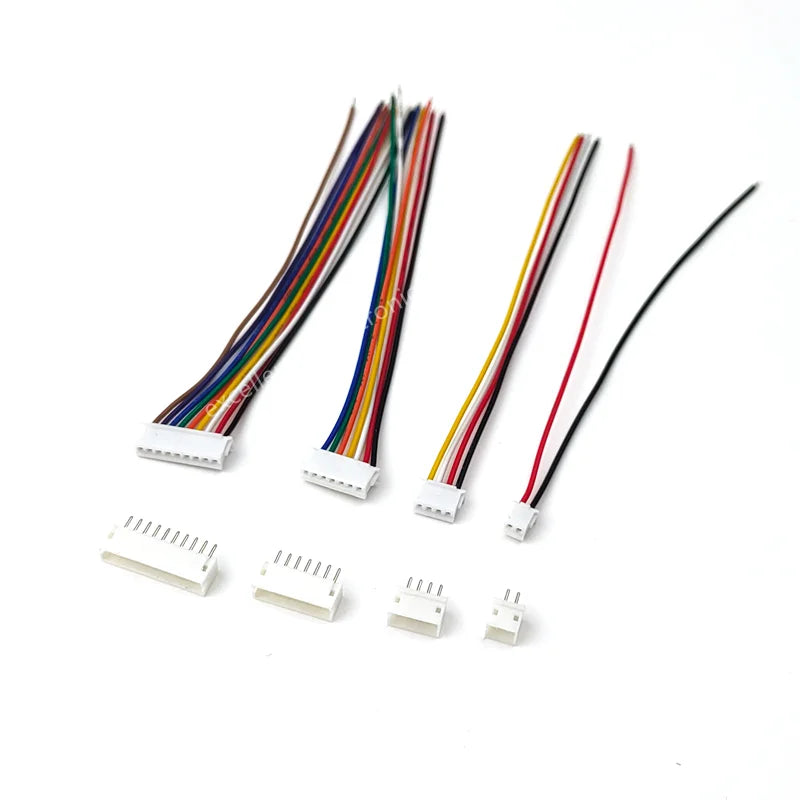

Pin Configurations: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 Pin
Wire Length: 100mm (approx. 3.94 inches)
Wire Gauge: UL1007 28AWG
Operating Voltage: Up to 48V (Low Voltage: Below 50VAC or 75VDC)

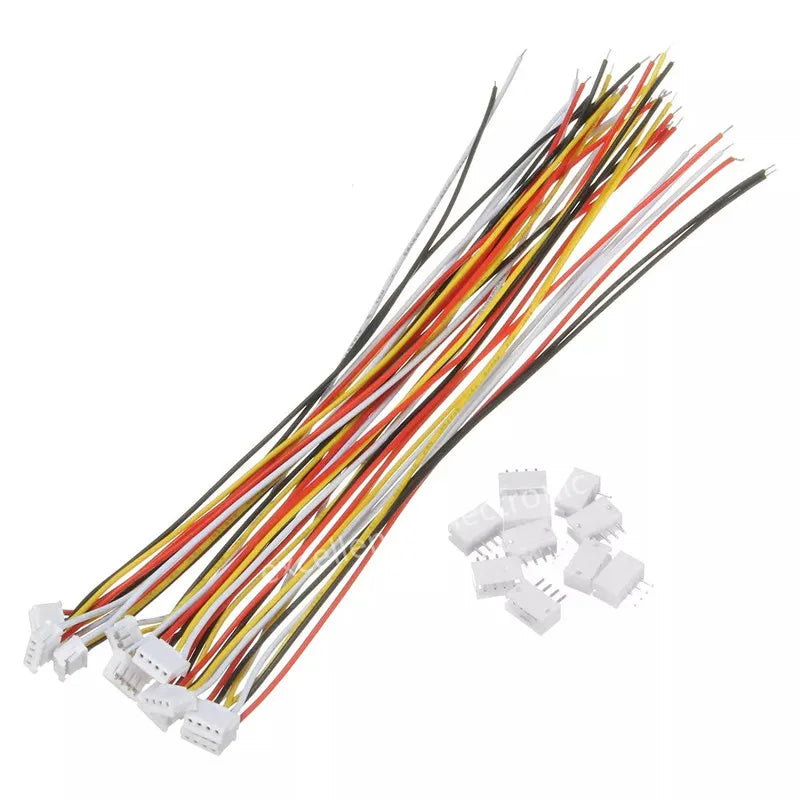

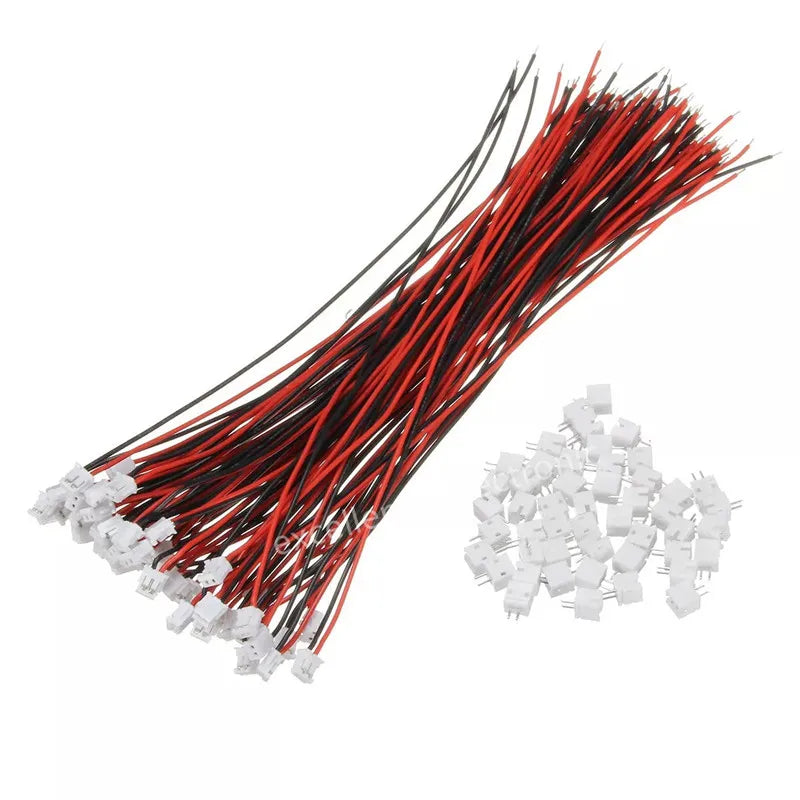

Quantity: 10 complete sets (plug + socket with wires)
Certification: CE
No battery or wireless module included

Why Choose This JST ZH Connector Kit?

Versatile Pin Range: Covers 2 through 10 pin configurations in a single purchase — perfect for mixed-pin projects.
Pre-Wired Convenience: Each connector arrives fully assembled with 100mm wires, saving you crimping time.
Reliable Locking Mechanism: ZH series connectors feature a positive locking tab to prevent accidental disconnection.
Compact 1.5mm Pitch: Ideal for space-constrained PCBs, sensors, and small electronics.
CE Certified: Meets European safety and quality standards for low-voltage components.
10 Complete Sets: Stock up your parts bin for multiple builds or repairs at once.

Common Applications

DIY electronics and maker projects
RC vehicles, drones, and aircraft battery wiring
Microcontroller and development board connections
Sensor and module wiring harnesses
3D printer electronics
Robotics and automation systems

Made in Mainland China.

Learn More About Electronics Safety Standards

For guidance on electrical component safety and compliance, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the pitch size of these ZH JST connectors?

A: These connectors feature a 1.5mm pitch, which is the standard ZH series spacing. This compact pitch makes them well-suited for tight PCB layouts and small electronic assemblies.

Q: What pin configurations are included in this 10-set kit?

A: The kit covers all pin counts from 2 to 10 pins — that's 2, 3, 4, 5, 6, 7, 8, 9, and 10 pin variants — giving you maximum flexibility for different connector needs in a single order.

Q: What wire gauge are the pre-attached cables?

A: Each connector set comes pre-wired with UL1007 28AWG wire at 100mm (approximately 3.94 inches) in length, suitable for low-current signal and power connections up to 48V.

Q: Are male and female connectors both included?

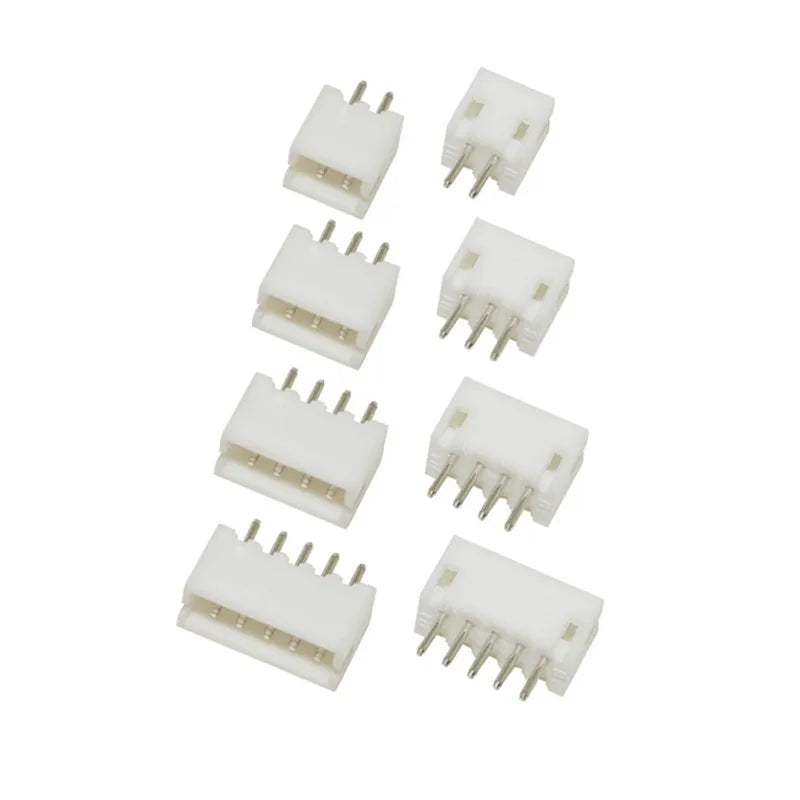

A: Yes, each set includes both the plug (male housing with pins) and the socket (female housing with receptacles), so you receive a complete mated connector pair with wires for each pin configuration.
