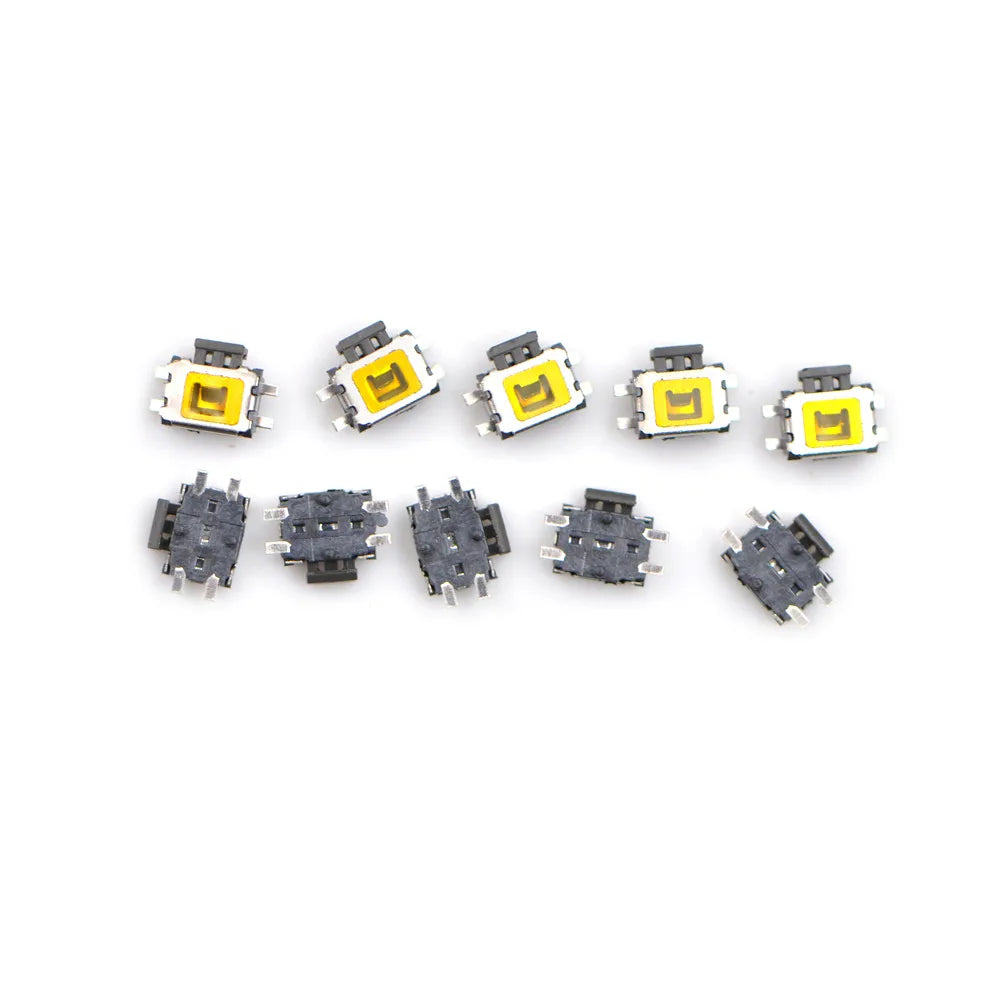

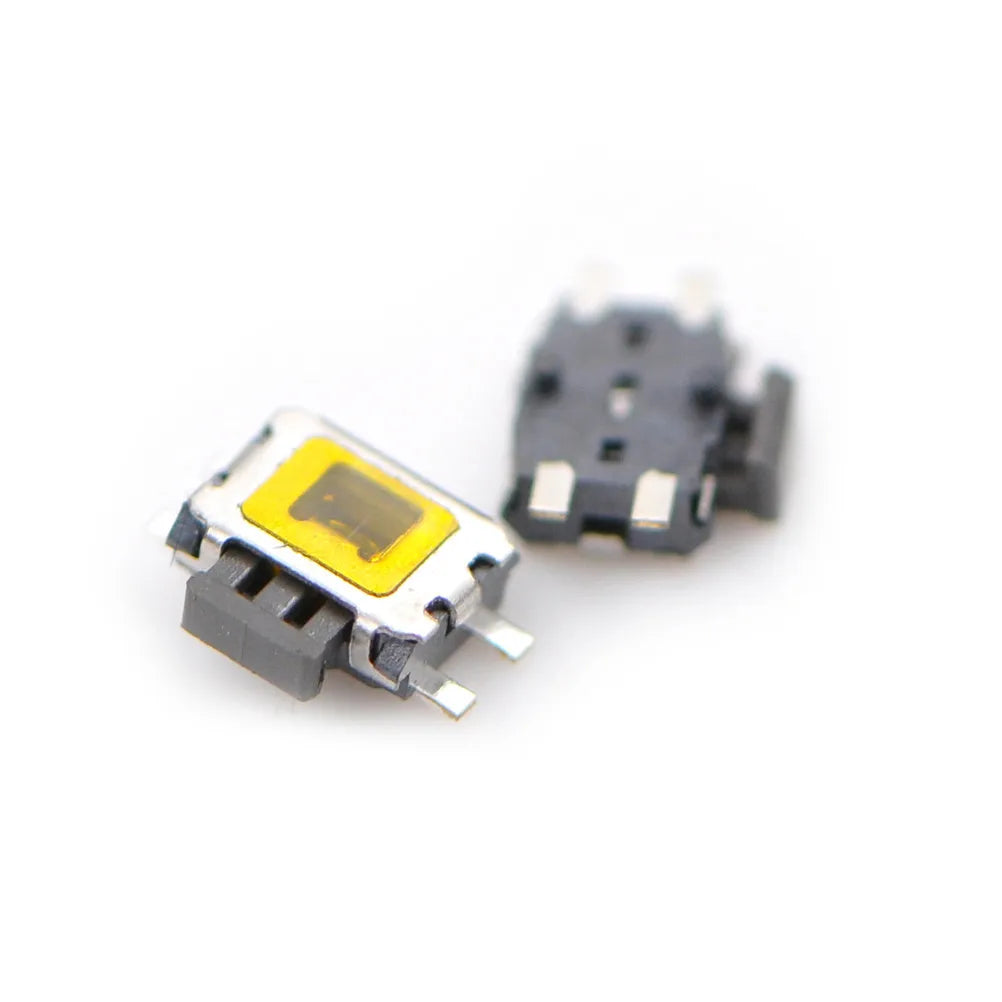

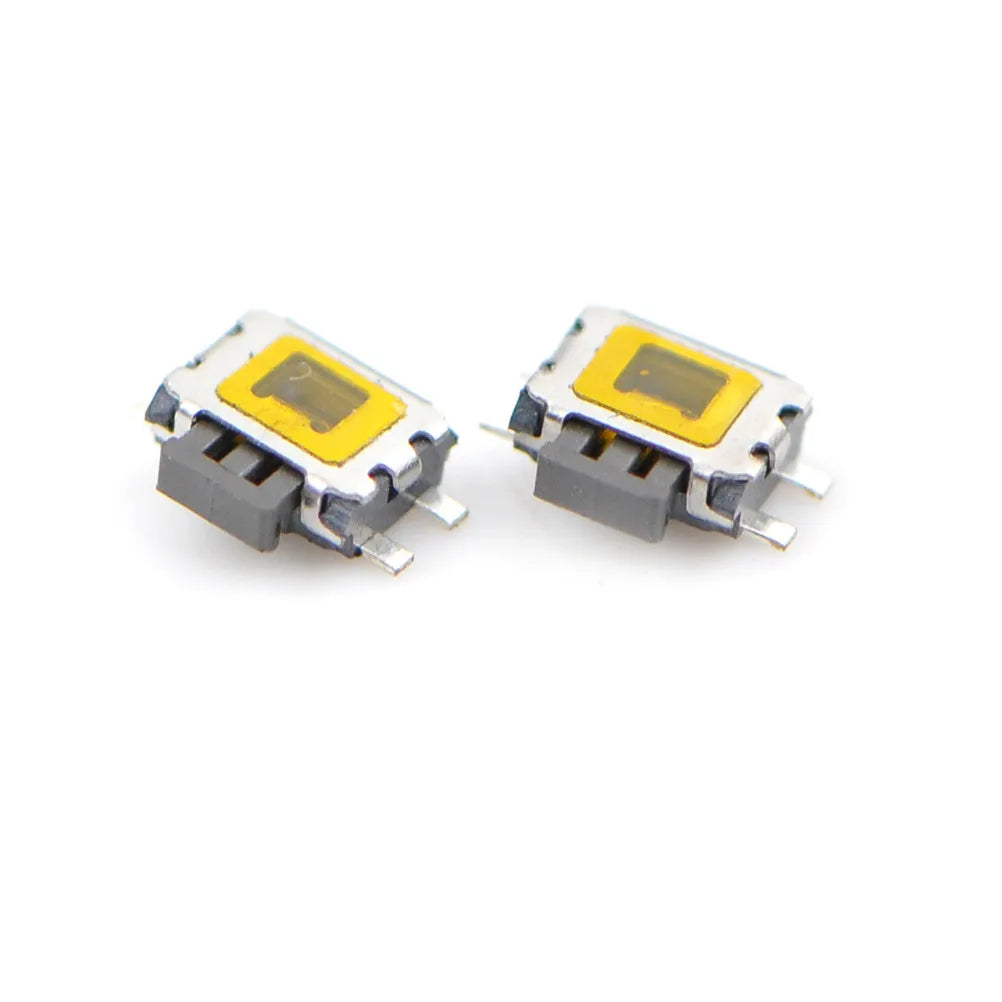

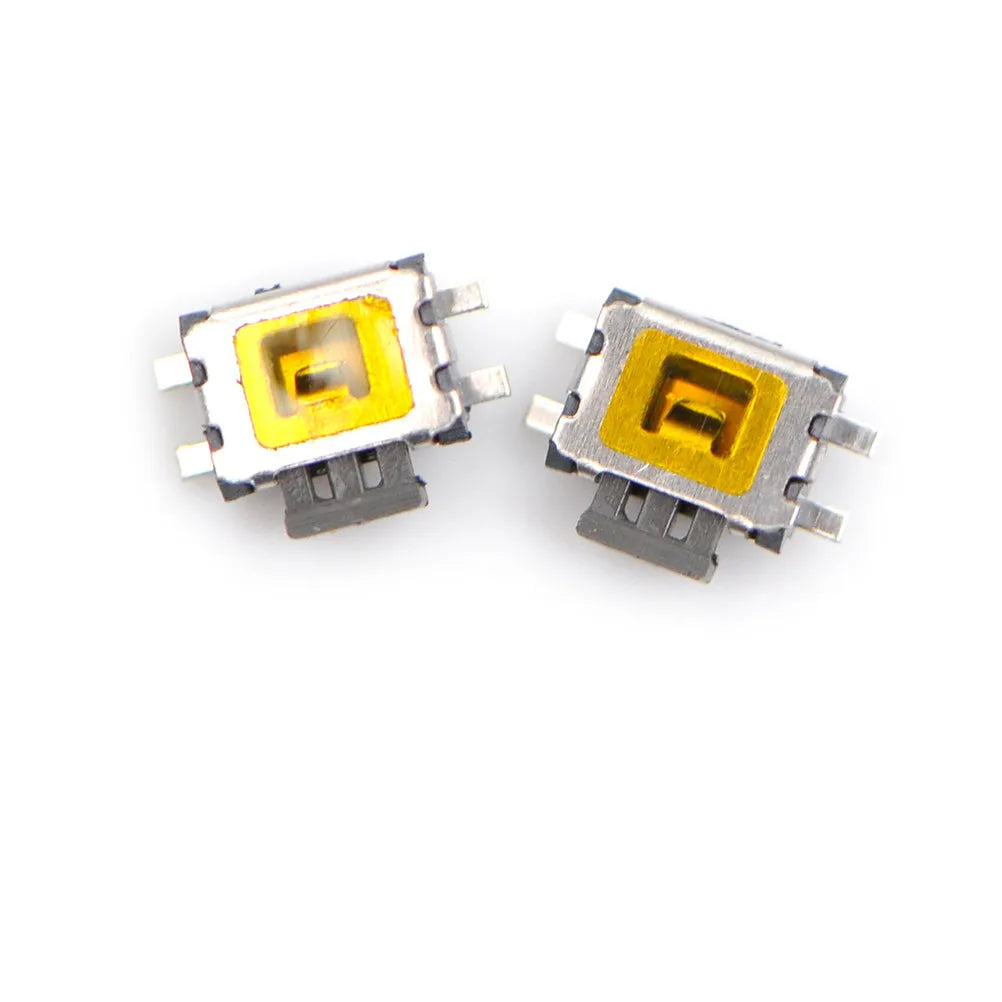

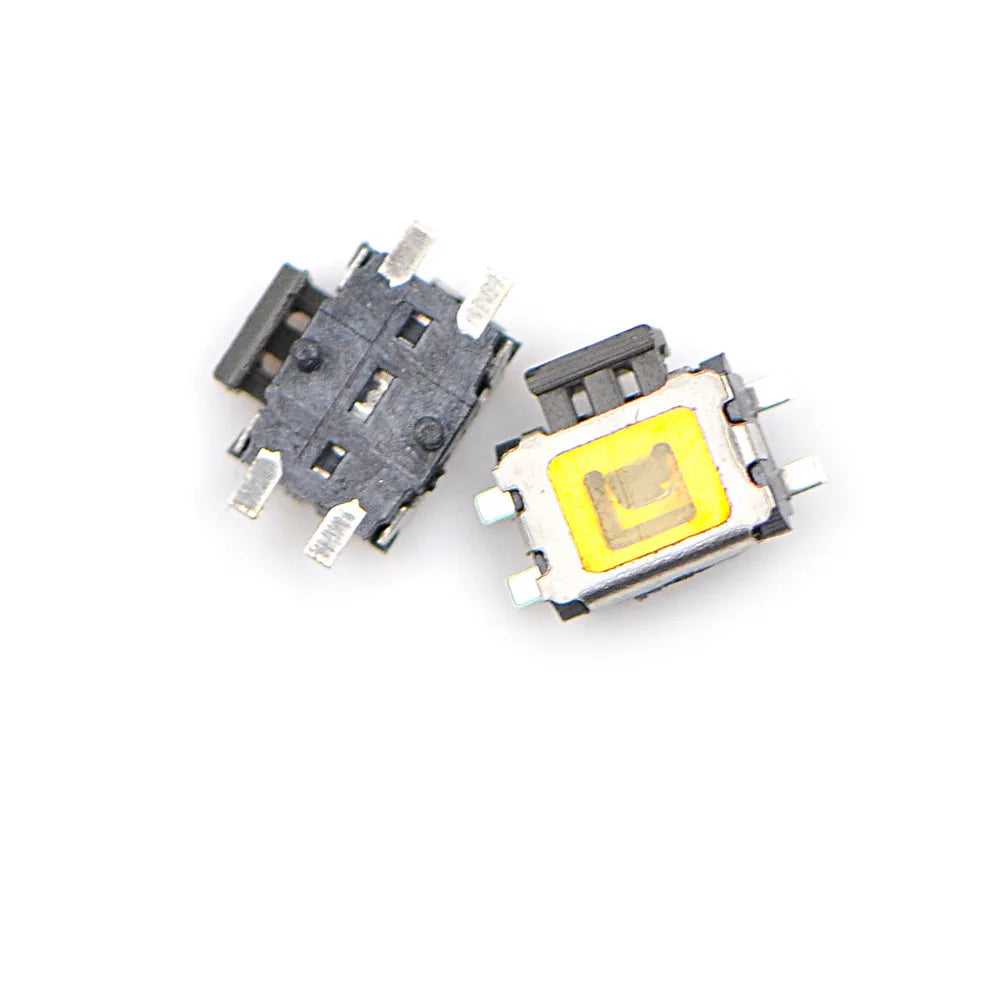

YD-3414 4-Pin SMD Side Tactile Push Button Switch — 10-Pack
Keep your electronics projects running smoothly with this 10-pack of YD-3414 4-Pin SMD Side Tactile Push Button Switches. Designed for surface-mount (SMT/SMD) applications, these compact side-actuated micro switches are ideal for PCB assembly, prototyping, consumer electronics repair, and DIY maker projects. Their low-profile "turtle type" form factor makes them a perfect fit for space-constrained circuit board layouts where a top-actuated switch simply won't do.
Made in Mainland China.
Key Specifications
- Model: YD-3414
- Pin Count: 4-Pin SMD (Surface Mount)
- Switch Type: Side Tact / Micro Switch
- Operating Temperature: -10°C to +60°C
- Rated Load: DC 12V / 0.5A
- Contact Resistance: ≤ 30 mΩ
- Insulation Resistance: ≥ 200 MΩ
- Withstand Voltage: AC 250V (50Hz) for 1 min
- Actuation Force: 100–300 gf
- Rated Lifespan: 10,000 actuations
- Certification: CCC
- Quantity: 10 pieces per lot
Why Choose These SMD Side Tact Switches?
- ✅ Side-Mount Design: Actuated from the side, ideal for slim or layered PCB assemblies.
- ✅ Reliable Contact: Ultra-low contact resistance ensures consistent, clean signal switching every time.
- ✅ Long Service Life: Rated for 10,000 cycles so your builds stay dependable over time.
- ✅ Wide Compatibility: Works with standard SMT/SMD reflow soldering processes.
- ✅ Value Pack: 10 switches per lot — great for stocking your parts drawer or completing a full production run.
Common Applications
- PCB prototyping and hobbyist maker boards
- Consumer electronics repair and modification
- Wearable electronics and compact device design
- Remote controls, handheld devices, and IoT gadgets
What's in the Box?

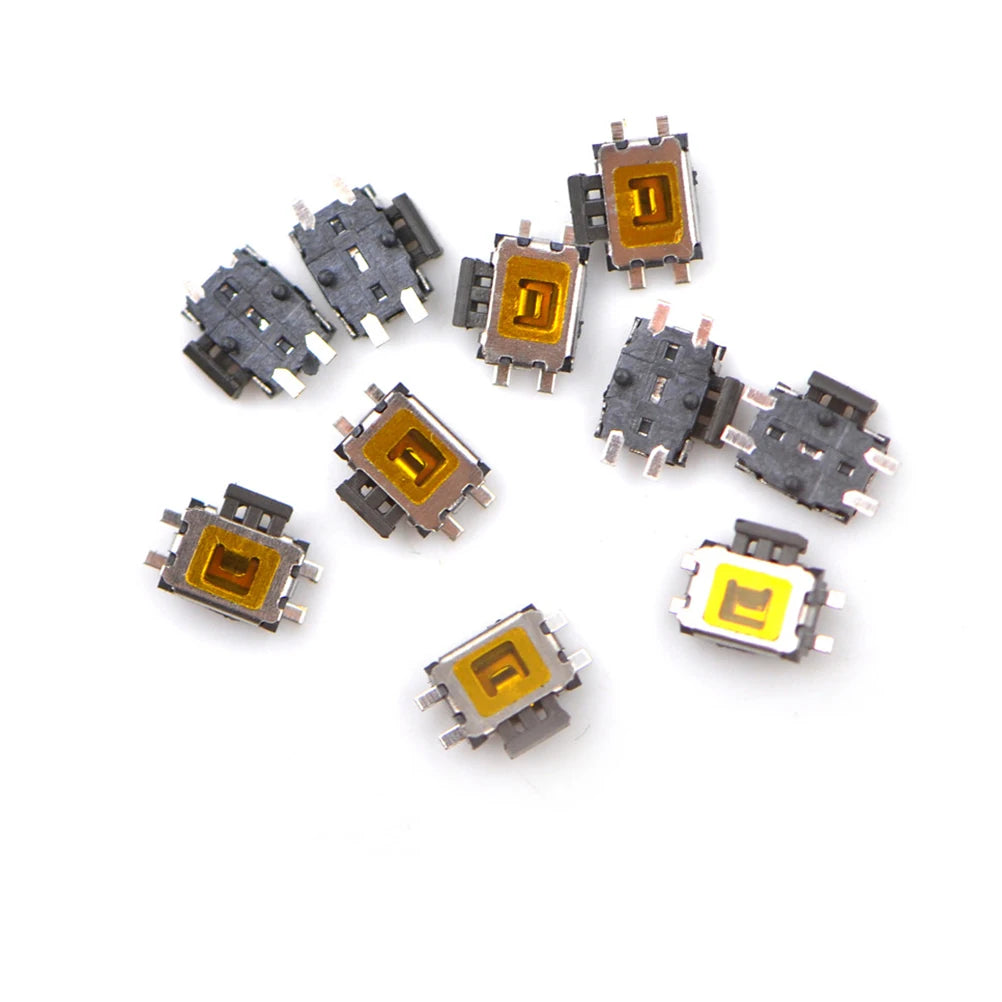

10 × YD-3414 4-Pin SMD Side Tact Tactile Push Button Switches
Related Products You May Like
- "1% Better Every Day" Motivational Canvas Poster | Wall Art
- "Everything Is Figureoutable" Sage Green Quote Canvas Wall Art
Learn More About Electronic Components & Safety
For information on electrical component safety standards and consumer product compliance, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What does "SMD side tact switch" mean?
A: SMD stands for Surface Mount Device — these switches are soldered directly onto the surface of a PCB rather than through holes. "Side tact" means the button is actuated from the side of the component rather than the top, making them ideal for slim or horizontal-button layouts on circuit boards.
Q: What voltage and current can the YD-3414 handle?
A: Each YD-3414 switch is rated for DC 12V at 0.5A. They are designed for low-power signal switching applications such as microcontroller inputs, reset buttons, and mode-select functions — not for high-current power switching.
Q: Are these switches compatible with standard reflow soldering?
A: Yes. The YD-3414 switches use a standard SMD footprint and are compatible with typical SMT reflow soldering processes. Always ensure your reflow temperature profile stays within the component's rated operating range (-10°C to +60°C ambient).
Q: How many switches are included in one order?
A: Each listing includes 10 pieces (one lot) of the YD-3414 4-Pin SMD Side Tactile Push Button Switch, giving you plenty of components for prototyping or small production runs.
