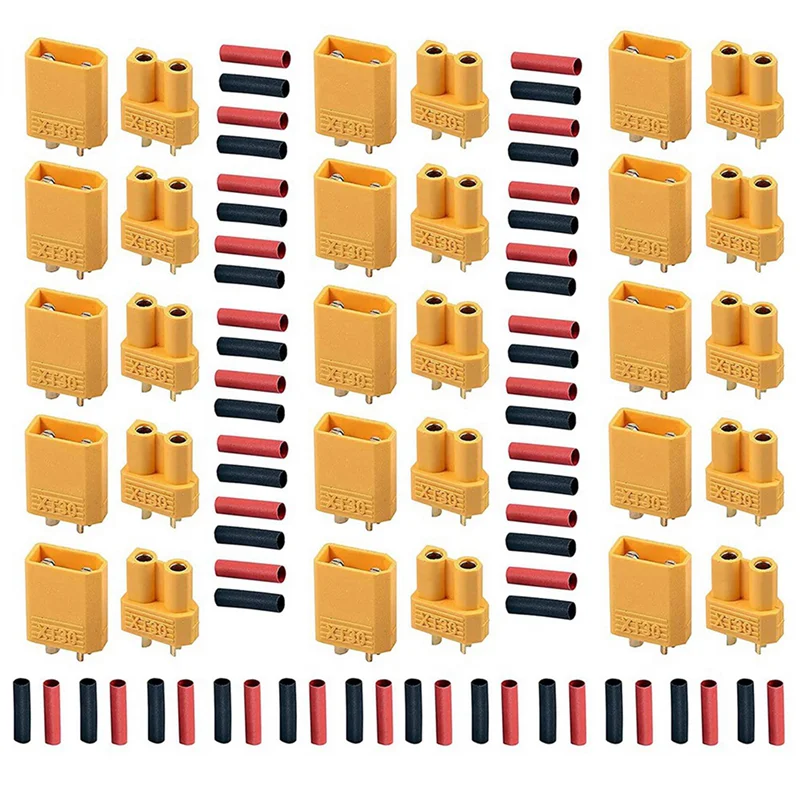

XT30U Battery Connectors 30 Pairs Male Female + Heat Shrink

XT30U Battery Connectors – 30 Pairs Male & Female with Heat Shrink Tubing

Power your RC drones, aircraft, cars, and LiPo battery builds with confidence using these XT30U gold-plated battery connectors. This value pack includes 30 pairs of male and female XT30 plugs plus 120 pieces of color-coded heat shrink tubing, giving you everything you need for clean, secure electrical connections in one kit.

Key Features

• Lightweight, Compact Design: Small footprint with high current capacity — ideal where space and weight matter most, such as RC aircraft and drones.
• Humanized Semi-Circular Tail: The 180° outward-facing seam makes soldering comfortable and precise every time.
• Gold-Plated Brass Contacts: Ensures excellent conductivity and corrosion resistance for long-lasting, reliable connections.
• High-Grade PA66 Nylon Insulation: High-temperature resistant housing stands up to demanding environments from -20°C to 120°C.
• Strong High-Current Capacity: Rated at 15A continuous, 30A short-time, with a rated voltage of DC 500V — handles demanding applications up to 20A and beyond.

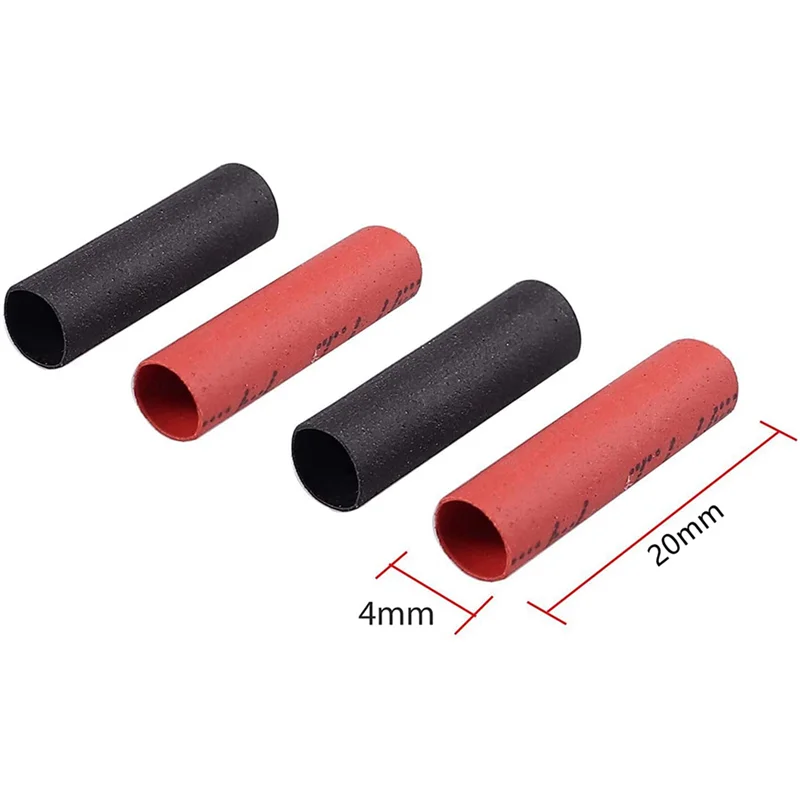

• Color-Coded Heat Shrink Tubing: 60 red and 60 black tubes included for clean, professional, and polished wire terminations.
• Broad Compatibility: Perfect for RC LiPo batteries, drones, aircraft, cars, vehicles, and other hobby electronics requiring a secure low-voltage DC connection.

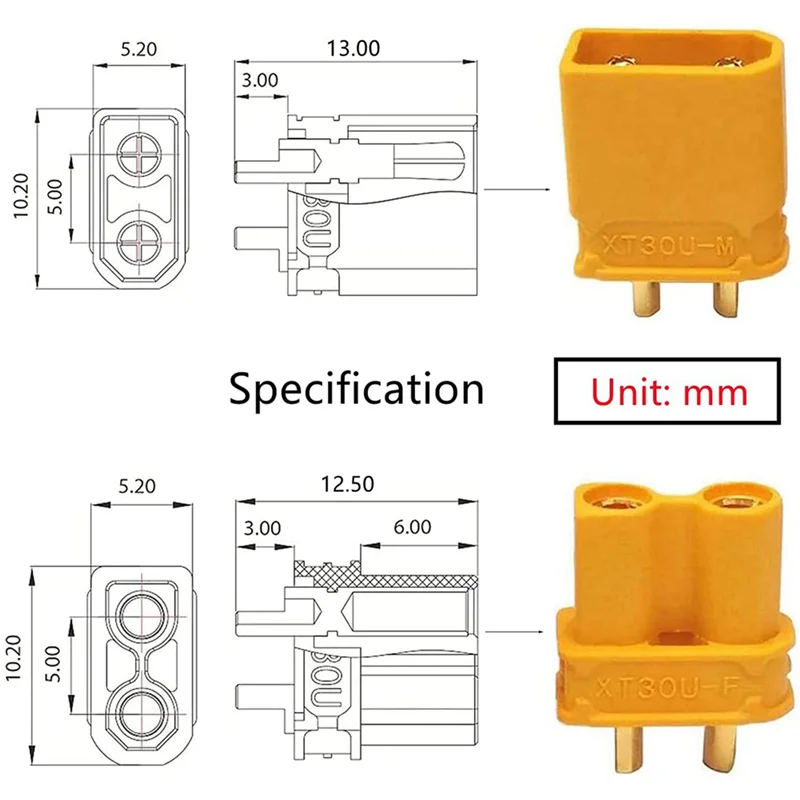

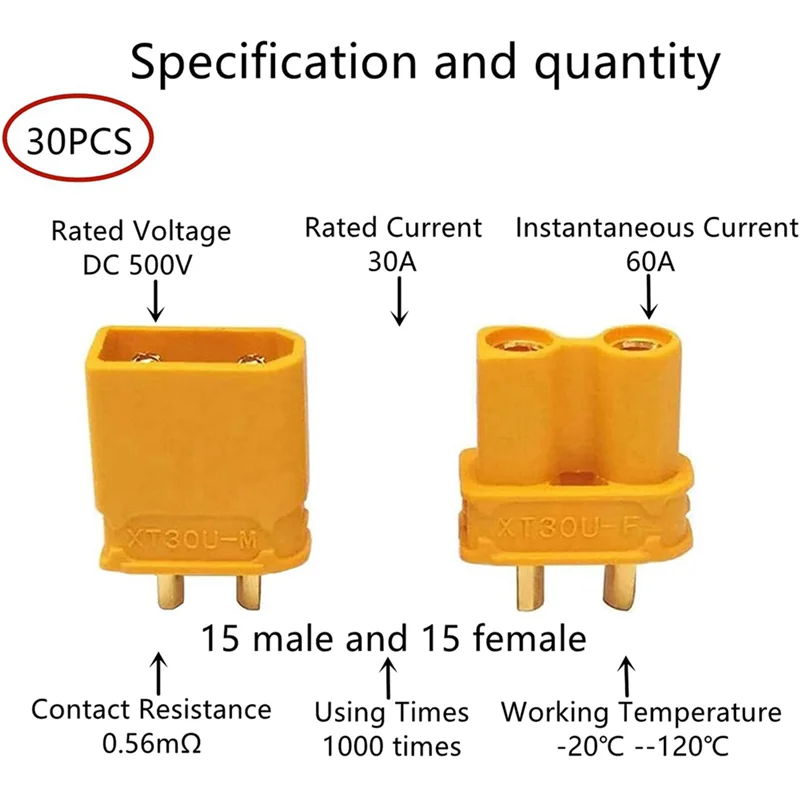

Specifications

• Connector Type: XT30U Male & Female
• Material: Gold-plated brass contacts + PA66 nylon housing
• Rated Voltage: DC 500V
• Rated Current: 15A (continuous); 30A (short-time)
• Operating Temperature: -20°C to 120°C
• Color: Yellow
• EU LVD Voltage: Low voltage (below 50Vac or 75Vdc)

What's in the Box

• 30 × XT30U Male Connectors
• 30 × XT30U Female Connectors
• 60 × Black Heat Shrink Tubing
• 60 × Red Heat Shrink Tubing

Made in Mainland China.

Looking for more electrical and hobby electronics essentials? Check out our Wall Art Prints for your workshop, or browse our full range of Graphic Tees for hobbyists.

For guidance on safe electrical connector usage and low-voltage wiring standards, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Are these XT30U connectors compatible with standard XT30 plugs?

A: Yes, the XT30U is fully compatible with standard XT30 connectors. The "U" variant features the same pin configuration and sizing, making them interchangeable with existing XT30 male and female connectors used in RC drones, aircraft, and LiPo battery applications.

Q: Do I need to solder these XT30U battery connectors?

A: Yes, these are solder-type connectors. The humanized semi-circular 180° tail design makes the soldering process more comfortable and accessible, even for beginners. The included heat shrink tubing helps you finish each connection cleanly and securely.

Q: What current and voltage can these connectors handle?

A: These XT30U connectors are rated at 15A continuous current and 30A short-time current, with a rated voltage of DC 500V. They are well-suited for RC hobby applications including LiPo battery packs, drones, cars, and small aircraft typically operating below 75Vdc.

Q: How many connectors come in this pack?

A: This pack includes 30 pairs — that's 30 male and 30 female XT30U connectors — plus 60 red and 60 black heat shrink tubes (120 pieces total), providing a complete connection solution for multiple builds or repairs.
