GGBEE RF433MHz Wireless Light Switch Kit – 1/2/3 Gang Wall Panel + Receiver, 10A, 50-100m Range, No Wiring

GGBEE RF433MHz Wireless Light Switch Kit – 1/2/3 Gang Wall Panel + Receiver, 10A, 50-100m Range, No Wiring

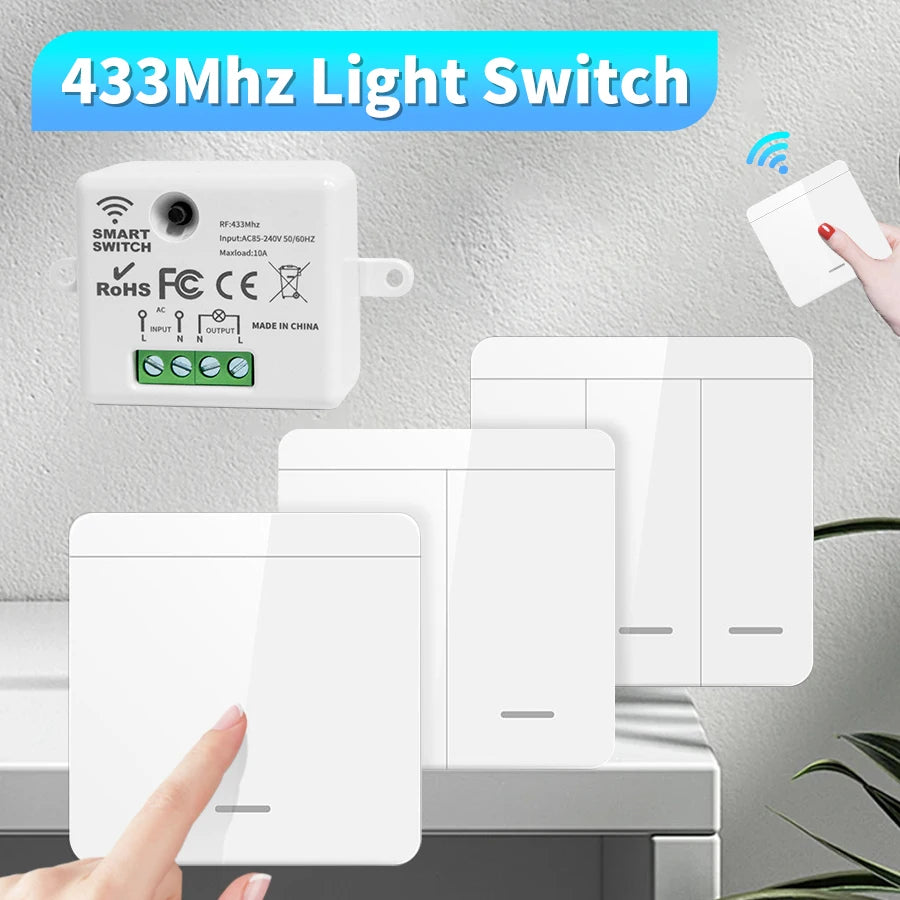

Add wireless switch control to any light, ceiling fan, or chandelier without running new wires. This GGBEE RF433MHz wireless switch kit includes a receiver module that wires into your existing circuit and an 86-type wall panel transmitter that sticks anywhere — no wiring, no drilling required for the switch itself. Available in 1, 2, or 3 gang configurations to control one, two, or three circuits independently.

Note: This is an RF-only switch — no WiFi, no app, no hub required. Control is via the included RF433MHz wall panel remote only.

Key Features

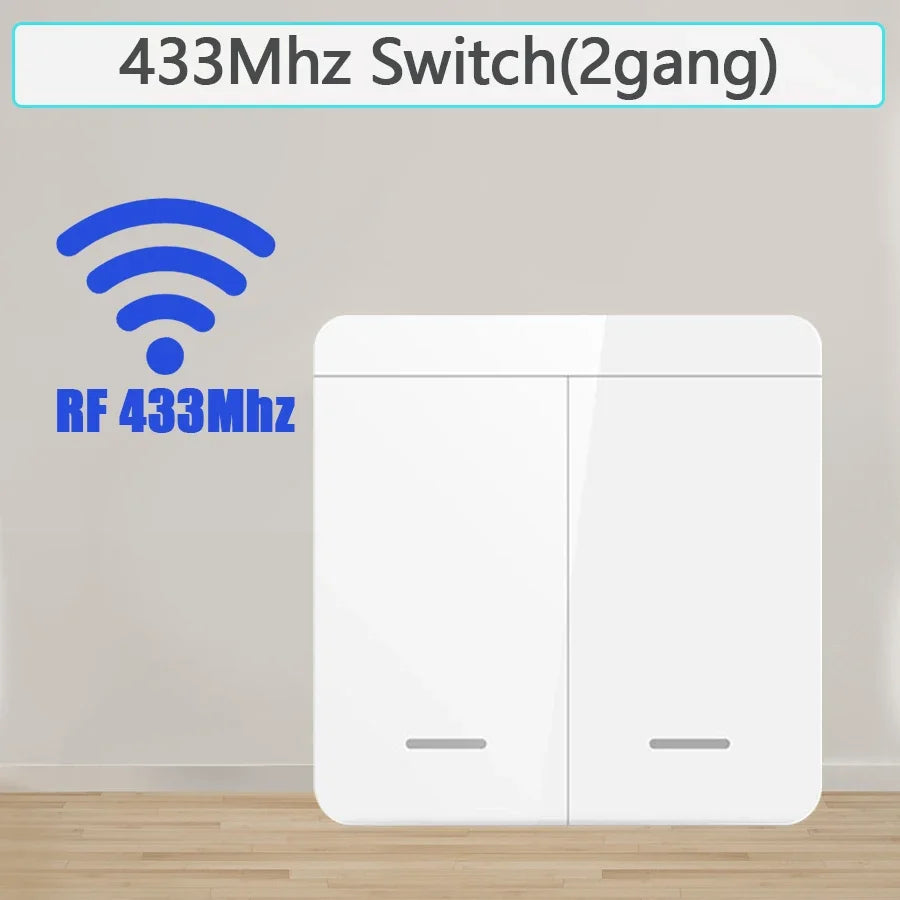

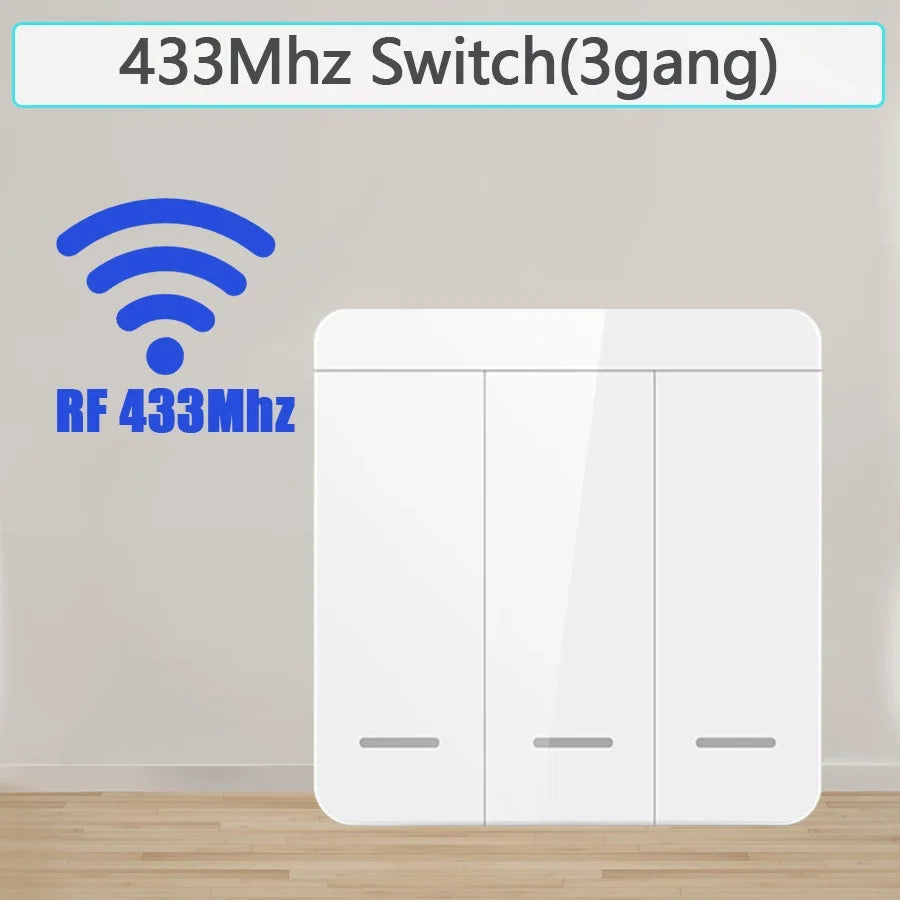

• 1/2/3 Gang Options: Choose single, double, or triple gang to control one, two, or three light circuits independently
• Long RF Range: Up to 50m indoors and 100m outdoors — through-wall signal for whole-home coverage
• No New Wiring for the Switch: The 86-type wall panel transmitter is battery-powered and self-adhesive — stick it anywhere without running cables
• Wide Voltage Compatibility: Receiver works on AC 85–240V, 50/60Hz — compatible with US and international electrical systems
• 10A Load Capacity: Supports LED, CFL, and fluorescent loads up to 300W; other loads (incandescent, motor) up to 2500W

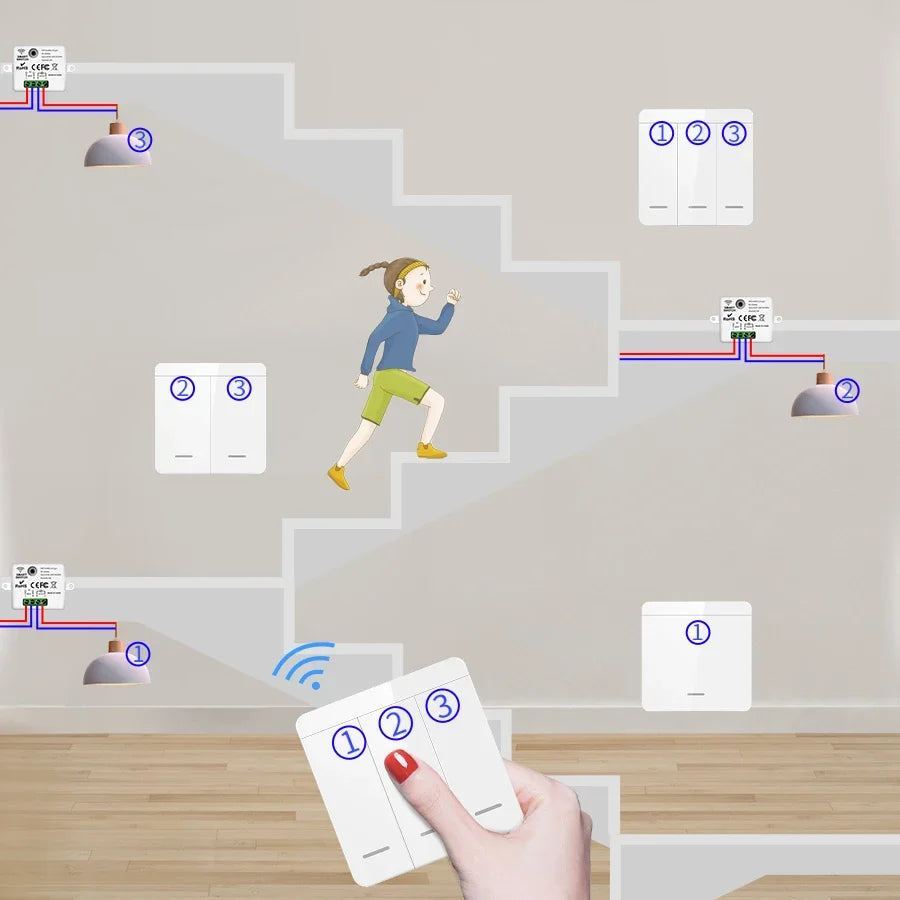

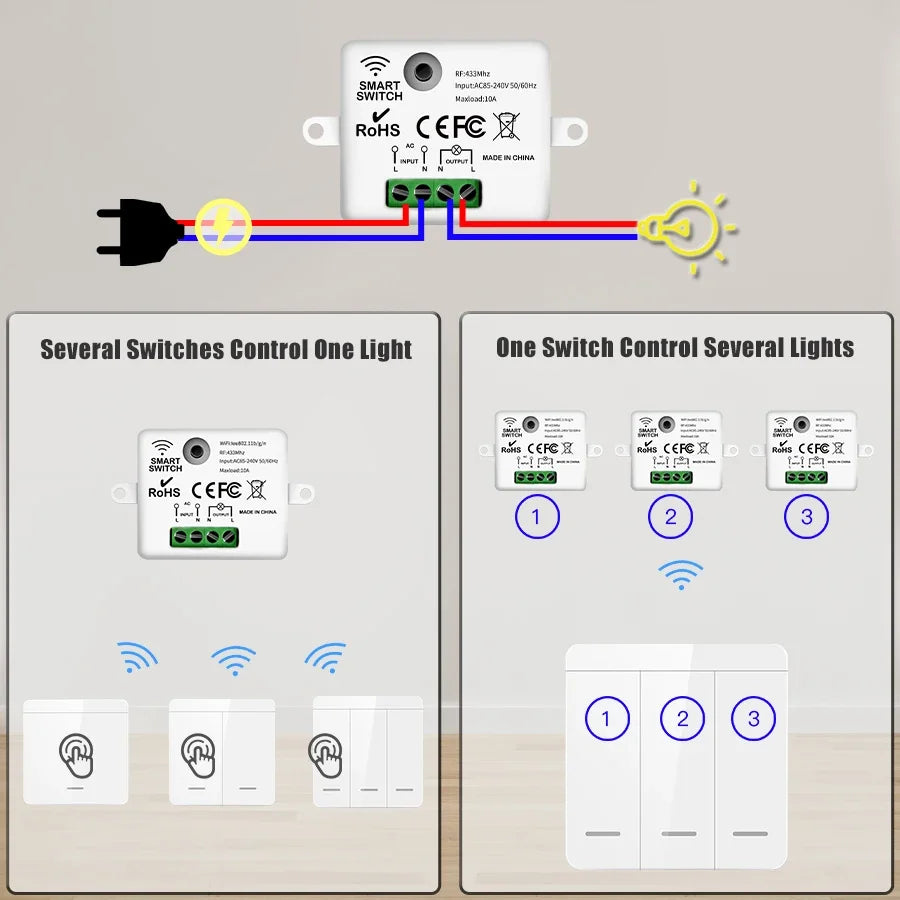

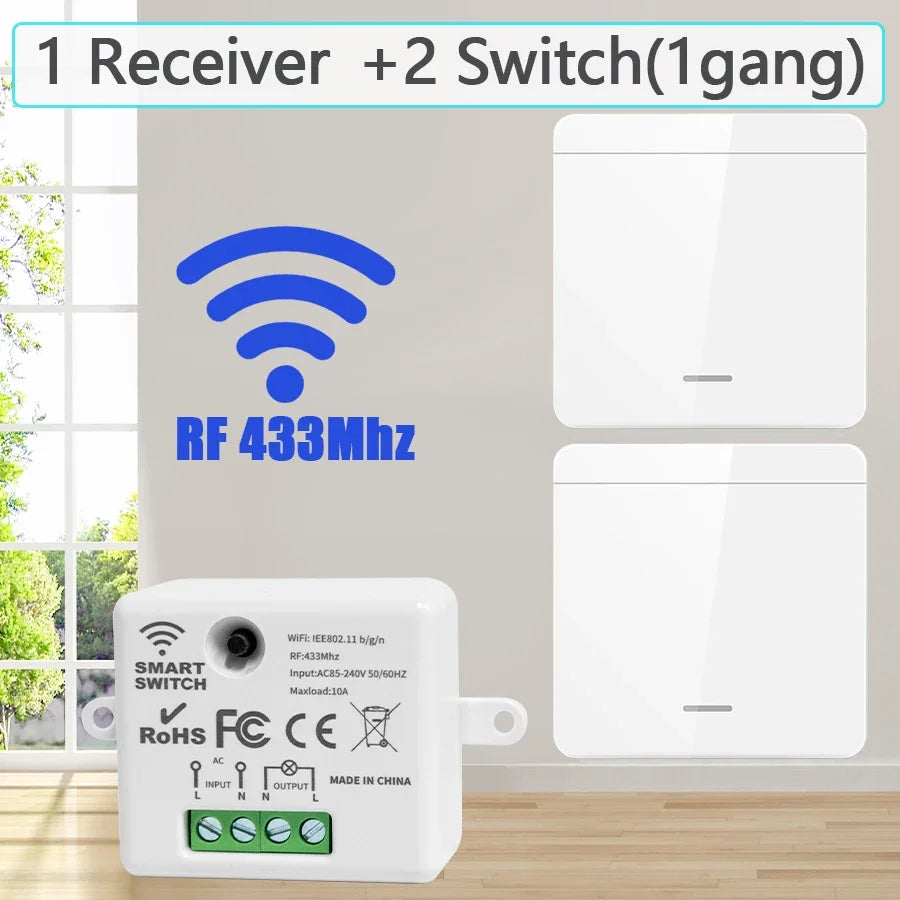

• Multi-Switch Control: Multiple wall panels can control the same receiver — ideal for multi-point switching (e.g., top and bottom of stairs)
• EV1527 Learning Code: Universal learning code compatible with most RF433MHz receivers
• Ultra-Low Standby Power: Receiver <0.3W; transmitter <1μA standby
• CE Certified

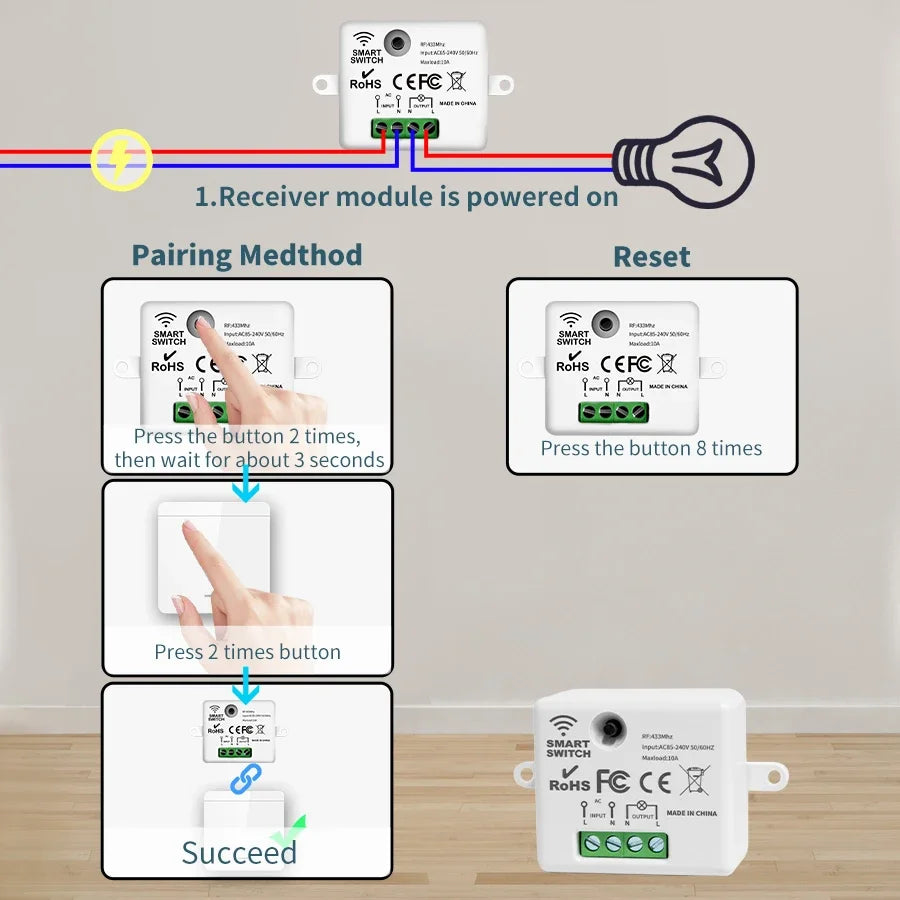

Pairing Instructions

To pair the wall panel to the receiver:

1. Press the learning button on the Receiver twice — wait 3 seconds
2. Press one button on the wall panel remote — wait 3 seconds. Pairing complete.

To clear all paired remotes:

1. Press the learning button on the Receiver 8 times — wait 3 seconds

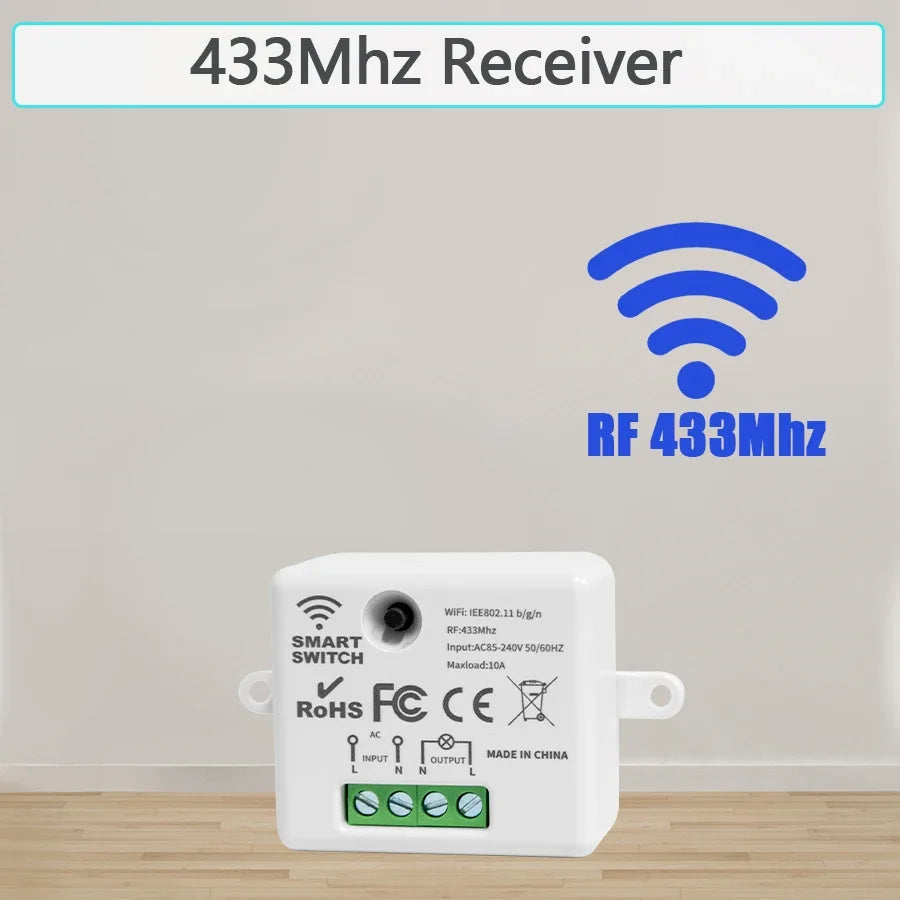

Specifications – Receiver

• Brand: GGBEE
• Working Voltage: AC 85–240V, 50/60Hz
• Frequency: 433MHz
• Max Current: 10A
• Max Load: <1100W (general); LED/CFL/Fluorescent max 300W; other loads max 2500W
• Standby Power: <0.3W
• Sensitivity: -108dBm
• Modulation: ASK
• Coding: Learning code
• Operating Temp: -10°C to +70°C
• Size: 47.4 x 42 x 22.8 mm
• Certification: CE

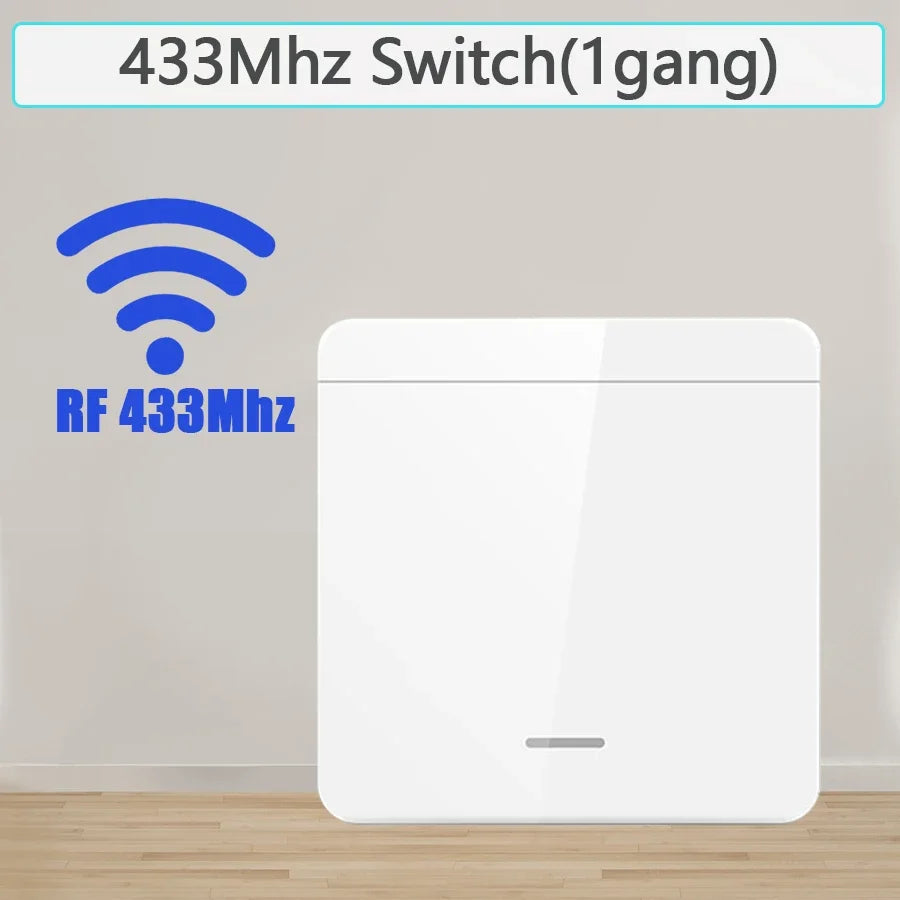

Specifications – Wall Panel Transmitter

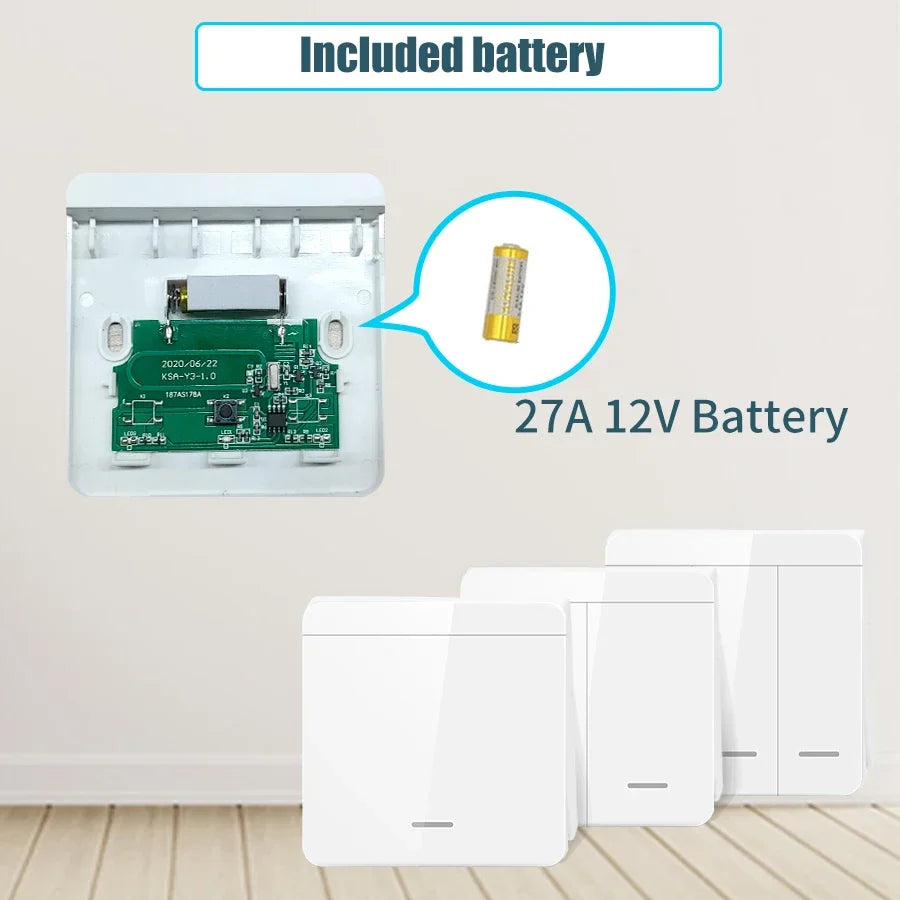

• Working Voltage: DC 3V
• Frequency: 433MHz
• Transmit Power: <10mW
• Standby Power: <1μA
• Modulation: ASK
• Coding: EV1527 learning code
• Range: 50m indoor / 100m outdoor
• Operating Temp: -10°C to +70°C
• Size: 86 x 86 x 15 mm (standard 86-type wall plate)

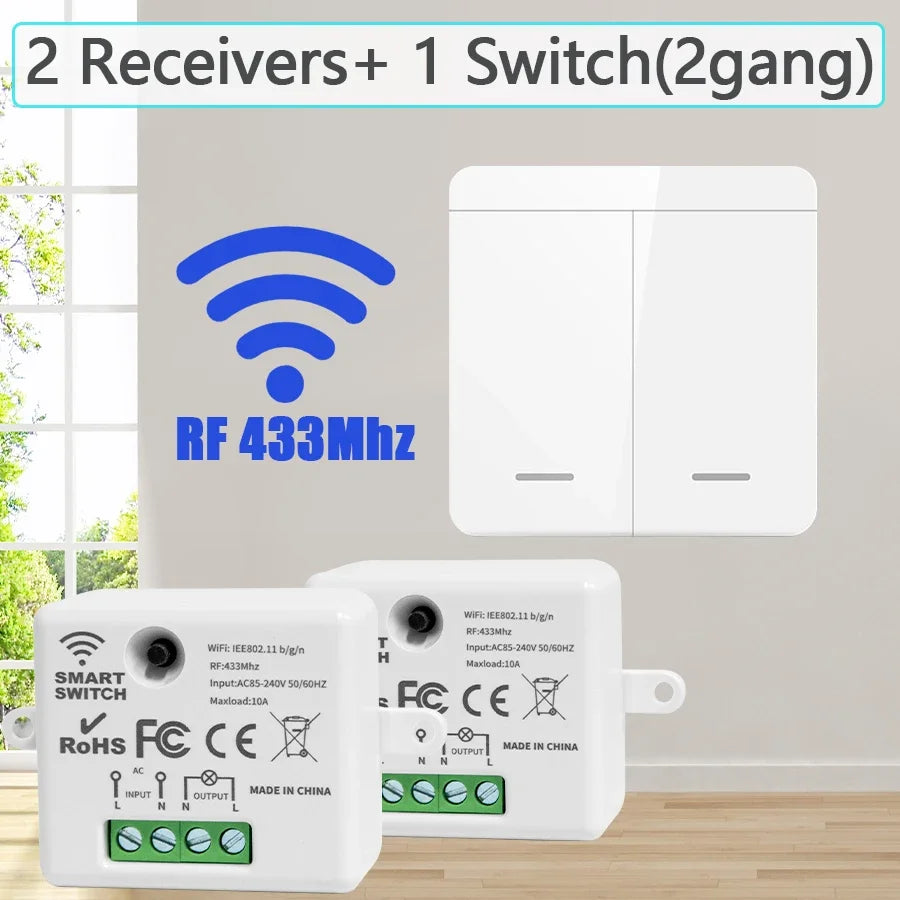

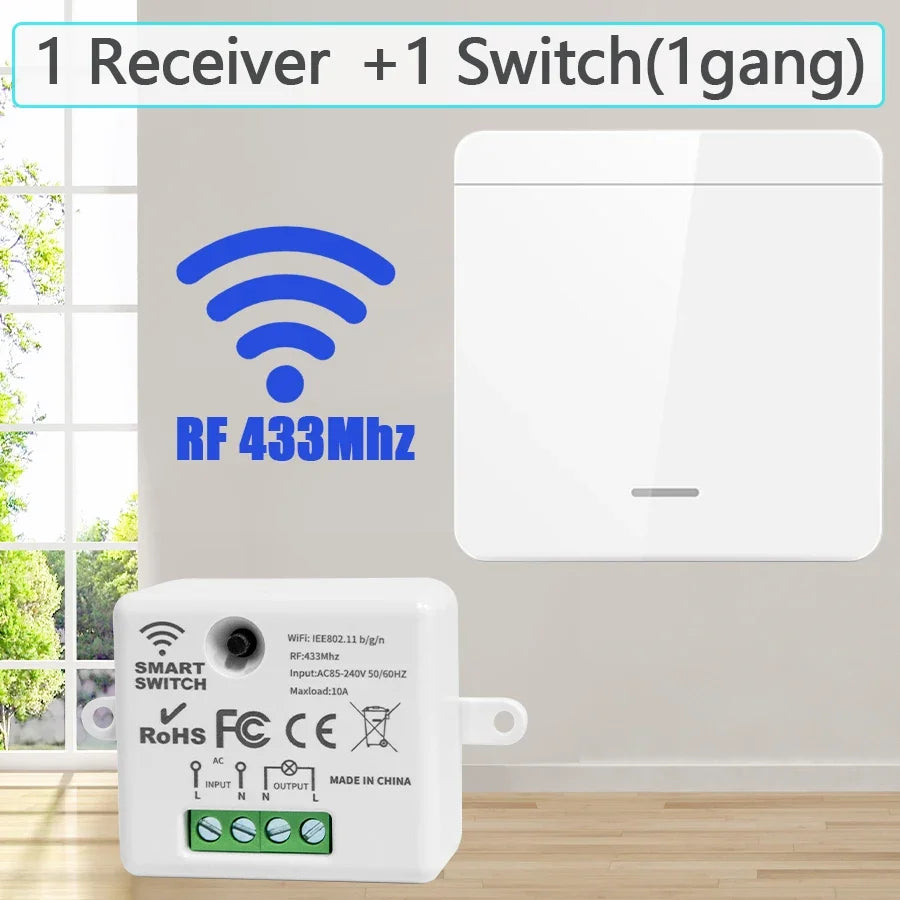

What's Included

• 1x RF433MHz Receiver Module
• 1x RF433MHz Wall Panel Transmitter (1, 2, or 3 gang — per selected option)

Perfect for adding wireless switching to lights, ceiling fans, and chandeliers in any room — without the cost or disruption of rewiring. Ideal for multi-point switching, rental properties, and anywhere new wiring isn’t practical.

Shop More Wellness & Home Essentials

Explore our full range of wellness and lifestyle products at Peaceful Pleasures Health and Wellness. For wireless switch installation tips, visit Family Handyman’s Guide to Wireless Light Switches.

These statements have not been evaluated by the Food and Drug Administration. This product is not intended to diagnose, treat, cure, or prevent any disease.

Kit de Interruptor de Luz Inalámbrico RF433MHz GGBEE – Panel de Pared de 1/2/3 Canales + Receptor, 10A, Alcance 50-100m, Sin Cableado

Añade control de interruptor inalámbrico a cualquier luz, ventilador de techo o araña sin necesidad de nuevos cables. Este kit de interruptor inalámbrico RF433MHz GGBEE incluye un módulo receptor que se conecta a tu circuito existente y un transmisor de panel de pared tipo 86 que se adhiere en cualquier lugar.

Nota: Este es un interruptor solo RF — sin WiFi, sin app, sin hub necesario.

Características Principales

• Opciones de 1/2/3 Canales: Controla uno, dos o tres circuitos de luz de forma independiente
• Largo Alcance RF: Hasta 50m en interiores y 100m en exteriores
• Sin Nuevo Cableado para el Interruptor: El transmisor de panel de pared funciona con batería y es autoadhesivo
• Amplia Compatibilidad de Voltaje: CA 85–240V, 50/60Hz
• Capacidad de Carga 10A: LED/CFL/Fluorescente hasta 300W; otras cargas hasta 2500W
• Control Multi-Interruptor: Múltiples paneles de pared pueden controlar el mismo receptor
• Código de Aprendizaje EV1527: Compatible con la mayoría de receptores RF433MHz
• Consumo en Reposo Ultra Bajo
• Certificado CE

Instrucciones de Emparejamiento

1. Presiona el botón de aprendizaje en el Receptor dos veces — espera 3 segundos
2. Presiona un botón en el panel de pared — espera 3 segundos. Emparejamiento completo.

Para borrar: Presiona el botón de aprendizaje 8 veces — espera 3 segundos.

Especificaciones – Receptor

• Voltaje: CA 85–240V, 50/60Hz
• Frecuencia: 433MHz
• Corriente Máxima: 10A
• Temperatura de Trabajo: -10°C a +70°C
• Tamaño: 47.4 x 42 x 22.8 mm

Especificaciones – Transmisor de Panel de Pared

• Voltaje: CC 3V
• Frecuencia: 433MHz
• Alcance: 50m interior / 100m exterior
• Tamaño: 86 x 86 x 15 mm

Contenido del Paquete

• 1x Módulo Receptor RF433MHz
• 1x Transmisor de Panel de Pared RF433MHz (1, 2 o 3 canales según opción seleccionada)
