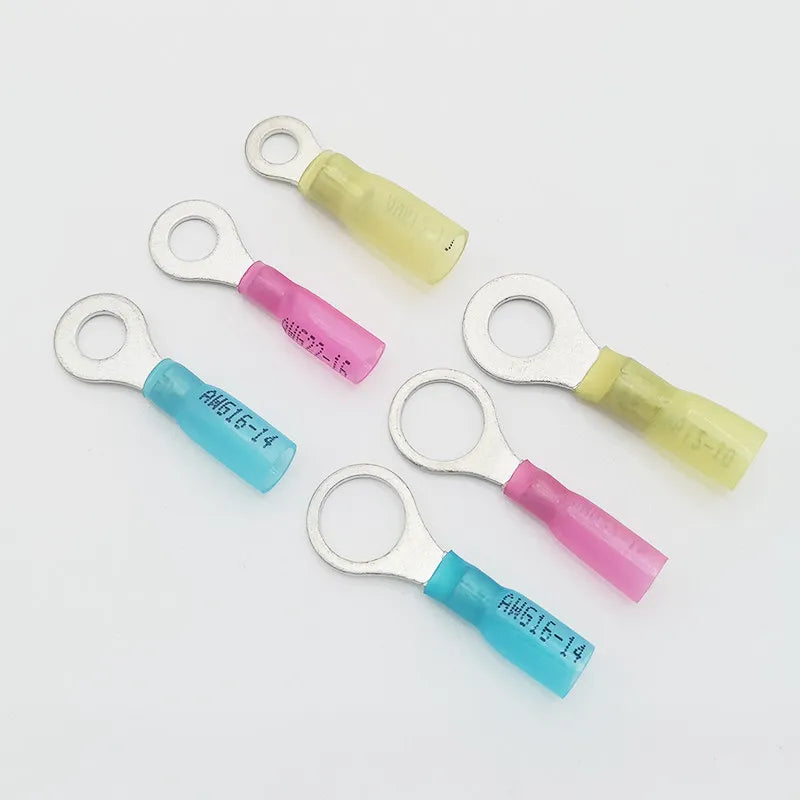

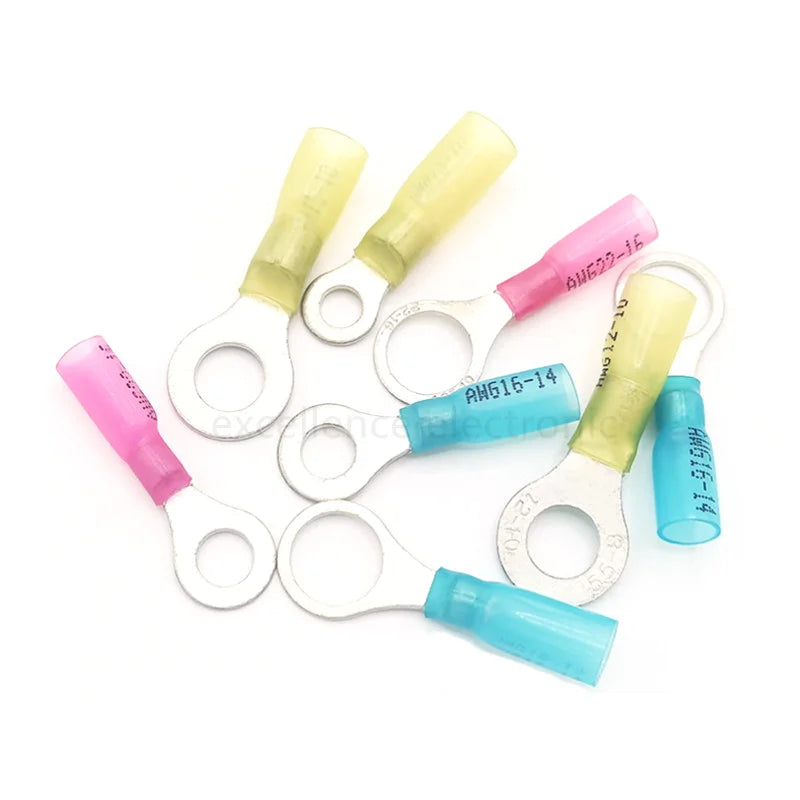

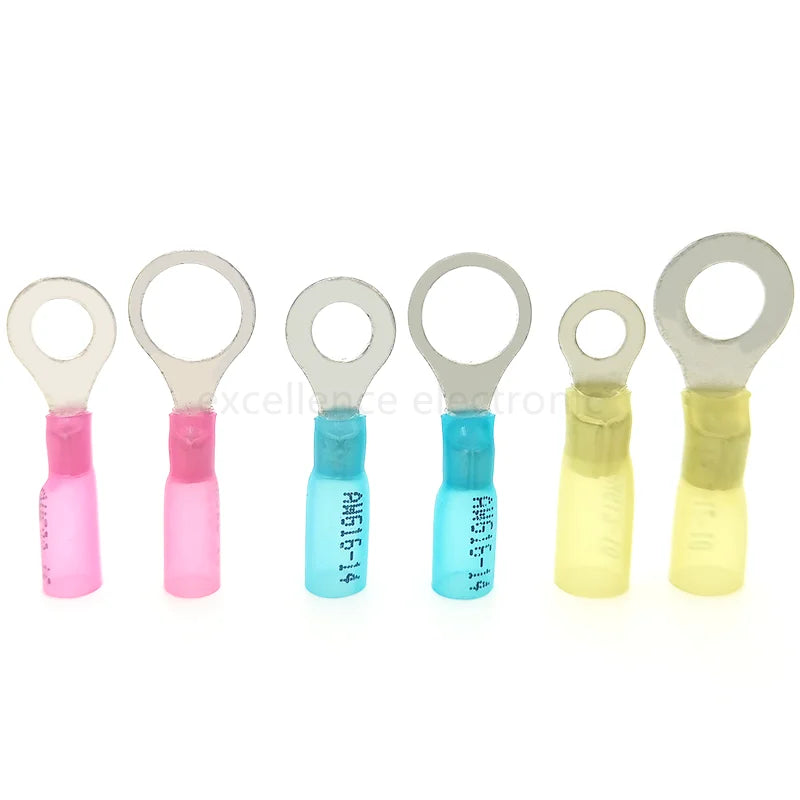

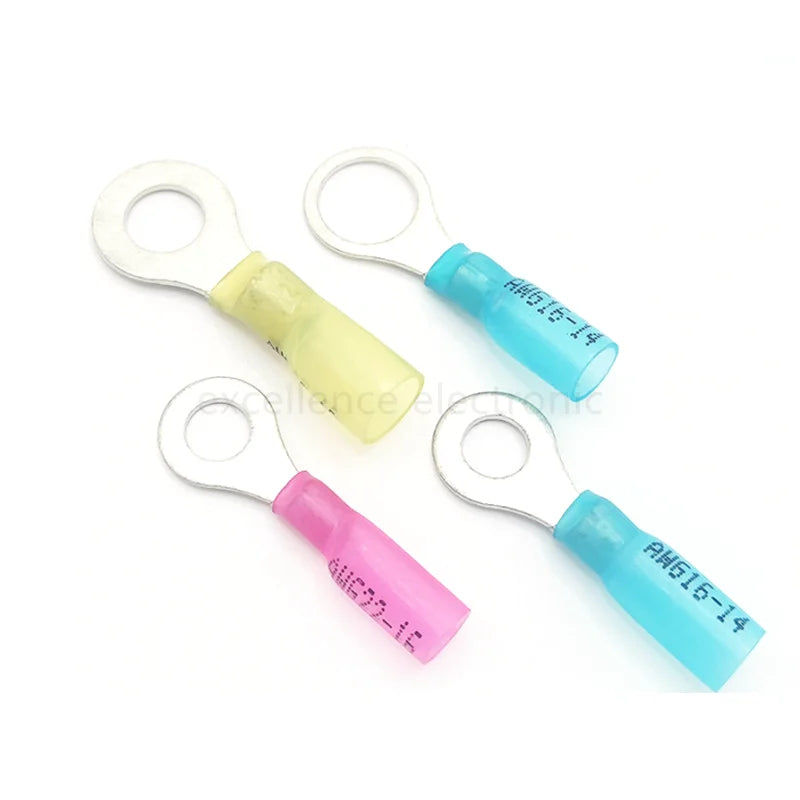

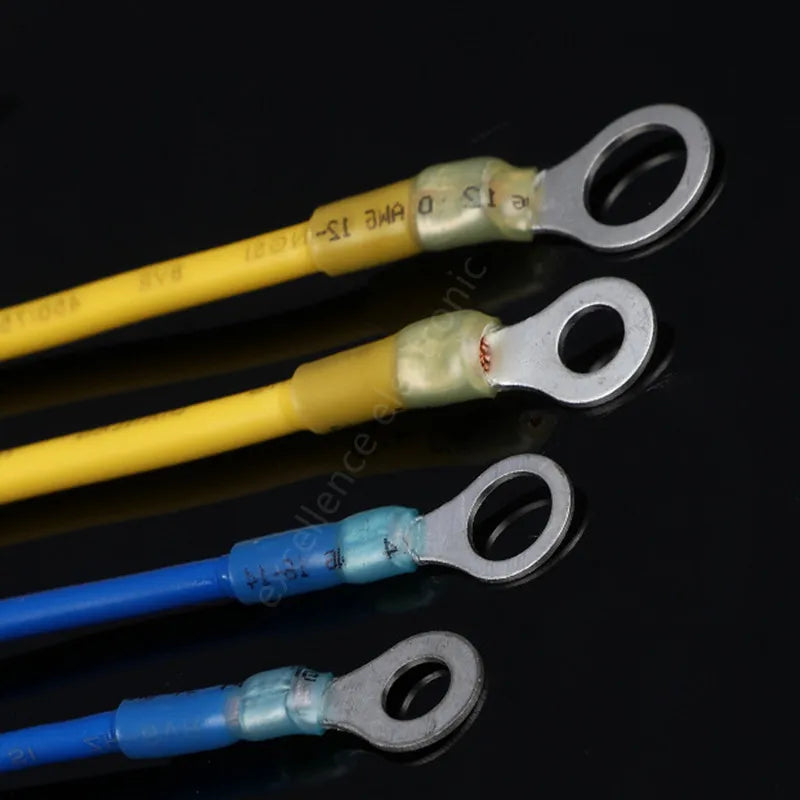

20-Pack Waterproof Heat Shrink Ring Crimp Terminals
Keep your electrical connections secure, corrosion-free, and vibration-resistant with these professional-grade waterproof heat shrink ring crimp terminals. Designed for marine, automotive, RV, and industrial wiring applications, each terminal combines a high-purity copper conductor with a dual-wall polyethylene (PE) heat shrink sleeve lined with hot-melt adhesive — delivering a moisture-tight seal every time.
The wide-entry sleeve guides wires smoothly into place, making installation fast and frustration-free. A standard heat gun is all you need: apply heat until the tubing shrinks and the adhesive flows, completely encapsulating the connection. RoHS-certified and manufactured to marine and automotive wiring specifications. Made in China.
Why Choose These Crimp Terminals?
- Waterproof adhesive lining — hot-melt glue seals out moisture and prevents corrosion
- High-purity copper barrel — excellent conductivity and a low-resistance crimp every time
- Wide operating temperature range — rated –55 °C to +125 °C for demanding environments
- Strain relief & anti-vibration — dual-wall construction absorbs flex and road/engine vibration
- Quick-entry funnel sleeve — guides wire in on the first try for faster installation
- RoHS certified — compliant with environmental standards for restricted substances
- Versatile 3-size kit — covers a broad range of wire gauges in one convenient pack
Technical Specifications
| Color | Wire Range | AWG | Max Current | Stud Sizes Available |
|---|---|---|---|---|

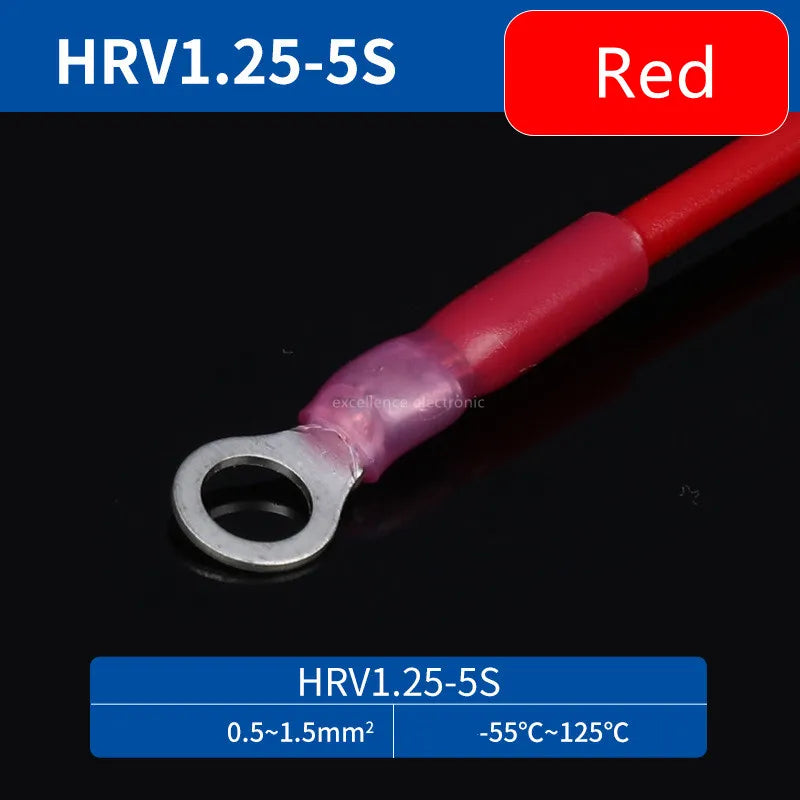

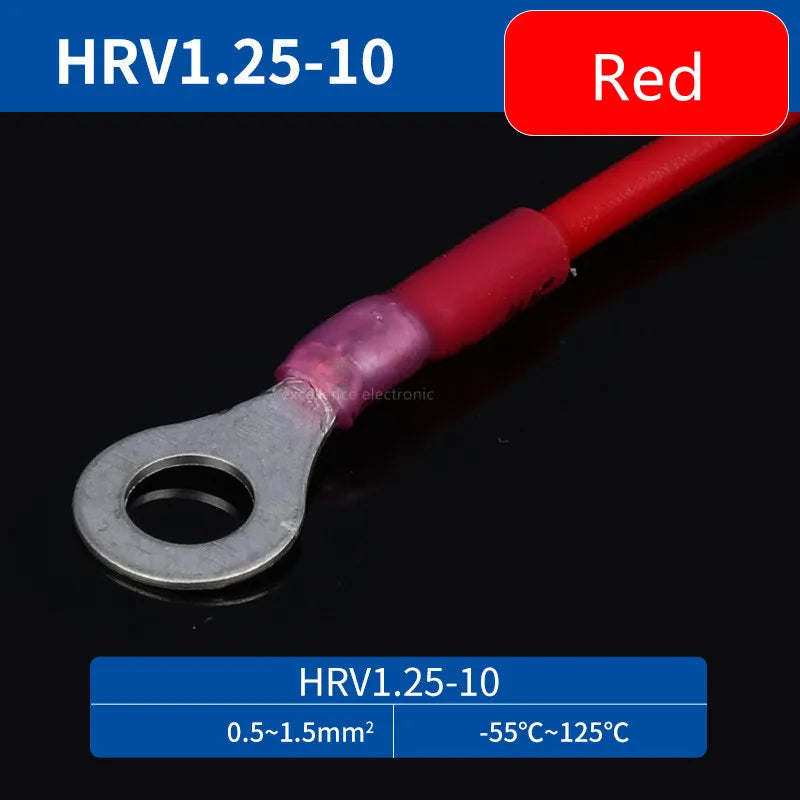

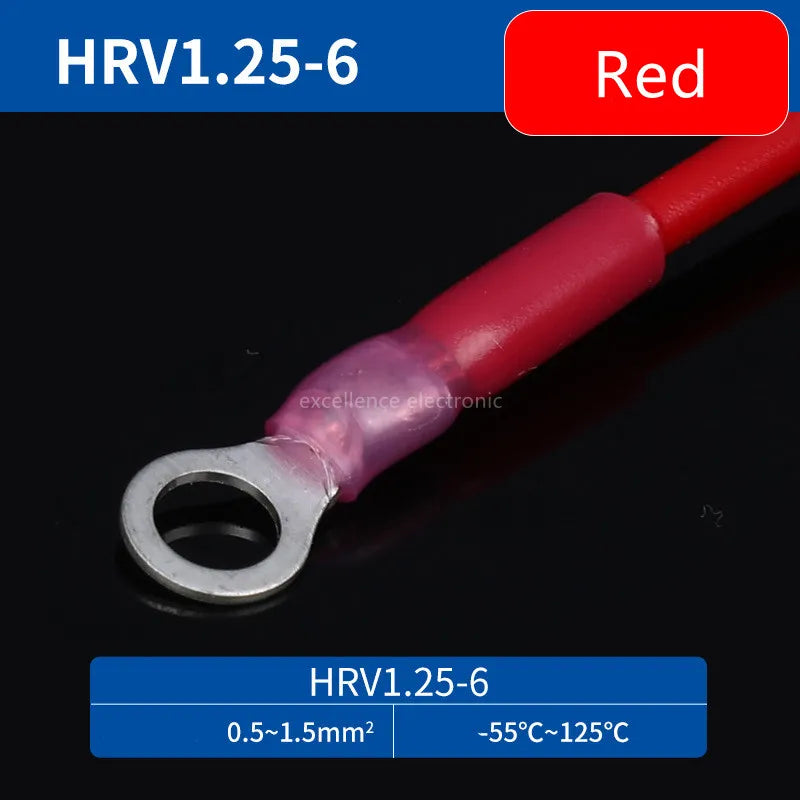

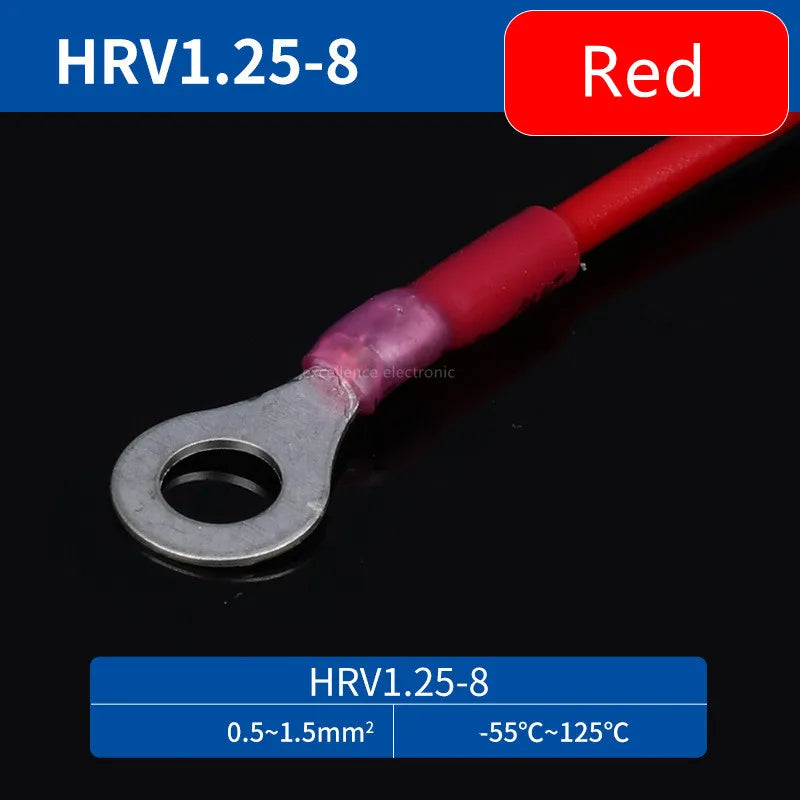

| Red (RV1.25) | 0.5–1.5 mm² | 22–16 AWG | 19 A | M4, M5, M6, M8, M10 |

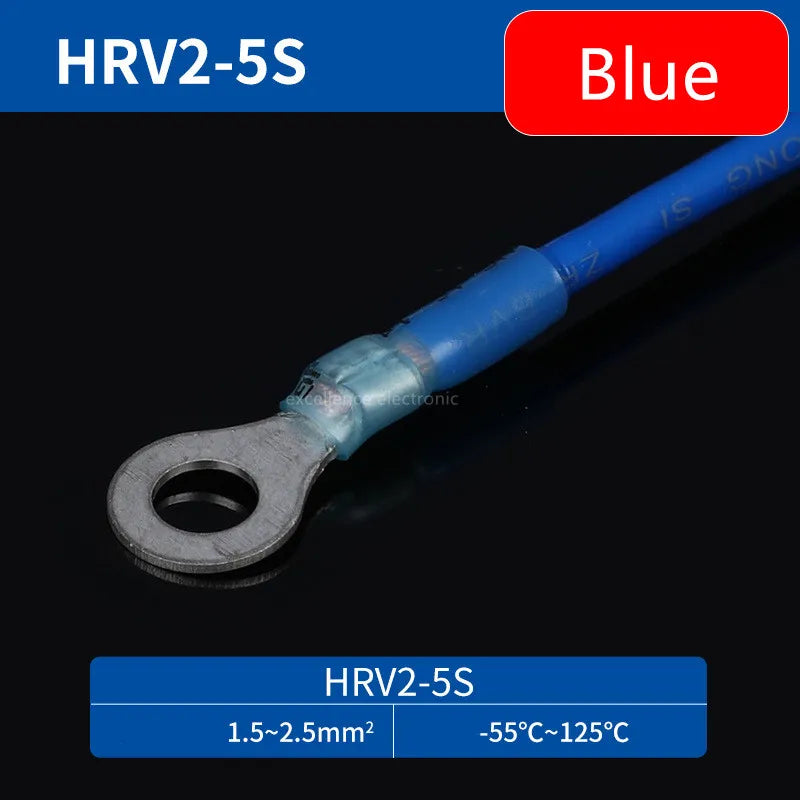

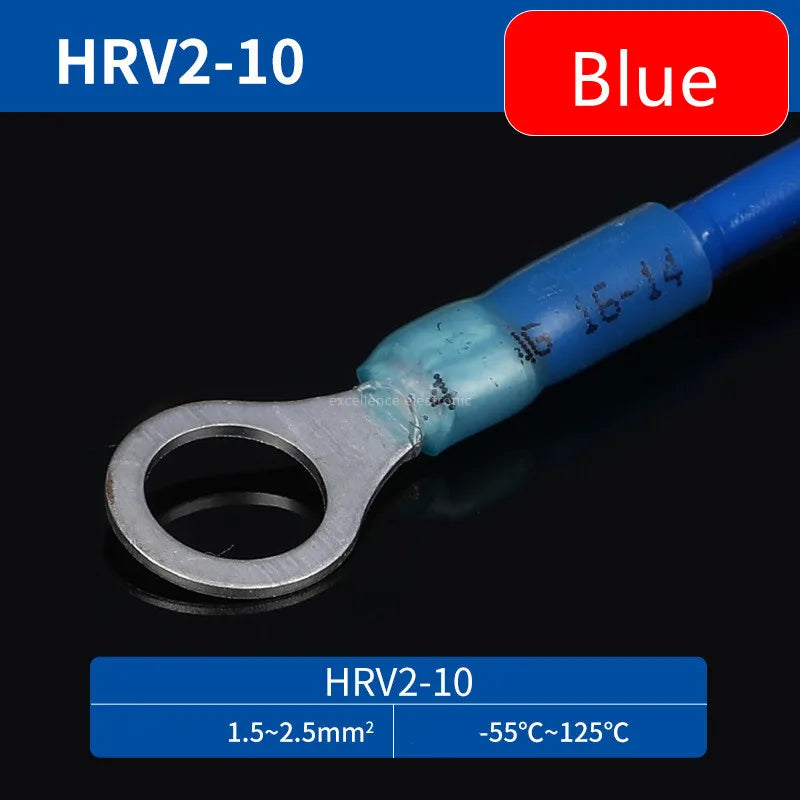

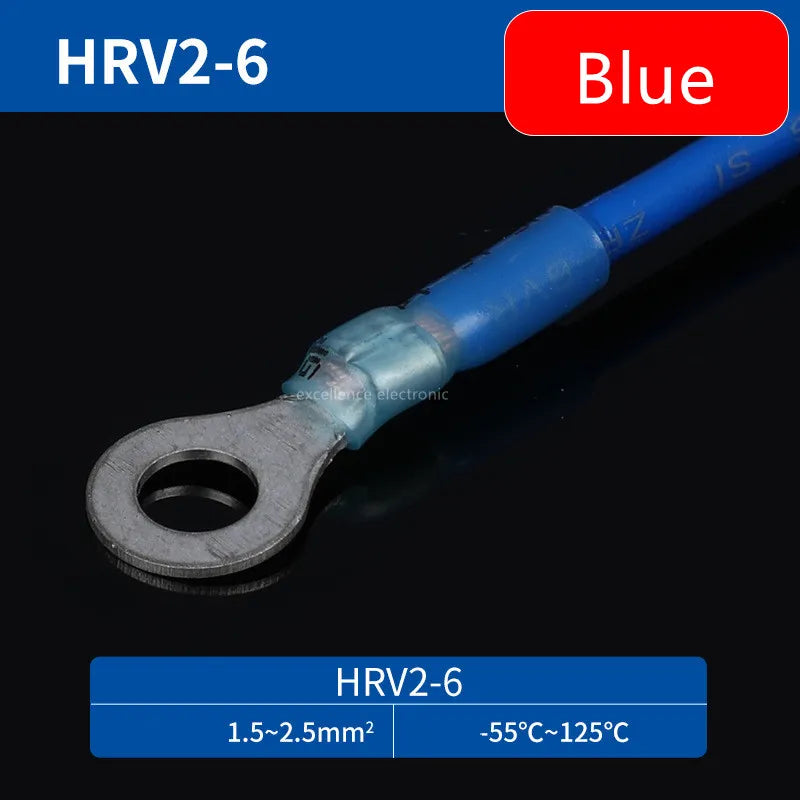

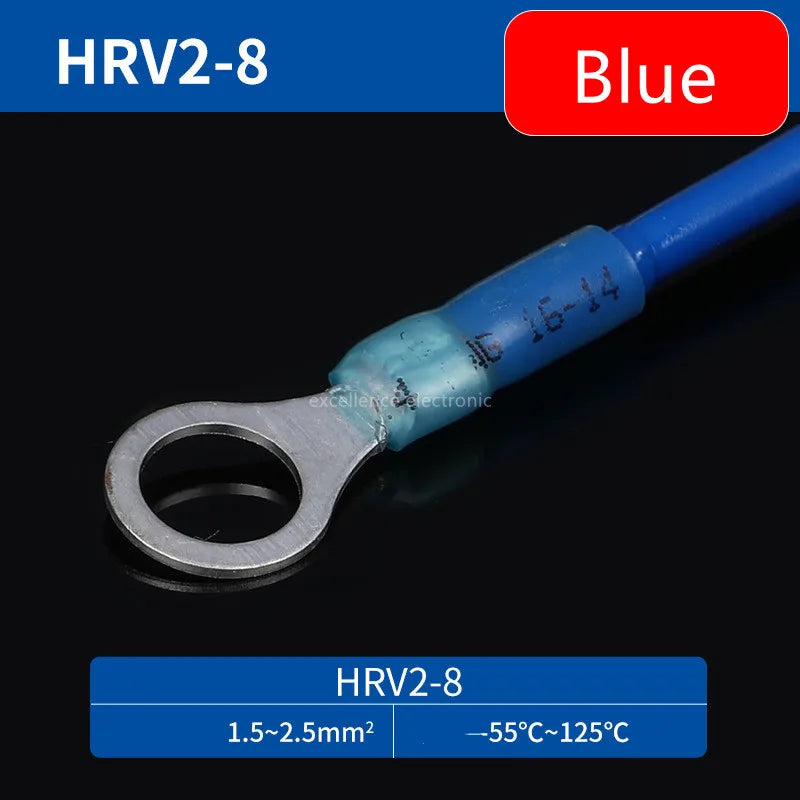

| Blue (RV2.0) | 1.5–2.5 mm² | 16–14 AWG | 27 A | M4, M5, M6, M8, M10, M12 |

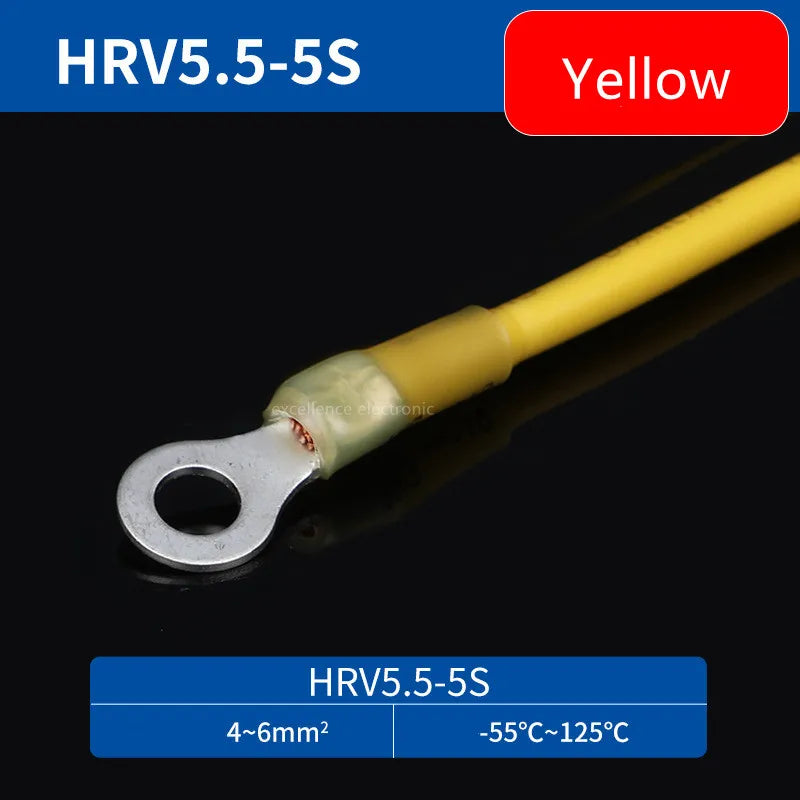

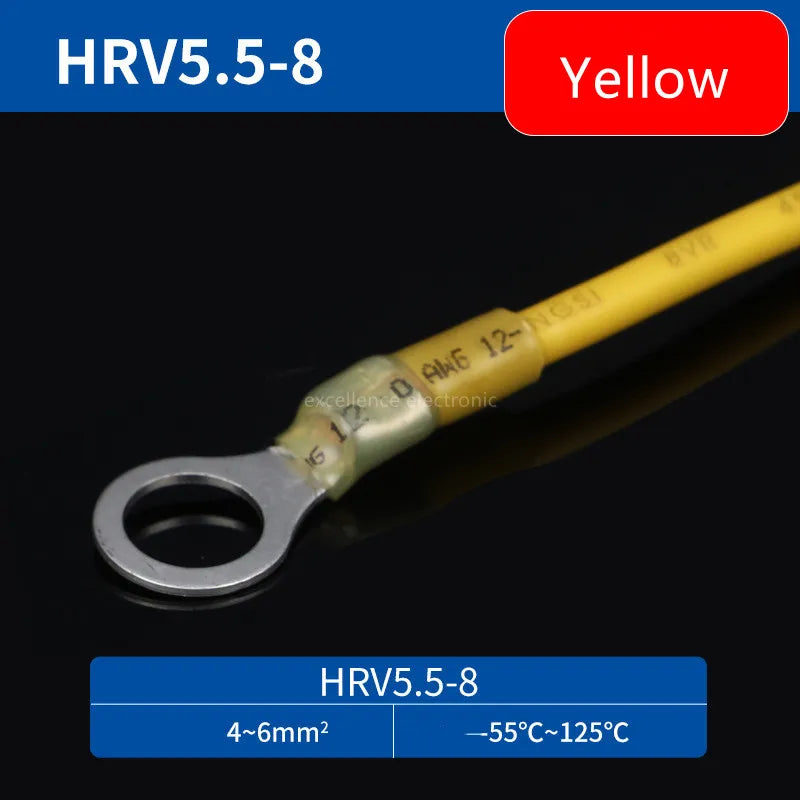

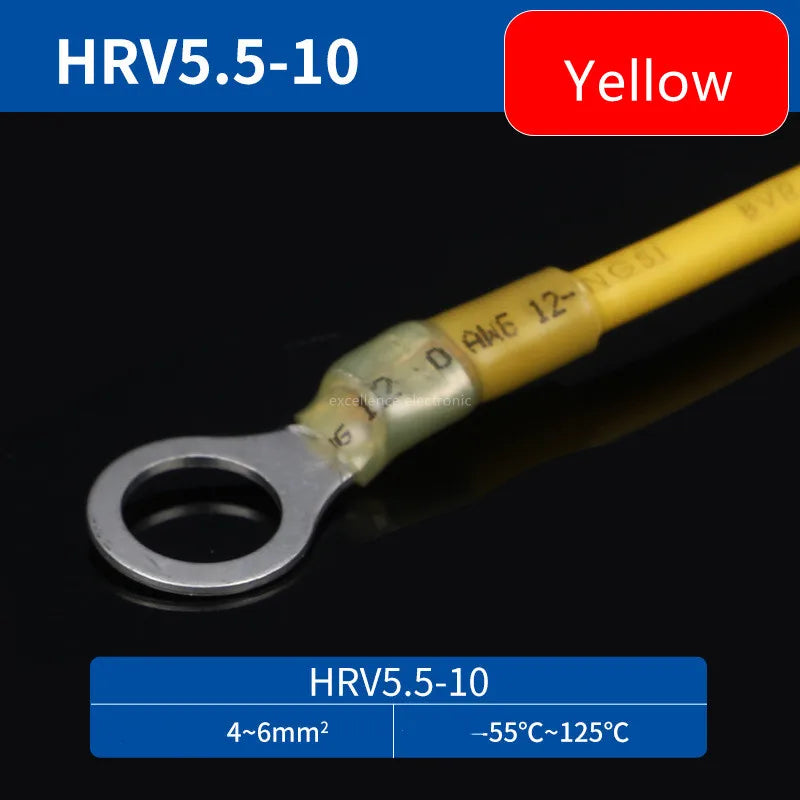

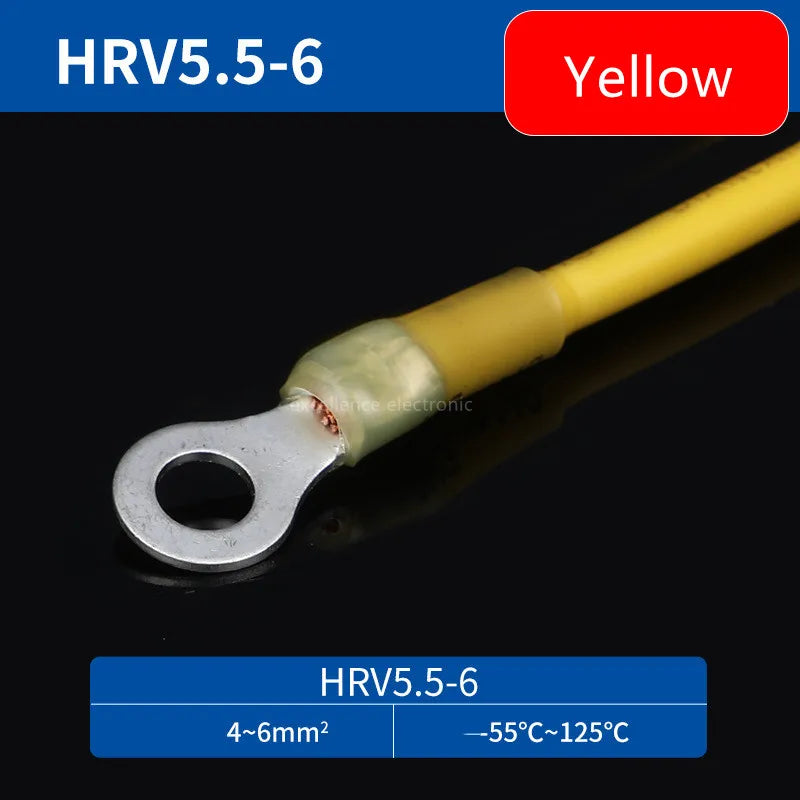

| Yellow (RV5.5) | 4–6 mm² | 12–10 AWG | 48 A | M4, M5, M6, M8, M10, M12 |
- Material: High-purity copper barrel + dual-wall PE heat shrink sleeve
- Shrink start temperature: 80 °C
- Full shrink temperature: 130 °C
- Certification: RoHS
- Quantity: 20 pieces per pack
- Country of Origin: Made in China
Ideal Applications
- Marine and boat wiring repairs
- Automotive and RV electrical systems
- Trailer wiring and battery connections
- Solar and off-grid electrical installations
- Industrial control panels and equipment
Installation Tips
Strip your wire to the appropriate length, insert it fully into the copper barrel, and crimp firmly with a ratcheting crimp tool. Then apply a heat gun at 130 °C until the sleeve shrinks uniformly and the adhesive flows visibly around the wire entry — this ensures a complete waterproof seal. For professional wiring guidance, see the OSHA Electrical Safety Guidelines.
Explore More Electrical & Hardware Essentials
Frequently Asked Questions
Q: What tool do I need to install these heat shrink crimp ring terminals?
A: You'll need two tools: a ratcheting wire crimping tool to crimp the copper barrel onto your stripped wire, and a standard hot air gun to shrink the dual-wall PE sleeve. Apply heat at around 130 °C until the tubing fully contracts and the adhesive flows around the wire entry, creating a waterproof seal.
Q: Are these heat shrink ring terminals suitable for marine and outdoor use?
A: Yes. The adhesive-lined dual-wall heat shrink tubing forms a watertight seal that resists moisture, salt spray, and corrosion, making these terminals ideal for marine, RV, automotive, trailer, and outdoor wiring applications. They conform to marine and automotive manufacturers' wiring repair specifications.
Q: How do I choose the correct terminal size (Red, Blue, or Yellow)?
A: Match the terminal color to your wire gauge. Red (RV1.25) fits 22–16 AWG (0.5–1.5 mm²) up to 19 A. Blue (RV2.0) fits 16–14 AWG (1.5–2.5 mm²) up to 27 A. Yellow (RV5.5) fits 12–10 AWG (4–6 mm²) up to 48 A. Also match the stud hole size (M4 through M12) to your bolt or screw diameter.
Q: What temperature range can these terminals handle?
A: These crimp ring terminals are rated for an operating temperature range of –55 °C to +125 °C, making them suitable for both extreme cold and high-heat environments such as engine bays and industrial equipment.
