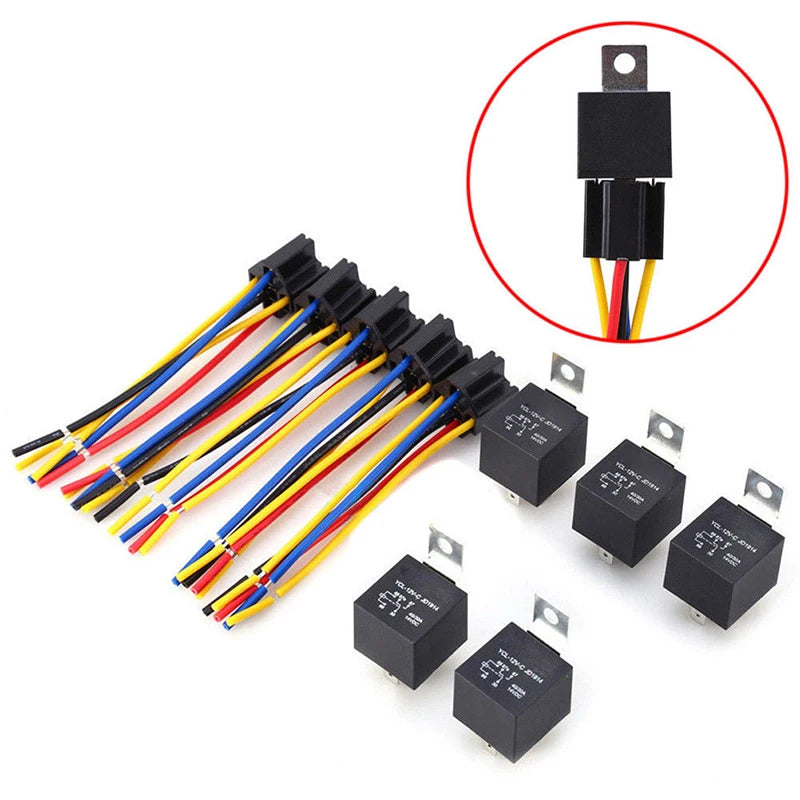

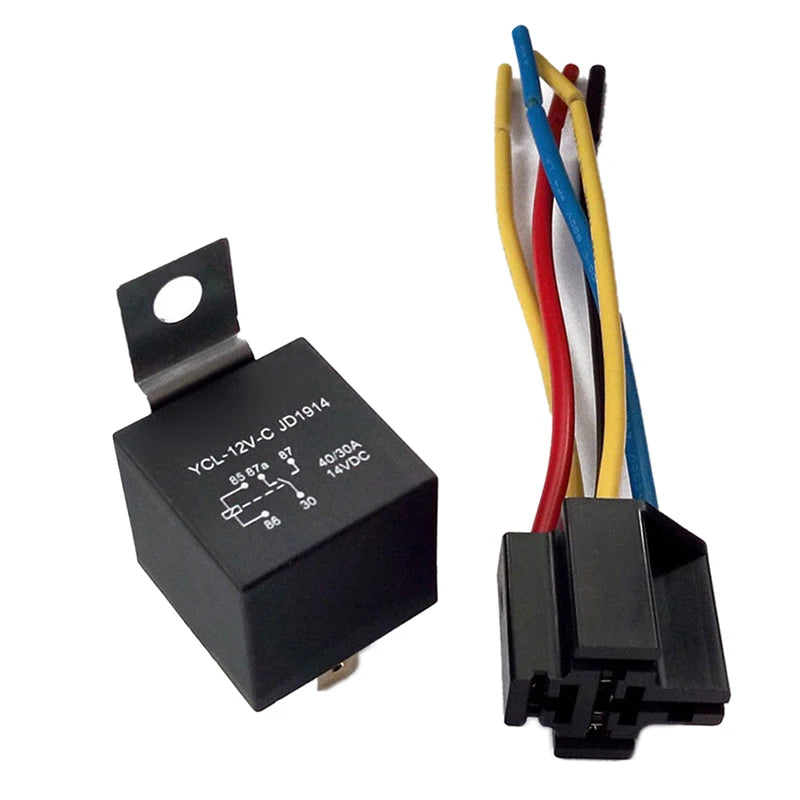

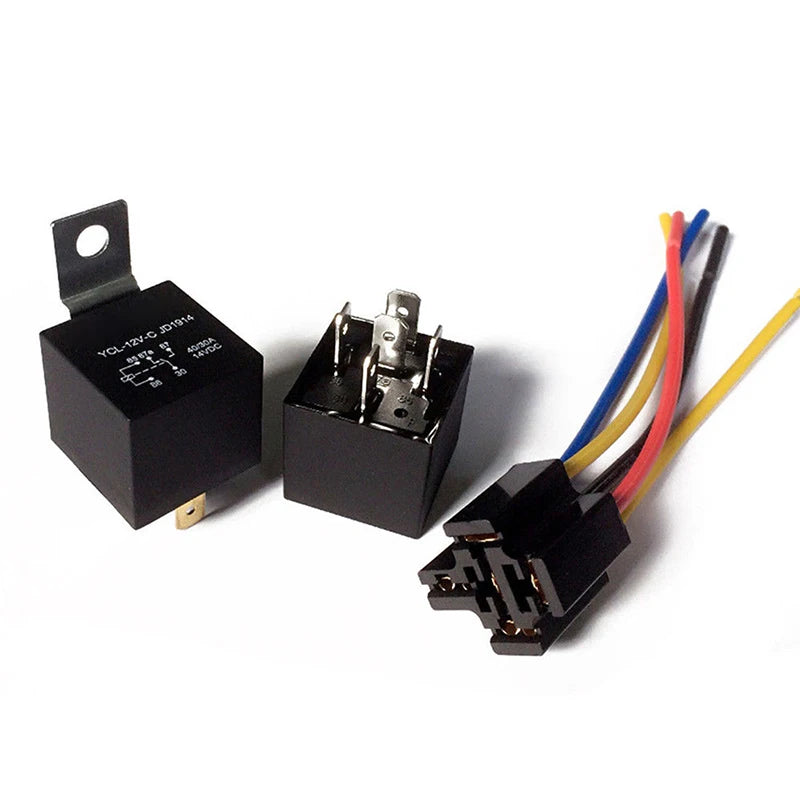

Waterproof 12V 40A 5-Pin Automotive Relay with Socket

Keep your vehicle's electrical system running reliably with this Waterproof 12V 40A 5-Pin Automotive Relay and Socket Set. Engineered for dependable performance in demanding under-hood environments, this relay handles high-current switching with ease — making it ideal for headlights, horns, fuel pumps, cooling fans, and a wide range of other automotive accessories.

The sealed, waterproof construction protects internal contacts from moisture, dust, and vibration, so you can install it confidently in exposed engine bays or harsh weather conditions. The included relay socket simplifies wiring and allows for quick plug-and-play installation without the need for splicing.

Key Features

• 12V DC Operation — Compatible with standard 12-volt automotive electrical systems
• 40A Current Rating — Handles high-draw accessories with ease
• 5-Pin Design — Supports both normally open (NO) and normally closed (NC) switching configurations
• Waterproof Construction — Sealed ABS housing protects against moisture, dust, and debris

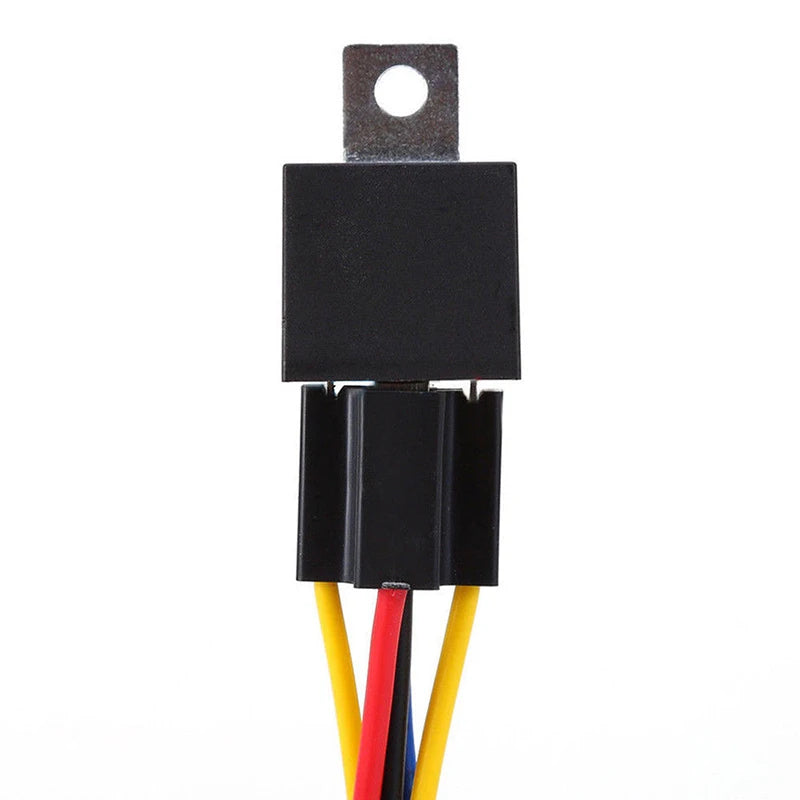

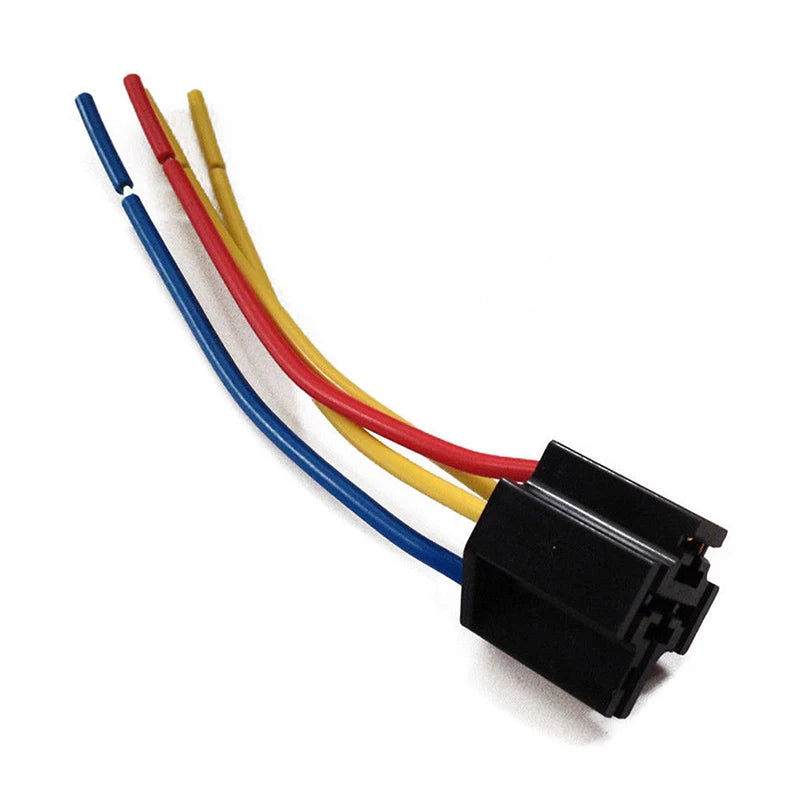

• Includes Relay Socket — Convenient plug-and-play wiring harness included for easy installation
• Durable ABS Material — Resistant to heat and vibration for long-lasting reliability
• Universal Fitment — Suitable for cars, trucks, SUVs, motorcycles, and other 12V vehicles

Specifications

• Voltage: 12V DC
• Amperage: 40A
• Pin Count: 5-Pin
• Material: ABS Plastic
• Waterproof: Yes
• Package Includes: 1x Relay + 1x Relay Socket
• Made in: Mainland China

Common Applications

• Headlights, fog lights, and off-road lighting
• Electric fans and cooling systems
• Fuel pumps and solenoids
• Horns and alarm systems
• Winches and auxiliary accessories

For more automotive electrical tips and vehicle safety information, visit the U.S. Consumer Product Safety Commission (CPSC).

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Best Seat In The House" Retro Quote Canvas Wall Art Print

Learn more: Relay

Frequently Asked Questions

Q: What is a 5-pin automotive relay and how does it differ from a 4-pin relay?

A: A 5-pin automotive relay includes both a normally open (NO) and a normally closed (NC) switching terminal, giving you more wiring flexibility than a standard 4-pin relay. This allows the relay to control two separate circuits — one that activates when the relay is energized and one that deactivates. This makes it ideal for applications requiring switching between two states, such as dual-speed fan control or reversing circuits.

Q: Is the relay socket included in the package?

A: Yes! Each package includes one 12V 40A 5-pin relay AND one matching relay socket. The socket simplifies installation by providing a secure, plug-and-play connection point so you can wire your accessories cleanly without cutting or splicing.

Q: Can this relay be used in motorcycle or marine applications?

A: This relay is designed primarily for 12V DC automotive systems, which include most cars, trucks, SUVs, and motorcycles. The waterproof housing also makes it suitable for use in environments exposed to moisture. However, for dedicated marine use, always verify compatibility with your vessel's electrical system and consult a qualified marine electrician.

Q: How do I know which pins to connect?

A: Standard 5-pin relay pinouts are typically labeled 85 (coil ground), 86 (coil power), 30 (common), 87 (normally open), and 87a (normally closed). Refer to the relay's markings or a standard automotive relay wiring diagram for proper installation. When in doubt, consult a qualified auto electrician.
