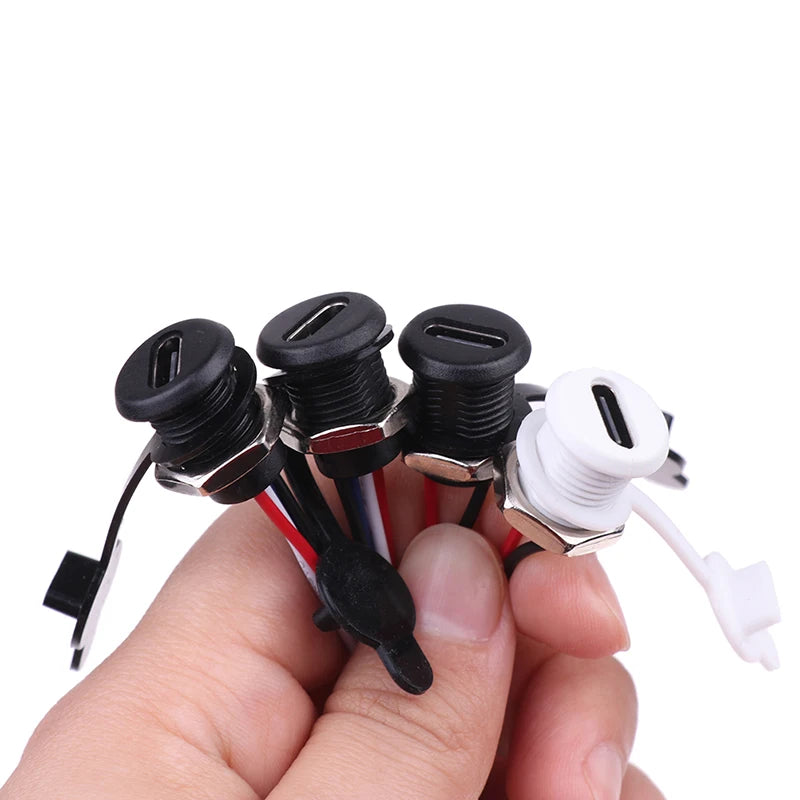

USB-C Waterproof Female Connector Jack – High Current Charging Socket

This USB Type-C Waterproof Female Connector Jack is an essential component for DIY electronics projects, custom cable builds, and industrial charging applications. Designed to handle high current loads, it features a secure PH2.0 nut snap lock plate for a stable, vibration-resistant mount. Available in 2-pin, 4-pin, and 5-pin configurations, this connector suits a wide range of power and data transfer needs.

Key Features

• High Current Capacity: Engineered to support high-amperage charging, making it ideal for power-hungry devices and custom power delivery builds.
• Waterproof Design: Sealed construction protects against moisture and dust ingress, suitable for outdoor enclosures, marine projects, and rugged environments.
• PH2.0 Nut Snap Lock Plate: Secure threaded nut locking mechanism ensures the connector stays firmly in place — no accidental disconnections during use.

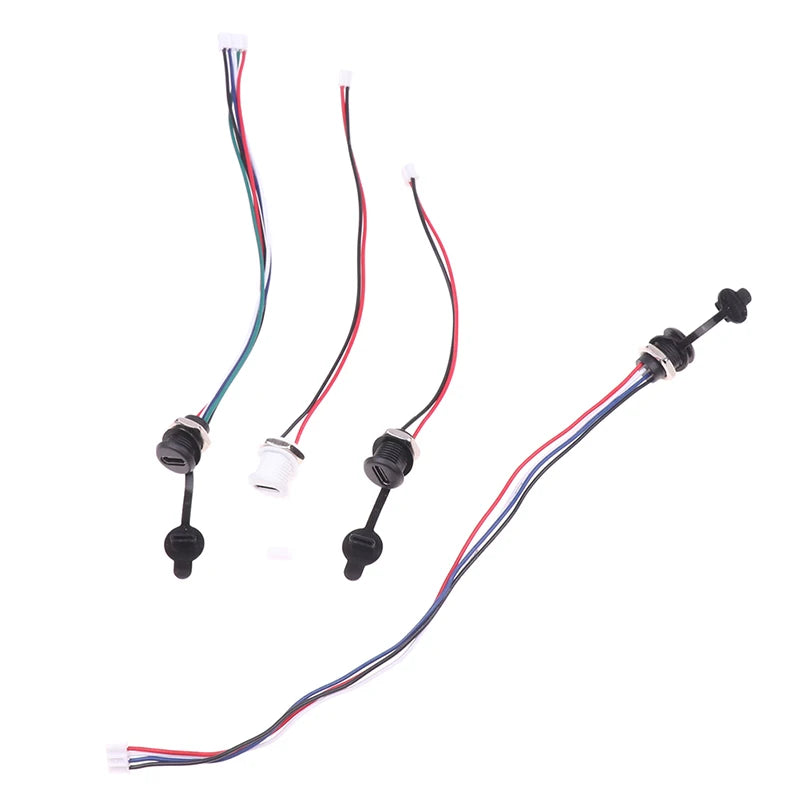

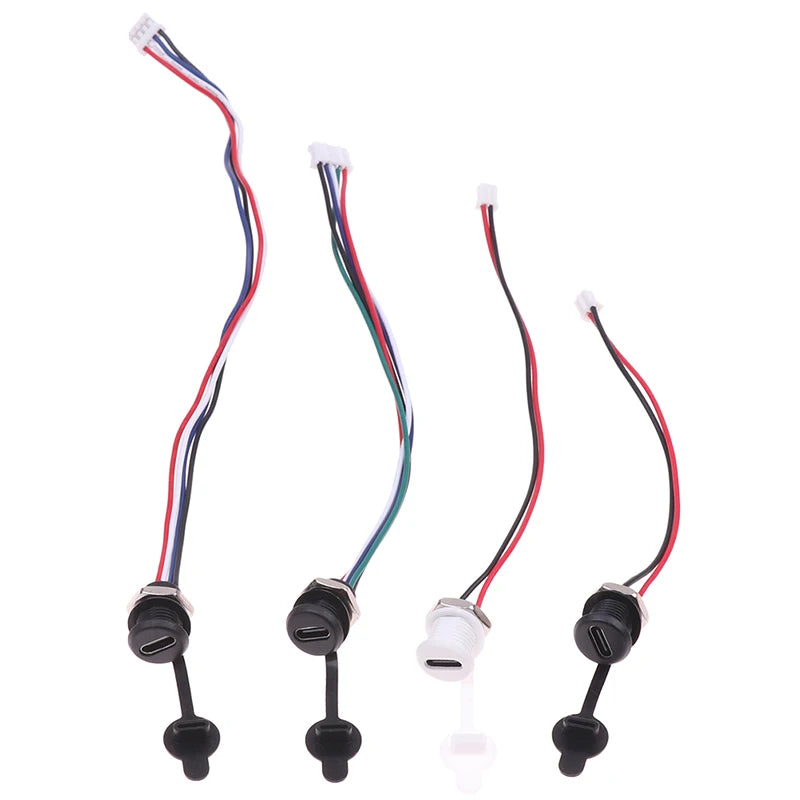

• Multiple Pin Configurations: Available in 2-pin, 4-pin, and 5-pin variants to match your specific wiring requirements.
• Durable Materials: Constructed from a combination of plastic, alloy, and copper for excellent conductivity, strength, and longevity.
• Panel-Mount Ready: Designed for easy installation into enclosures, panels, or chassis for a clean, professional finish.
• Universal Compatibility: Works with standard USB-C cables and accessories for straightforward integration into your project.

Specifications

• Connector Type: USB Type-C Female

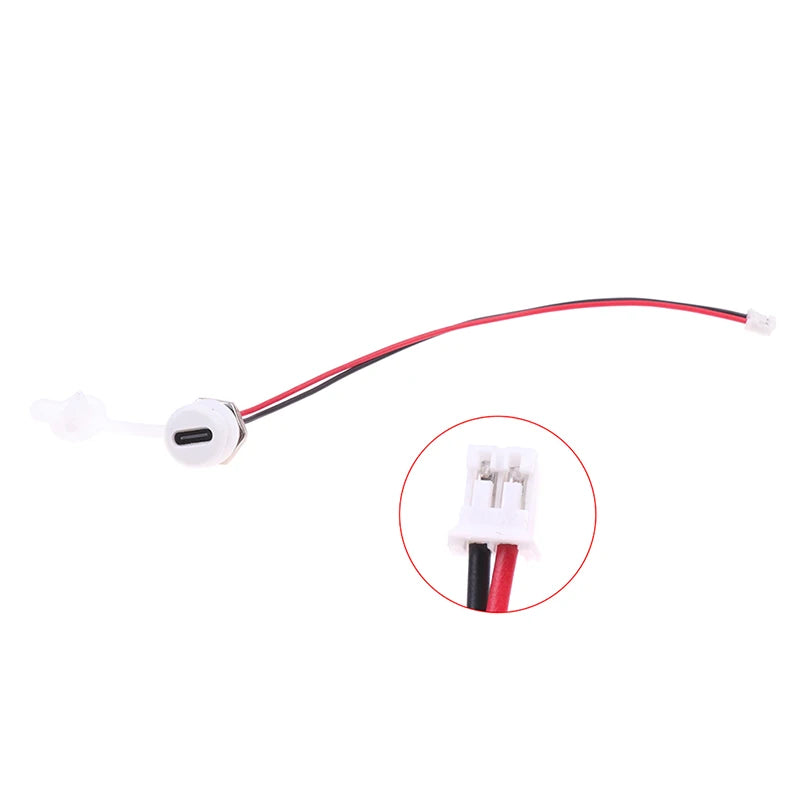

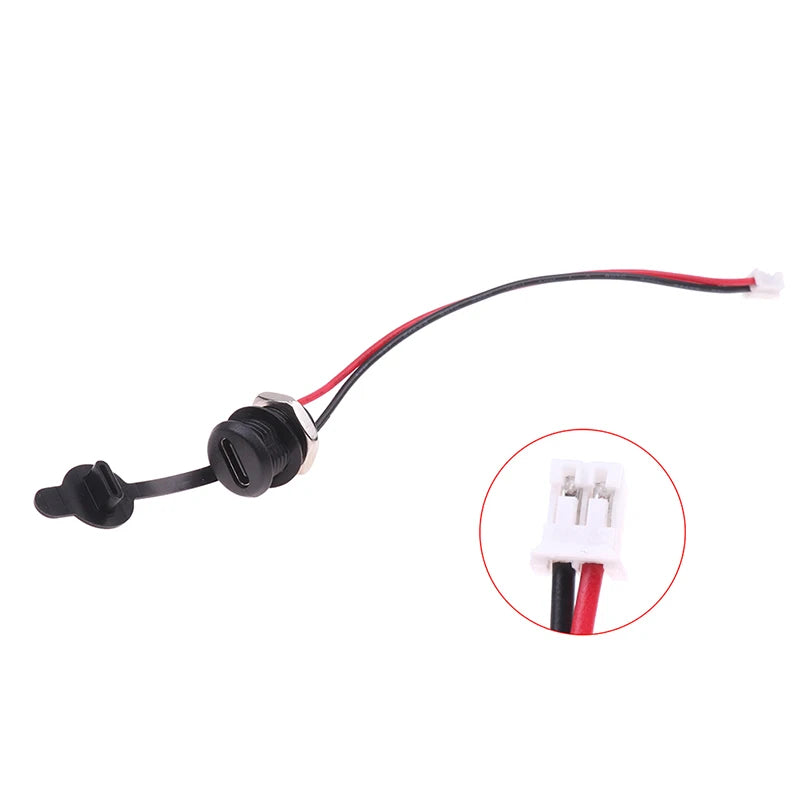

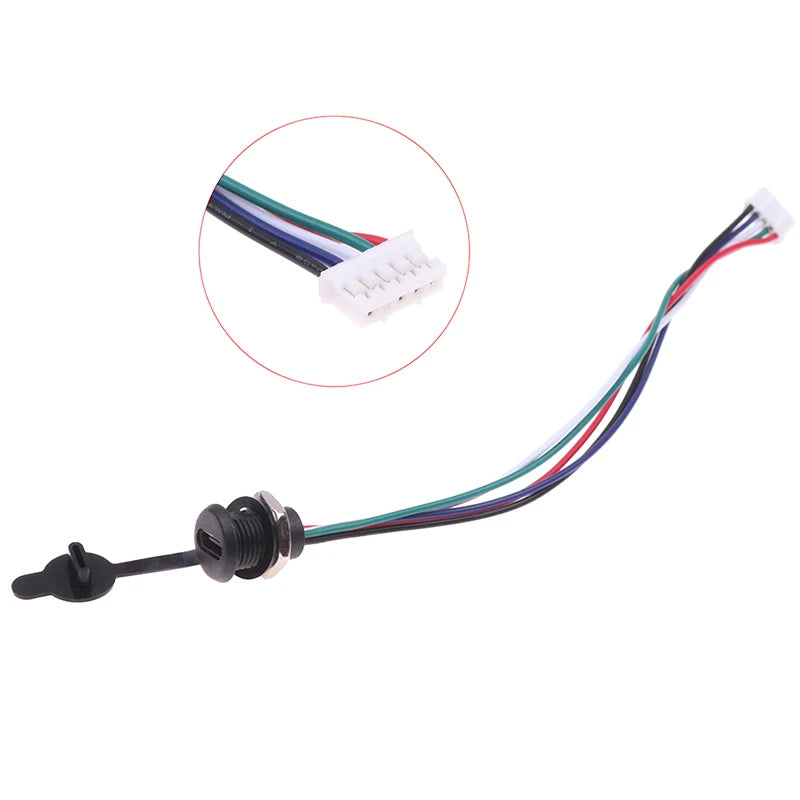

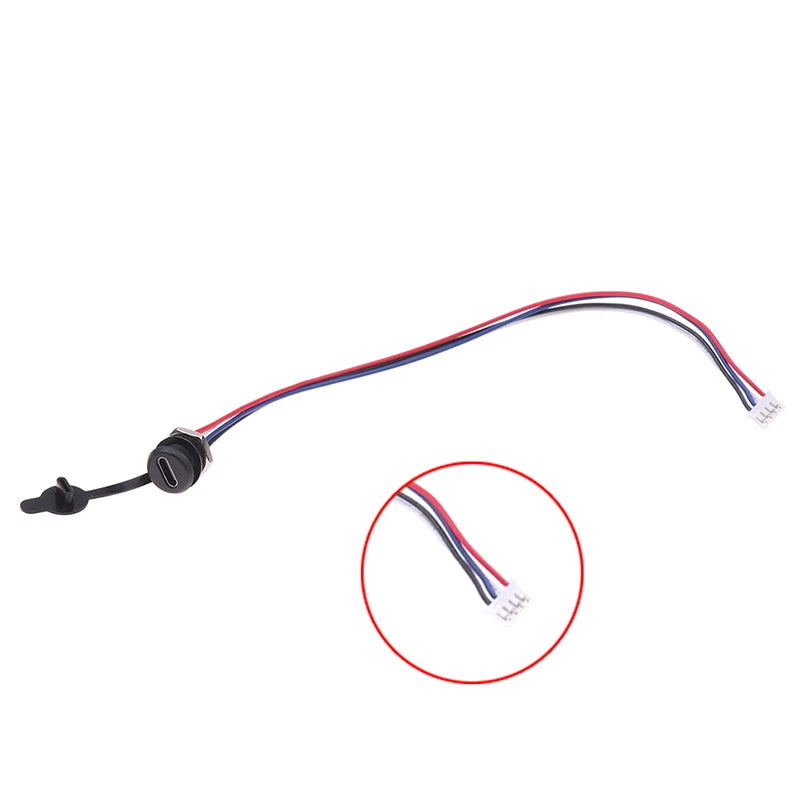

• Pin Options: 2-Pin / 4-Pin / 5-Pin
• Locking Mechanism: PH2.0 Nut Snap Lock Plate
• Material: Plastic + Alloy + Copper
• Voltage Rating: 220V
• Package Includes: 1 x USB-C Female Connector Jack
• Country of Origin: Made in China

What's in the Box?

• 1 × USB-C Waterproof Female Connector Jack (choice of 2-pin, 4-pin, or 5-pin)

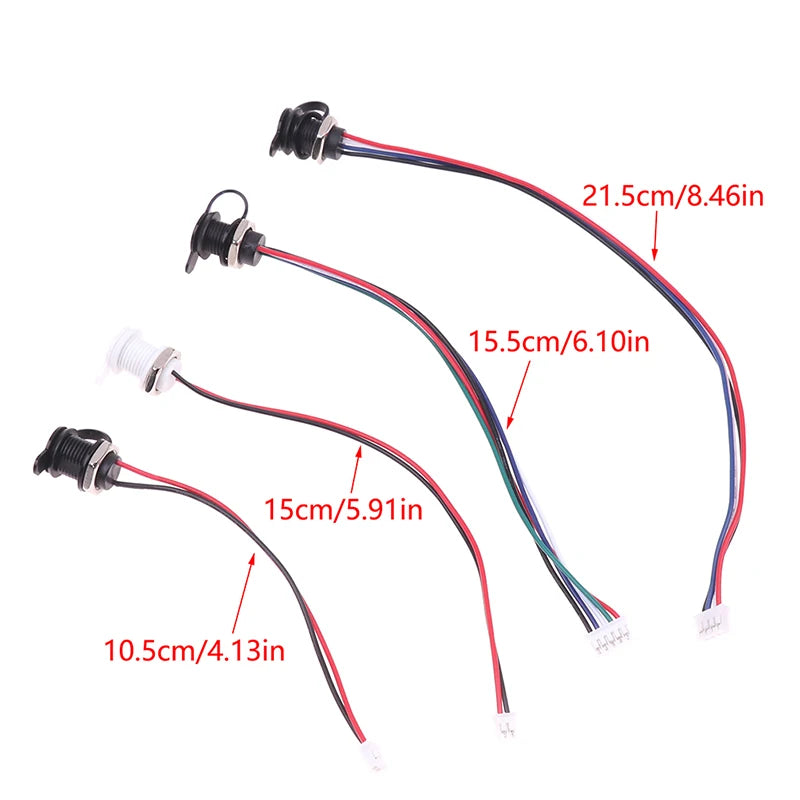

Note: Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from images shown. Please allow 1–2 cm measuring deviation due to manual measurement.

Related Products You May Like

• Looking for more electronics accessories? Browse our store for additional components and connectivity solutions.

Helpful Resources

For guidance on electrical safety when working with custom connectors and wiring projects, refer to CPSC Electrical Safety Resources.

Learn more: USB hardware

Frequently Asked Questions

Q: What pin configurations are available for this USB-C waterproof connector jack?

A: This USB-C waterproof female connector jack is available in 2-pin, 4-pin, and 5-pin configurations, allowing you to select the variant that best suits your custom wiring or charging project requirements.

Q: Is this USB-C female connector suitable for outdoor or moisture-prone environments?

A: Yes. The waterproof sealed design makes this connector well-suited for outdoor enclosures, marine applications, and other environments where exposure to moisture or dust is a concern.

Q: How does the PH2.0 nut snap lock plate work?

A: The PH2.0 nut snap lock plate is a threaded locking mechanism that secures the connector firmly within a panel or enclosure cutout. This prevents the connector from loosening due to vibration or repeated plug/unplug cycles, ensuring a stable and reliable installation.

Q: What materials is this connector made from?

A: The connector is constructed from a combination of plastic, alloy, and copper — providing strong electrical conductivity, mechanical durability, and resistance to everyday wear and tear.
