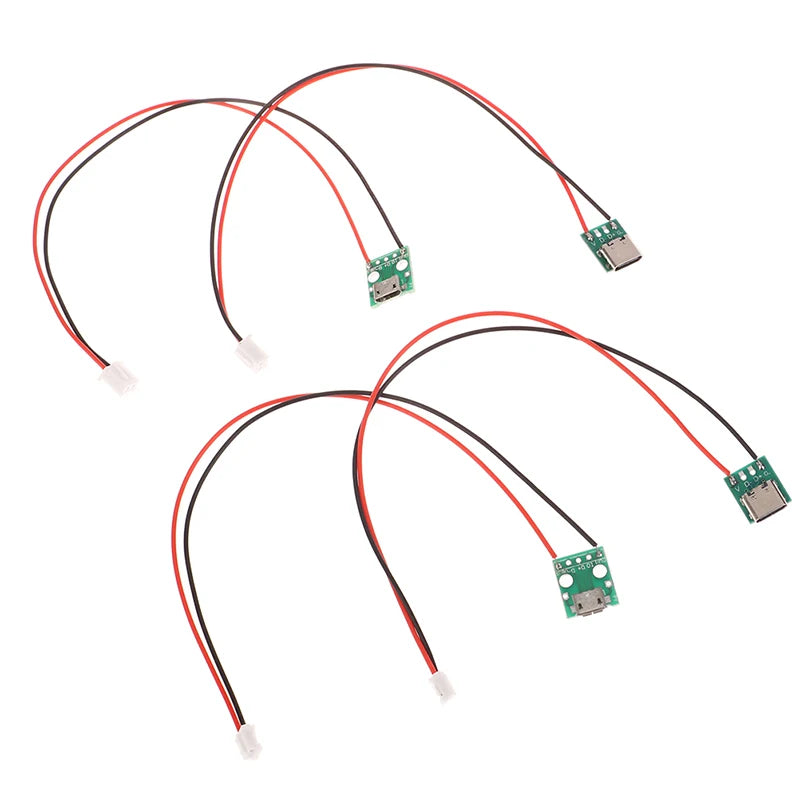

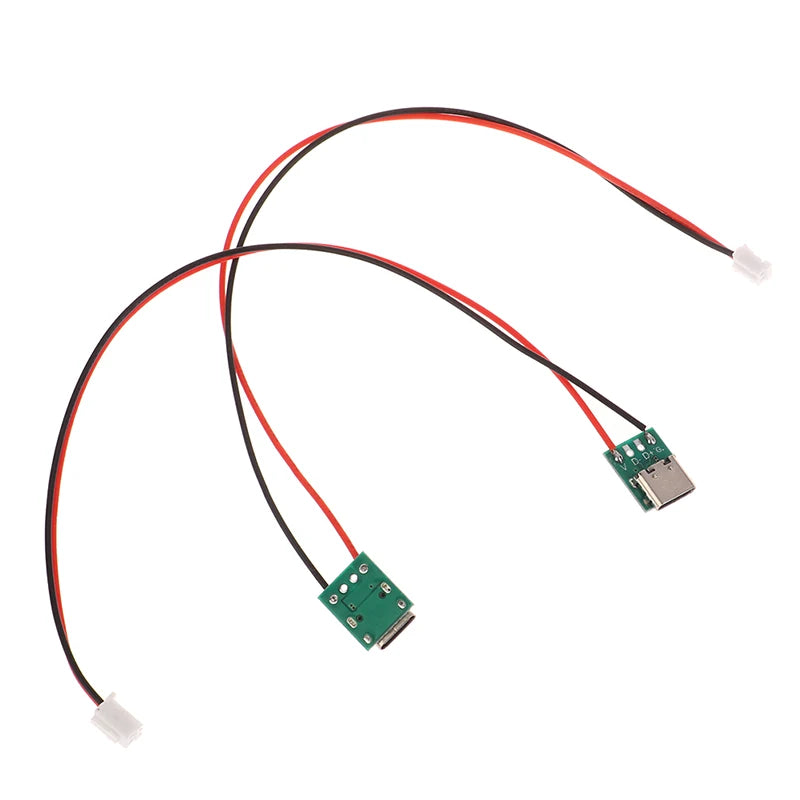

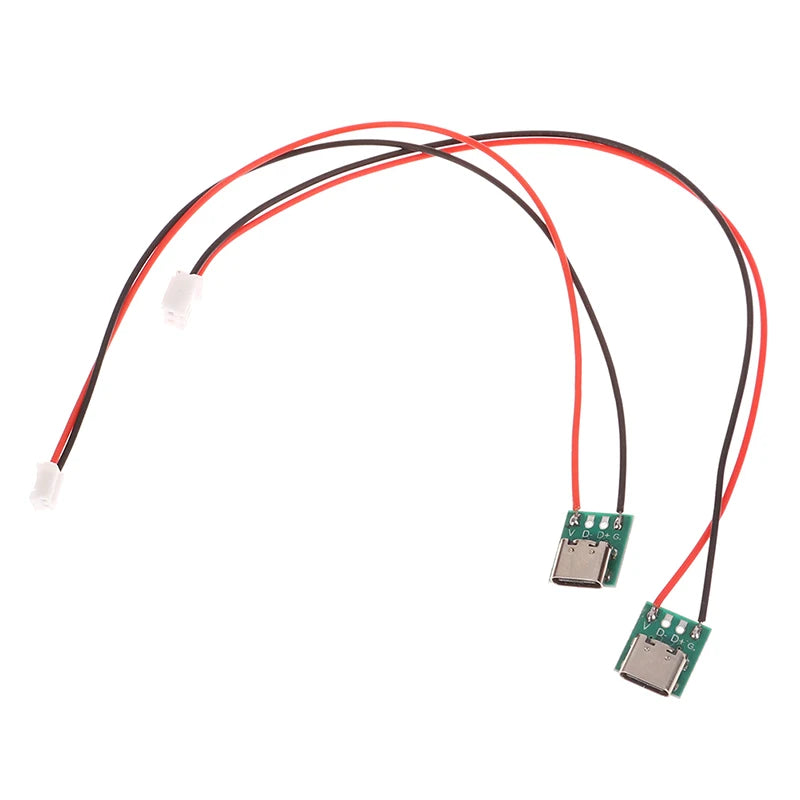

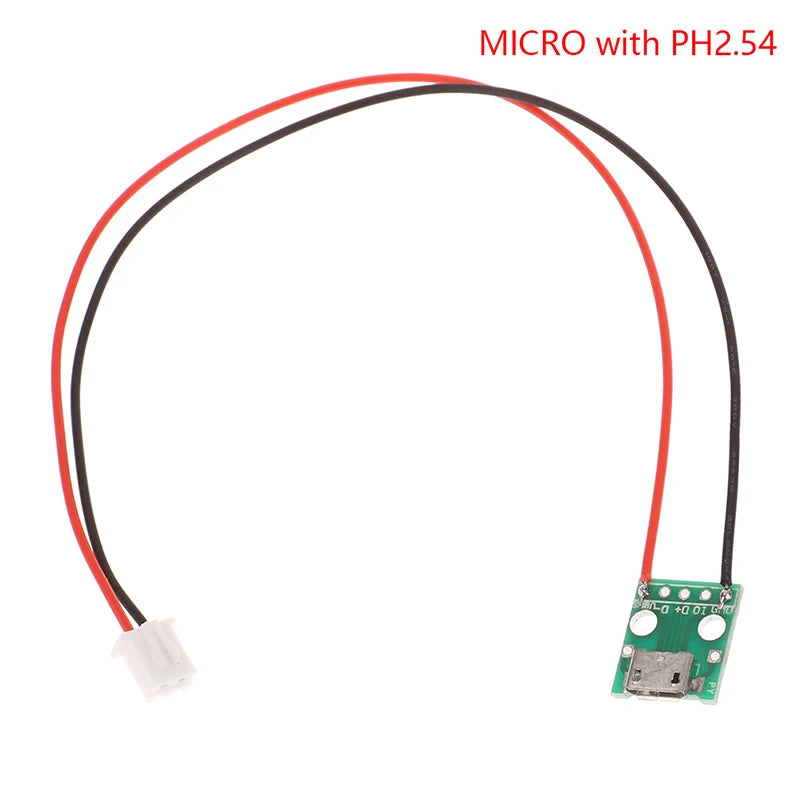

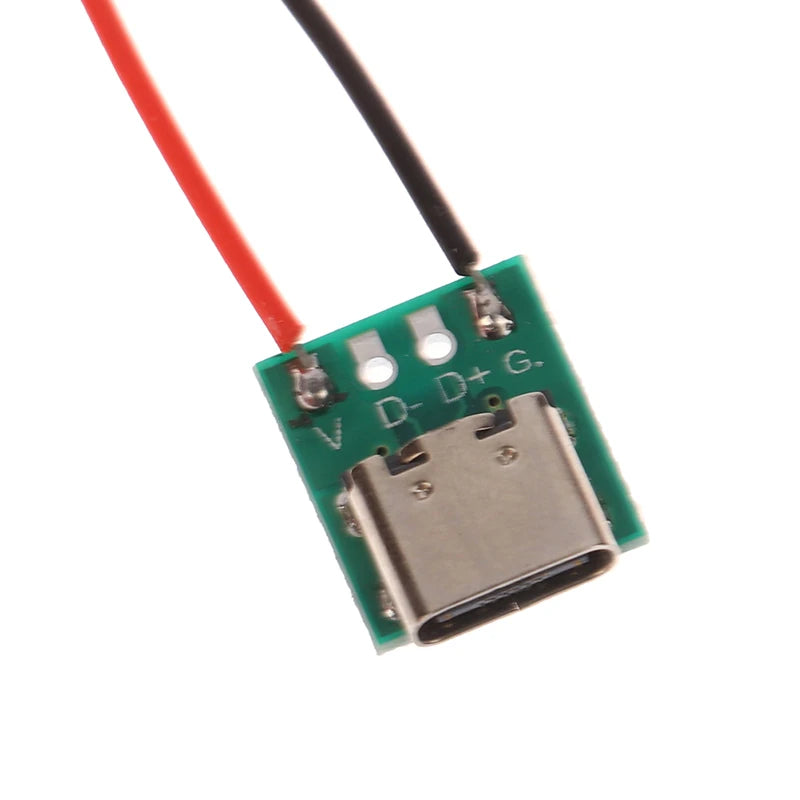

USB Type-C & Micro USB to DIP Female Breakout Board – PCB Adapter for Soldering Projects

This compact and versatile USB Type-C / Micro USB to DIP breakout board is the perfect solution for hobbyists, electronics makers, and engineers who need to integrate USB charging or data connections into custom PCB projects. Whether you're prototyping on a breadboard or building a permanent soldering board socket, this adapter makes it fast and easy to wire up a USB connector with standard 2.0mm or 2.54mm pitch pins.

Key Features

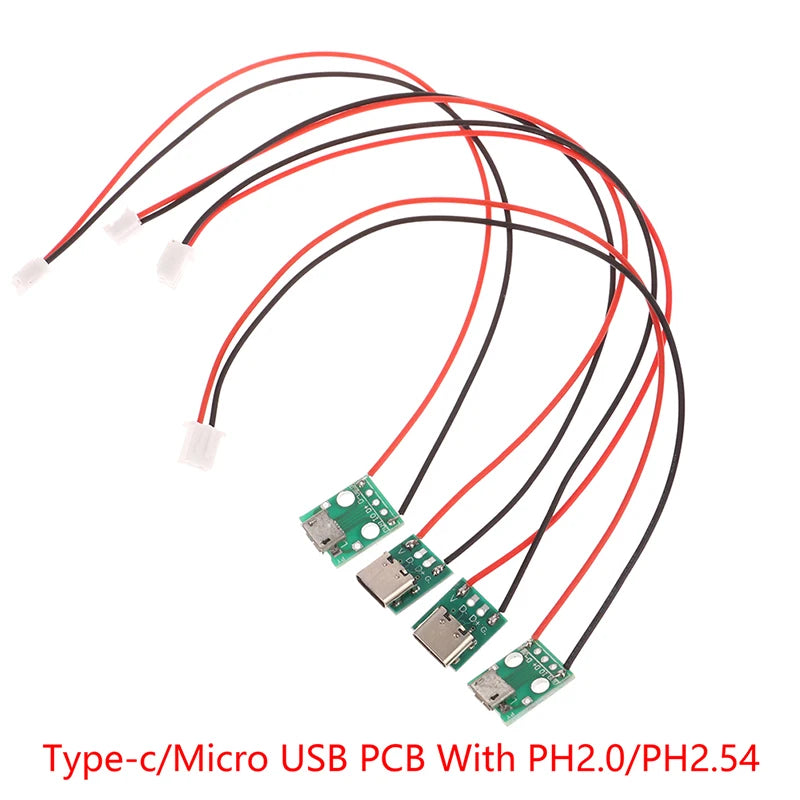

• Dual Compatibility: Supports both USB Type-C and Micro USB interfaces for flexible project integration
• DIP-Friendly Pinout: Breakout pins at 2.0mm / 2.54mm pitch — compatible with standard breadboards and perfboards
• Compact Board Size: 14 × 12mm — fits neatly into tight enclosures and DIY builds
• High-Quality PCB Construction: New, high-quality board with reliable soldering pads for clean, durable connections
• Soldering-Ready Socket: Pre-mounted USB socket makes soldering connections straightforward even for beginners
• Wide Use Cases: Ideal for charging circuits, data line breakouts, DIY electronics, maker boards, Arduino/ESP32 projects, and more

Specifications

• Connector Type: USB Type-C / Micro USB Female

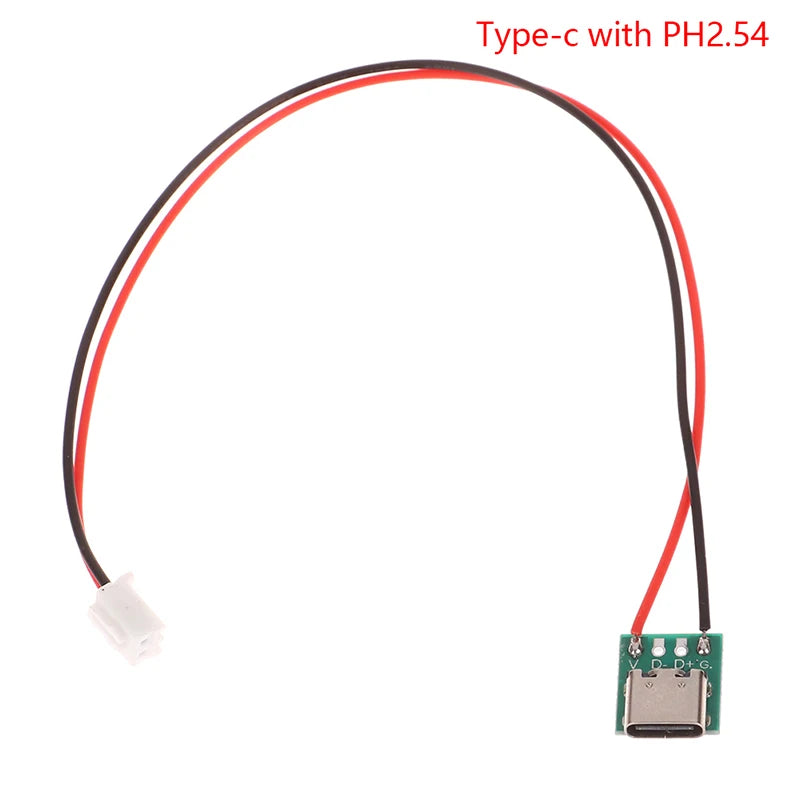

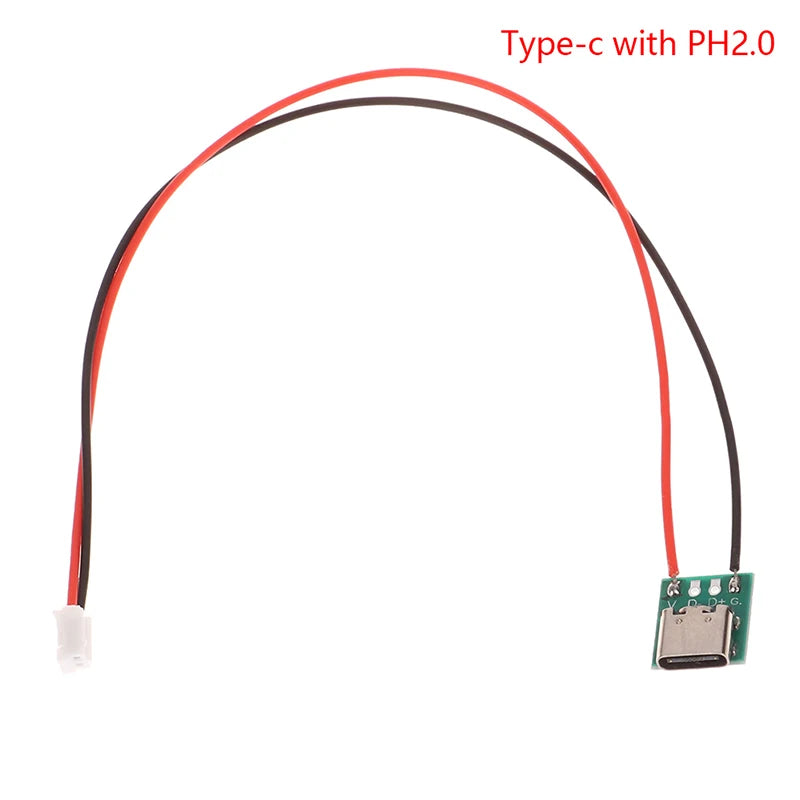

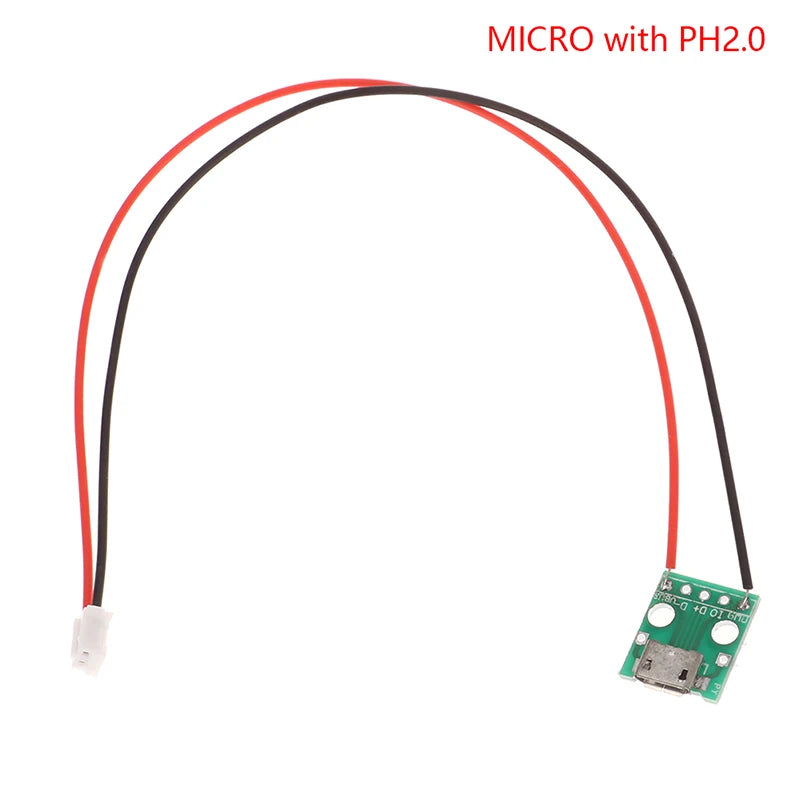

• Pin Pitch: 2.0mm / 2.54mm

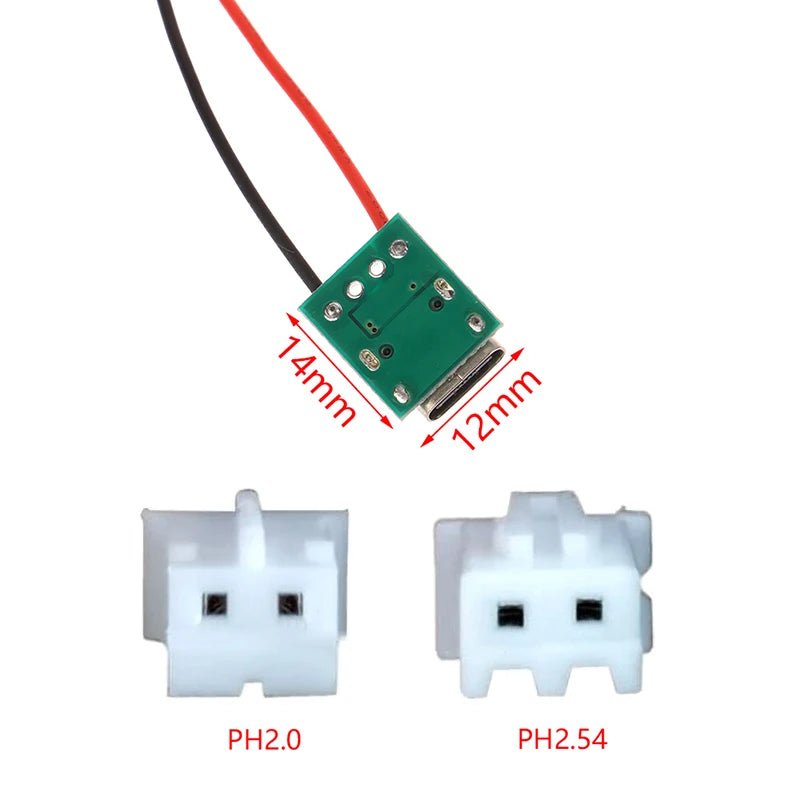

• Board Size: 14 × 12mm
• Package Includes: 1 × Breakout Board PCB Adapter
• Country of Origin: Made in Mainland China

Notes

• Due to manual measurement, please allow a tolerance of 1–3mm.
• Actual product color may vary slightly from images due to monitor display differences.

Related Products You May Like

• Explore our "1% Better Every Day" Motivational Canvas Wall Art Print for your workspace.
• Check out our "Don't Overthink" Motivational Quote Canvas Wall Art Print for your maker studio.

External Resource

For best practices on safe electronics assembly and soldering, refer to the U.S. Consumer Product Safety Commission (CPSC) for guidance on electronics safety standards.

Learn more: Printed circuit board

Frequently Asked Questions

Q: Is this breakout board compatible with standard breadboards?

A: Yes! The USB Type-C and Micro USB to DIP breakout board features 2.0mm and 2.54mm pitch pins, making it fully compatible with standard breadboards and perfboards for prototyping and DIY electronics projects.

Q: Can I use this board for both charging and data connections?

A: Absolutely. The breakout board exposes all connector pins, allowing you to wire up both power/charging lines and data lines depending on your project requirements.

Q: What skill level is required to use this PCB adapter?

A: This board is suitable for beginners and experienced makers alike. Basic soldering skills are recommended to attach wires or headers to the breakout pads for secure, reliable connections.

Q: How many boards are included in one order?

A: Each order includes 1 piece of the USB Type-C / Micro USB to DIP breakout board PCB adapter.
