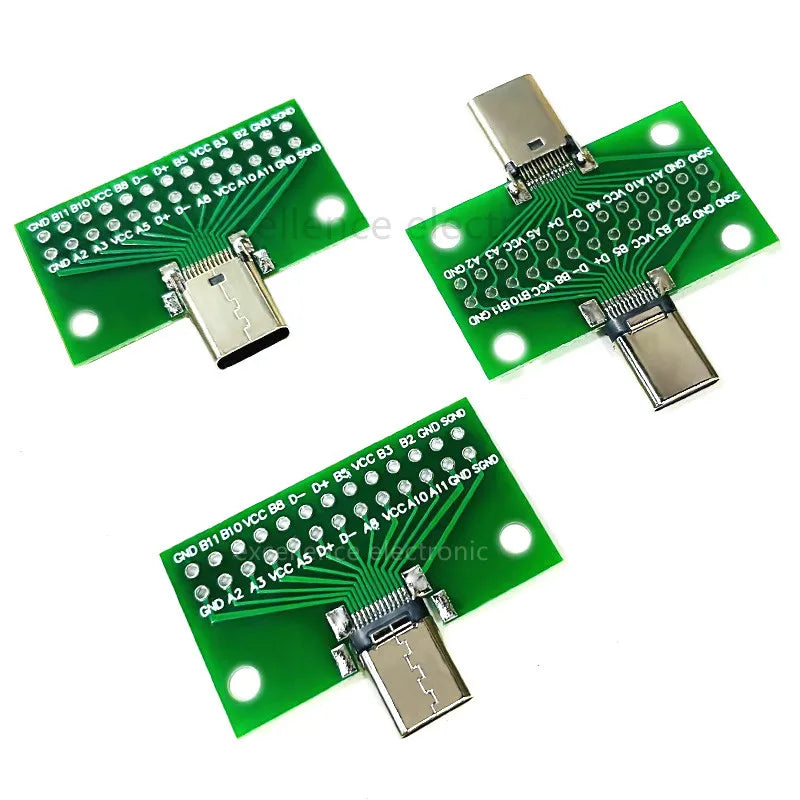

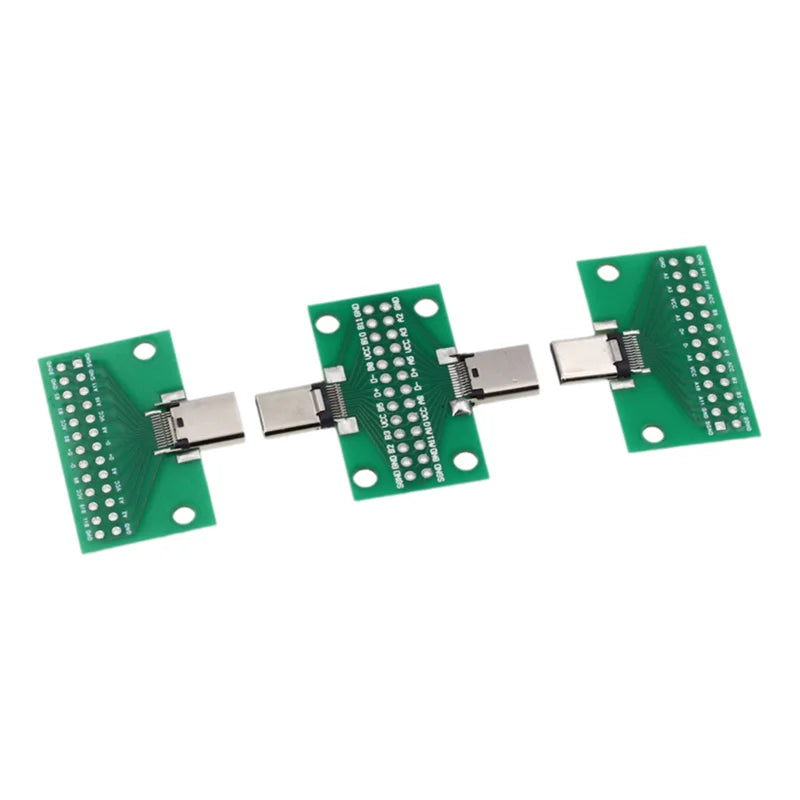

USB 3.1 Type-C Male & Female Test PCB Board Adapter

Whether you're prototyping circuits, testing data lines, or developing USB Type-C projects, this compact USB 3.1 Type-C Test PCB Board is the perfect bench companion. Featuring both male and female connectors on a single FR-4 fiberglass board with double-sided insertion support, it makes verifying USB Type-C connections quick, accurate, and hassle-free.

Key Features

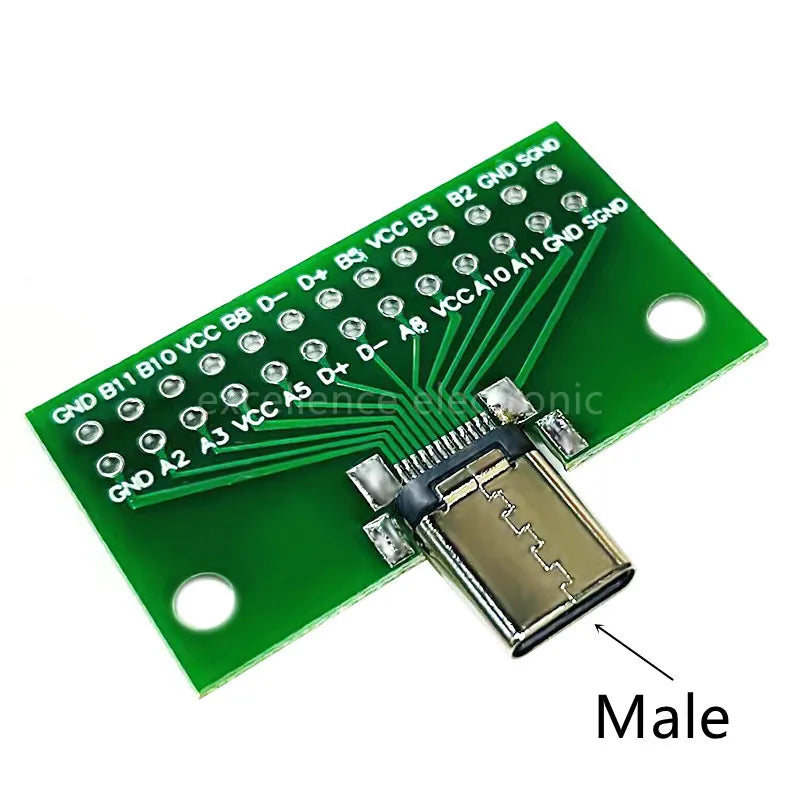

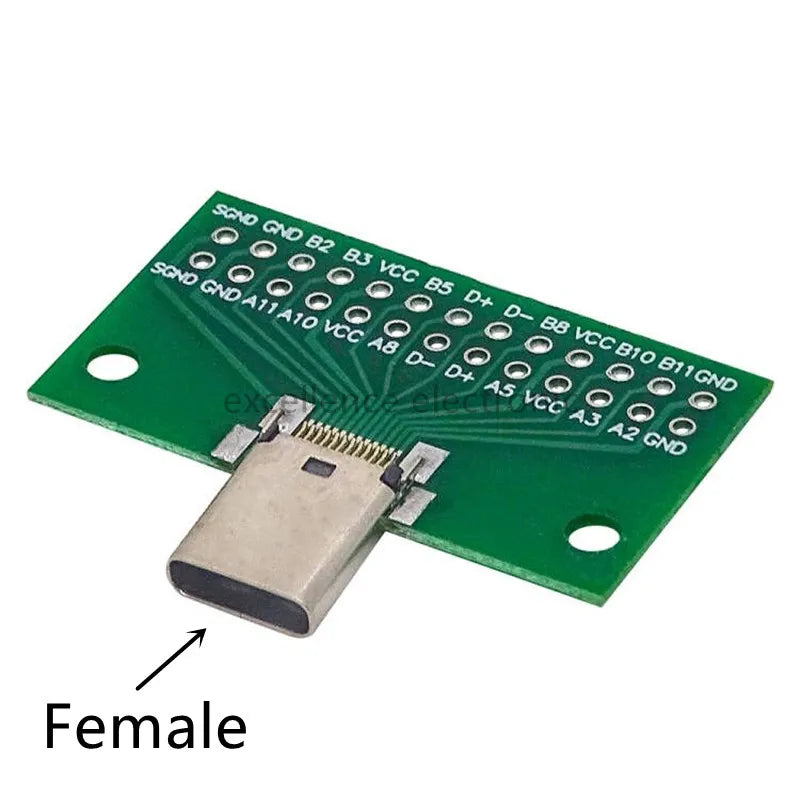

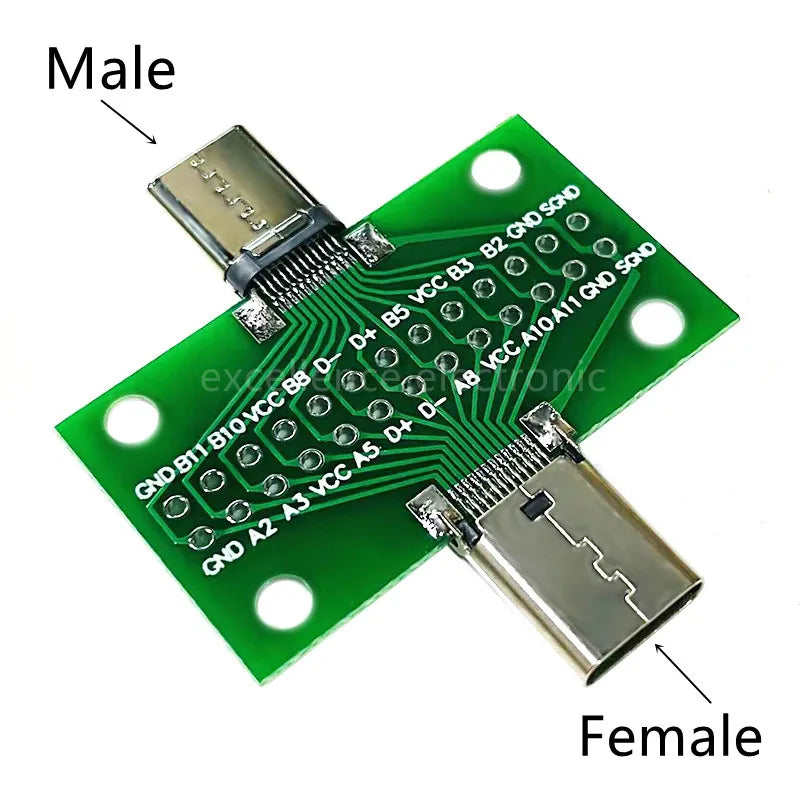

• Dual Connector Support: Includes both Type-C male and female test connectors for versatile testing setups.
• Double-Sided Insertion: Supports reversible plug orientation — no need to worry about connector alignment.
• 24-Pin (2×13P) 2.54mm Header: Standard 2.54mm pitch pin headers for easy breadboard and jumper wire compatibility.
• USB 3.1 Data Line Compatible: Supports USB 3.1 signaling for high-speed data line testing and validation.
• Multi-Voltage Support: Compatible with 5V, 12V, 20V, and 30V operating voltages — ideal for USB Power Delivery testing.
• FR-4 Fiberglass PCB: High-quality green oil tin-spraying process ensures durability and reliable soldering pads.
• Compact Form Factor: Measures just 20×36mm — small enough for any workbench or project kit.
• CE & RoHS Certified: Meets international safety and environmental standards.

Specifications

• Connector Type: USB 3.1 Type-C Male / Female
• Pin Count: 24P (2×13P, 2.54mm pitch)
• Board Size: 20 × 36mm
• Hole Spacing: 2.54mm
• Aperture: 1.0mm
• Board Thickness: 0.8mm
• PCB Material: FR-4 Fiberglass
• Surface Finish: High-quality green oil tin-spraying process
• Supported Voltages: 5V / 12V / 20V / 30V
• Battery Required: No
• Wireless: No
• Certifications: CE, RoHS
• Country of Origin: Made in Mainland China

What's in the Box

• 1× USB 3.1 Type-C Male/Female Test PCB Board Adapter

Who Is This For?

This PCB test board is ideal for electronics hobbyists, engineers, and makers who work with USB Type-C designs. It's a must-have for anyone building or debugging USB 3.1 data lines, power delivery circuits, or DIY electronics projects. Pair it with your breadboard, oscilloscope, or multimeter for fast and reliable connector testing.

For more DIY electronics tools and accessories, explore our maker collection. You may also find useful components in our project accessories section.

For safety and compliance standards related to electronic components, refer to the U.S. Consumer Product Safety Commission (CPSC).

Learn more: Printed circuit board

Frequently Asked Questions

Q: Is this USB Type-C test PCB board compatible with standard breadboards?

A: Yes! The board uses a standard 2.54mm pitch (0.1") pin header layout, making it fully compatible with standard breadboards, jumper wires, and prototyping setups commonly used in DIY electronics projects.

Q: Does this board support USB Power Delivery (USB PD) voltage testing?

A: Yes. The board supports multiple voltage levels — 5V, 12V, 20V, and 30V — making it suitable for testing USB Power Delivery protocols and high-voltage USB Type-C applications.

Q: What does "double-sided insertion" mean for this Type-C test board?

A: Double-sided insertion means the USB Type-C connector on this board supports plugging in the cable in either orientation (right-side up or upside down), which is a key feature of the USB Type-C standard. This ensures your testing reflects real-world usage conditions.

Q: What PCB material is used, and is it durable?

A: The board is manufactured using FR-4 fiberglass, a high-grade, flame-retardant PCB substrate. The green oil tin-spraying surface finish adds durability and ensures reliable soldering and contact quality for repeated testing sessions.
