Universal Copy Remote Control – Auto Frequency Search 260–868MHz

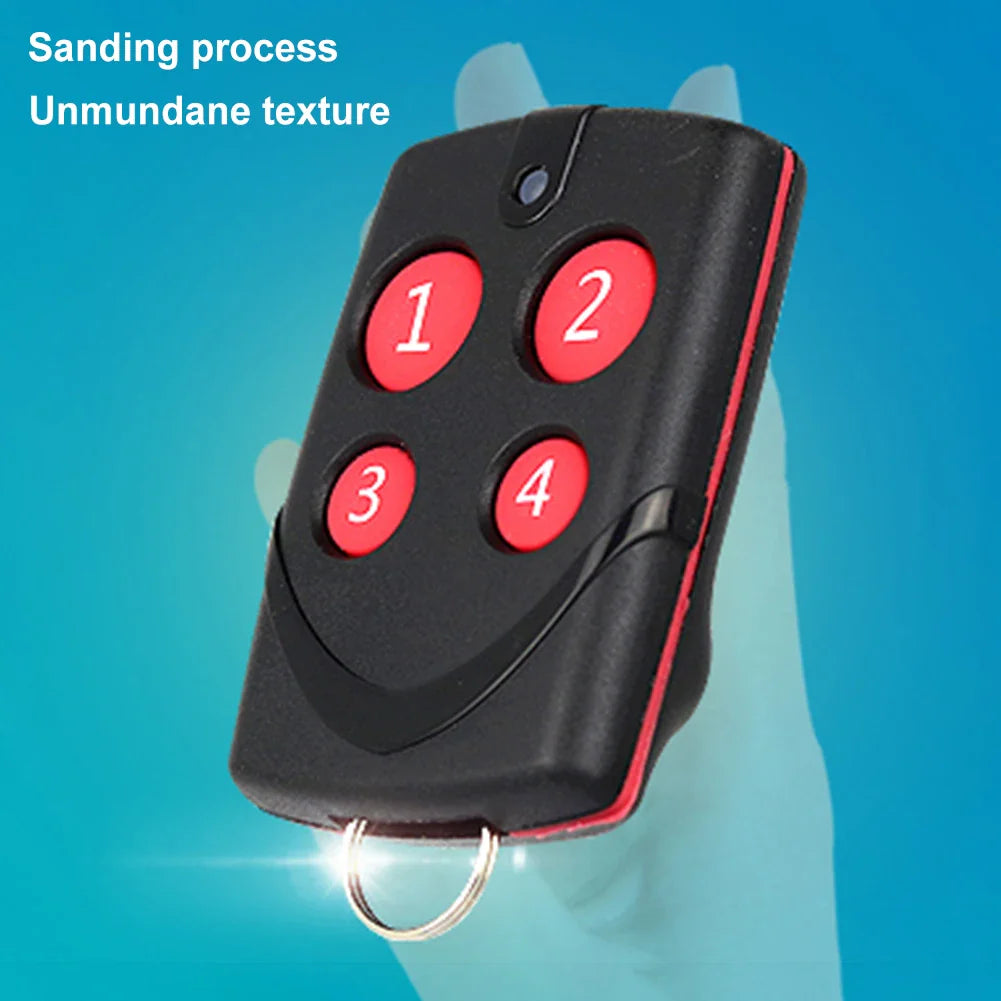

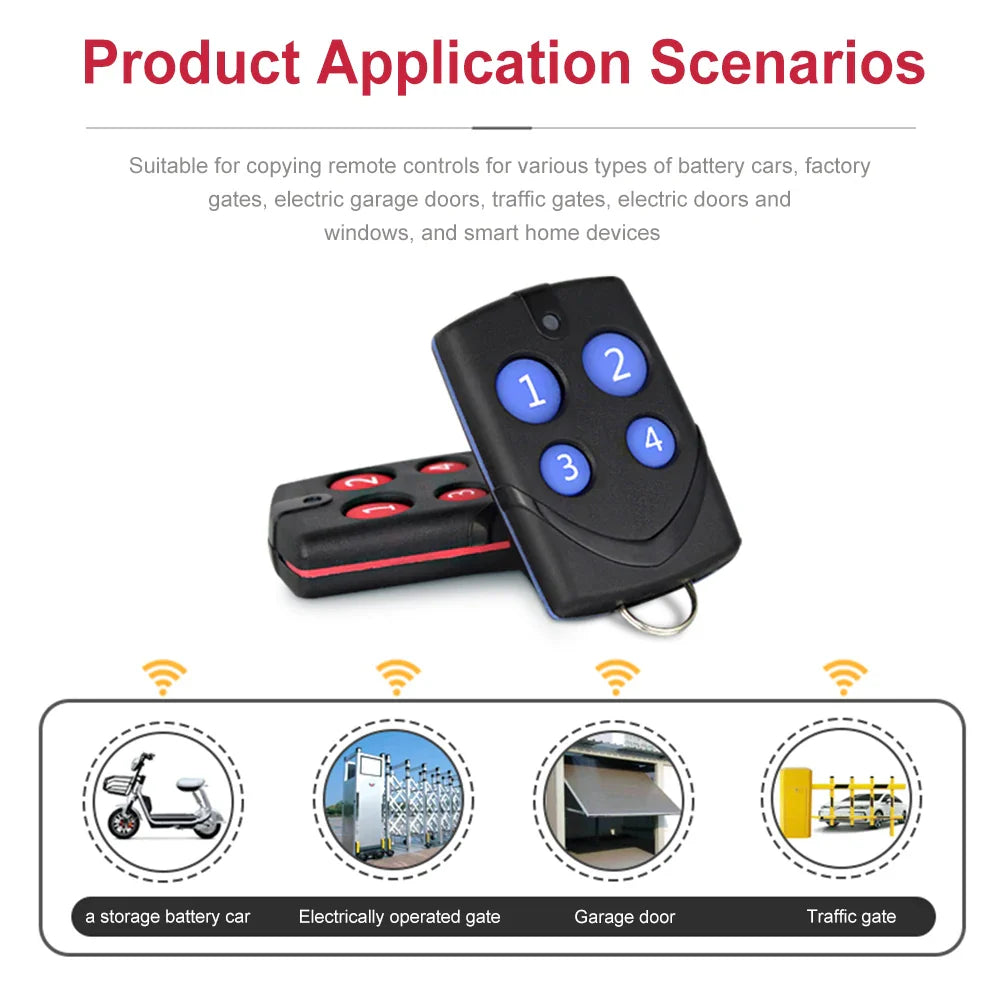

Tired of losing original remotes or waiting for a replacement? The VODOOL AK-KB-171ALL Universal Copy Remote Control lets you clone virtually any fixed-code or learning-code RF remote in seconds. With broad frequency coverage from 260 to 868MHz and a dedicated 433MHz fixed-frequency option, this compact 4-channel transmitter works with garage doors, electric gates, lighting systems, electric bikes, balance bikes, and most other RF-controlled household devices.

Made in China.

Key Features

• Auto Frequency Search & Clone: Automatically scans and copies fixed-code and learning-code remotes quickly and accurately — no manual frequency tuning needed.
• Wide Frequency Range: Compatible with RF devices operating between 260MHz and 868MHz, including the widely used 433MHz band.
• 4-Channel Control: Operate up to four independent RF channels from a single compact transmitter.

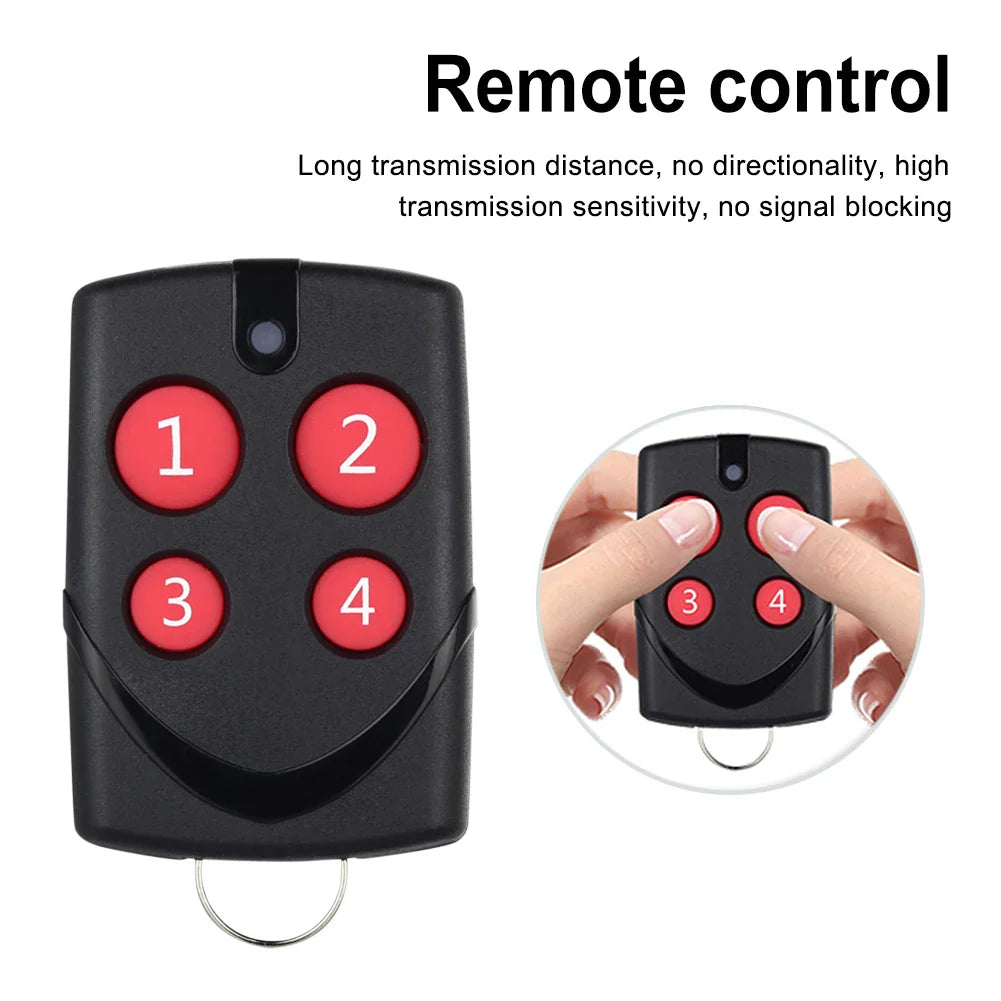

• High Transmission Sensitivity: Powered by a high-performance RF chip with crystal frequency stabilisation for strong, omnidirectional signal output — no need to point the remote at a receiver.
• Copy Without Disruption: Cloning a remote does not interfere with or disable the original transmitter — both continue to work independently.
• Code Memory & Restore: Easily clear saved codes and restore previously cleared codes with a simple button sequence.
• Broad Chip Compatibility: Supports a wide range of popular RF chips including PT2262, EV1527, HT6207, HT640, SMC918, MC145026, and many more.
• Durable ABS Housing: Rugged, wear-resistant ABS plastic shell built for long-term everyday use.

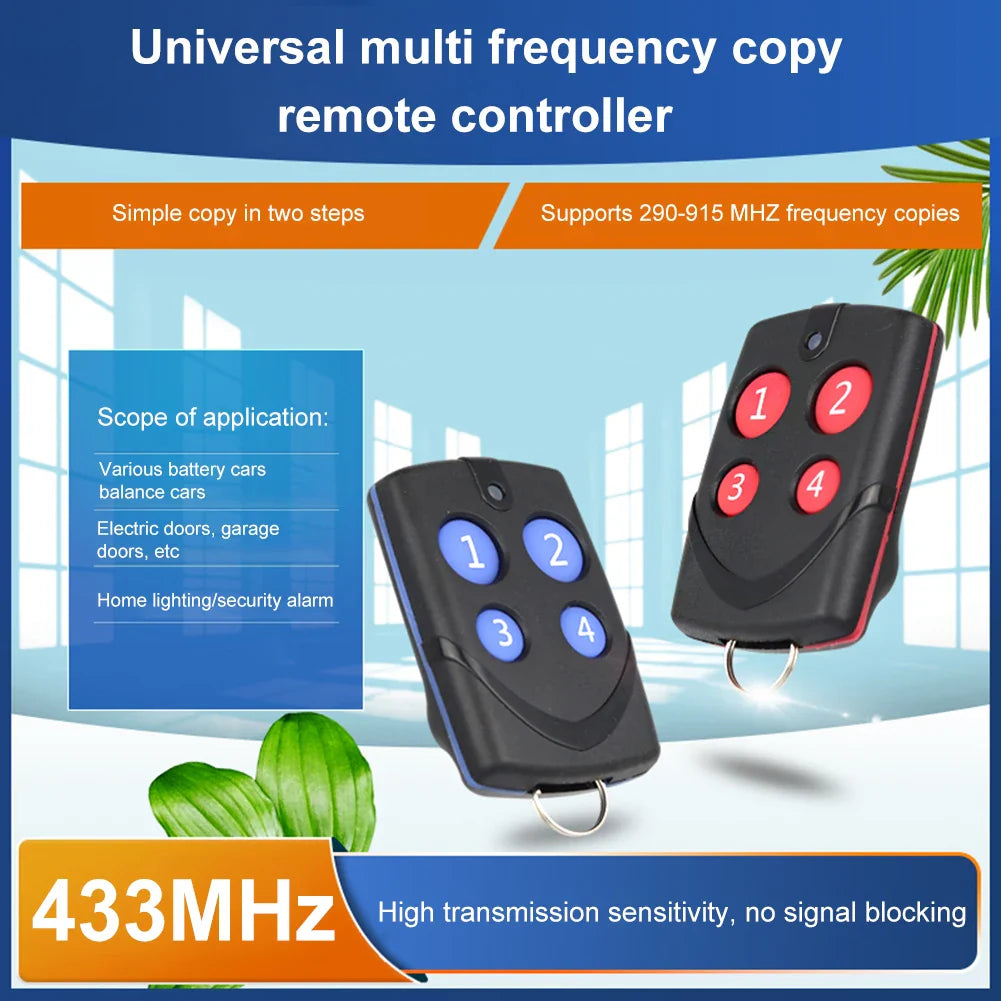

• Available in Two Colours: Choose from Red or Blue.

Specifications

• Model: AK-KB-171ALL

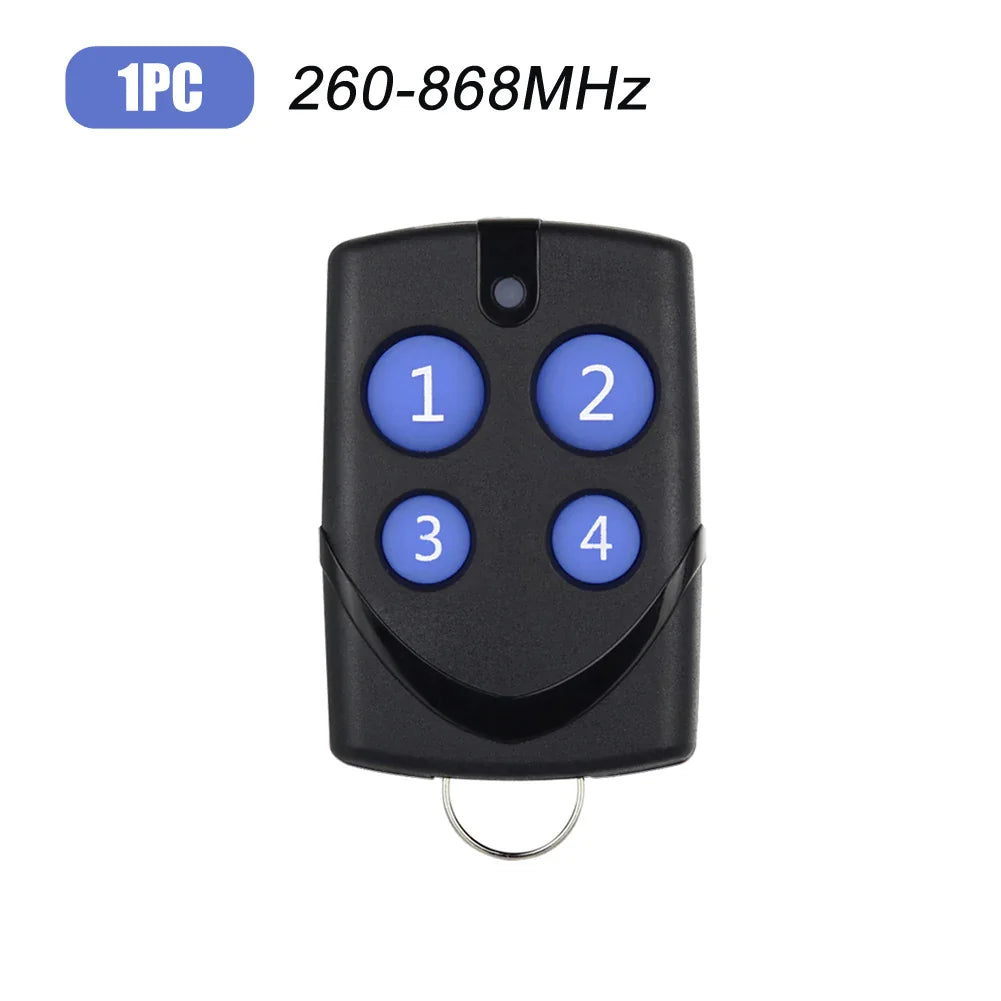

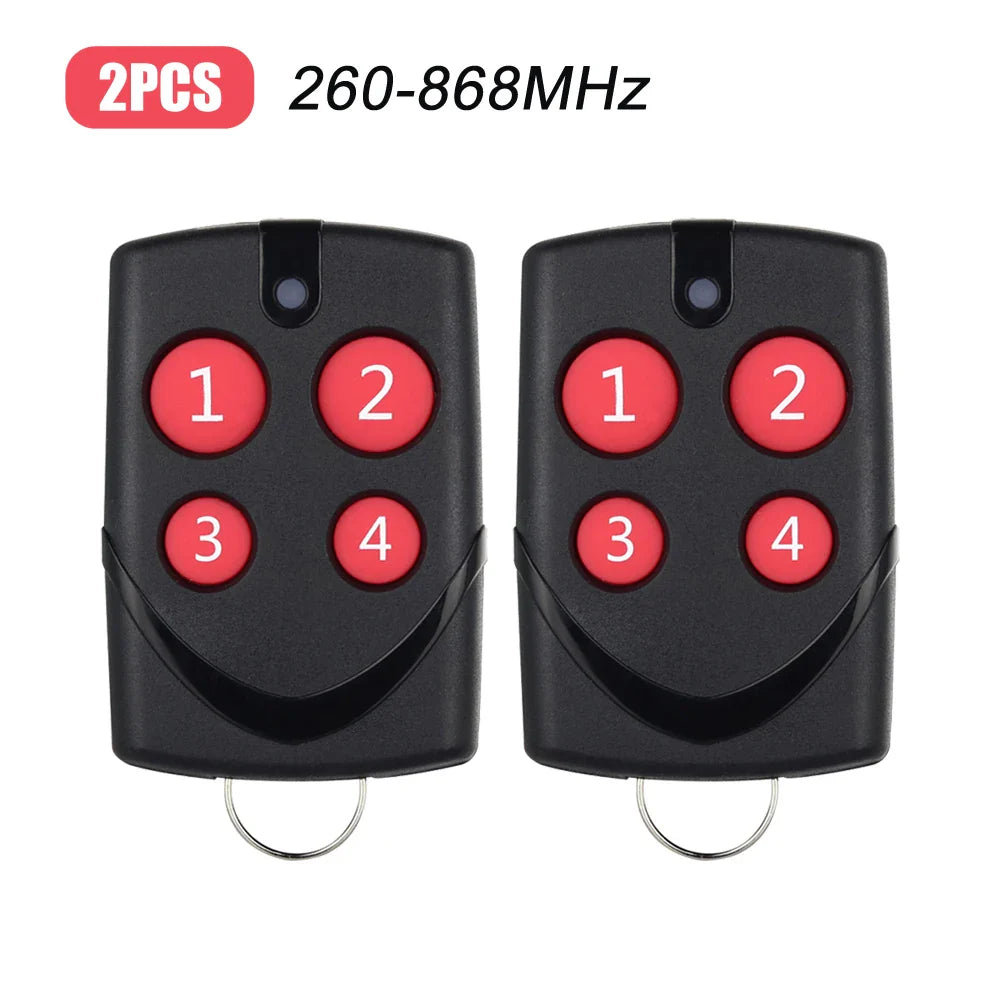

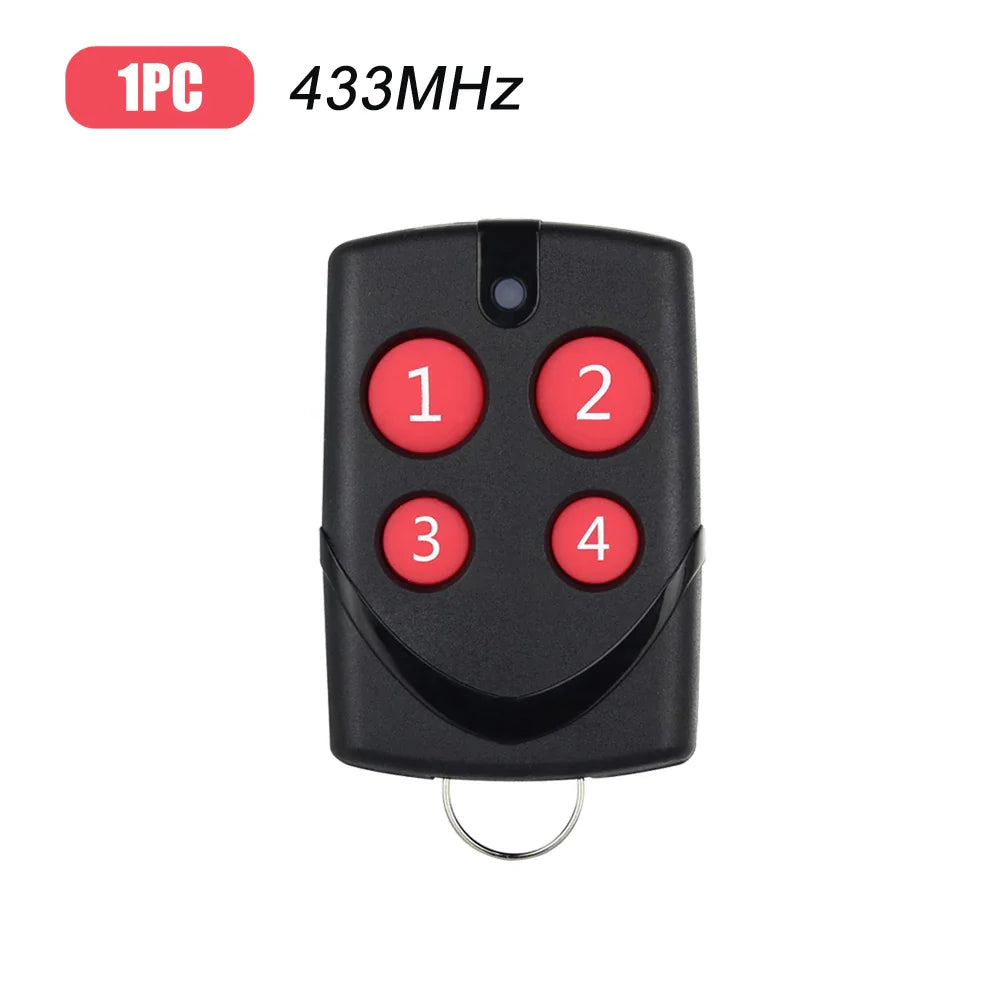

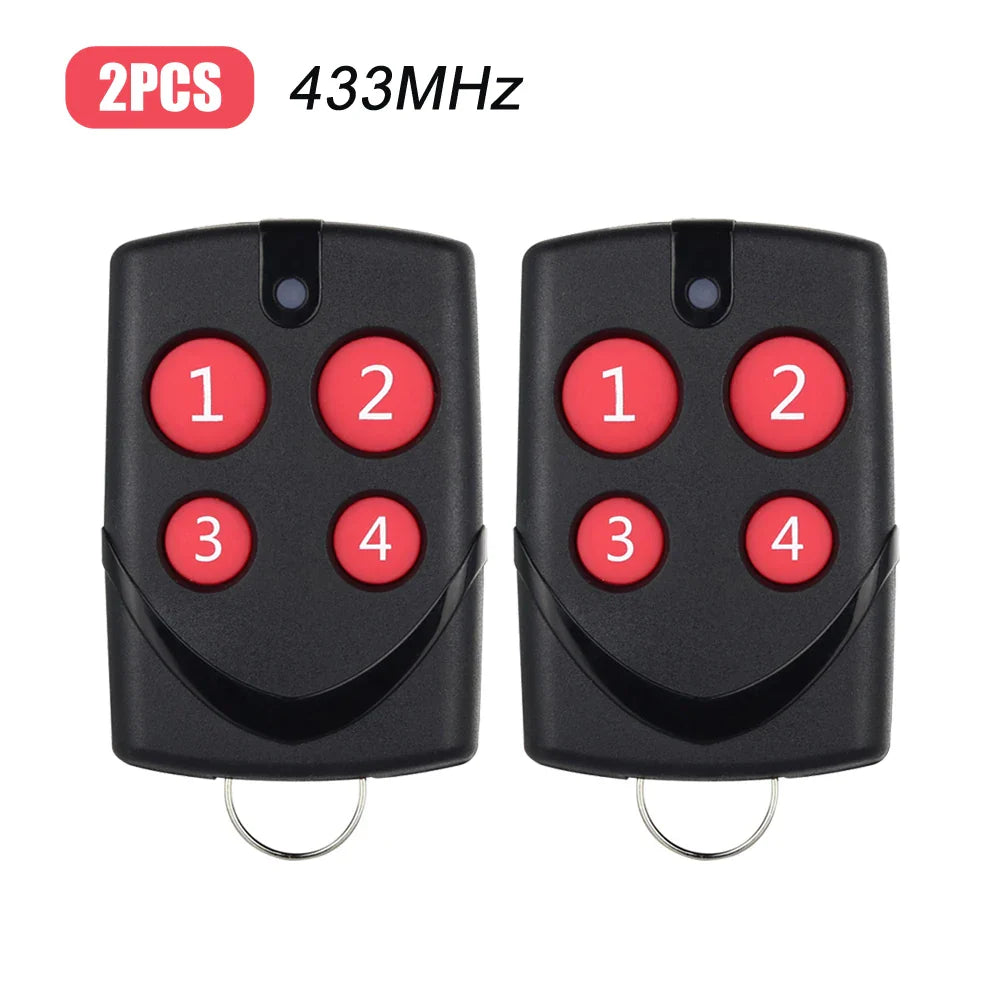

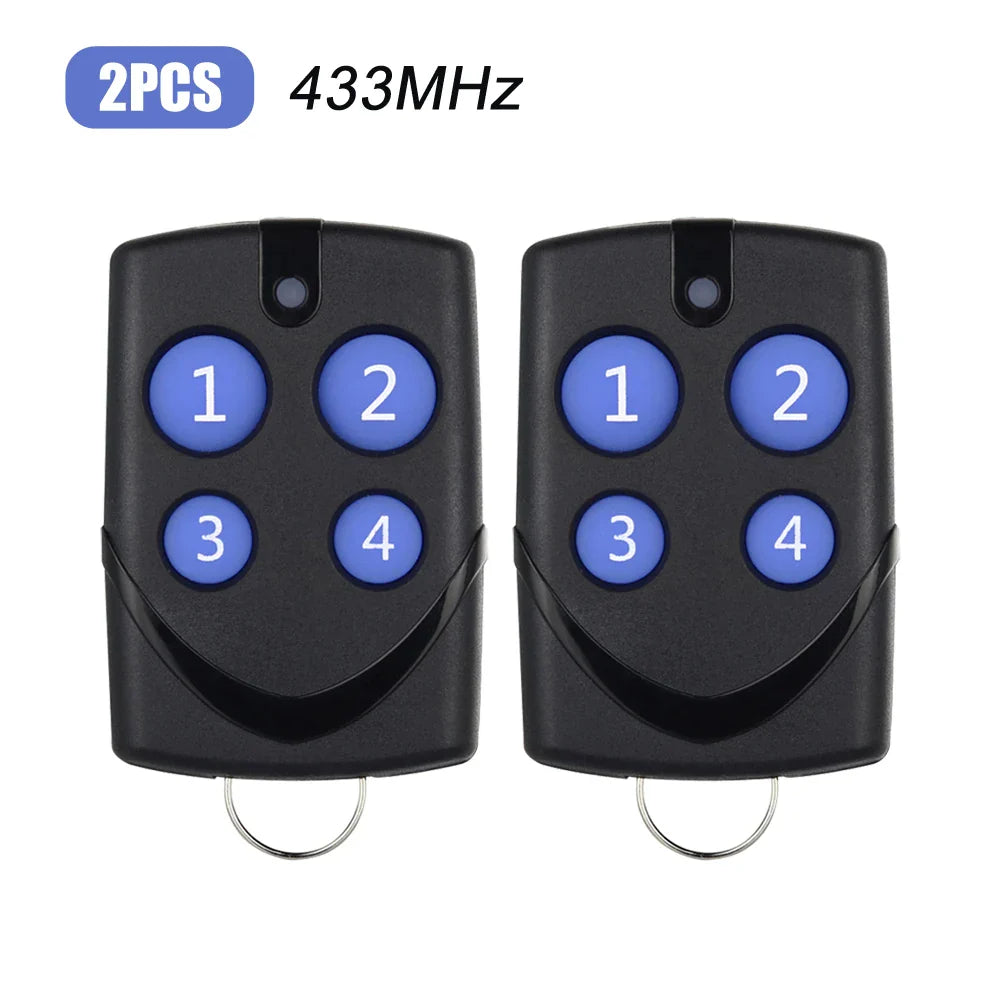

• Operating Frequency: 433MHz fixed / 260–868MHz full frequency (optional)
• Channels: 4
• Operating Voltage: DC 12V
• Battery: 12V 23A Alkaline (included)
• Transmitting Power: 5–7 dBm
• Emission Current: <25mA
• Static Current: <0.15µA
• Operating Temperature: -20°C to 70°C

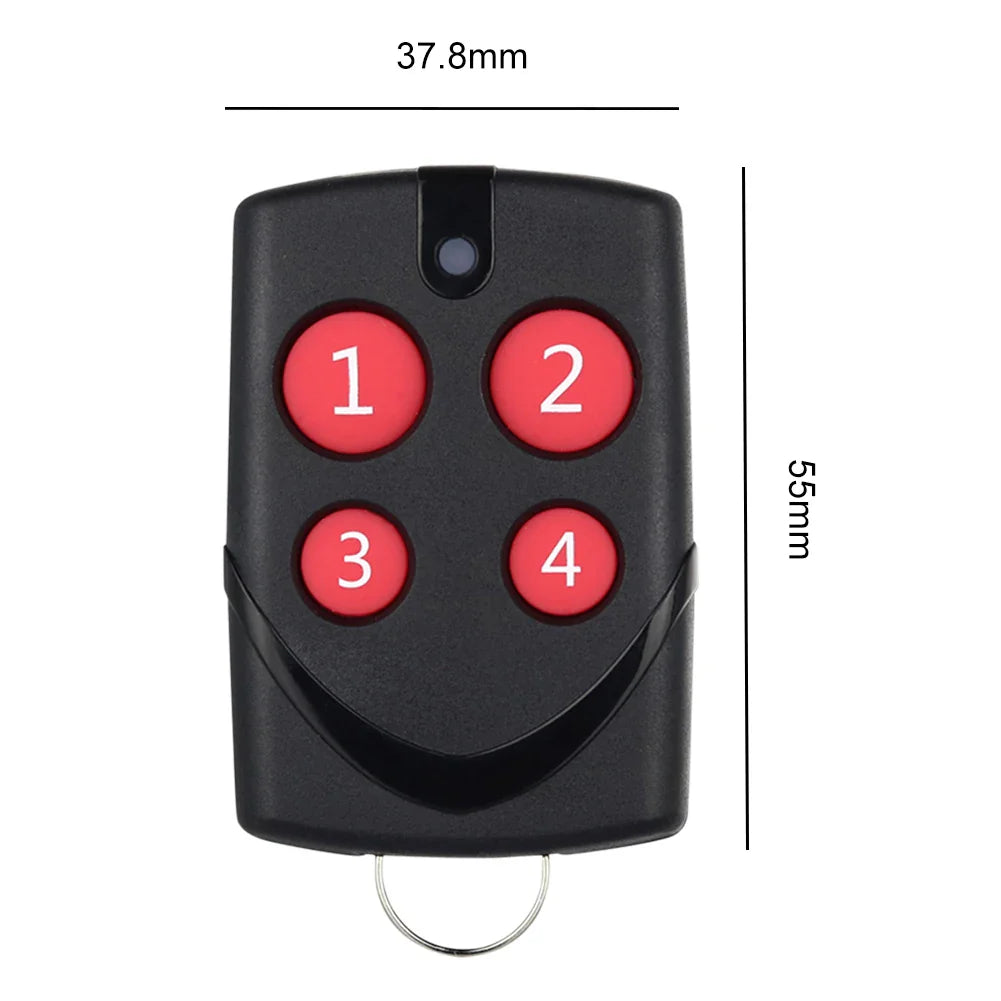

• Dimensions: 55 × 37.8 × 16.5mm (2.16 × 1.48 × 0.64 in)
• Weight: 27g
• Housing Material: ABS
• Wireless Communication: RF
• Colour: Red or Blue (optional)
• Origin: Made in China

How to Use

Copying a Remote

Press the button on the original remote and the corresponding button on the copy remote simultaneously. Hold until the indicator light flashes rapidly and then stays lit, then release both buttons. The code is now saved. Repeat for each button you wish to copy.

Clearing Codes

Press and hold the Unlock buttons on both remotes at the same time until the indicator light flashes, then press the Unlock button three more times (keeping it held) to clear all stored codes.

Restoring Codes

Press and hold the Mute and Ring buttons simultaneously until the indicator flashes — previously cleared codes will be restored automatically.

Compatible RF Chips

PT2242, PT2260, PT2262, EV1527, 527, PT2240, SMC918, HT-12E, AX5326-3, AX5326-4, AX5026, HT600, HT680, HT6207, HT6010, HT6014, MC145026, HT640, and more.

Important Notes

• Keep the two remotes close together during copying to ensure a clean signal transfer.
• Signal range may be reduced in environments with high wireless interference.
• Do not use in humid environments to avoid damage.
• Keep out of reach of children.
• Battery voltage must remain within the specified operating range.
• Colours may vary slightly due to monitor settings. Dimensions may have ±1–2cm tolerance.

What's in the Box

• 1 × Universal Copy Remote Control (AK-KB-171ALL)

Related Products

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone
• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler

For more information on RF wireless safety and device standards, visit the FCC (Federal Communications Commission) or learn about radio frequency technology at NIST.gov.

Frequently Asked Questions

Q: What types of remote controls can the VODOOL AK-KB-171ALL universal copy remote clone?

A: This universal copy remote can clone most fixed-code and learning-code RF remote controls operating between 260MHz and 868MHz, including those used for garage doors, electric gates, lighting systems, electric bikes, and balance bikes. It supports popular chips such as PT2262, EV1527, HT640, SMC918, and many others.

Q: Will copying a remote disable or interfere with my original remote control?

A: No. The cloning process does not affect or disable the original remote. Both the original and the cloned copy remote will function independently after pairing is complete.

Q: What battery does this remote control use?

A: The VODOOL copy remote runs on a standard 12V 23A alkaline battery. Keep the battery voltage within the specified DC 12V operating range for best performance.

Q: Does this remote work with both 433MHz and other frequencies?

A: Yes. One variant is fixed at 433MHz, while the full-frequency version automatically searches and locks onto frequencies between 260MHz and 868MHz, making it compatible with a very wide range of RF devices.
