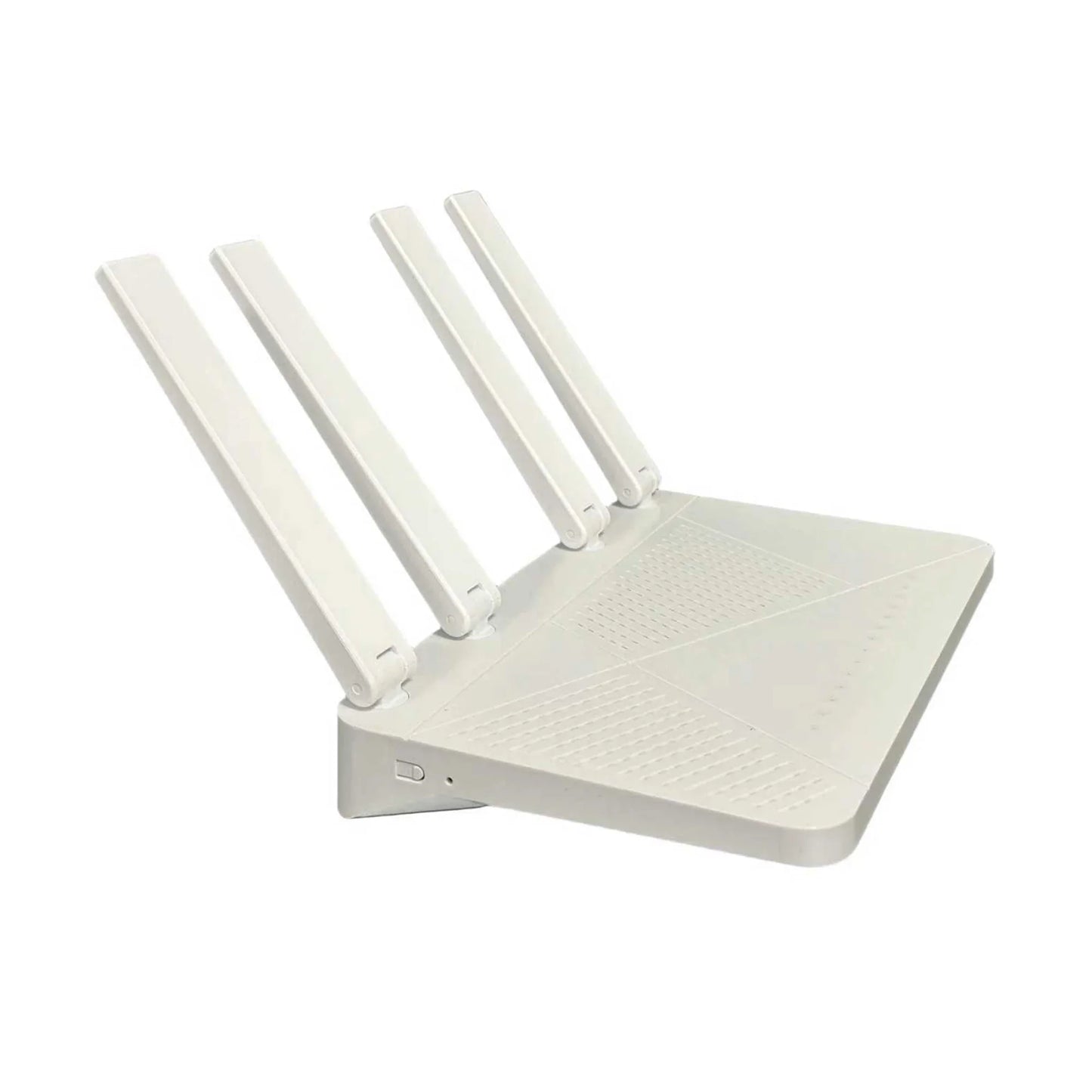

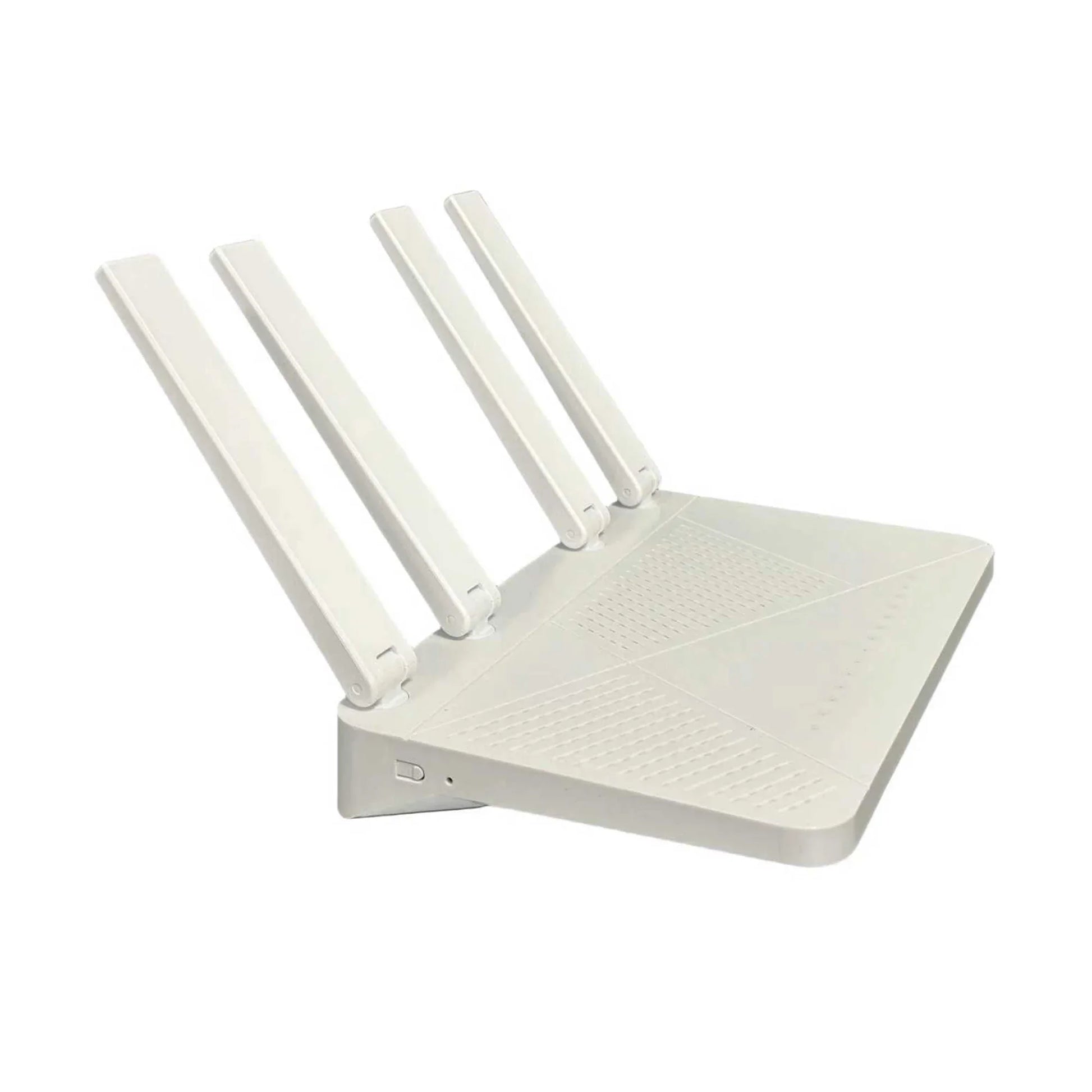

Tuoying R4 AX3000 Wi-Fi 6 ONU ONT All-in-One – Dual-Band XPON with VoIP & CATV
Upgrade your home or office network with the Tuoying R4 AX3000 Optical Network Unit (ONU/ONT) — a powerful all-in-one fiber access device built on passive optical network (PON) technology. Combining Wi-Fi 6 (802.11ax), dual-band 2.4 GHz/5 GHz wireless, four Gigabit LAN ports, optional VoIP, and an optional CATV RF interface, the R4 AX3000 delivers blazing-fast, reliable connectivity for modern households and small businesses alike.
Made in Mainland China.
Why Choose the R4 AX3000 ONU?
- Wi-Fi 6 Speed: Dual-band 2.4 GHz + 5 GHz with combined speeds up to 3,000 Mbps — enjoy ultra-fast streaming, gaming, and video calls.
- EPON/GPON Auto-Switching: Automatically detects and switches between EPON and GPON modes, ensuring seamless compatibility with your ISP's fiber infrastructure.
- All-in-One Connectivity: Integrates data, VoIP telephony (optional), and CATV cable TV (optional) into a single compact unit — no need for separate devices.

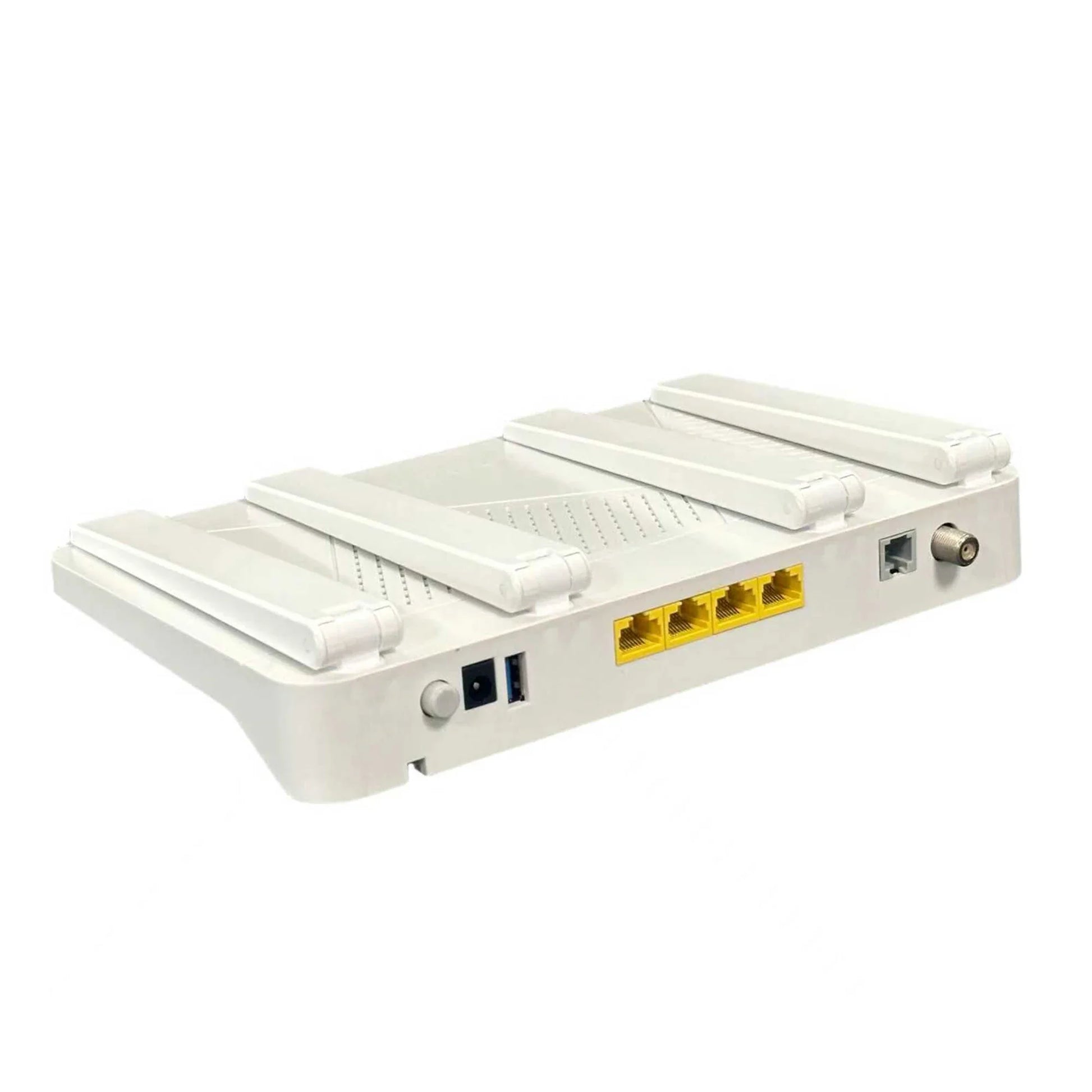

- 4 Gigabit LAN Ports: Four 10/100/1000 Mbps adaptive RJ45 ports provide wired connections for multiple devices simultaneously.
- Flexible Routing Modes: Supports PPPoE, DHCP, and Static IP routing modes as well as bridge mode — compatible with virtually any ISP setup.
- IPv4 & IPv6 Dual Stack: Future-ready dual-mode support for both IPv4 and IPv6 networks.
- Advanced Security: Built-in firewall, ACL functions, and Wi-Fi encryption modes including WEP-64/128, WPA, WPA2, and WPA3.

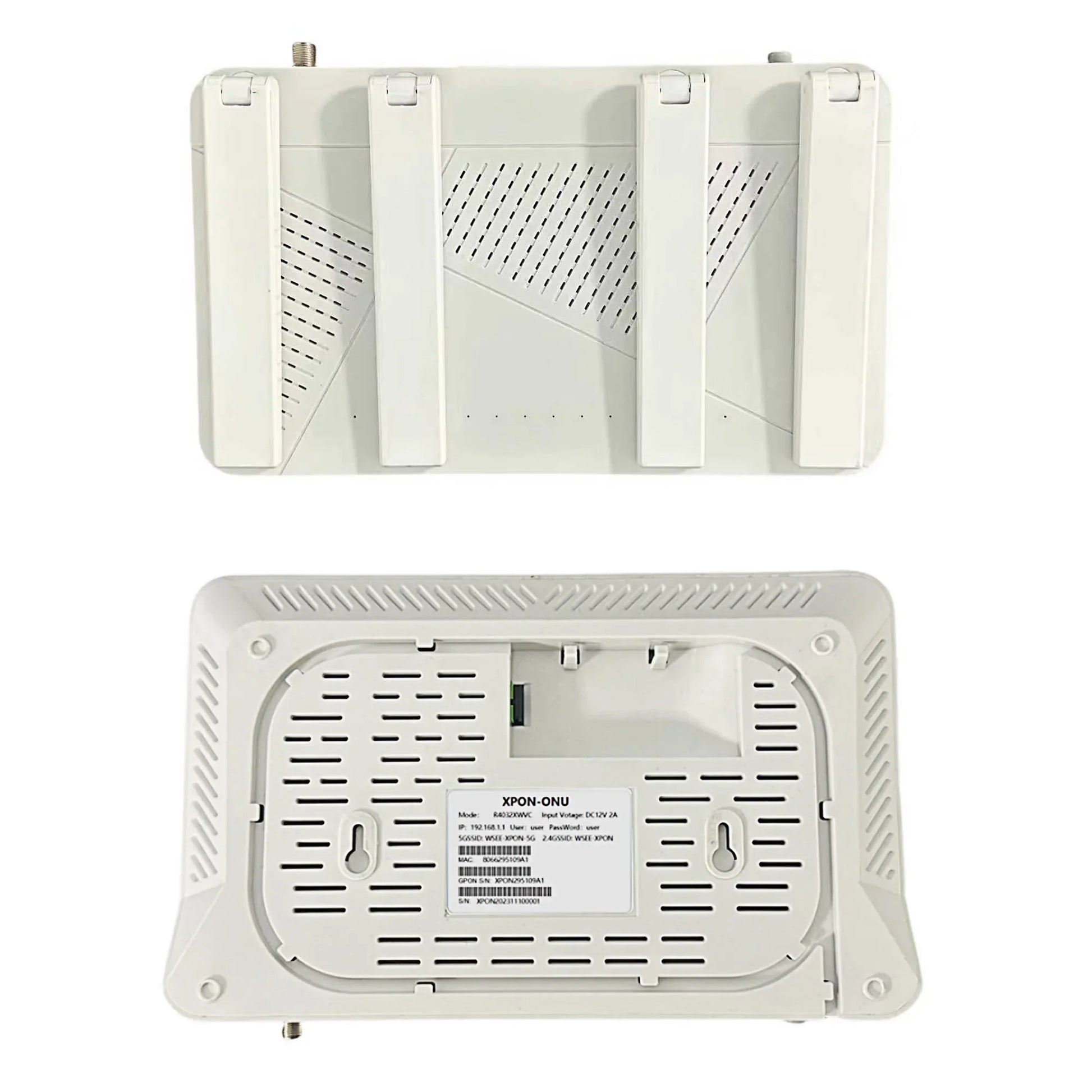

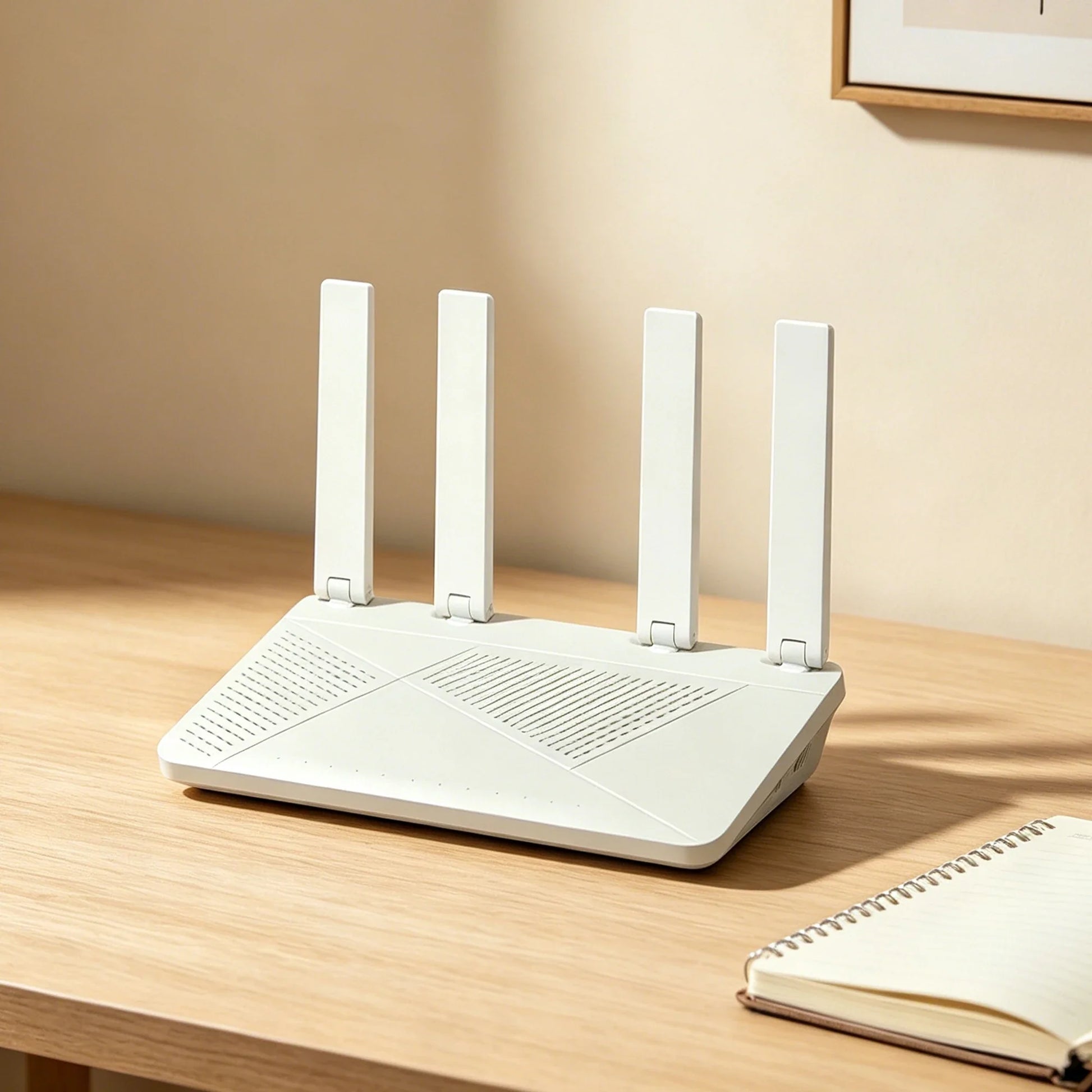

- Easy Installation: Bottom-disc fiber structure simplifies fiber cable routing. Supports desktop placement or wall mounting to fit any environment.
- Remote Management: TR-069 support enables remote configuration and maintenance by your ISP or IT administrator.
- CE Certified: Meets European conformity safety and electromagnetic standards.
Key Features at a Glance
- XPON (EPON/GPON) auto-switching, 20 km transmission distance
- Wi-Fi 6 IEEE 802.11a/b/g/n/ac/ax, up to 3,000 Mbps
- Multi-SSID support with guest network capability
- IGMP Snooping/Proxy for efficient multicast (IPTV)
- Port mapping and loop detection
- CATV RF: 47–1,006 MHz frequency range, 75 Ω output impedance (optional)
- VoIP interface (optional)
- Power: 12V 2A DC, ≤15W rated dissipation
- Operating temperature: 0°C to +50°C
Full Technical Specifications
| Category | Parameter | Value |
|---|---|---|
| PON | Interface Type | No CATV: SC/UPC | With CATV: SC/APC |
| Receiving Sensitivity | ≤ -27 dBm | |
| Luminescence Power | +1 ~ +4 dBm | |
| Transmission Distance | 20 km | |
| Operating Wavelength | TX: 1310 nm | RX: 1490 nm | |
| CATV (Optional) | Central Wavelength | 1550 nm |
| Input Light Power | +2 ~ -15 dBm | |
| Reflection Loss of Light | > 45 dBm | |
| Frequency Range | 47–1,006 MHz | |
| Output Level | ≥ 80 dBuV (0 ~ -12 dB) | |
| Output Impedance | 75 Ω | |
| AGC Range | 0 ~ -12 dBm | |
| Carrier-to-Noise Ratio | ≥ 51 dB | |
| CTB / CSO | ≥ 65 dB / ≥ 62 dB | |
| LAN | Interface Type | 4× Gigabit RJ45 |
| Transmission Mode | 10/100/1000 Mbps adaptive | |
| Wi-Fi | Protocol | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Antenna | 2.4 GHz 2×2 | 5 GHz 2×2 | 5 dBi | Up to 3,000 Mbps | |
| Security | Multi-SSID; WEP-64/128, WPA/WPA2/WPA3 | |
| Power | Connector | DC005 φ2.1 mm |
| Input Voltage | 12V 2A | |
| Power Consumption | ≤ 15 W | |
| Environment | Operating Temperature | 0°C ~ +50°C |
| Operating Humidity | 10%–85% (non-condensing) | |
| Storage Temperature | -30°C ~ +60°C | |
| Dimensions & Weight | Product Size | 240 × 150 × 30 mm (excl. antenna & feet) |
| Packaging Size | 366 × 184 × 60 mm | |
| Net Weight | 0.48 kg | |
| Gross Weight | 0.73 kg |
Related Products You May Also Need
- 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
- 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
For more information on fiber-optic broadband standards and PON technology, visit the NIST Communications Technology Laboratory.
Frequently Asked Questions
Q: What is an Optical Network Unit (ONU) and do I need one?
A: An Optical Network Unit (ONU), also called an Optical Network Terminal (ONT), is the device installed at the subscriber's premises in a fiber-optic (PON/XPON) network. It converts the optical signal from your ISP's fiber line into Ethernet data, Wi-Fi, phone (VoIP), and cable TV (CATV) signals that your devices can use. If your ISP provides fiber-to-the-home (FTTH) or fiber-to-the-building (FTTB) service via EPON or GPON, you need an ONU/ONT like the R4 AX3000 to connect.
Q: Does this ONU support both EPON and GPON networks?
A: Yes! The Tuoying R4 AX3000 features automatic EPON/GPON (XPON) mode detection and switching. This means it is compatible with the two most widely deployed passive optical network standards worldwide, making it suitable for a broad range of ISP fiber infrastructures without any manual configuration required.
Q: Is VoIP and CATV included, or are they optional add-ons?
A: Both the VoIP telephone interface and the CATV RF output are optional on the R4 AX3000 series. The unit comes in multiple configurations — please check the selected variant at the time of purchase to confirm whether VoIP and/or CATV are included. The base model includes 4 Gigabit LAN ports and dual-band Wi-Fi 6.
Q: Can I mount this device on a wall?

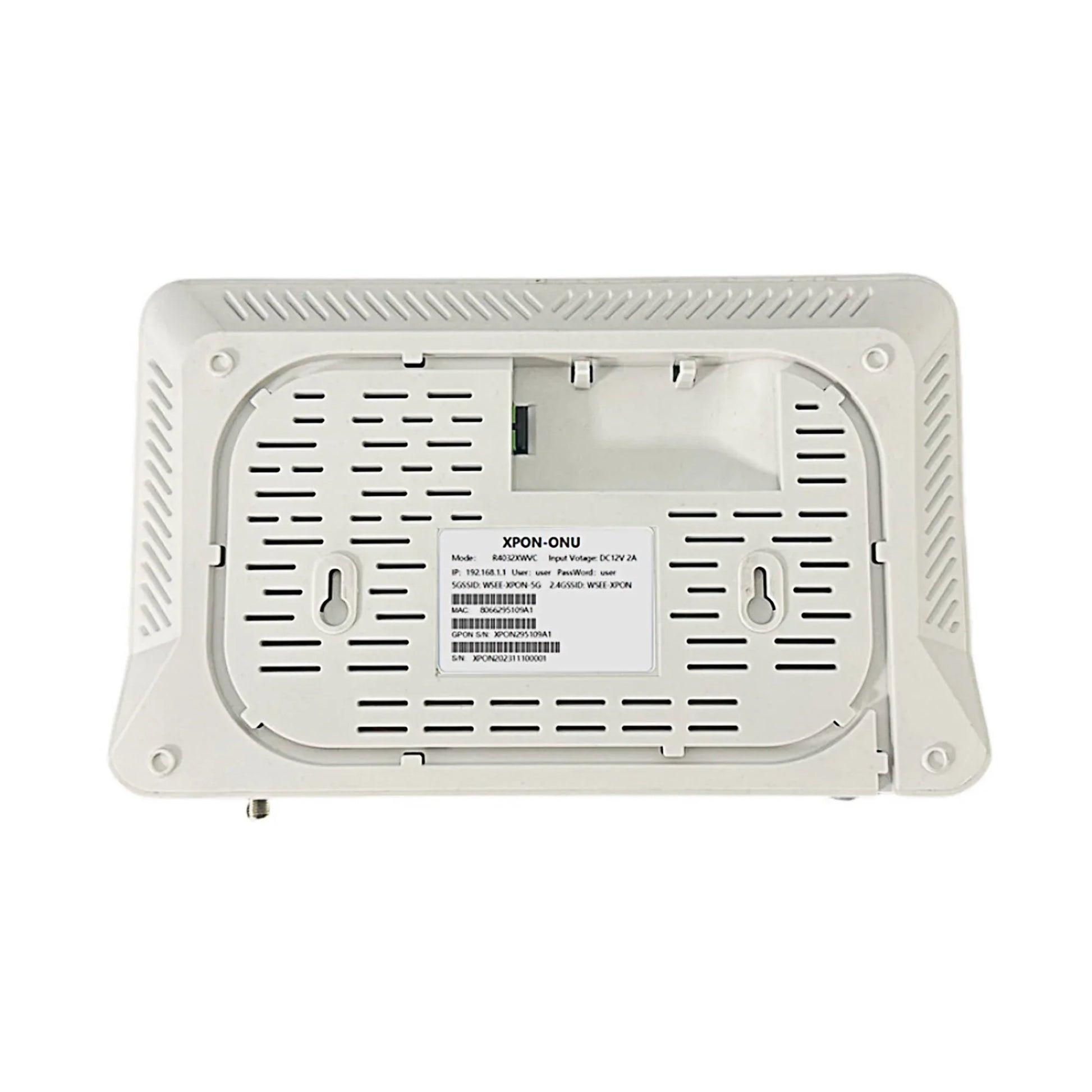

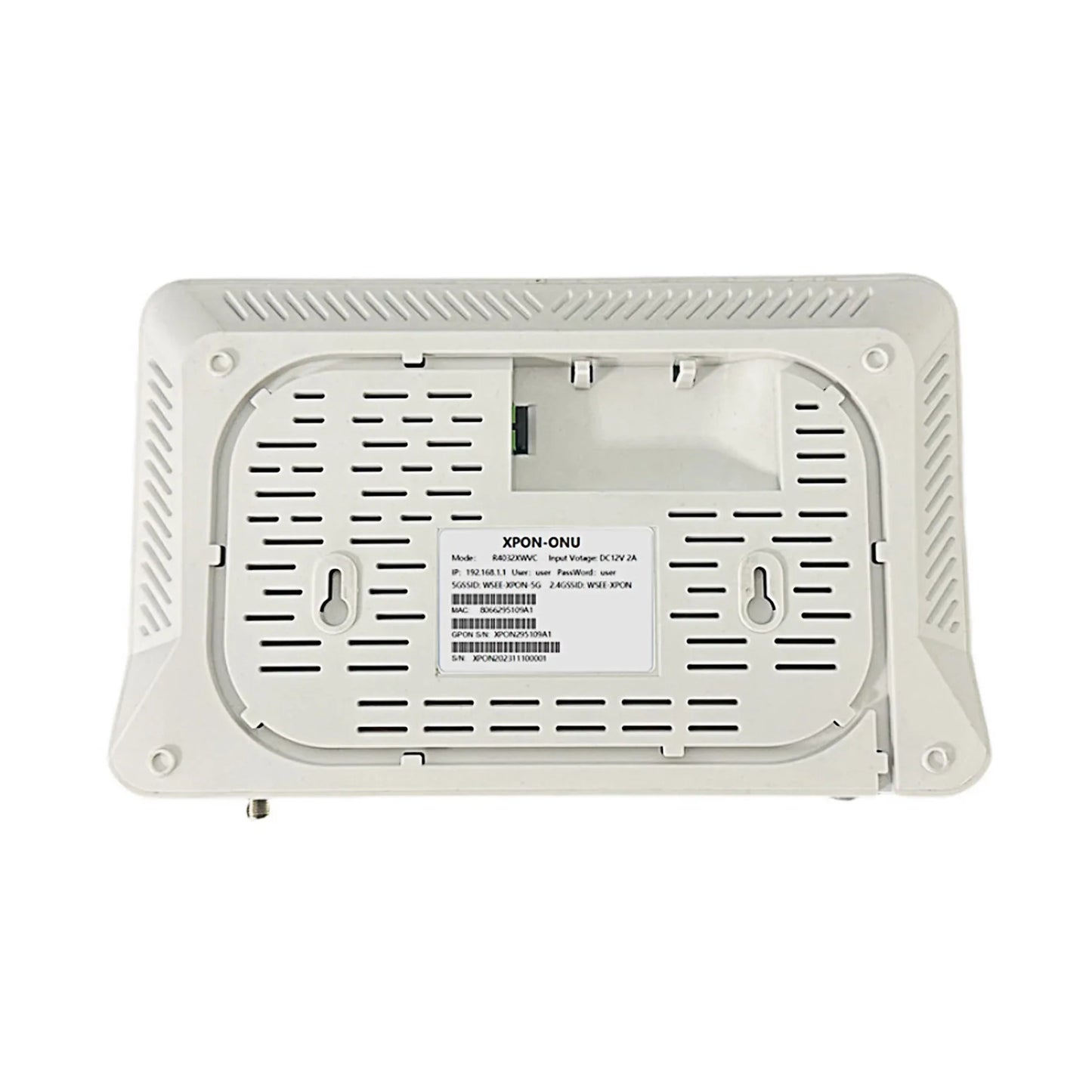

A: Absolutely. The R4 AX3000 supports both desktop placement and wall mounting. Its bottom-disc fiber entry design keeps fiber cables neatly routed during installation, making it easy to adapt to your home or office environment.
Q: What Wi-Fi security protocols does the R4 AX3000 support?
A: The device supports multiple SSID configurations and a full range of modern Wi-Fi security protocols, including WEP-64, WEP-128, WPA, WPA2, and the latest WPA3 standard, ensuring your wireless network stays protected against unauthorized access.
