Tuoying FTTH-OR20 Active Optical Receiver WDM CATV RF

Tuoying FTTH-OR20 Active Optical Receiver – WDM Fiber to RF & CATV

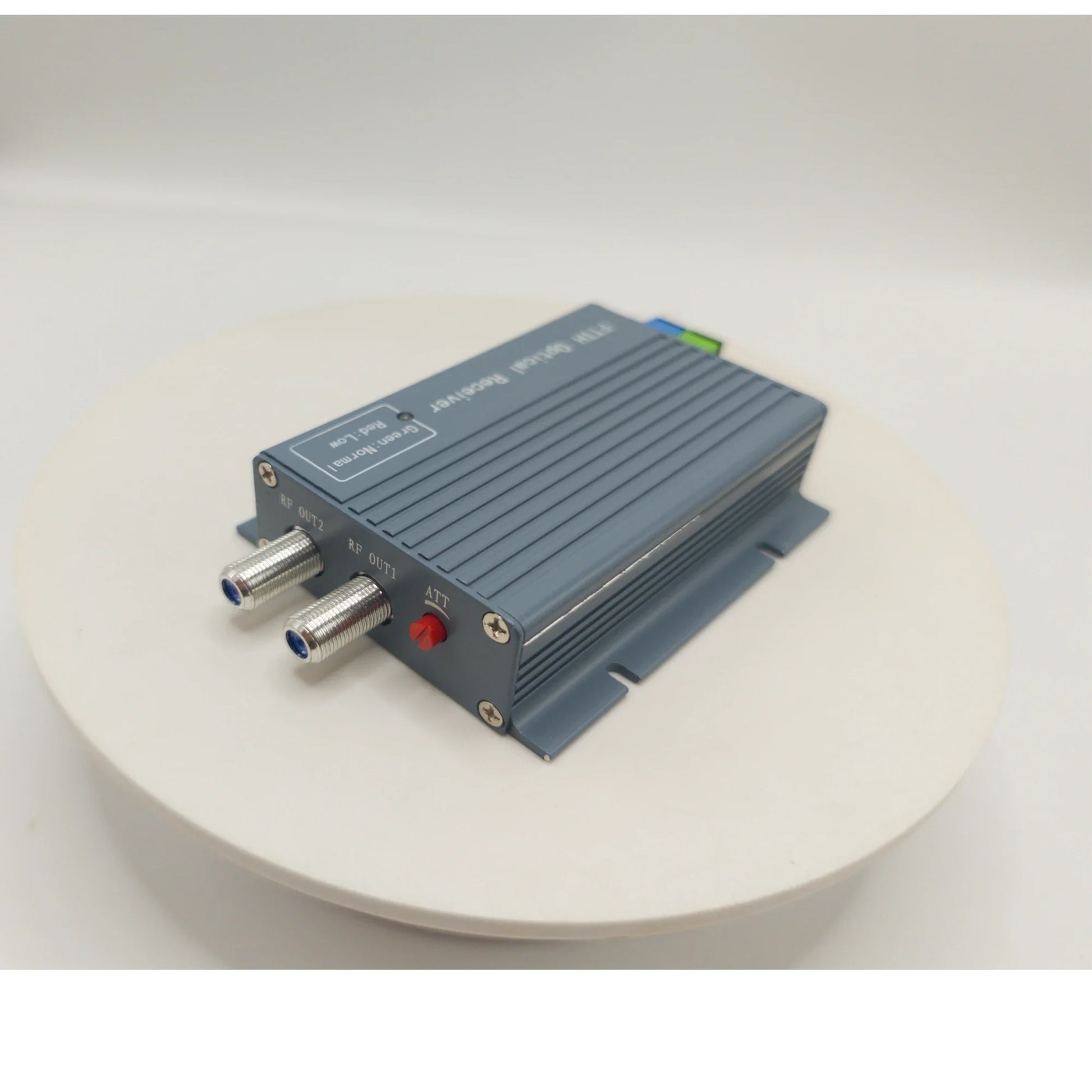

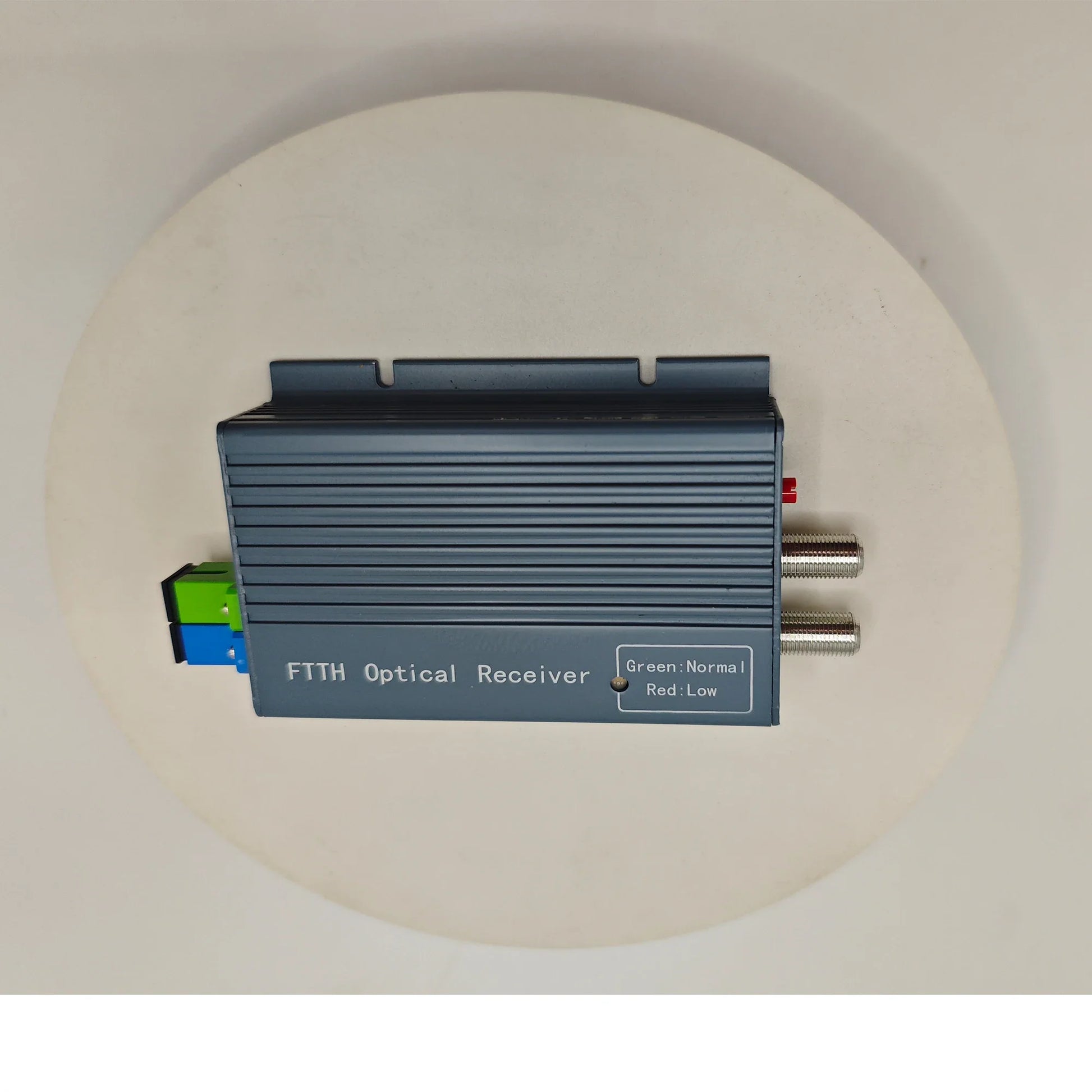

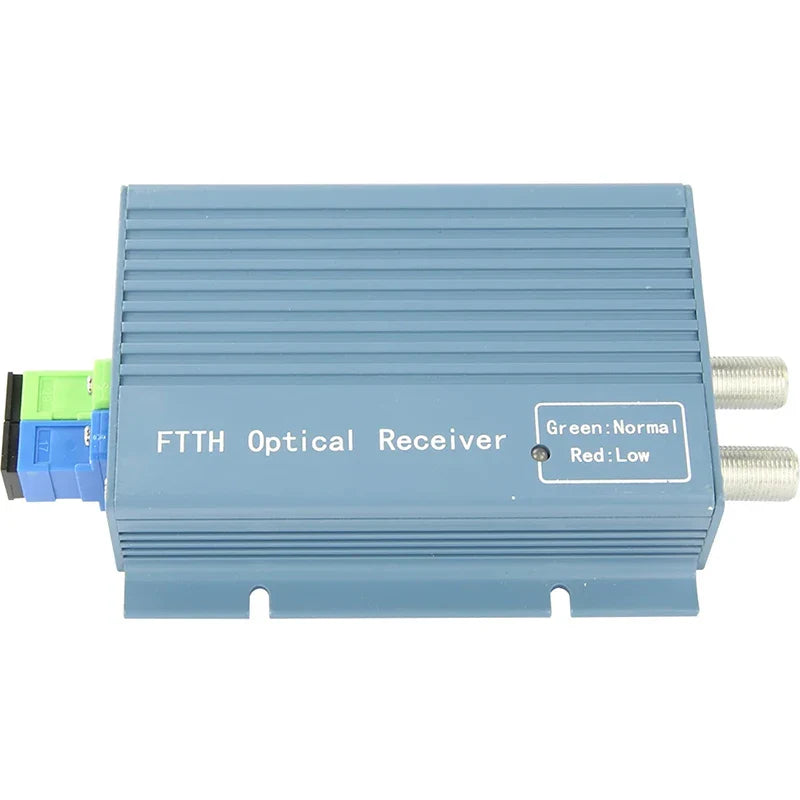

The Tuoying FTTH-OR20 Active Optical Receiver is a high-performance fiber-to-the-home (FTTH) optical receiver designed for seamless integration of analog and digital signals into residential and commercial networks. Leveraging advanced GaAs low-noise amplifier technology and optical AGC (Automatic Gain Control), this unit delivers rock-solid CATV signal reception over fiber — making it the ideal choice for network installers, telecoms professionals, and advanced home network setups.

Made in Mainland China.

Certification: CE Certified | Model: FTTH-OR20 | Brand: Tuoying

Key Features

• Triple-Play Ready: Built-in WDM supports single-fiber home delivery across 1490/1310/1550 nm wavelengths, enabling simultaneous voice, data, and video convergence.
• GaAs Low-Noise Amplifier: Full RF channel GaAs amplifier circuit — digital signal reception at -15 dBm, analog signal reception at -10 dBm.
• Optical AGC Function: Light input AGC with customizable AGC range for consistent output across varying signal levels.

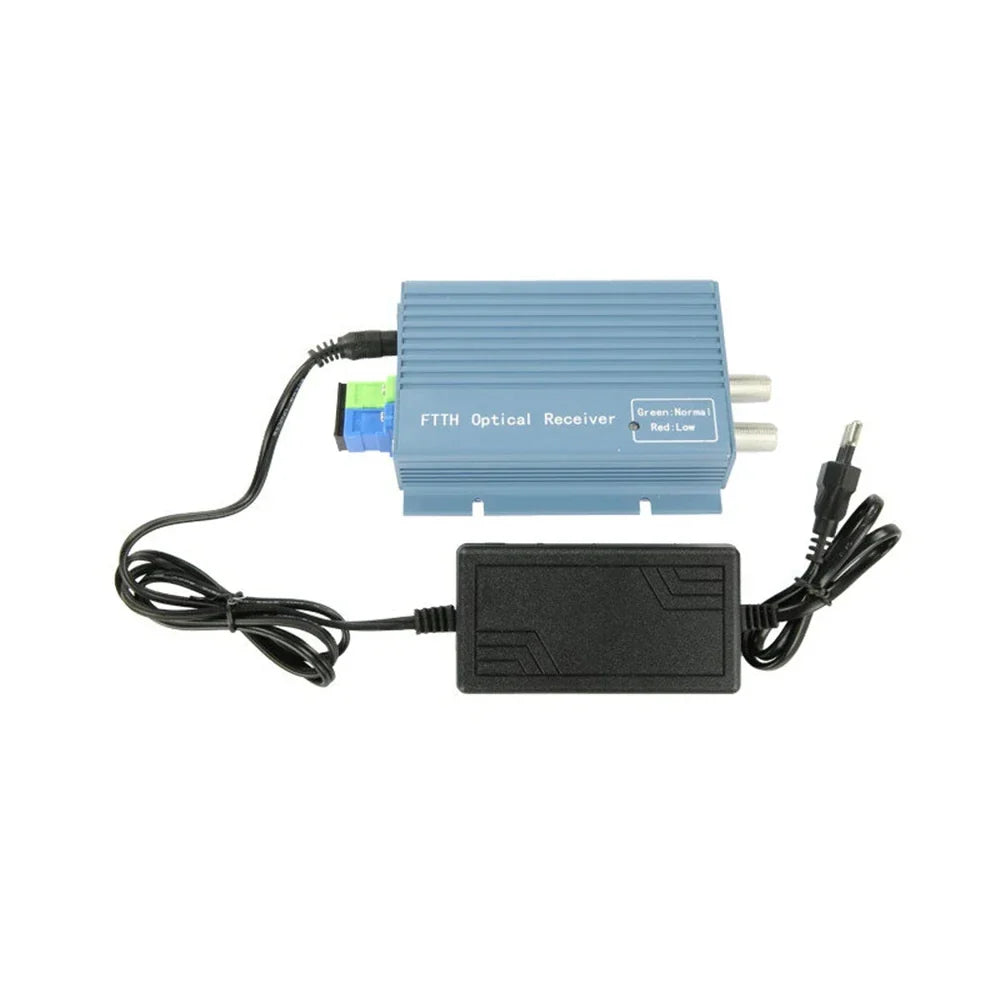

• Ultra-Low Power Consumption: Overall power consumption under 2W with a high-efficiency switching power supply for maximum reliability and stability.
• Built-in Optical Isolator: Achieves 1490/1310 nm isolation at the input for clean signal separation.
• Multi-Stage Lightning Protection: TVS diodes and a dedicated lightning protection system safeguard equipment during electrical surges.

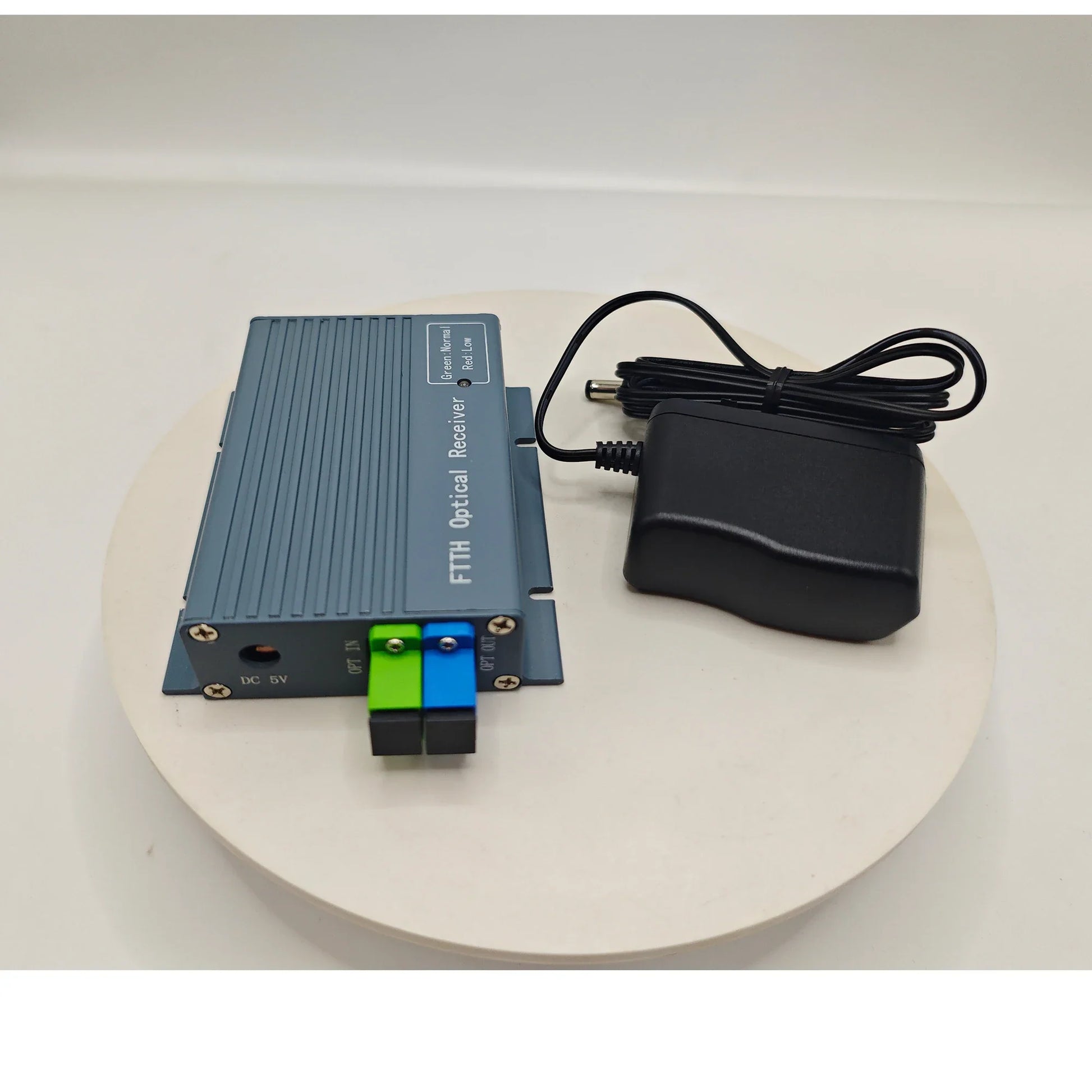

• Flexible Connector Options: Compatible with SC/APC, FC/APC, or custom optical connectors; supports male or female RF interfaces.

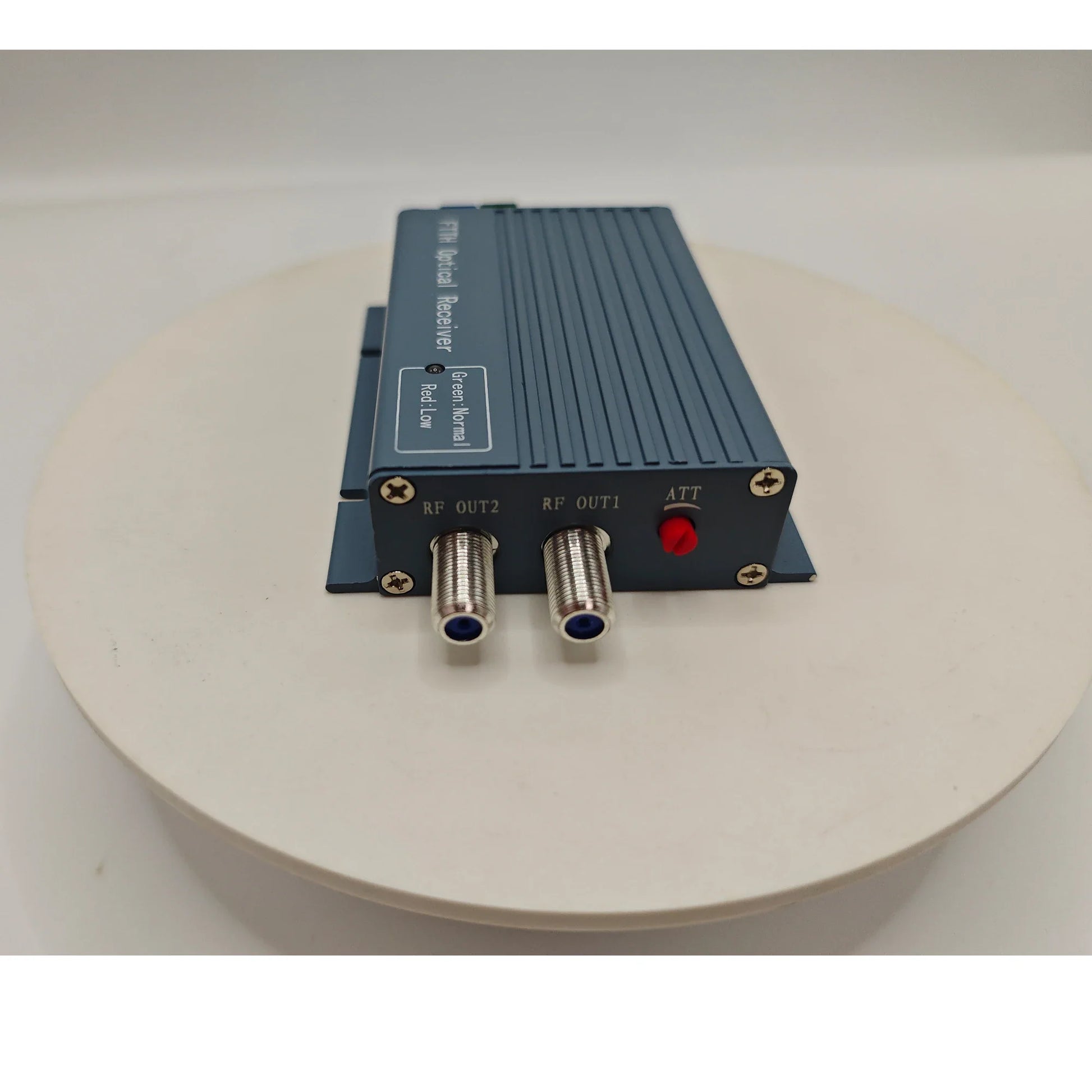

• Single or Dual RF Output: Output power supply function included; single or dual RF output configurations available.

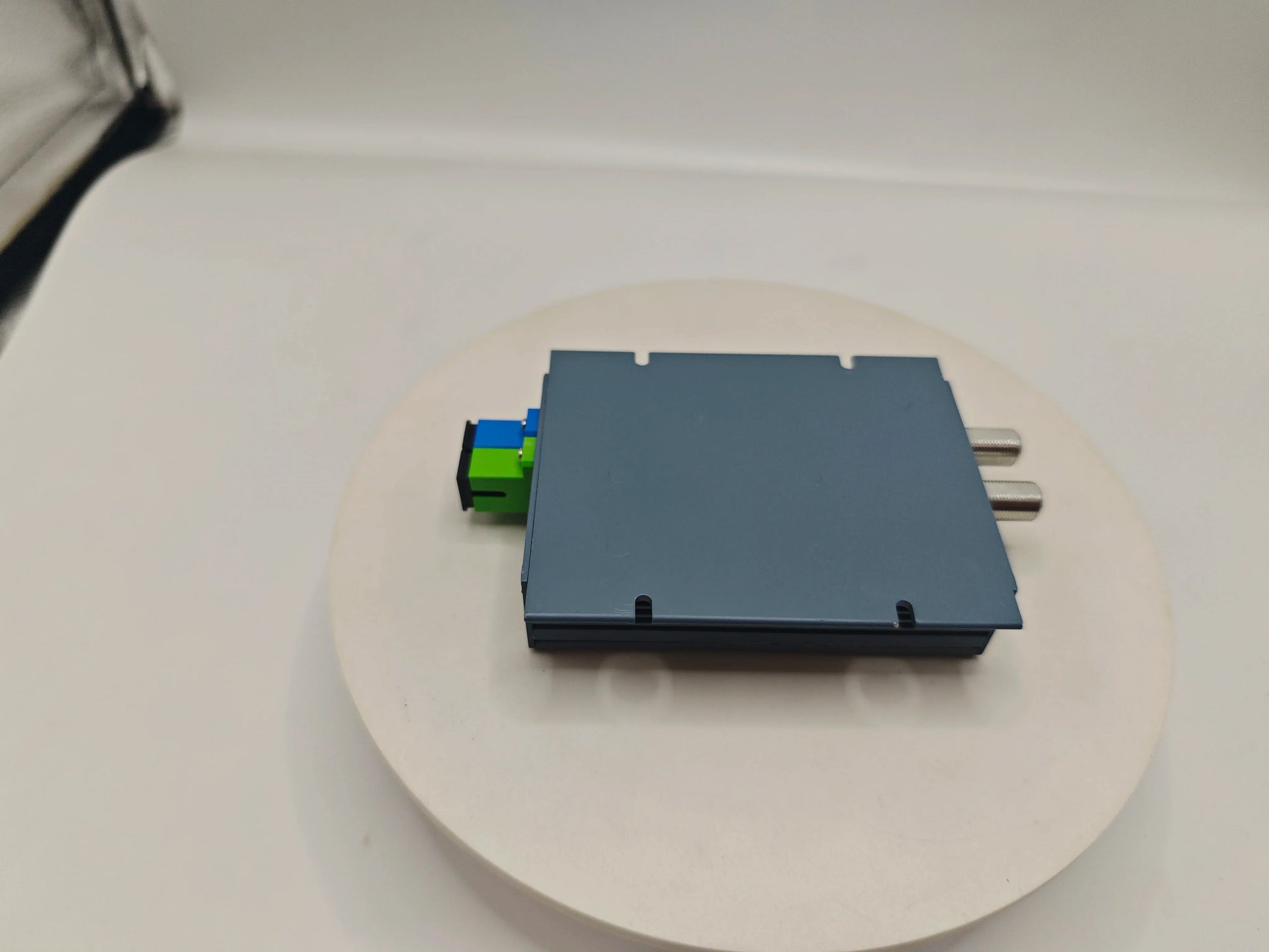

• Premium Aluminum Shell: High-quality aluminum profile housing provides excellent heat dissipation for long-term stable operation.
• Light Detection Circuit Included: Integrated optical power monitoring for system diagnostics.

Technical Specifications

Ideal Applications

• FTTH (Fiber to the Home) subscriber access terminals
• CATV over fiber distribution networks
• Triple-play (voice + data + video) single-fiber deployments
• Residential and commercial fiber optic signal conversion installations
• Telecom infrastructure and network system integration

Related Products You May Like

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone

Industry Reference

For technical standards related to fiber optic communications and broadband network equipment, refer to the NIST Communications Technology Laboratory.

Frequently Asked Questions

Q: What is the FTTH-OR20 active optical receiver used for?

A: The Tuoying FTTH-OR20 is used to convert fiber optic signals into RF (radio frequency) signals suitable for CATV and home network use. It enables analog and digital TV signals delivered over fiber to be received at a home terminal, supporting FTTH (Fiber to the Home) deployments.

Q: Does the FTTH-OR20 support triple-play services?

A: Yes. The built-in WDM (Wavelength Division Multiplexing) capability allows the FTTH-OR20 to handle 1490/1310/1550 nm wavelengths simultaneously on a single fiber, enabling voice, data, and video (triple-play) convergence in one device.

Q: What optical connectors are compatible with this receiver?

A: The FTTH-OR20 supports SC/APC and FC/APC optical connectors as standard options, with custom connector configurations available. RF interfaces can be configured as either male or female depending on your installation requirements.

Q: Is lightning protection included in the FTTH-OR20?

A: Yes. The unit features multi-stage lightning protection using TVS (Transient Voltage Suppression) diodes integrated into a dedicated lightning protection system, ensuring safe and reliable operation in environments prone to electrical surges.
