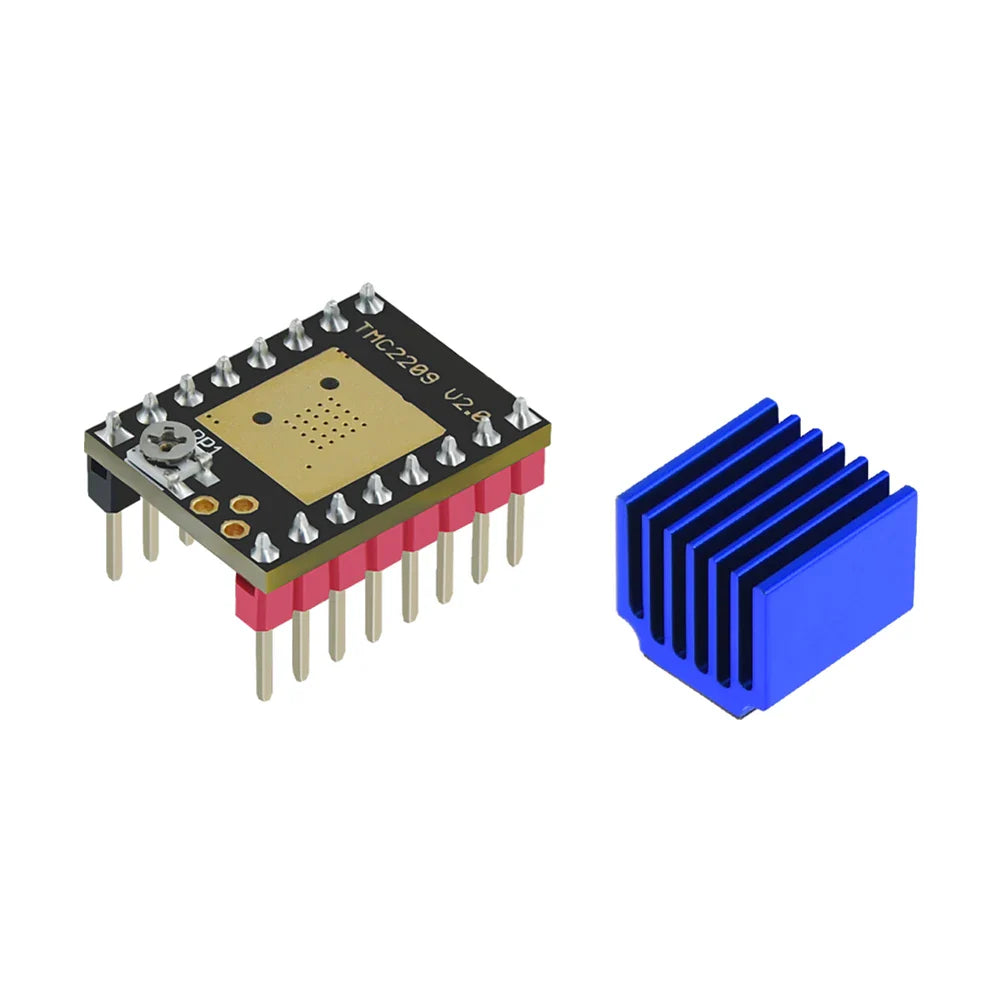

TMC2209 V2.0 Silent Stepper Motor Driver – 256 Microstep UART

TMC2209 V2.0 Silent Stepper Motor Driver for 3D Printers

Upgrade your 3D printer's motion system with the ALLOYSEED TMC2209 V2.0 Stepper Motor Driver — a whisper-quiet, high-performance driver that delivers smooth, precise movement with up to 1/256 microstepping. Whether you're printing intricate miniatures or rapid prototypes, this driver eliminates the annoying stepper motor noise that plagues lesser builds.

Made in Mainland China.

Why Choose the TMC2209 V2.0?

• Ultra-Silent Operation: Advanced noise-reduction technology ensures your printer runs quietly — perfect for home offices, studios, and shared spaces.
• Drop-In TMC2208 Replacement: Fully pin-compatible with the TMC2208, so you can upgrade without rewiring or modifying your board.
• Higher Current Support: Handles up to 2.5A peak current (1.25A default), allowing it to drive more powerful stepper motors than the TMC2208.

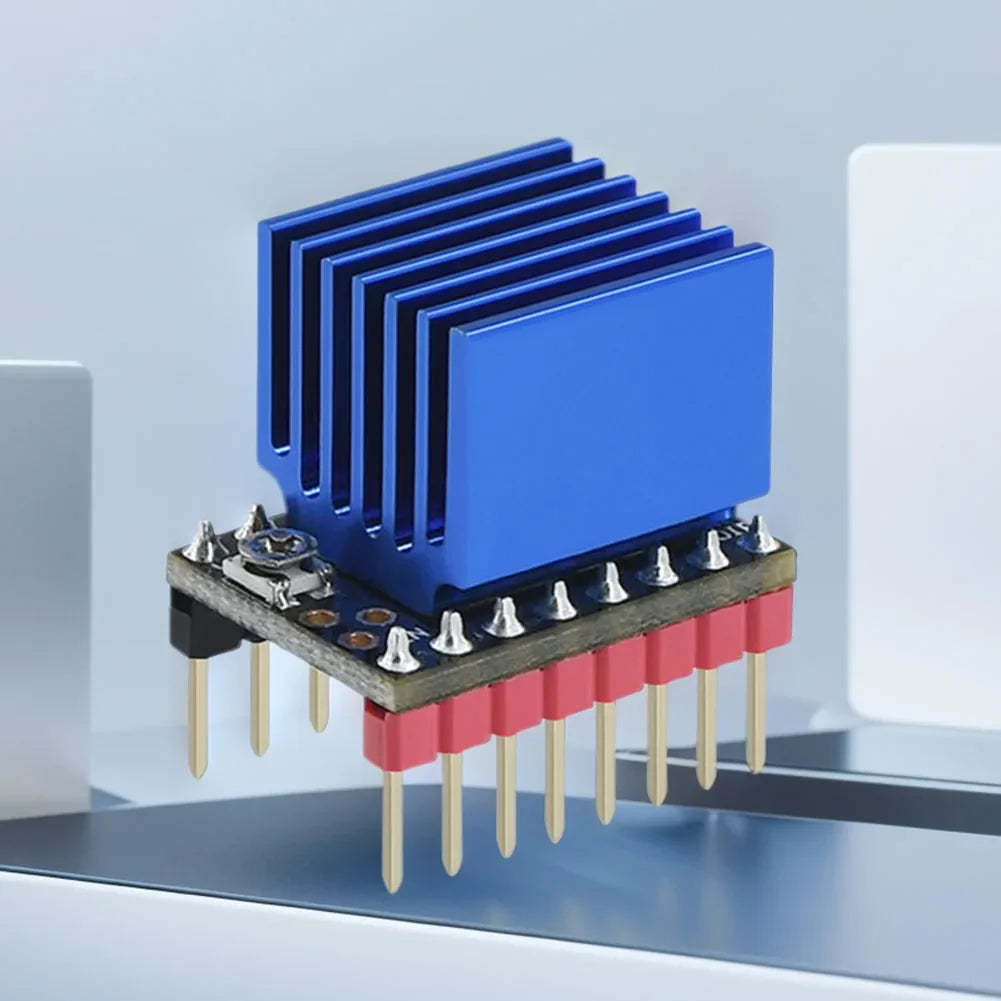

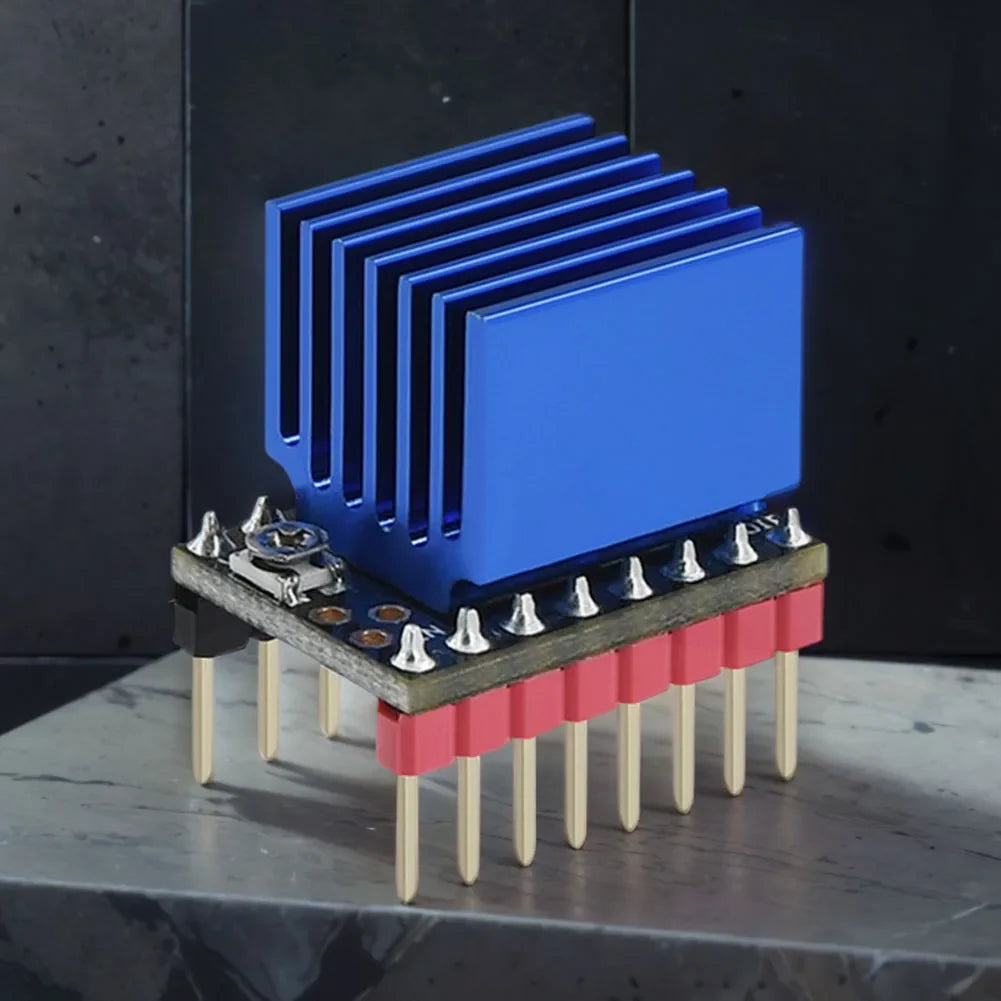

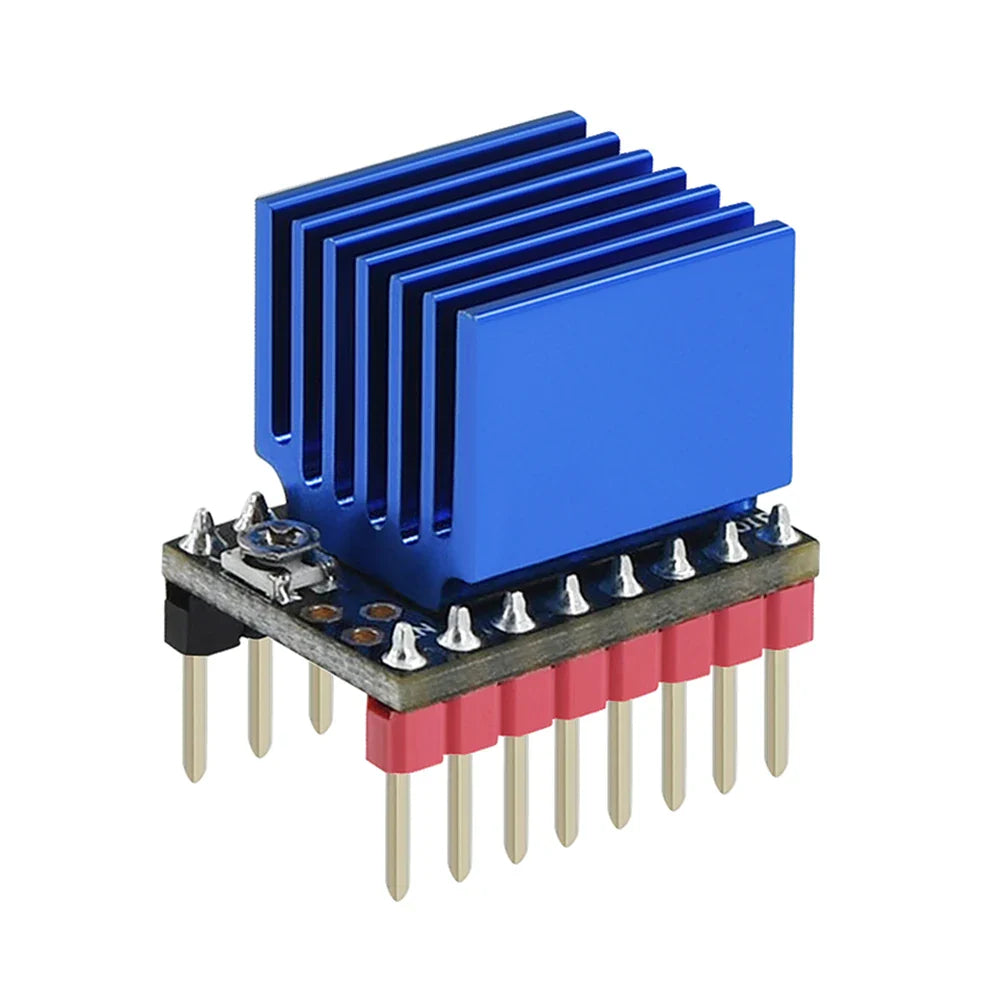

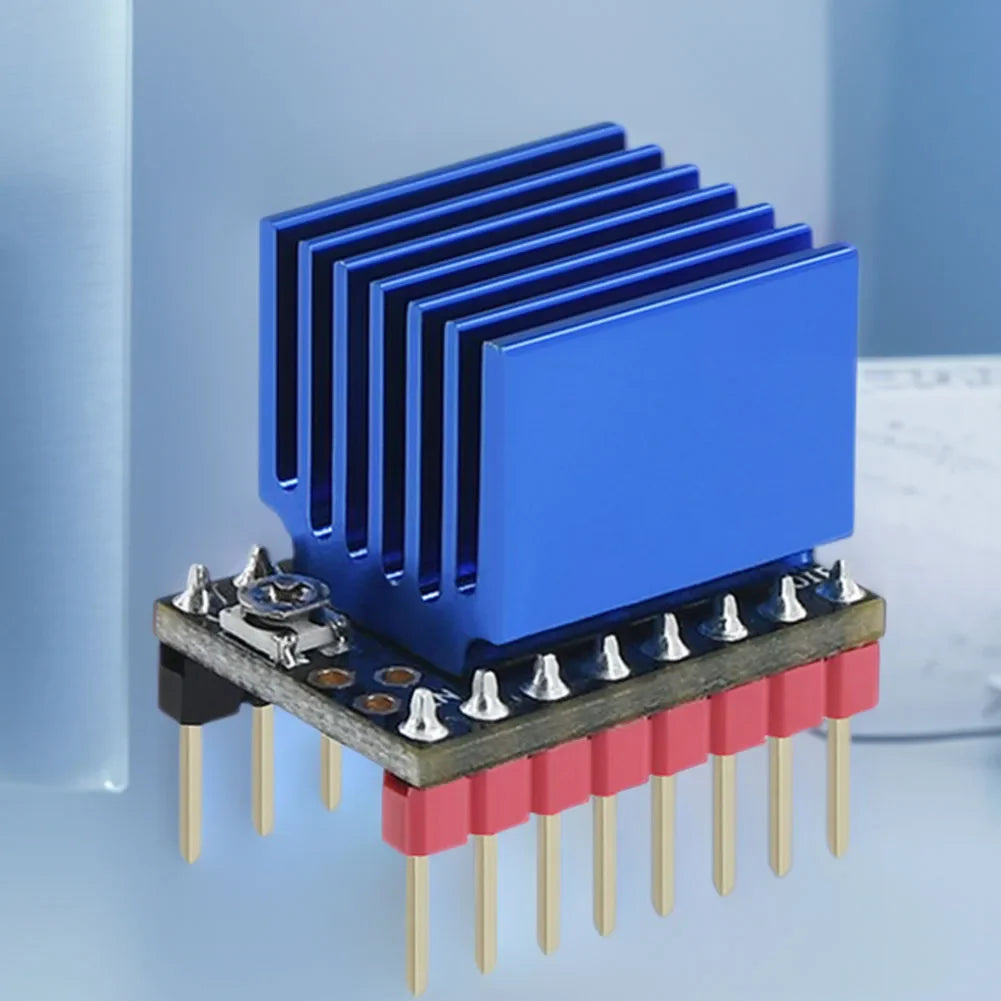

• Enhanced Heat Dissipation: Comes equipped with a large integrated heat sink, keeping temperatures low even during long print sessions.
• Sensorless Homing (StallGuard): Built-in sensorless feedback means you can eliminate physical endstop switches for a cleaner, simpler setup.
• UART Mode — No Soldering Required: Just add a jumper cap to enable UART mode. Compatible with popular boards including KS Gen_L V2.0, SKR 1.3/1.4, and MKS SGen_L.
• Wide Voltage Range: Accepts input voltages from 5.5V to 28V, making it versatile across many 3D printer platforms.

Technical Specifications

What's in the Box?

• 1 × TMC2209 V2.0 Stepper Motor Driver

Compatible Boards

Works seamlessly with KS Gen_L V2.0, BIGTREETECH SKR 1.3 / 1.4, MKS SGen_L, and any board that supports TMC2208/TMC2209 drivers in Step/Dir or UART mode.

Related Products You May Like

• 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw — Keep your electronics builds protected with reliable fuse holders.
• 100W Dual-Port Car Charger – Fast Charging — Power your devices and peripherals on the go with high-output charging.

Learn More About Stepper Motor Technology

For technical background on motor driver safety standards and electrical component compliance, visit the U.S. Consumer Product Safety Commission (CPSC). For electronics engineering standards and measurement references, the National Institute of Standards and Technology (NIST) provides valuable resources.

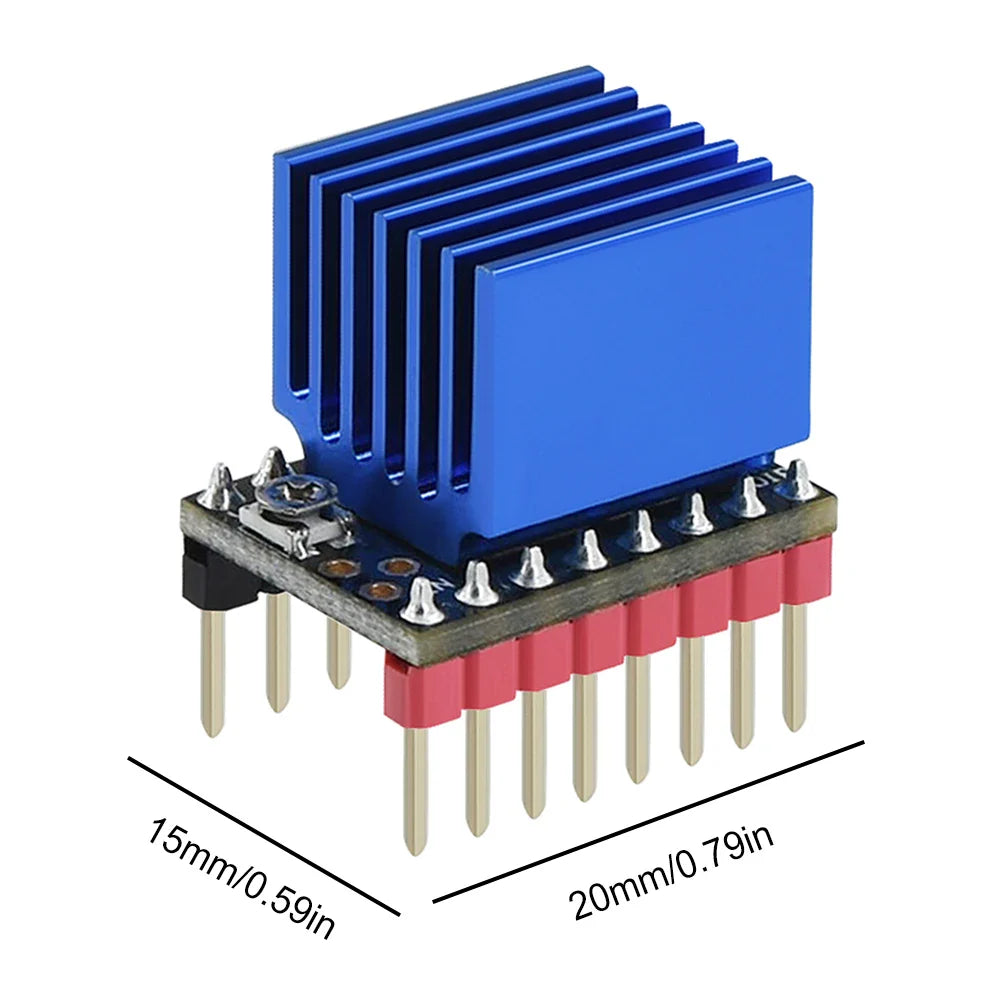

Note: Due to variations in monitor settings and lighting conditions, actual product color may differ slightly from images. Please allow ±1–2cm measuring deviation due to manual measurement.

Frequently Asked Questions

Q: Is the TMC2209 V2.0 a direct drop-in replacement for the TMC2208?

A: Yes! The TMC2209 V2.0 is fully pin-compatible with the TMC2208, meaning you can swap it in without rewiring your 3D printer. It also offers improved features including higher peak current (2.5A vs 2.0A), sensorless homing (StallGuard), and UART mode support via a simple jumper cap.

Q: How do I enable UART mode on the TMC2209 V2.0?

A: Enabling UART mode on this driver requires no soldering — simply add a jumper cap to the designated UART pins on the driver module. It is compatible with popular boards such as KS Gen_L V2.0, BIGTREETECH SKR 1.3/1.4, and MKS SGen_L when configured in UART mode through your firmware (e.g., Marlin).

Q: What is the maximum microstepping resolution of the TMC2209 V2.0?

A: The TMC2209 V2.0 supports microstepping up to 1/256 subdivision, which results in significantly smoother motor movement, reduced vibration, and quieter printing compared to drivers with lower resolution.

Q: Does the TMC2209 V2.0 require a heatsink?

A: The driver comes with a large integrated heat sink pre-attached, providing excellent thermal dissipation even during extended, high-current 3D printing sessions. No additional cooling solution is required for standard use, though adequate airflow in your electronics enclosure is always recommended.
