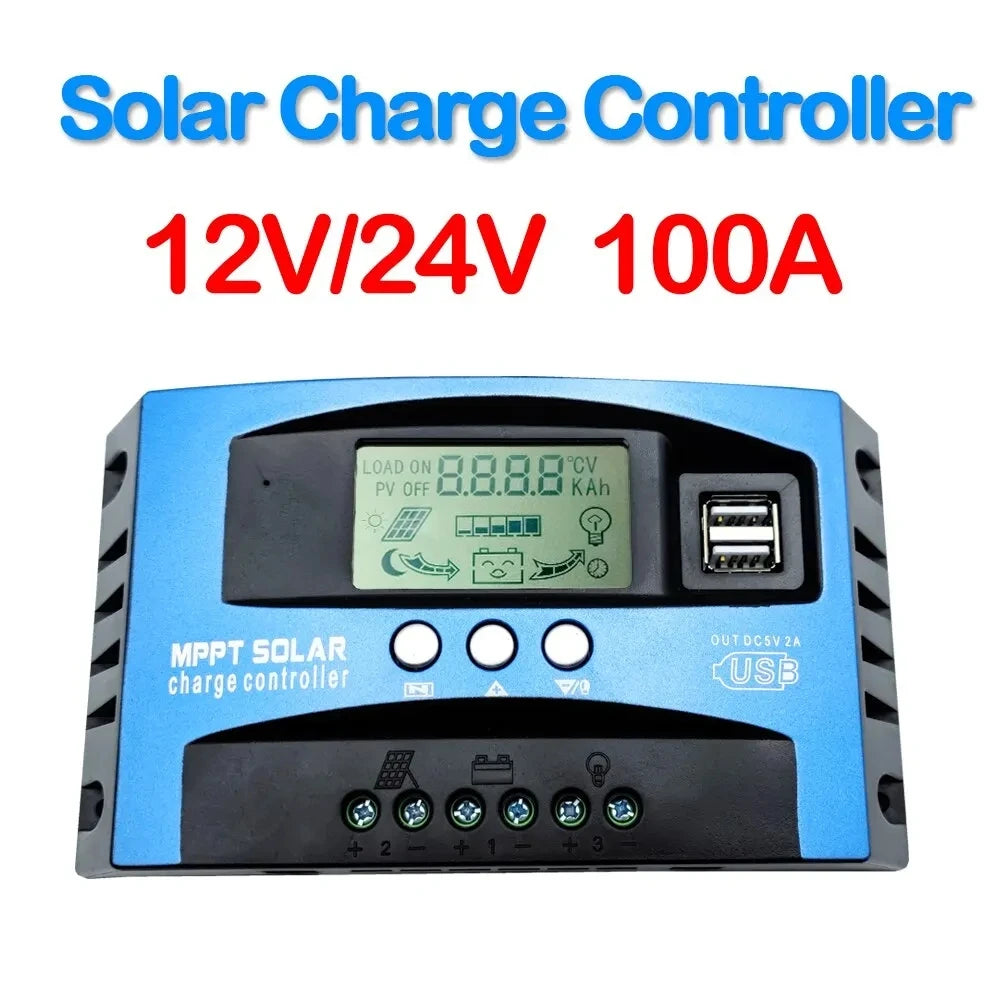

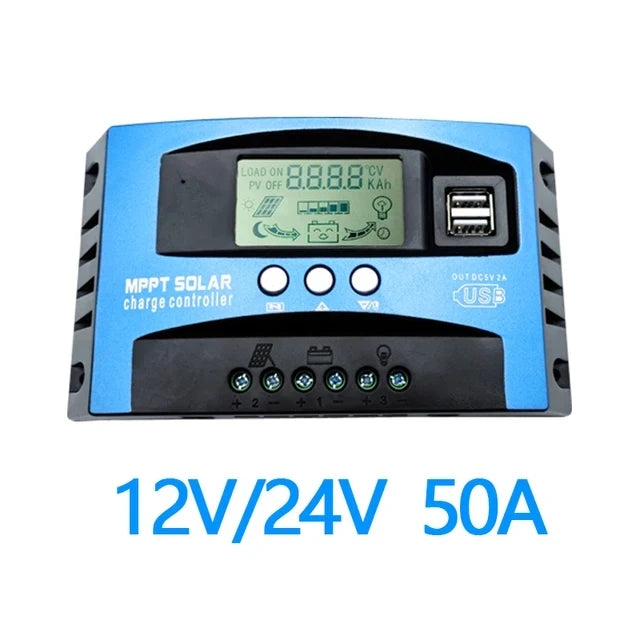

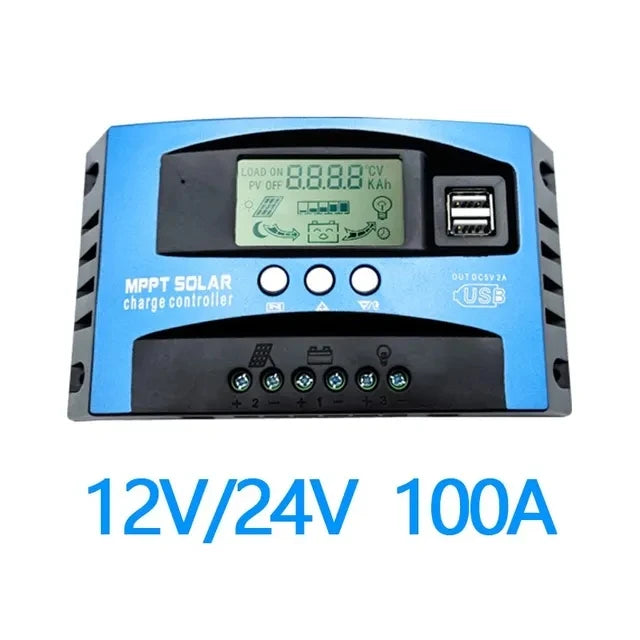

Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display 12V 24V

Discover the Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display 12V 24V — a standout decor pick featuring durable, adjustable design for dependable, everyday performance.

Specifications

Brand Name: TTAKA7

• Dual USB Port :Charge two devices simultaneously with the dual USB port feature.

• LCD Display :Monitor the charge status of your devices with the LCD display.

• MPPT Technology :The MPPT technology ensures efficient charging of your devices.

• Auto Discharge :The auto discharge feature ensures that your devices are discharged safely and efficiently.

Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display 12V 24V AUTO Dual USB Solar Charge And Discharge Controller

Features

1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,discharge current accurate real-time display, power generation at a glance.

2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detectionduring charging, bidirectional focusing tracking.

3. Acomplete three-phase charge management, effectively protect the battery, the battery is moredurable.

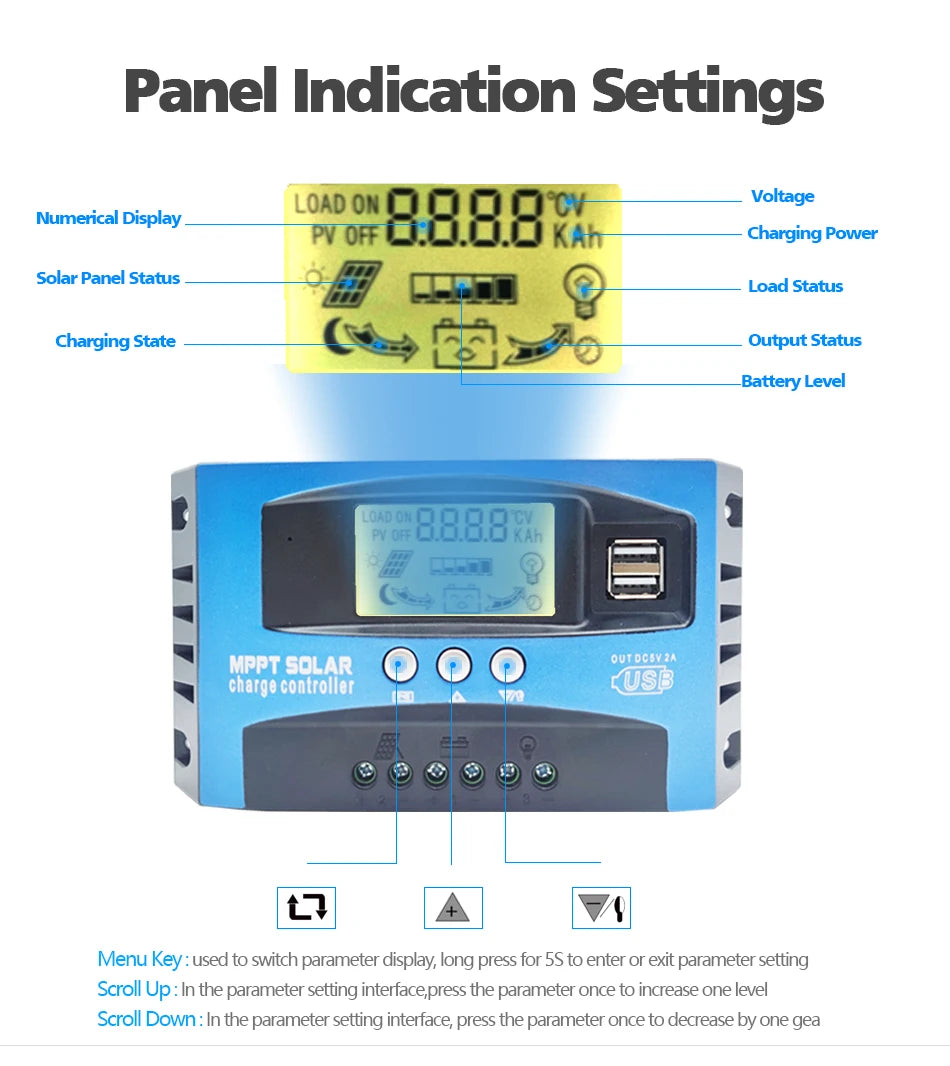

4. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide chargeand discharge adjustable, as long as you understand the characteristics of the battery set itscorresponding charging parameters, you can charge a battery. When the output is off, the timecan be adjusted, which is more convenient. (on the market, there is no point adjustment)

5. bidirectional MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

6. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connectionprotection,when the fault is eliminated, the controller automatically recovers, does not damagethe device.

7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.

Specifications：

Rated Voltage:12V/24V

Rated Current:100A

Max.PV Voltage:50V

Max.PV Input Power:1200W(12V) 2400W(24V)

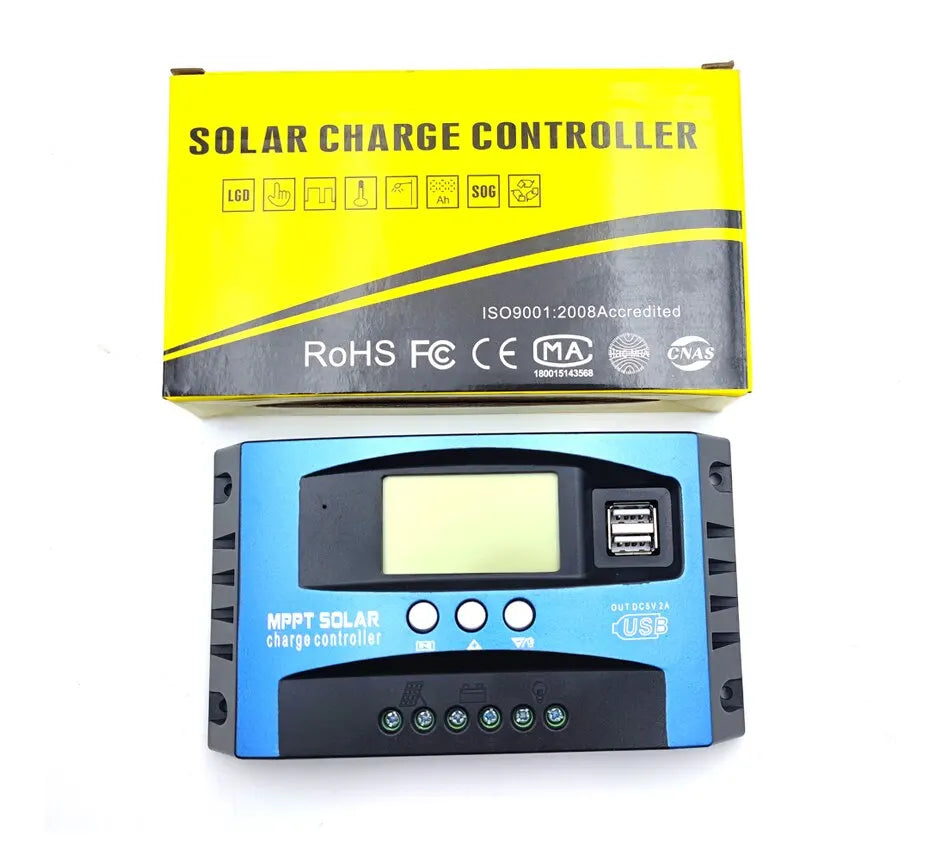

Package Includes:

1 x Solar Panels Battery Charge Controller

1 x User Manual

1: This controller is 12V/24V automatic adaptation. When installing for the first time, please make sure that the battery has enough voltage for the controller.

2 : Install the controller as close to the battery as possible to avoid the voltage drop caused by the excessive length of the wire, which affects the normal voltage judgment.

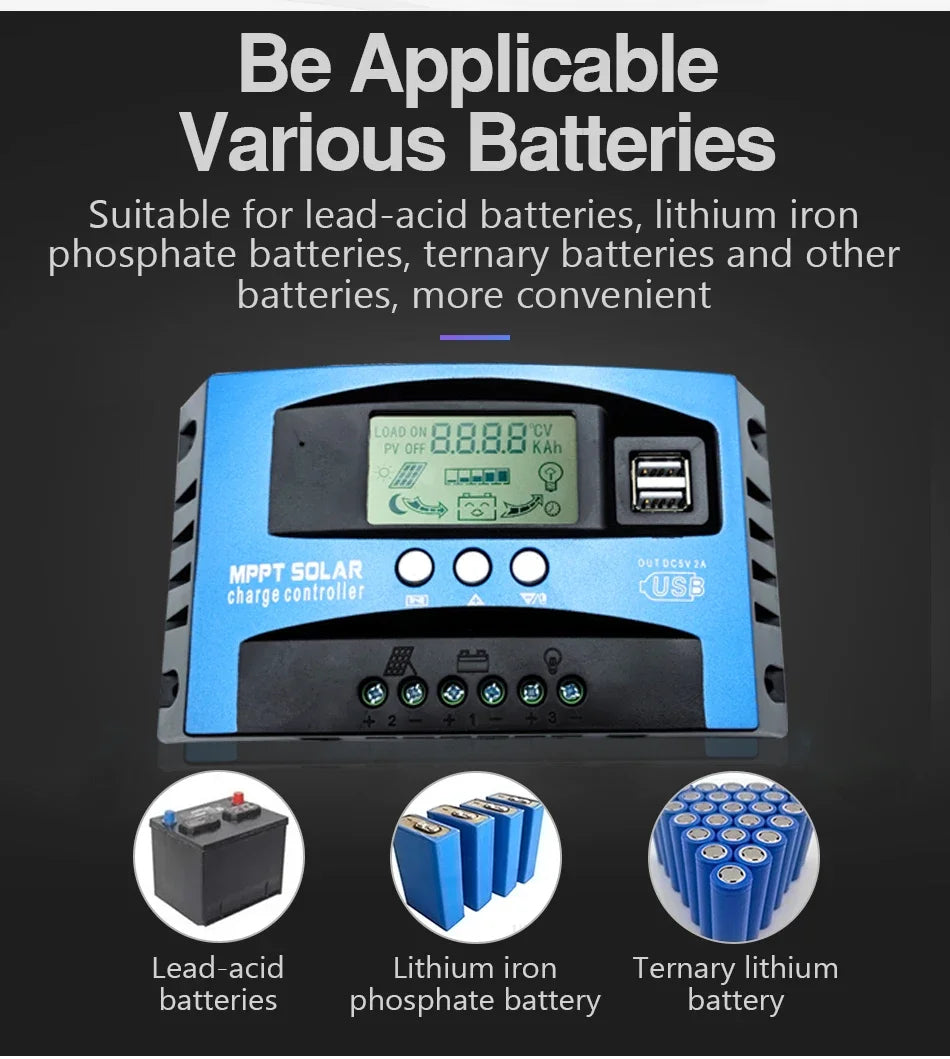

3: The controller can be used for lead-acid batteries and lithium batteries. If you charge a lithium battery, you must set the charging parameters after connecting to the power source. Please refer to the manual for details.

4: The controller can only use photovoltaic panels as the charging source, do not use DC or other power sources as the charging source.

5 : When the controller is running, it will heat up. Please be careful to install the controller on a flat, well-ventilated surface.

Options

• Color: 100A, 30A, 30A 1, 50A, 80A

Frequently Asked Questions

Q: What is the Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display?

A: The Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display is a quality decor pick. Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display 12V 24V AUTO Dual USB Solar Charge And Discharge Controller Features 1.

Q: How do I use the Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display?

A: The Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display?

A: The Solar Charge Controller MPPT 30A 50A 80A 100A LCD Display stands out in our decor range — Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,discharge current accurate real-time display, power generation at a glance.
