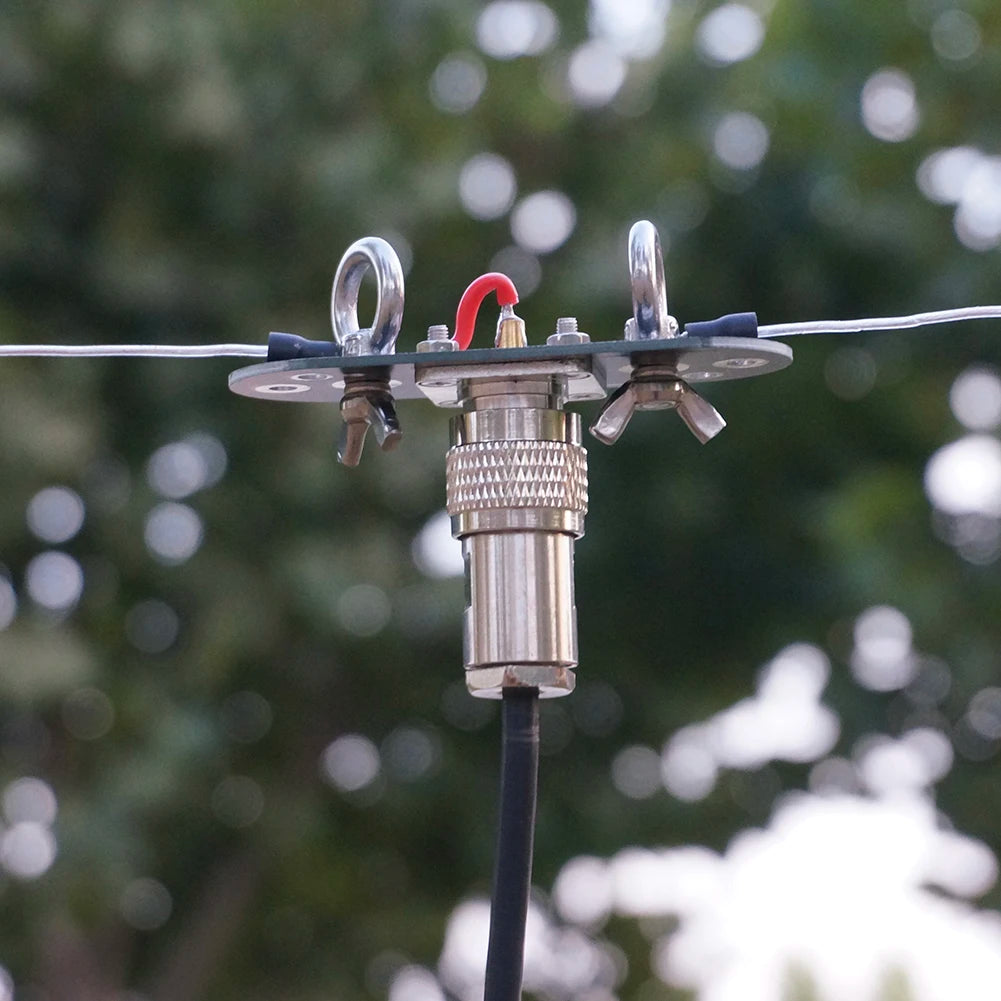

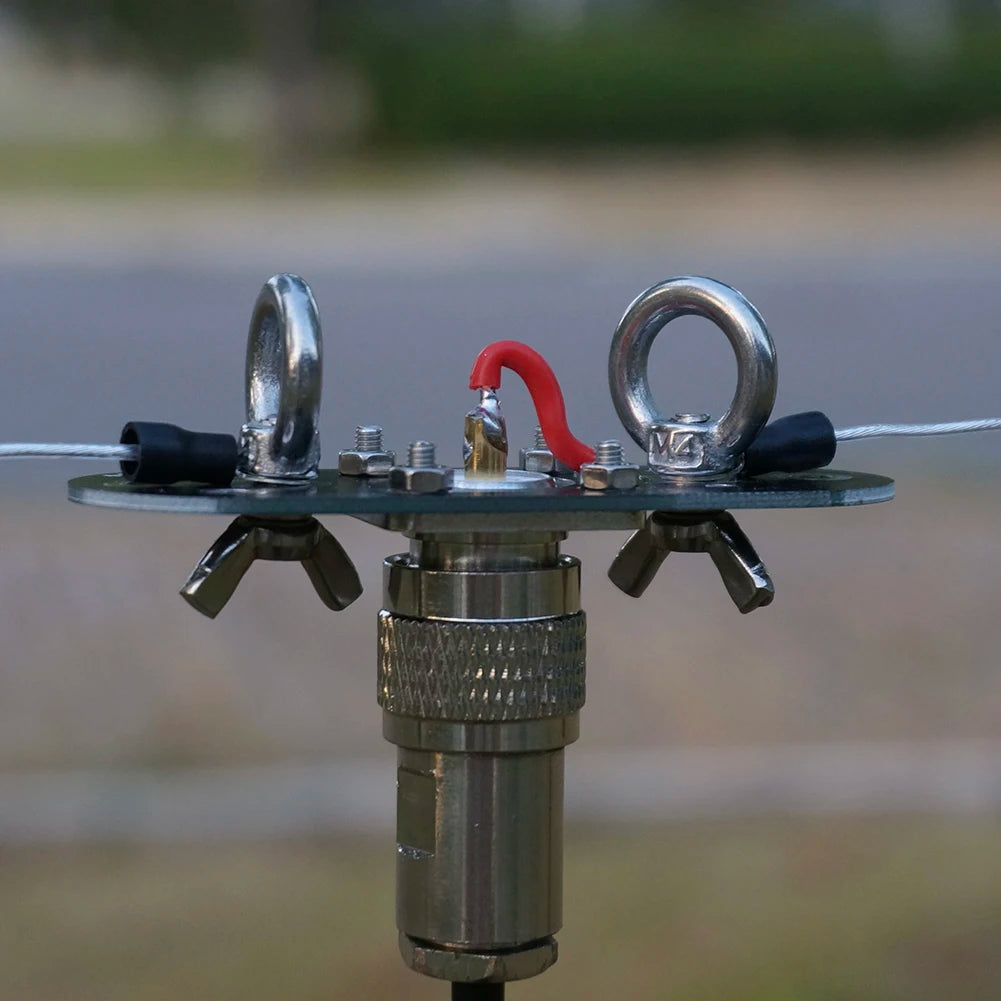

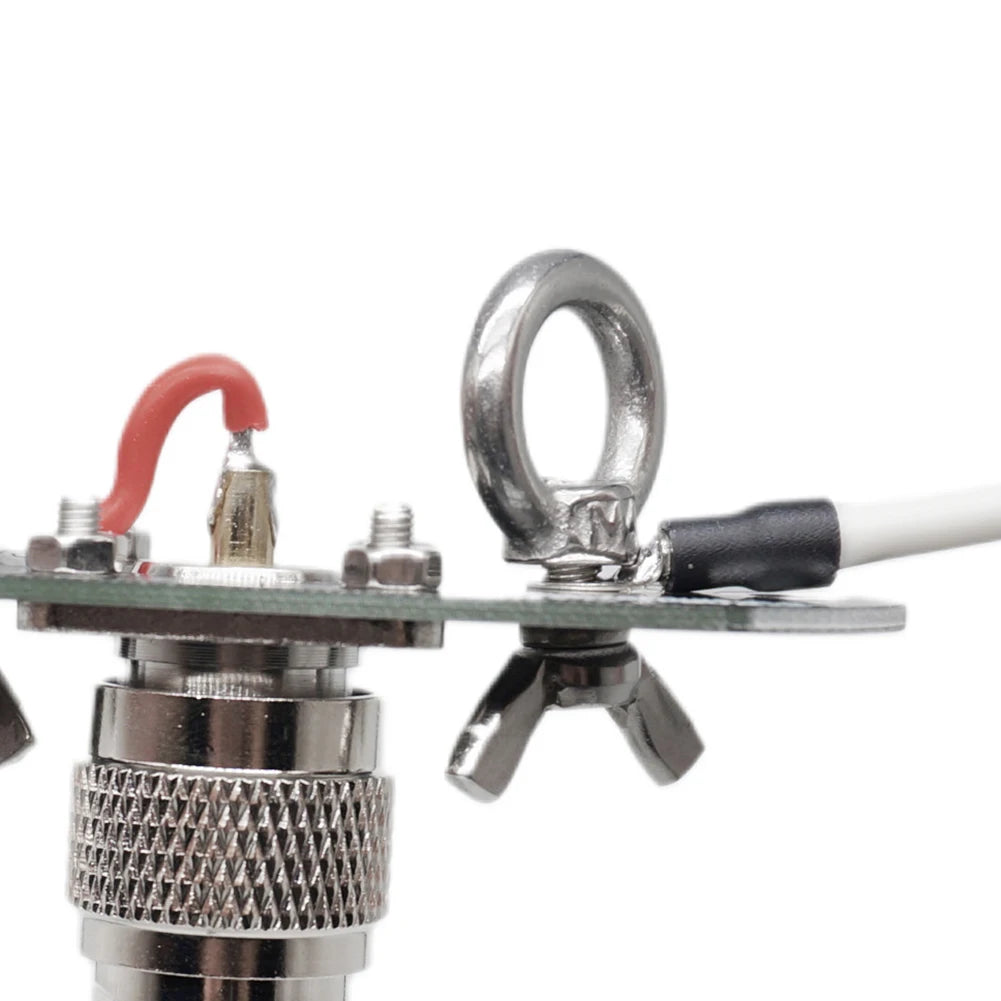

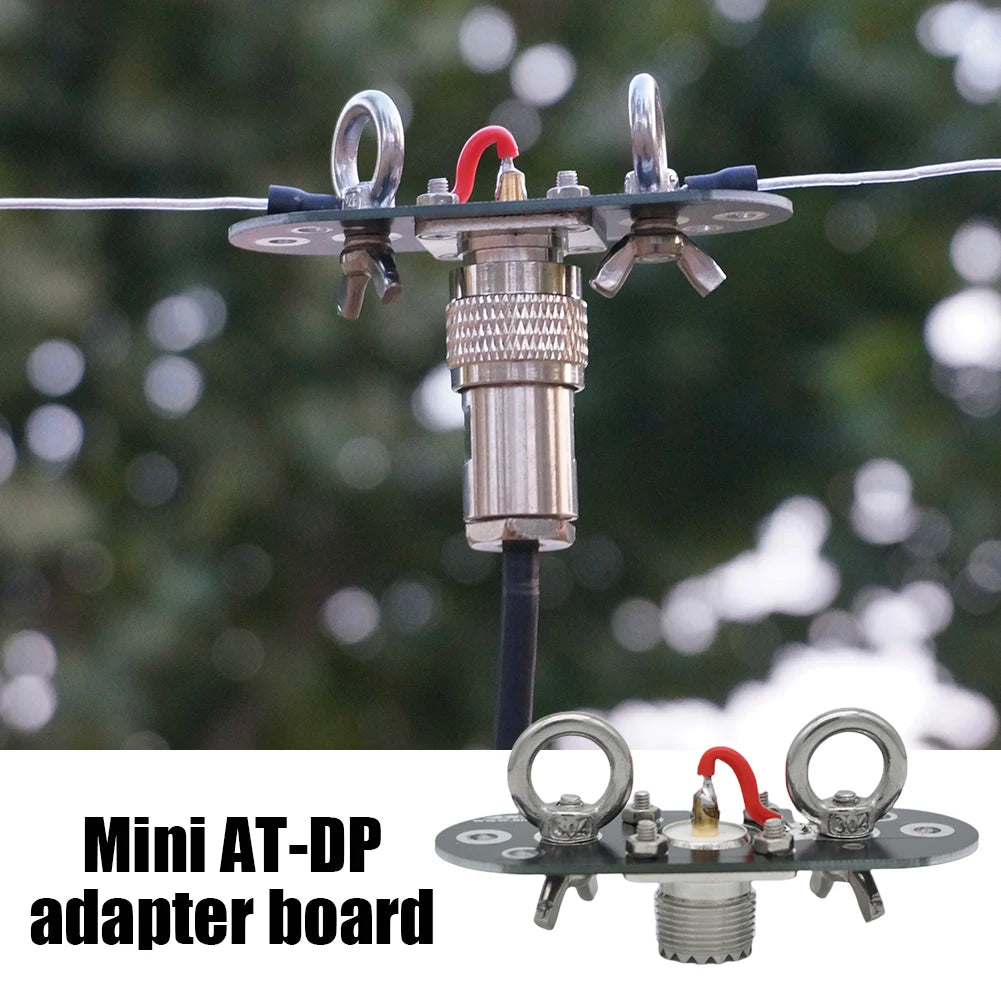

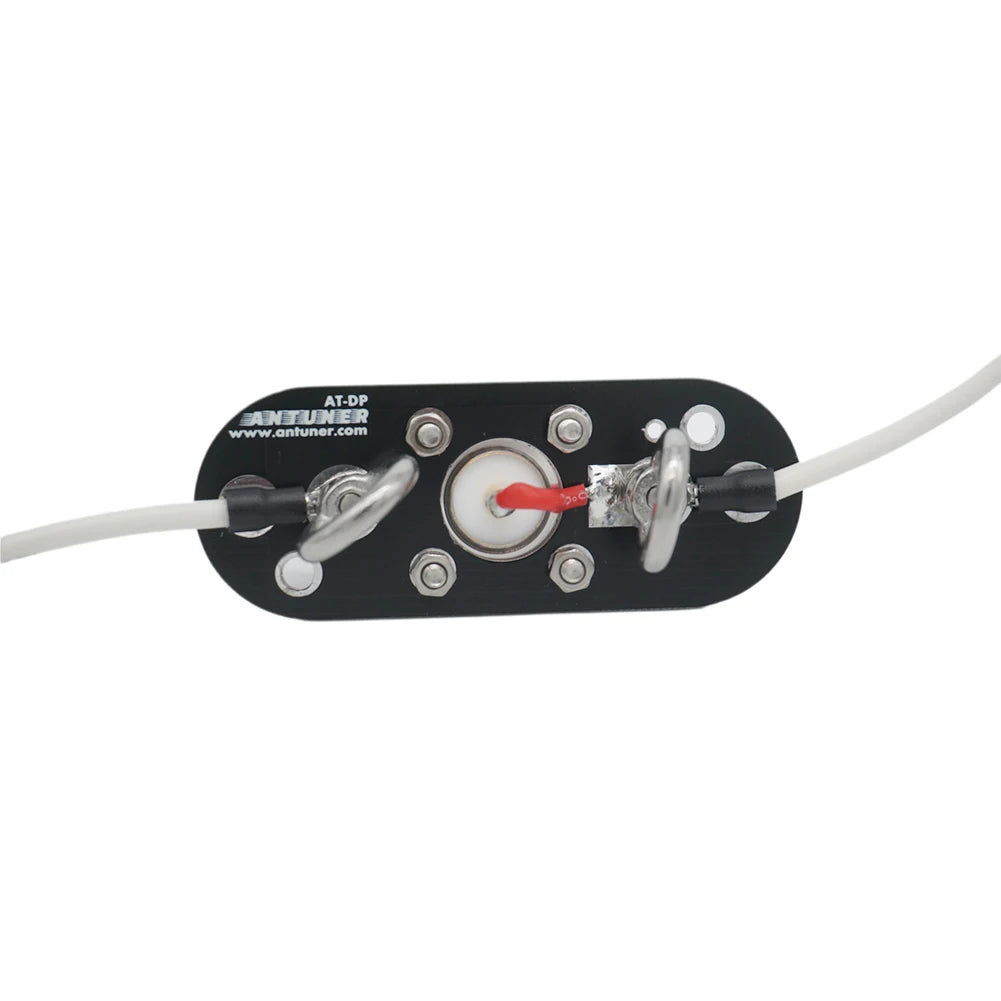

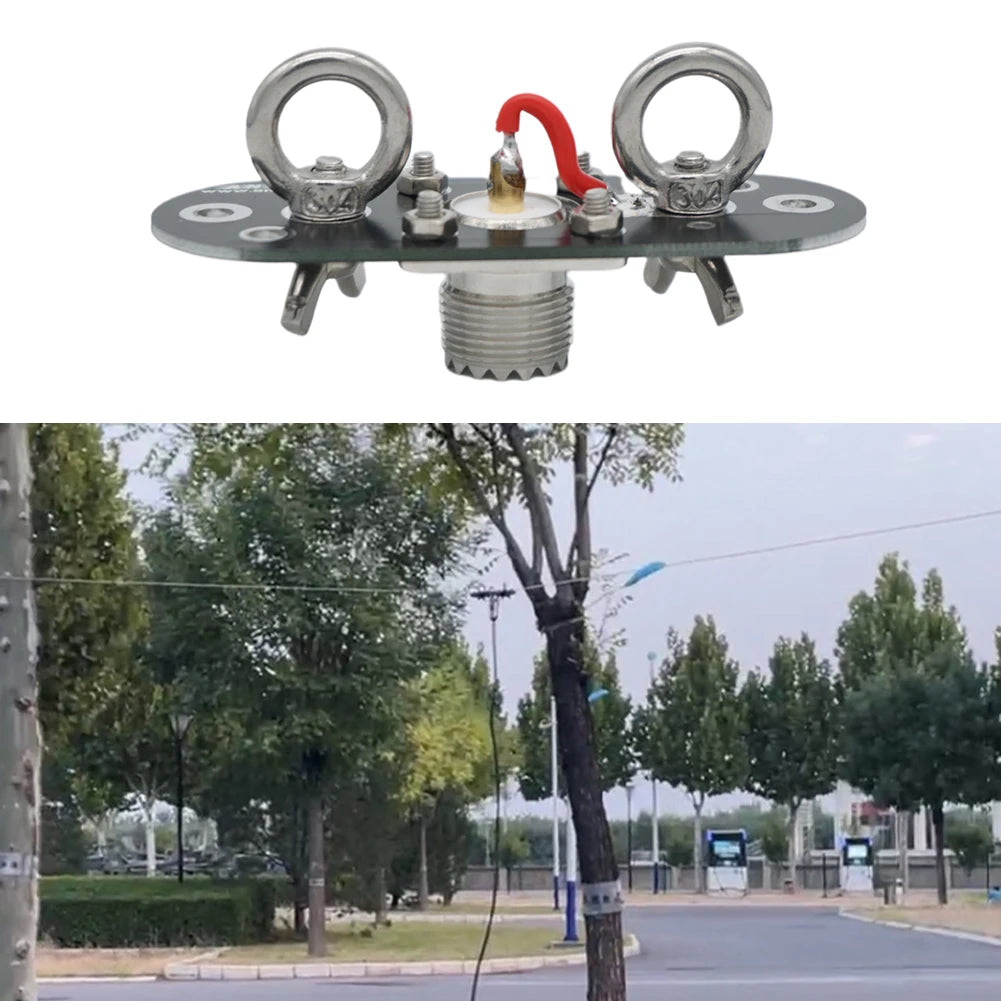

Mini AT-DP Shortwave Antenna Adapter Board – Versatile Portable Antenna Setup Tool
The Mini AT-DP Shortwave Antenna Adapter Board is the compact, field-ready solution for amateur radio operators, hobbyists, and emergency communication teams who need a reliable, fast-setup antenna connection system. Compatible with a wide range of shortwave antenna configurations — including GP (Ground Plane), Inverted V, Positive V, Dipole, NVIS, long-line, and end-feed antennas — this adapter board streamlines feeder and array connections so you can get on air quickly and confidently.
Made in Mainland China.
Why You'll Love This Antenna Adapter Board
- Multi-Antenna Compatibility: Works seamlessly with GP, Inverted V, Positive V, dipole, horizontal, vertical, NVIS, long-line, and end-feed shortwave antenna configurations — one board for virtually every setup.
- Antenna Test Helper: Simplifies antenna testing by solving feeder-to-array connection challenges. Connect feeders to arrays more easily and firmly so your designs and ideas can be verified faster in the field.
- Quick Field Installation: Designed for rapid on-site setup — ideal for emergency communication support and outdoor operations where time matters. Erect and connect your antenna system in minutes.
- Ultra-Compact & Pocket-Friendly: Measuring just 8 × 3 × 5 cm (3.1 × 1.1 × 1.9 in), this board slips easily into a pocket or pack — no bulky equipment to lug around.
- Durable Construction: The main board is crafted from high-strength fiberboard, and the ring structure uses GB 304 stainless steel for long-lasting, corrosion-resistant performance in outdoor environments.
- High Power Handling: Rated to withstand up to 300W of transmission power, making it suitable for serious HF/shortwave operation.
- Adjustable & Expandable: Easily fix the board to a fulcrum and adjust the antenna body to adapt to complex terrain and varied field conditions.
Technical Specifications
| Specification | Detail |
|---|---|
| Dimensions | 8 × 3 × 5 cm / 3.1 × 1.1 × 1.9 in |
| Main Board Material | High-Strength Fiberboard |
| Ring Structure | GB 304 Stainless Steel |
| Max Power Rating | 300W |
| Country of Origin | Mainland China |
| Package Contents | 1 × Antenna Adapter Board |
Important Notes
- After installation, verify that all parts are securely fastened to prevent equipment damage from loose connections.
- During high-power transmission, it is recommended to fix the vibrator by welding or multi-point fixation for a stable, reliable connection.
- This product does not include a magnetic ring, balun (balance-unbalance converter), or other accessories. Please prepare any additional components according to your specific setup needs.
- Slight color variation may occur due to monitor settings and lighting conditions.
- Please allow ±1–2 cm measuring deviation due to manual measurement.
