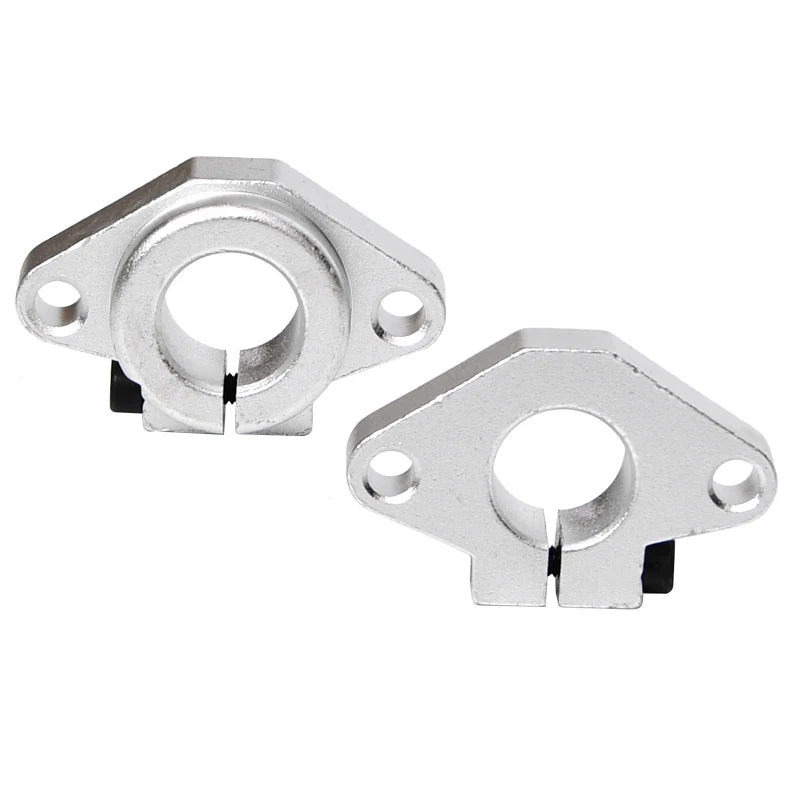

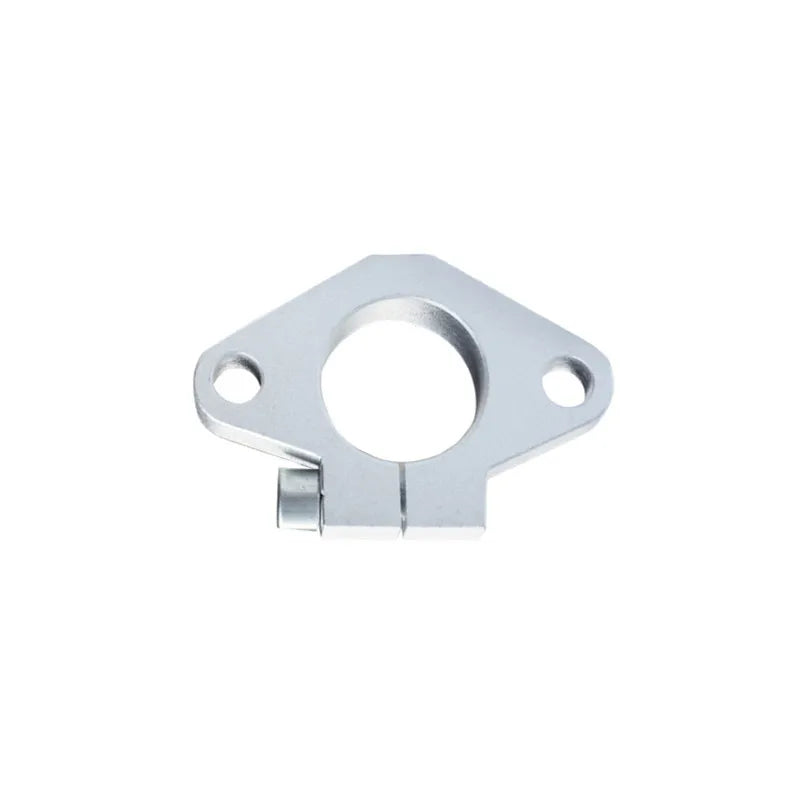

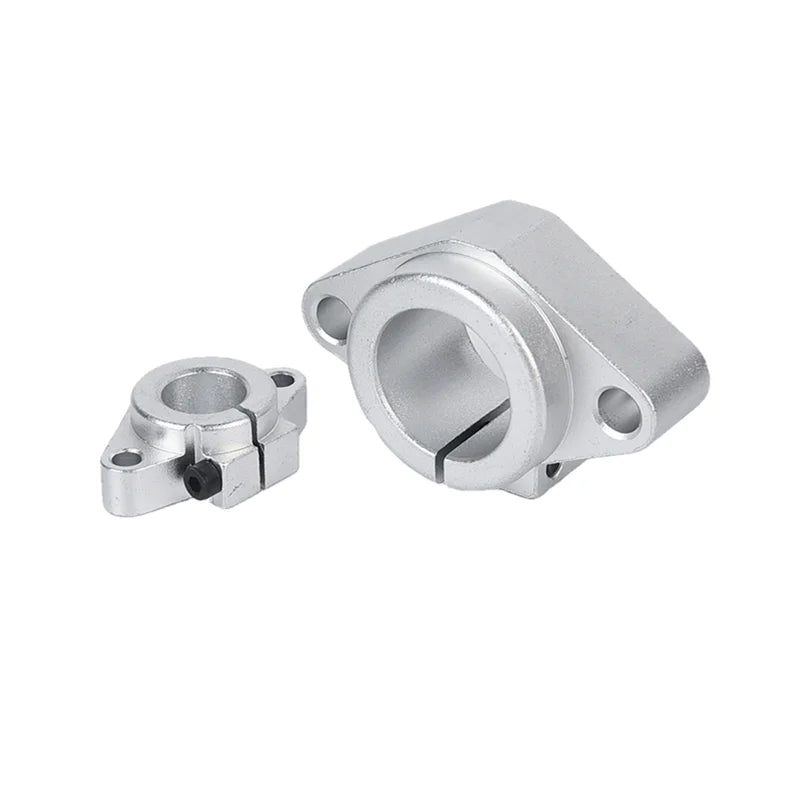

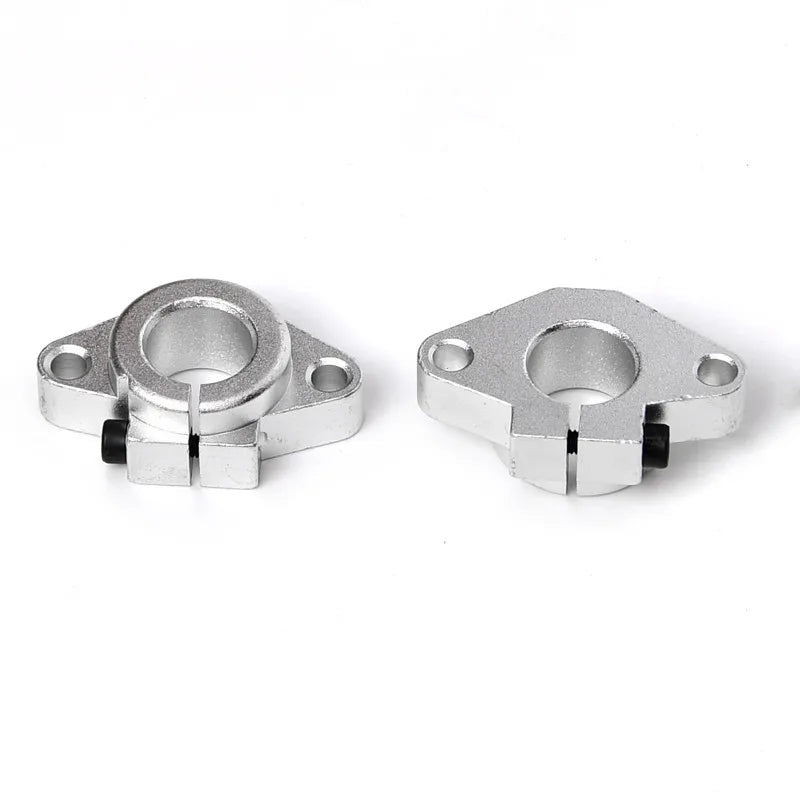

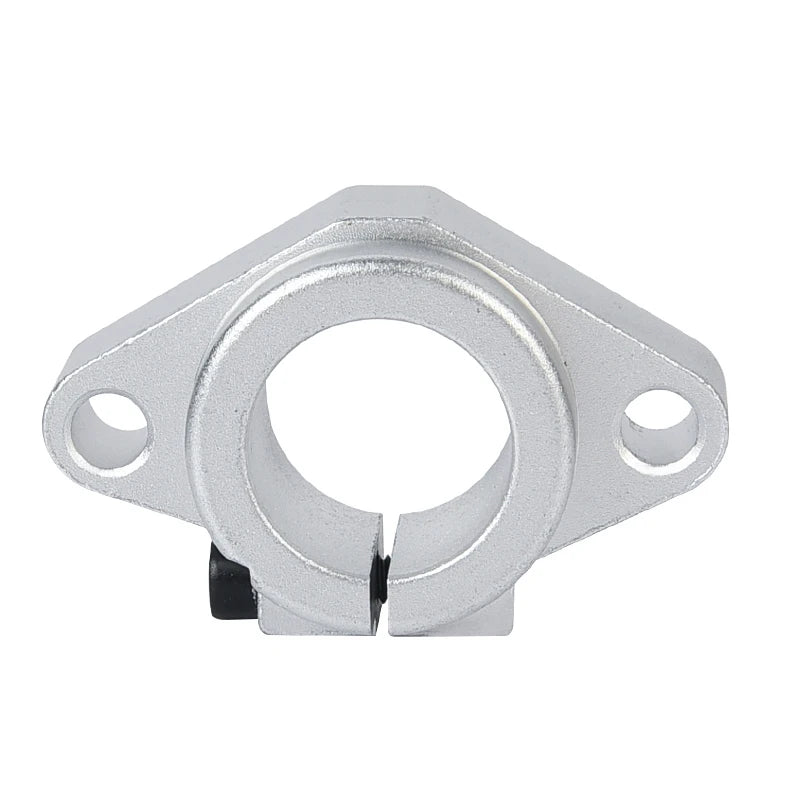

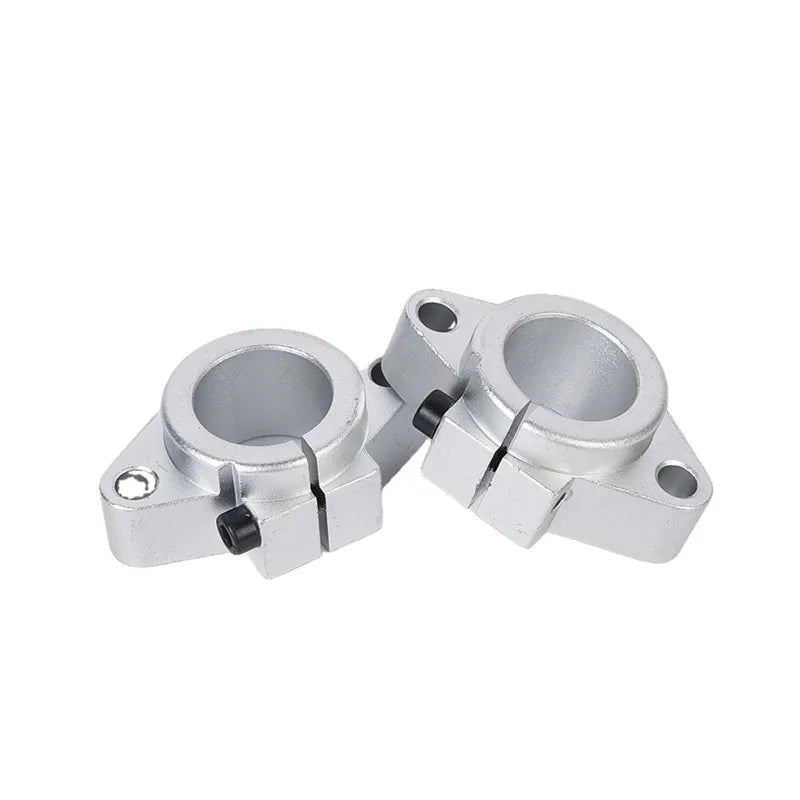

Diamond SHF Horizontal Optical Axis Fixing Bracket

Upgrade your CNC machine, 3D printer, or linear motion system with this precision-engineered SHF diamond horizontal optical axis fixing bracket. Available in a wide range of shaft diameters — SHF8, SHF10, SHF12, SHF16, SHF20, SHF25, SHF30, SHF35, and SHF40 — these robust mounting supports deliver rock-solid alignment for smooth rods and optical axes in any DIY or industrial build.

Why Choose This SHF Bracket?

• Precision Fit: Diamond-pattern design ensures a secure, stable grip on smooth shafts, minimizing vibration and deflection during operation.
• Wide Size Range: Choose from SHF8 through SHF40 to match your exact shaft diameter — perfect for 3D printers, CNC routers, laser cutters, and automation rigs.
• CE Certified: Meets CE certification standards for quality and safety compliance.
• Durable Construction: Made from high-strength aluminum alloy for long-lasting performance in demanding environments.
• Easy Installation: Bolt-through mounting holes for quick, tool-friendly assembly onto any flat surface or extrusion frame.
• Customizable Quantity: MOQ of just 1 piece — order exactly what you need, no minimum bulk purchase required.

Specifications

• Model: SHF8 / SHF10 / SHF12 / SHF16 / SHF20 / SHF25 / SHF30 / SHF35 / SHF40
• Type: Horizontal Optical Axis Fixing Bracket (Diamond Style)
• Certification: CE
• Minimum Order Quantity: 1 pcs/lot
• Origin: Made in China

Note: Product images are for reference only. Actual delivered goods may vary slightly. Please confirm the size and quantity required before ordering.

Applications

• 3D Printers (Cartesian & CoreXY builds)
• CNC routers and milling machines
• Laser engravers and cutters
• Linear motion and automation systems
• DIY robotics and Maker projects

For more guidance on linear motion systems and mechanical components, visit the NIST Intelligent Systems Division for industry standards and engineering references.
