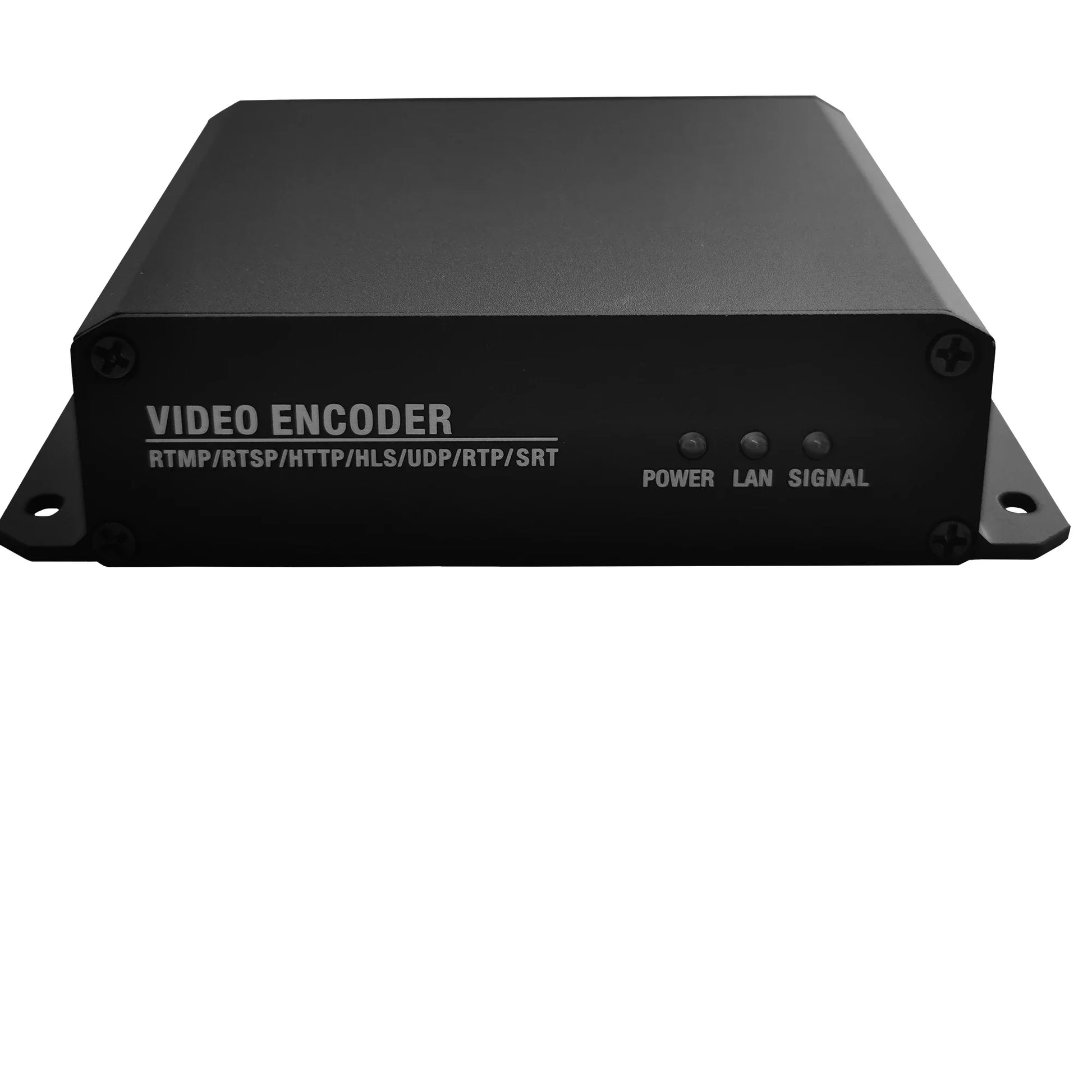

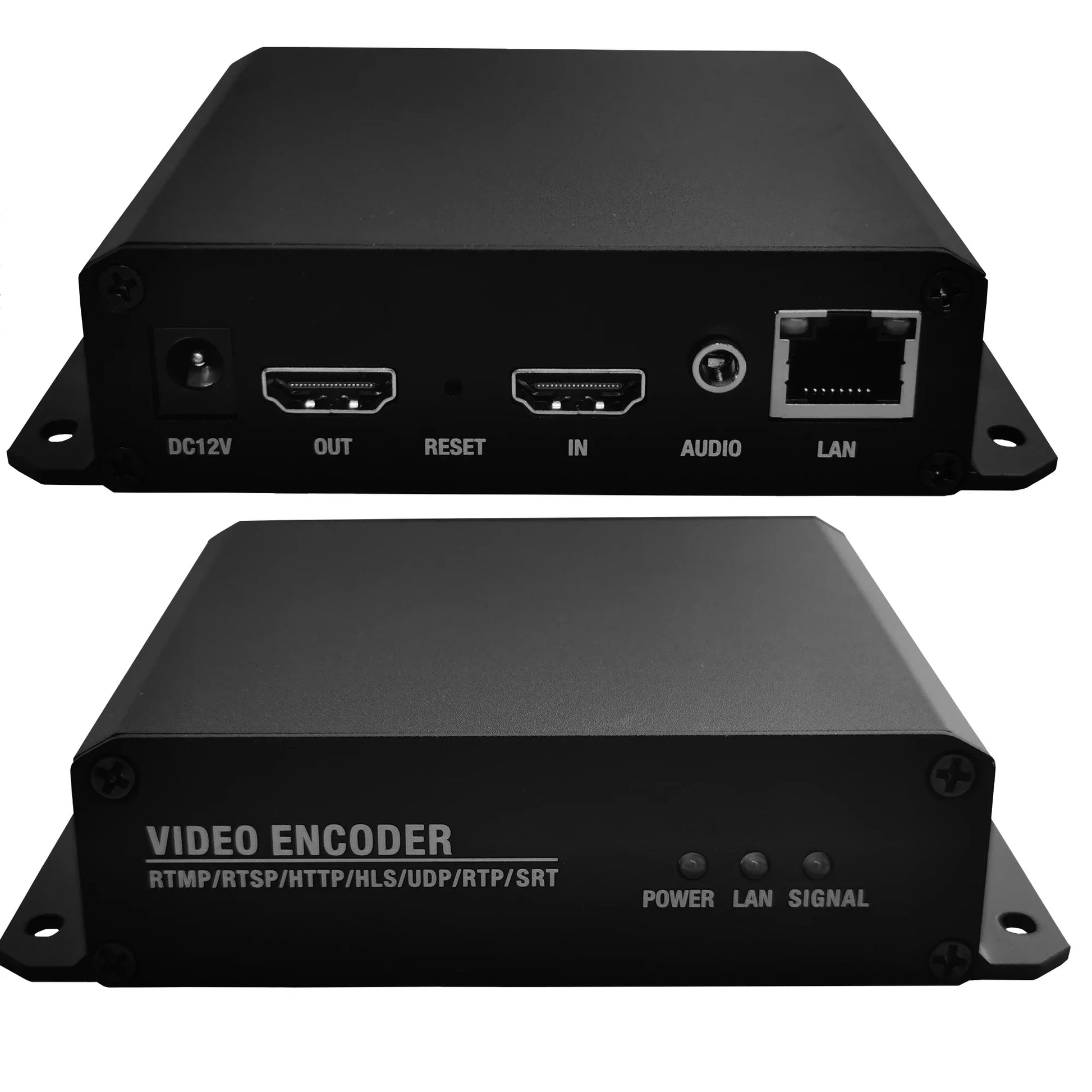

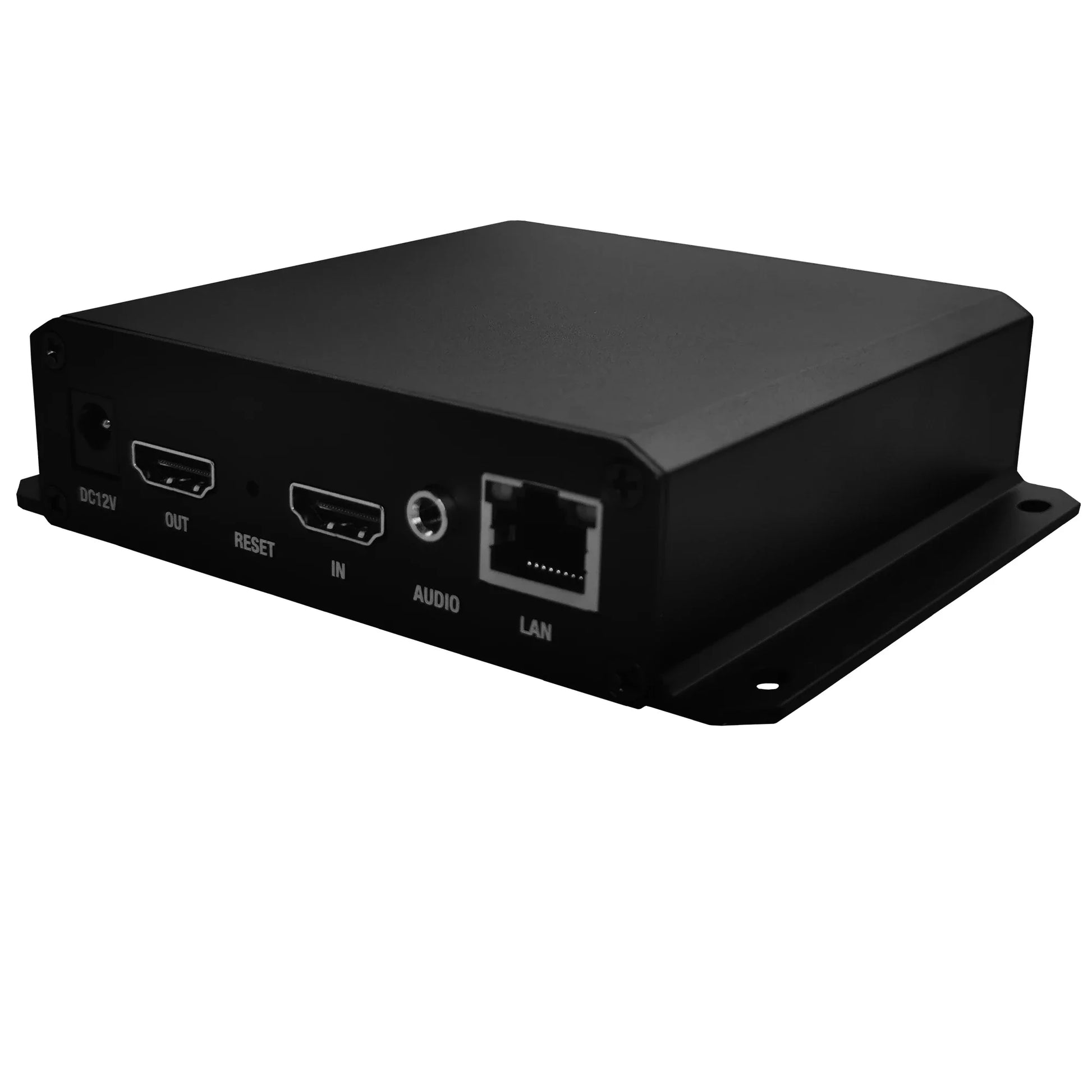

SATLINK 6900 HD Loop-Out Video Encoder – H.265/H.264 HDMI to IP Streaming
Take your live broadcast, webcast, or IPTV/CATV distribution to the next level with the SATLINK 6900 HD Loop-Out Video Encoder. Supporting both H.265 (HEVC) and H.264 encoding, this compact yet powerful encoder converts any HDMI source into a network-ready IP stream — perfect for live events, houses of worship, corporate AV, digital signage, IPTV headends, and CATV systems. With a passthrough HDMI loop output, your source display stays live while you stream simultaneously.
Why Choose the SATLINK 6900?
- Dual Encoding Standards: H.265 / H.264 / MJPEG — efficient bandwidth use with broadcast-quality output up to 1080p60.

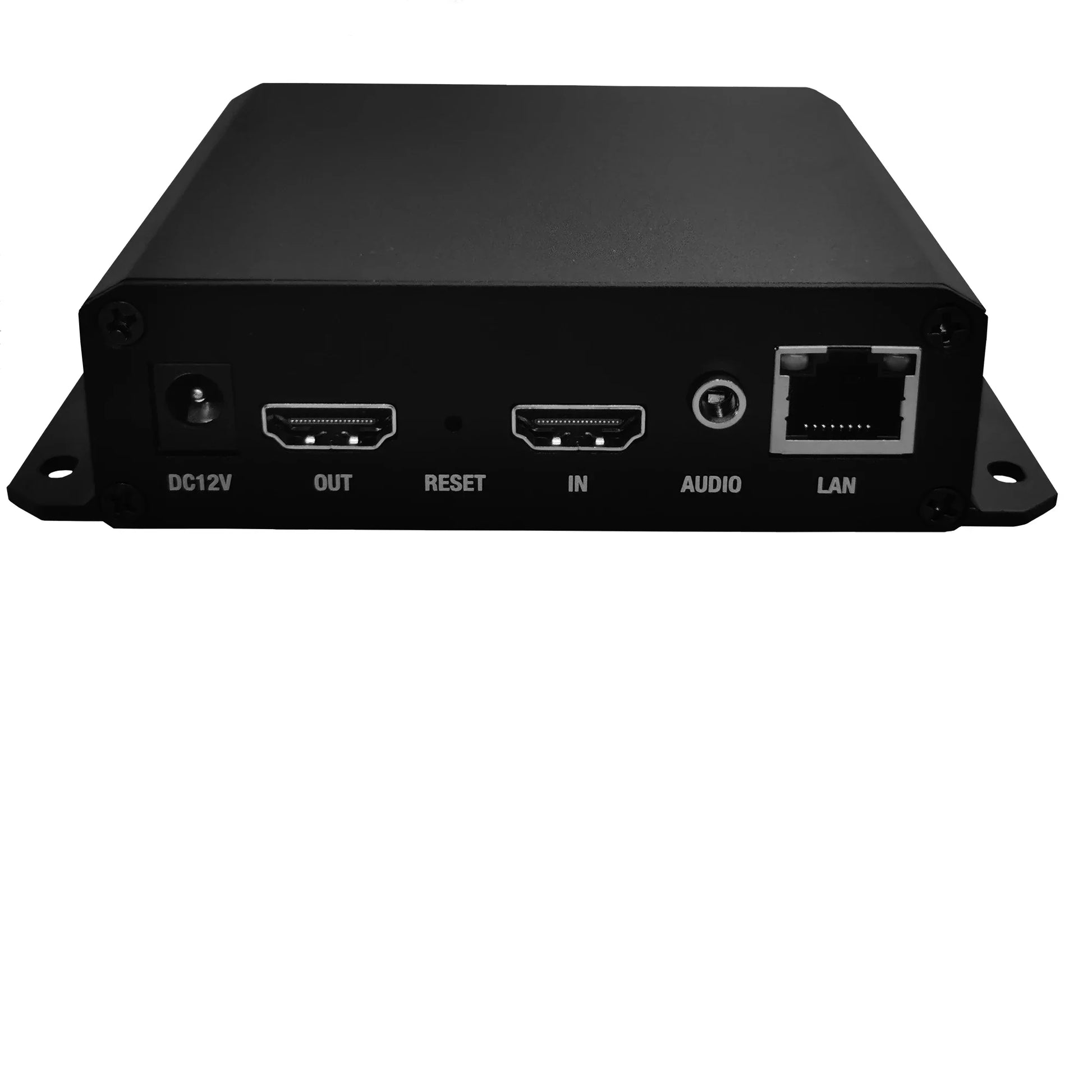

- HDMI Loop-Out: Monitor your source locally on a display while streaming — no signal splitter required.
- 4K Input Support: Accepts up to 3840×2160P60 HDMI input, downscaled to a max encoded output of 1920×1080P60.
- Multiple Streaming Protocols: RTMP, RTMPS, RTSP, HTTP TS, HTTP FLV, HLS TS, HLS MP4, MP4, SRT, UDP, RTP — compatible with virtually every platform and CDN.
- ONVIF Support: Easily search and browse video streams on ONVIF-compatible systems and NVRs.
- Rich Audio Encoding: AAC, AAC+, AAC++, MP3, MP2, AC3, Opus — with HDMI and 3.5mm analog audio inputs.
- OSD Overlay: Add text, images, scrolling text, or logos (4 zones, 4 uploadable logos) with customizable fonts and colors.
- Ultra-Low Power: Under 3W consumption — ideal for always-on deployments.
- CE Certified for peace of mind in professional environments.
Full Specifications
| Feature | Detail |
|---|---|
| Video Input | 1× HDMI (up to 3840×2160P60) |
| Video Output (Loop) | 1× HDMI (same as input resolution/frame rate) |
| Max Encoded Output | 1920×1080P60 |
| Encoding Standards | H.265 / H.264 / MJPEG |
| Frame Rate (FPS) | 5–60 |
| Bit Rate | 32–32,000 kbps (CBR / VBR / Strong CBR) |
| GOP | 5–300 |
| Streams | 1 Main Stream + 3 Sub Streams |
| Streaming Protocols | RTMP, RTMPS, RTSP, HTTP TS, HTTP FLV, HLS TS, HLS MP4, SRT, UDP, RTP |
| Audio Input | HDMI built-in + 3.5mm analog |
| Audio Codecs | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 / Opus |
| Sample Rate | 44,100 / 48,000 Hz or same as input |
| OSD | 4 zones — text, image, scrolling text; 4 uploadable logos |
| Network | 1000 Mbps Ethernet |
| ONVIF | Supported |

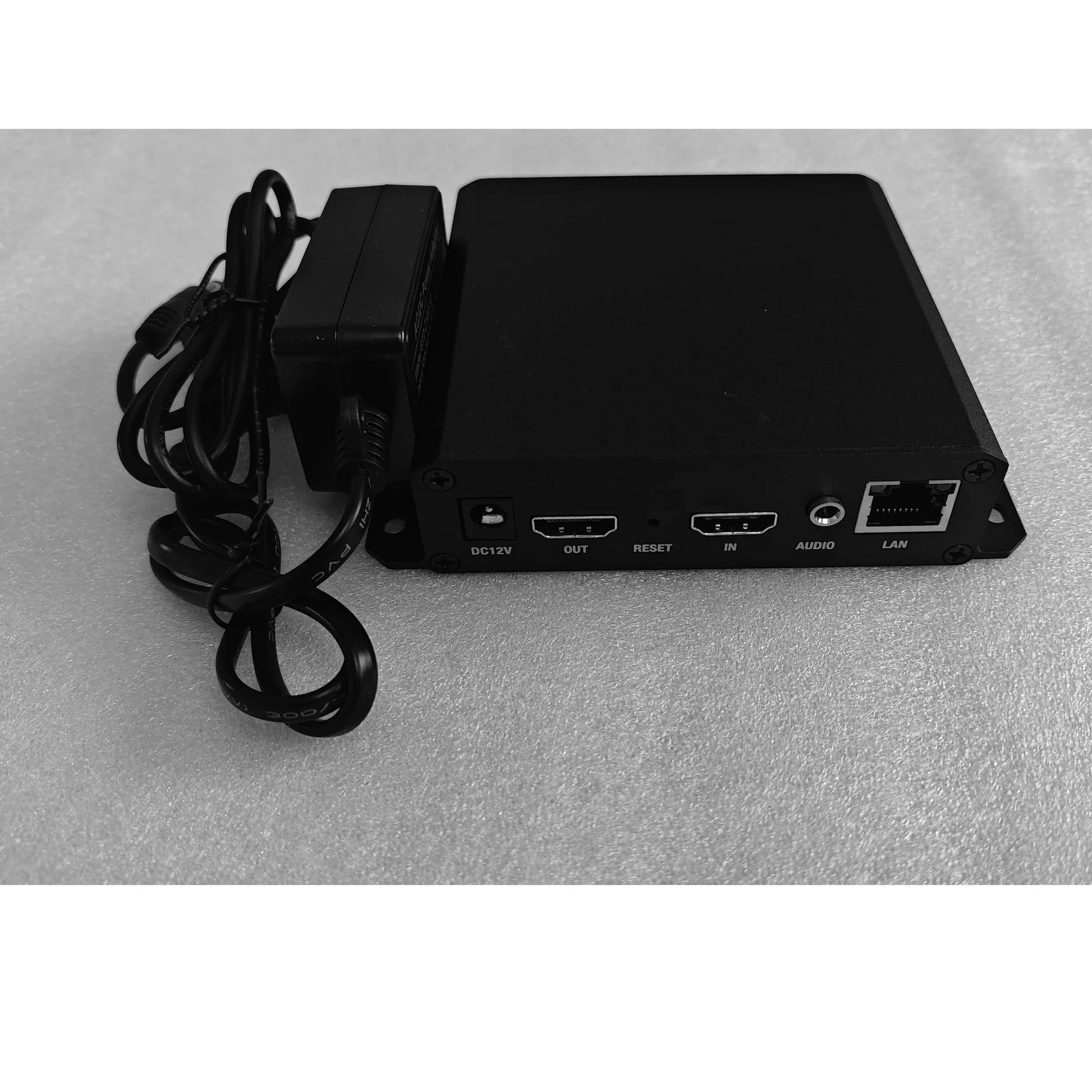

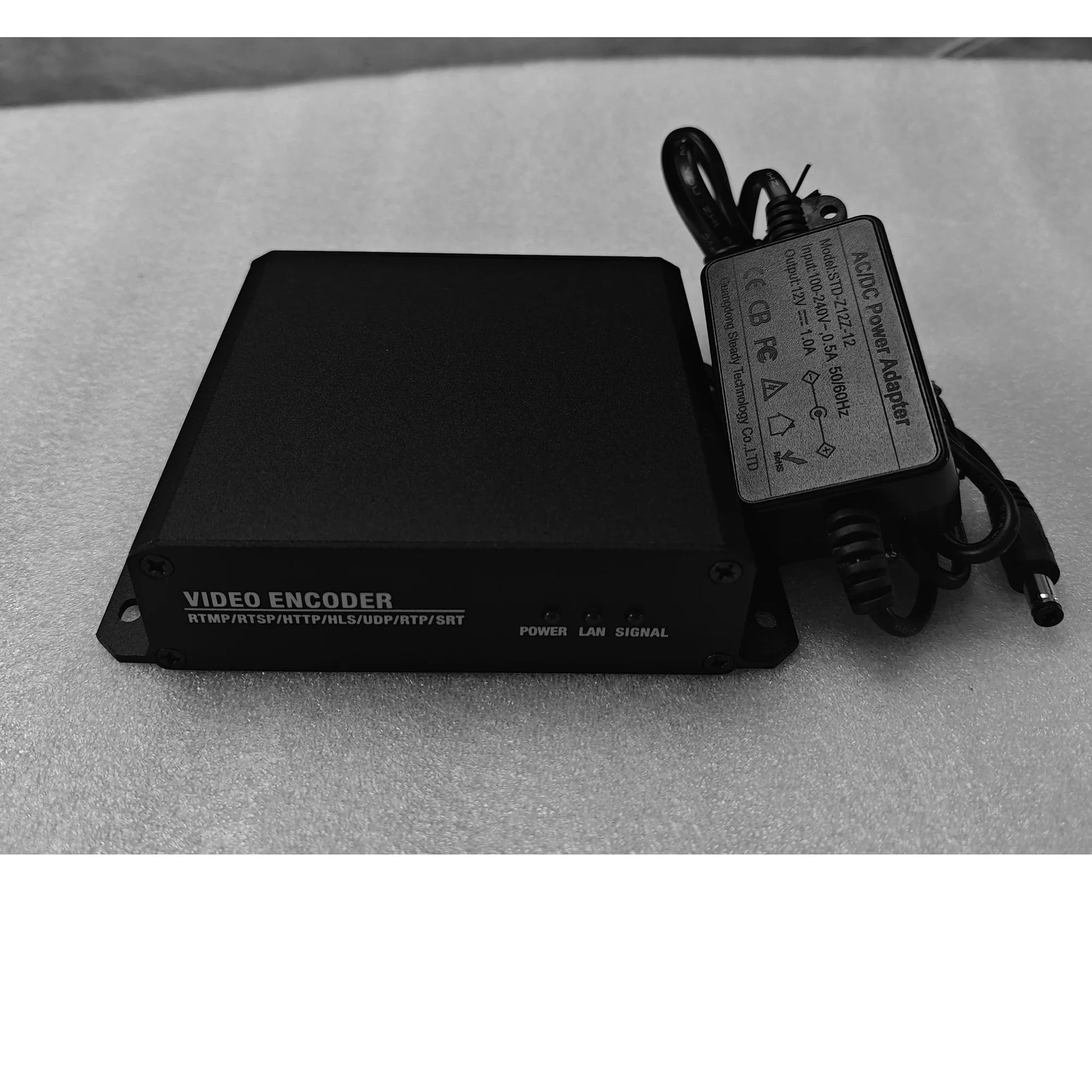

| Power Supply | 12V DC, 2A |
| Power Consumption | <3W |
| Operating Temperature | -20°C to +60°C |
| Humidity | <90% (non-condensing) |
| Dimensions | 125mm × 103mm × 30mm |
| Weight | 233g |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Ideal Use Cases
- Live streaming to YouTube, Facebook, Twitch, or any RTMP-compatible platform
- IPTV headend encoding and CATV signal distribution
- Corporate AV, conference rooms, and distance learning
- Houses of worship with simultaneous local display and online broadcast
- Digital signage content distribution over IP networks
- Integration with NVR/VMS systems via ONVIF
Related Products
- 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
- 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone
For further technical guidance on streaming standards and network video, visit the NIST Communications Technology Laboratory.
Frequently Asked Questions
Q: Can the SATLINK 6900 encoder stream to YouTube and Facebook Live simultaneously?
A: The SATLINK 6900 supports RTMP and RTMPS protocols, which are used by YouTube Live, Facebook Live, Twitch, and most major streaming platforms. For simultaneous multi-platform streaming, you would typically use a stream replication service or CDN alongside the encoder's multiple sub-stream outputs.
Q: Does the HDMI loop output affect the quality of the input signal?
A: No. The HDMI loop output passes the source signal through at the same resolution and frame rate as the input — up to 3840×2160P60 (4K60) — without any degradation. Your connected monitor receives the full-quality signal while encoding happens independently.
Q: What streaming protocols does the SATLINK 6900 support?
A: The encoder supports a comprehensive range: RTMP, RTMPS, RTSP, HTTP TS, HTTP FLV, HLS TS, HLS MP4, MP4, SRT, UDP, and RTP — making it compatible with virtually any IP video platform, NVR, or CDN infrastructure.
Q: Is ONVIF integration difficult to set up?
A: Not at all. The SATLINK 6900 supports ONVIF natively, allowing compatible NVR systems and video management software (VMS) to discover and access the encoder's streams automatically — no manual IP configuration required on the NVR side.
