Oasis Select
SAE Power Extension Cable | Solar Panel & Battery Connector
SAE Power Extension Cable | Solar Panel & Battery Connector
Couldn't load pickup availability
SAE Power Extension Cable – Solar Panel & Battery Quick Connect

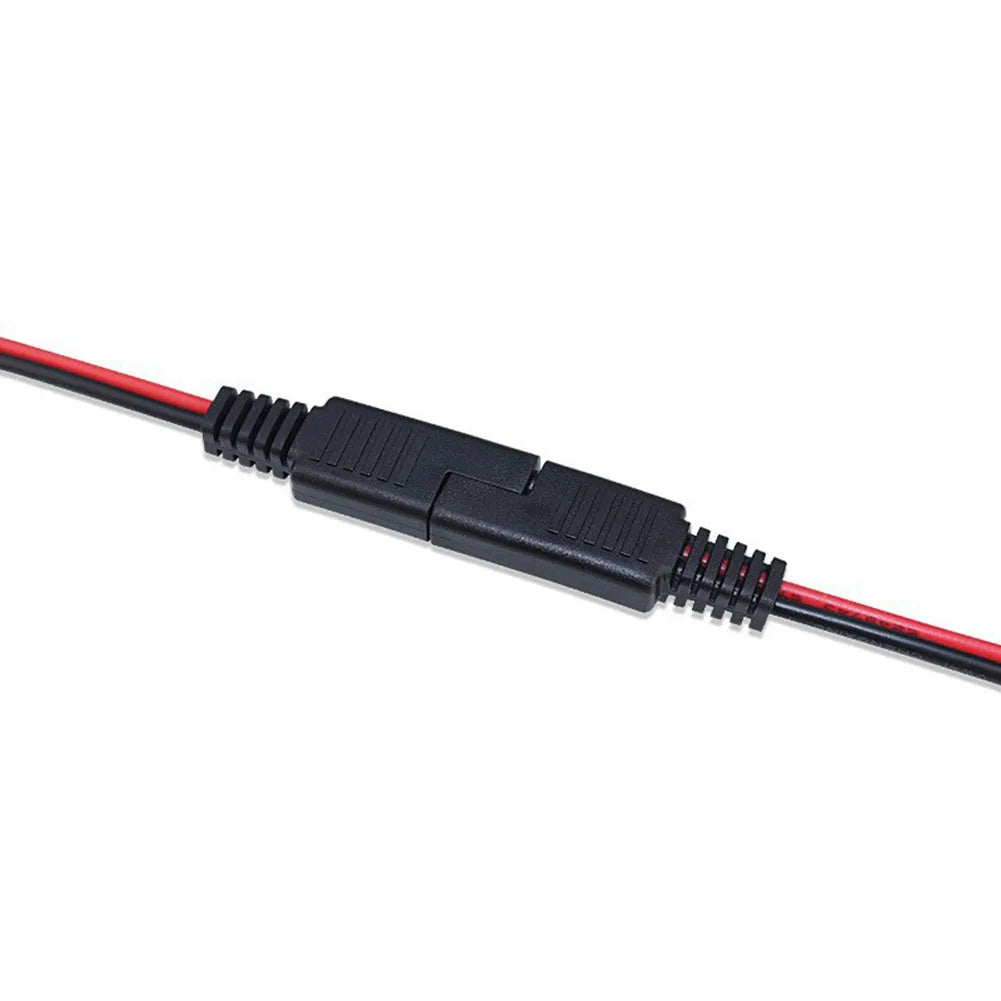

Keep your power flowing reliably with this 2-piece SAE single-ended power extension cable set. Designed for solar panels, automobile batteries, motorcycles, yachts, tractors, and more, this cable pair delivers stable, efficient power transfer wherever you need it. The male + female connector combo makes quick, tool-free connections a breeze.
Key Features
- Versatile Compatibility: Works with automobiles, motorcycles, yachts, solar panel systems, tractors, and any equipment using a standard SAE plug.

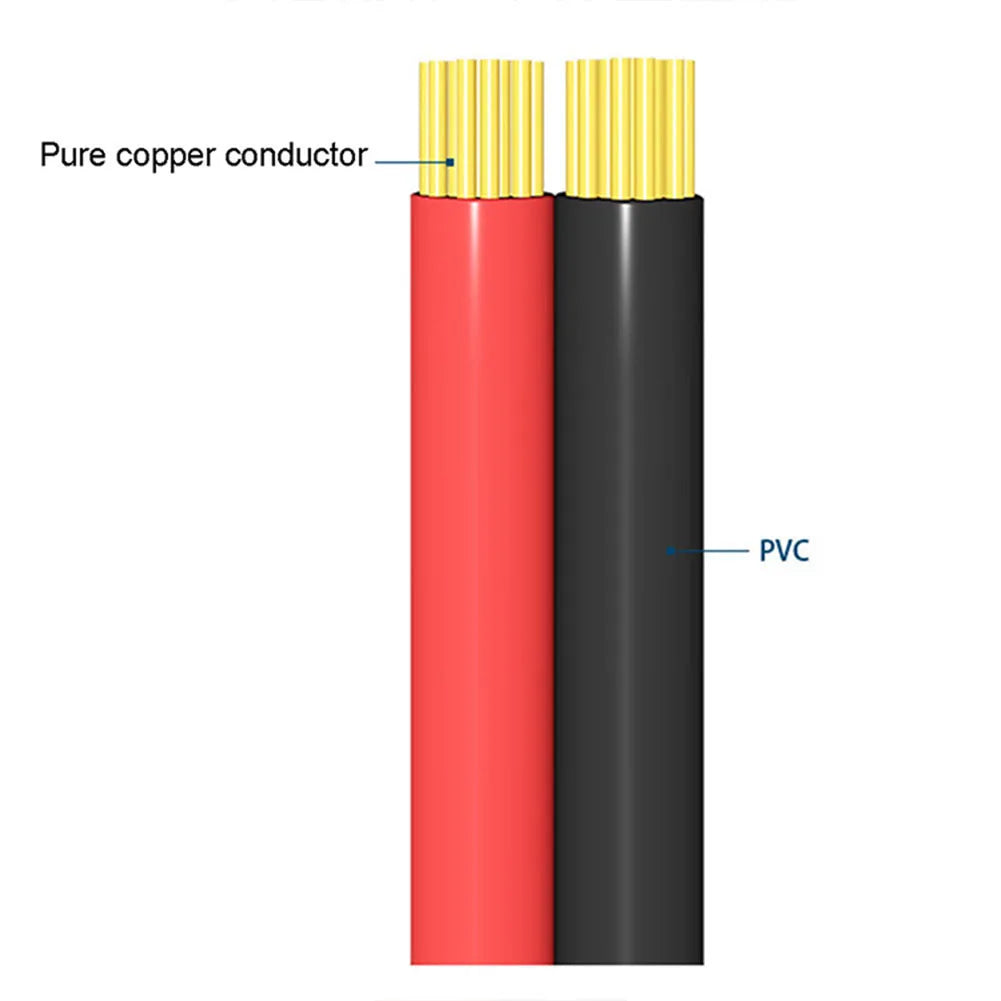

- High-Quality 18AWG Copper Wire: Each cable uses full copper wire (2×38 strands of 0.16mm tinned copper), ensuring excellent conductivity and efficient power transfer.
- Flexible & Compact: At just 15cm (0.5 ft) in length with a PVC sheath, this cable is highly flexible and easy to route in tight spaces.
- Rated for 12V / 10A / 120W: Handles the demands of standard solar cell connections and battery transfer applications with confidence.

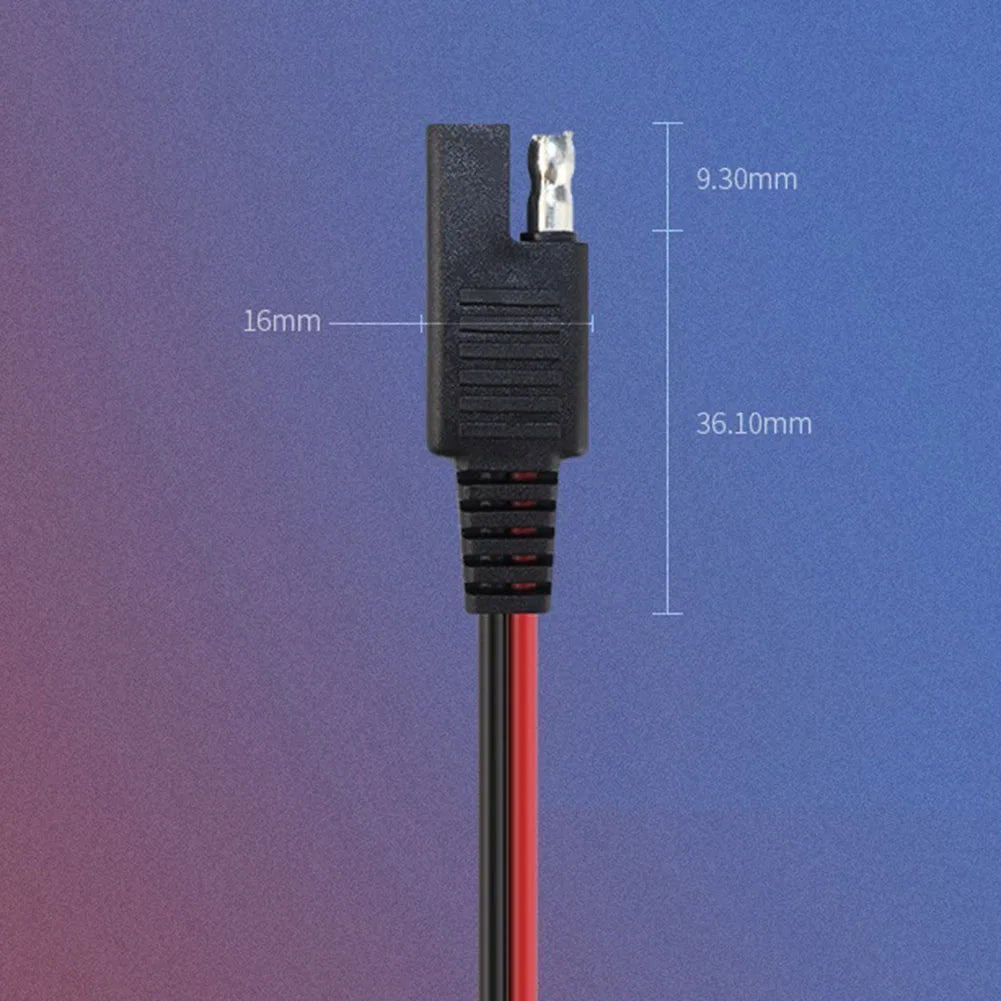

- Durable Construction: 0.6mm insulation thickness, 2.7×5.4mm outer diameter, and a working temperature tolerance of up to 80°C for long-lasting performance.

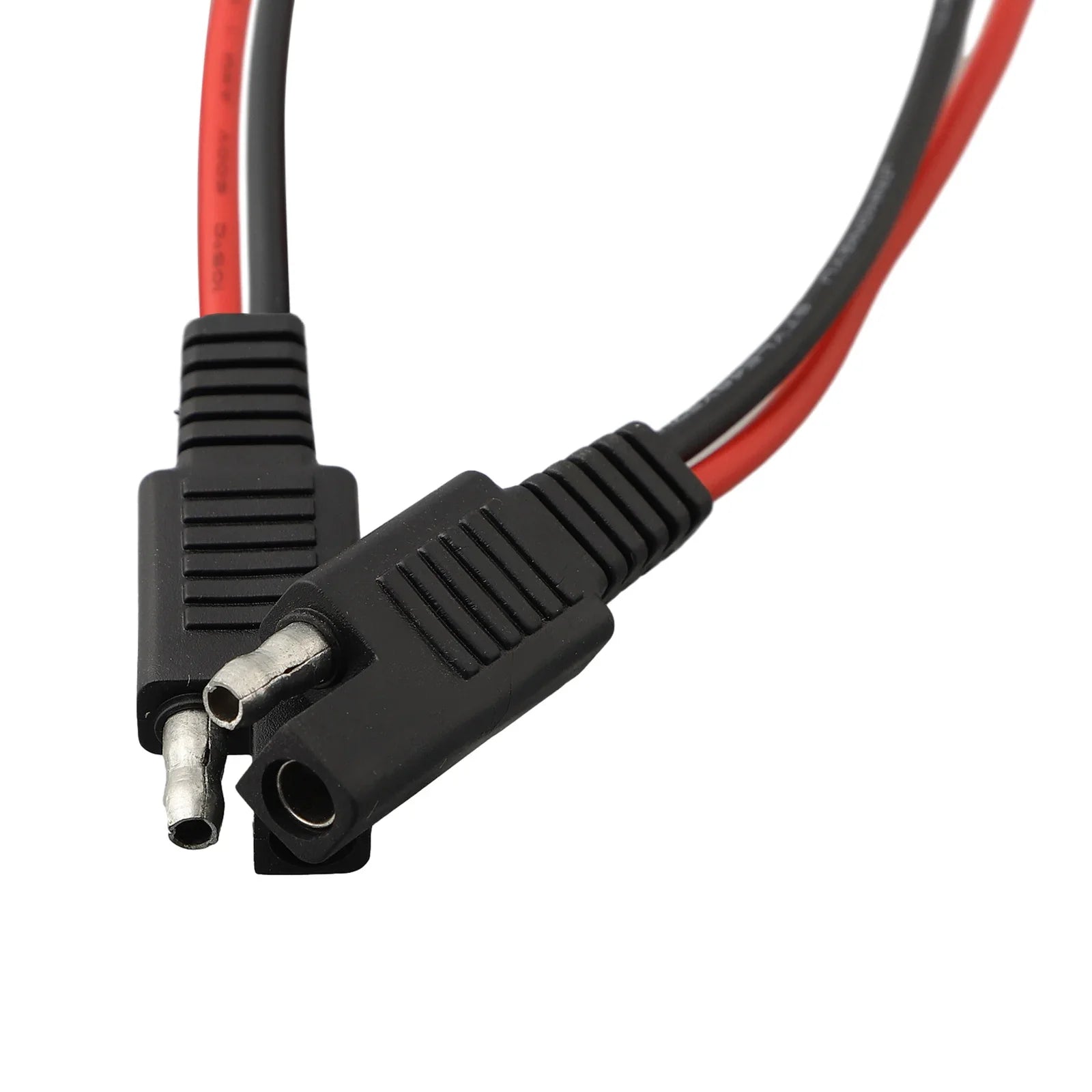

- Includes 1 Pair: You receive one male-end and one female-end SAE cable, everything needed for a complete connection.
Specifications
| Connector Type | Male + Female (SAE) |
| Number of Pins | 2 cores |
| Wire Material | 18AWG tinned full copper (2×38 × 0.16mm) |
| Sheath Material | PVC |
| Sheath / Insulation Color | Red and Black |
| Insulation Thickness | 0.6mm |
| Outer Diameter | 2.7 × 5.4mm |
| Voltage | 12V DC |
| Current | 10A |
| Power | 120W |
| Cable Length | 15cm (0.5 ft) |
| Weight | 15g |
| Working Temperature | Up to 80°C |
| Country of Origin | Made in China |

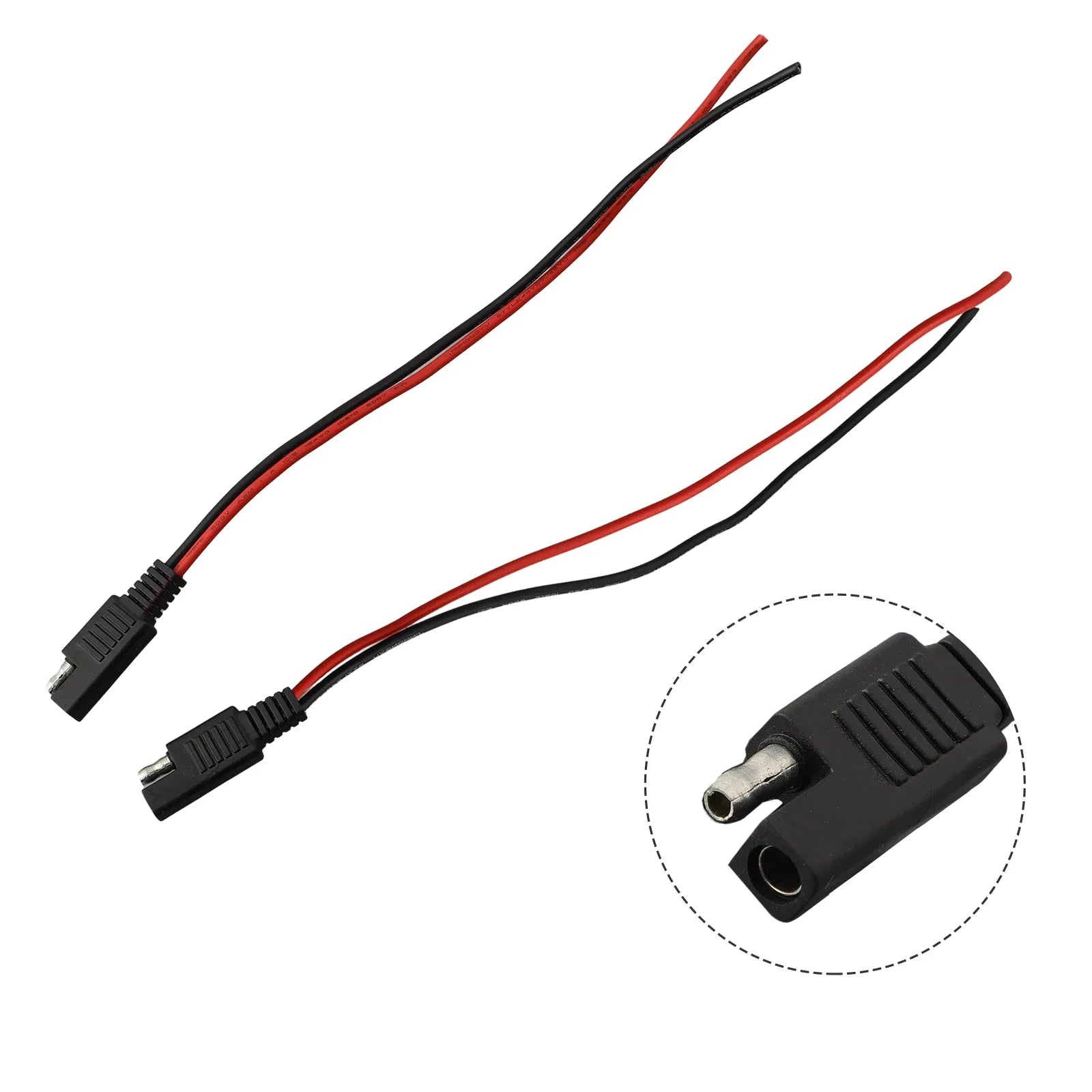

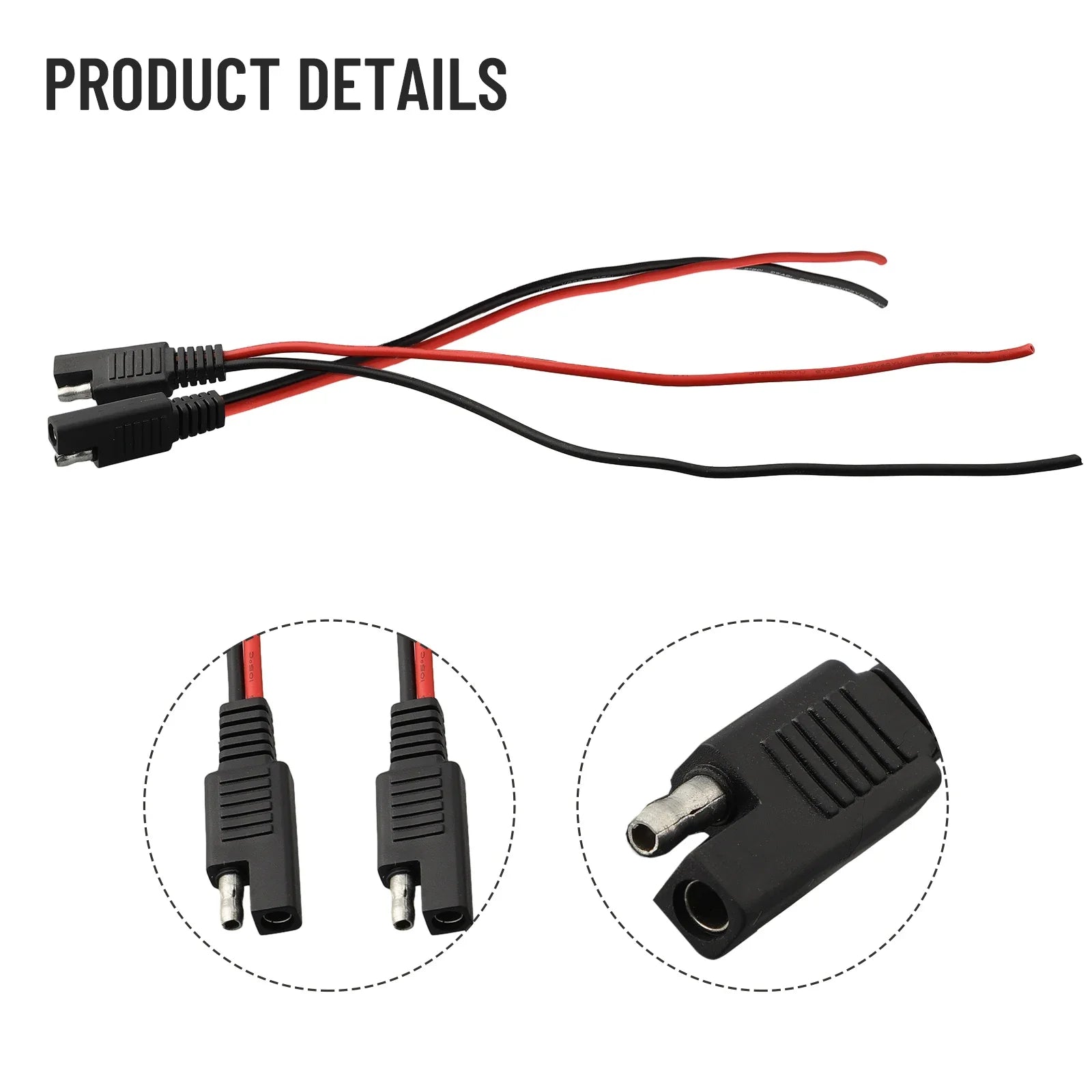

Package Includes
- 1× SAE Male-end cable (18AWG, 15cm)
- 1× SAE Female-end cable (18AWG, 15cm)
Note: Actual color may vary slightly from images due to monitor brightness and display settings. Please allow minor measurement tolerances.
Explore More Related Products
- 0–160 PSI Liquid-Filled Fuel Pressure Gauge | 1/8 NPT AN6
- 1-Inch Threaded Brass Ball Valve – Water, Gas & Oil Flow Control
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
For more information on safe electrical wiring and connector standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Learn more: Coaxial power connector
Frequently Asked Questions
Q: What is an SAE connector and what devices is this cable compatible with?
A: SAE (Society of Automotive Engineers) connectors are a standardised quick-disconnect plug type widely used in automotive and solar applications. This SAE power extension cable is compatible with cars, motorcycles, yachts, tractors, solar panel systems, and any other device that uses a standard 2-pin SAE plug.
Q: What is the maximum power this SAE cable can handle?
A: This cable is rated for 12V DC at up to 10A, supporting a maximum power of 120W. It is ideal for battery charging, solar panel connections, and similar low-voltage DC applications.
Q: Can I use this cable outdoors or in high-temperature environments?
A: Yes. The PVC sheath and tinned copper wire construction are designed to handle working temperatures of up to 80°C, making this cable suitable for engine bays, outdoor solar installations, and other demanding environments.
Q: What does the package include?
A: The package contains one pair of 18AWG SAE cables — one male-end connector and one female-end connector — each measuring 15cm (approximately 0.5 ft) in length, providing a complete quick-connect solution right out of the box.
