Rotary Switch Selector with Cap | 2 Pole & 4 Pole Multi-Position

Rotary Switch Selector with Cap – 2 Pole & 4 Pole, Multiple Positions

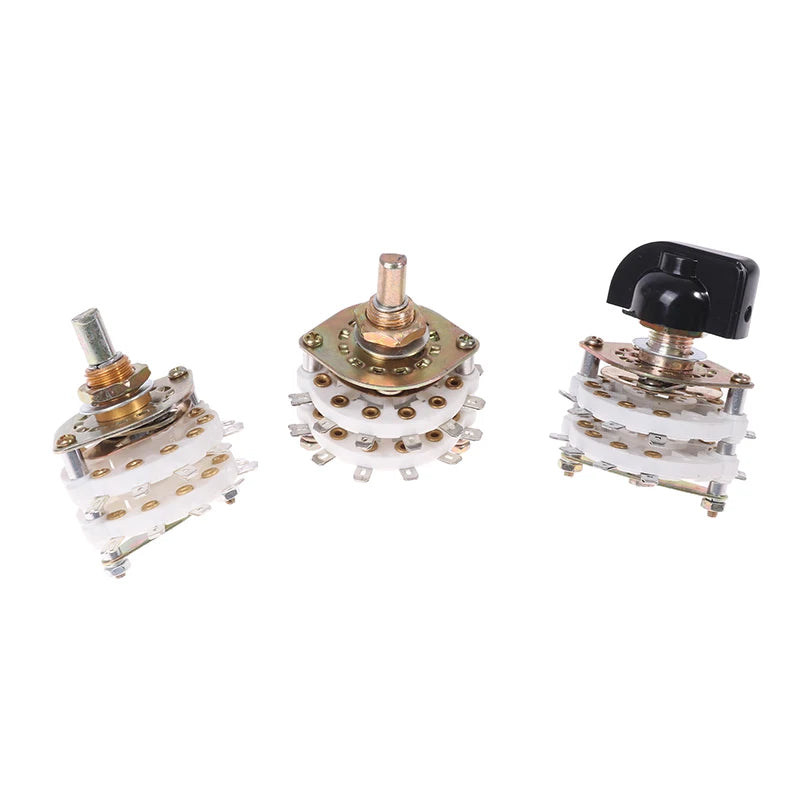

This versatile rotary switch selector is an essential component for electronics hobbyists, engineers, and DIY enthusiasts. Available in 2-pole configurations (6, 7, 8, 9, or 10 positions) and 4-pole configurations (3 or 5 positions), this knob-style switch delivers reliable channel and circuit selection for a wide range of applications.

Constructed from durable plastic, it features a smooth rotary action and includes a plastic cap for a clean, professional finish. Whether you're building a custom control panel, repairing consumer electronics, or integrating it into an industrial machine, this switch provides dependable multi-position performance.

Key Features

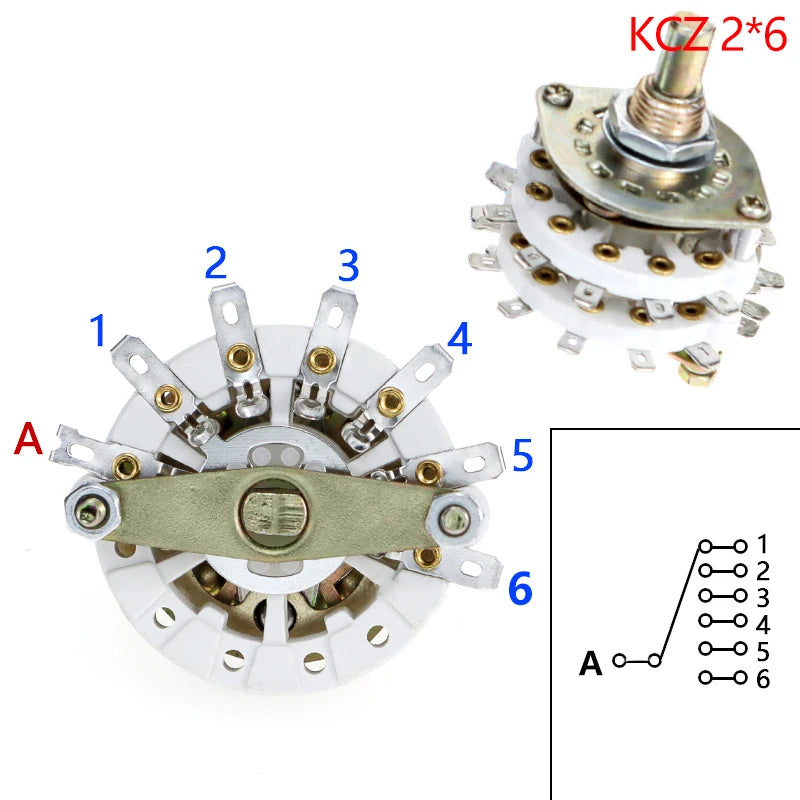

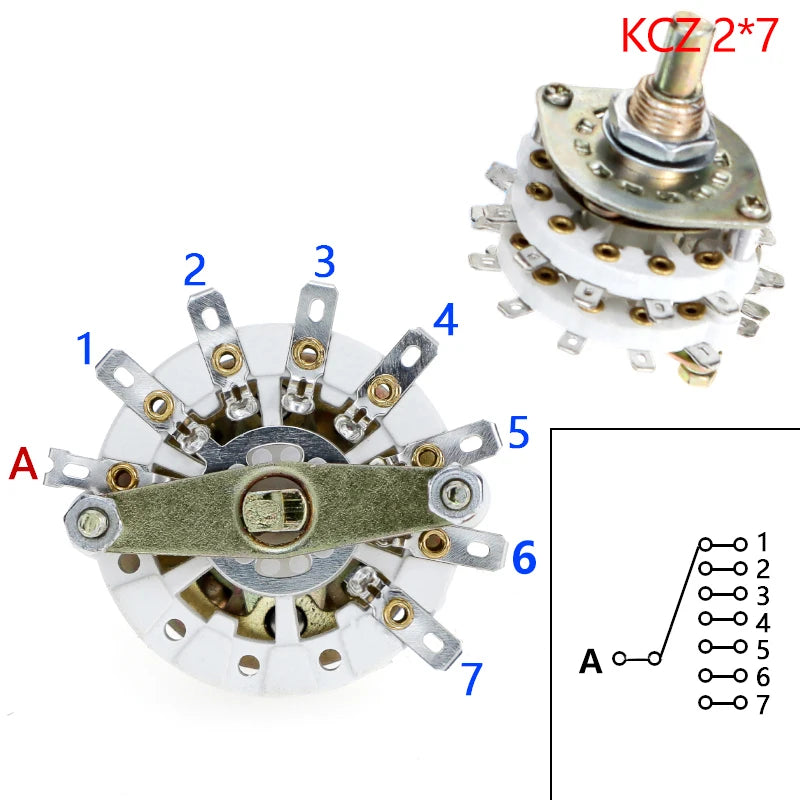

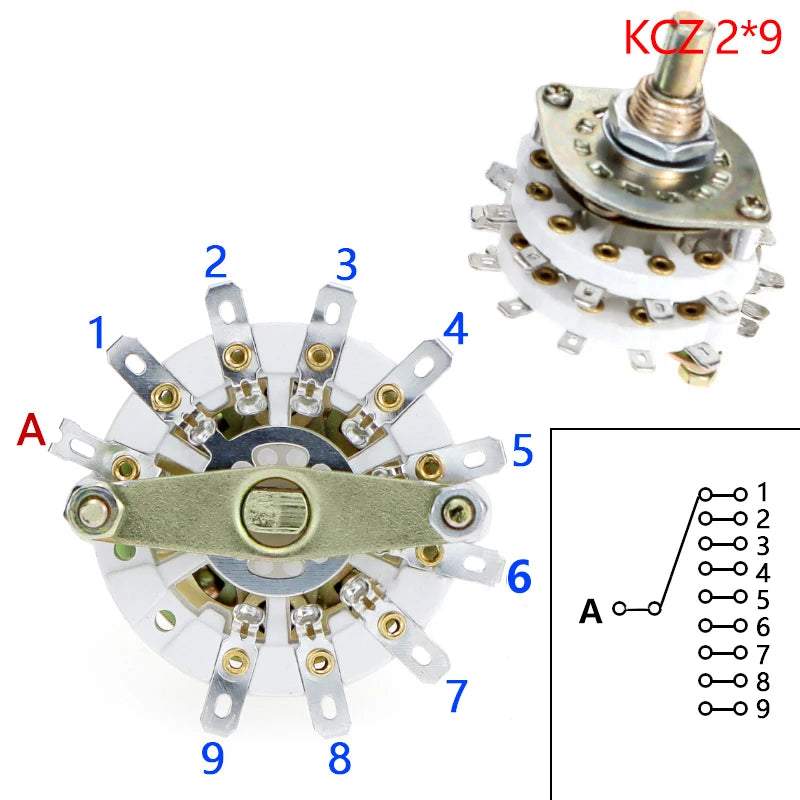

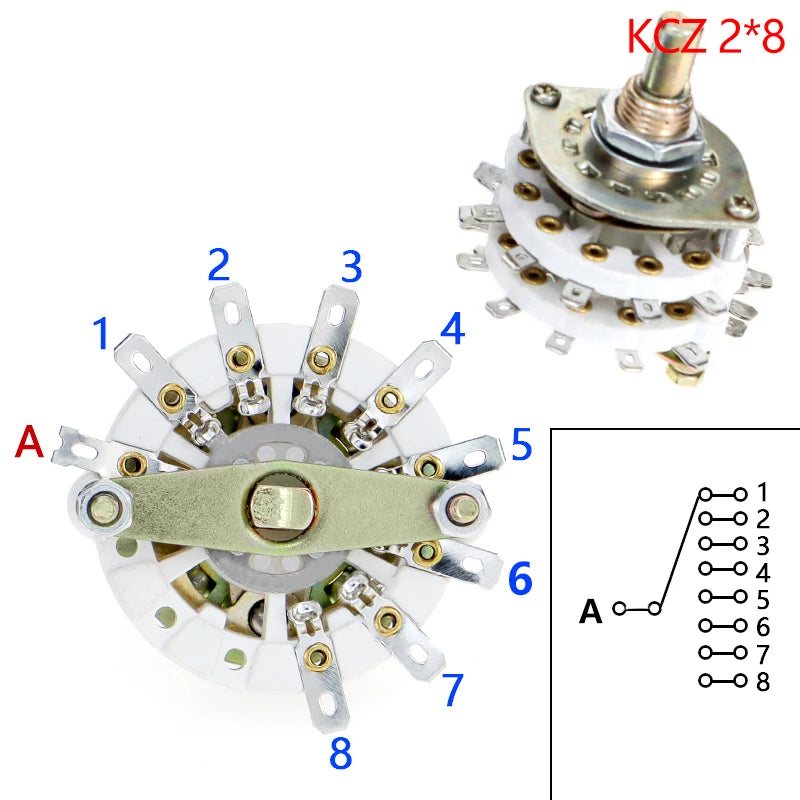

• 2-Pole Options: 6, 7, 8, 9, or 10 positions for flexible circuit control
• 4-Pole Options: 3 or 5 positions for multi-channel applications
• Knob-Style Design: Smooth, tactile rotary action for precise position selection
• Plastic Construction: Lightweight, durable, and resistant to general wear
• Plastic Cap Included: Each switch ships with one matching plastic cap
• Wide Compatibility: Suitable for radios, TVs, LED home lighting systems, industrial machine control units, and other electronic equipment
• Multi-Function Use: Ideal for applications involving multiple inputs and outputs

Specifications

• Switch Type: Knob / Rotary Switch

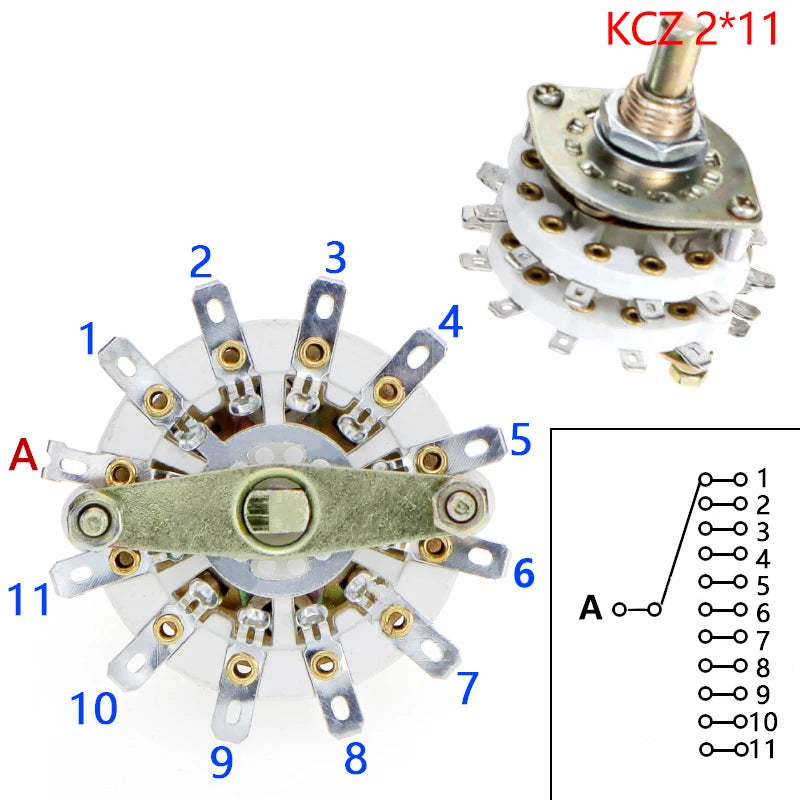

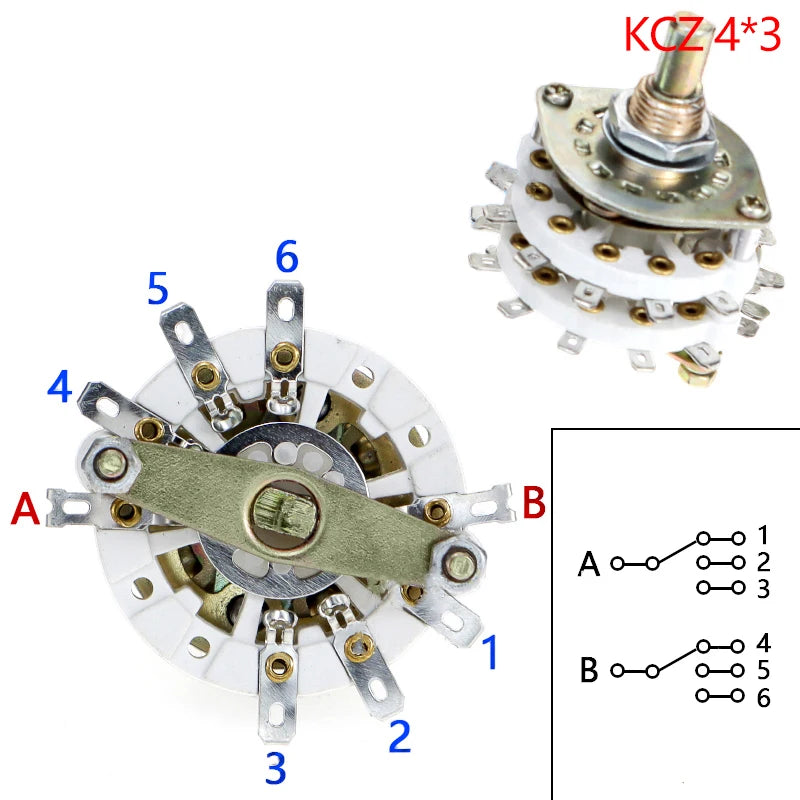

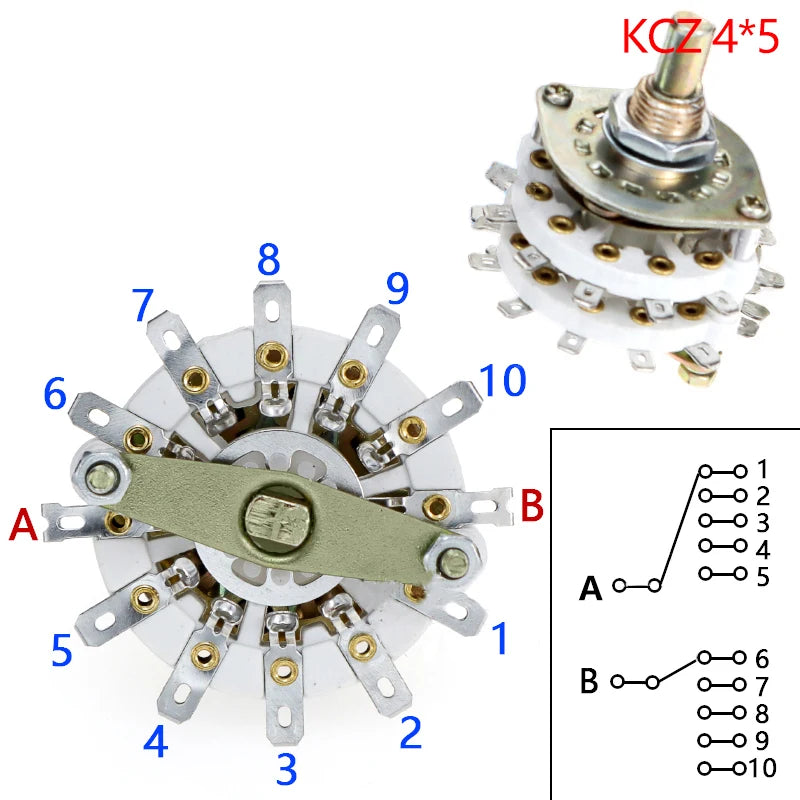

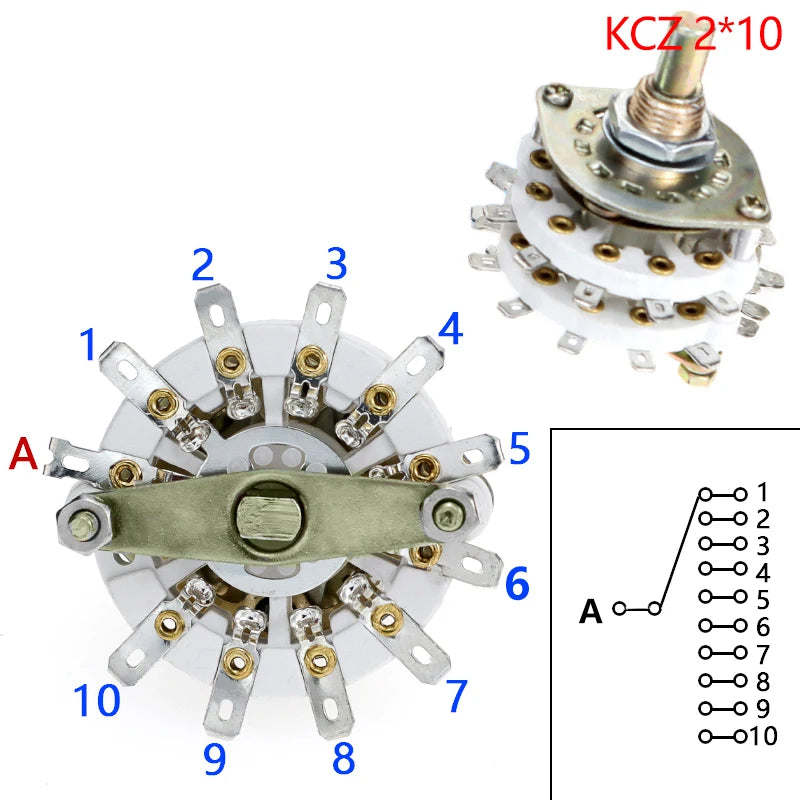

• Pole Options: 2 Pole (6/7/8/9/10 positions), 4 Pole (3/5 positions)
• Material: Plastic
• Package Contents: 1 × Rotary Switch, 1 × Plastic Cap
• Made in: Mainland China

Ideal Applications

• Radios and audio equipment
• Televisions and home entertainment systems
• LED home lighting controls
• Industrial machine control panels
• DIY electronics projects and prototyping
• Custom circuit boards with multiple input/output channels

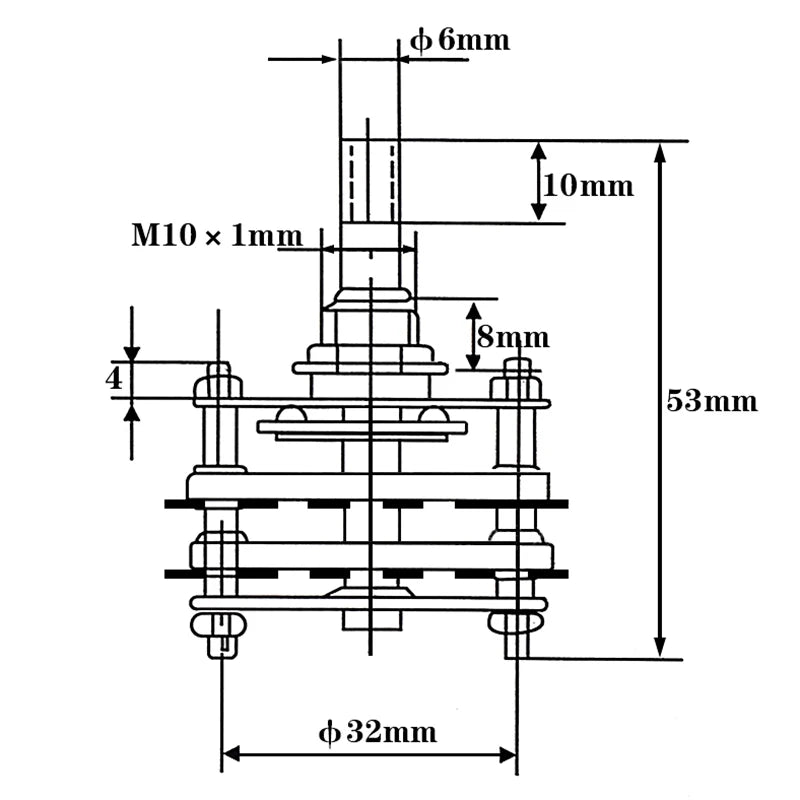

Note: Due to manual measurement, please allow a tolerance of 1–3 mm. Actual product color may vary slightly from images due to monitor display differences.

Related Products You May Like

• Shop More Electronics & Tools Accessories

For more information on electrical component safety standards, visit the U.S. Consumer Product Safety Commission (CPSC). For guidance on safe use of electronic components in DIY projects, refer to OSHA's Electrical Safety Resources.

Frequently Asked Questions

Q: What configurations are available for this rotary switch selector?

A: This rotary switch comes in two main pole configurations: 2-pole versions with 6, 7, 8, 9, or 10 selectable positions, and 4-pole versions with 3 or 5 positions. Choose the configuration that matches your specific circuit or channel-selection requirements.

Q: What types of electronic equipment is this rotary switch compatible with?

A: This multi-position rotary switch is widely used in radios, televisions, LED home lighting systems, industrial machine control units, and a broad range of other electronic equipment. It is especially well-suited for applications that require multiple input and output channel selection.

Q: What is included in the package?

A: Each package includes 1 × rotary switch and 1 × plastic cap. The cap provides a neat, finished look and helps protect the switch knob during use.

Q: Is the rotary switch easy to install for DIY projects?

A: Yes! The knob-style rotary switch is designed for straightforward integration into circuit boards and control panels. It is a popular choice for electronics hobbyists and professionals alike due to its simple mounting and reliable multi-position switching action.
