RJ45 Female Socket Adapter Board – Solder-Free Terminal Block
RJ45 Female Socket Adapter Board – Solder-Free Terminal Block
Couldn't load pickup availability

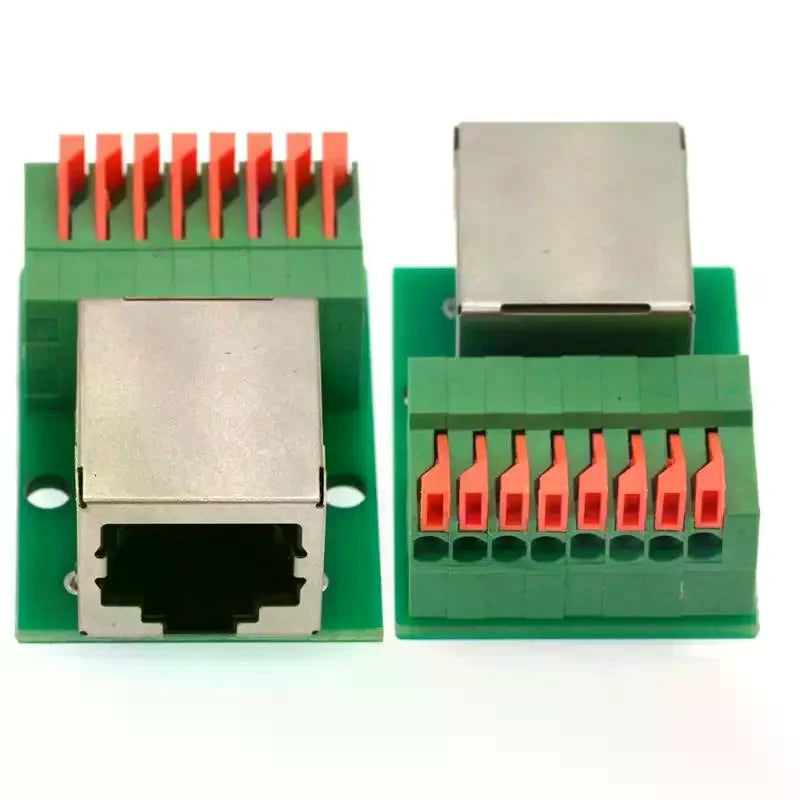

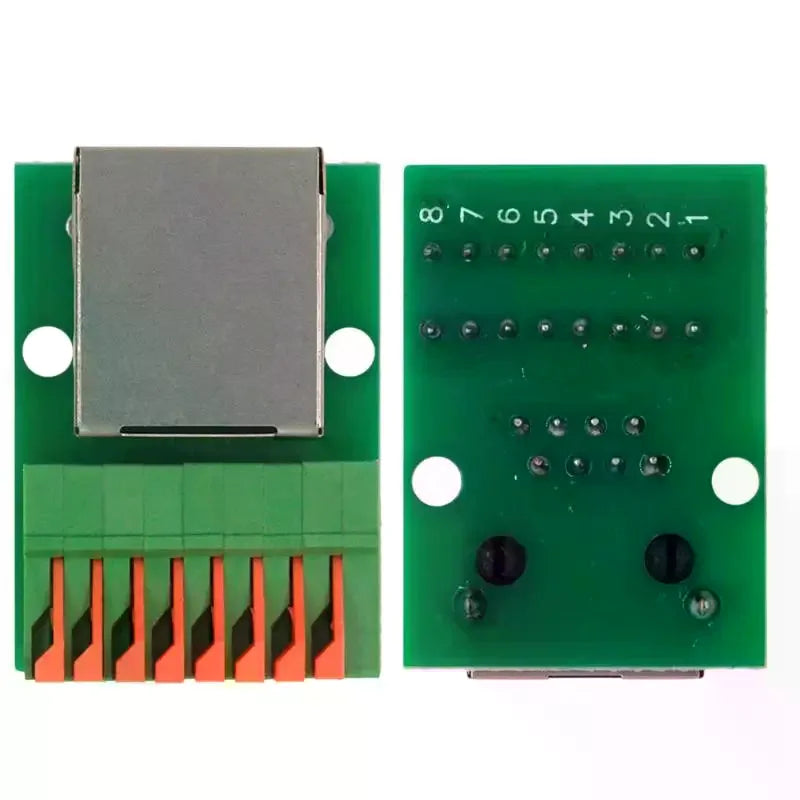

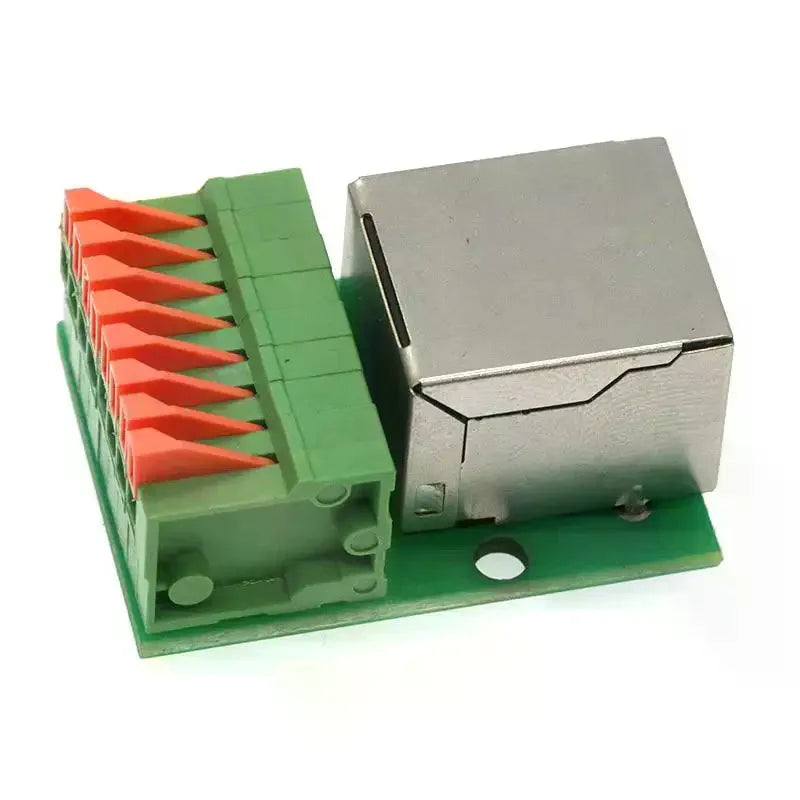

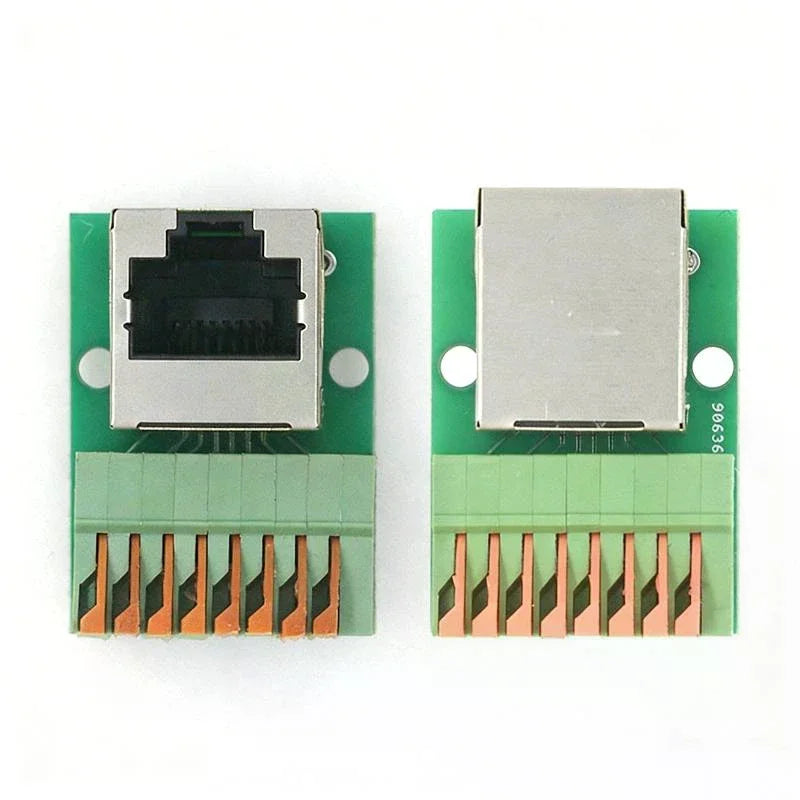

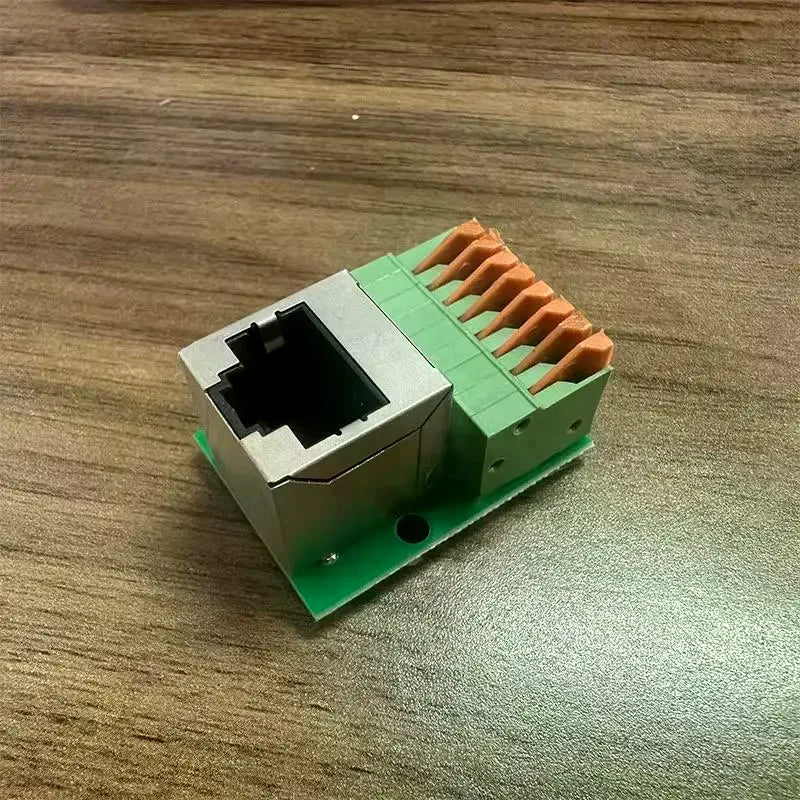

RJ45 Network Connector Adapter Board with Solder-Free Terminal Block
Simplify your network wiring projects with this compact RJ45 Female Socket Adapter Board. Designed for hobbyists, engineers, and DIY makers, this welding-free (solder-free) terminal block board lets you connect Ethernet wires quickly and cleanly — no soldering iron required. The DIN rail-mountable design makes it easy to integrate into control panels or enclosures, keeping your workspace tidy and professional.
Whether you're prototyping a smart home network, building a custom patch panel, or wiring up industrial control equipment, this RJ45 adapter plate delivers reliable connectivity in a small, sturdy package.
Key Features
- Solder-Free Terminal Block: Crimp-style screw terminals make wiring fast and tool-friendly — no soldering needed
- RJ45 Horizontal Female Socket: Standard 8P8C connector accepts Cat5e, Cat6, and other common Ethernet cables
- FR-4 PCB Board: High-quality 1.6mm FR-4 fiberglass substrate for durability and electrical stability

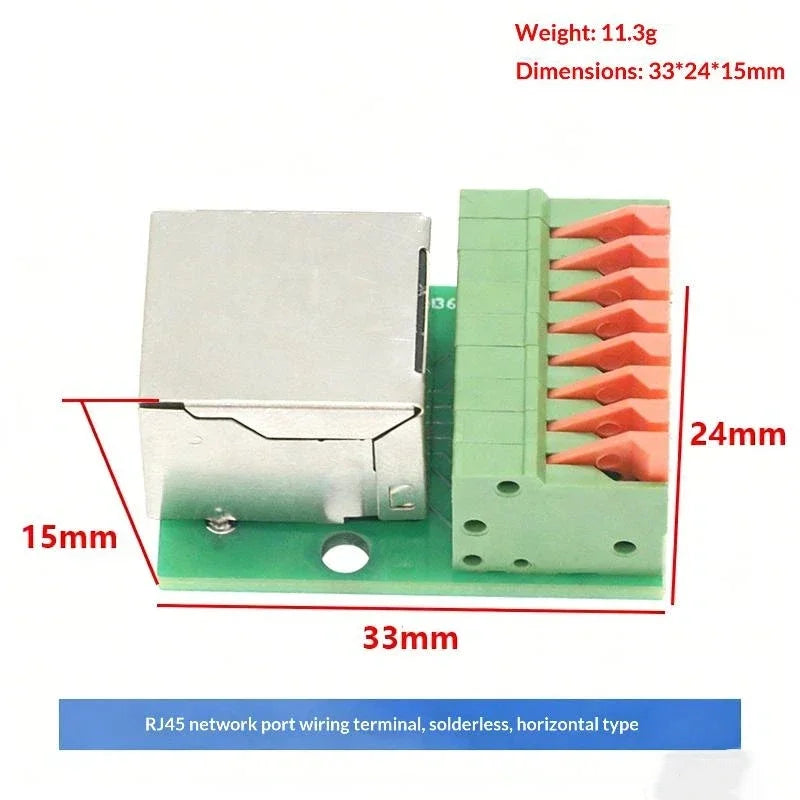

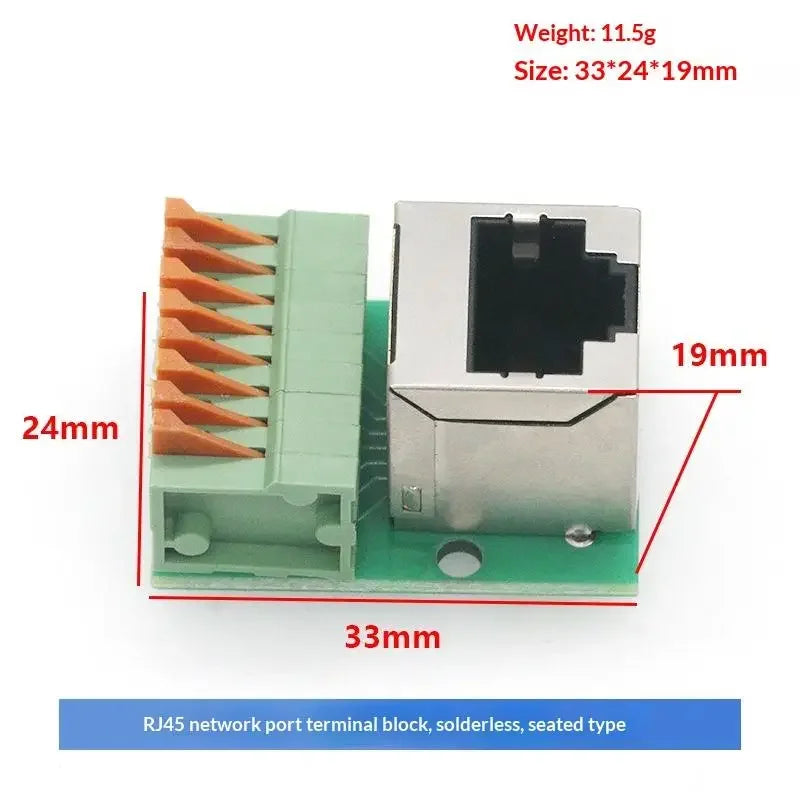

- Compact Size: 33 × 24mm footprint fits easily in tight spaces or control enclosures
- Rail Mountable: Compatible with standard DIN rail mounting for clean, professional installations
- Mixed Materials: Robust plastic and metal construction for long-lasting use
- Low Voltage Rated: Below 50V AC or 75V DC — safe for standard Ethernet and data applications
Specifications
| Size | 33 × 24 mm |
| PCB Thickness | 1.6 mm |
| Terminal Type | Solder-Free (Crimp) Terminal |
| Connector | RJ45 Horizontal Female Socket (8P8C) |
| PCB Material | FR-4 Fiberglass |
| Body Materials | Plastic + Metal |
| Voltage Rating | Below 50V AC / 75V DC |
| Package Contents | 1 × RJ45 Adapter Board |
| Country of Origin | Made in China |
Who Is This For?
This adapter board is perfect for:
- DIY electronics and networking projects
- Home automation and smart home wiring
- Industrial control panel assembly
- Makers, hobbyists, and electronics students
- Quick network connection testing and prototyping
Related Products You May Like
- Looking for creative project inspiration? Check out our "1% Better Every Day" Motivational Canvas Wall Art Print to keep your workspace motivated.
- Explore our "Be Silly, Be Honest, Be Kind" Quote Canvas Wall Art Print for your maker's workshop.
For guidance on safe low-voltage wiring practices, refer to the U.S. Consumer Product Safety Commission (CPSC) for consumer electronics safety standards.
Learn more: Modular connector
Frequently Asked Questions
Q: Do I need a soldering iron to use this RJ45 terminal block adapter board?
A: No! This adapter board features a solder-free (welding-free) crimp terminal design. You can connect wires securely by simply inserting them into the screw terminals and tightening — no soldering equipment required.
Q: What type of Ethernet cables are compatible with this RJ45 female socket adapter?
A: The board uses a standard 8P8C (RJ45) horizontal female socket, making it compatible with Cat5, Cat5e, Cat6, and other standard Ethernet patch cables commonly used in home and office networking.
Q: Can this RJ45 adapter board be mounted on a DIN rail?
A: Yes. The adapter board is designed to be rail mountable, making it easy to install inside control panels or enclosures using standard DIN rail systems for a neat, professional wiring setup.
Q: What is the PCB material used in this adapter board?
A: The board uses a high-quality FR-4 fiberglass PCB substrate, which is a standard and durable material widely used in electronics for its good electrical insulation and mechanical strength properties.
