Refrigerator Compressor Thermal Overload Protector Replacement

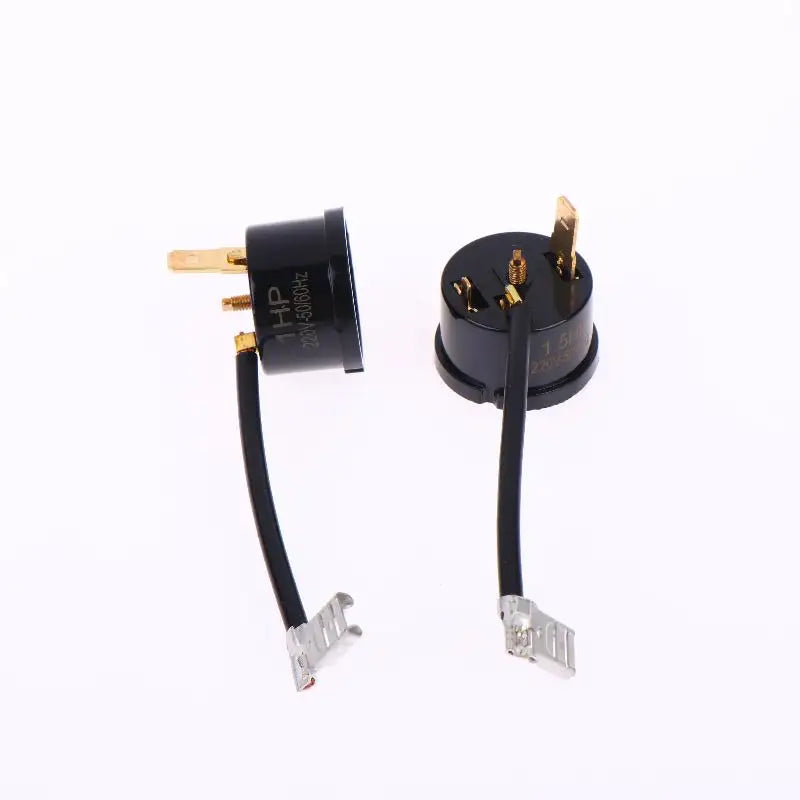

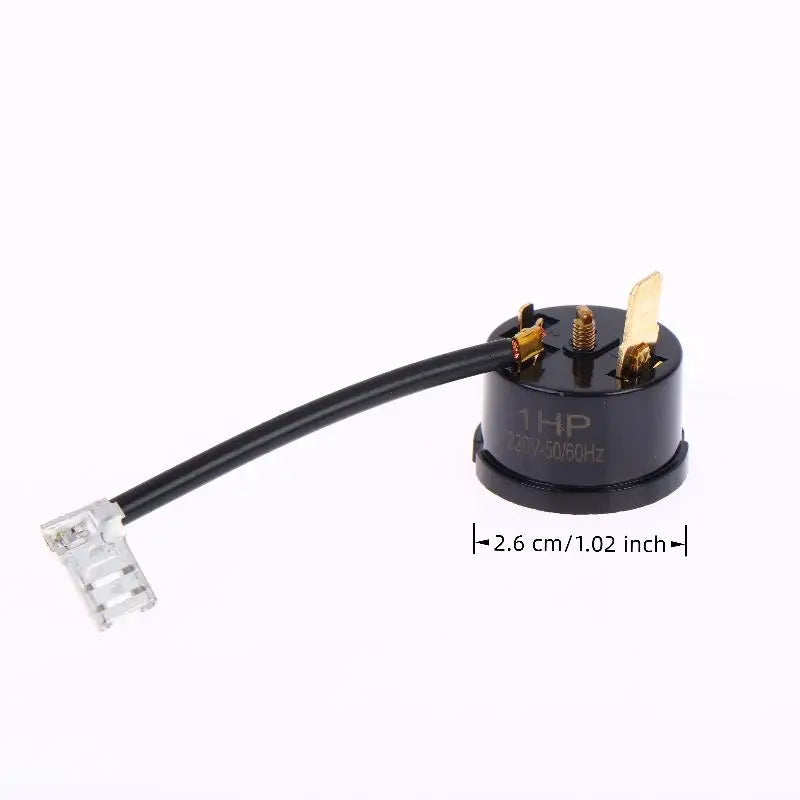

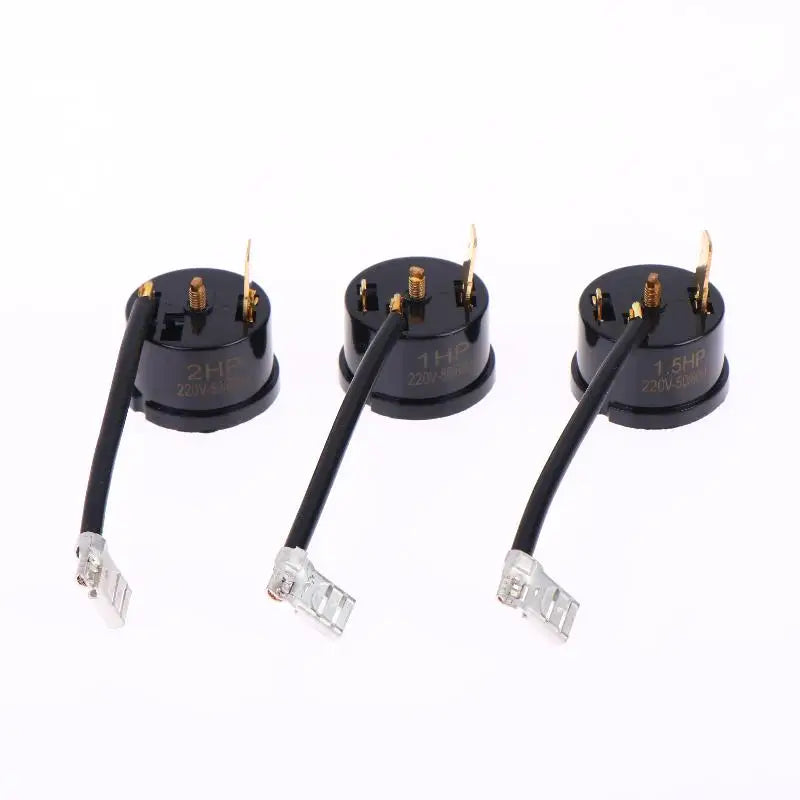

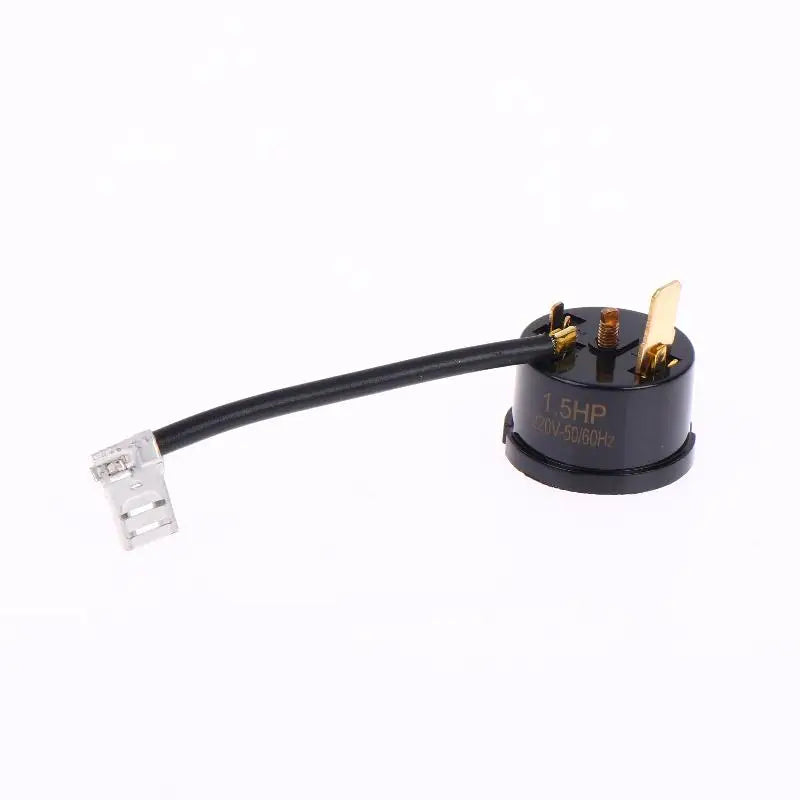

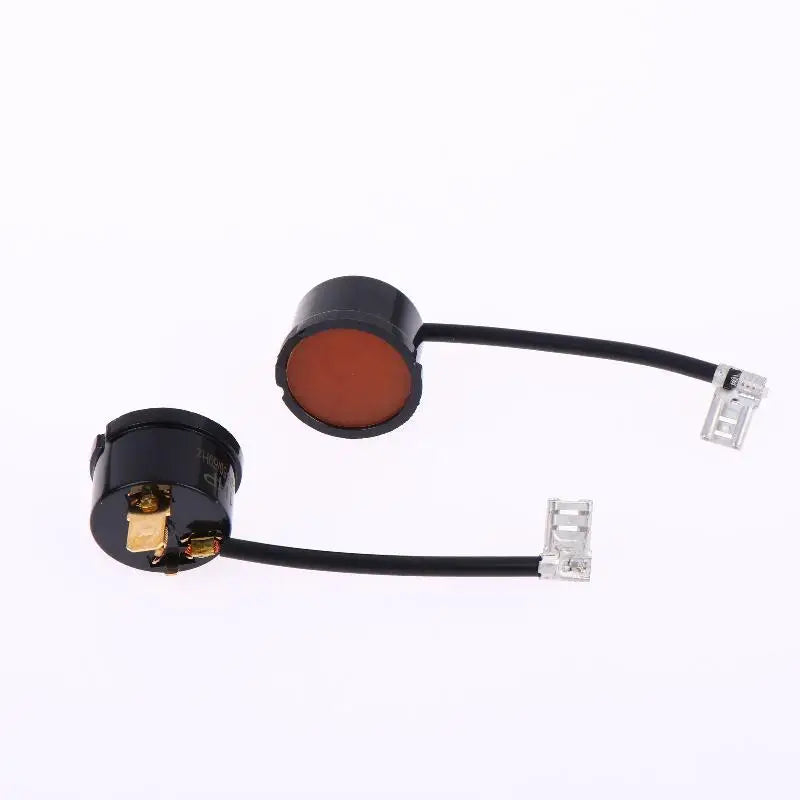

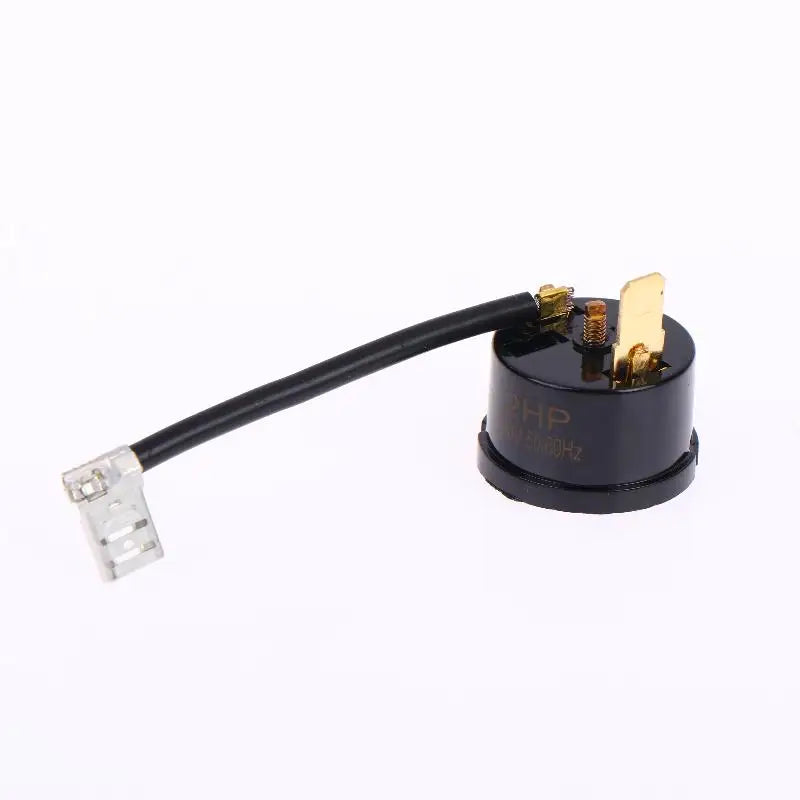

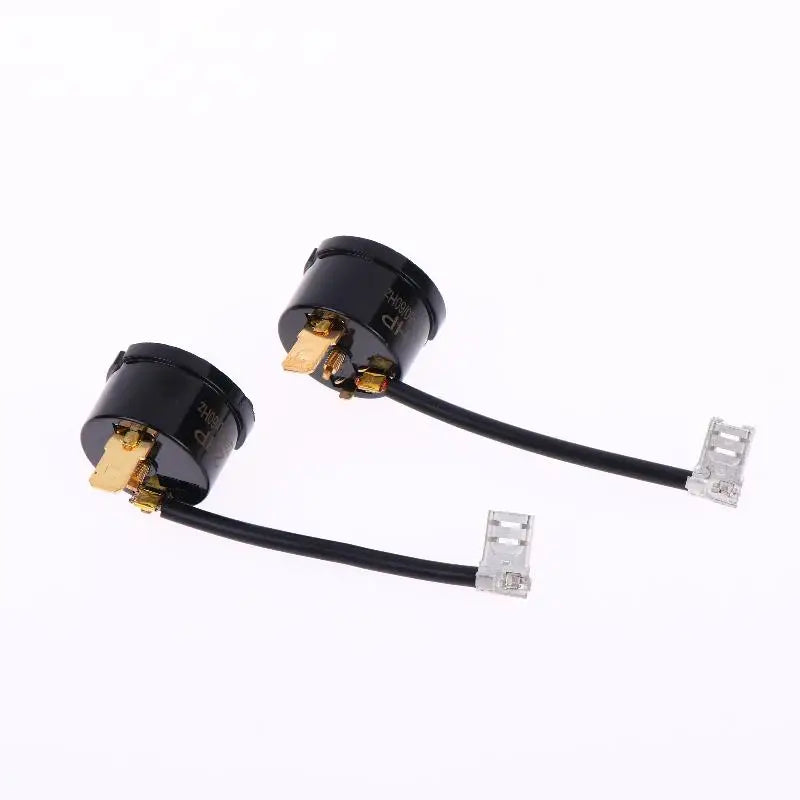

Refrigerator Compressor Thermal Overload Protector

Keep your refrigerator running smoothly with this durable Refrigerator Compressor Thermal Overload Protector. Designed as a direct replacement part for a wide range of household refrigerator compressors (1P to 2P), this sealed overload relay guards your compressor against overheating and electrical overload — helping extend the life of your appliance and prevent costly breakdowns.

Key Features

• Wide Compatibility: Fits a broad range of refrigerator models from 1P to 2P compressor ratings, making it a versatile replacement solution.
• Solid State Relay Technology: Utilizes solid state relay switching for reliable, high-speed response with minimal energy loss.
• High Temperature Resistance: Rated to withstand temperatures up to 105°C, ensuring dependable performance even under demanding conditions.
• Sealed Protective Housing: The sealed enclosure prevents dust, moisture, and contaminants from affecting internal components, maximizing longevity.
• Multiple Power Options: Available in multiple wattage specifications — 100W (1/2), 120W (1/3), 150W (1/4), 230W (1/5), 280W (1/6), and 320W — so you can select the right match for your compressor.
• SPDT Contact Arrangement: Single Pole Double Throw configuration for reliable switching performance.
• Durable Metal Construction: Built from quality metal components for long-lasting, dependable use.

Specifications

• Material: Metal
• Contact Arrangement: SPDT
• Load Current: 30A
• Voltage: 220V AC
• Max Temperature: 105°C
• Power Options: 100W / 120W / 150W / 230W / 280W / 320W
• Protect Feature: Sealed
• Quantity: 1 piece
• Country of Origin: Made in China

Package Includes

• 1 × Refrigerator Compressor Thermal Overload Protector

Important Notes

• Please allow 1–2 cm variance due to manual measurement. Verify your compressor's specifications before ordering.
• Colors may vary slightly from screen to screen due to monitor calibration differences.

Related Products You May Like

Looking to upgrade your home? Browse our other popular items:

• "1% Better Every Day" Motivational Canvas Wall Art Print
• "Best Seat In The House" Retro Quote Canvas Wall Art Print

External Resource

For guidance on electrical safety when handling appliance components, visit the U.S. Consumer Product Safety Commission (CPSC) for important consumer product safety information.

Frequently Asked Questions

Q: What does a refrigerator compressor thermal overload protector do?

A: A thermal overload protector monitors the compressor's operating temperature and electrical load. If the compressor draws too much current or overheats, the protector automatically interrupts the circuit to prevent damage — helping protect your refrigerator's compressor from burnout and extending appliance life.

Q: How do I know which wattage option to choose for my refrigerator compressor?

A: Check your refrigerator's compressor label or owner's manual for the rated wattage or horsepower (HP). Match that value to the available options: 100W (1/2 HP), 120W (1/3 HP), 150W (1/4 HP), 230W (1/5 HP), 280W (1/6 HP), or 320W. When in doubt, consult a qualified appliance technician.

Q: Is this overload protector compatible with my refrigerator brand?

A: This is a general-purpose replacement part designed for a wide range of refrigerator models using 1P to 2P compressors operating at 220V AC. Always verify your compressor's voltage, wattage, and connector type before purchasing to ensure a proper fit.

Q: Is installation of this part a DIY job?

A: Basic component replacement can be straightforward for those comfortable with appliance repair. However, working with electrical components carries inherent risks. If you are unsure, we recommend consulting or hiring a qualified appliance repair technician to ensure safe and correct installation.
