Radius Measuring Gauge | Precision Fillet Contour Tool

Radius Measuring Gauge — Fast, Accurate, Built for Pros & DIYers

Meet your new go-to precision tool: the Radius Measuring Gauge. Whether you're a machinist, carpenter, welder, or weekend DIY warrior, this compact contour gauge delivers quick, reliable radius and fillet measurements in seconds — no complex steps, no guesswork. Made in Mainland China.

Why You'll Love This Radius Gauge

• ⚡ One-Button Speed: Get accurate radius readings in under three seconds, keeping your workflow moving during mold inspections, woodworking projects, and quality control checks.
• 🔩 Durable Construction: Built with a reinforced, shock-resistant body that resists dust and moisture — this tool is engineered to perform cycle after cycle on demanding job sites and in professional workshops.
• 🧳 Lightweight & Portable: Compact enough to slip into your toolkit or apron pocket, it's perfect for field inspections, renovation tasks, and on-the-go measurements without added bulk.

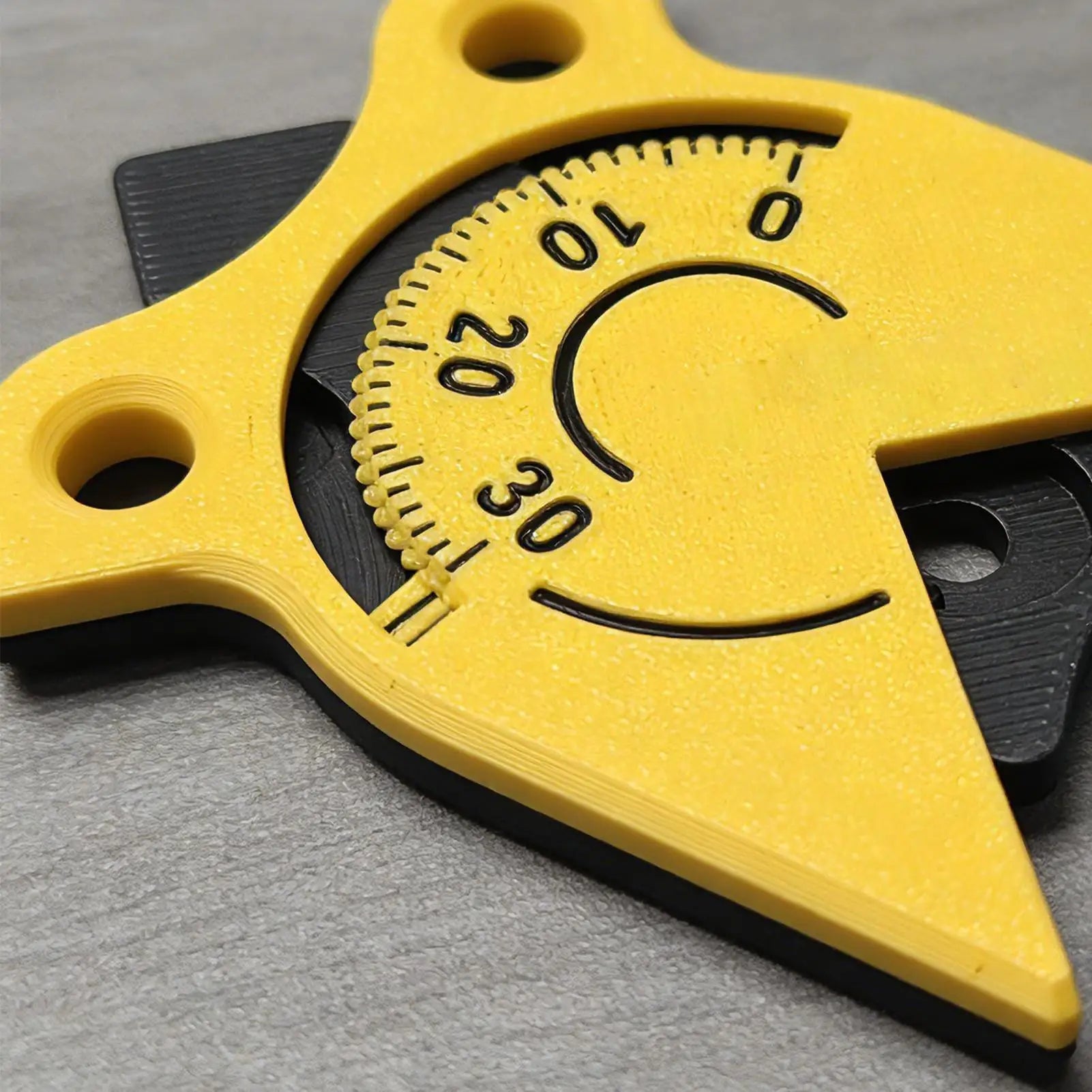

• 👁️ Clear High-Contrast Analog Readout: The easy-to-read analog system provides precise visual feedback at a glance — no digital screen to squint at or batteries to replace.
• 🔧 Multi-Industry Versatility: Works seamlessly on both metal and wood surfaces, making it ideal for woodworking, carpentry, automotive fabrication, metalworking, home renovation, and industrial QA applications.

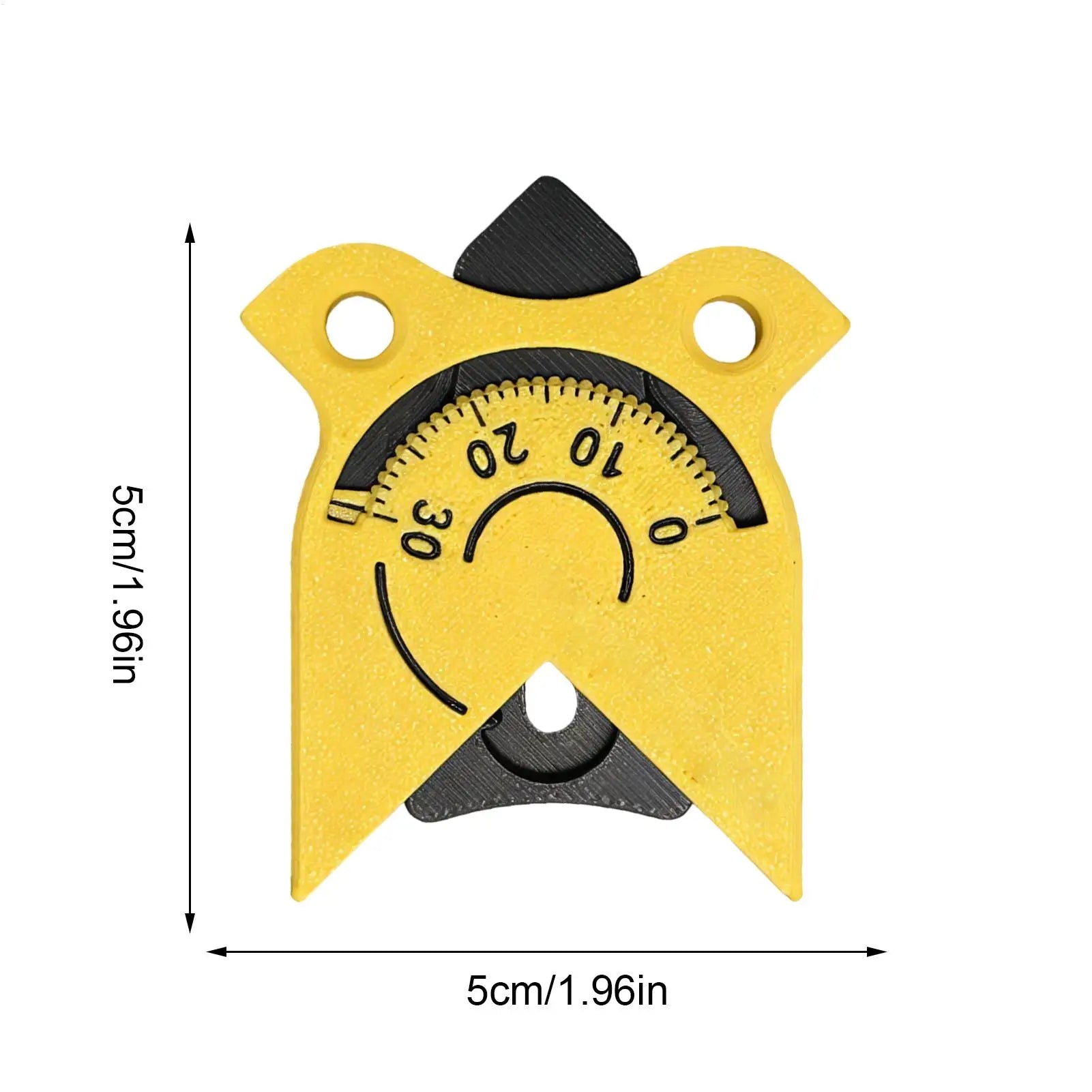

Product Specifications

Who Is This Tool For?

This versatile radius fillet gauge is the must-have precision tool for:

• Machinists performing quality control on curved parts and molds

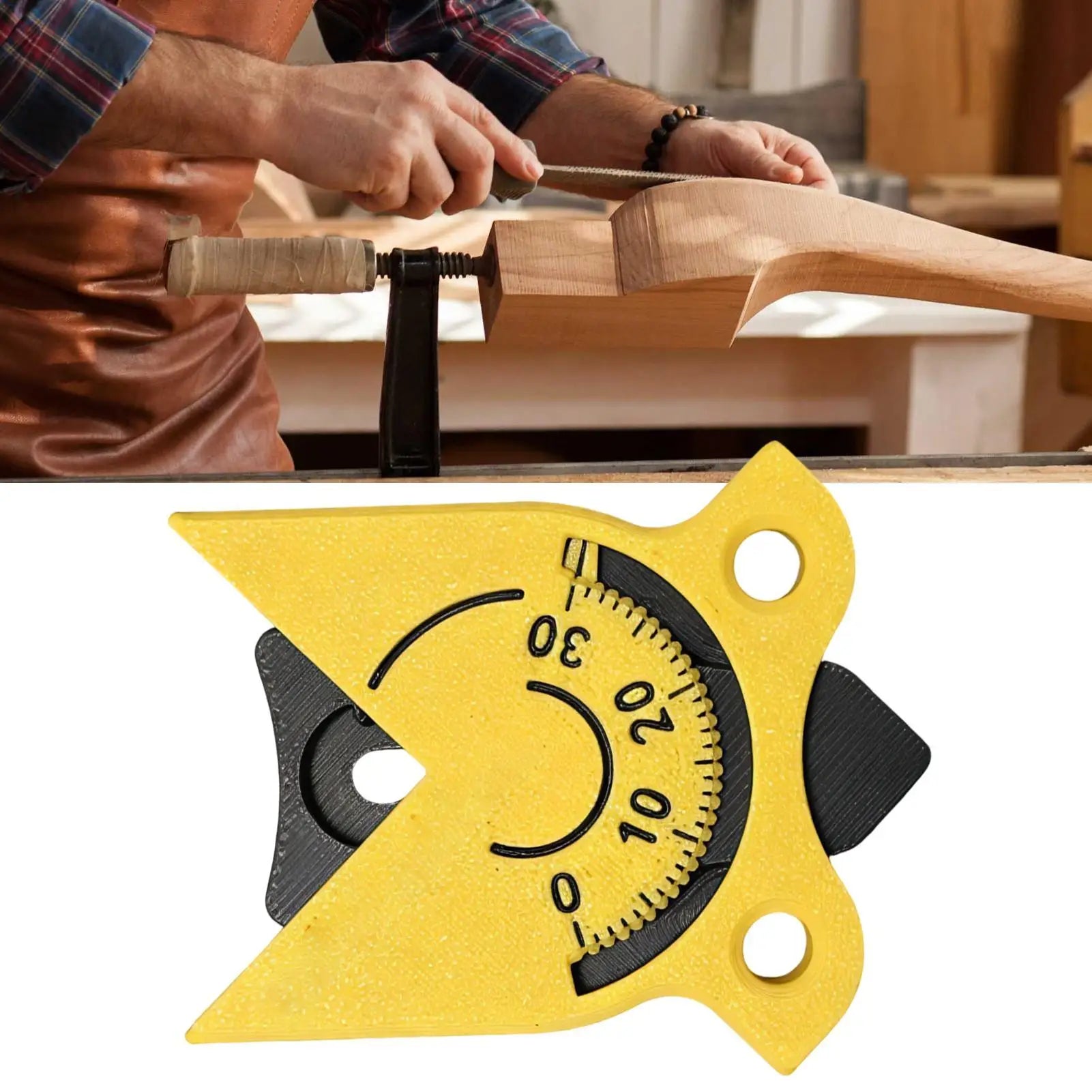

• Carpenters and woodworkers measuring edge profiles and joints
• Welders checking weld fillet radii for compliance
• Automotive technicians inspecting body curves and fabrication components
• DIY enthusiasts tackling home renovation and workshop projects

For more information on precision measurement standards and best practices in machining, visit the NIST Manufacturing Standards resource at nist.gov.

More Tools & Workshop Essentials

Complete your toolkit with other great items from our store:

• 0.38mm Fine Nib Calligraphy Fountain Pen | Gold Trim Gift
• "I'M Fine" Funny Sarcastic Waterproof Laptop Stickers – PVC

Note: Due to lighting effects and display angles, there may be slight color differences in the product images. Due to manual measurement processes, minor size tolerances may apply.

Frequently Asked Questions

Q: What surfaces can the Radius Measuring Gauge be used on?

A: The radius measuring gauge is designed to work on both metal and wood surfaces, making it suitable for woodworking, carpentry, metalworking, automotive fabrication, and general DIY projects. Its versatile design handles a wide range of curved profiles and fillet radii.

Q: Is this radius gauge suitable for professional machinists and welders?

A: Yes! The radius fillet gauge is built for professional use, featuring a shock-resistant, dust- and moisture-resistant construction that can handle the demands of industrial quality assurance, machining, and welding environments, as well as everyday workshop use.

Q: Does the radius measuring gauge require batteries or a digital display?

A: No batteries required. This tool uses a high-contrast analog readout system that provides clear, instant visual feedback without any electronic components — meaning no charging, no screen glare, and no power source needed.

Q: What is included in the package?

A: Each order includes one (1) Radius Measuring Gauge / Contour Template Tool. It arrives ready to use straight out of the box — no assembly required.
