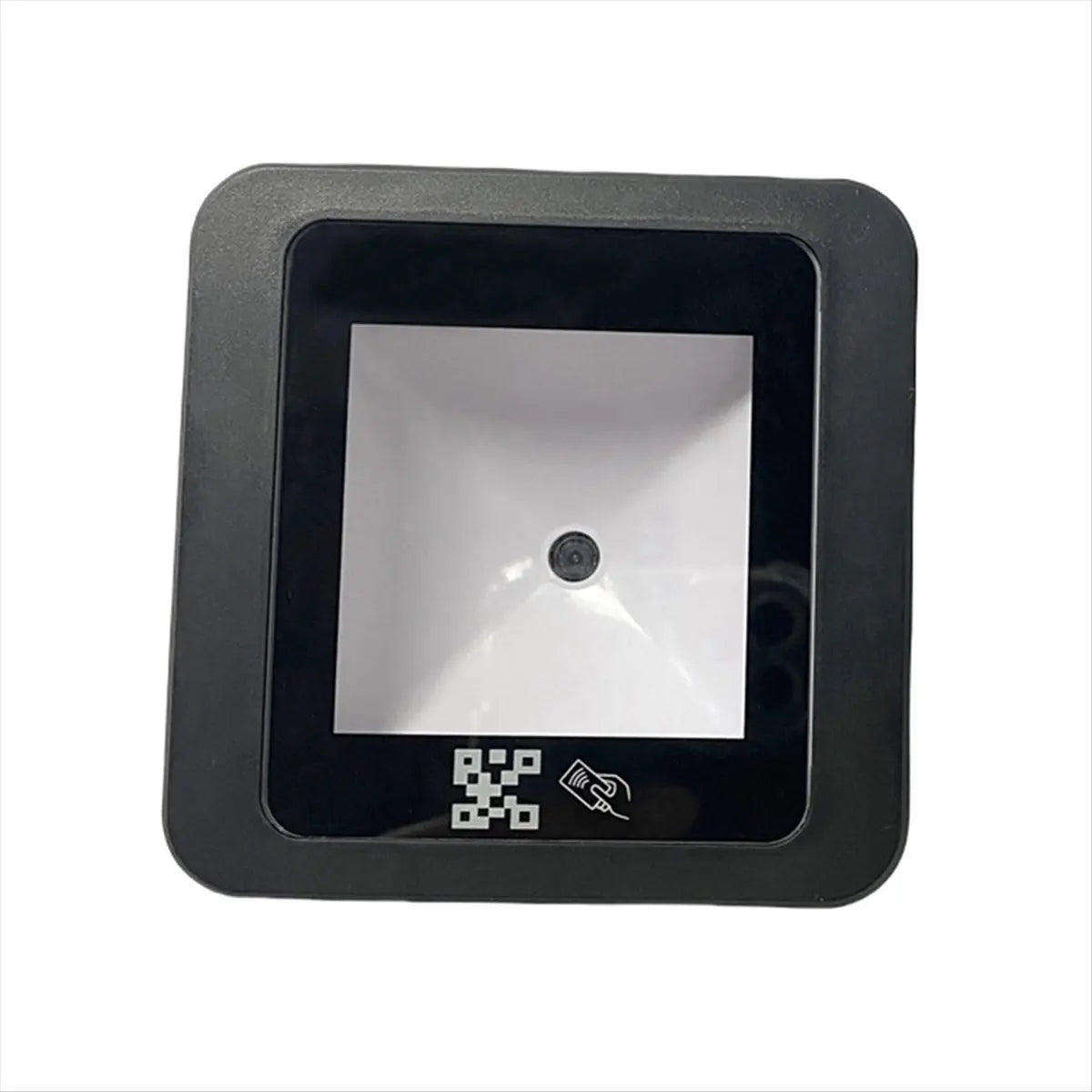

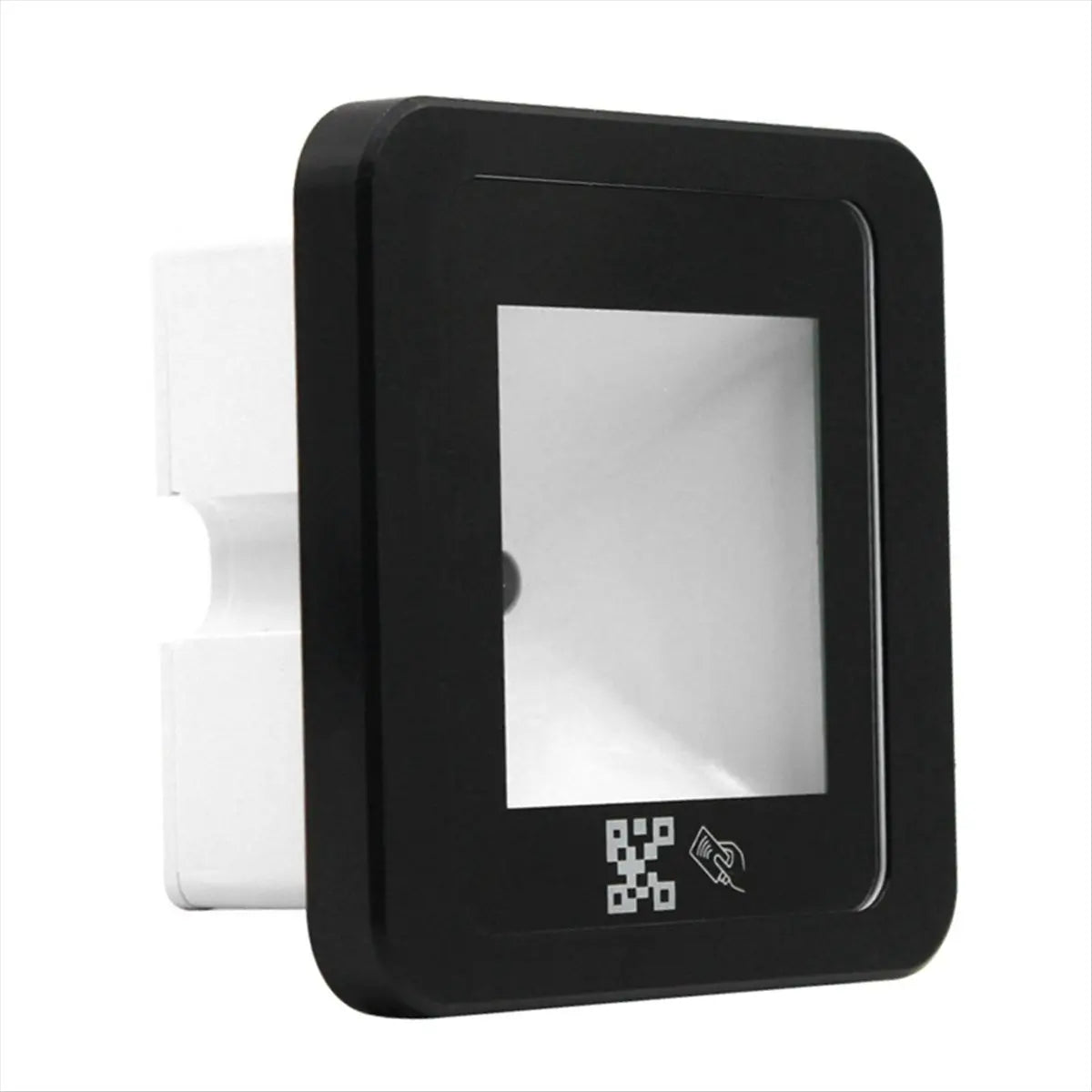

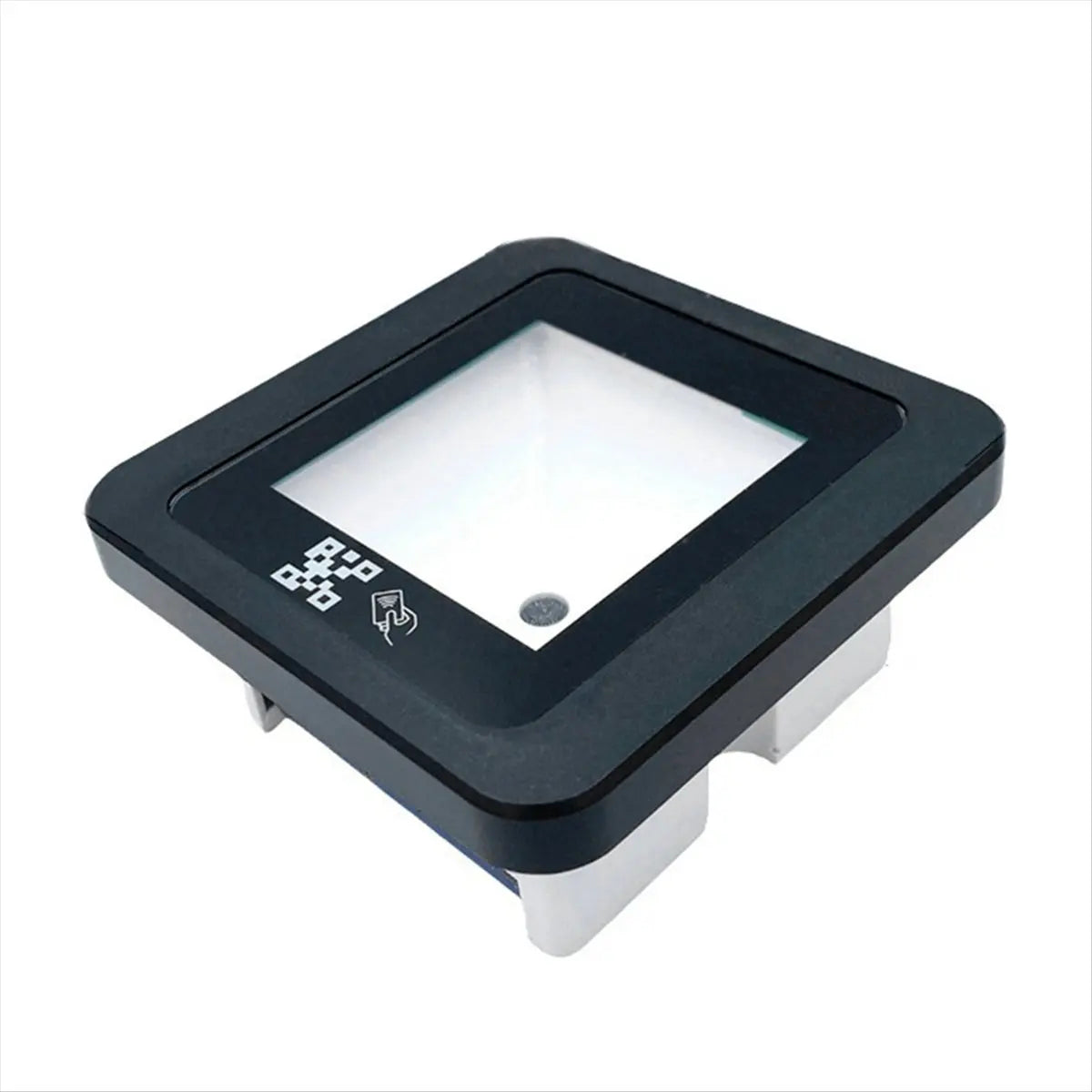

R35D 125KHz RFID & 2D QR Code Access Control Reader
Upgrade your access control system with the R35D multi-protocol card and barcode reader. Combining 125KHz RFID (EM card) reading with 2D QR code and barcode scanning, this versatile reader delivers fast, reliable identification for a wide range of security and self-service applications. With support for Wiegand 26/34, RS232, USB, RS485, and TTL interfaces, it integrates seamlessly with virtually any access controller on the market.
Made in Mainland China.
Key Features
- Dual-Mode Reading: Supports both 125KHz RFID (EM) cards and 2D QR codes / barcodes in one compact unit.

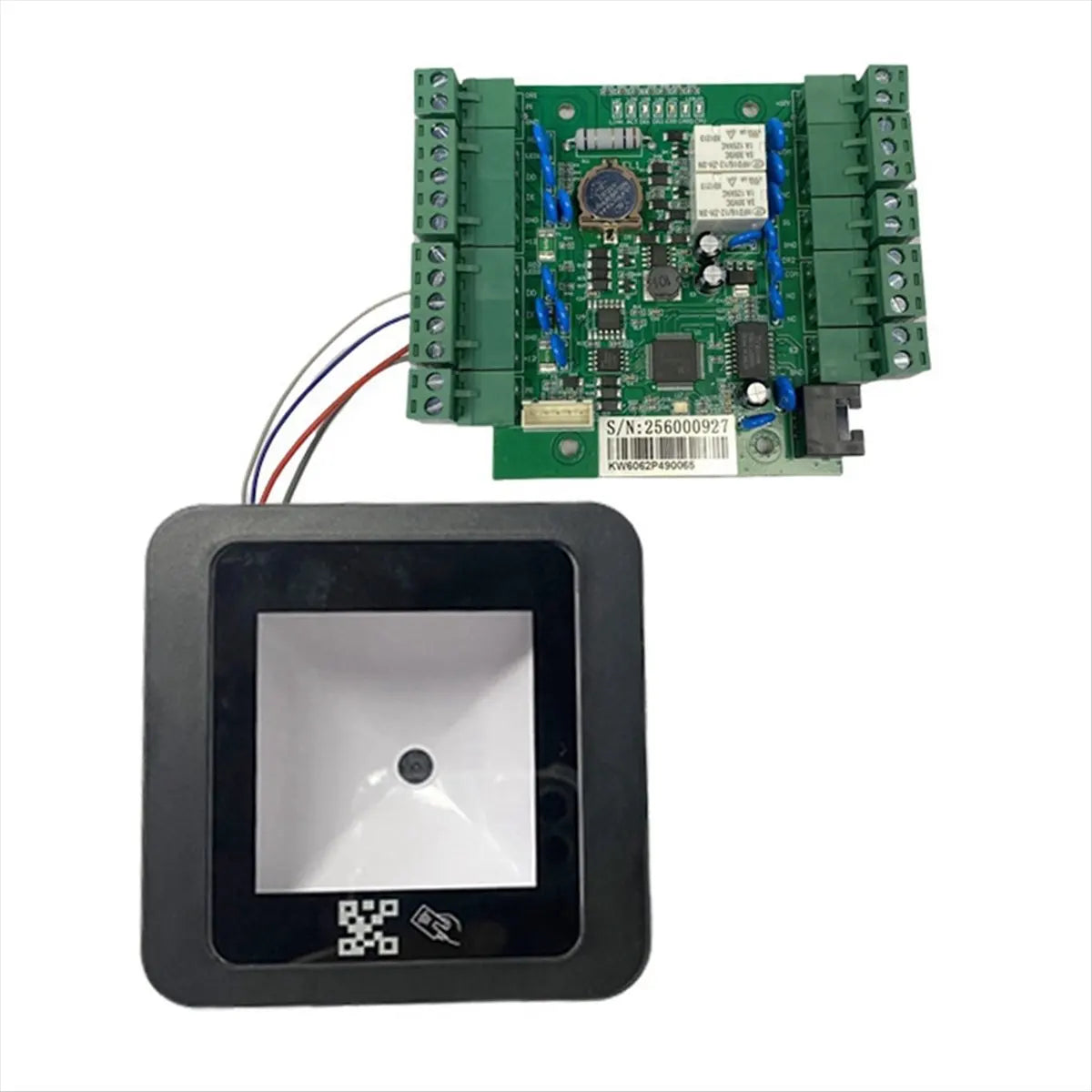

- Multi-Interface Compatible: Wiegand 26/34, RS232, USB, RS485, and TTL — works with nearly any existing access controller.
- Fast Recognition: Reading speed under 200ms with high recognition rate and auto-induction trigger.
- Wide Voltage Input: Operates on 4–12V, making it adaptable to various power setups.

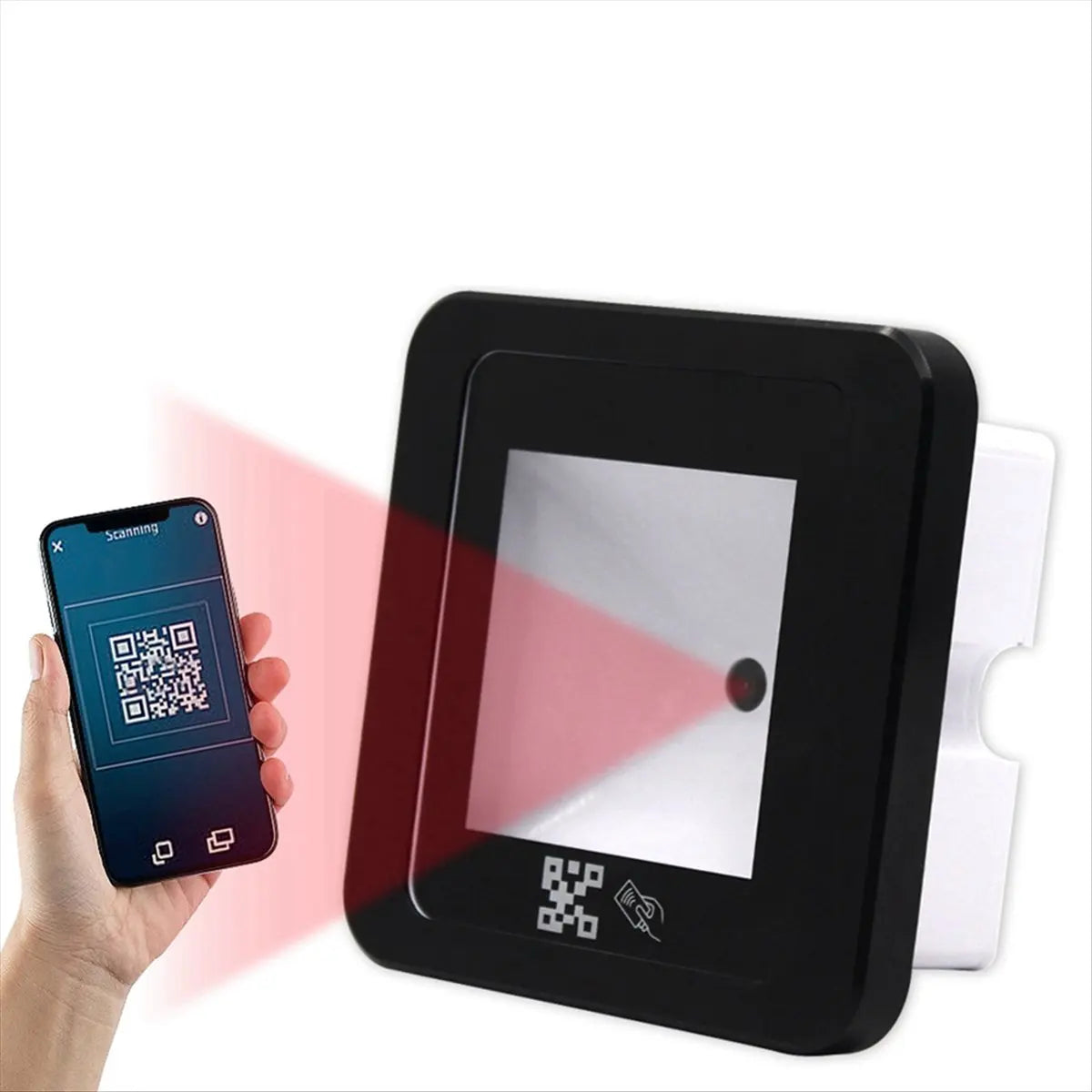

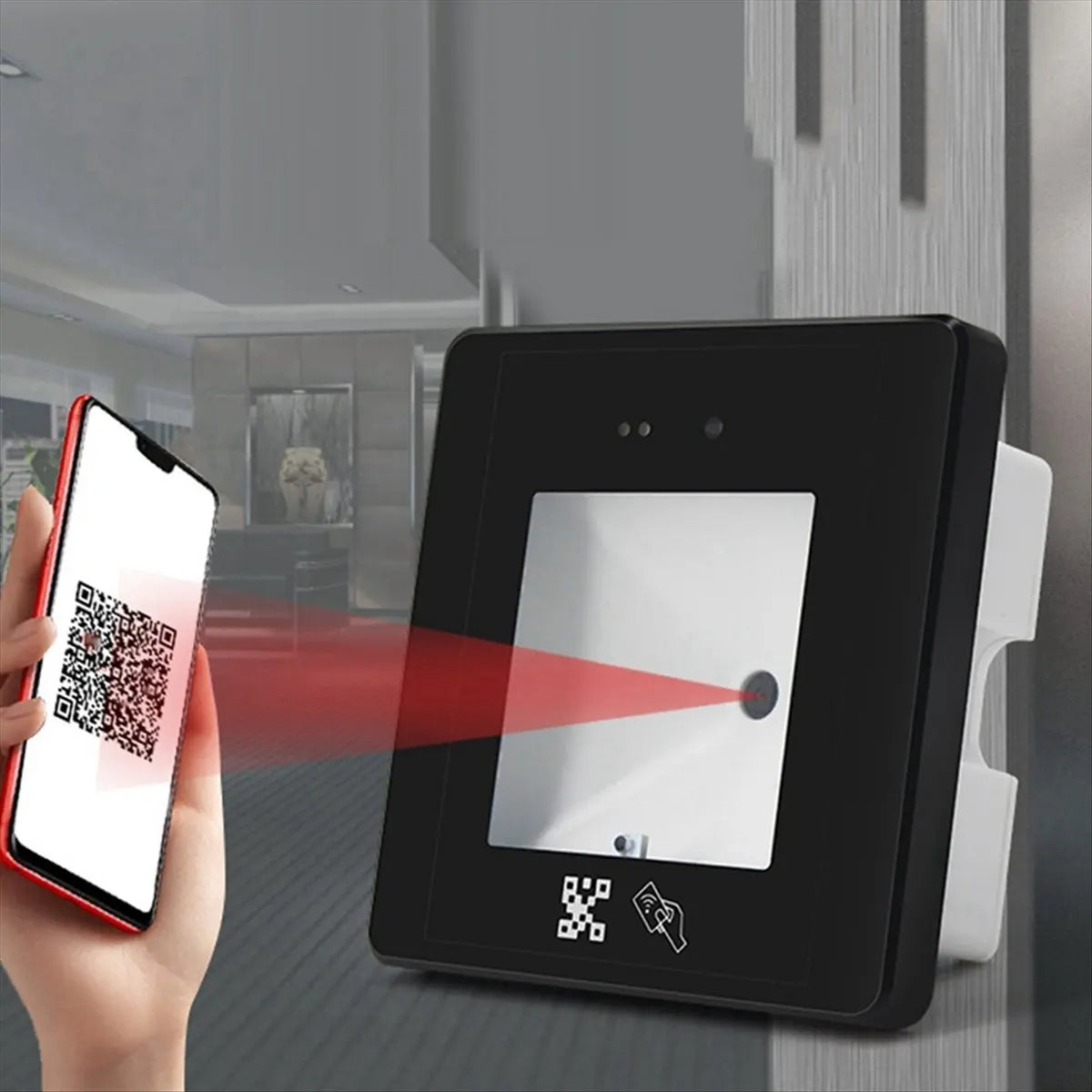

- Image Decoding: Camera-centric image decoding with 45° slant tolerance for easy scanning angles.
- Audible Beeper Feedback: Built-in beeper confirms successful reads instantly.
- Broad OS Support: Compatible with Windows XP, 7, 8, and 10, as well as Linux systems.
- Durable PC Housing: Sturdy polycarbonate construction built for continuous use in commercial environments.
Specifications
| Model | R35D (QR 2D Barcode + EM 125KHz) |
| Interface | Wiegand 26/34, RS232, USB, RS485, TTL |
| Decode Mode | Image Decoding |
| Reading Direction | Camera-centric, 45° slant |
| Voltage Input | 4–12V (wide voltage) |
| Reading Range | 3–6 cm |
| Reading Speed | < 200ms |
| OS Compatibility | Windows XP/7/8/10, Linux |
| Housing Material | Polycarbonate (PC) |
| Country of Origin | Mainland China |
Applications
This reader is ideal for a wide variety of environments and use cases:
- Community & residential gate access management
- Office and administration service hall entry
- Smart home access control upgrades
- Visitor management and intelligent kiosks
- Retail POS and self-service equipment
- Medical facility check-in systems
- Ticket verification and lottery stations
- Banking and financial service terminals
- Mobile coupon and QR code redemption
Package Contents
- 1 × R35D Access Control Card Reader
Related Products You May Like
For more information on access control standards and best practices, see the CDC guidance on workplace safety controls.
Reset Instructions
To reset the device, use a sharp object to press and hold the RESET button located on the back of the reader until the unit automatically restarts.
Note: Product appearance and color may vary slightly between batches. Measurement tolerance is ±1–3cm. Images shown are representative of the product.
Frequently Asked Questions
Q: What types of cards and codes does the R35D RFID QR Code Reader support?
A: The R35D supports 125KHz EM RFID cards as well as 2D QR codes and standard barcodes. This dual-mode capability makes it versatile for both traditional access card systems and modern QR-based visitor or ticketing workflows.
Q: Which interfaces does the R35D access control reader support?
A: The R35D is compatible with Wiegand 26/34, RS232, USB, RS485, and TTL interfaces, allowing it to integrate with virtually any existing access control system or self-service terminal without requiring special adapters.
Q: What is the reading range and speed of the R35D?
A: The reader has a reading range of 3–6 cm and a reading speed of under 200 milliseconds, ensuring quick, reliable identification with minimal wait time for users.
Q: Is the R35D compatible with Windows and Linux operating systems?
A: Yes. The R35D is compatible with Windows XP, 7, 8, and 10, as well as Linux systems, making it suitable for a broad range of computing environments.
Q: What voltage does the R35D RFID access reader require?
A: The R35D supports a wide voltage input of 4–12V, giving it flexibility to work with a variety of power supplies commonly found in commercial and residential access control installations.
Descripción en Español
Lector de Control de Acceso R35D – RFID 125KHz y Código QR 2D
Actualice su sistema de control de acceso con el lector multifunción R35D, que combina la lectura de tarjetas RFID 125KHz (EM) con el escaneo de códigos QR 2D y códigos de barras. Con soporte para interfaces Wiegand 26/34, RS232, USB, RS485 y TTL, se integra fácilmente con prácticamente cualquier controlador de acceso existente.
Fabricado en China Continental.
Características Principales
- Lectura Dual: Compatible con tarjetas RFID 125KHz (EM) y códigos QR 2D / códigos de barras en un solo dispositivo compacto.
- Múltiples Interfaces: Wiegand 26/34, RS232, USB, RS485 y TTL — funciona con casi cualquier controlador de acceso.
- Lectura Rápida: Velocidad de lectura inferior a 200ms con alta tasa de reconocimiento y activación automática.
- Entrada de Voltaje Amplio: Funciona con 4–12V, adaptable a diversas configuraciones de alimentación.
- Decodificación por Imagen: Decodificación de imagen centrada en cámara con tolerancia de inclinación de 45°.
- Zumbador Audible: Confirmación sonora instantánea de lecturas exitosas.
- Amplia Compatibilidad de SO: Compatible con Windows XP, 7, 8, 10 y Linux.
- Carcasa de PC Resistente: Construcción robusta de policarbonato para uso continuo en entornos comerciales.
Especificaciones
| Modelo | R35D (QR 2D + EM 125KHz) |
| Interfaces | Wiegand 26/34, RS232, USB, RS485, TTL |
| Modo de Decodificación | Decodificación por imagen |
| Dirección de Lectura | Centrado en cámara, inclinación de 45° |
| Voltaje de Entrada | 4–12V (amplio voltaje) |
| Rango de Lectura | 3–6 cm |
| Velocidad de Lectura | < 200ms |
| Compatibilidad de SO | Windows XP/7/8/10, Linux |
| Material de Carcasa | Policarbonato (PC) |
| País de Origen | China Continental |
Aplicaciones
- Control de acceso en comunidades y residencias
- Acceso a oficinas y halls de servicio administrativo
- Actualización de sistemas de acceso para hogar inteligente
- Gestión de visitantes y quioscos inteligentes
- Equipos de autopago y POS de retail
- Sistemas de registro en instalaciones médicas
- Verificación de boletos y estaciones de lotería
- Terminales bancarias y de servicios financieros
- Redención de cupones móviles y códigos QR
Contenido del Paquete
- 1 × Lector de Tarjetas de Control de Acceso R35D
Instrucciones de Reinicio
Para reiniciar el dispositivo, use un objeto puntiagudo para presionar y mantener el botón RESET ubicado en la parte trasera del lector hasta que la unidad se reinicie automáticamente.
Nota: La apariencia y el color del producto pueden variar ligeramente entre lotes. La tolerancia de medición es ±1–3 cm.
Preguntas Frecuentes
P: ¿Qué tipos de tarjetas y códigos admite el lector R35D?
R: El R35D admite tarjetas RFID EM de 125KHz así como códigos QR 2D y códigos de barras estándar, lo que lo hace versátil para sistemas de acceso tradicionales y flujos de trabajo modernos basados en QR.
P: ¿Qué interfaces soporta el lector de control de acceso R35D?
R: El R35D es compatible con Wiegand 26/34, RS232, USB, RS485 y TTL, permitiendo su integración con prácticamente cualquier sistema de control de acceso existente.
P: ¿Cuál es el rango y la velocidad de lectura del R35D?
R: El lector tiene un rango de lectura de 3–6 cm y una velocidad de lectura inferior a 200 milisegundos, garantizando identificación rápida y confiable.
P: ¿Es el R35D compatible con Windows y Linux?
R: Sí. El R35D es compatible con Windows XP, 7, 8 y 10, así como con sistemas Linux.
P: ¿Qué voltaje requiere el lector RFID R35D?
R: El R35D soporta una entrada de voltaje amplio de 4–12V, lo que le da flexibilidad para trabajar con diversas fuentes de alimentación en instalaciones comerciales y residenciales.
