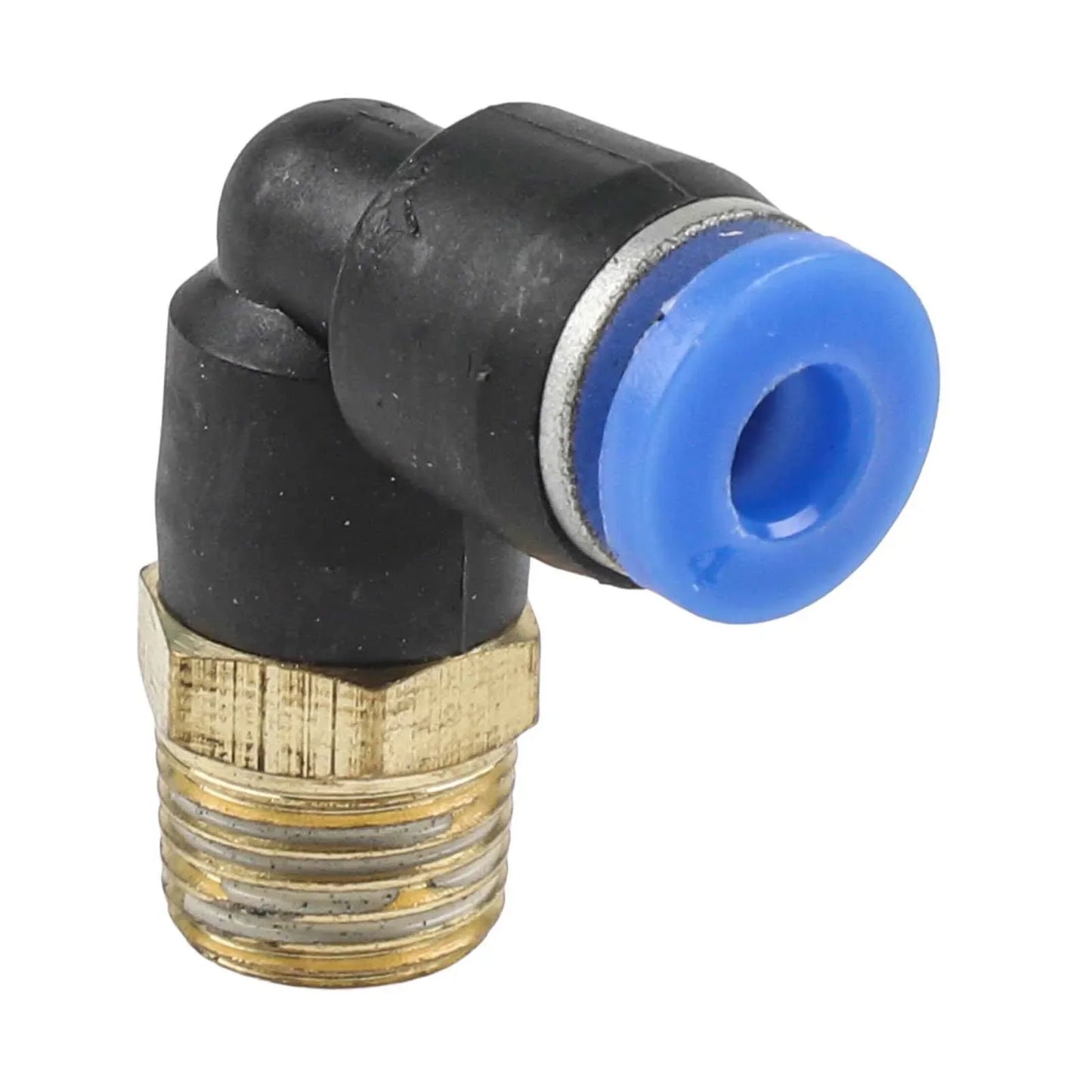

Pneumatic Elbow Quick Connector PL4-16mm Air Hose Fitting
Pneumatic Elbow Quick Connector PL4-16mm Air Hose Fitting
Couldn't load pickup availability

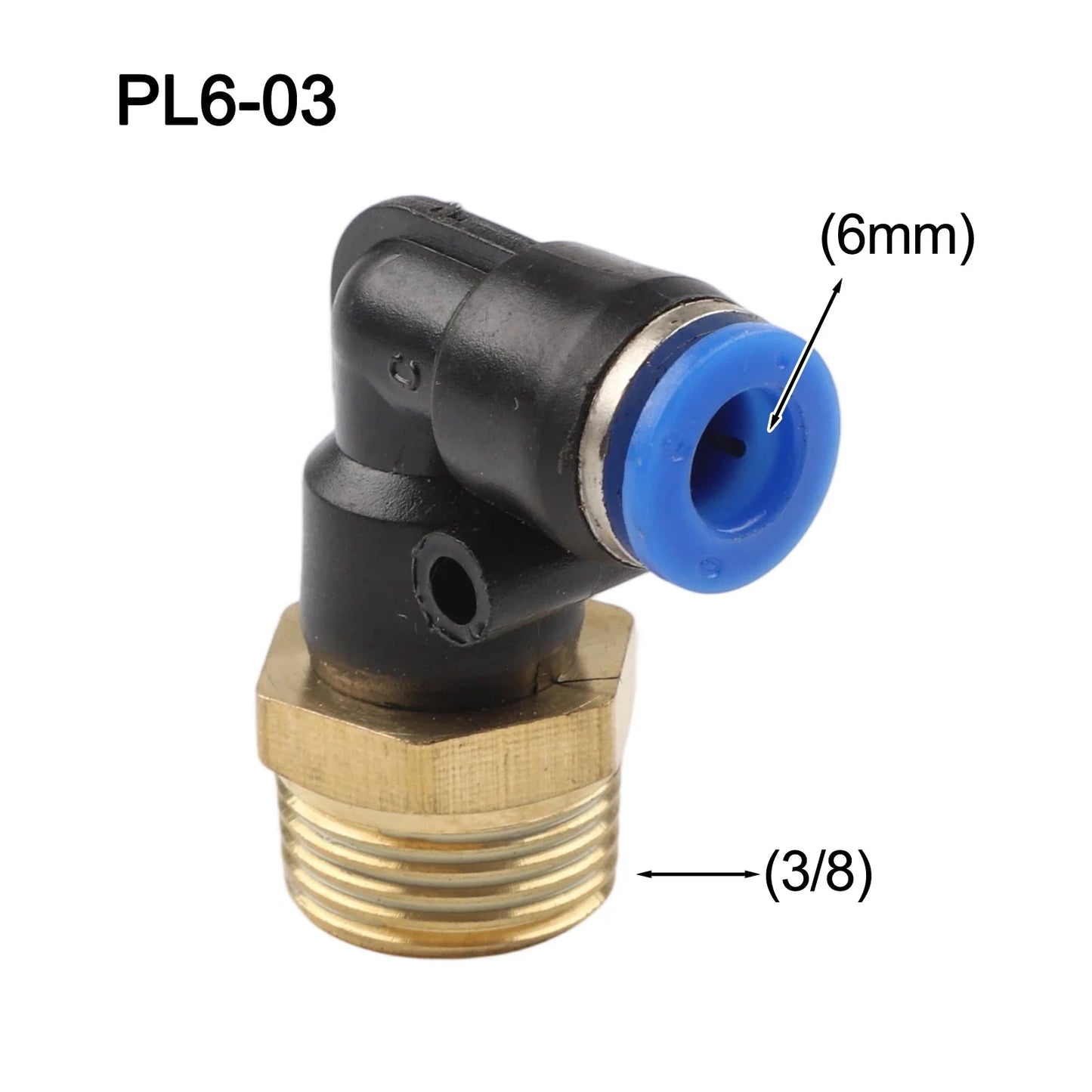

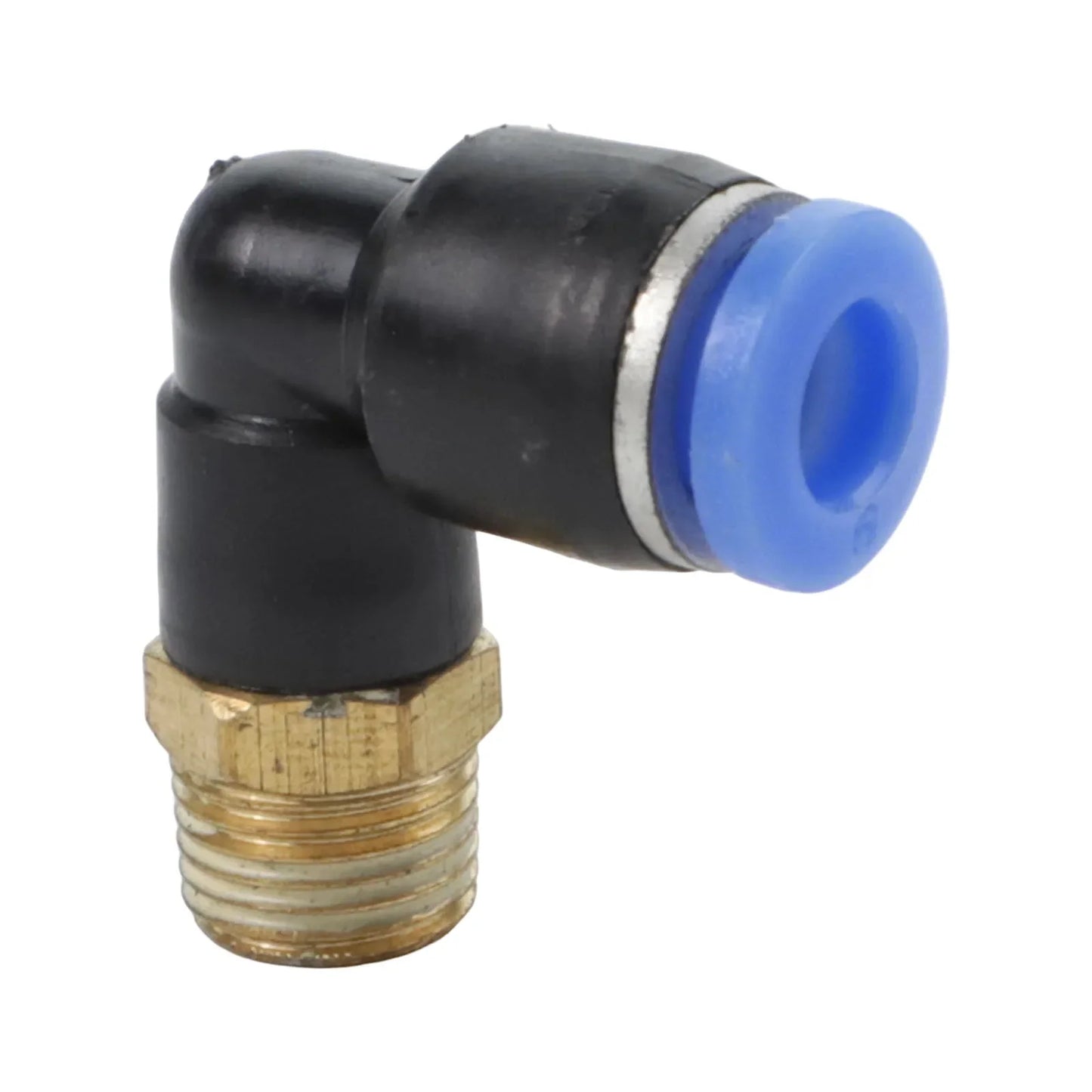

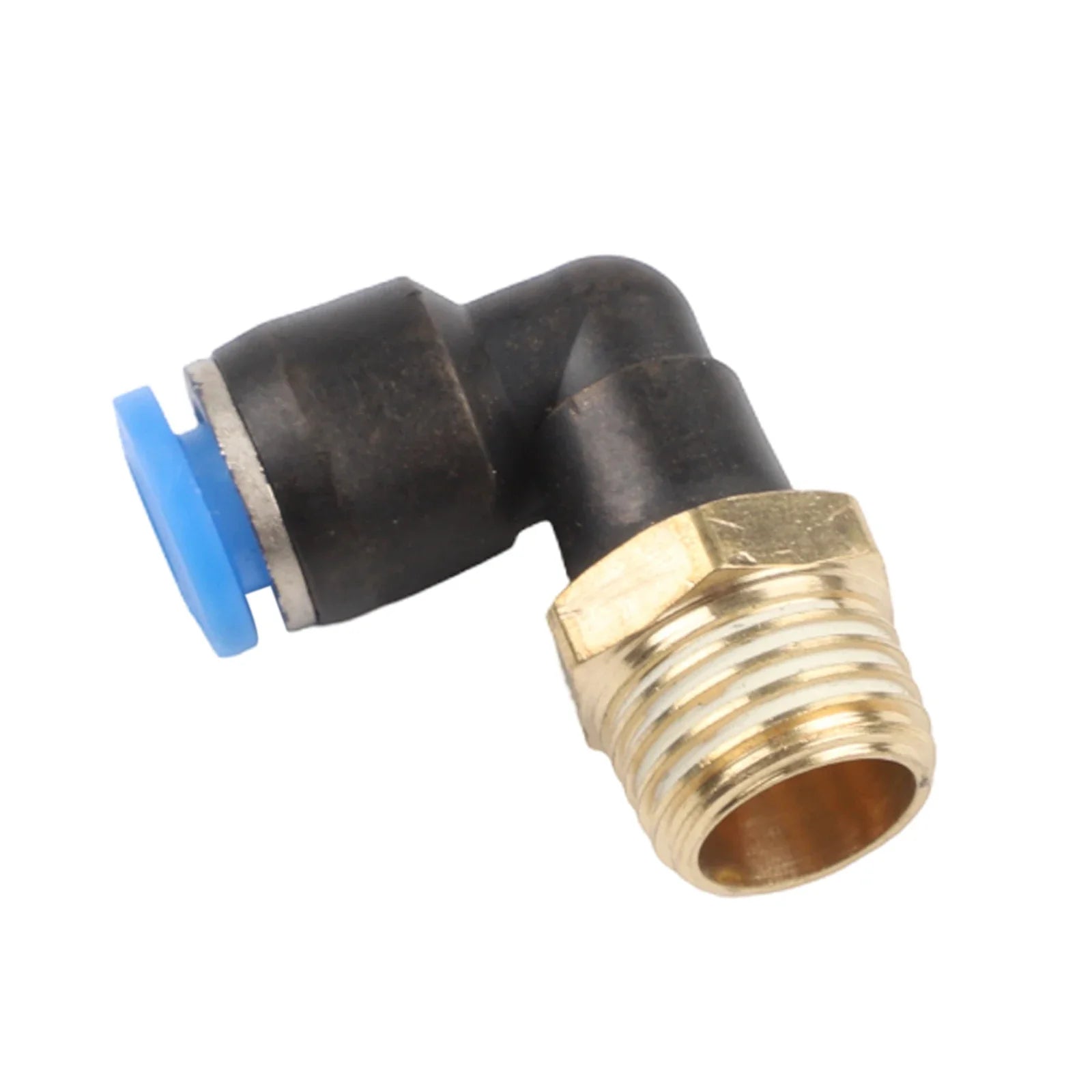

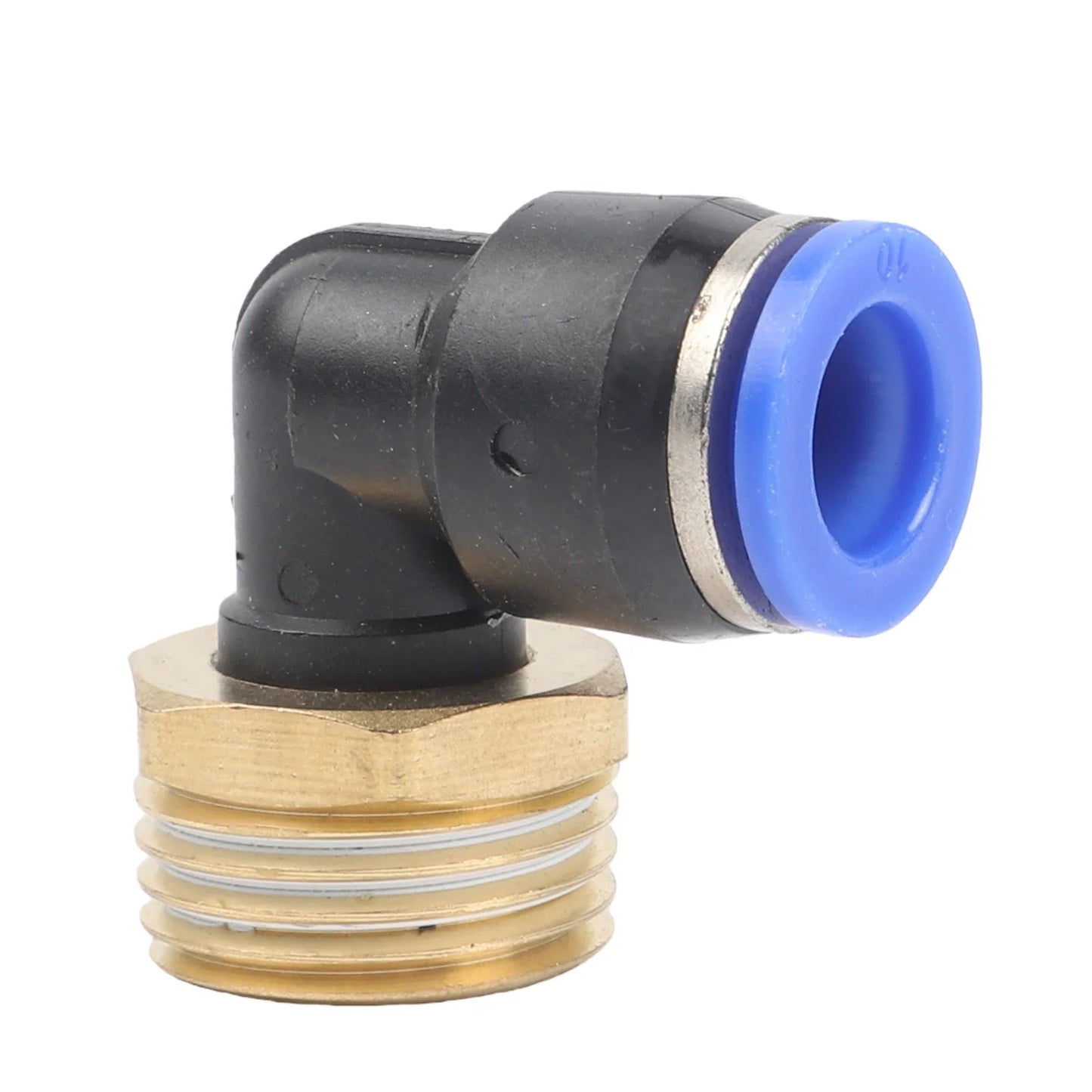

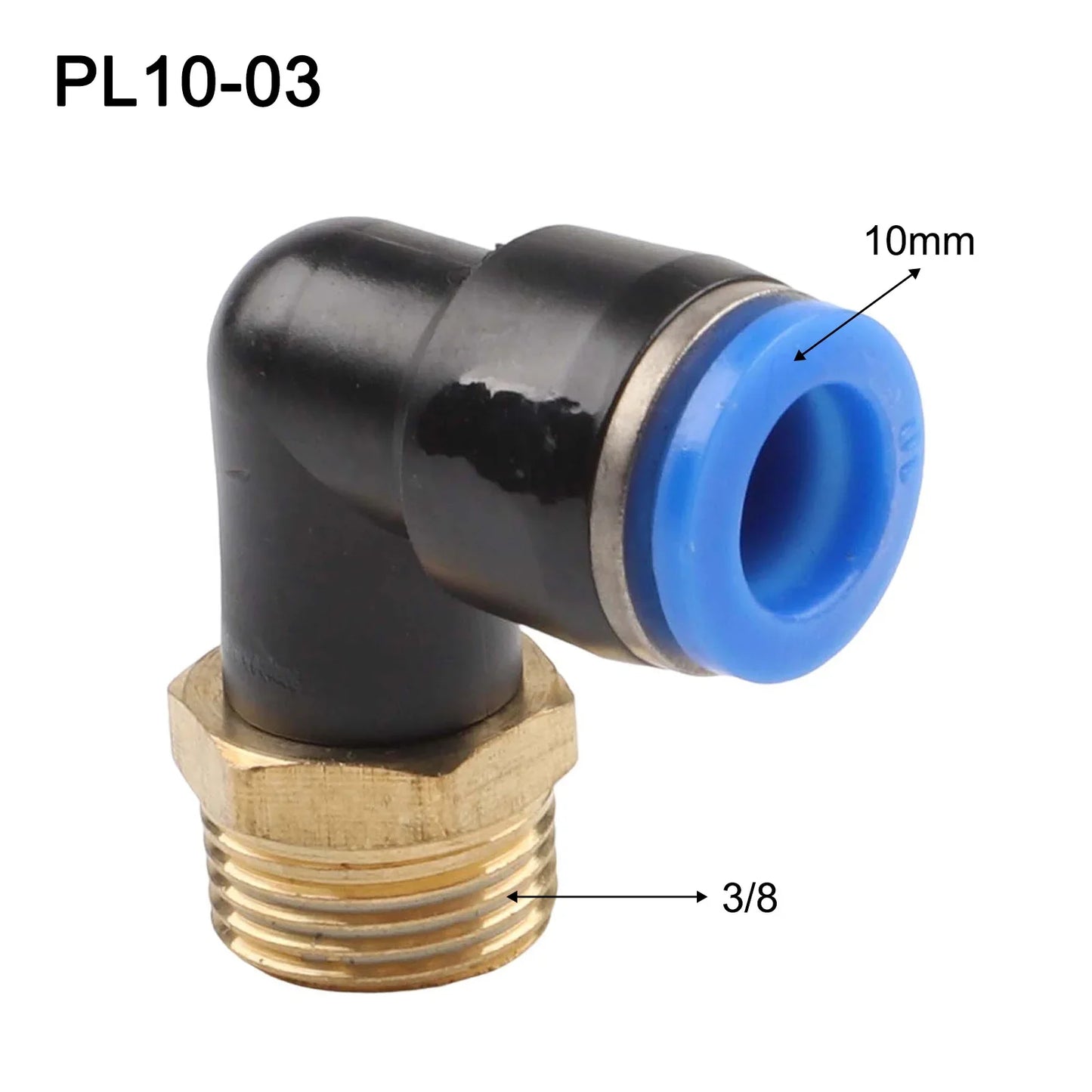

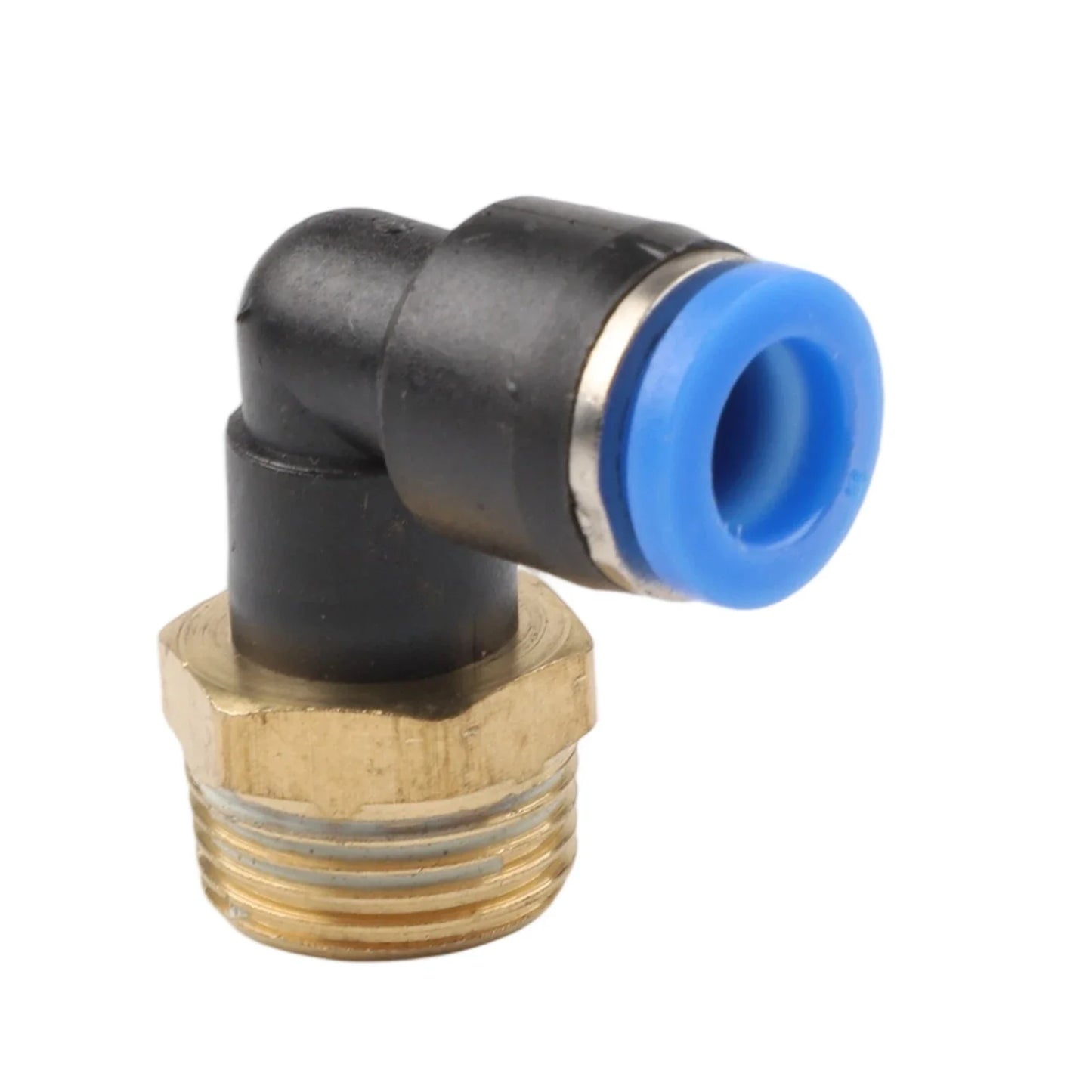

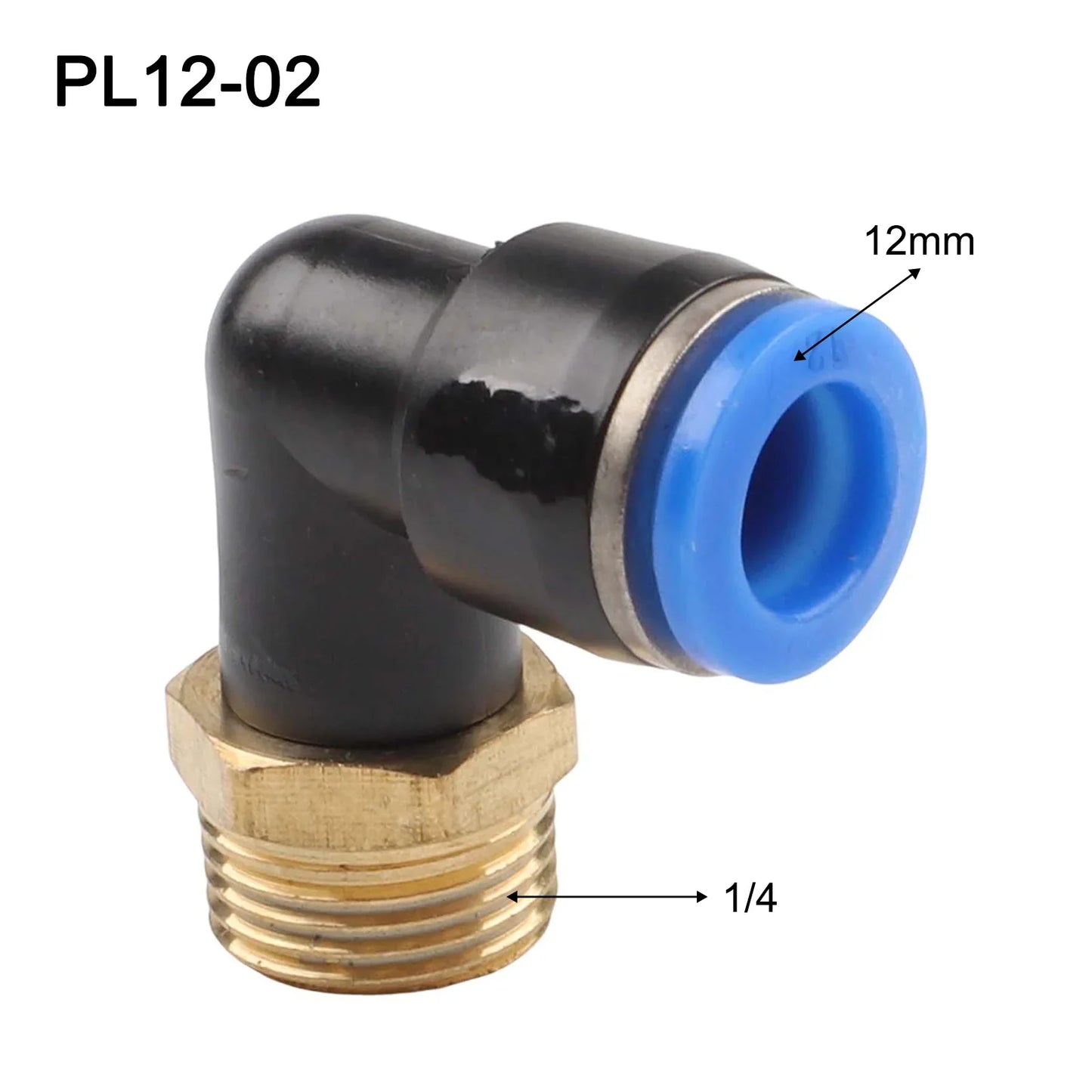

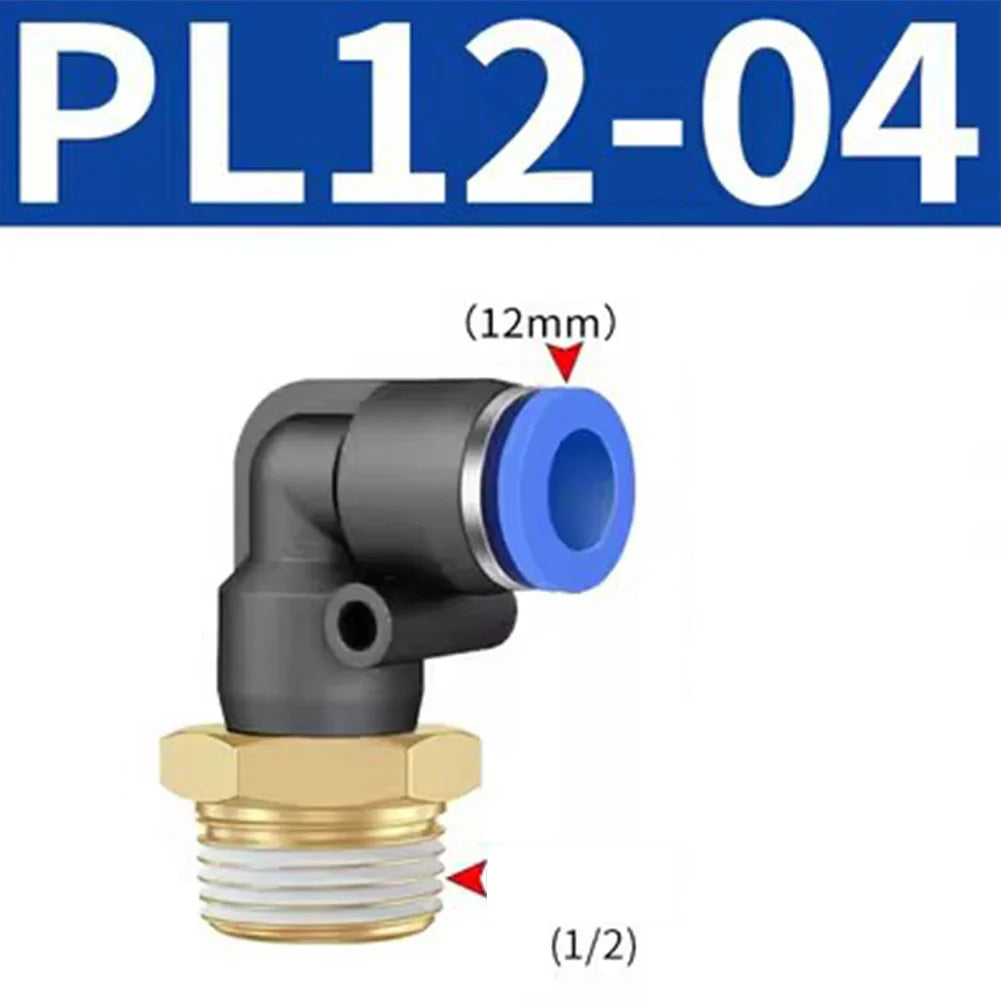

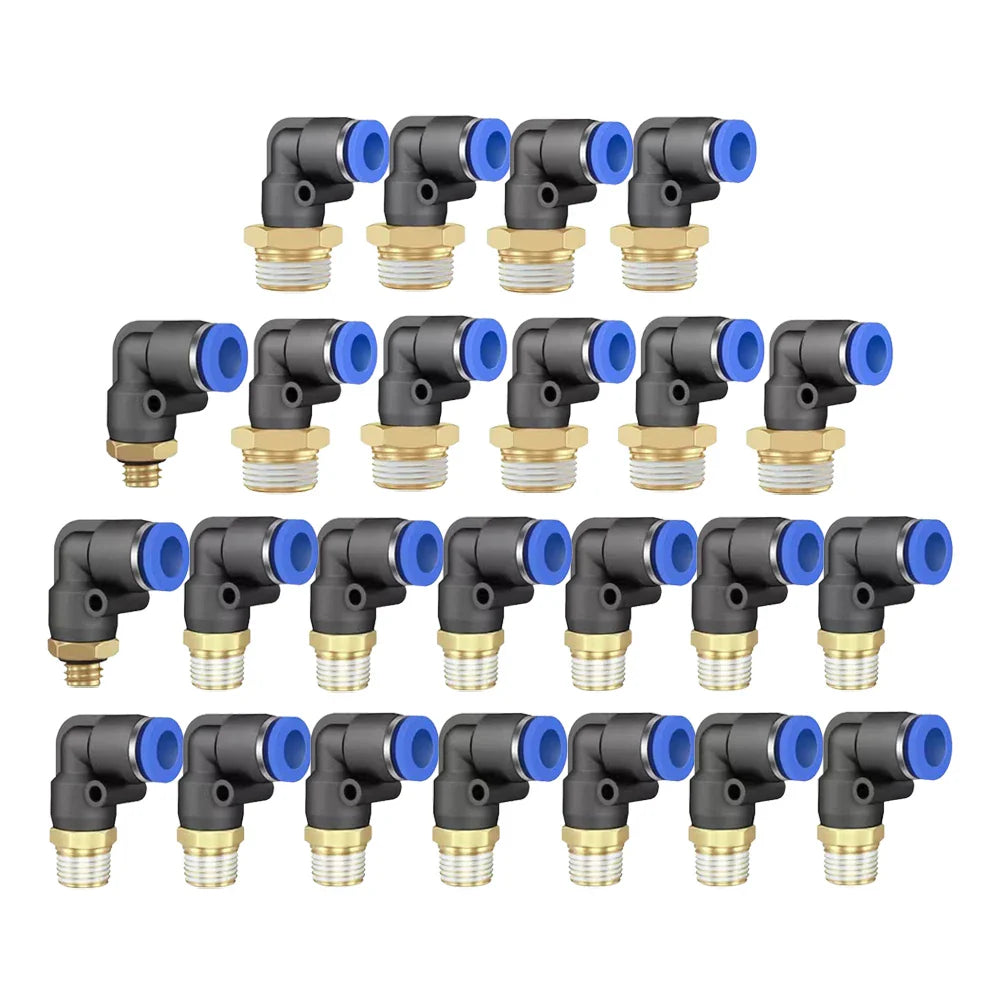

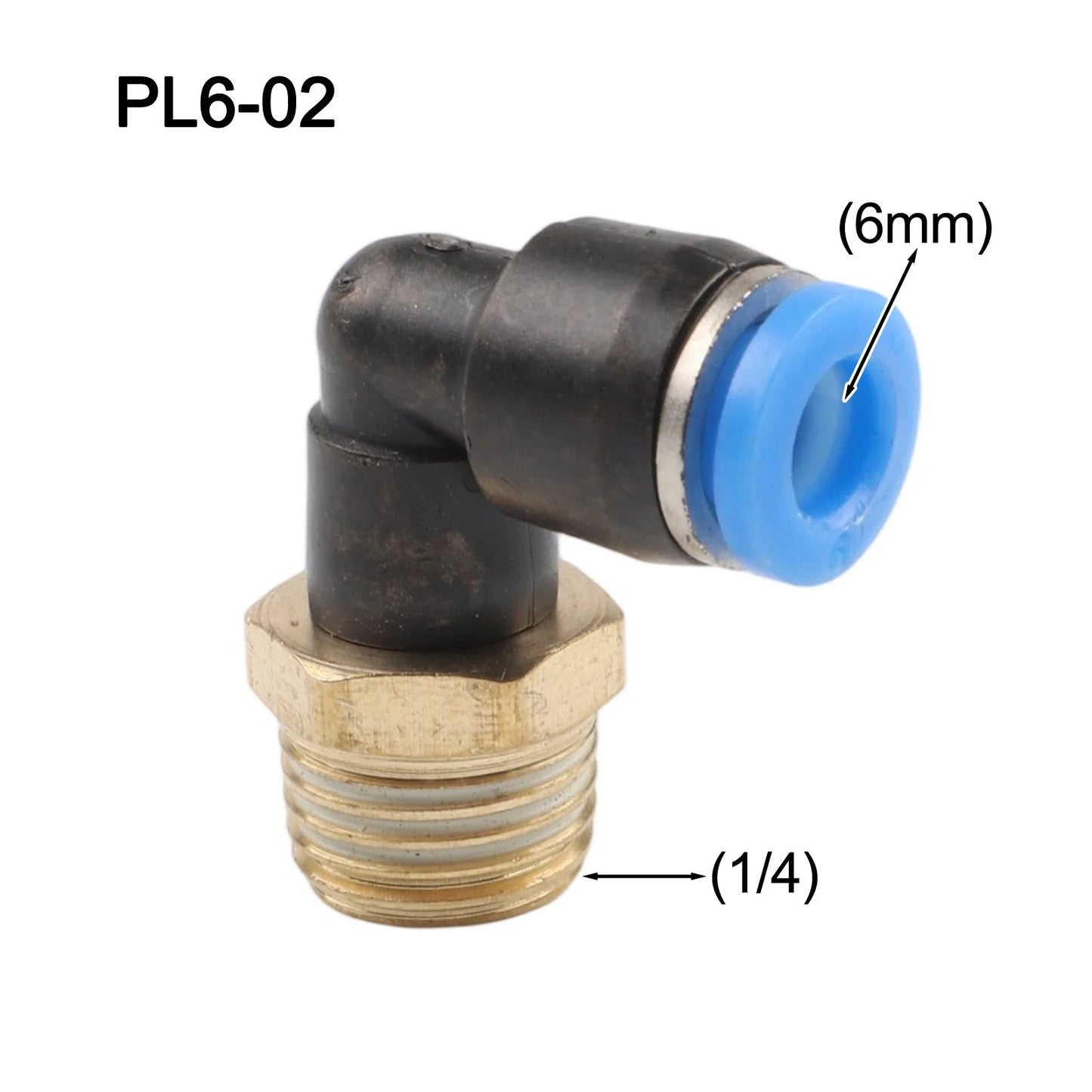

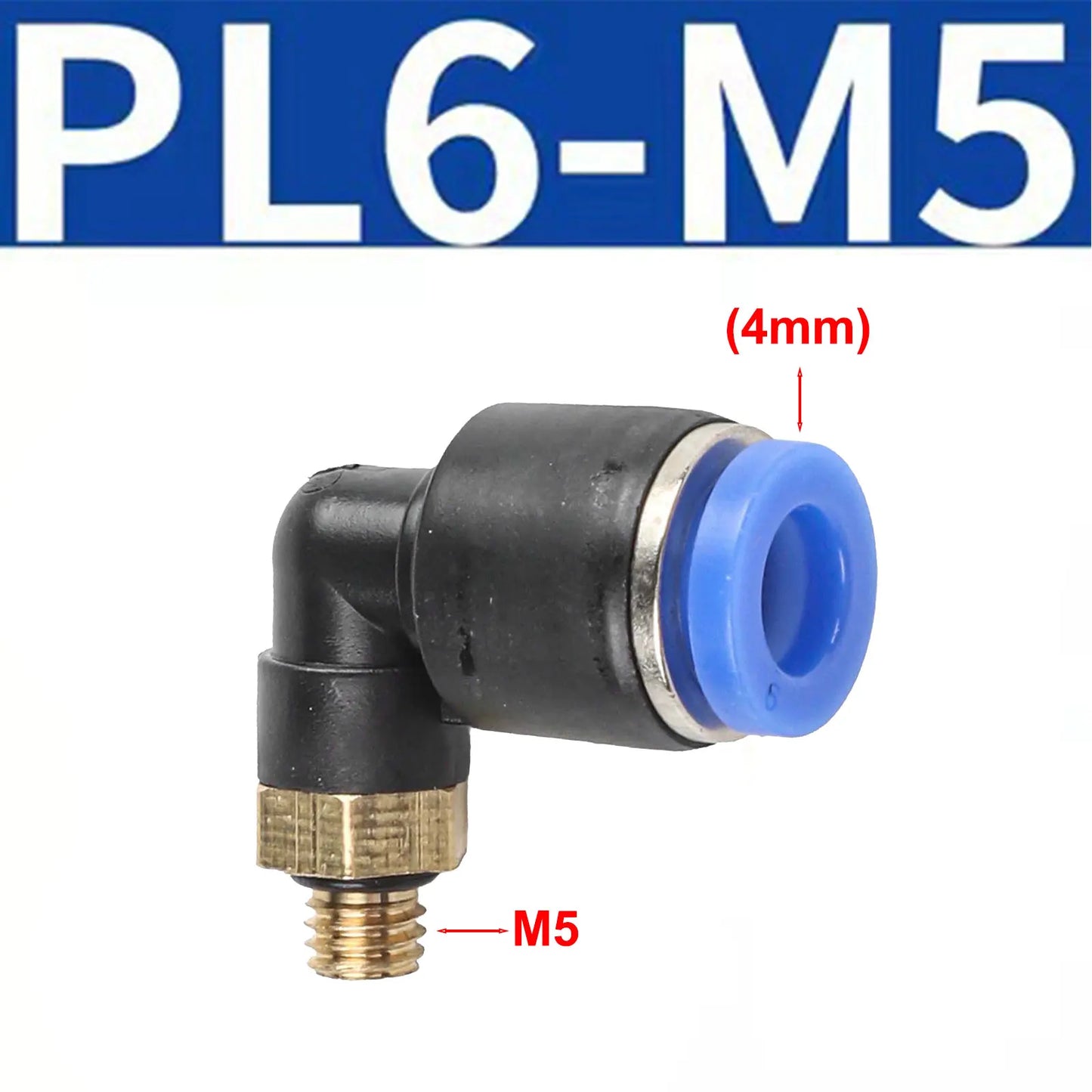

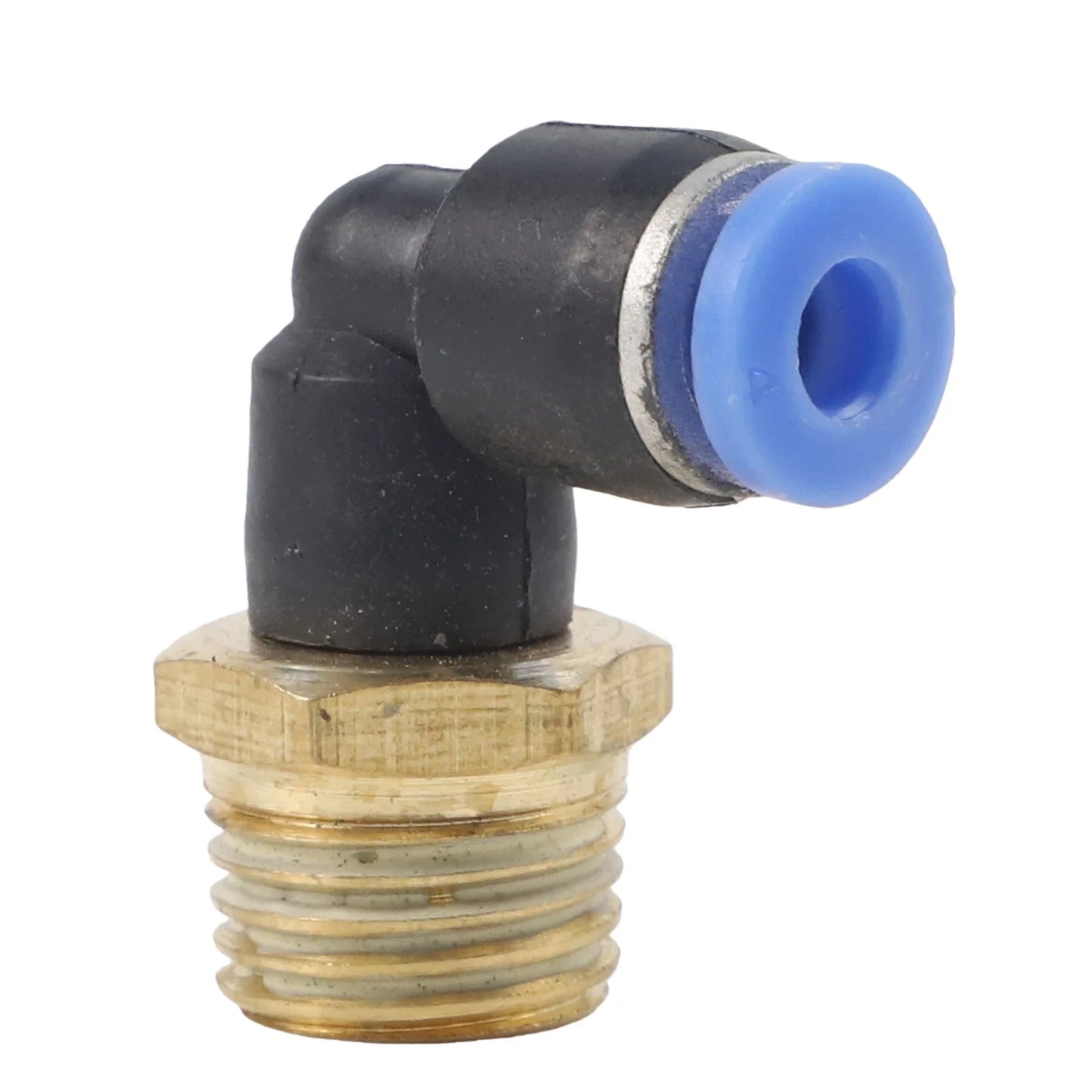

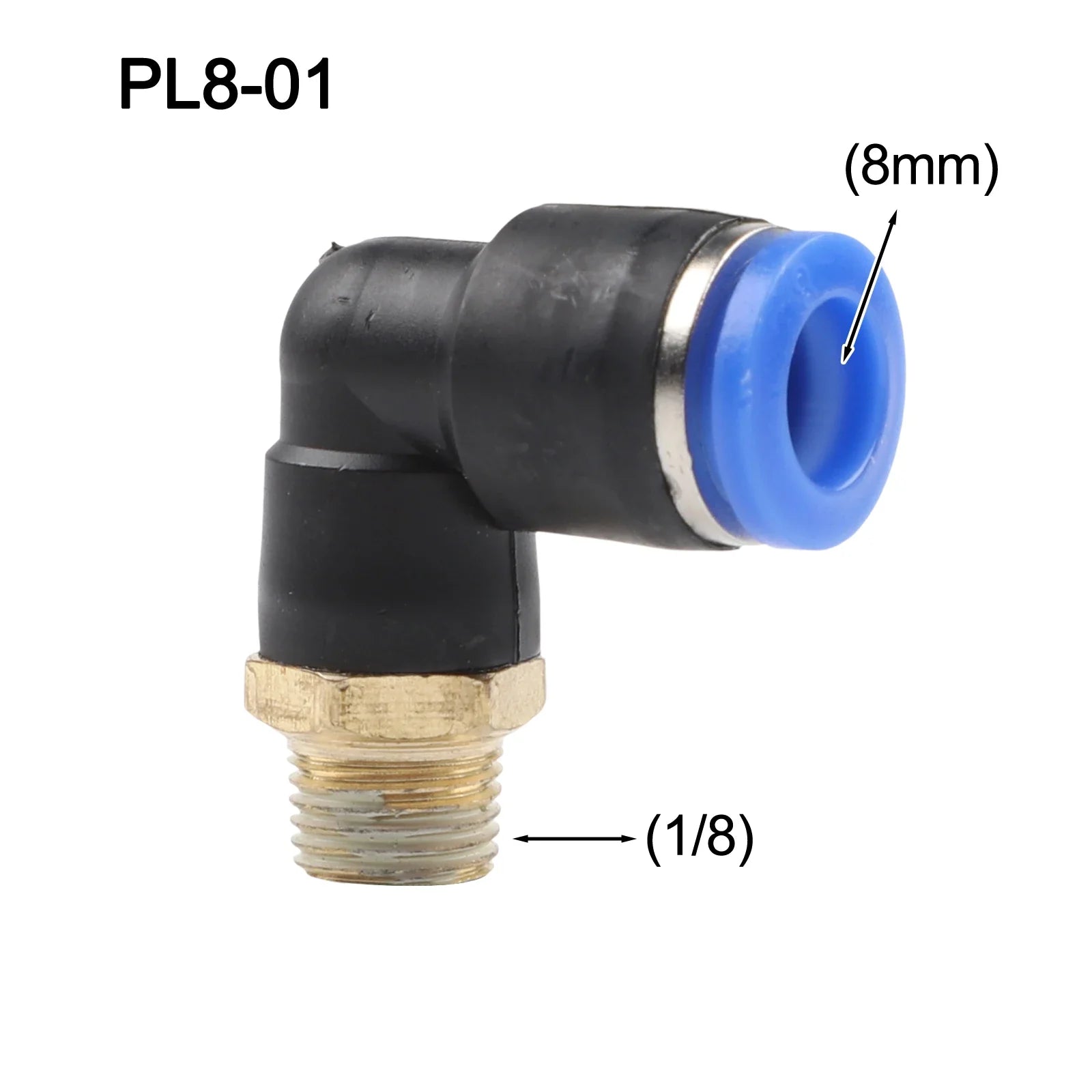

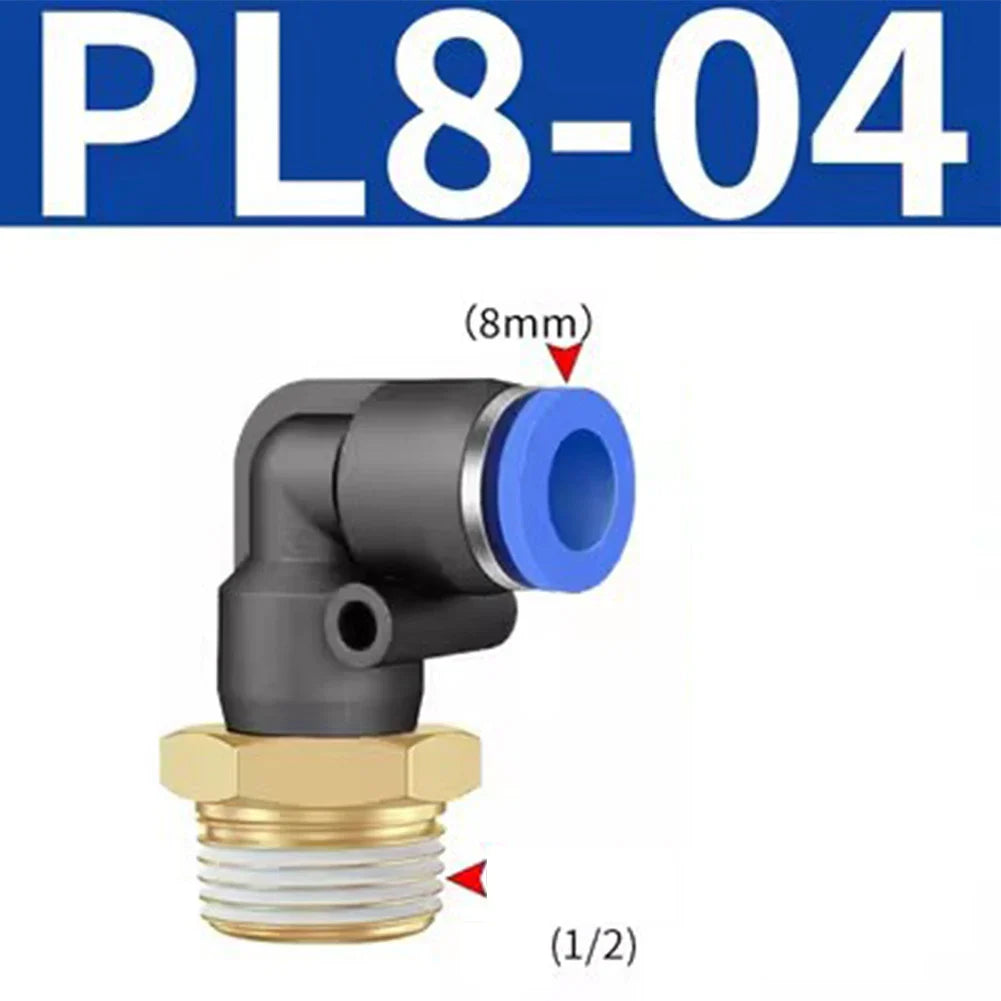

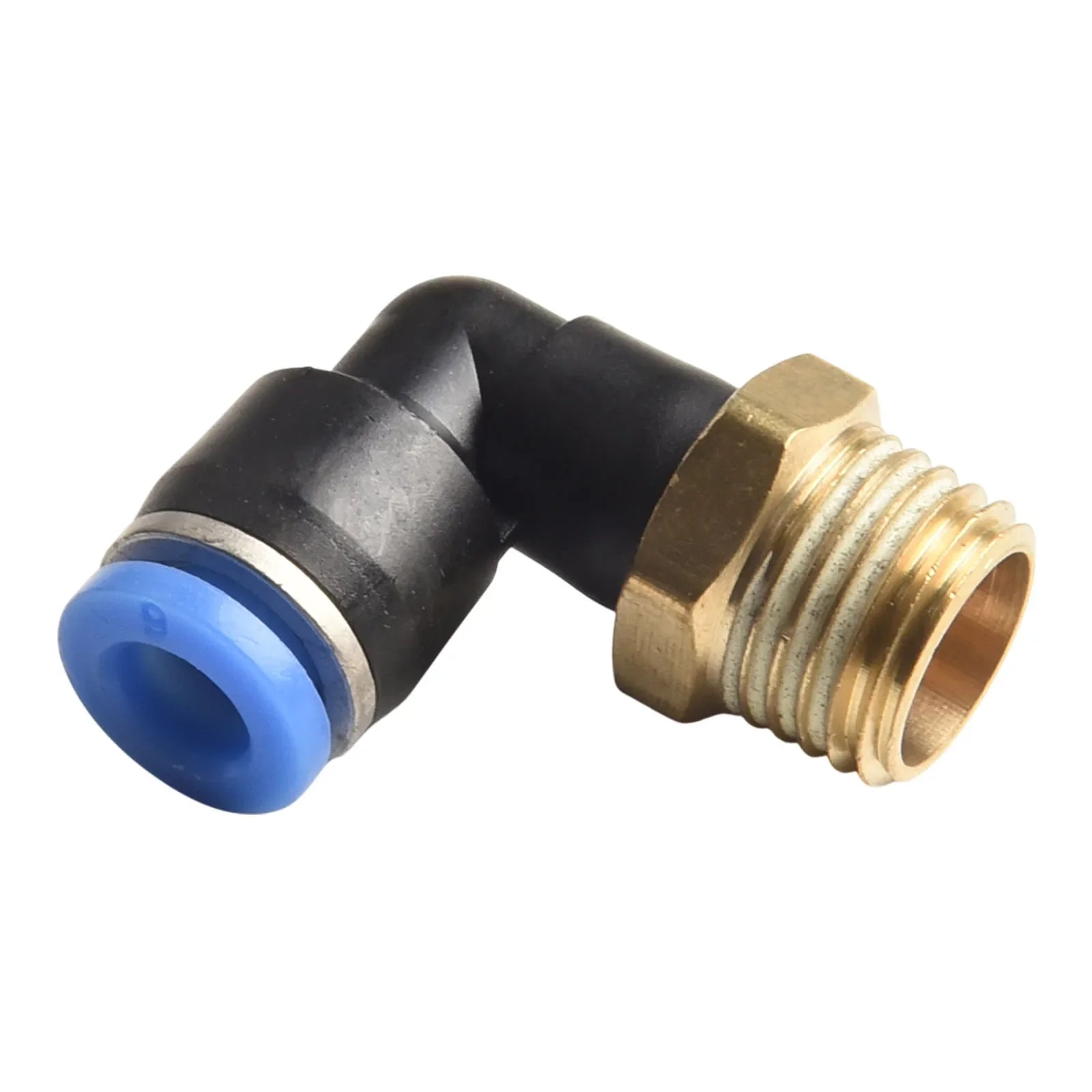

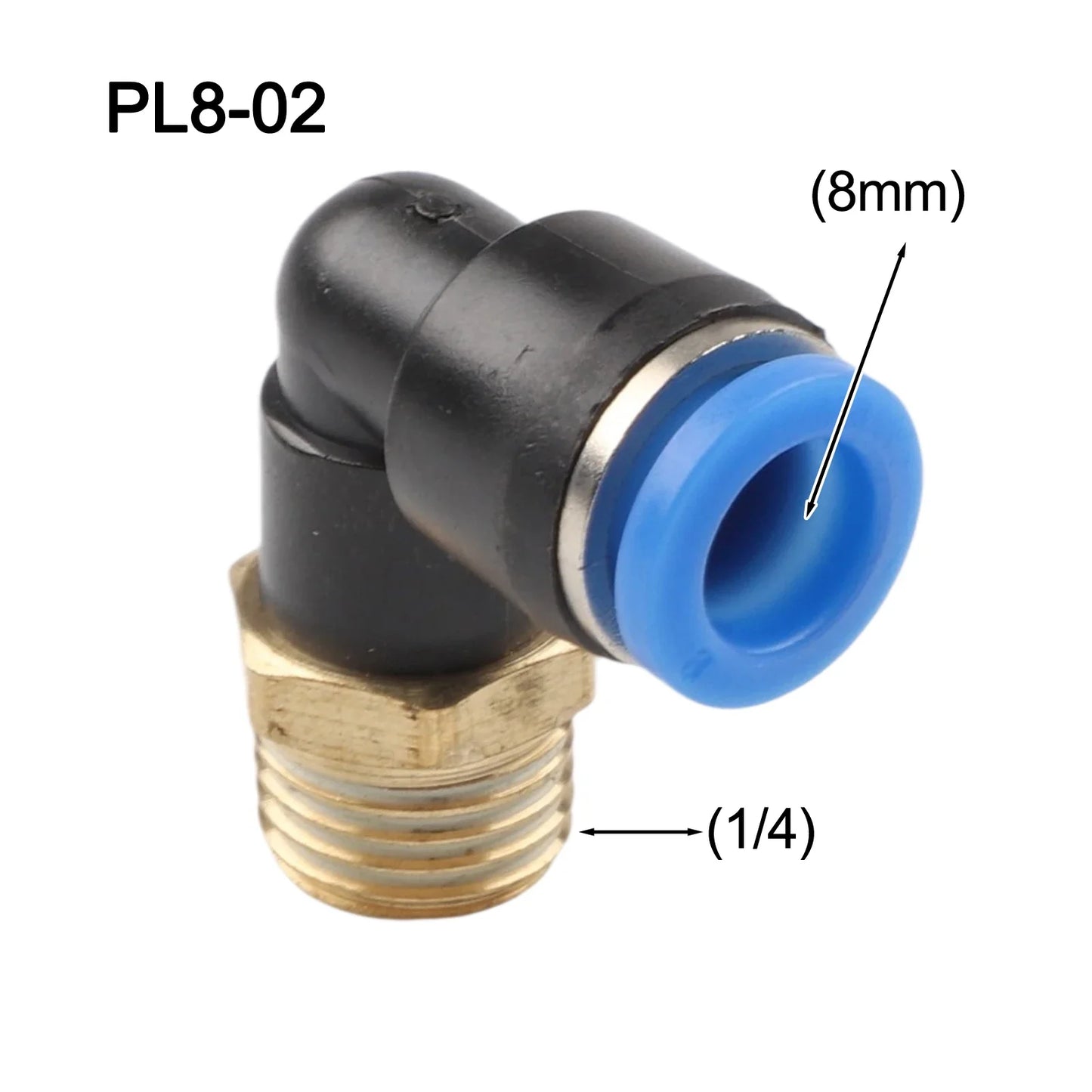

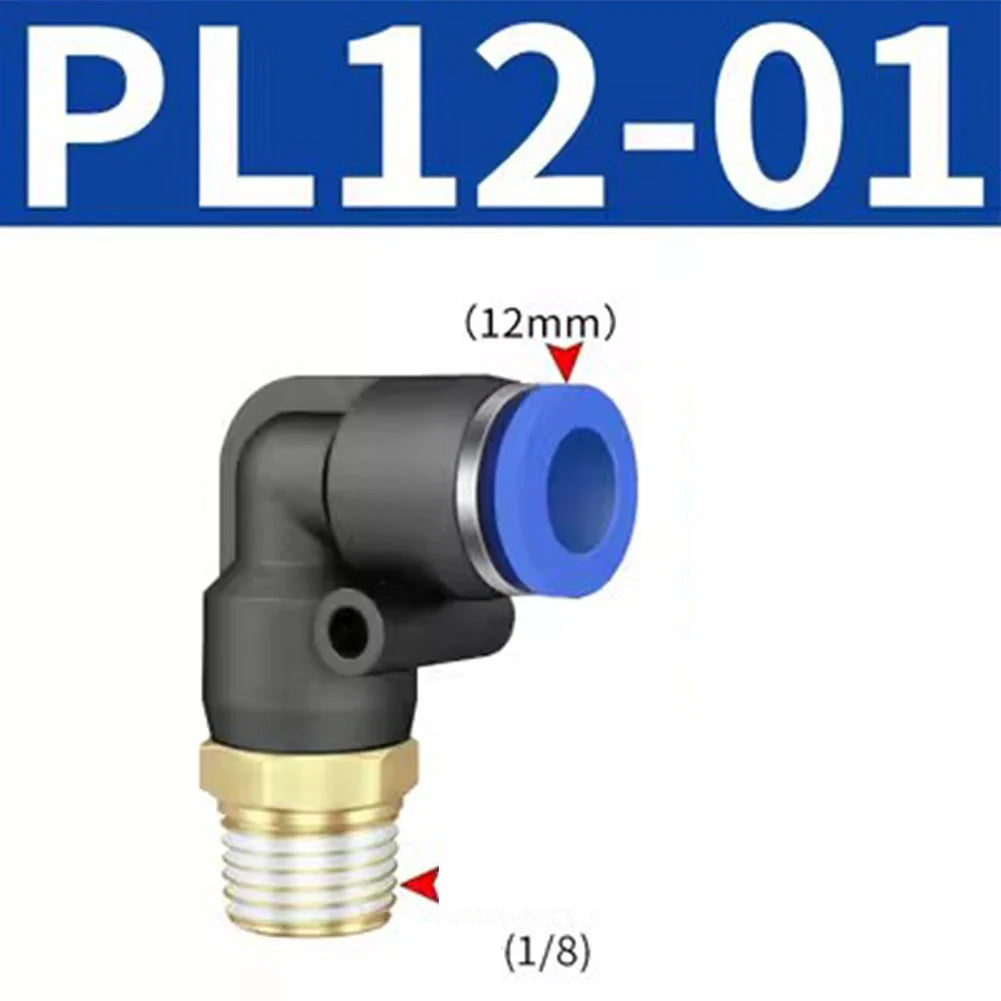

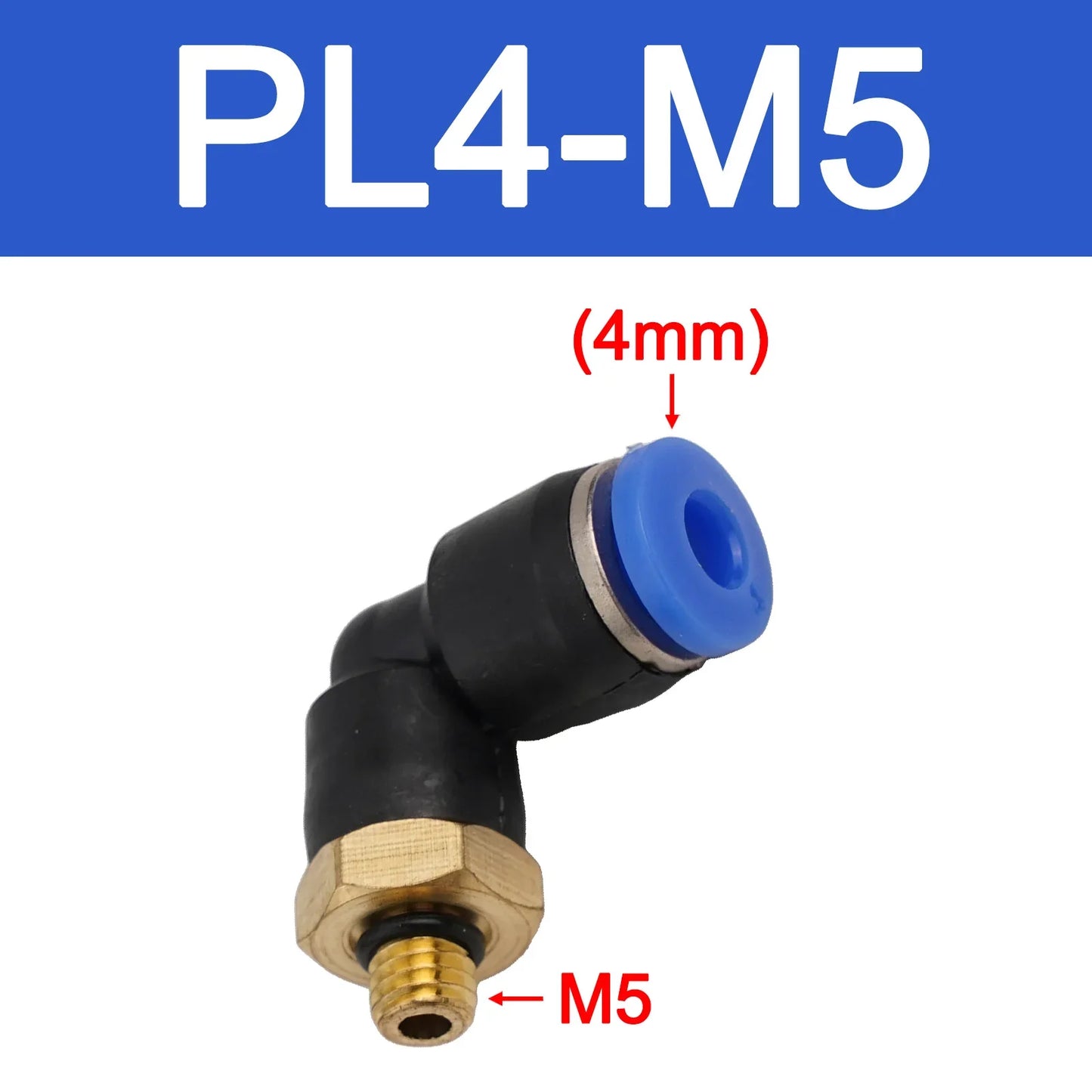

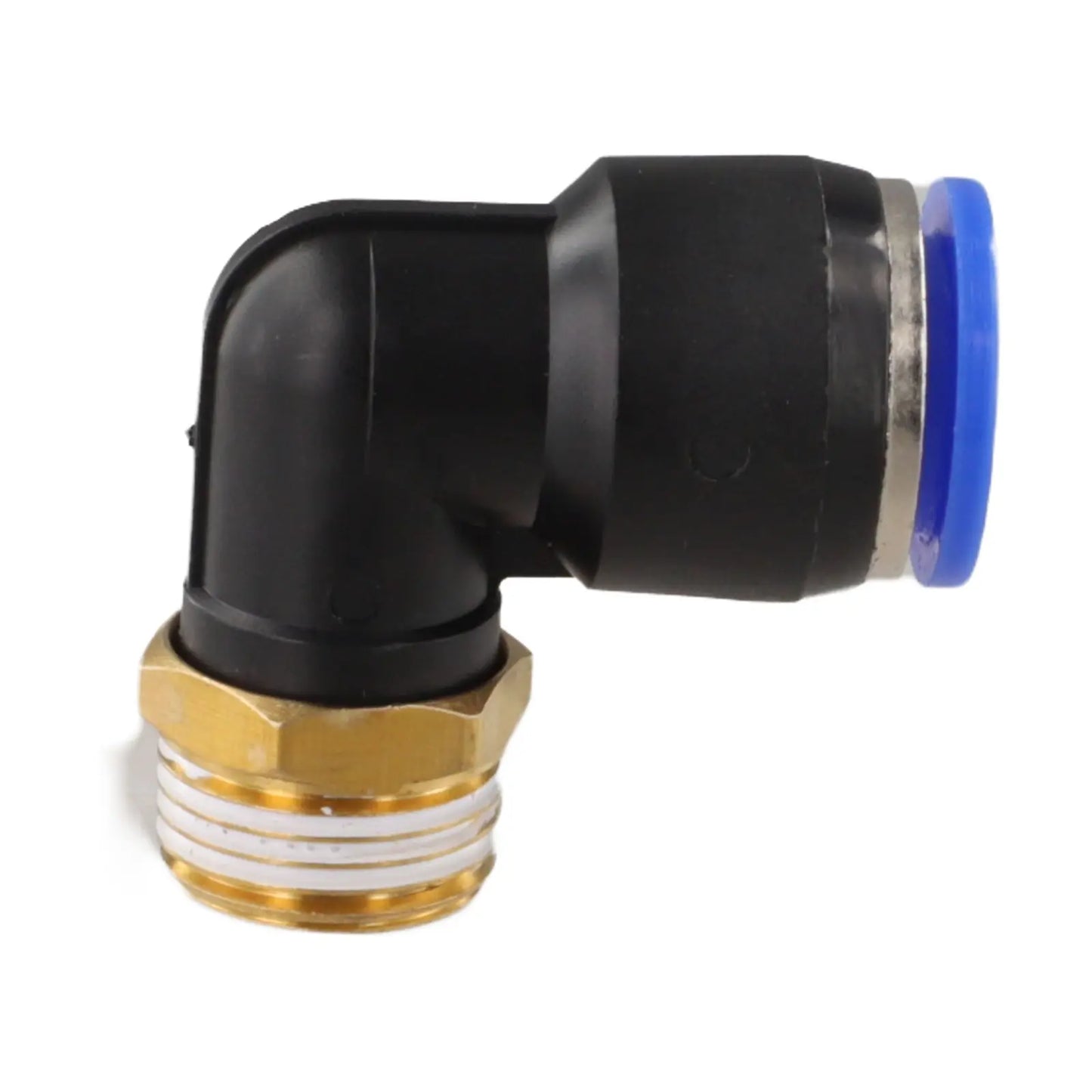

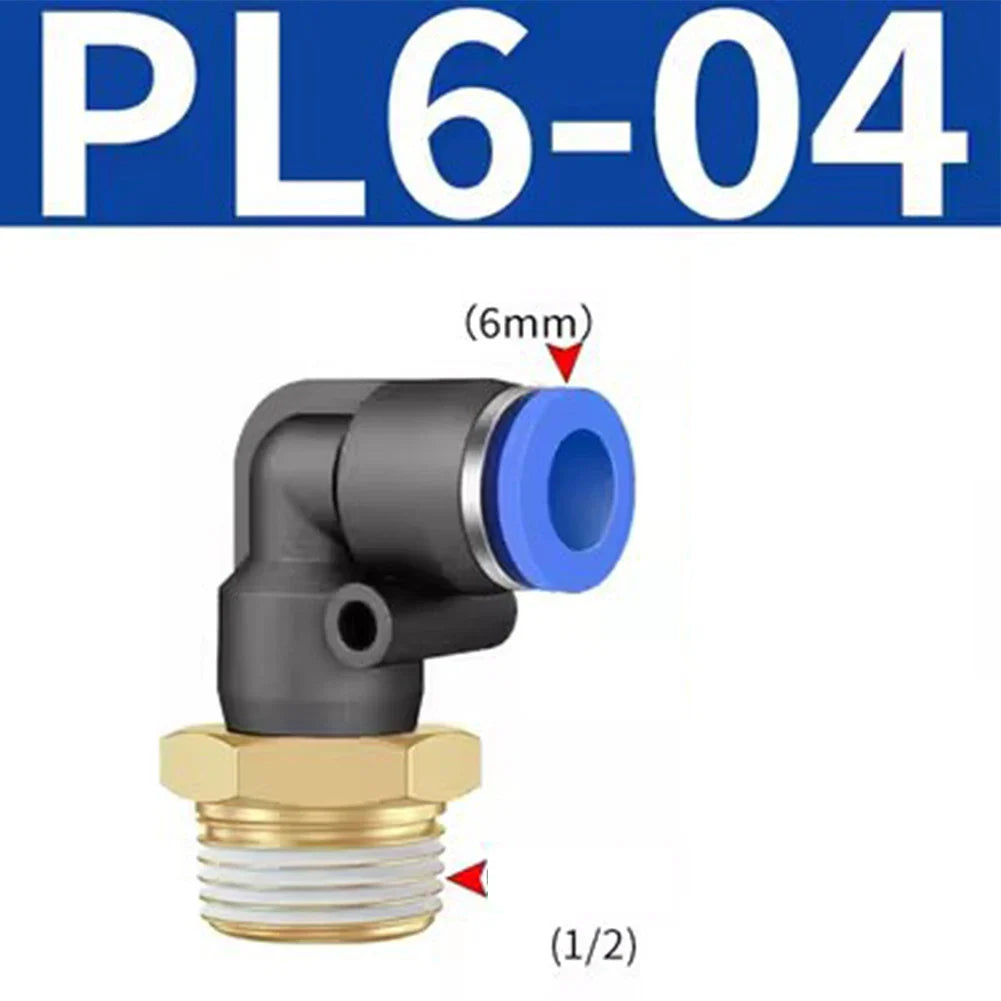

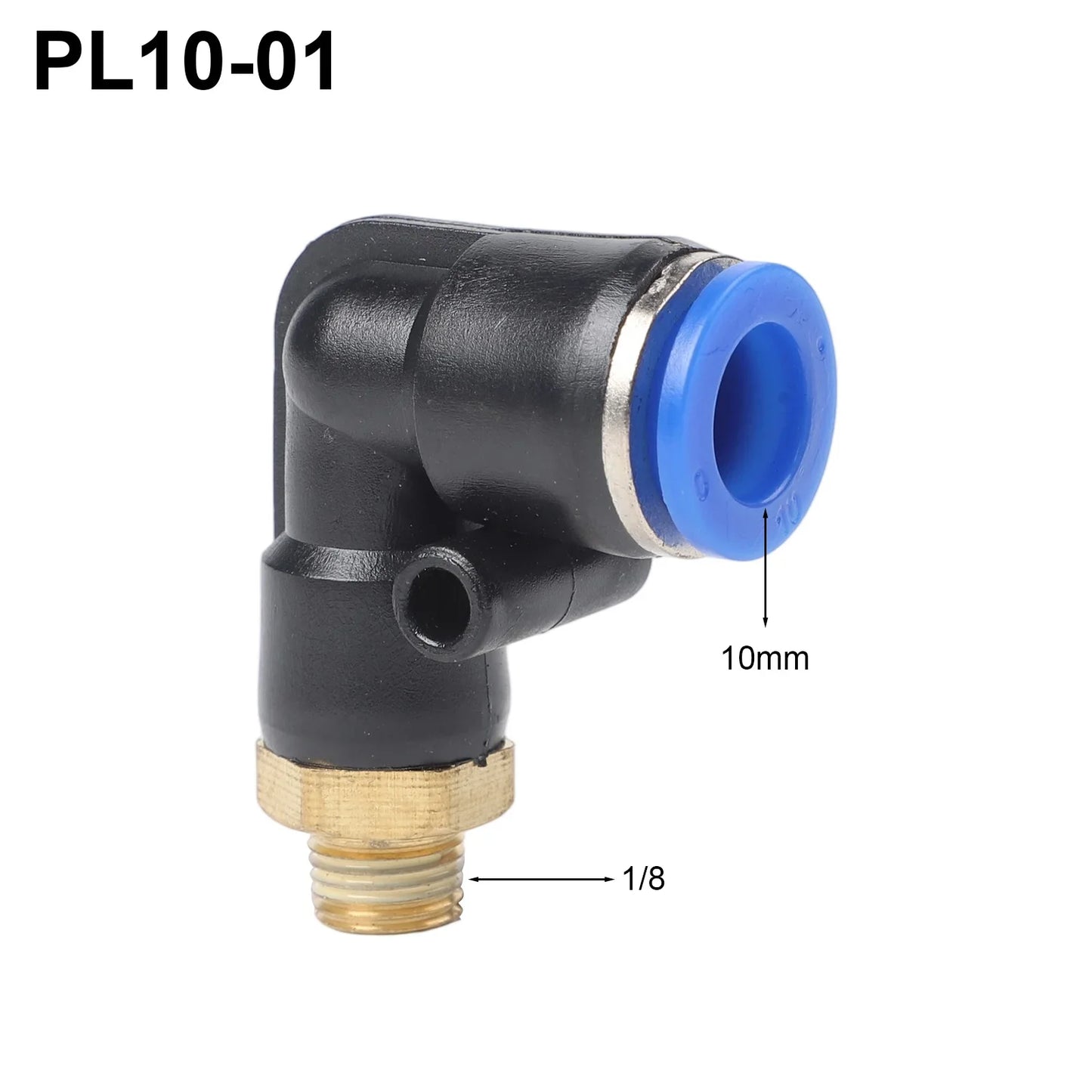

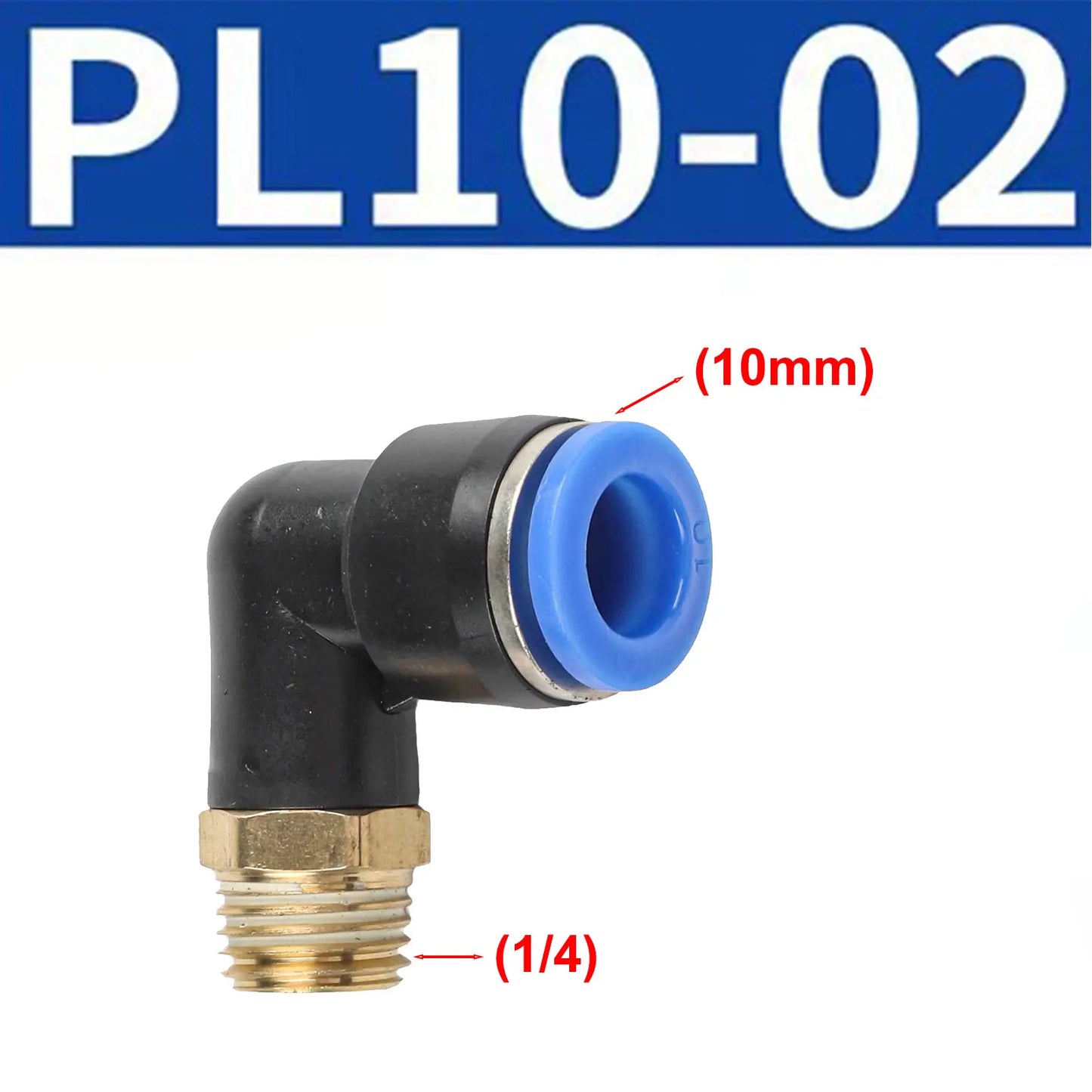

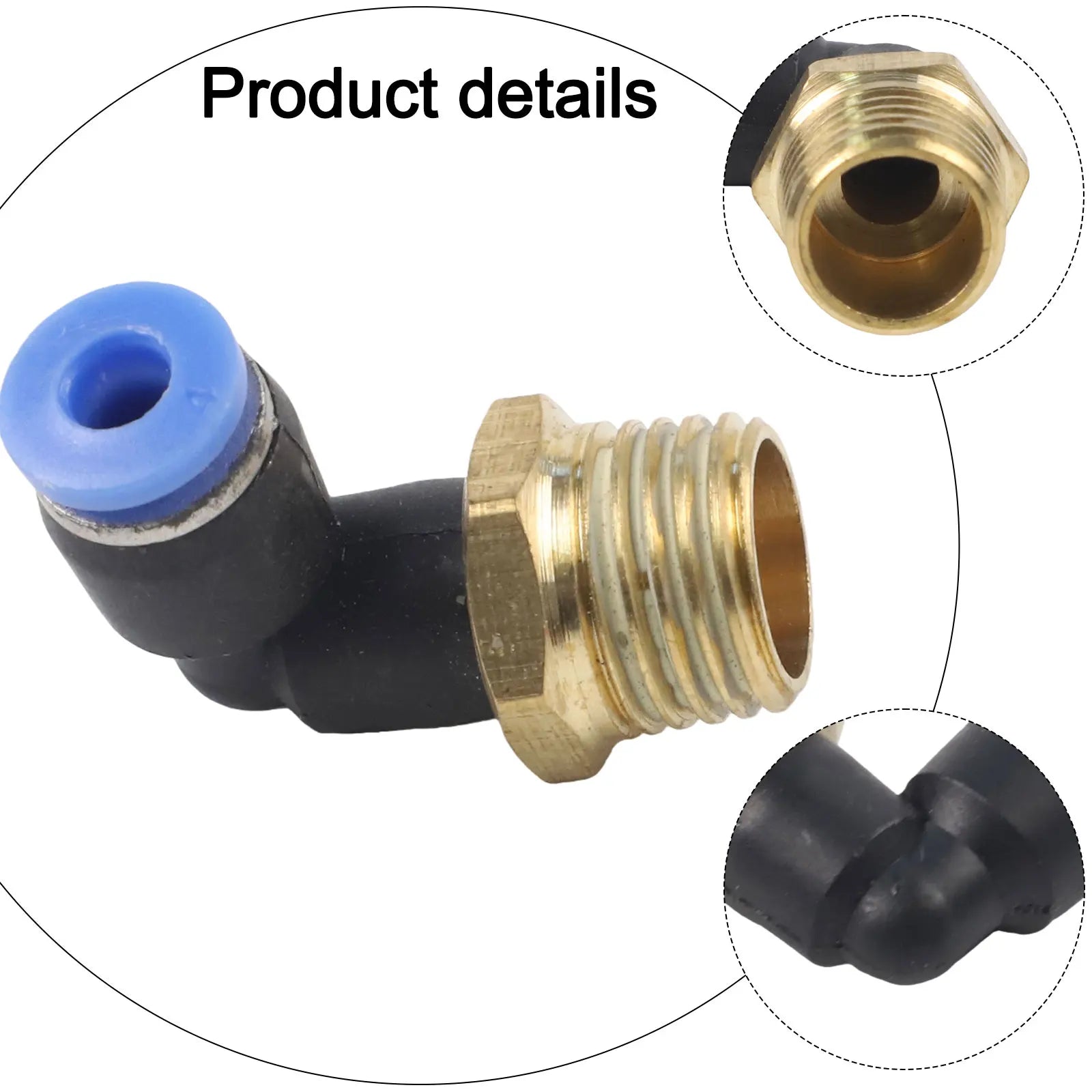

Pneumatic Elbow Quick Connector – PL4-16mm Threaded Air Hose Fitting
Keep your pneumatic systems running smoothly with this precision-engineered L-shaped elbow quick connector. Built from durable yellow brass and high-grade plastic, this PL4-16mm threaded elbow adapter delivers a leak-free, high-pressure-resistant connection for air hoses and tubing — all in a compact, easy-to-install design. Made in Mainland China.
Key Features
- 360° Rotatable Body: The plastic body rotates a full 360 degrees — even after installation — giving you maximum flexibility when routing air lines in tight or awkward spaces.
- Superior Airtight Seal: Pre-coated sealing tape on all pipe threads eliminates air leakage and ensures long-lasting, reliable performance.
- High-Pressure Rated: Operates at 0.3–0.9 MPa working pressure with a guaranteed burst resistance of 1.5 MPa — built for demanding pneumatic environments.
- Quick Push-In Installation: Simply push the plastic pipe into the fitting and it locks securely in place — no tools required. The elliptical release ring makes removal fast and effortless.
- Durable Brass & Plastic Construction: Yellow brass threads resist corrosion while the robust plastic body keeps weight low without sacrificing strength.
- Versatile L-Shape Design: Perfect for redirecting air lines at 90° angles in compressors, pneumatic tools, automation systems, and workshop setups.
Specifications
| Product Name | Pneumatic Elbow Quick Connector |
| Model | PL4-16mm |
| Material | Yellow Brass & Plastic |
| Type | Threaded Elbow (L-Shape) |
| Working Pressure | 0.3–0.9 MPa |
| Max Pressure Resistance | 1.5 MPa |
| Color | Black & Brass |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× Pneumatic Elbow Quick Connector (PL4-16mm)
Related Products You May Like
- 1-Inch Threaded Brass Ball Valve – Water, Gas & Oil Flow Control
- 1-1/4″ Adjustable Washbasin Siphon Trap | Leak-Proof Silicone
For guidance on safe use of pneumatic tools and fittings in the workplace, refer to the OSHA Pneumatic Tools Safety Guidelines.
Note: Actual product color may vary slightly from images due to monitor brightness and lighting conditions. Please allow minor measurement tolerances.
Learn more: Aventics
Frequently Asked Questions
Q: What hose or tube size does this pneumatic elbow quick connector fit?

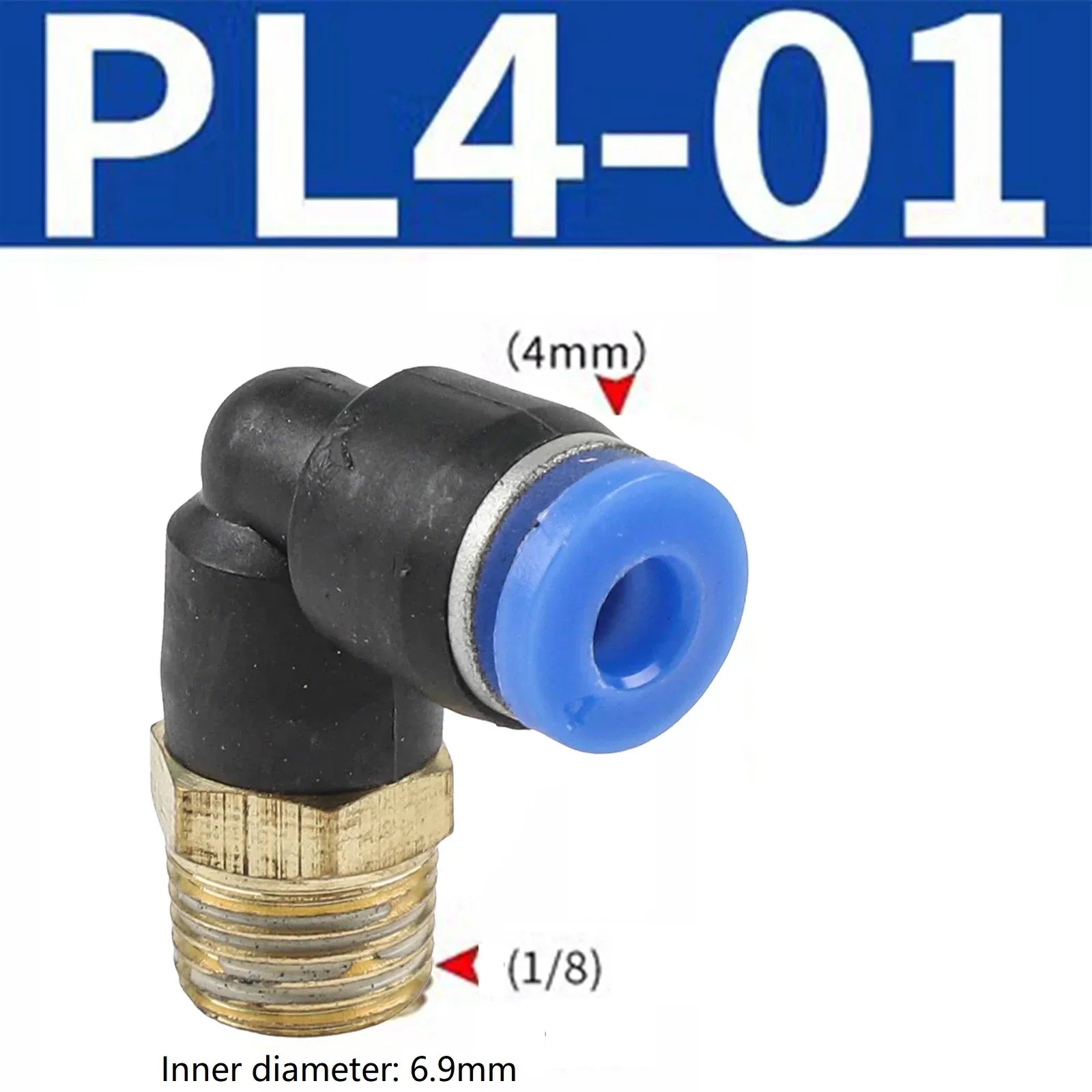

A: This connector is designed for the PL4-16mm specification, accommodating 4mm inner diameter plastic air tubing on the push-in end with a 16mm threaded connection on the other end. Always verify your hose outer diameter and thread size before purchasing.
Q: Can I rotate this fitting after it has already been installed?
A: Yes! The plastic body of this elbow connector is designed to rotate a full 360 degrees even after installation, making it easy to reposition your air line direction without dismantling the connection.
Q: Is this fitting suitable for high-pressure pneumatic systems?
A: This fitting supports a working pressure range of 0.3–0.9 MPa and is pressure-tested to withstand up to 1.5 MPa, making it suitable for most standard workshop and industrial pneumatic applications. Always ensure your system pressure does not exceed the rated working range.
Q: How do I remove the hose once it's connected?
A: Simply press the elliptical release ring inward while gently pulling the hose outward. The ring's elliptical shape is specifically designed to make disassembly quick, easy, and comfortable even when access is limited.
