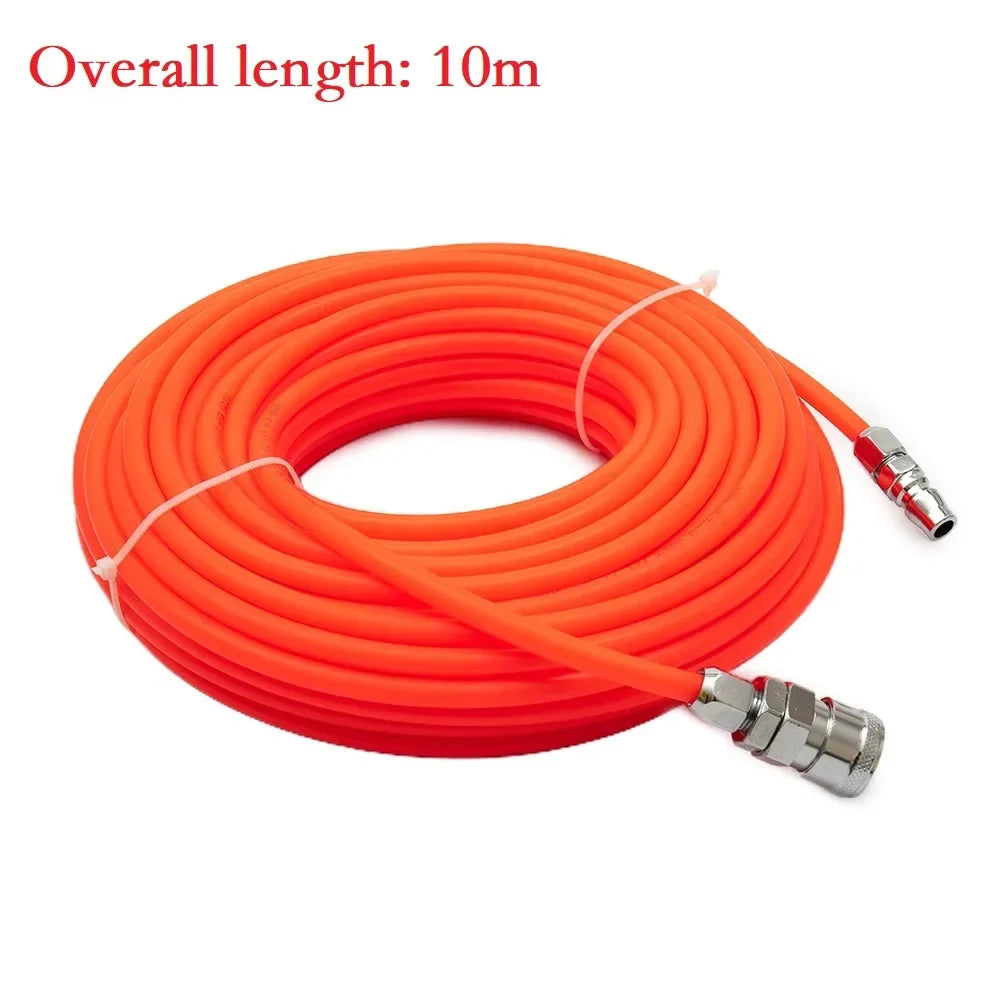

Pneumatic Air Compressor Hose 5×8mm + Quick Connector | 5–20m
Pneumatic Air Compressor Hose 5×8mm + Quick Connector | 5–20m
Couldn't load pickup availability
Pneumatic Straight Pipe Air Compressor Hose with Quick Connector
Keep your air tools, garden equipment, and workshop gear running smoothly with this heavy-duty PE air compressor hose. Built to handle demanding environments, this straight-pipe hose features a smooth, shiny surface that resists corrosion and holds up under high pressure — making it a reliable choice for both professional and home use.
Fitted with C-type (Japanese) quick-connect couplings on both ends, swapping between tools is fast and hassle-free. Choose from multiple lengths (5m, 10m, 15m, or 20m) and two colour options (Red or Transparent) to suit your setup.
Made in Mainland China.
Key Features
- Material: High-quality PE (Polyethylene) — smooth, shiny finish for low friction airflow
- Dimensions: 5mm inner diameter × 8mm outer diameter | 1.5mm wall thickness
- Operating Pressure: 6–12 KG/cm² | Burst Pressure: 24 KG/cm²
- Temperature Range: 0–70°C — suitable for hot and cold workshop conditions

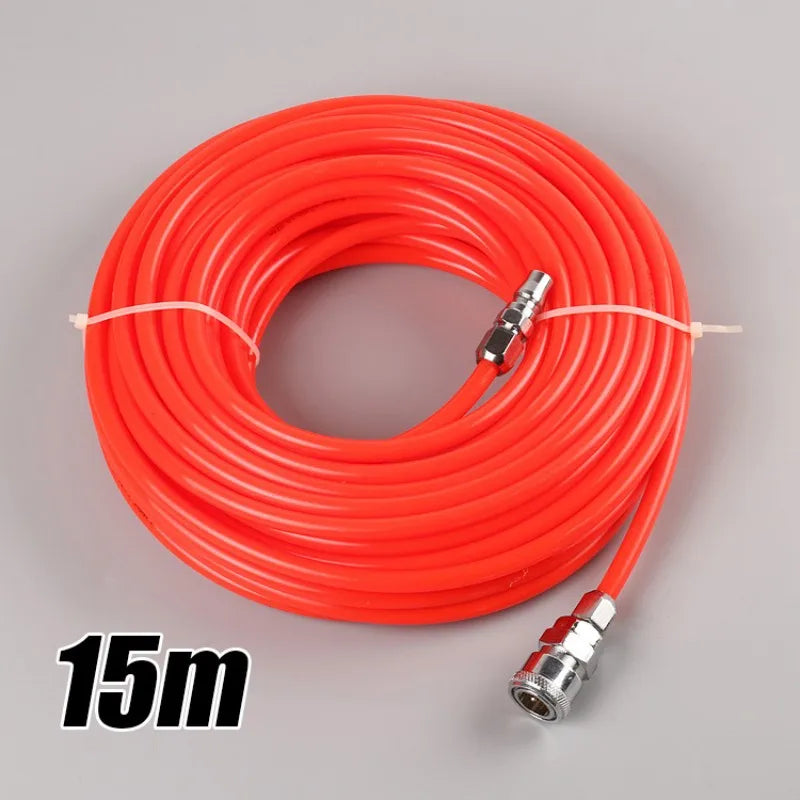

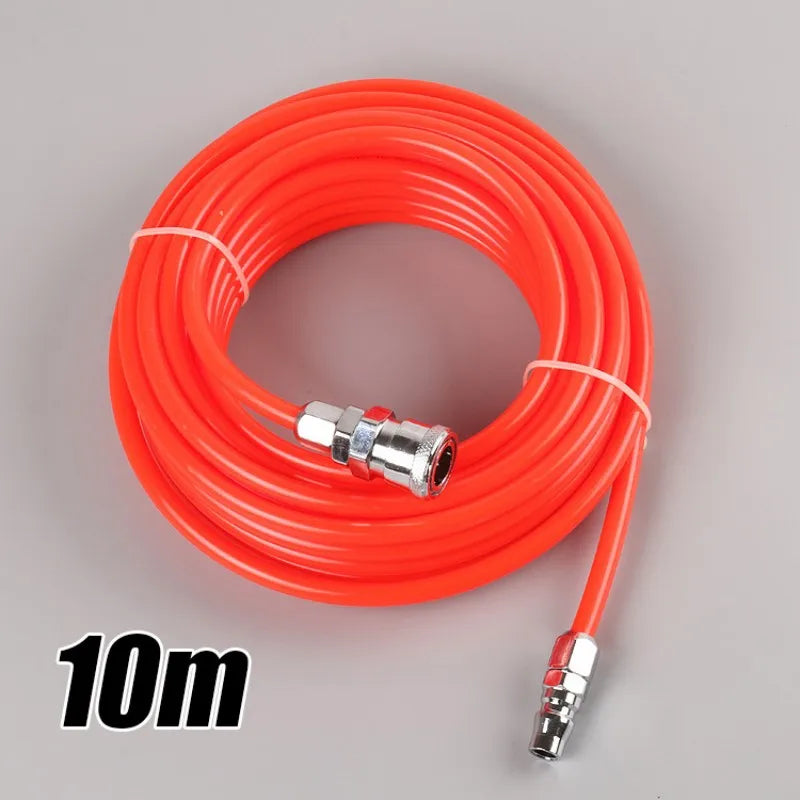

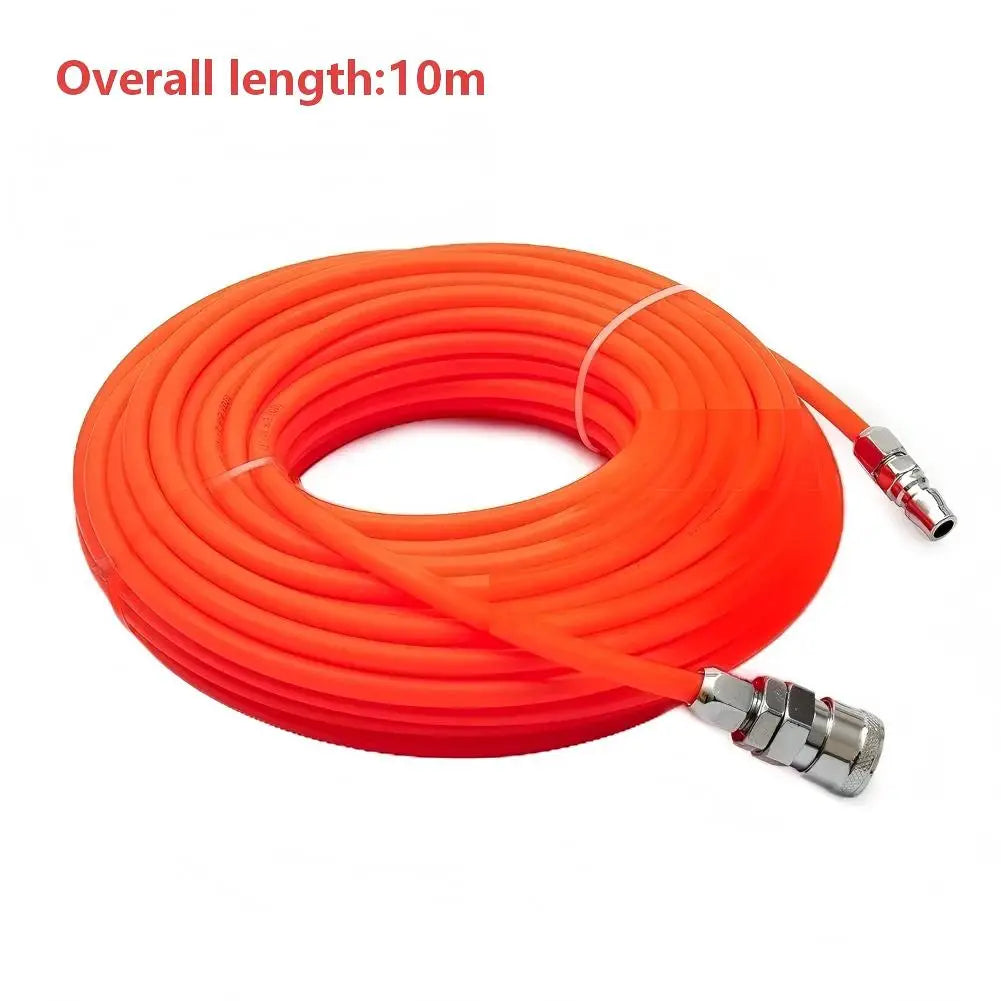

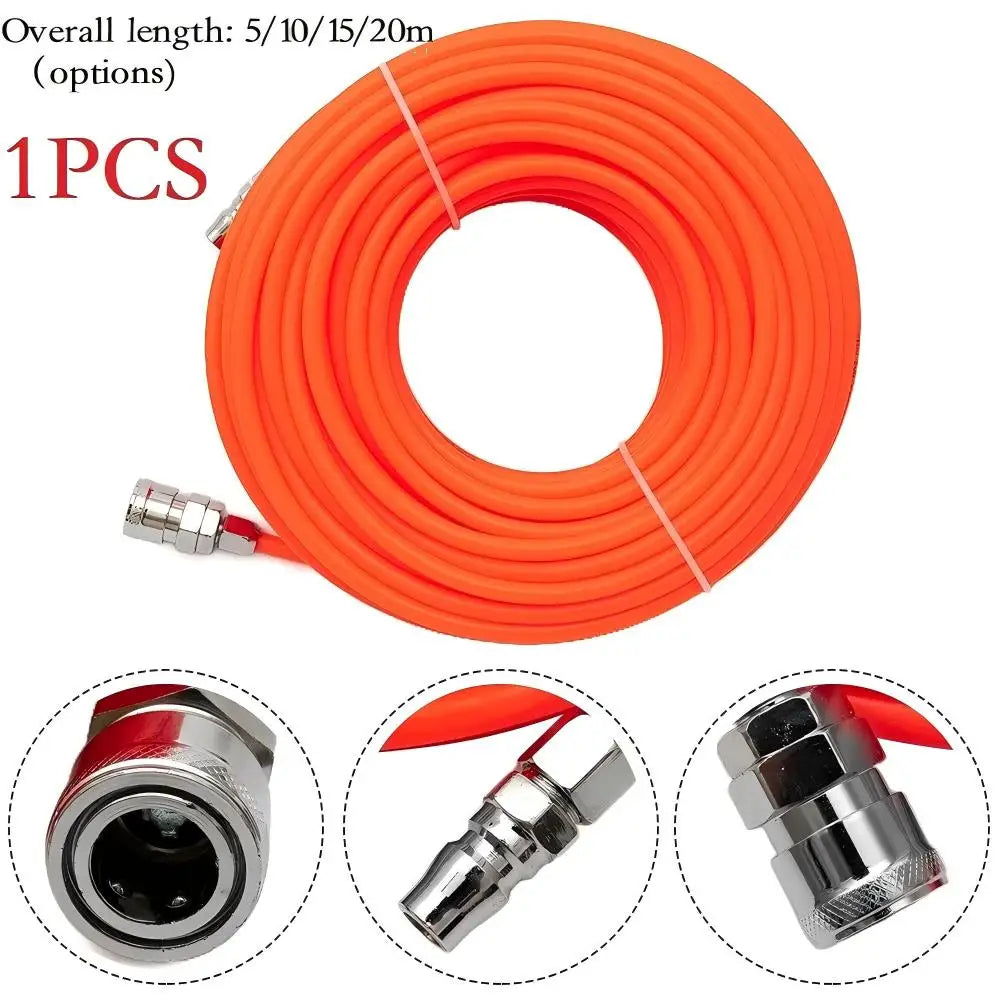

- Available Lengths: 5m, 10m, 15m, 20m
- Available Colours: Red, Transparent

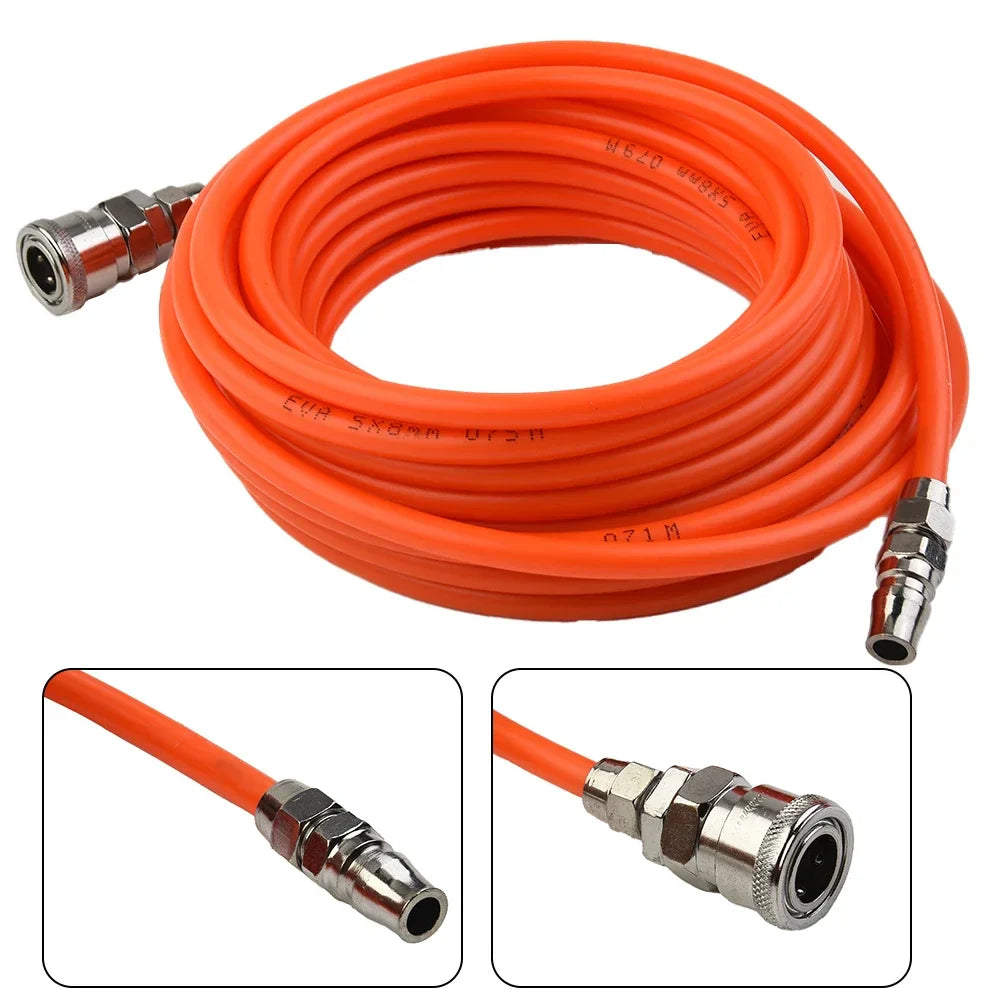

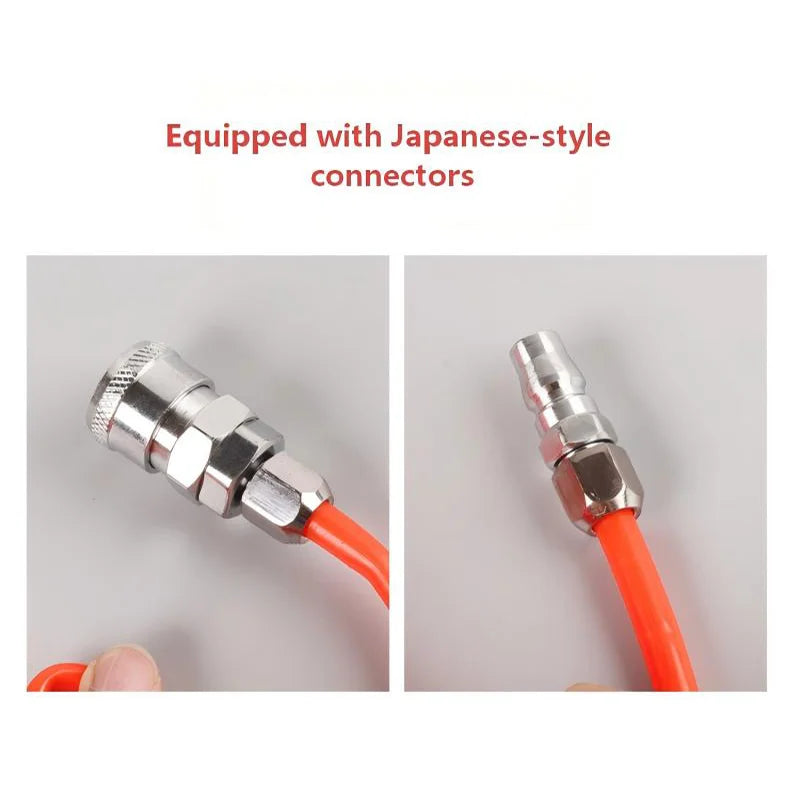

- Connector Type: C-type (Japanese) Quick Coupling — included on both ends
- Application: Air compressor ventilation, pneumatic tools, garden gear, and more
- Corrosion-resistant and built for extended durability in harsh environments
Specifications at a Glance
| Model | 5×8mm |
| Inner Diameter | 5mm (approx.) |
| Outer Diameter | 8mm (approx.) |
| Wall Thickness | 1.5mm (approx.) |
| Working Pressure | 6–12 KG/cm² |
| Burst Pressure | 24 KG/cm² |
| Temperature Range | 0–70°C |
| Material | PE (Polyethylene) |
| Connector | C-type (Japanese) Quick Coupling |
| Colours | Red, Transparent |
| Lengths | 5m, 10m, 15m, 20m |
| Origin | Mainland China |
Package Contents
- 1 × Air Compressor Hose (with quick connectors pre-fitted on both ends)
Notes
- Actual colour may vary slightly from product images due to monitor settings and lighting conditions.
- Please allow for slight manual measurement deviations.
You May Also Like
- 1-Inch Threaded Brass Ball Valve – Water, Gas & Oil Flow Control
- 0–160 PSI Liquid-Filled Fuel Pressure Gauge | 1/8 NPT AN6
- 1-Inch Impact Rocker Sprinkler – Adjustable Rotating Irrigation
For general tool and air compressor safety guidance, see the OSHA Pneumatic Tools Safety Guide.
Learn more: Air line
Frequently Asked Questions
Q: What type of quick connectors are included with this air compressor hose?
A: This pneumatic hose comes pre-fitted with C-type (Japanese) quick-connect couplings on both ends, allowing for fast and secure attachment and detachment from standard pneumatic tools and air compressors that use this connector type.
Q: What sizes and colours are available for this PE air compressor hose?
A: The hose is available in four lengths — 5m, 10m, 15m, and 20m — and two colour options: Red and Transparent. All variants share the same 5mm inner diameter × 8mm outer diameter (5×8mm) specification.
Q: Is this hose suitable for outdoor and high-temperature environments?
A: Yes. The PE hose is designed to operate in temperatures ranging from 0°C to 70°C, making it suitable for both workshop and outdoor use. Its corrosion-resistant construction also ensures durability in demanding conditions.
Q: What is the maximum working pressure this hose can handle?
A: The hose has a working pressure range of 6–12 KG/cm² and a burst pressure of 24 KG/cm², making it robust enough for standard pneumatic tool operation and air compressor ventilation tasks.
