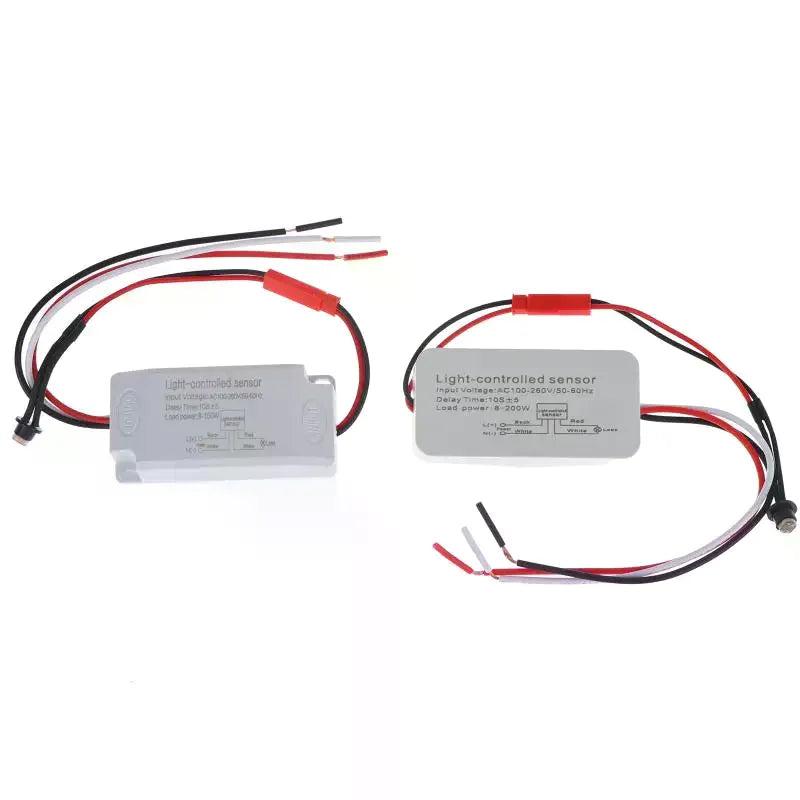

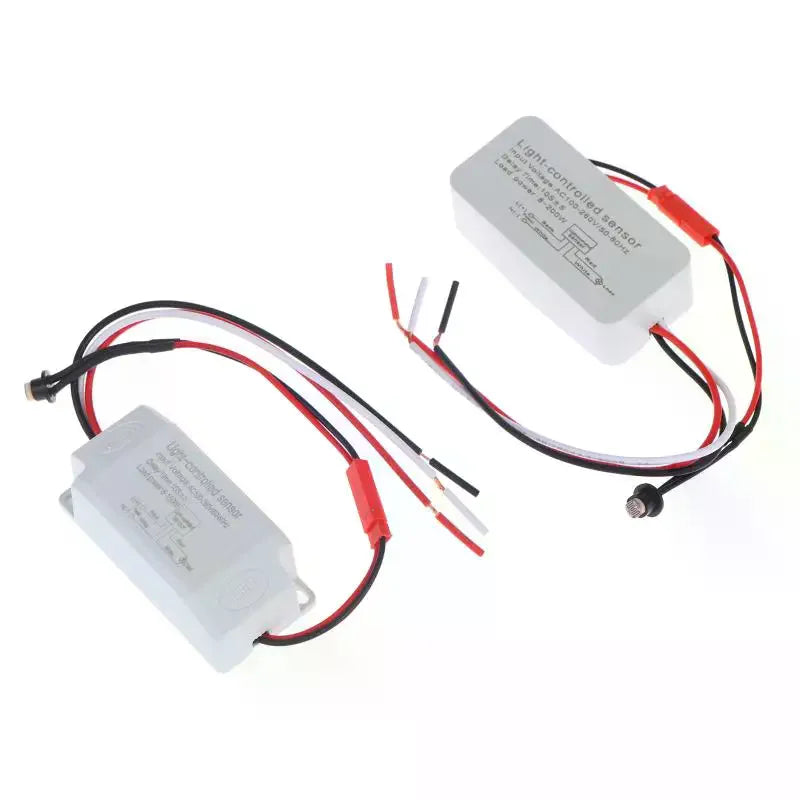

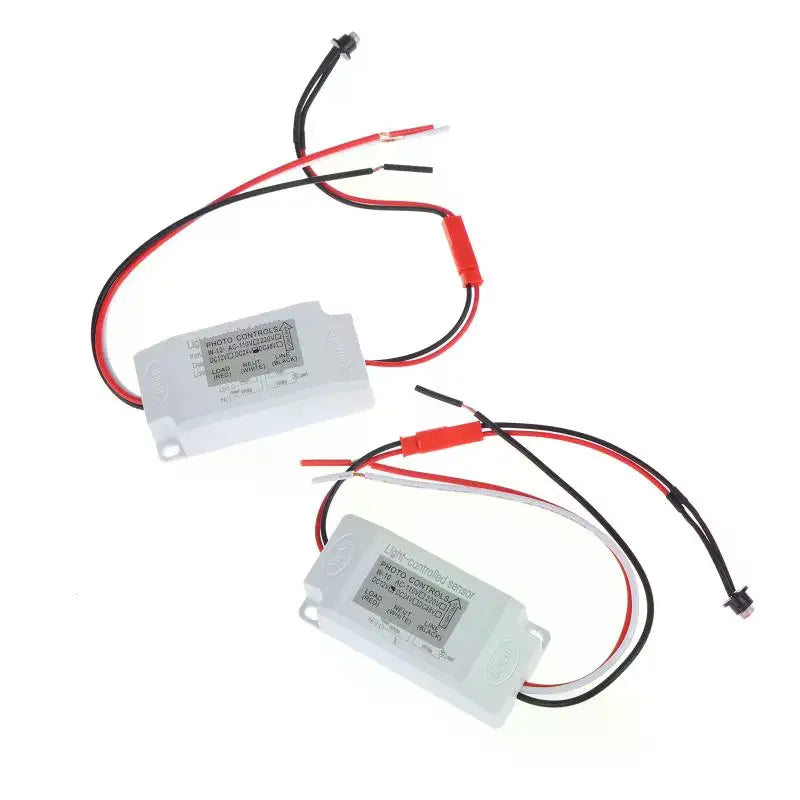

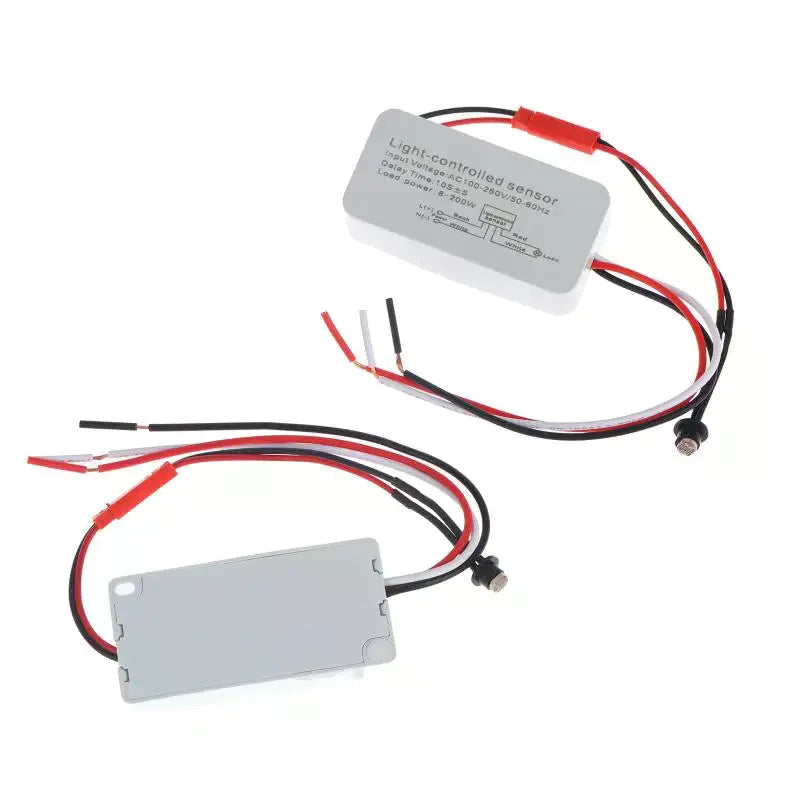

Automatic Dusk-to-Dawn Photoelectric Sensor Switch

Take the hassle out of managing your outdoor lighting with the HELTC CDS-W10 Intelligent Photoelectric Sensor Switch. This smart light-sensing switch automatically turns your lights on at dusk and off at dawn — no timers, no manual switching, no guesswork. Perfect for street lights, corridor lights, advertising light boxes, security fill lights, and more. Made in Mainland China.

Why You'll Love It

• Fully Automatic Operation: A high-sensitivity photosensitive probe detects ambient light levels, powering on when brightness drops below 30 LUX and powering off when it exceeds 150 LUX.
• Rainproof & Weather-Resistant: Designed for outdoor use and built to withstand the elements, season after season.

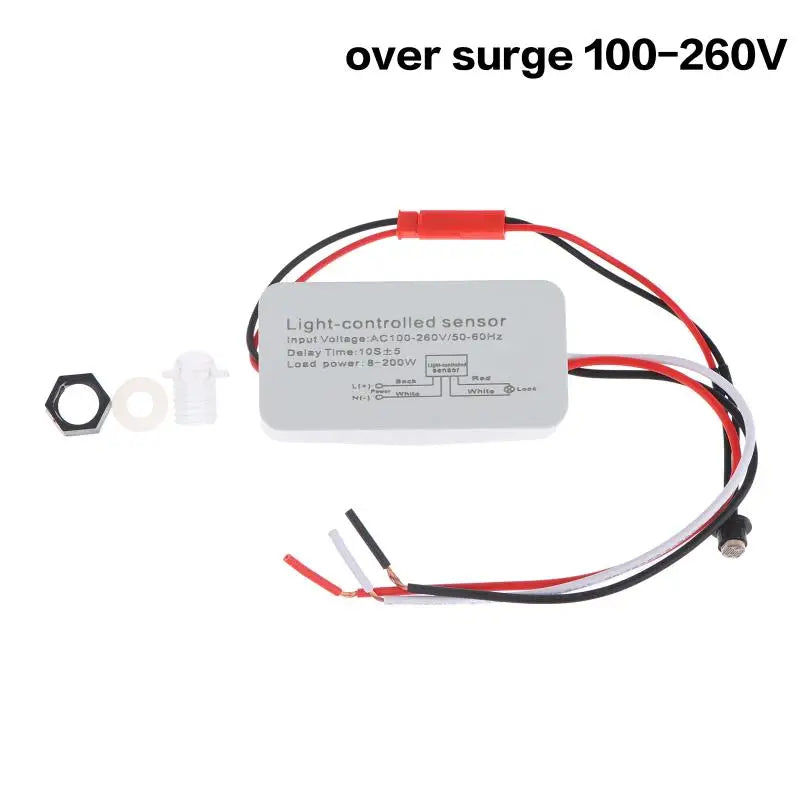

• Lightning & Surge Protection (Style 2): The Over Surge style variant includes built-in protection against voltage spikes, keeping your connected equipment safe.
• Delay Circuit Function: Prevents false triggers or accidental switching caused by brief light fluctuations.
• Wide Voltage Compatibility: Supports DC 12V, DC 24V, and AC 100–260V — versatile enough for a broad range of residential and commercial lighting circuits.
• Stable Year-Round Performance: Operates reliably across temperatures from -20°C to +50°C, unaffected by seasonal weather changes.

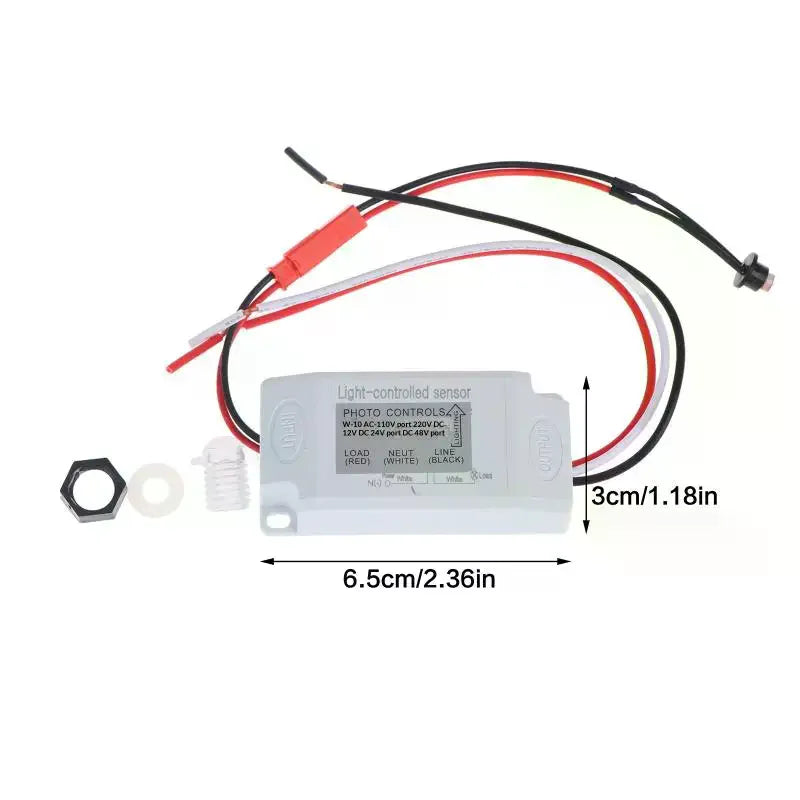

• Easy Installation: Simple 3-wire connection (Black = Input L, White = Input/Light Source N, Red = Light Source L).

Technical Specifications

• Model: CDS-W10

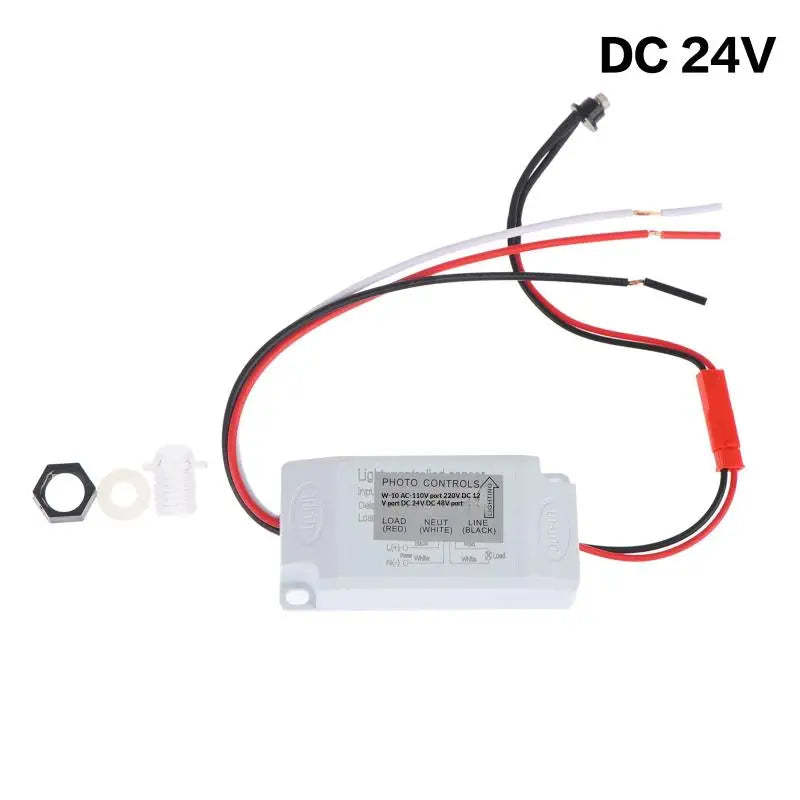

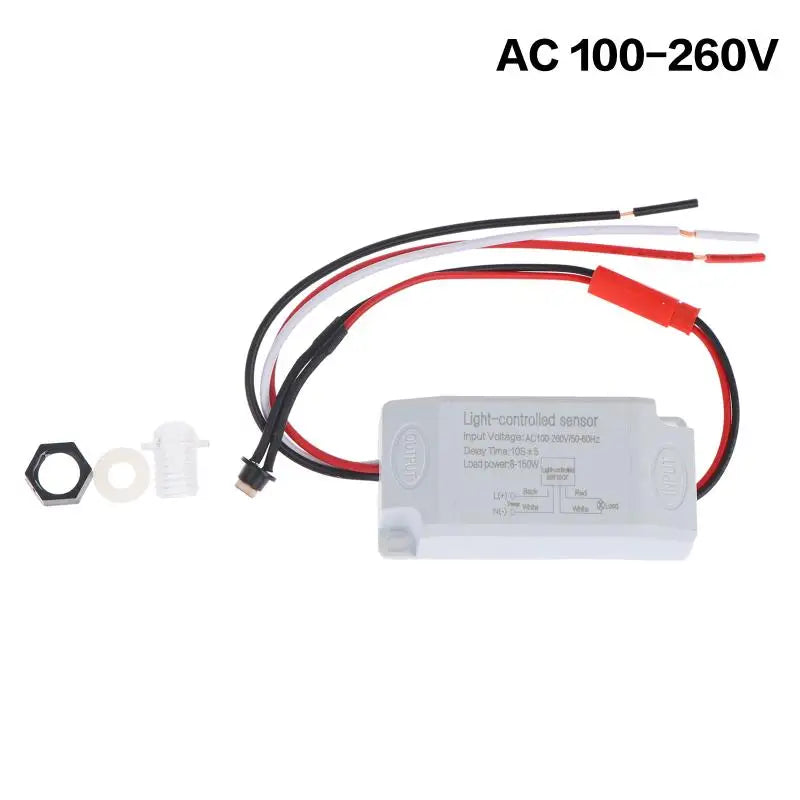

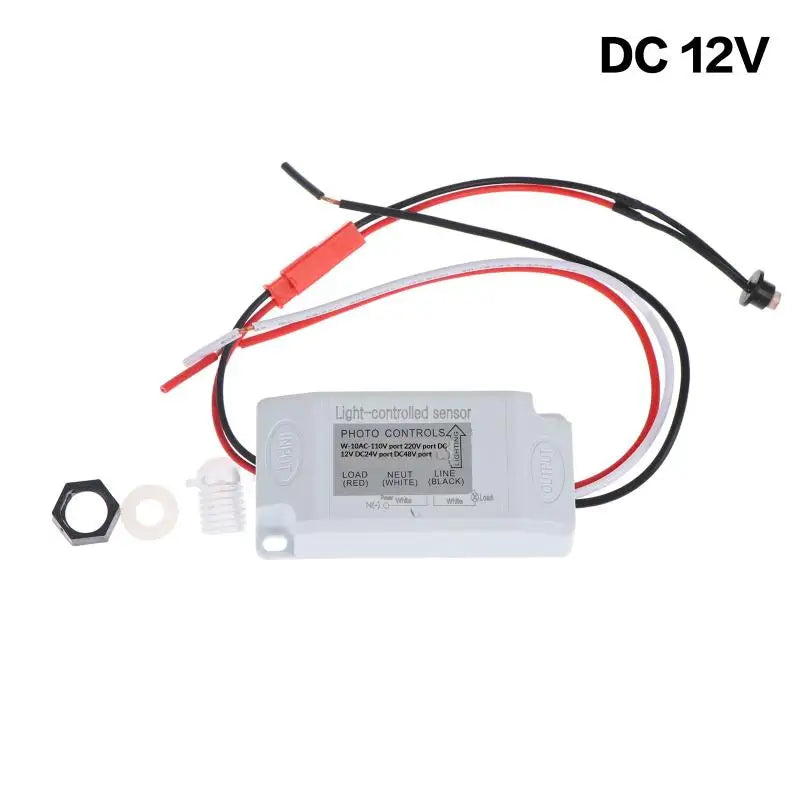

• Voltage Options: DC 12V / DC 24V / AC 100–260V (optional)
• Frequency: 50–60 Hz
• Turn-On Threshold: < 30 LUX
• Turn-Off Threshold: > 150 LUX
• Operating Temperature: -20°C to +50°C
• Material: Plastic

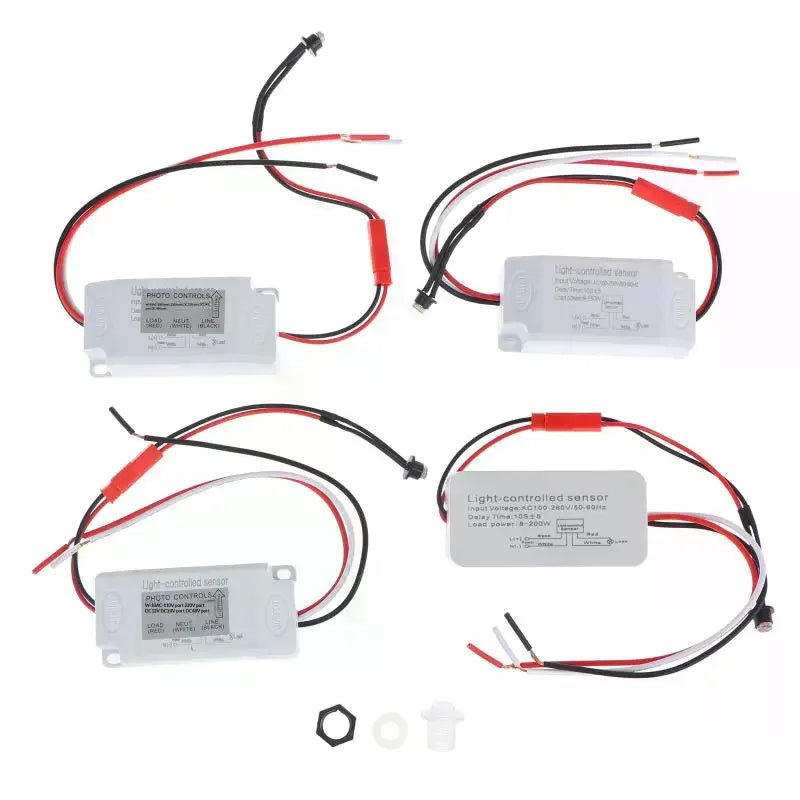

• Styles: Regular | Over Surge (lightning protection)
• Country of Origin: Made in Mainland China

Ideal Applications

• Street and roadway lighting
• Corridor, hallway, and aisle lights
• Advertising and signage light boxes
• Traffic and license plate illumination
• Security and monitoring fill lights
• Schools, factories, and commercial facilities

Installation Tips

• Do not install in particularly dark areas during the day or in areas directly illuminated by always-on lights, as this may affect automatic detection.
• During daytime testing, cover the photosensitive probe with an opaque material to simulate nighttime conditions.
• Connect white and black wires to the power supply; connect white and red wires to the load.

Package Contents

• 1 × Photoelectric Sensor Switch (CDS-W10)

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "All Guests Approved By The Dog" Funny Canvas Wall Art Print

For more information on electrical safety standards for consumer electronics, visit the U.S. Consumer Product Safety Commission (CPSC).

Learn more: Light switch

Frequently Asked Questions

Q: What voltage does this photoelectric sensor switch support?

A: The HELTC CDS-W10 is available in three voltage options: DC 12V, DC 24V, and AC 100–260V. Please select the correct voltage for your lighting circuit before purchase.

Q: How does the automatic dusk-to-dawn function work?

A: The switch uses a high-sensitivity photosensitive probe to continuously measure ambient light levels. When brightness falls below 30 LUX (dusk/night), the connected light turns on automatically. When brightness rises above 150 LUX (dawn/daytime), it turns off — all without any manual intervention.

Q: Is this sensor switch suitable for outdoor use in rainy or harsh weather?

A: Yes. The switch is designed to be rainproof and operates reliably across a wide temperature range of -20°C to +50°C, making it suitable for outdoor installations in varying weather conditions.

Q: What is the difference between the Regular style and the Over Surge style?

A: The Regular style is the standard photoelectric sensor switch. The Over Surge style includes built-in lightning and voltage surge protection, making it a better choice for areas prone to electrical surges or lightning activity.

Q: How do I wire the photoelectric sensor switch?

A: Wiring is straightforward with three color-coded wires: the Black wire connects to input Line (L); the White wire connects to input/light source Neutral (N); and the Red wire connects to the light source Line (L). Always follow local electrical codes and consult a qualified electrician if unsure.
