NanoVNA Testboard VNA Test Demo Board Vector Network Analyzer Testing
NanoVNA Testboard VNA Test Demo Board Vector Network Analyzer Testing
Couldn't load pickup availability
Discover the NanoVNA Testboard VNA Test Demo Board Vector Network Analyzer Testing, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: FGHGF
Semi-finishedproduct: No

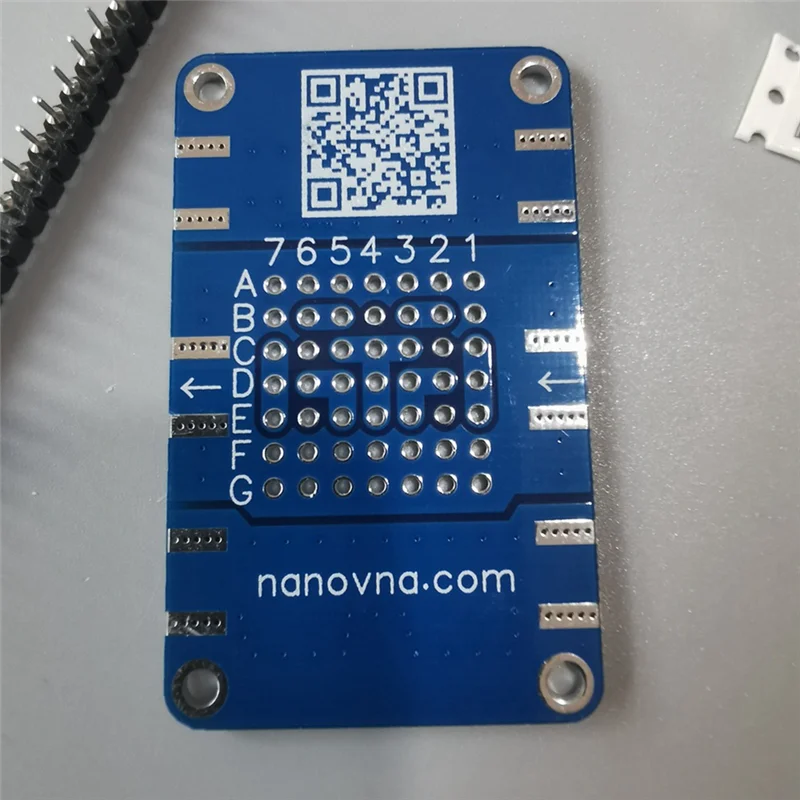

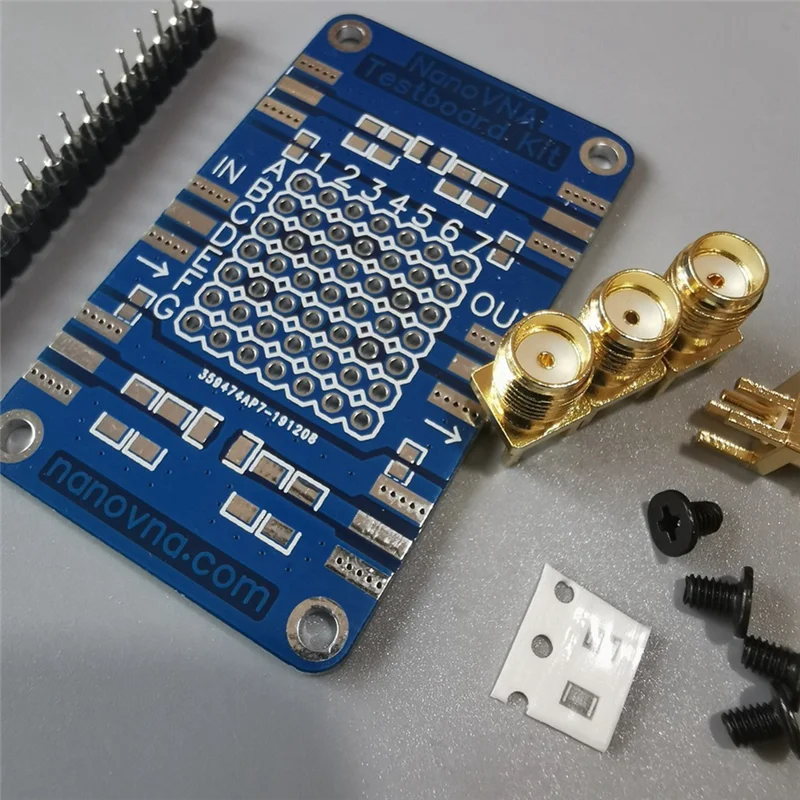

NanoVNA Testboard kit VNA Test Demo Board

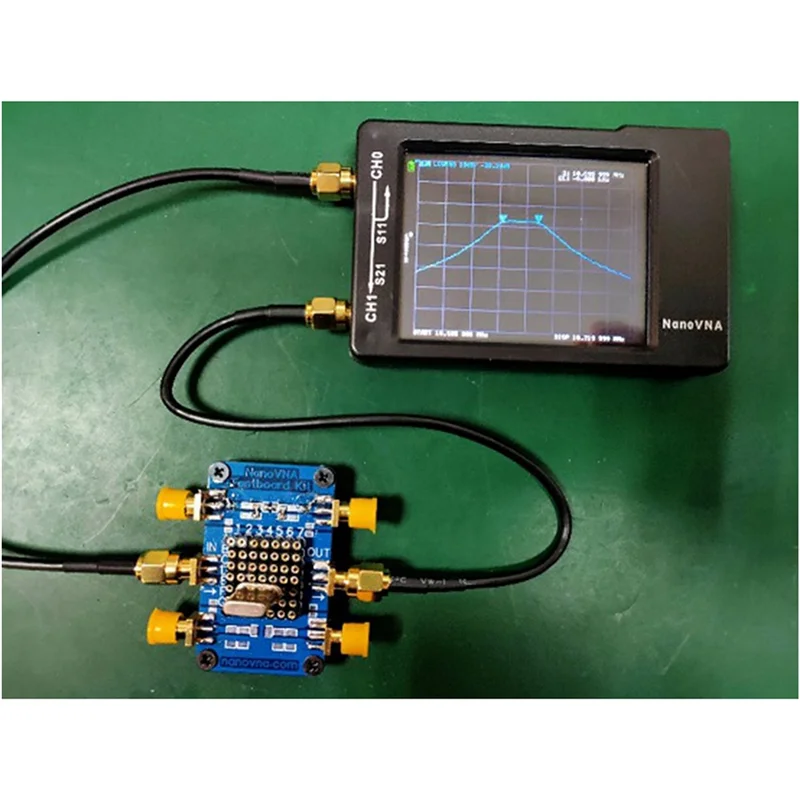

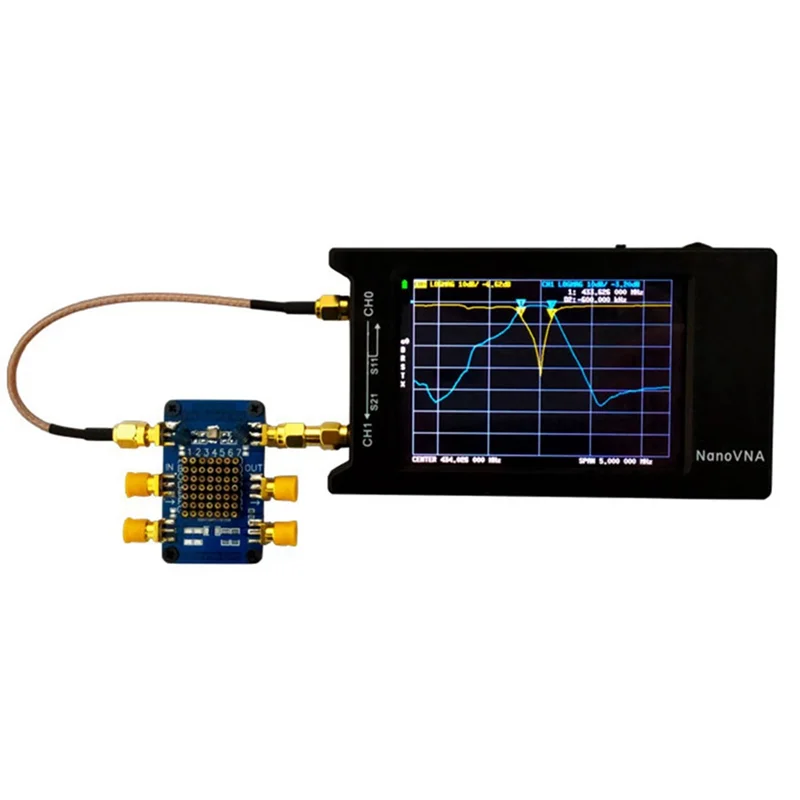

This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement DIP and SMT devices.
This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added. The SMT circuit cannot fully consider various test conditions. Some parts of the test may need to be cut over. Please ensure that you have enough Hands-on ability. This circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs, our store is not responsible for circuit guidance.
Colour:As shown
Material:PC+Metal

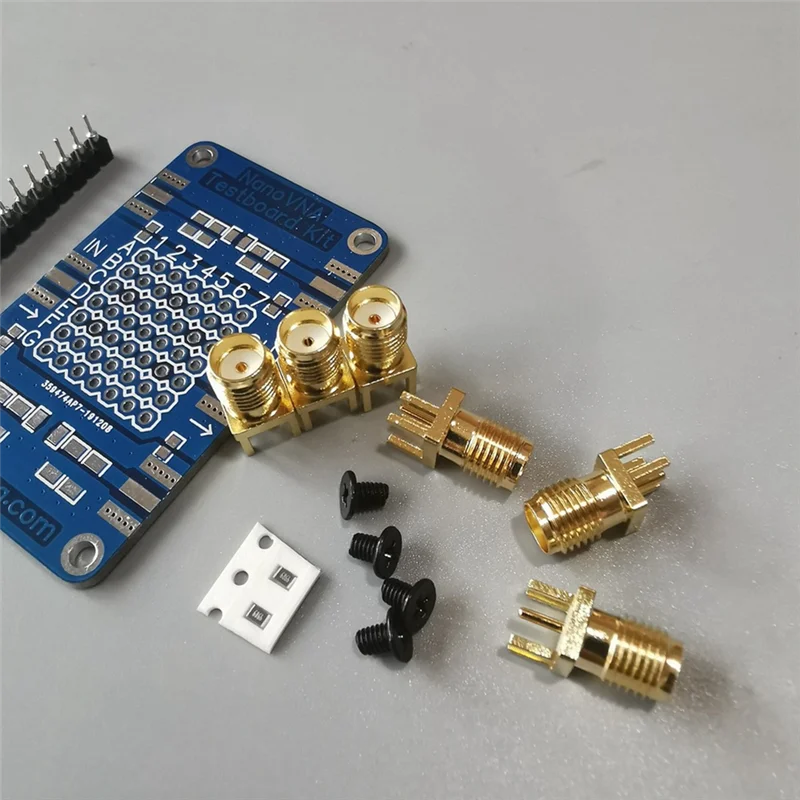

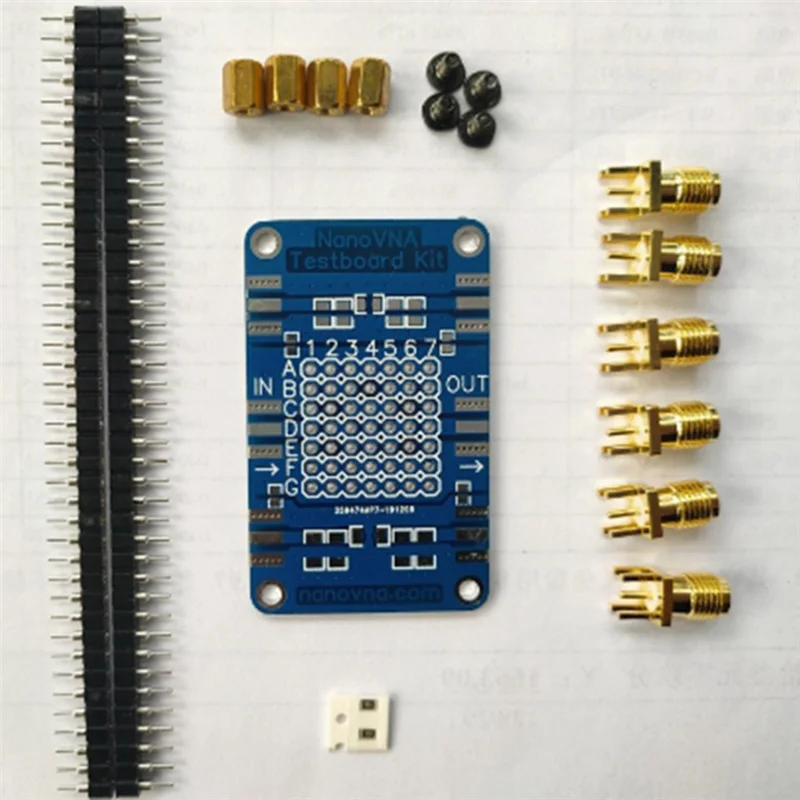

Package Contents:
1 x Testboard main board
6 x SMA female head
4 x 6mm copper stud
4 x M2.5 screw
2 x 40pin round row seat
2 x 0805 49R9 Calibration resistance
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Options
- Color: green
Frequently Asked Questions
Q: What is the NanoVNA Testboard VNA Test Demo Board Vector Network?
A: The NanoVNA Testboard VNA Test Demo Board Vector Network is a quality decor pick. This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.
Q: What is the NanoVNA Testboard VNA Test Demo Board Vector Network made of?
A: The NanoVNA Testboard VNA Test Demo Board Vector Network is made from PC+Metal Package Contents.
Q: Why choose the NanoVNA Testboard VNA Test Demo Board Vector Network?
A: The NanoVNA Testboard VNA Test Demo Board Vector Network stands out in our decor range — The SMT circuit cannot fully consider various test conditions.
