N20 Micro Gear Motor DC 3V–6V | 28–300RPM Metal Gearbox DIY

$6.53 USD

~~$0.00 USD~~ $6.53 USD

Sale Sold out

Shipping calculated at checkout.

Speed(RPM) 40RPM 28RPM 60RPM 300RPM

N20 Micro Mini Gear Motor – Precision DC Motor for DIY Projects

Whether you're building a robot, automating a small mechanism, or powenting a DIY toy, the N20 Micro Gear Motor delivers reliable, low-speed torque in an incredibly compact package. Featuring a full metal gearbox, permanent magnet brush commutation, and a wide operating voltage range of DC 3V to 6V, this mini motor is engineered for precision and durability across a huge range of maker applications.

Choose from six speed variants to perfectly match your project's requirements — from ultra-slow 28 RPM to a brisk 300 RPM. The all-metal reducer gearbox ensures smooth power transfer and long service life even under continuous use.

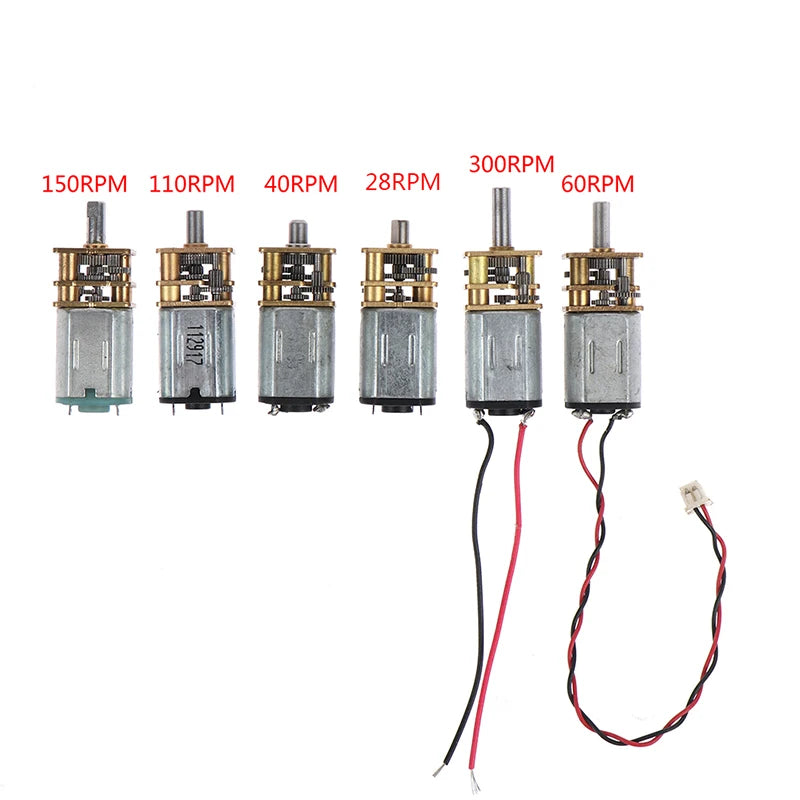

Available Speed Variants

Model	Nominal Voltage	No-Load Speed	No-Load Current	Operating Voltage	Speed Range
A1 – 40RPM	DC 5V	40 RPM	20 mA	DC 3V–6V	24–48 RPM
A2 – 60RPM	DC 5V	60 RPM	50 mA	DC 3V–9V	30–108 RPM
A3 – 28RPM	DC 5V	28 RPM	20 mA	DC 3V–6V	17–33 RPM
A4 – 150RPM	DC 3.7V	150 RPM	80 mA	DC 1.5V–5V	60–200 RPM
A5 – 300RPM	DC 5V	300 RPM	30 mA	DC 3V–6V	180–360 RPM
A6 – 110RPM	DC 5V	110 RPM	60 mA	DC 3V–6V	66–130 RPM

Key Features

Full Metal Gearbox: All-metal reducer gears for superior durability and smooth, consistent torque output.
Multiple Speed Options: Six RPM variants (28, 40, 60, 110, 150, 300 RPM) to suit any project.
Wide Voltage Compatibility: Operates on DC 3V–6V (some models up to 9V), compatible with batteries, microcontrollers, and power banks.
Permanent Magnet Brush Motor: Provides stable, efficient operation at low voltages.
Ultra-Compact N20 Form Factor: Miniature size fits tight spaces in robots, toys, automation rigs, and more.
CE Certified: Meets European conformity standards for quality and safety.
Low Power Draw: Efficient no-load current as low as 20 mA — ideal for battery-powered builds.

Perfect For

DIY Robots & Robotics Projects
RC Vehicles & Hobby Builds
Educational STEM & Maker Projects
Automated Camera Sliders & Turntables
Small Appliances & Motorized Toys
Arduino, Raspberry Pi & Other Microcontroller Platforms

Made in Mainland China.

Explore More DIY & Maker Products

For more information on electrical motor safety standards and best practices in DIY electronics, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What voltage should I use to power the N20 gear motor?

A: Most N20 gear motor variants in this listing operate optimally at DC 5V, with a compatible range of DC 3V–6V (the A2/60RPM model supports up to 9V, and the A4/150RPM model works down to 1.5V). Always check the specific variant's operating voltage before connecting to a power source.

Q: Can I use the N20 gear motor with an Arduino or Raspberry Pi?

A: Yes! The N20 micro gear motor is highly compatible with Arduino, Raspberry Pi, and similar microcontroller platforms. Simply use an appropriate motor driver module (such as an L298N or DRV8833) to control speed and direction from your microcontroller's GPIO pins.

Q: What is the difference between the RPM variants?

A: RPM (Revolutions Per Minute) determines how fast the output shaft spins. Lower RPM variants (28–60 RPM) deliver more torque for moving heavier loads slowly, while higher RPM variants (150–300 RPM) spin faster but with less torque. Choose based on whether your project needs slow, powerful movement or faster, lighter rotation.

Q: Is the gearbox truly all-metal?

A: Yes, these N20 motors feature a full metal gearbox (reducer), meaning all internal gears are made of metal rather than plastic. This results in greater durability, reduced wear, and better performance under load compared to plastic-geared alternatives.
