Multimeter Test Hook Clips – SMD IC Clamp, Gold-Plated Probe
Multimeter Test Hook Clips – SMD IC Clamp, Gold-Plated Probe
Couldn't load pickup availability

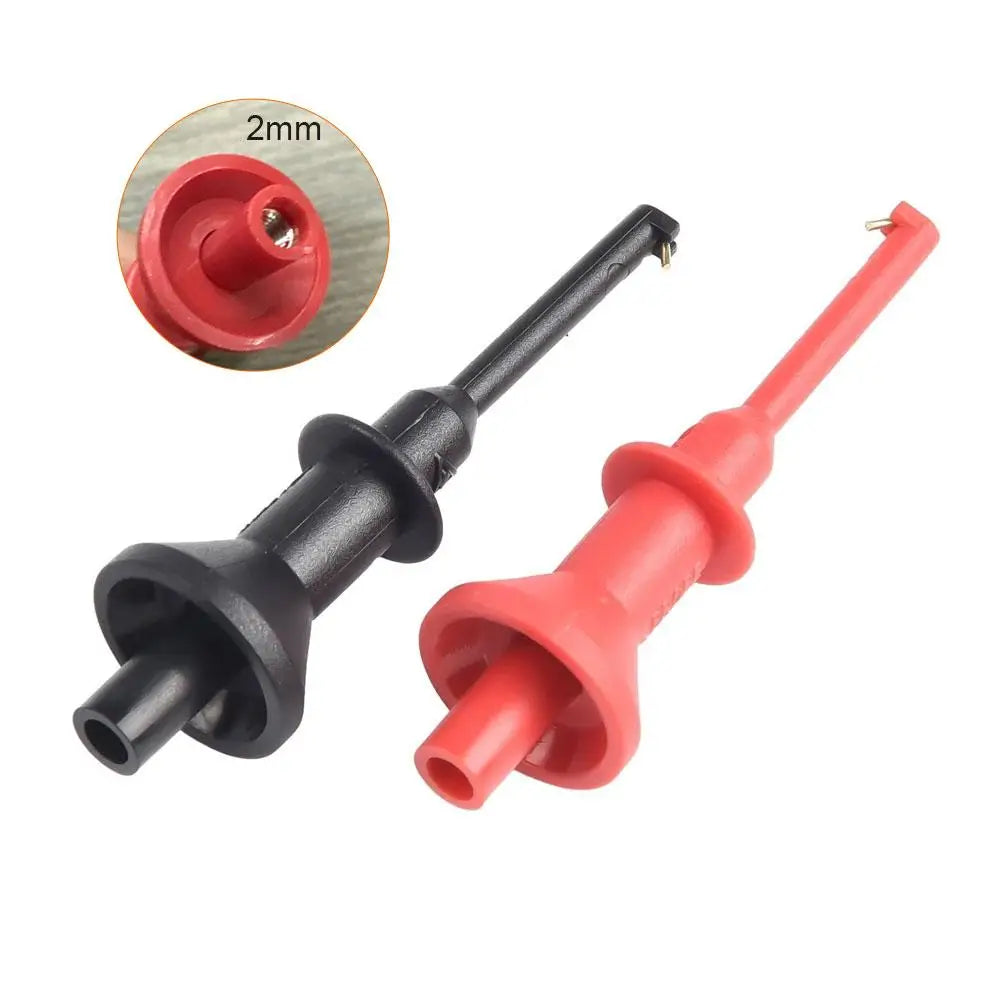

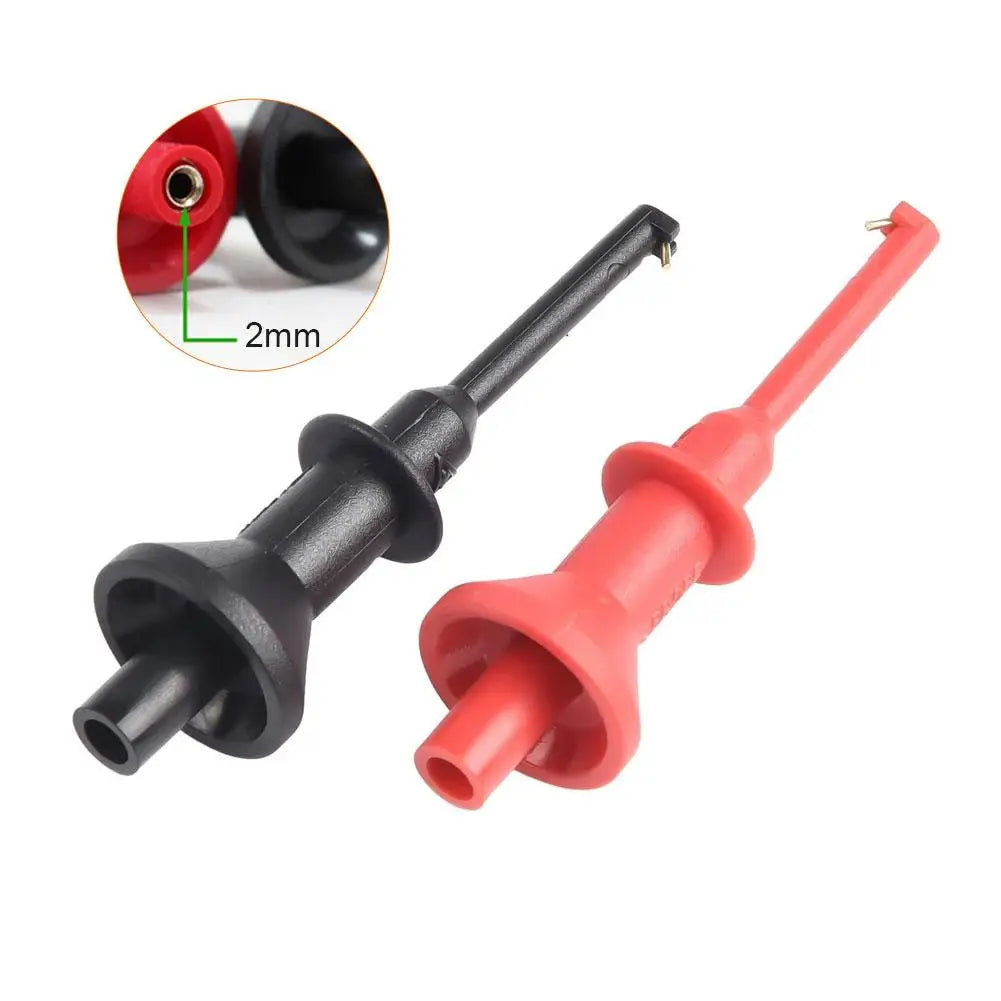

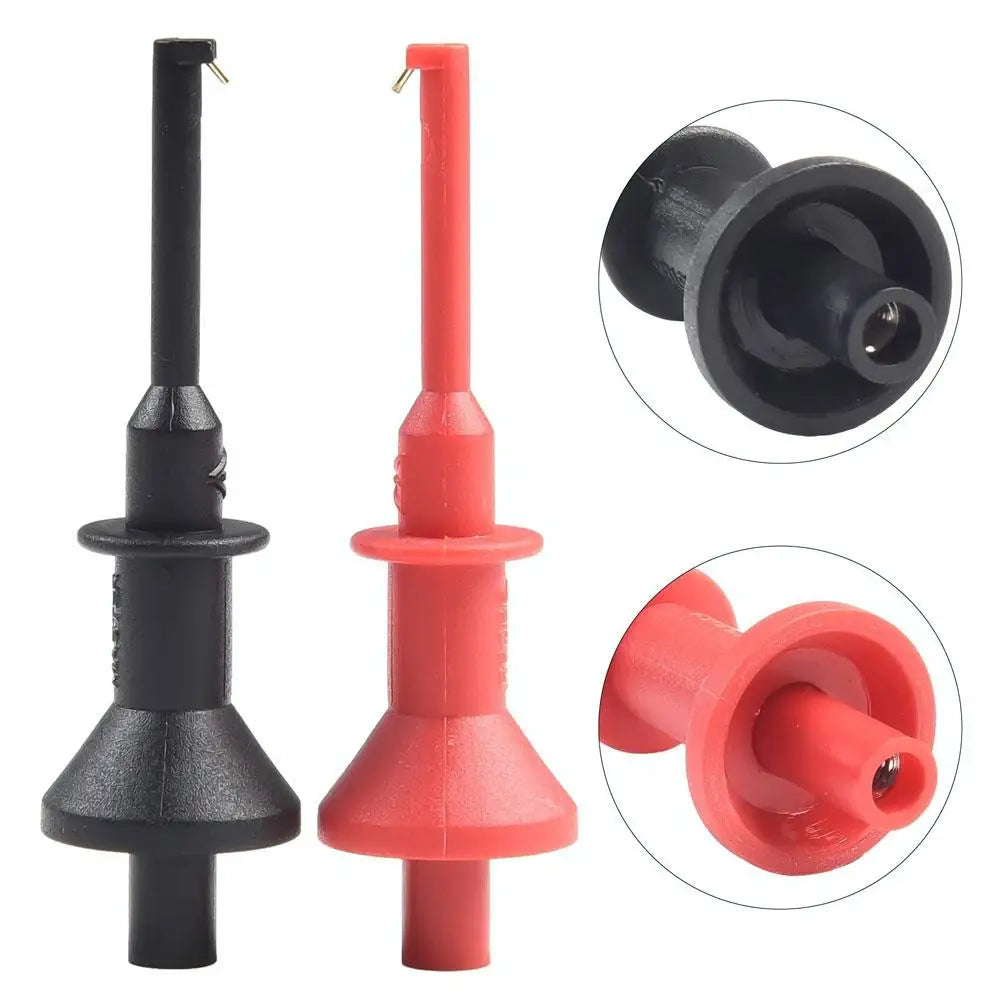

Multimeter Test Hook Clips – Gold-Plated SMD IC Clamp Probes
Get precise, reliable electrical measurements with these professional-grade multimeter test hook clips. Featuring gold-plated phosphor bronze tips and a spring-loaded telescopic mechanism, these test hooks deliver superior conductivity and a secure grip on even the smallest test points — perfect for SMD components, IC chips, circuit boards, and general electrical diagnostics.
Key Features
- Universal Compatibility: Standard 2mm direct plug-in interface connects effortlessly to most common test leads, probes, and multimeters — no adapters needed.
- Gold-Plated Phosphor Bronze Tip: Ensures superior conductivity, minimal signal loss, and long-lasting durability even with frequent use.
- Spring-Loaded Telescopic Mechanism: Provides a firm, stable grip on test points for accurate, hands-free readings during complex diagnostics.
- CAT III 1000V Safety Rating: CE-certified with a comfortable insulated safety handle — engineered for safe operation in demanding electrical environments.
- Compact & Precise Dimensions: Total rod length ~6.2 cm (2.44 in), hook tip extends up to 0.75 cm (0.30 in), with a 0.2 cm (0.08 in) plug-in interface.
- Wide Application: Ideal for electricians, electronics hobbyists, automotive technicians, PCB designers, and lab professionals.
Specifications
| Tip Material | Gold-Plated Phosphor Bronze |
| Body Material | Insulating Plastic |
| Interface | 2mm Direct Plug-In / Compatible with 4mm & M4 |
| Total Length | ~6.2 cm (2.44 in) |
| Hook Extension | Up to 0.75 cm (0.30 in) |
| Safety Rating | CAT III 1000V |
| Certification | CE |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 Pair of Test Hook Clips (as selected)
Explore Related Products
- 0–60MPa Pressure Gauge for S60H Diesel Injector Nozzle Tester
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
For general electrical safety guidance and best practices when working with test equipment, refer to the OSHA Electrical Safety Standards.
Frequently Asked Questions
Q: What multimeters are these test hook clips compatible with?
A: These multimeter test hook clips feature a standard 2mm direct plug-in interface and are also compatible with 4mm and M4 interfaces, making them suitable for the vast majority of handheld multimeters, oscilloscopes, and other electrical test equipment on the market.
Q: Are these test hooks safe for high-voltage applications?
A: Yes. These test hook clips carry a CAT III 1000V safety rating and are CE-certified. The insulated safety handle provides reliable protection during high-voltage electrical testing, making them appropriate for professional and hobbyist use in demanding environments.
Q: What is the advantage of a gold-plated phosphor bronze tip?
A: Gold plating on the phosphor bronze tip ensures excellent electrical conductivity, resists corrosion and oxidation over time, and maintains reliable signal integrity — even after repeated use. This makes the probes ideal for precision SMD IC testing and sensitive circuit measurements.
Q: Can these clips grip onto small SMD components and IC pins?
A: Absolutely. The spring-loaded telescopic hook mechanism is specifically designed to clamp securely onto very fine test points, including SMD (surface-mount device) components and IC chip pins, ensuring a stable connection without damaging delicate circuitry.
