MPPT Solar Controller Dual USB Port Backlit LCD Display Panel

Discover the MPPT Solar Controller Dual USB Port Backlit LCD Display Panel — a standout decor pick featuring multifunctional design for dependable, everyday performance.

Specifications

Brand Name: KKMOON

MPPT Solar Charge Controller Dual USB Port Backlit LCD Display Solar Panel Regulator 12V 24V 36V 48V Adaptive:

Feature:

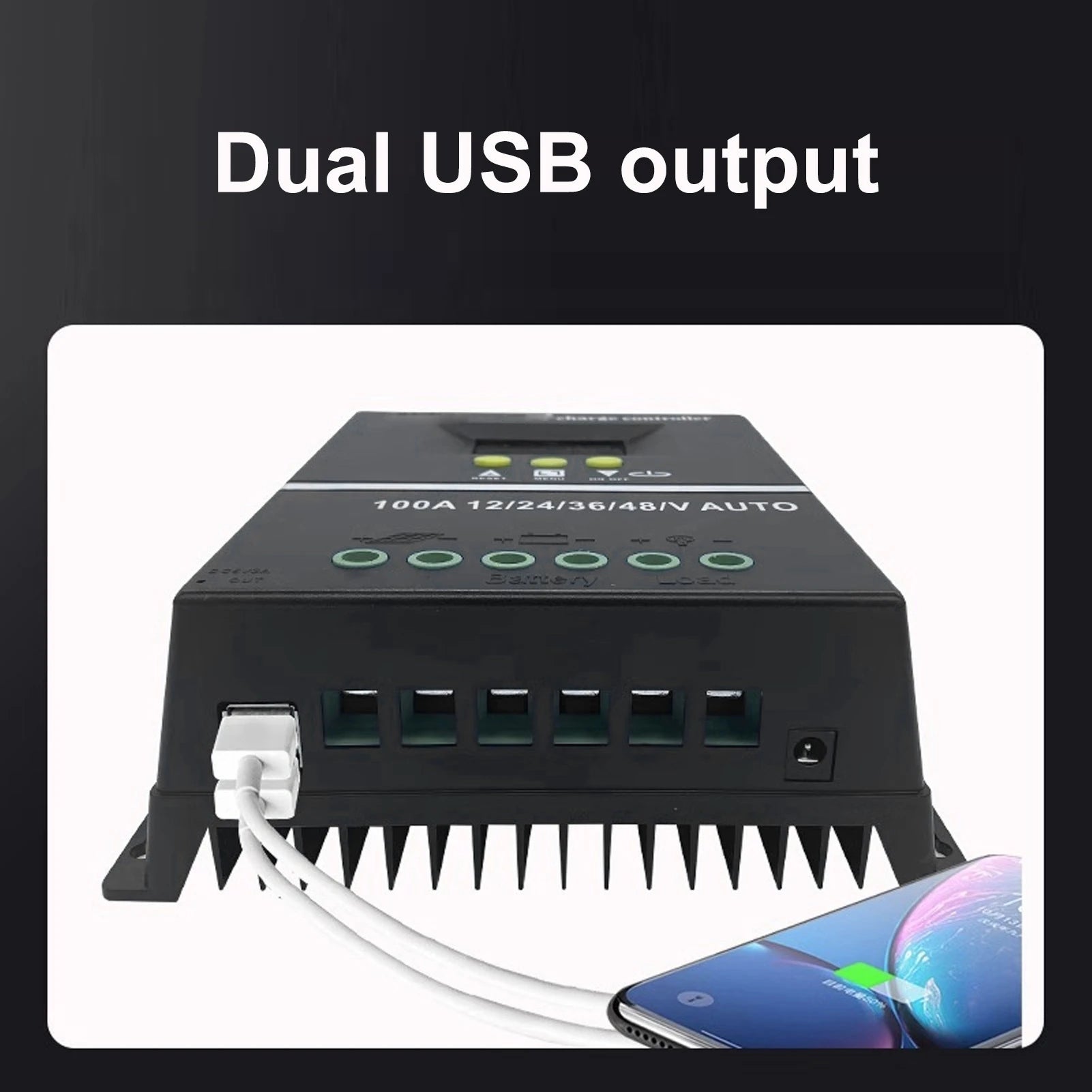

1. MPPT TECHNOLOGY: 100A MPPT solar controller, using advanced MPPT maximum power point tracking technology algorithm, 12V, 24V, 36V, 48V automatic identification; Dual USB 5V charging ports can quickly track the maximum power point of PV system in any environment, and the tracking efficiency is not less than 99.5%. Significantly improved the energy utilization efficiency of solar systems.
2. MULTIFUNCTIONAL DESIGN: A multifunctional LCD with backlight display and clock display, with 7 working modes, charging mode, light control mode, light, delay control mode, universal control mode, manual control mode, and timing control mode.
3. SAFETY VOLTAGE PROTECTION: MPPT solar controller with voltage protection, including battery overvoltage and overcurrent protection, power failure protection, overcharging protection, deep discharge protection, reverse connection protection, and overheating temperature protection.

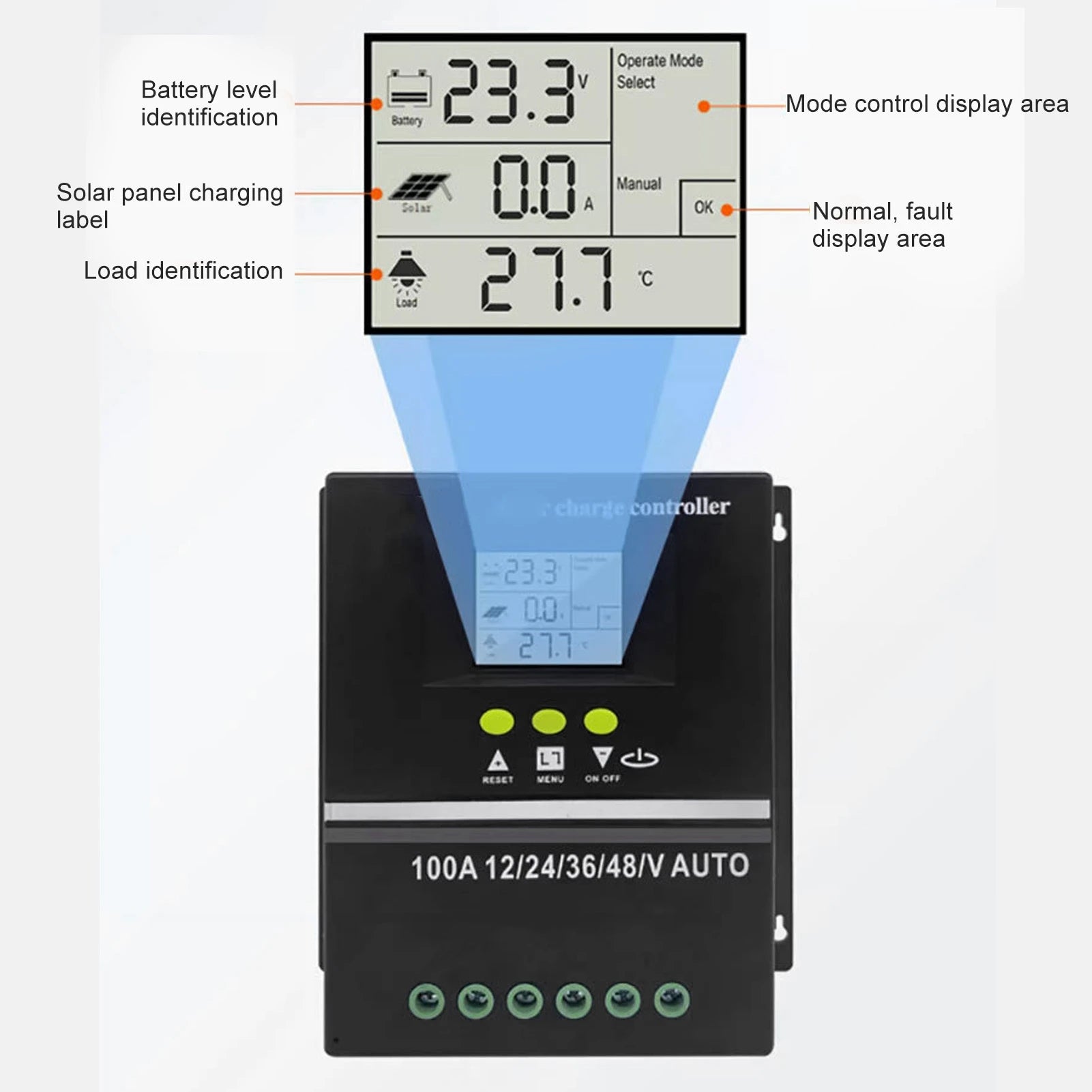

4. USER FRIENDLY DESIGN: LCD displays are designed to dynamically display the operating data and working status of devices. Controller parameter display (working mode, battery voltage, photovoltaic charging current, battery discharge current, product operating temperature, delay time).
5. MULTIPLE BATTERY CHARGING OPTIONS: Compatible with for GEL, for Flooded, and for LifePO4 battery charging.

Specification:

Item Type: Solar Charge Controller
Material: ABS
Rated Current: 100A
Maximum Solar Input (Voc): 15-23V (12V battery); 30-45V (24V battery); 45-69V (36V battery); 60-90V (48V battery)
Maximum Photovoltaic Input Power: 1200W (12V battery); 2400W (24V battery); 3600W (36V battery); 4800W (48V battery)

How to Use:

1. Charging Method: Under no circumstances shall discharge be allowed. 2. Light Control Mode: When the controller detects night, it will delay for ten minutes and then start discharging; When it detects daytime, it will delay for ten minutes and then stop discharging. 3. Light and Delay Control Mode: When the controller detects night, the controller will delay for ten minutes before starting to discharge and countdown (if the timer stops at 0), The discharge will stop. The maximum delay time is 23:59. 4. General Control Method: Always maintain discharge without any faults. 5. Manual Control Mode: Use "▼" to check whether to discharge. 6. Timing Control Method: Regularly turn on or off the discharge. 7. Test Mode: Same as the lighting and delay control modes, but only loses ten minutes of delay. 8. The controller still discharges under low voltage protection. The touch screen "▼" lasts for 5 seconds, and the discharge continues to output.

Package List:

1 x Controller

:

:

Frequently Asked Questions

Q: What is the MPPT Solar Controller Dual USB Port Backlit LCD Display?

A: The MPPT Solar Controller Dual USB Port Backlit LCD Display is a quality decor pick. Significantly improved the energy utilization efficiency of solar systems.

Q: What is the MPPT Solar Controller Dual USB Port Backlit LCD Display made of?

A: The MPPT Solar Controller Dual USB Port Backlit LCD Display is made from ABS Rated Current.

Q: Why choose the MPPT Solar Controller Dual USB Port Backlit LCD Display?

A: The MPPT Solar Controller Dual USB Port Backlit LCD Display stands out in our decor range — MULTIFUNCTIONAL DESIGN: A multifunctional LCD with backlight display and clock display, with 7 working modes, charging mode, light control mode, light, delay control mode, universal control mode, manual control mode, and timing control mode.
