Mini DC Voltmeter Ammeter 0-100V 10A Dual LED Display Panel Meter
Mini DC Voltmeter Ammeter 0-100V 10A Dual LED Display Panel Meter
Couldn't load pickup availability

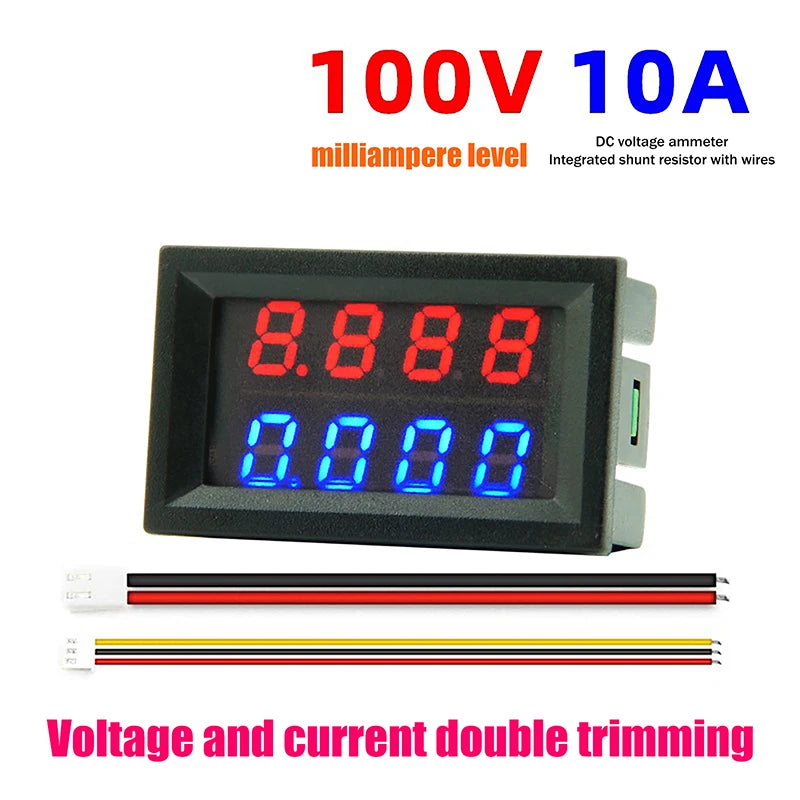

Compact Dual-Display Voltmeter & Ammeter for DC Circuits
Monitor your DC circuits with confidence using this Mini 4-Digit Digital Voltmeter Ammeter. Featuring a bright dual LED display, this compact 5-wire panel meter simultaneously reads voltage (0–100V DC) and current (0–9.999A), making it the ideal monitoring solution for solar systems, battery banks, power supplies, RC vehicles, and DIY electronics projects.
Key Features
- Dual Measurement: Simultaneously displays DC voltage (0–100V) and current (0–9.999A) on two clear LED readouts
- High-Precision 4-Digit Display: Approximately 0.28-inch LED digits for easy, accurate reading at a glance

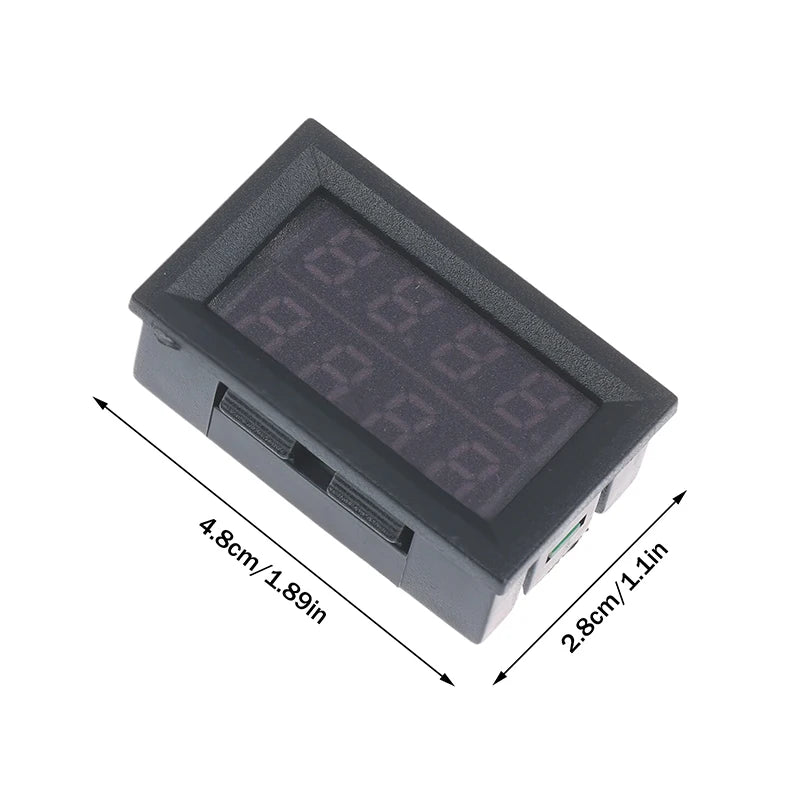

- Compact Form Factor: Tiny 48 × 28 mm (1.89 × 1.1 in) body fits neatly into panel cutouts, enclosures, or DIY builds
- Wide Working Voltage Range: Operates on DC 4V–30V supply, compatible with most low-voltage systems
- Wide Operating Temperature: Reliable performance from -10°C to 65°C (-14°F to 149°F)
- Stable & Long-Lasting: Built with high-quality components for efficient, durable, and consistent performance
- Easy Installation: 5-wire connection for straightforward panel mounting — no soldering expertise required
Technical Specifications
| Measuring Voltage | DC 0 – 100V |
| Measuring Current | 0.000 – 9.999A |
| Working Voltage | DC 4V – 30V |
| Display Size | ~0.28 inch LED |
| Display Type | Dual 4-Digit LED |
| Wire Configuration | 5-wire |
| Operating Temperature | -10°C to 65°C |
| Dimensions | 48 × 28 mm / 1.89 × 1.1 in |
| Battery Included | No |
What's in the Box

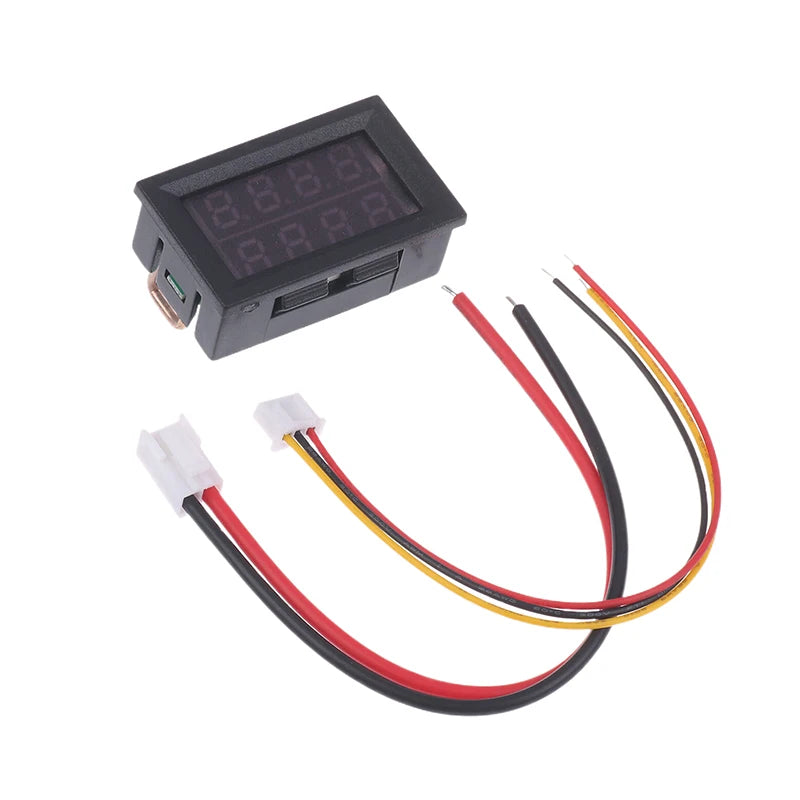

- 1 × Mini Digital Voltmeter Ammeter (with 5 pre-wired leads)
Perfect For
- Solar panel and battery monitoring systems
- DIY power supply builds and bench testers
- Electric vehicle and RC hobby applications
- Arduino, Raspberry Pi, and maker board projects
- Automotive and marine DC circuit monitoring
Made in Mainland China.
For more electronics inspiration and project ideas, explore our related products:
For safety guidelines related to electrical DIY projects, refer to the U.S. Consumer Product Safety Commission (CPSC) and OSHA's Electrical Safety Resources.
Frequently Asked Questions
Q: What is the voltage and current measurement range of this mini digital voltmeter ammeter?
A: This dual LED display meter measures DC voltage from 0 to 100V and DC current from 0.000 to 9.999A (approximately 10A). It requires a separate working supply voltage of DC 4V–30V to power the display itself.
Q: How do I wire this 5-wire voltmeter ammeter to my circuit?

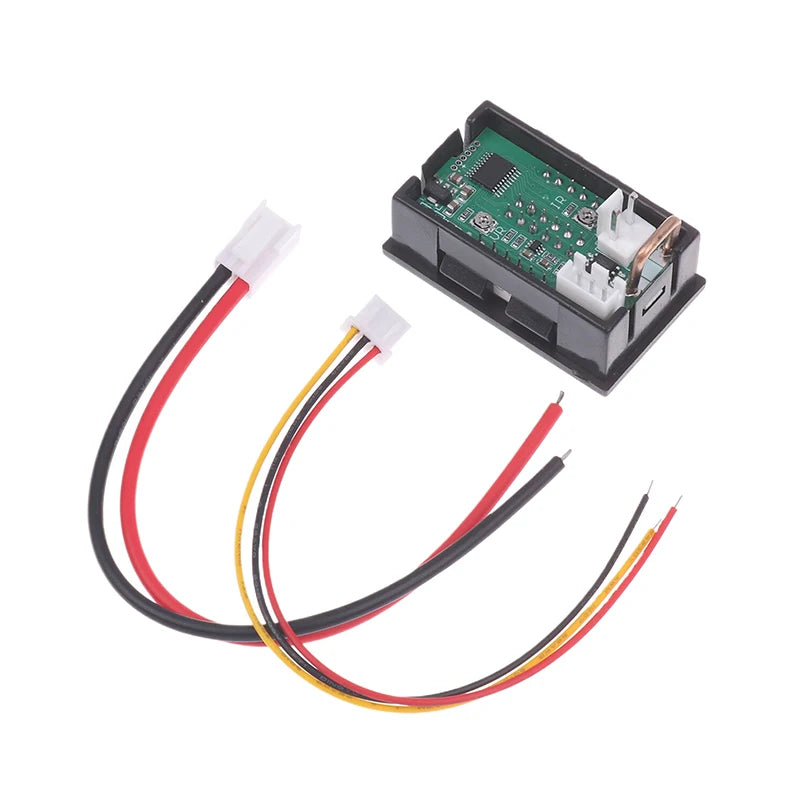

A: The 5-wire configuration includes two wires for the power supply (to drive the display), two wires connected across the voltage measurement points, and one wire for current sensing (in series with the load). A wiring diagram is typically printed on the module itself or included with the product. Always ensure your circuit is de-energized before connecting.
Q: Can I use this voltmeter ammeter for solar panel or battery monitoring?
A: Yes! This mini panel meter is widely used in solar charging systems, battery bank monitors, DIY power supplies, and any DC application where simultaneous voltage and current readings up to 100V / 10A are needed.
Q: What panel cutout size do I need to mount this meter?
A: The module body measures 48 × 28 mm (1.89 × 1.1 in). You should prepare a panel cutout slightly smaller than the bezel dimensions to allow a snug fit. Check your specific mounting enclosure dimensions before installation.
