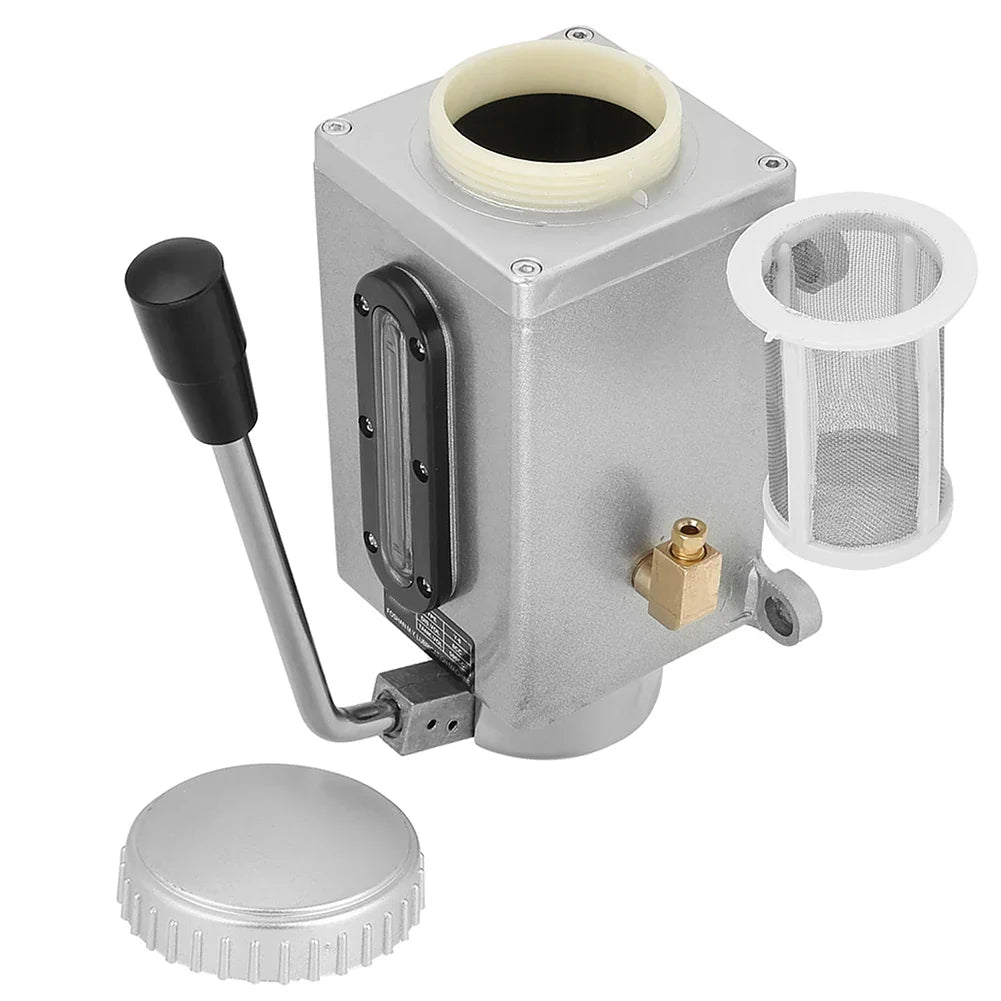

Manual Double Outlet Lubrication Oil Pump – CNC & Lathe

Manual Double Outlet Lubrication Oiler Pump for CNC Milling, Lathe & Cutting Machines

Keep your CNC milling machine, lathe, punching machine, and cutting equipment running smoothly with this Manual Double Outlet Lubrication Oil Pump. Built from premium-grade metal with wear-resistant and corrosion-resistant construction, this hand-operated oiler pump delivers reliable, consistent lubrication with every pull of the handle — no electricity or compressed air required.

Made in China Mainland.

How It Works

Simply pull the handle: the plunger pushes oil out of the cylinder through the dual discharge ports. Release the handle, and the spring-driven plunger automatically draws fresh oil back in. This simple, efficient mechanism ensures smooth, continuous lubrication exactly where you need it. The pump can be paired with a throttling distributor to form a complete lubrication system, and is compatible with oil viscosity grades N20 to N1000.

Key Features

• Dual Outlet Ports – Left and right discharge ports deliver oil to two lubrication points simultaneously
• Wear & Corrosion Resistant – Premium metal construction built to withstand demanding workshop environments
• Hand-Operated Convenience – No power source needed; simple pull-action delivers precise lubrication
• High-Quality Seals – Precision seals minimize leakage and maintain consistent pressure
• High-Pressure Output – Max discharge pressure of 15 kgf/cm² for effective oil delivery
• Generous 500cc Capacity – Reduces the frequency of refilling during extended operations
• CE Certified – Meets European safety and performance standards

Technical Specifications

Compatible Applications

• CNC Milling Machines
• Lathe Machines
• Punching Machines
• Cutting Machines
• General industrial machinery requiring manual lubrication

Package Contents

• 1× Manual Hand Lubrication Pump (Double Outlet)

Please Note: Actual color may vary slightly from images due to lighting. Please allow 1–3 cm deviation due to manual measurement.

For workplace machinery safety guidelines, refer to the OSHA Machine Guarding Resource.

Related Products You May Like

• 0-60MPa Pressure Gauge for S60H Diesel Injector Nozzle Tester
• 0–160 PSI Liquid-Filled Fuel Pressure Gauge | 1/8 NPT AN6
• 1-Inch Threaded Brass Ball Valve – Water, Gas & Oil Flow Control

Frequently Asked Questions

Q: What machines is this manual lubrication oil pump compatible with?

A: This double outlet manual lubrication pump is compatible with a wide range of industrial machinery including CNC milling machines, lathe machines, punching machines, and cutting machines. It can also be integrated into broader lubrication systems using a throttling distributor.

Q: What oil viscosity grades are recommended for this pump?

A: The pump is recommended for use with oil viscosity grades N20 through N1000, covering a wide range of standard machine lubricants. Always check your machine's lubrication requirements before selecting an oil grade.

Q: Does this pump require electricity or air pressure to operate?

A: No — this is a fully manual, hand-operated pump. Simply pull the handle to dispense oil and release it to refill the cylinder via spring action. No electrical connection or pneumatic source is needed, making it highly portable and easy to use anywhere in the workshop.

Q: How does the dual outlet port work?

A: The pump features two discharge ports — one on the left and one on the right — allowing simultaneous lubrication of two separate points on your machinery with each stroke of the handle. This improves efficiency and reduces the time needed to lubricate multiple components.
