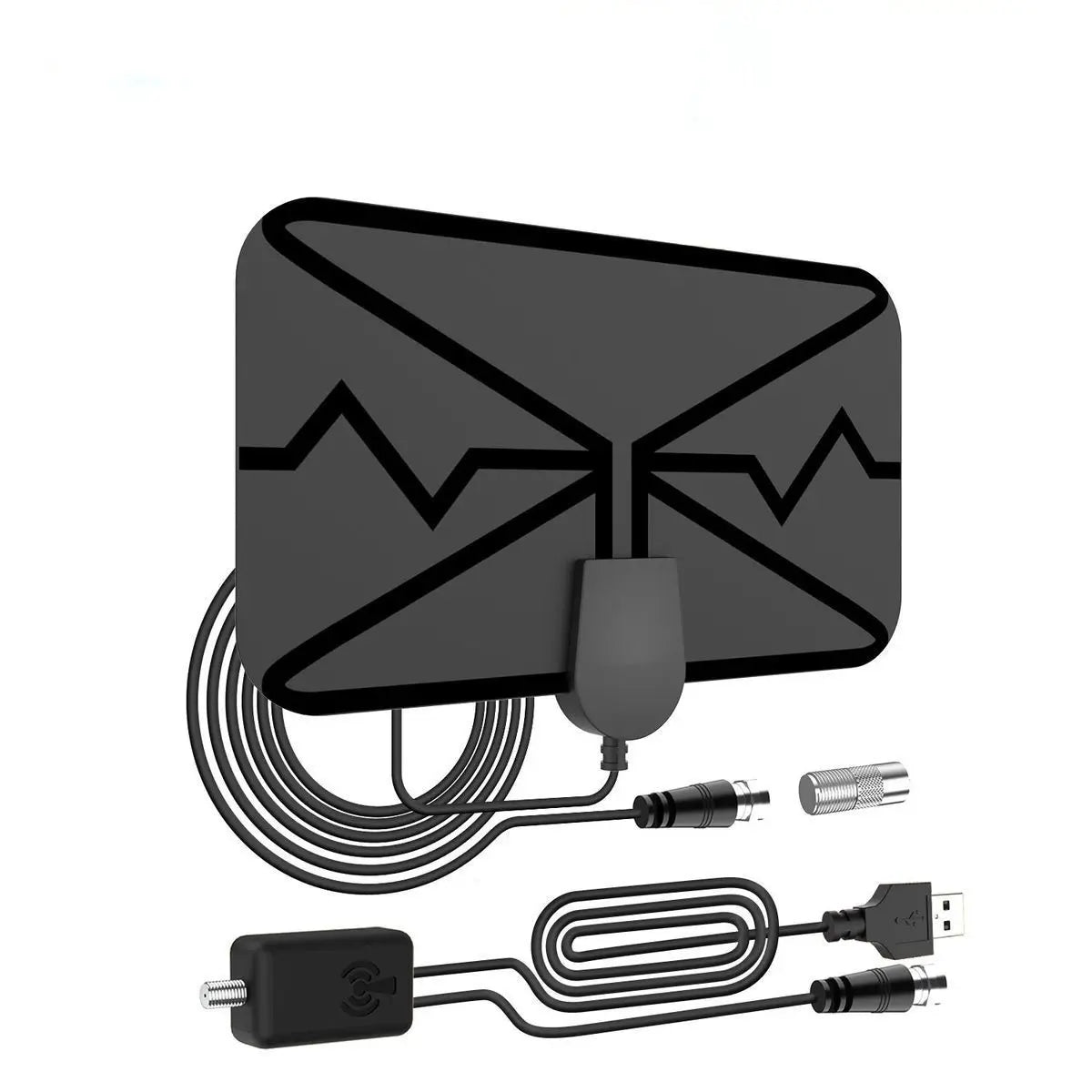

Long-Range Indoor & Outdoor HD TV Antenna – 50 Mile, 1080p

Pick Up Free HD Channels with This Long-Range Digital TV Antenna

Cut the cable bill and start enjoying free over-the-air broadcast television in stunning 1080p HD. This upgraded indoor/outdoor digital terrestrial antenna delivers up to a 50-mile reception range, 25 dBi gain, and multi-directional capability — making it one of the most versatile antennas for city apartments, suburban homes, and rural rooftops alike. Made in Mainland China.

Key Features

• 50-Mile Range & 25 dBi Gain — Pulls in strong, clear signals from broadcast towers up to 50 miles away.
• 1080p Full HD Support — Enjoy crystal-clear picture quality on any compatible digital TV.
• Wide Multi-Standard Compatibility — Works with DVB-T/T2, ISDB-T, DMB-T/H, ATSC, DTMB and HDTV signals for use worldwide.

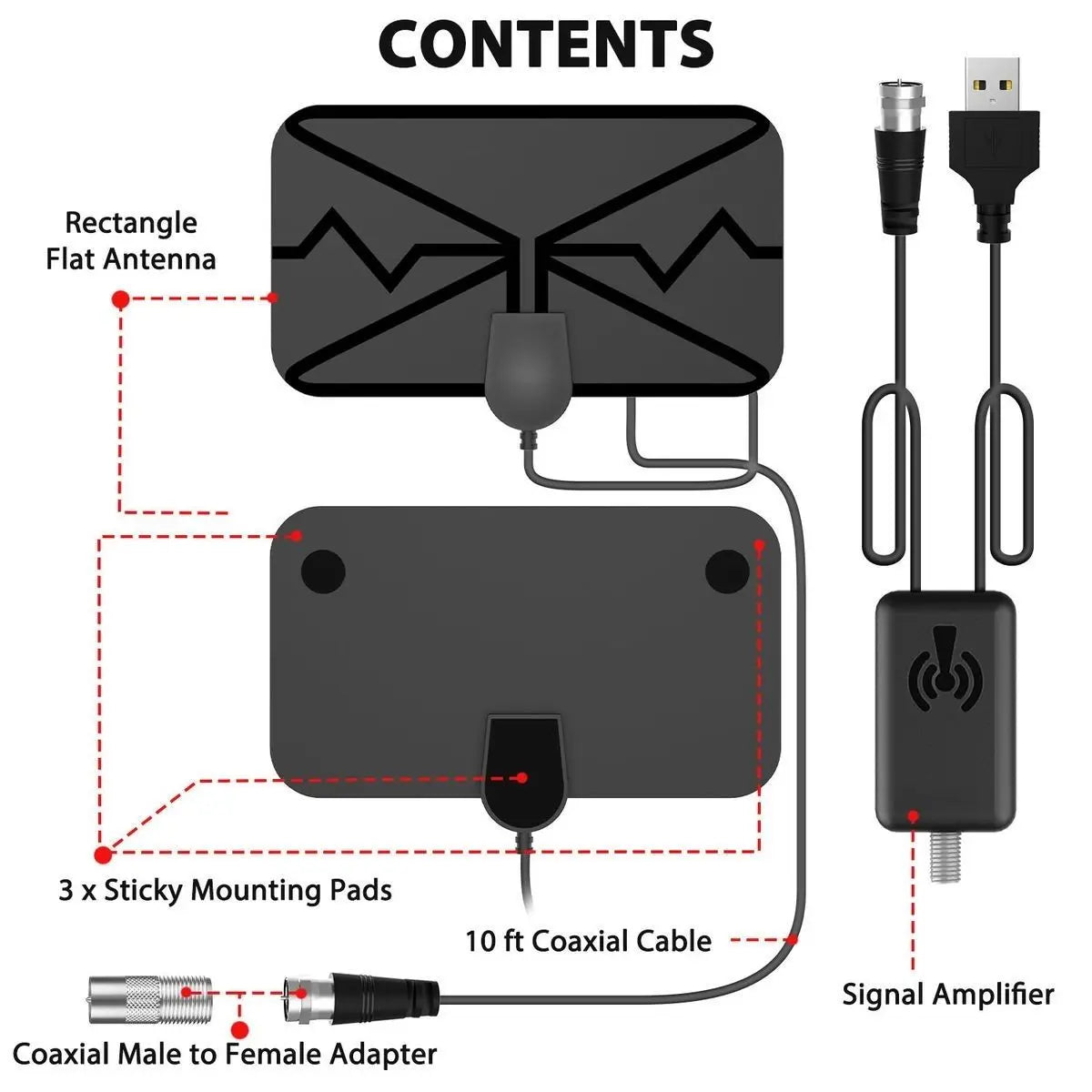

• Long 3.6m Antenna Cable + 3.0m Coaxial Cable — Plenty of length to position the antenna at the optimal spot (window, balcony, or rooftop) while keeping your TV setup tidy.
• Magnetic Suction Cup Mount — Quick, tool-free installation on metal window frames or other metal surfaces.
• Certified & Safe — CE, RoHS, and FCC certified. 75-ohm impedance, VSWR ≤ 1.5.
• Free Channels — Access all available free-to-air broadcast channels in your area with no monthly subscription.
• Durable Build — Operating and storage temperature range: -45°C to 85°C. Black antenna panel, 210 × 140 mm.

Technical Specifications

• Model: Ant309
• Frequency Range: 174–240 MHz & 470–862 MHz
• Gain: 25 dBi
• Impedance: 75 Ω
• VSWR: ≤ 1.5
• Coaxial Cable Length: 3.0 m
• Total Antenna Length: 3.6 m
• Connector: TV head with F adapter

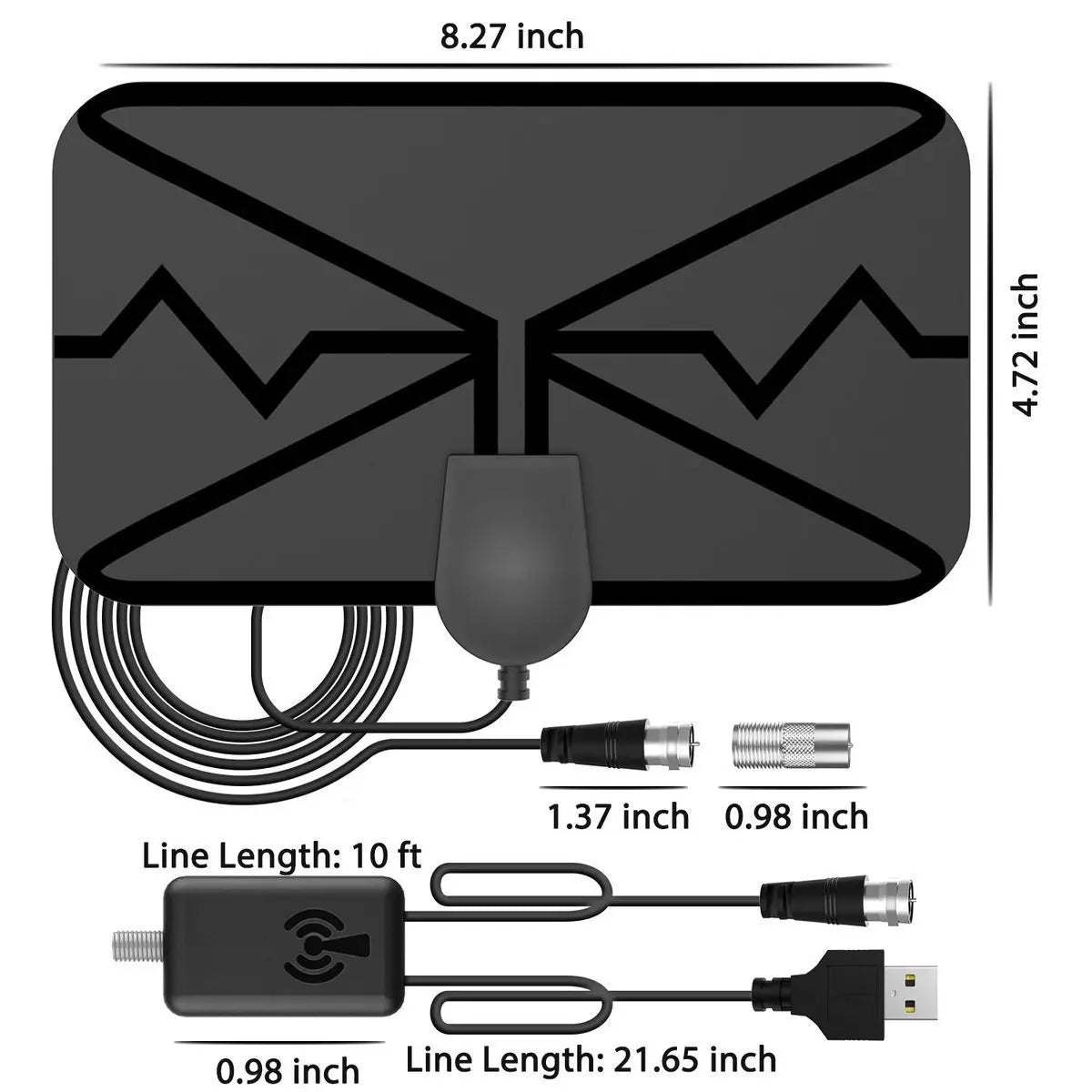

• Antenna Size: 210 × 140 mm
• Net Weight: 110 g
• Certifications: CE, RoHS, FCC
• Country of Origin: Made in Mainland China

⚠️ Important — Please Read Before Ordering

This antenna works only if the following three conditions are met in your location:

1. Digital TV (or digital set-top box): You need a modern digital TV or a compatible ground-wave digital set-top box. Older analog TVs are not supported.

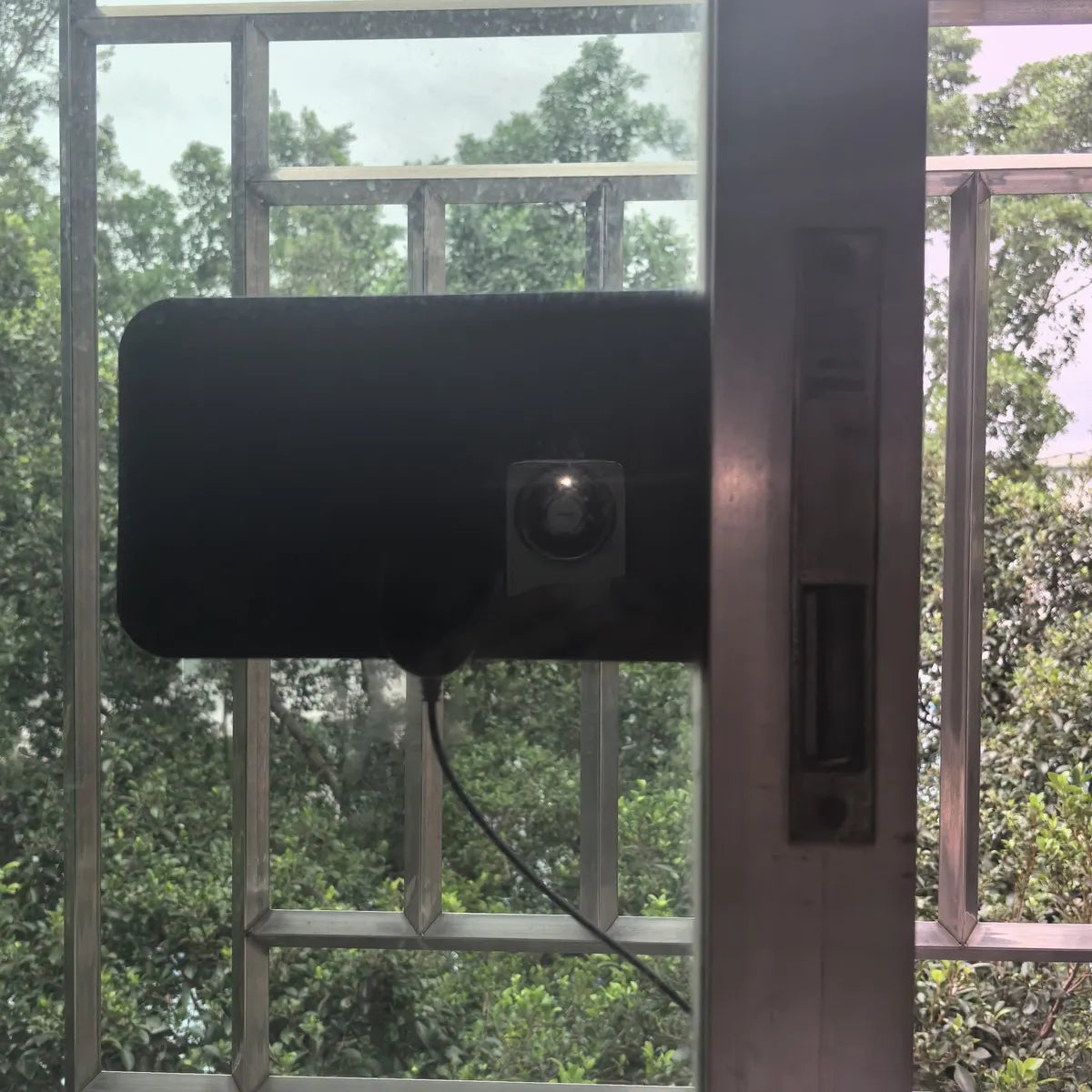

2. Optimal Placement: Install the antenna at a high vantage point — second floor or above, on a window, balcony, or rooftop. Avoid placing it on the ground floor or directly beside the TV. Signal quality depends heavily on placement, so try a few spots and re-scan for channels each time you move the antenna.
3. Local Broadcast Tower: A ground-wave transmitting station must be present in your area, ideally within 30 km (urban or rural).

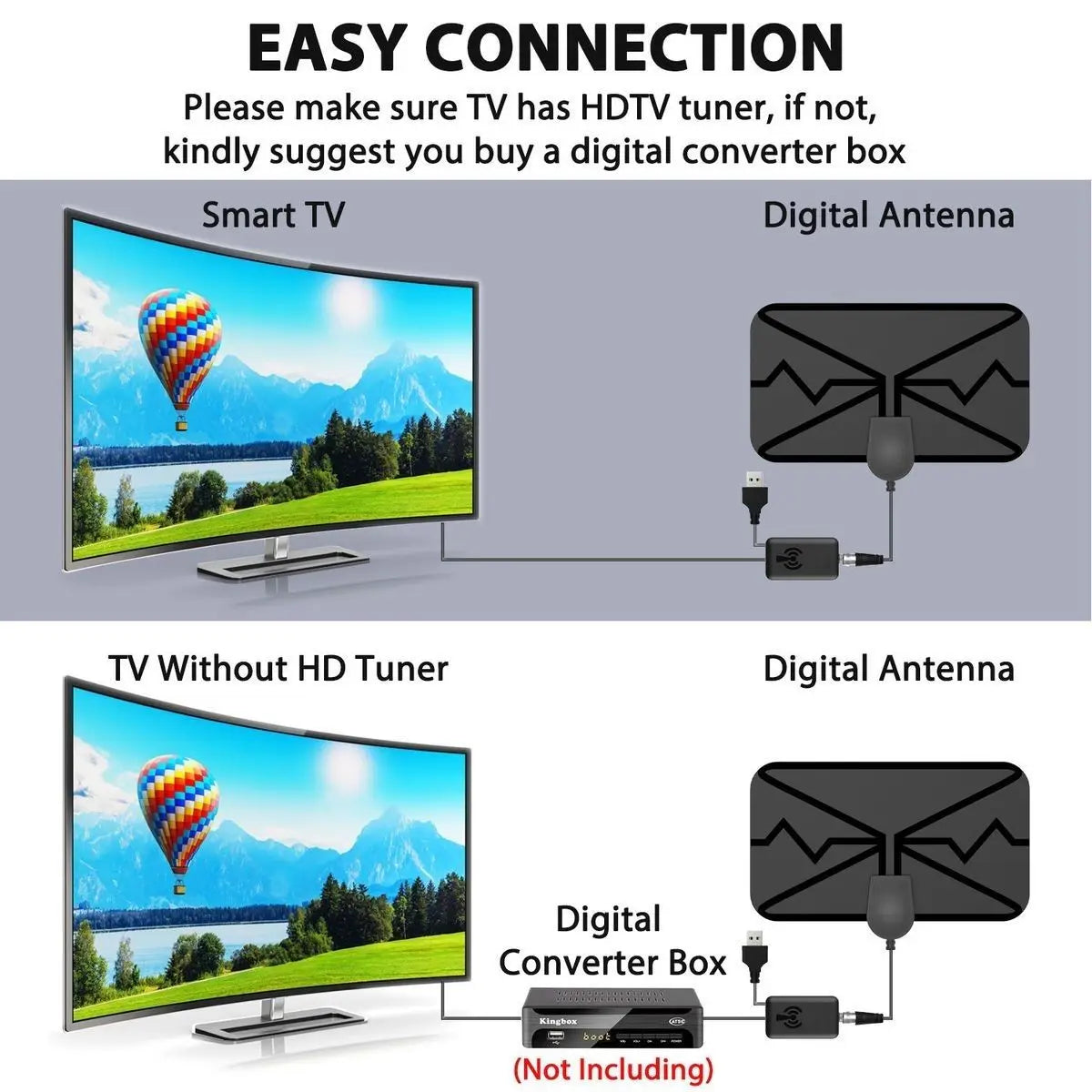

How to Set Up Your Antenna

1. Connect the antenna's coaxial cable to your TV's aerial/antenna input port.
2. Place the antenna near a window or on a balcony/rooftop at height — ensure it has a clear, unobstructed line of sight to the sky.
3. On your TV remote, press Source / Input and select "Digital TV", "DTMB", "Terrestrial", or your country's equivalent digital signal source.
4. Navigate to Menu → Channel → Auto Scan to search for available channels.
5. Reposition if needed and re-scan until you achieve the best channel count and picture quality.

Related Products You May Like

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone

For more information on over-the-air TV reception and broadcast signals, visit the FCC Consumer Guide on Over-the-Air Antennas.

Frequently Asked Questions

Q: Will this digital TV antenna work with my smart TV?

A: Yes! This antenna is compatible with any modern smart TV or digital TV that has a standard coaxial/antenna input. Simply plug it in, select the terrestrial/digital TV source on your TV, and run an auto channel scan. If your TV is older or analog, you will need a compatible digital set-top box.

Q: How far does this outdoor/indoor HD antenna reach?

A: The antenna is rated for up to a 50-mile reception range with 25 dBi gain. Real-world performance depends on your distance from broadcast towers, local terrain, and placement height. For best results, install the antenna as high as possible with a clear line of sight — such as a rooftop or second-floor balcony.

Q: What signal standards does this antenna support?

A: It supports DVB-T/T2, ISDB-T, DMB-T/H, ATSC, and DTMB standards, making it compatible with free-to-air digital broadcast systems used across North America, Europe, Asia, and beyond. It receives all available free-to-air channels in your region.

Q: Why am I not receiving any channels after plugging it in?

A: The antenna does not auto-detect channels — you must perform a manual channel scan from your TV's menu (usually under Menu → Channel → Auto Scan). Also ensure the antenna is placed near a window or outdoors at height, and that there is a local broadcast transmitter within range of your location.
