LML9C 9mm Miniature Linear Rail & Slide Block Carriage 100mm

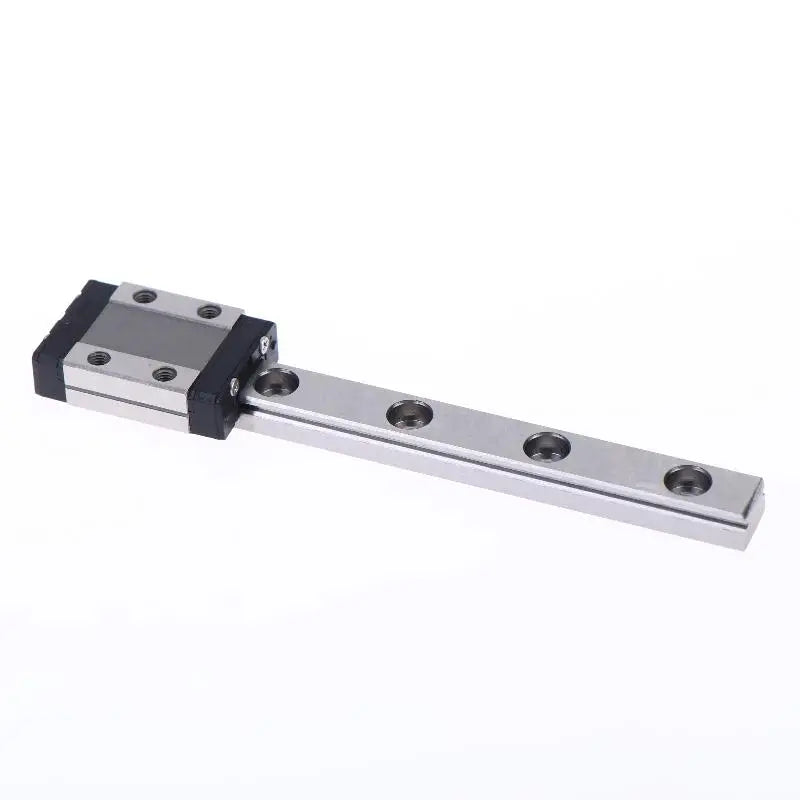

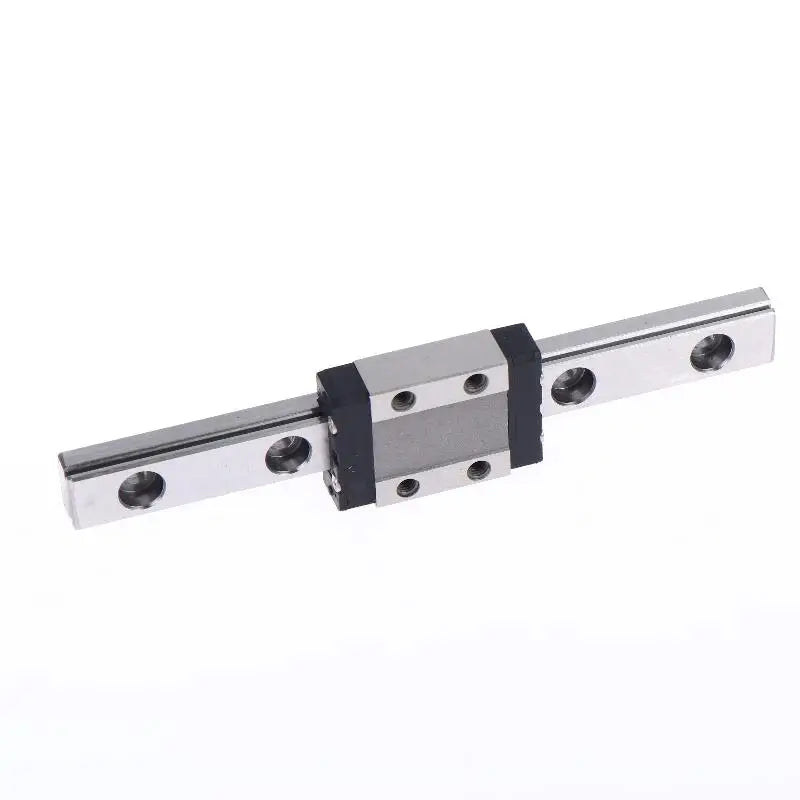

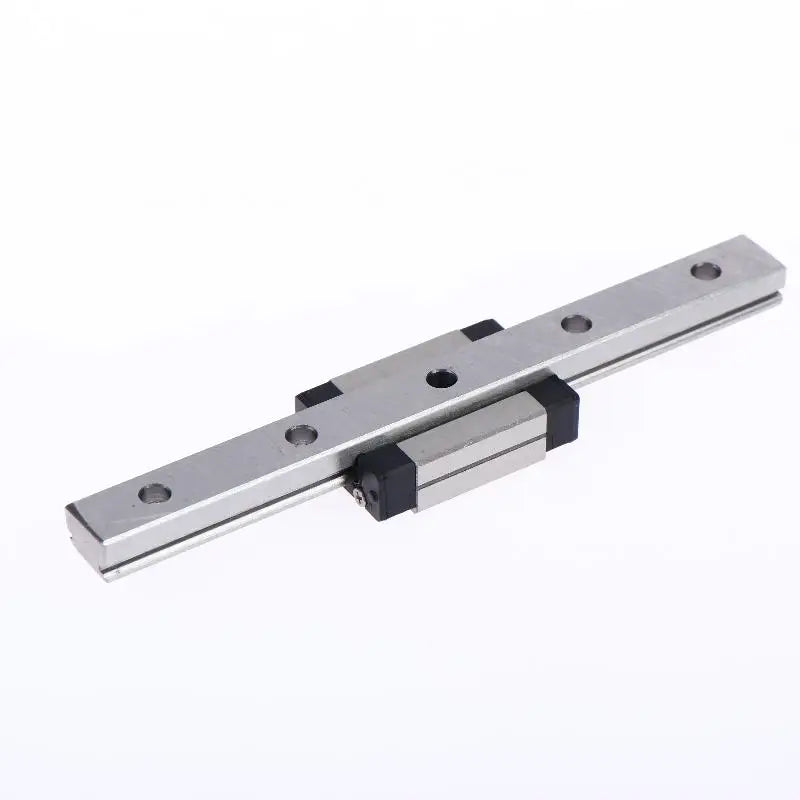

LML9C Miniature Linear Rail with Slide Block Carriage – 9mm Width, 100mm Rail

Upgrade your precision machinery with the LML9C Miniature Linear Rail — a compact, high-quality linear motion solution engineered for applications where accuracy and smooth movement are essential. Made from durable bearing steel, this 9mm-wide mini rail and carriage set delivers reliable performance in a lightweight, space-saving package.

Key Features

• Compact & Lightweight Design: Ideal for small-scale equipment, robotics, 3D printers, CNC machines, and precision measurement devices where space is at a premium.
• 4-Point Contact Design: Engineered to bear loads from every direction, offering excellent rigidity, stability, and accuracy during linear motion.

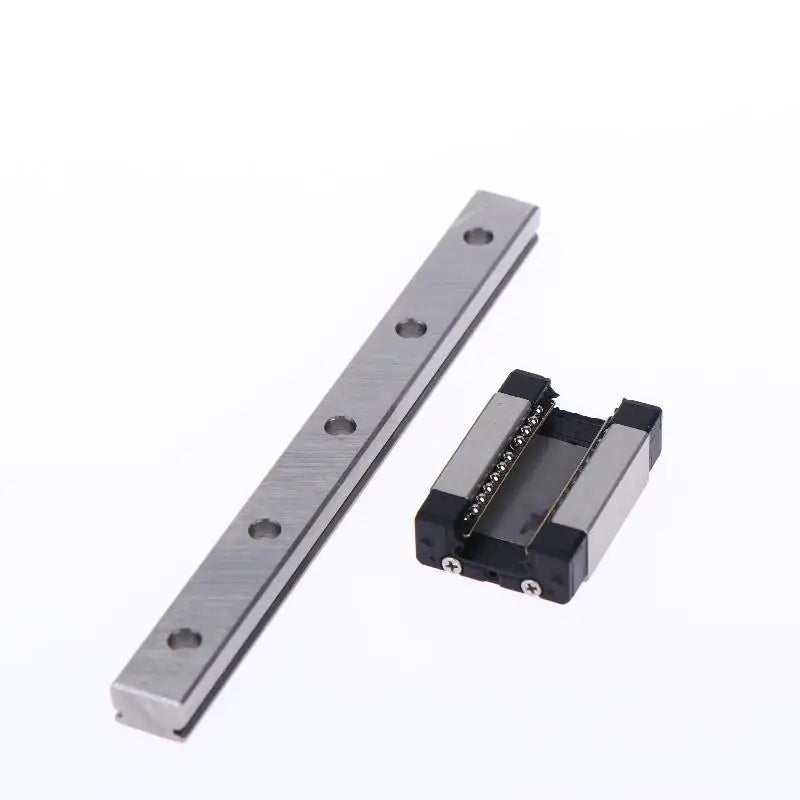

• Ball Retainer System: Ensures smooth, consistent travel and allows interchangeability even in tight-tolerance assemblies.
• Built-In Lubrication Port: The slide block features a convenient side oil inlet so lubrication oil can be applied quickly and easily, extending service life and maintaining smooth operation.
• Wide Application Range: Suitable for automated equipment, precision measuring instruments, optical stages, lab equipment, and any machine requiring accurate linear movement.

Specifications

• Model: LML9C
• Rail Width: 9mm
• Rail Length: 100mm
• Material: Bearing Steel
• Package Contents: 1 × Linear Rail + 1 × Slide Block Carriage (1 Set)
• Country of Origin: Made in China

Note: Please allow 2–3% dimensional variance due to manual measurement. Actual product color may vary slightly from images due to different monitor settings.

Learn More About Linear Motion Technology

For engineering reference standards related to precision mechanical components, visit the NIST Manufacturing Portal — a trusted resource for dimensional and materials standards in manufacturing.

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Everything Is Figureoutable" Sage Green Quote Canvas Wall Art

Frequently Asked Questions

Q: What is the rail width and length of the LML9C miniature linear rail?

A: The LML9C linear rail has a width of 9mm and a length of 100mm. It is designed for compact precision applications requiring accurate and smooth linear motion in a small footprint.

Q: What material is the LML9C linear rail made from?

A: The LML9C linear rail and slide block carriage are manufactured from bearing steel, providing excellent hardness, durability, and long-term performance under load in precision mechanical applications.

Q: What types of equipment is this miniature linear rail suitable for?

A: This linear rail is ideal for a wide range of applications including 3D printers, CNC machines, robotic arms, optical equipment, automated assembly systems, and precision measurement instruments — any application that requires smooth, accurate linear motion in a compact space.

Q: How do I lubricate the LML9C slide block carriage?

A: The slide block carriage includes a dedicated oil inlet port on the side. Simply apply lubrication oil through this port to maintain smooth operation and extend the service life of the rail and block assembly.
