LMF Series Round Flange Linear Motion Bearing 6mm–25mm
LMF Series Round Flange Linear Motion Bearing 6mm–25mm
Couldn't load pickup availability

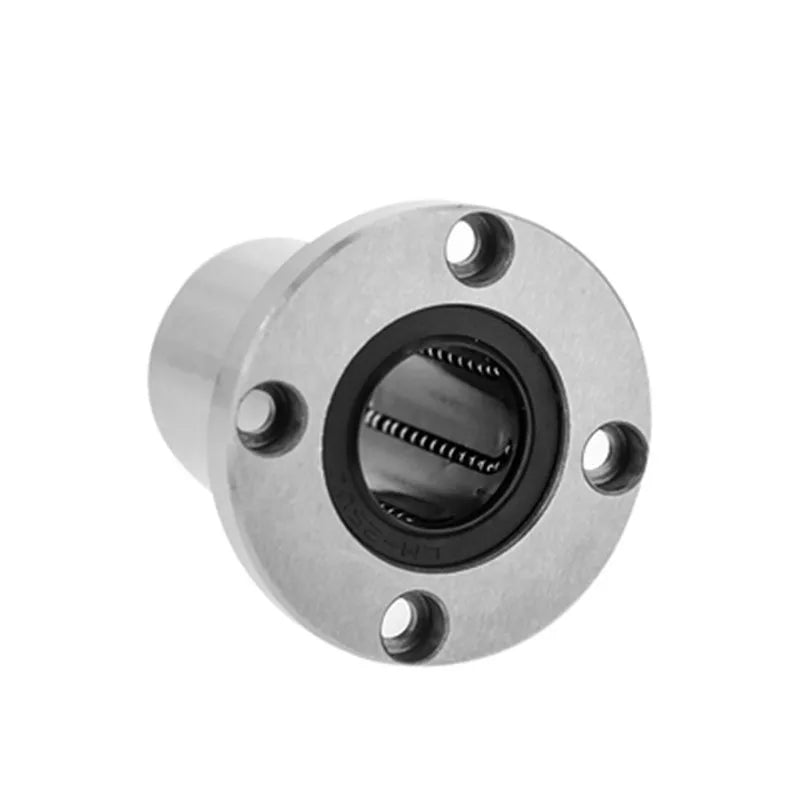

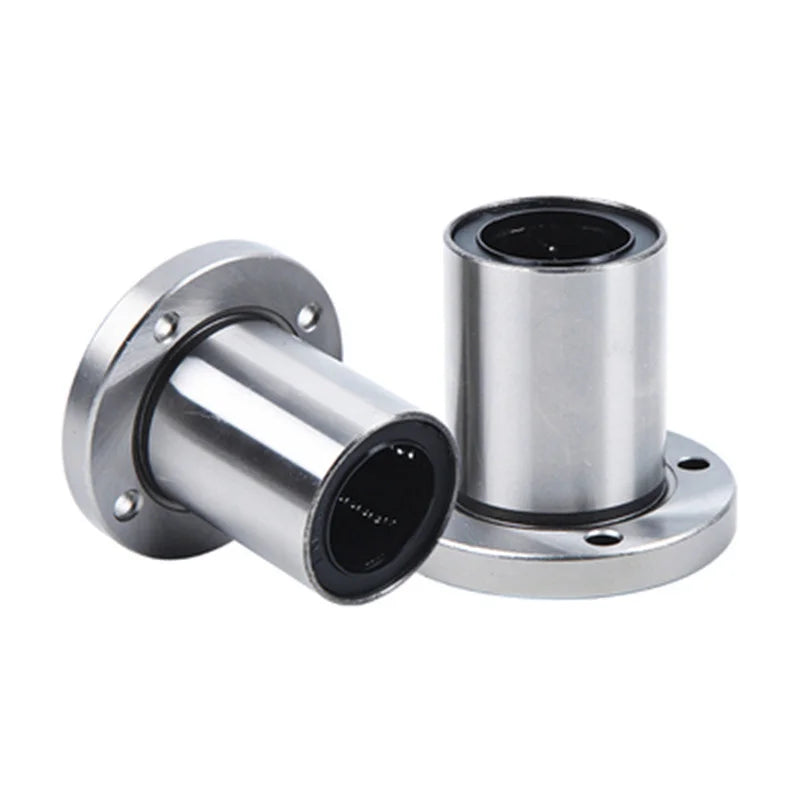

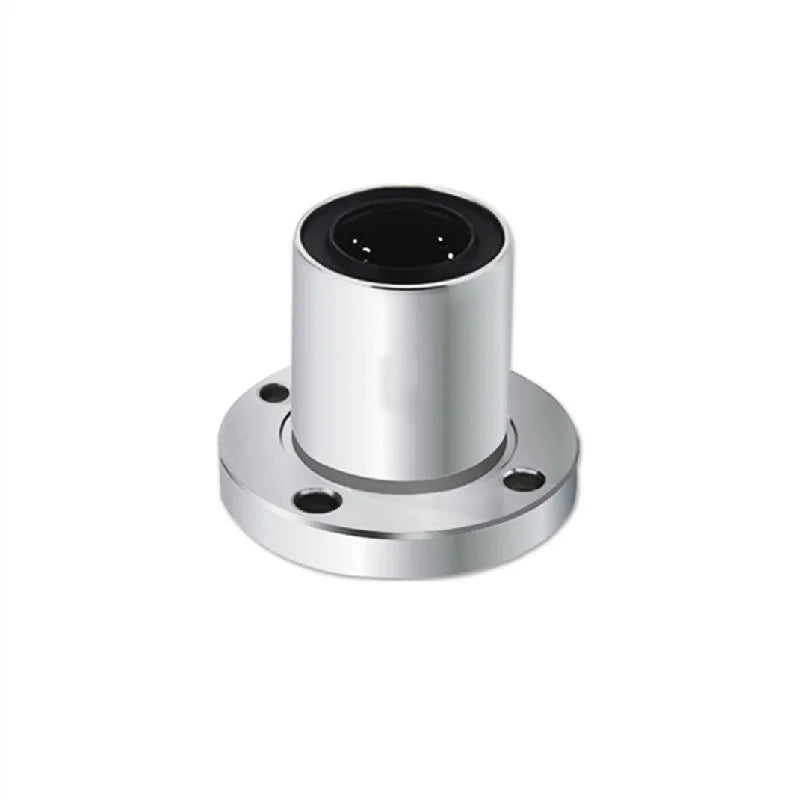

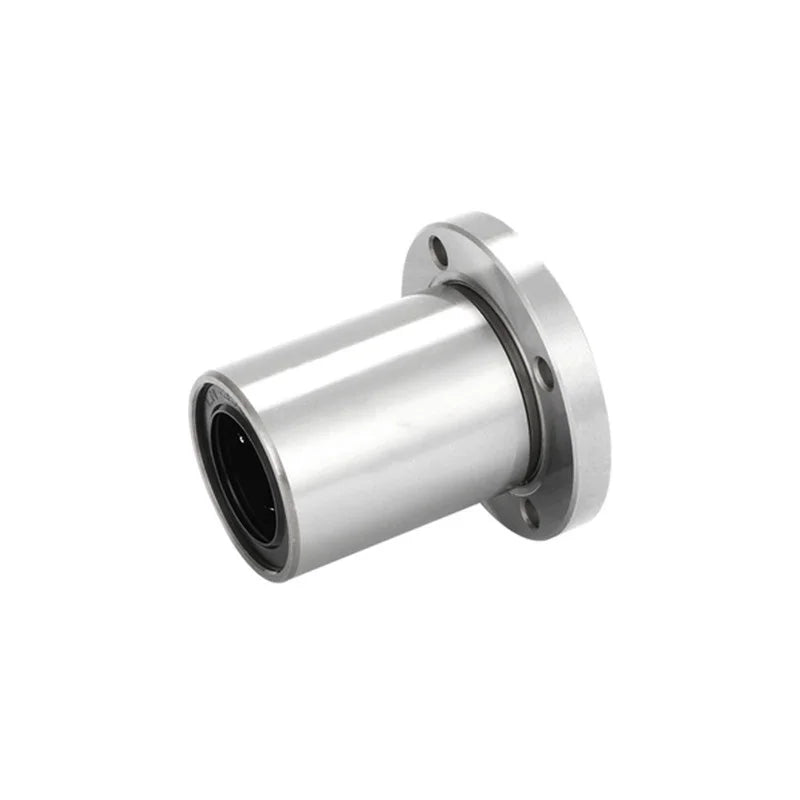

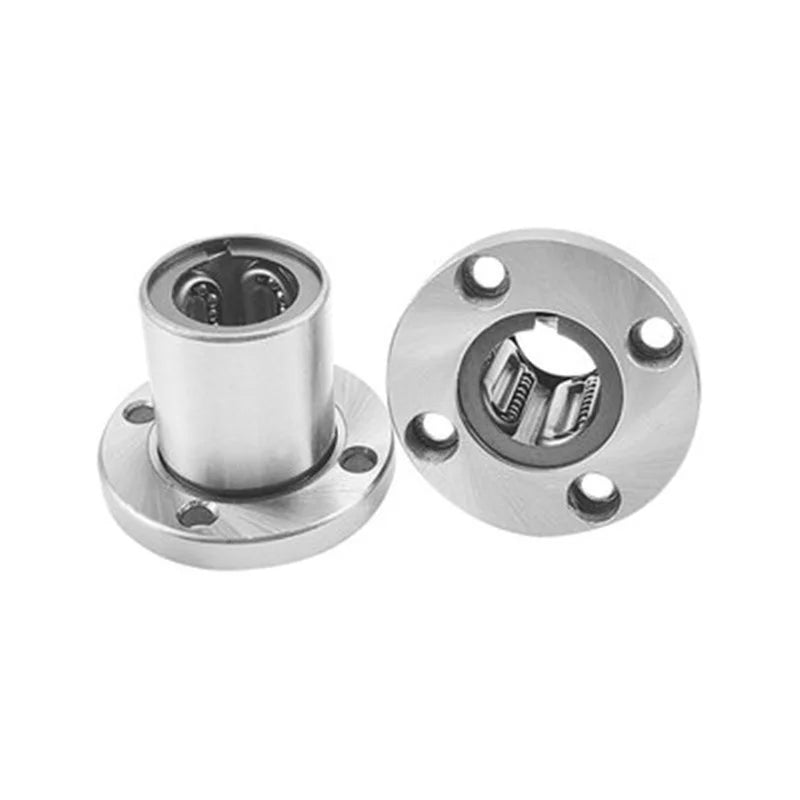

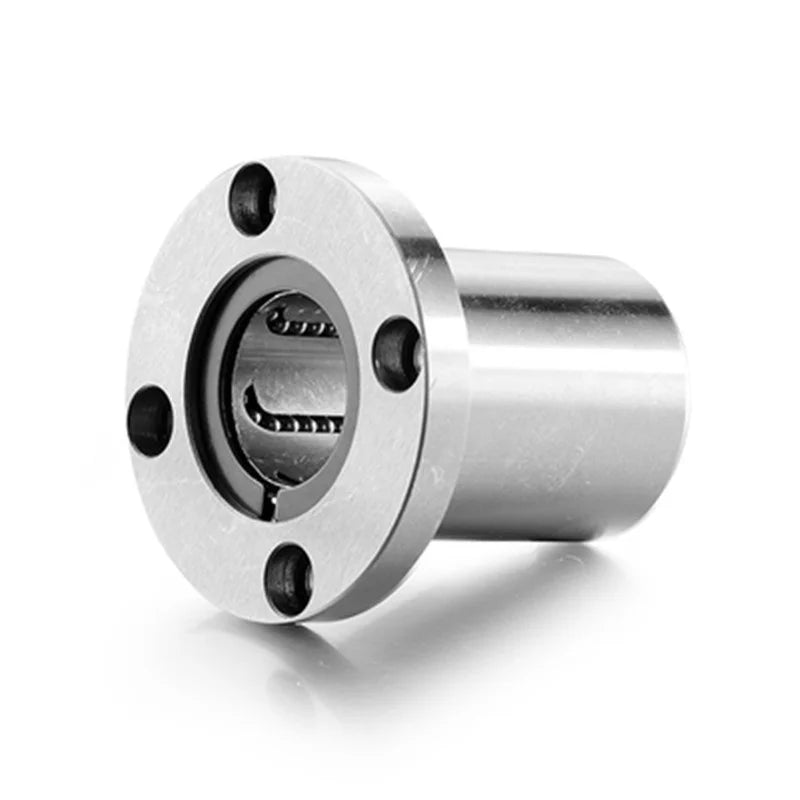

LMF Series Round Flange Linear Motion Bearings – Multiple Sizes Available
Upgrade your CNC machine, 3D printer, linear actuator, or precision motion system with these high-quality LMF Series Round Flange Linear Motion Bearings. Available in a full range of shaft diameters — 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, and 25mm — these bearings are engineered for smooth, low-friction linear travel along rod shafts. The round flange design provides secure, stable mounting and simplifies installation in both hobby and industrial applications.
Key Features
- Full LMF Series Range: Covers 6mm through 25mm shaft diameters, including popular LMF8UU and LMF10 models
- Round Flange Design: Enables easy bolt-down mounting for precise, repeatable alignment
- Low-Friction Linear Motion: Ball-bearing construction delivers smooth, consistent travel along guide rods
- CE Certified: Meets CE standards for quality and safety assurance
- Durable Construction: Built to withstand the repetitive cycling demands of CNC routers, 3D printers, laser engravers, and automated machinery
- MOQ: 1 piece per order — buy exactly what you need
- No High-Concern Chemicals in construction materials
Specifications
| Attribute | Detail |
|---|---|
| Series | LMF (Round Flange) |
| Available Sizes | 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 25mm |
| Popular Models | LMF8UU, LMF10UU, LMF12UU, LMF16UU, LMF20UU, LMF25UU |
| Motion Type | Linear (along rod shaft) |
| Certification | CE |
| Country of Origin | Made in China |
| Quantity | 1 piece per listing |
Common Applications
- CNC routers and milling machines
- 3D printers (X, Y, Z axis linear guides)
- Laser engravers and cutters
- Linear actuators and automation equipment
- Robotics and pick-and-place systems
- DIY maker and precision motion projects
How to Select Your Size
Match the bearing's inner diameter to your guide rod shaft diameter. For example, if your rod shaft is 8mm, select the LMF8UU. If you require a size or model not listed, please contact us — we're happy to help source the right bearing for your build.
For technical guidance on bearing selection and linear motion systems, refer to the NIST Manufacturing Technology Resources.
Explore More from Our Store
Looking to complete your DIY or maker project? Check out these related products:
Frequently Asked Questions
Q: What is the difference between LMF and LM series linear bearings?
A: The LMF series features a round flange on one end, making it easy to mount by bolting directly to a flat surface. The standard LM series (e.g. LM8UU) is a plain cylindrical bearing that is pressed or retained in a housing. For applications where direct surface mounting is needed, the LMF round flange design is the preferred choice.
Q: Are these LMF series bearings compatible with standard smooth rod shafts?
A: Yes. LMF series bearings are designed to work with standard hardened and ground smooth rod shafts of the corresponding diameter (e.g. LMF8UU fits an 8mm diameter rod). They are widely compatible with rod shafts used in 3D printers, CNC machines, and linear actuator systems.
Q: Can I order multiple sizes in one order?
A: Each listing covers a single piece of one size. The minimum order quantity (MOQ) is 1 piece. To order multiple sizes or larger quantities, simply add the desired size and quantity to your cart, or contact us for bulk pricing options.
Q: Do these bearings require lubrication?
A: For optimal performance and longevity, it is recommended to apply a light coat of machine oil or bearing grease to the guide rod before installation. Regular lubrication helps maintain smooth, consistent linear motion and extends the service life of the bearing.
