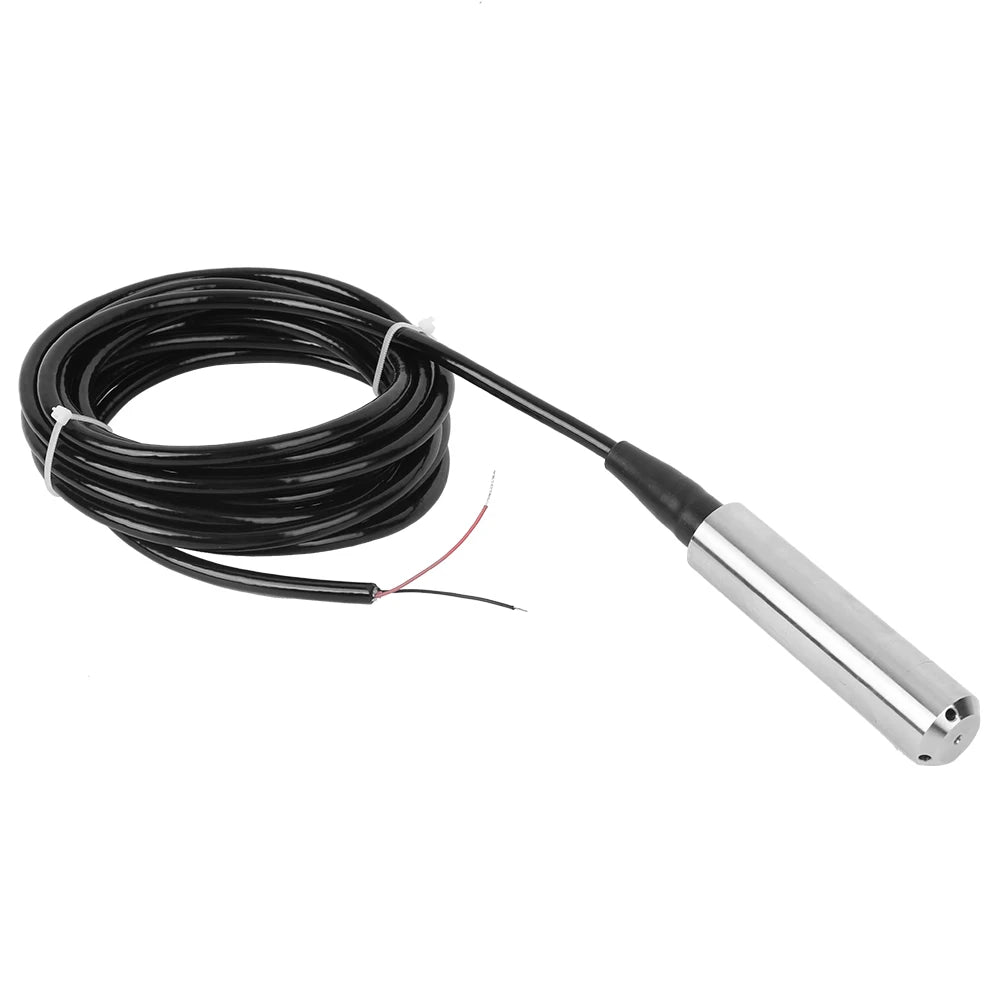

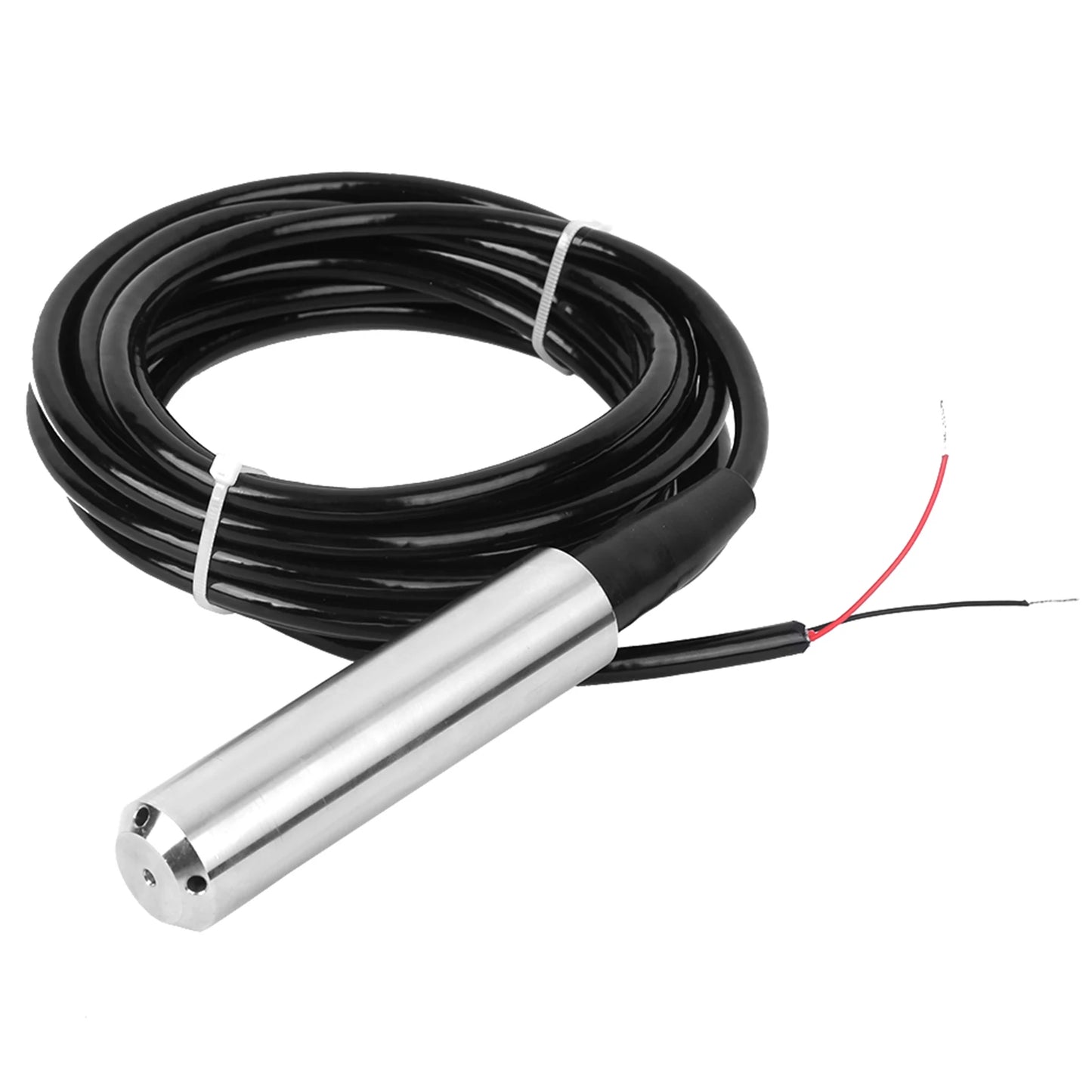

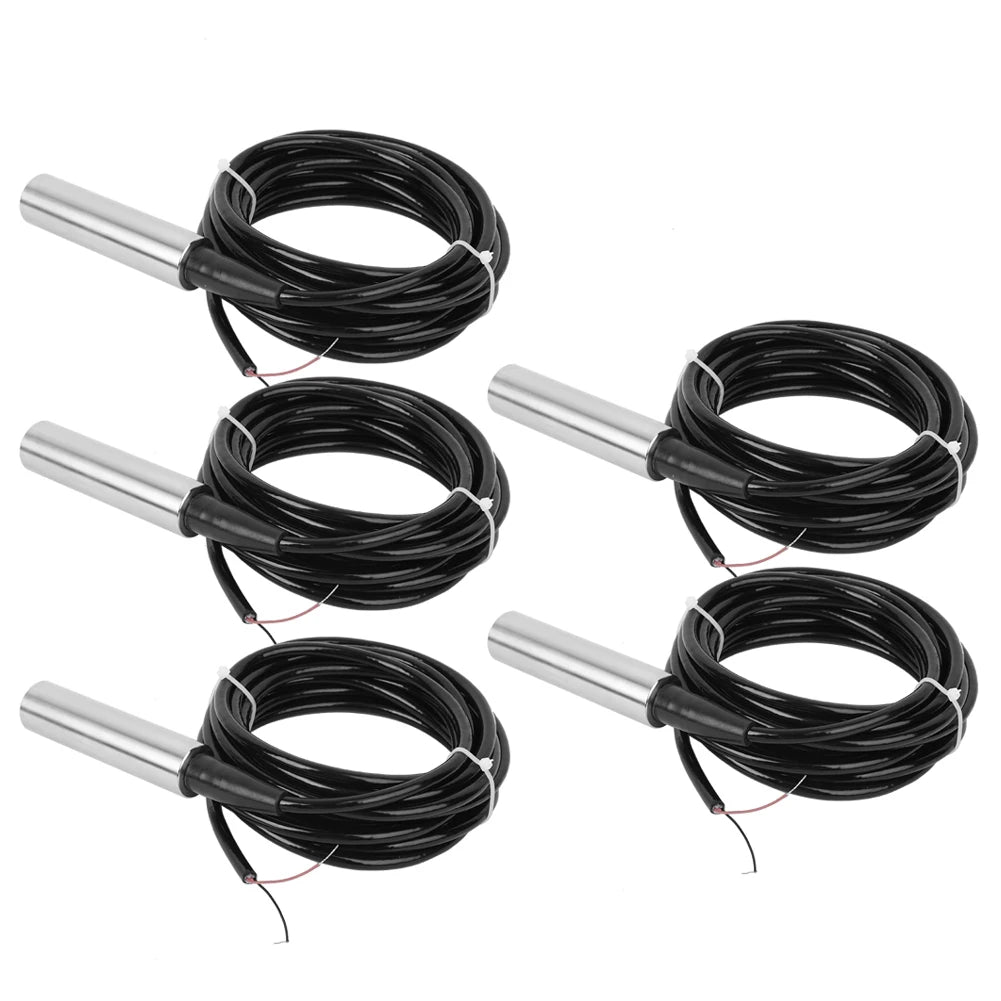

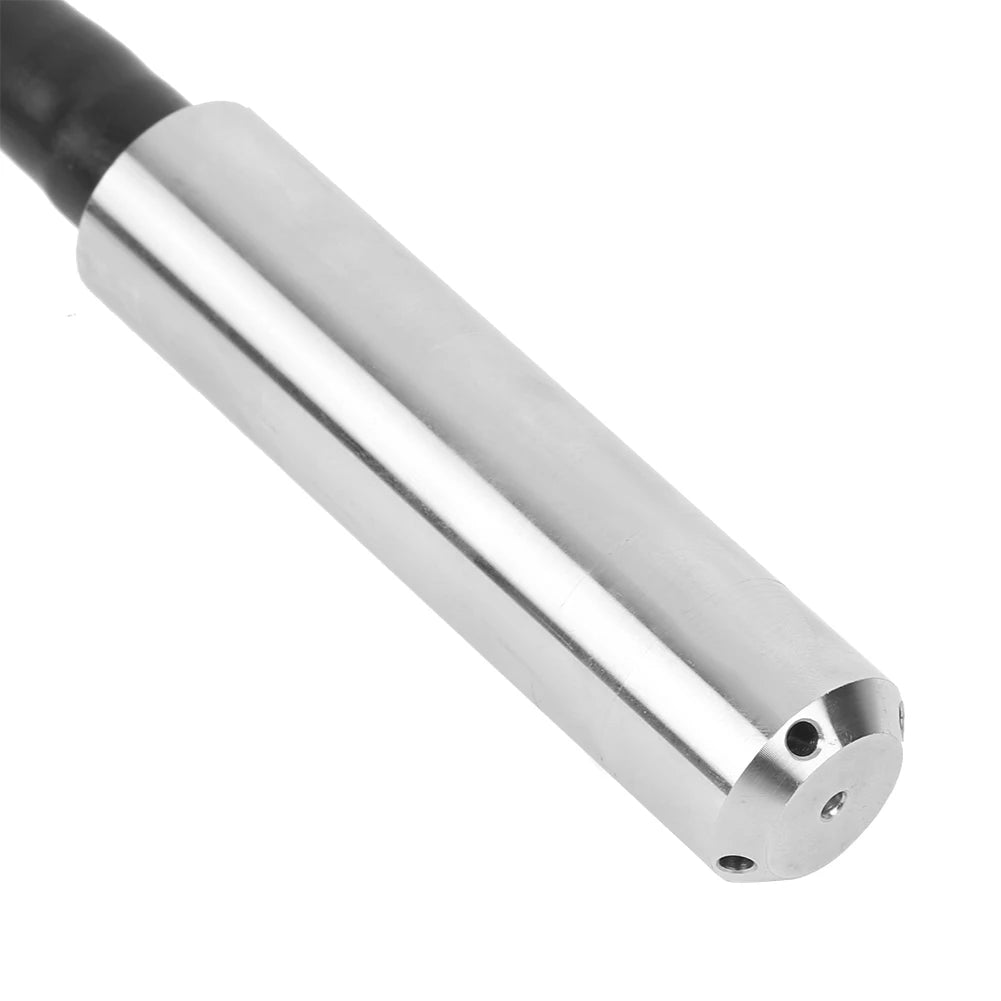

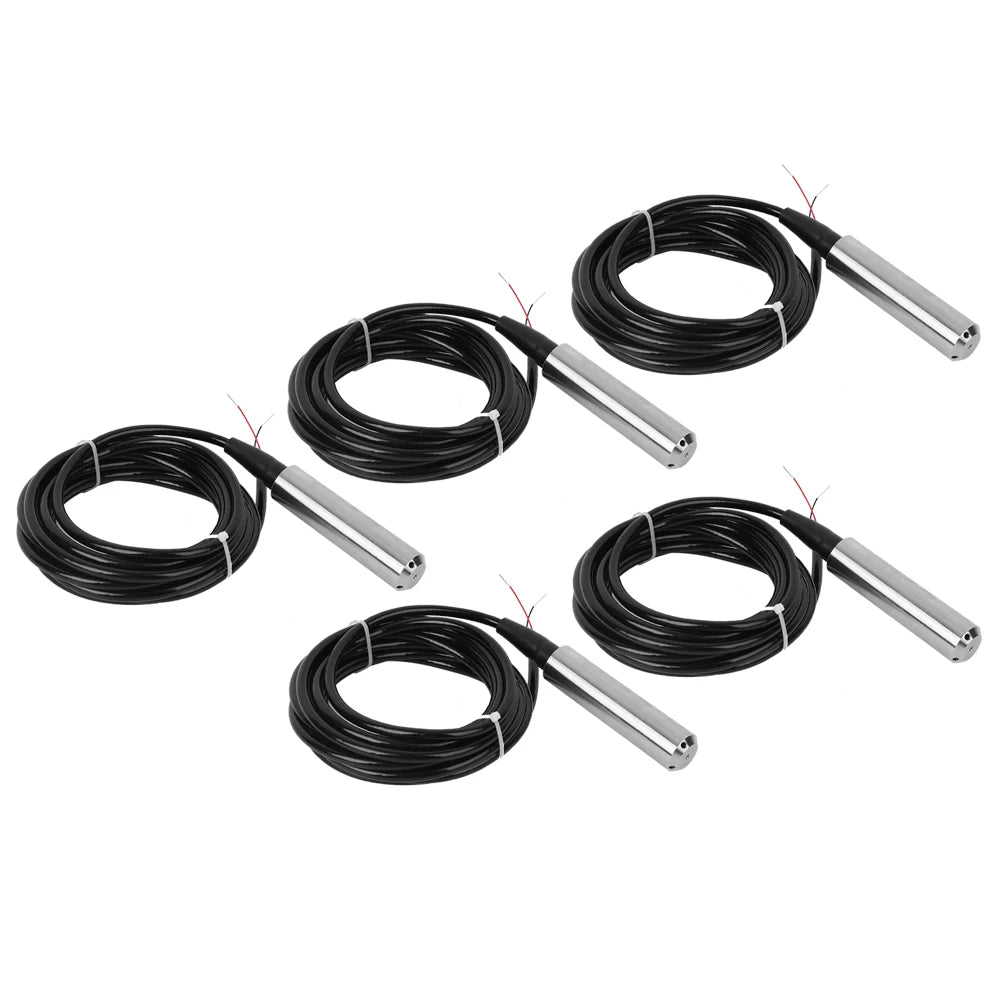

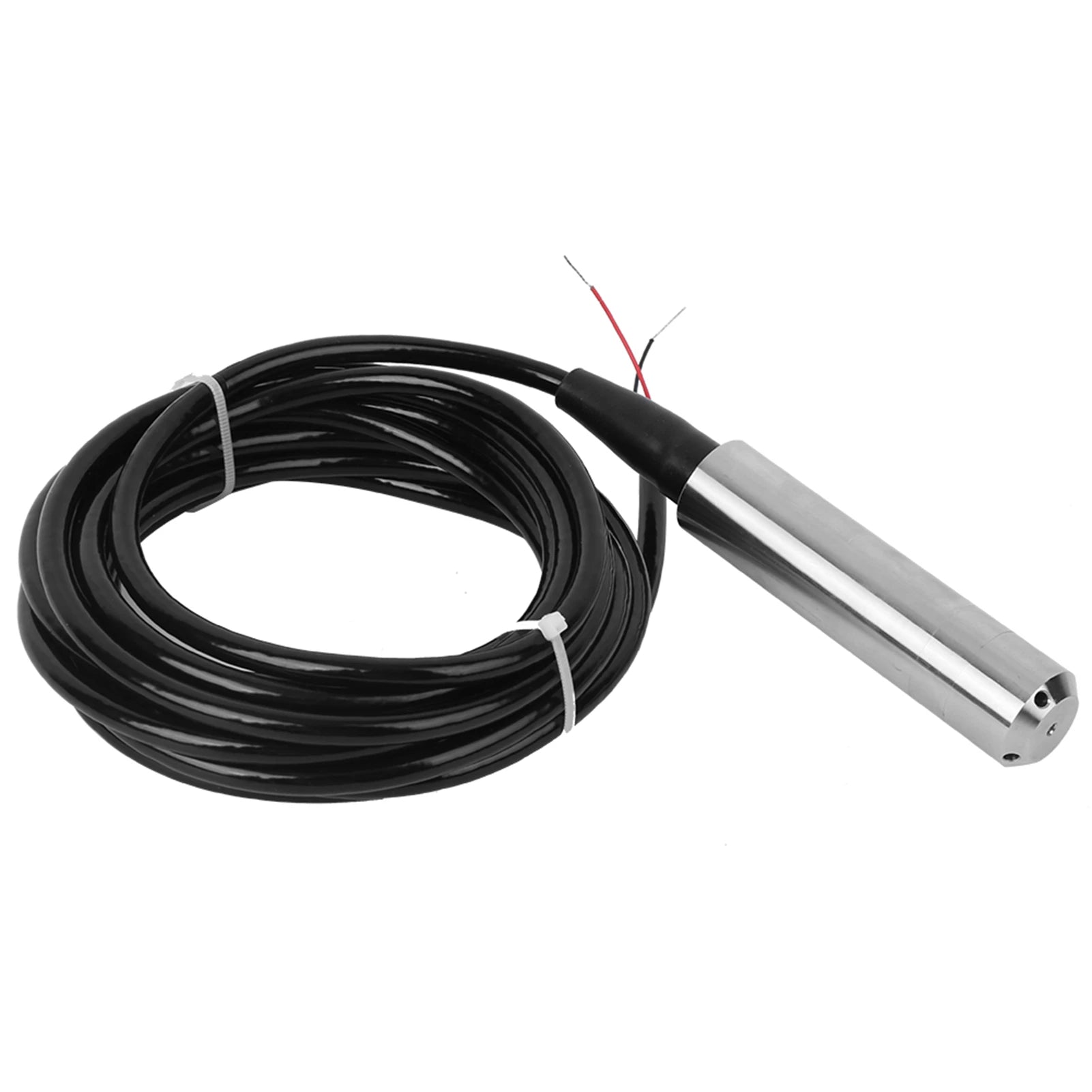

Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC 4 20mA

Discover the Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC 4 20mA — a standout decor pick featuring waterproof, stainless steel design for dependable, everyday performance.

Specifications

DIY Supplies: Electrical

TL‑136 Liquid Level Transmitter Water Level Sensor Detector 24VDC 4‑20mA Signal Output:

Feature:

1. Input level transmitter, high precision diffusion of silicon, more accurate monitoring of water level.
2. All digital conditioning circuit, 4-20mA signal output is more stable.
3. IP68 multilayer waterproof protection, safer to use.
4. 45 degree oblique angle anti-shock, detachable anti-blocking designed.
5. The measured medium is water and other liquids that do not corrode stainless steel.

Specification:

Item Type: Liquid Level Sensor
Tested Medium: Water (liquid that does not corrode stainless steel)
Air Guide Cable Length: 5 meters

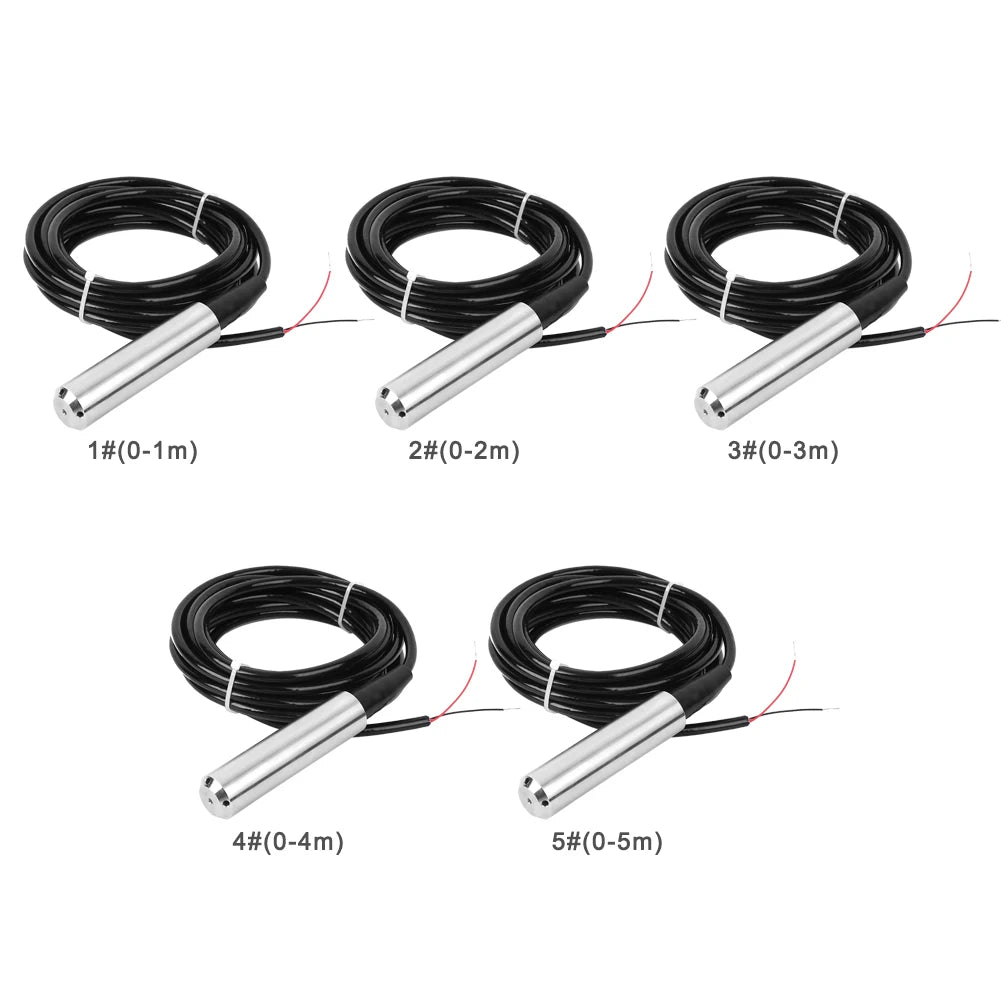

Measuring Range: 0-1m / 0-2m / 0-3m / 0-4m / 0-1m / 0-5m (optional)
Measurement Accuracy: 0.2% FS-0.5% FS (conventional)
Output Signal: 4-20mA
Supply Voltage: 24VDC
Medium Temperature: -40-70 ℃
Ambient Temperature: -40-80 ℃
Temperature Compensation: -10-70 ℃
Overload Capacity: Protection Level: IP68
Temperature Source Shift: ± 0.01% FS / ℃
Long-term Stability: ± 0.2% FS / year
Machine Impact: 20g (20-5000HZ)
Product Material: 304 stainless steel

Package List:

1 x

Liquid Level Transmitter :

:

Options

• Color: 0-1M, 0-3M, 0-2M, 0-5M, 0-4M

Frequently Asked Questions

Q: What is the Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC?

A: The Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC is a quality decor pick. Input level transmitter, high precision diffusion of silicon, more accurate monitoring of water level.

Q: What is the Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC made of?

A: The Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC is made from 304 stainless steel Package List.

Q: Why choose the Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC?

A: The Level Sensor Liquid TL 136 Transmitter Water Detector 24VDC stands out in our decor range — All digital conditioning circuit, 4-20mA signal output is more stable.
