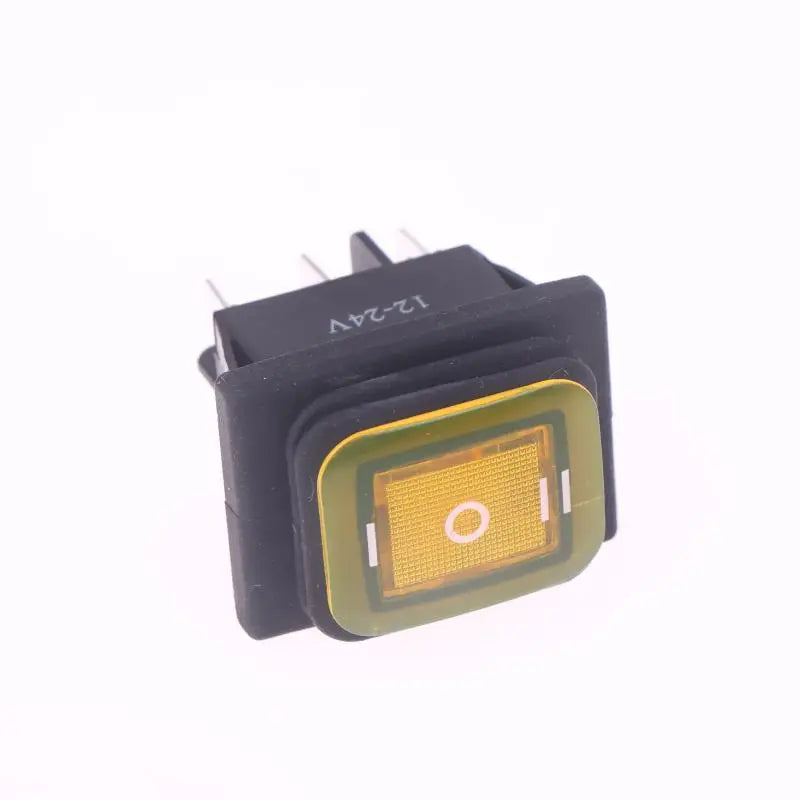

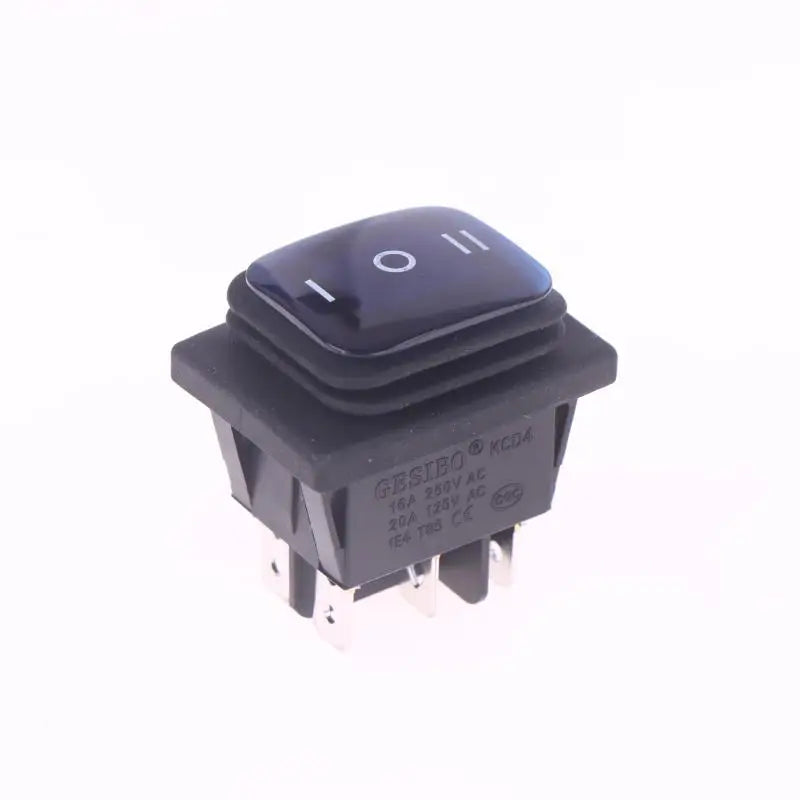

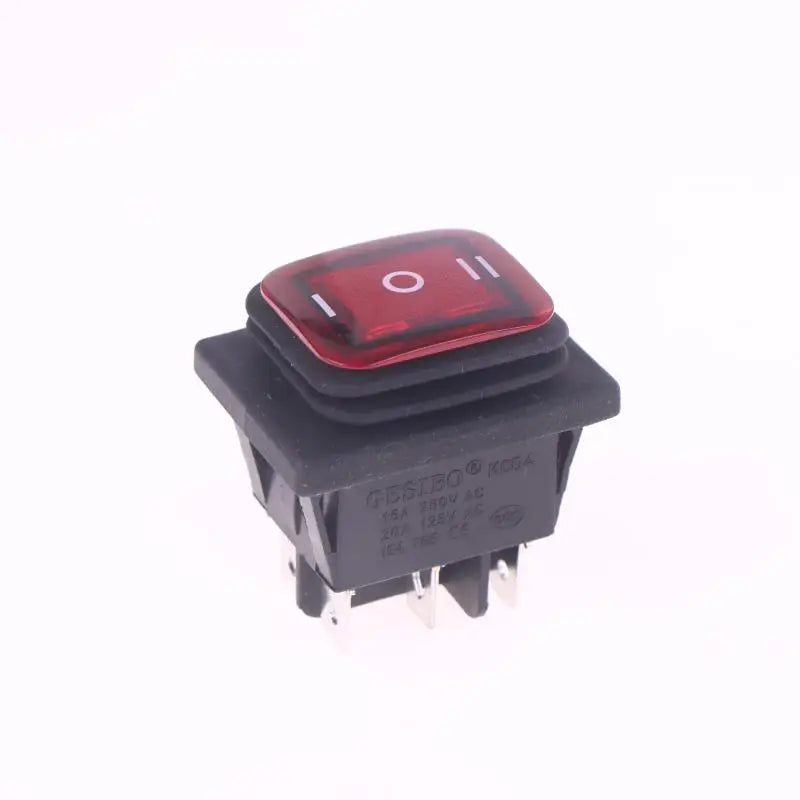

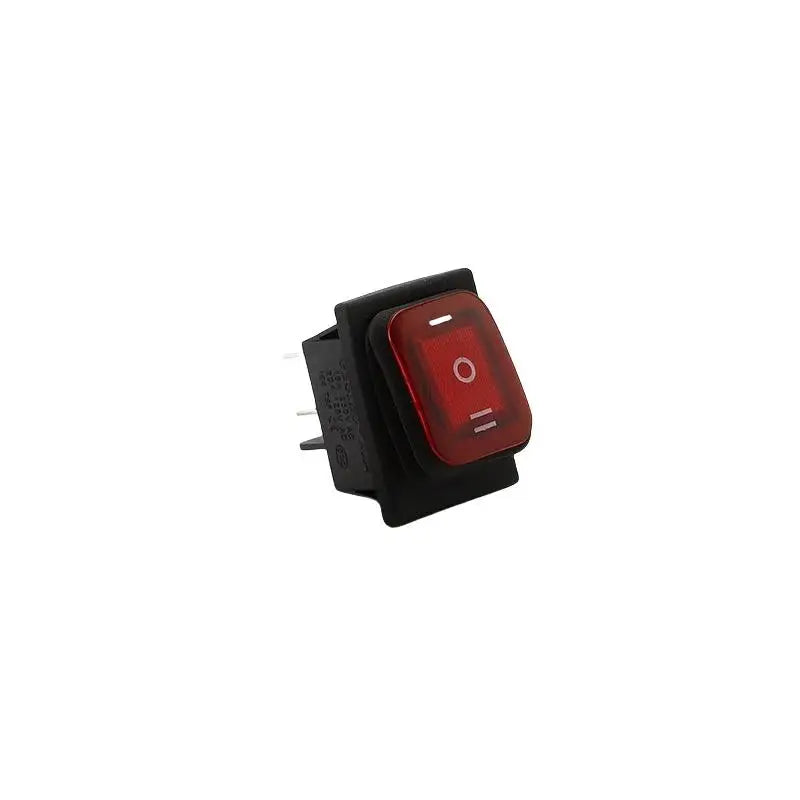

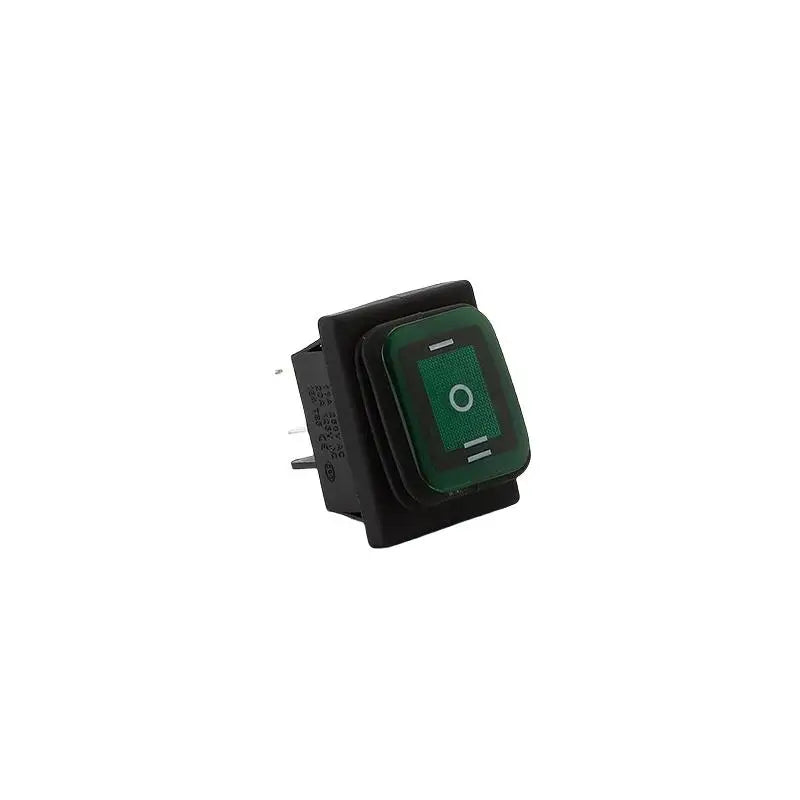

KCD4 Heavy-Duty Illuminated Rocker Switch — ON-OFF-ON, 6-Pin, 16A 250VAC

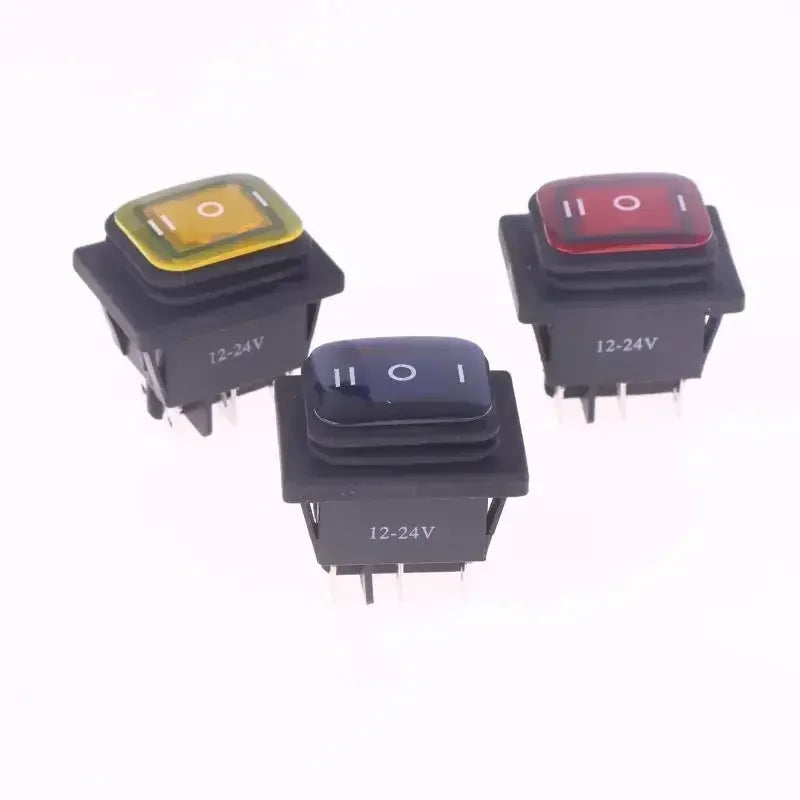

Upgrade your electrical panel, marine console, automotive project, or DIY control box with this robust KCD4 Rocker Switch. Rated at 16A / 250VAC and featuring a tri-position ON-OFF-ON function with 6 pins, this switch delivers reliable circuit control in a compact 30×22 mm waterproof form factor. Available in Red, Green, Blue, and Yellow illuminated versions — so you can instantly identify switch status even in low-light environments.
Key Features
- Tri-Position Function: ON-OFF-ON for versatile dual-circuit switching in a single unit
- Heavy-Duty Rating: 16A / 250VAC — suitable for high-current applications
- Illuminated Actuator: Built-in LED indicator light available in Red, Green, Blue, or Yellow; operates at 12–24V or 220V
- Waterproof Design: Sealed construction resists moisture, dust, and splashes — ideal for outdoor and marine use
- Wide Temperature Range: Operates reliably from -30°C to 70°C (-22°F to 158°F)
- Durable Plastic Housing: Tough, impact-resistant actuator in matching color for easy identification
- Standard 30×22 mm Mounting: Fits most standard rocker switch panel cutouts
Technical Specifications
| Mounting Hole Size | 30 × 22 mm |
| Switch Function | ON-OFF-ON (6-Pin) |
| Current Rating | 16A / 250VAC |
| Light Voltage | 12–24V DC or 220V AC |
| Actuator / Light Colors | Red, Green, Blue, Yellow |
| Operating Temperature | -30°C to +70°C |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Dielectric Strength | ≥ 1500VAC / 5s |
| Material | Plastic |
| Package Contents | 1 × Rocker Switch |
| Country of Origin | Made in China |
Common Applications
- Automotive & marine control panels
- DIY electronics and maker projects
- Industrial control cabinets
- Power tool on/off switching
- Home automation and lighting control
- RC vehicles and hobby builds
Electrical Safety Resources
For best practices when working with switches and electrical circuits, refer to guidance from the OSHA Electrical Safety resource center and the U.S. Consumer Product Safety Commission (CPSC) Electrical Safety page.
Explore More from Our Store
- "1% Better Every Day" Motivational Canvas Poster | Wall Art
- "Everything Is Figureoutable" Sage Green Quote Canvas Wall Art
Frequently Asked Questions
Q: What does the ON-OFF-ON rocker switch function mean?
A: An ON-OFF-ON switch has three stable positions. In the first ON position, one set of contacts is connected; in the center OFF position, all contacts are open (circuit is broken); and in the second ON position, a different set of contacts is connected. This makes it ideal for applications where you need to switch between two separate circuits or directions (e.g., forward/stop/reverse motor control).
Q: What is the illumination voltage for this KCD4 rocker switch?
A: The built-in LED indicator can operate on either 12–24V DC/AC or 220V AC, depending on the variant you select. Please confirm the light voltage option when ordering to ensure compatibility with your system.
Q: Is this rocker switch truly waterproof?
A: Yes. The KCD4 switch features a sealed, waterproof design that resists moisture, dust, and splashes — making it suitable for marine consoles, outdoor enclosures, and automotive dashboards exposed to the elements.
Q: What size panel cutout does this switch require?
A: This switch requires a standard 30 × 22 mm rectangular cutout in your panel or enclosure. This is a common size used by many control panels and DIY project boxes.
Q: Can this switch handle 12V automotive or marine applications?
A: Absolutely. With a light voltage range of 12–24V and a current rating of 16A at 250VAC, this switch is well-suited for 12V and 24V automotive, marine, and off-road vehicle applications.
