Hitachi HGP Rotary Encoder TS5246N478 8192PPR 5V Elevator Part
Hitachi HGP Rotary Encoder TS5246N478 8192PPR 5V Elevator Part
Couldn't load pickup availability

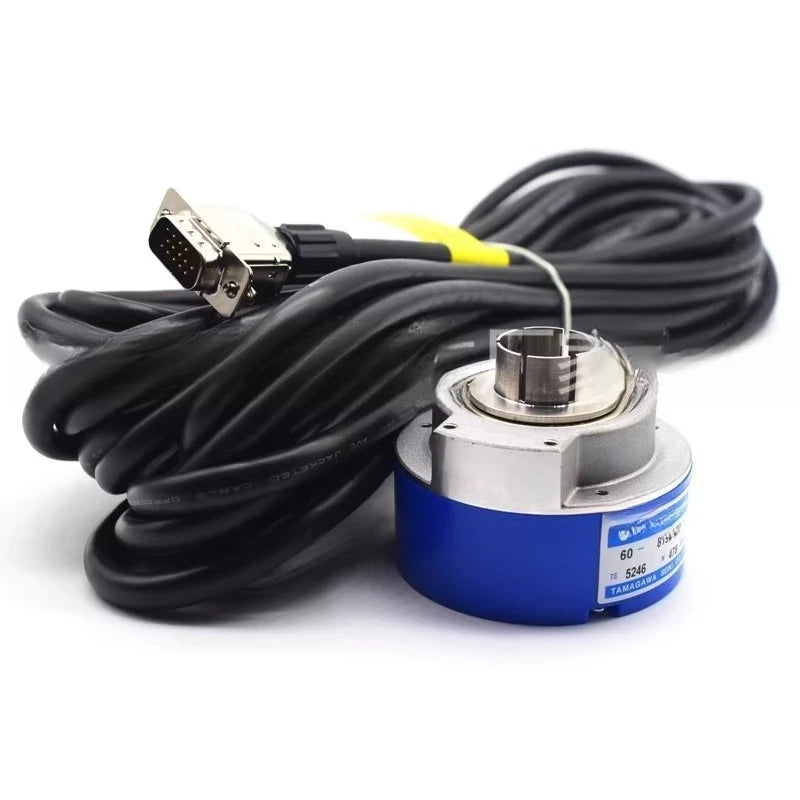

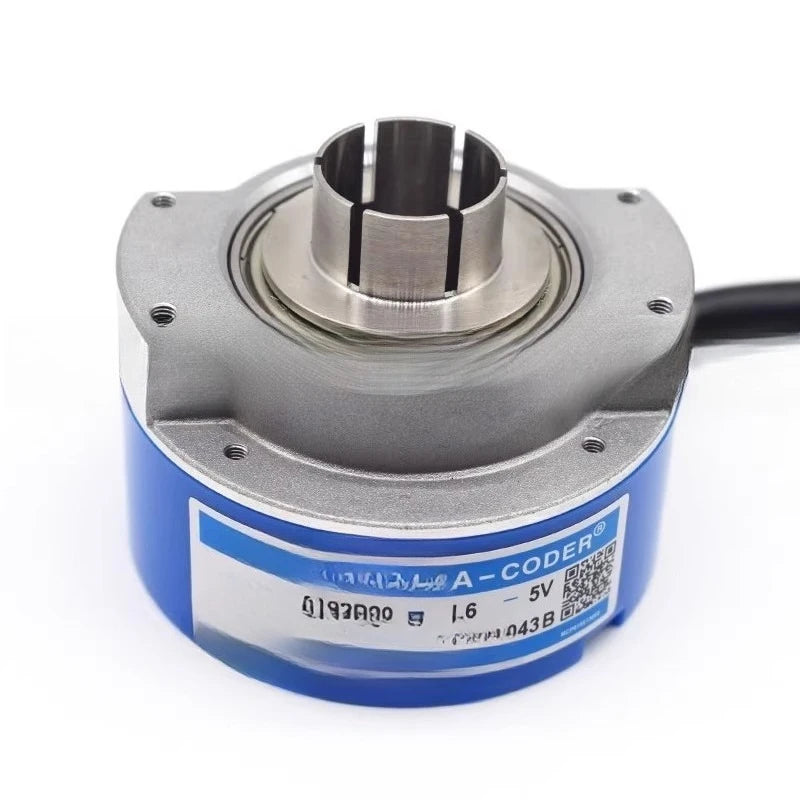

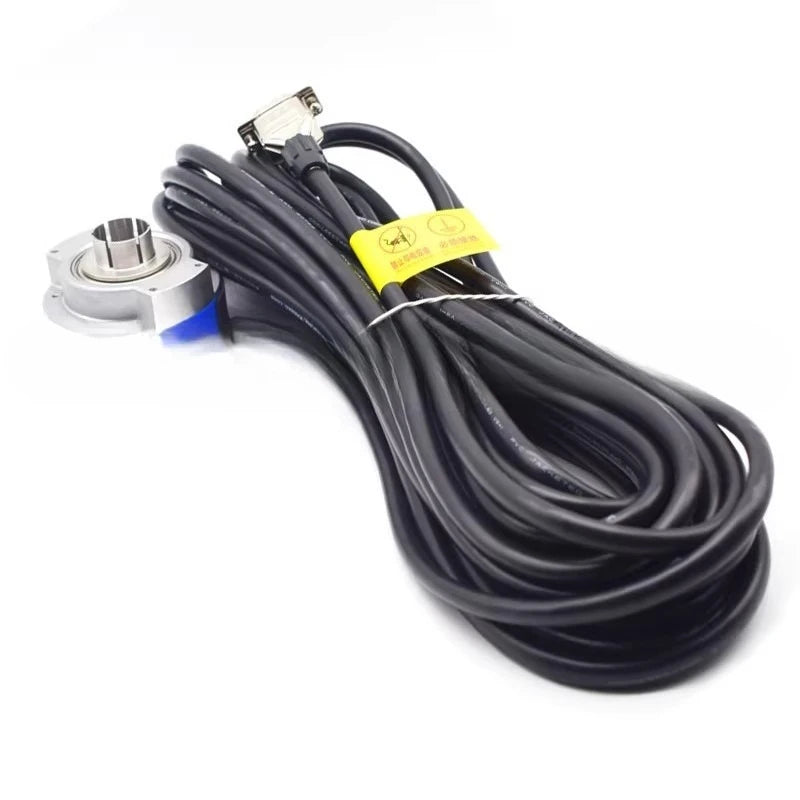

Hitachi Elevator HGP Host Rotary Encoder – TS5246N478 (60-8192P20-L6-5V)
Keep your Hitachi elevator system running at peak accuracy with this genuine OEM-specification rotary encoder. The TS5246N478 encoder is engineered specifically for Hitachi HGP elevator drive systems, delivering precise position and speed feedback with a high-resolution 8192 pulse-per-revolution output at a clean 5 V supply voltage. Whether you are servicing an existing installation or stocking critical spares, this encoder offers the reliability your elevator control system demands.
Key Specifications
- Model / Part Number: TS5246N478
- Compatible System: Hitachi HGP Elevator Drive
- Resolution: 8192 Pulses Per Revolution (PPR)
- Supply Voltage: 5 V DC

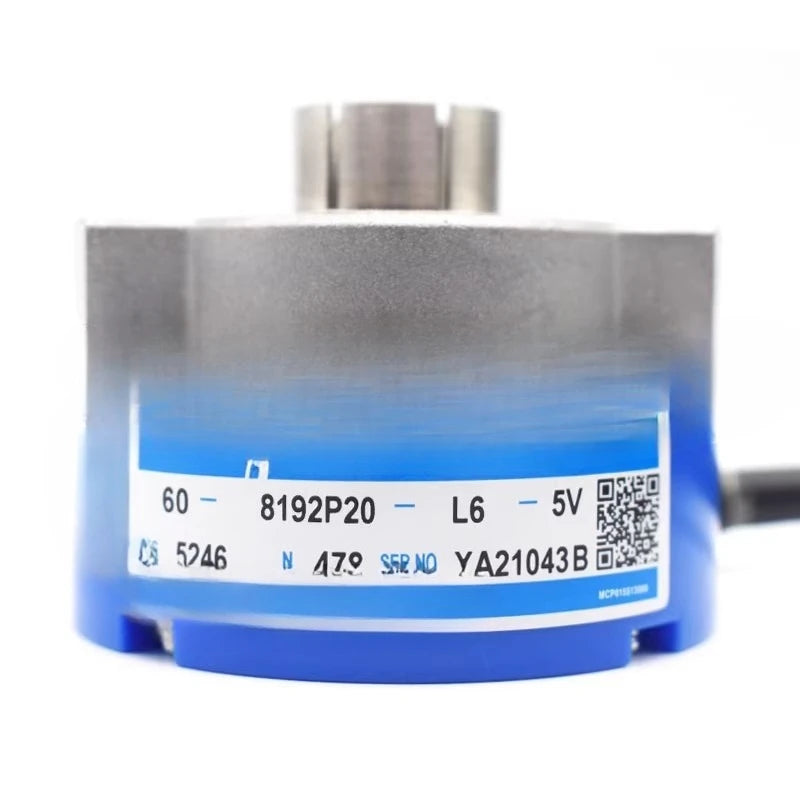

- Output Code: 60-8192P20-L6-5V
- Housing Material: Durable Plastic
- Application: Elevator Host / Traction Machine Speed Feedback
Why Choose This Encoder?
- ✅ OEM-Grade Precision: High pulse count ensures smooth, accurate elevator leveling and speed control.
- ✅ Direct Replacement: Designed to integrate seamlessly into Hitachi HGP elevator controller systems — no modifications required.
- ✅ Robust Construction: Sturdy plastic housing built to withstand the demands of continuous industrial operation.
- ✅ 5 V Logic Compatible: Works directly with standard HGP drive boards without additional signal conditioning.
- ✅ Reliable Signal Output: Stable incremental output keeps elevator positioning consistent and precise.
Typical Applications
- Hitachi HGP traction elevator motor speed feedback
- Elevator host controller position sensing
- Drive system maintenance and replacement
- Industrial elevator service and repair
Made in Mainland China.
Safety & Installation
Elevator components must be installed by qualified elevator technicians in compliance with all applicable local codes and safety standards. Always power down the drive system completely before replacing encoder components. For workplace electrical safety guidelines, refer to OSHA Electrical Safety Resources.
Related Products You May Find Useful
- "1% Better Every Day" Motivational Canvas Poster | Wall Art
- "Everything Is Figureoutable" Sage Green Quote Canvas Wall Art
Frequently Asked Questions
Q: What elevator systems is the TS5246N478 rotary encoder compatible with?
A: The TS5246N478 rotary encoder is designed for use with Hitachi HGP series elevator drive systems, serving as the host traction machine speed and position feedback device. Always verify the part number against your specific elevator controller documentation before installation.
Q: What does the 8192 PPR resolution mean for elevator performance?
A: 8192 pulses per revolution (PPR) means the encoder generates 8,192 electrical pulses for every full rotation of the motor shaft. This high resolution allows the elevator drive controller to make very fine speed and position corrections, resulting in smooth starts, stops, and accurate floor leveling.
Q: What is the supply voltage for this encoder?
A: This encoder operates on a 5 V DC supply, which is standard for most Hitachi HGP elevator drive control boards. Ensure your system's encoder power rail supplies a stable 5 V before installation.
Q: Is this a genuine or aftermarket encoder?
A: This encoder is listed as an original HGP-specification component (part number TS5246N478), intended as a direct OEM-grade replacement for Hitachi elevator systems. Please confirm compatibility with your system's documentation or consult a qualified elevator technician.
