2-Pack Cabinet Door Hinge Drilling Locator & Positioning Jig

Drill Perfect Cabinet Hinge Holes Every Time

Say goodbye to misaligned cabinet doors! This 2-pack hinge drilling locator is the ultimate woodworking jig for DIYers and professionals alike. Made from durable ABS plastic, this compact positioning guide takes the guesswork out of hinge installation — helping you mark, align, and drill accurate 35mm or 40mm hinge holes in furniture doors and cabinets with ease.

Made in Mainland China.

Why You'll Love This Hinge Drilling Jig

• Precision Positioning: Built-in specification markings help you locate base screw holes and hinge cup holes with pinpoint accuracy — no measuring tape fumbling required.

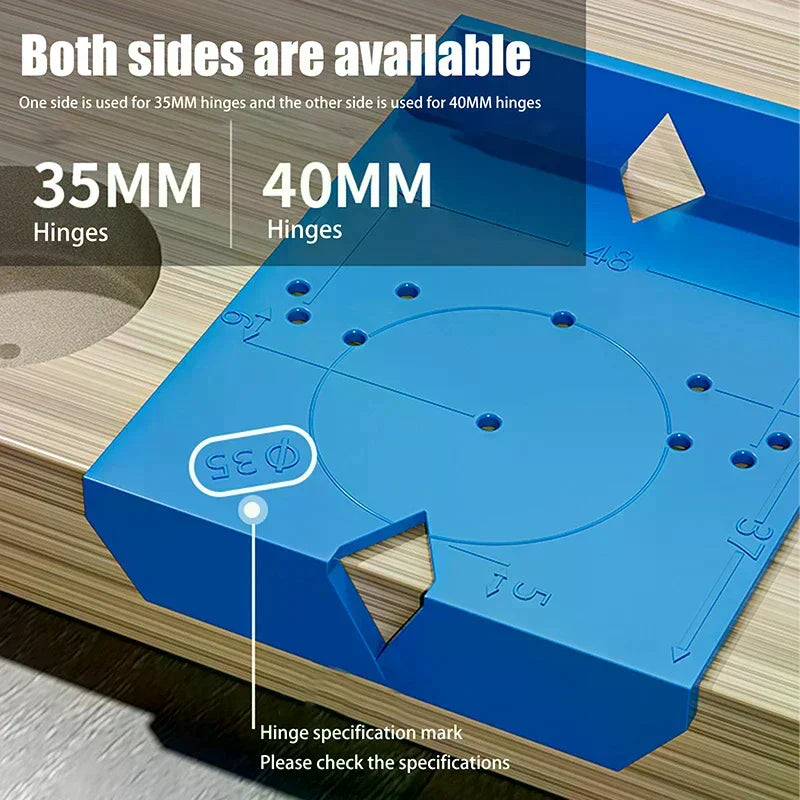

• Works with 35mm & 40mm Hinges: Compatible with the most common European-style concealed hinge sizes used in kitchen cabinets, wardrobes, and furniture doors.

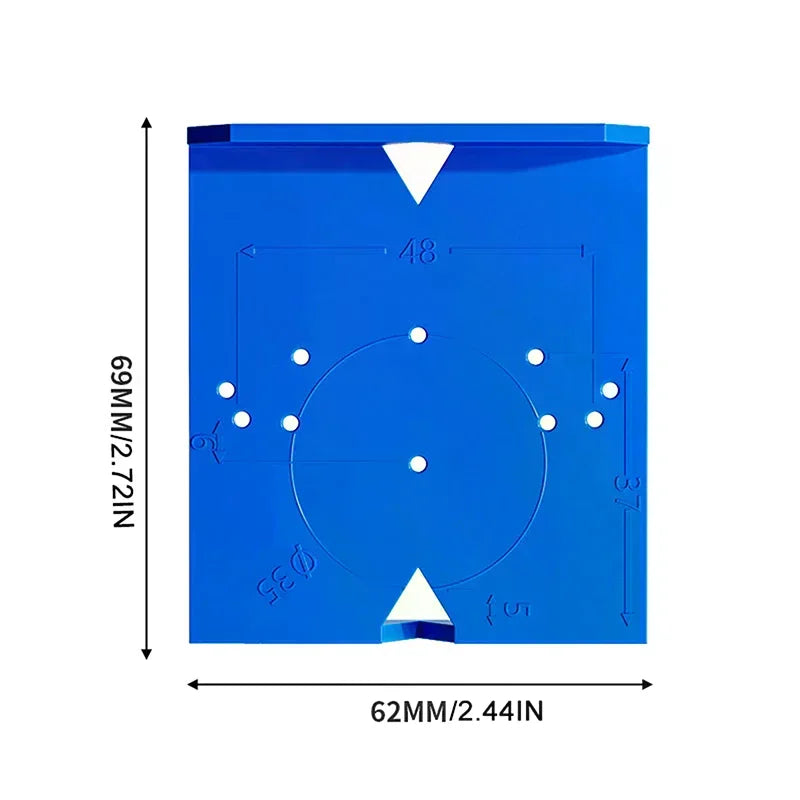

• Lightweight & Portable: Compact ABS construction (62 × 69 mm / 2.44 × 2.72 in) makes it easy to carry to any job site or workshop.
• Easy to Use: Follow the simple step-by-step guide below — even beginners can achieve pro-level results on their first try.
• 2-Piece Set: Get two locators so you can work on both door and frame simultaneously, speeding up your project.

How to Use Your Hinge Drilling Locator

1. Determine the desired position of the hinge and draw the center connecting line across both door boards.

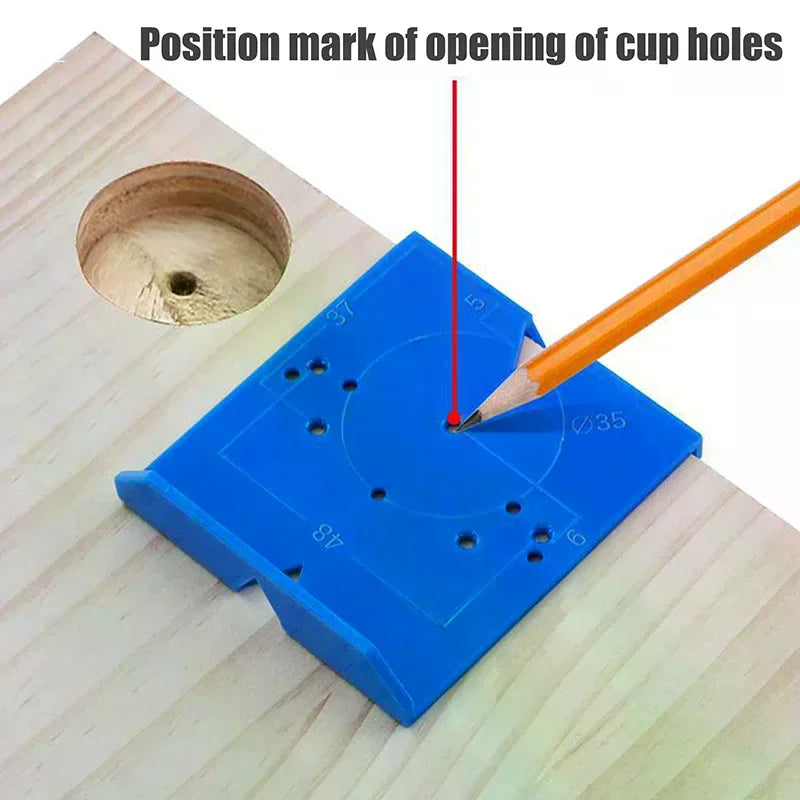

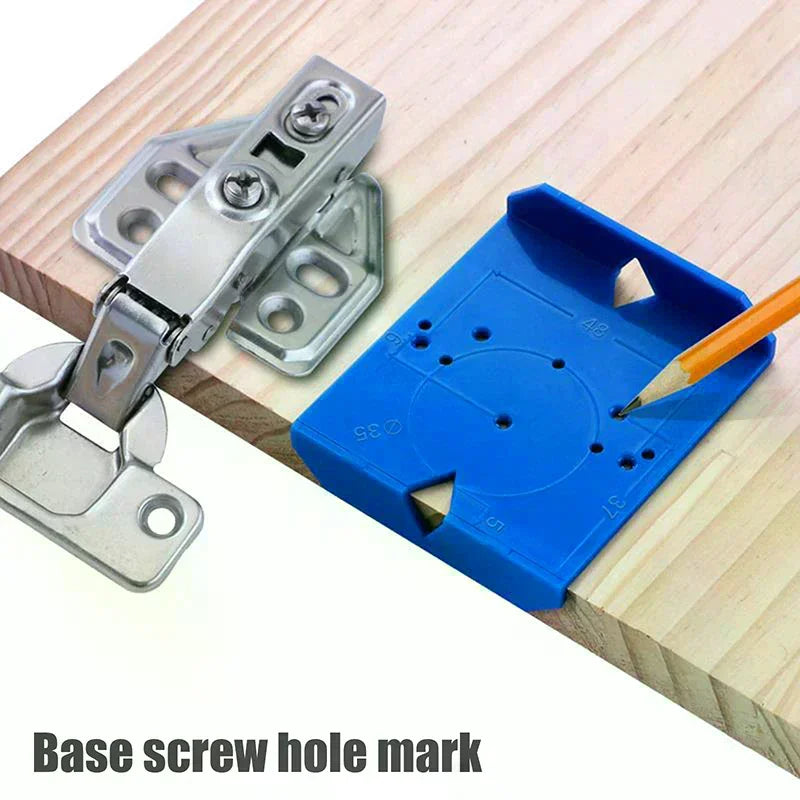

2. Use the specification markings on the locator to mark the base screw hole positions, then drill accordingly.
3. Repeat the same process on the cabinet frame board to mark and drill the corresponding holes.
4. Install your hinges and enjoy perfectly aligned cabinet doors!

Specifications

Perfect For

• Kitchen cabinet door installations
• Wardrobe and closet door hinge fitting
• Furniture repair and renovation projects
• DIY home improvement woodworking

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Wall Art Print — Inspire your workspace!
• "Best Seat In The House" Retro Quote Canvas Wall Art Print — Great décor for your newly renovated room.

For safe tool use practices and woodworking safety tips, visit the OSHA Woodworking Safety resource.

Frequently Asked Questions

Q: What hinge sizes is this drilling locator compatible with?

A: This hinge drilling locator is designed for use with the two most popular European concealed hinge sizes — 35mm and 40mm diameter hinge cups. These are the standard sizes used in most kitchen cabinets, wardrobes, and furniture doors.

Q: Do I need any special drill bits to use this hinge positioning guide?

A: You will need a 35mm or 40mm Forstner bit or carbide-tipped hinge boring bit to drill the hinge cup hole. The locator template precisely positions where to drill, while the actual cutting is done by your drill and appropriate bit (not included).

Q: Is this locator suitable for beginners?

A: Absolutely! The hinge drilling locator is specifically designed to make hinge installation simple and foolproof for DIY beginners and experienced woodworkers alike. Just follow the four easy steps outlined above for perfectly aligned cabinet doors every time.

Q: How many locators are included in this set?

A: This listing includes 2 hinge hole drilling locators, allowing you to simultaneously mark both the door panel and the cabinet frame to keep your workflow fast and consistent.
