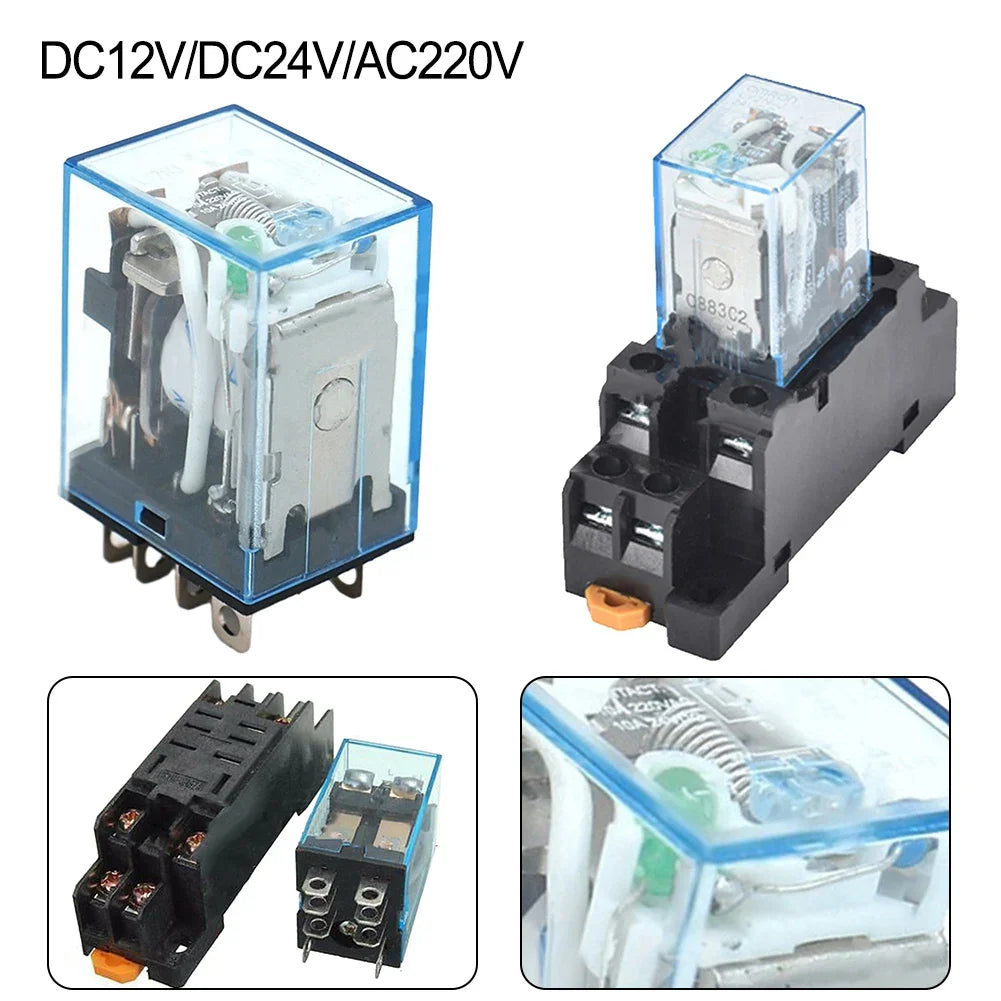

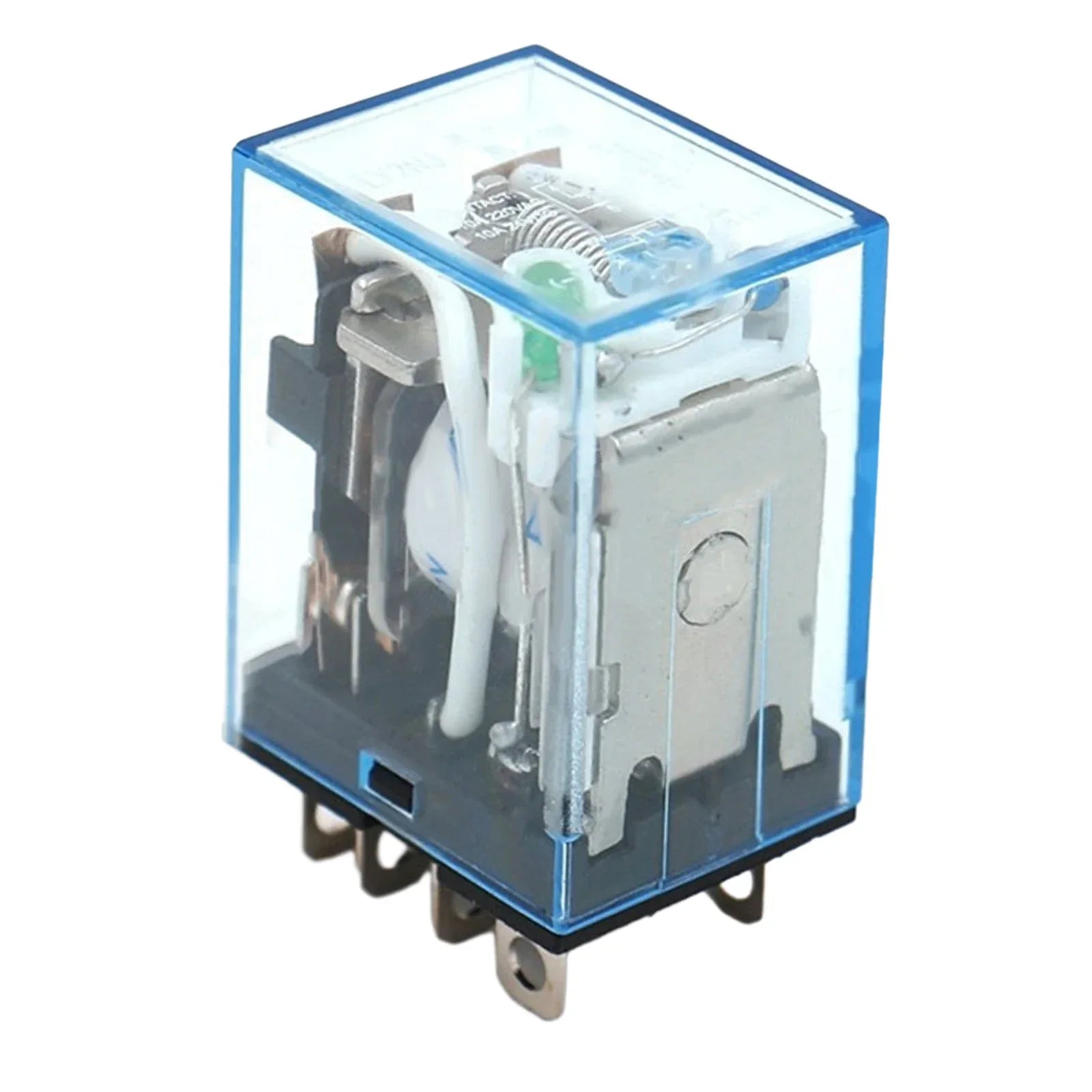

HH62P JQX-13F DPDT Power Relay with Socket & DIN Rail Base
HH62P JQX-13F DPDT Power Relay with Socket & DIN Rail Base
Couldn't load pickup availability
The HH62P JQX-13F Coil Power Relay with Socket Base is a versatile, heavy-duty DPDT (Double Pole Double Throw) relay designed for reliable switching in industrial automation, control panels, and DIY electrical projects. Compatible with a wide range of coil voltages — DC 12V, DC 24V, AC 110V, and AC 220V — this relay fits seamlessly into DIN rail-mounted control enclosures for a clean, professional installation.
With an 8-pin configuration featuring 2 normally open (NO) and 2 normally closed (NC) contacts, the HH62P offers flexible circuit control and fast response times. Its socket base design makes swapping or replacing the relay quick and tool-free, reducing downtime in critical applications.
Made in Mainland China.
Key Features

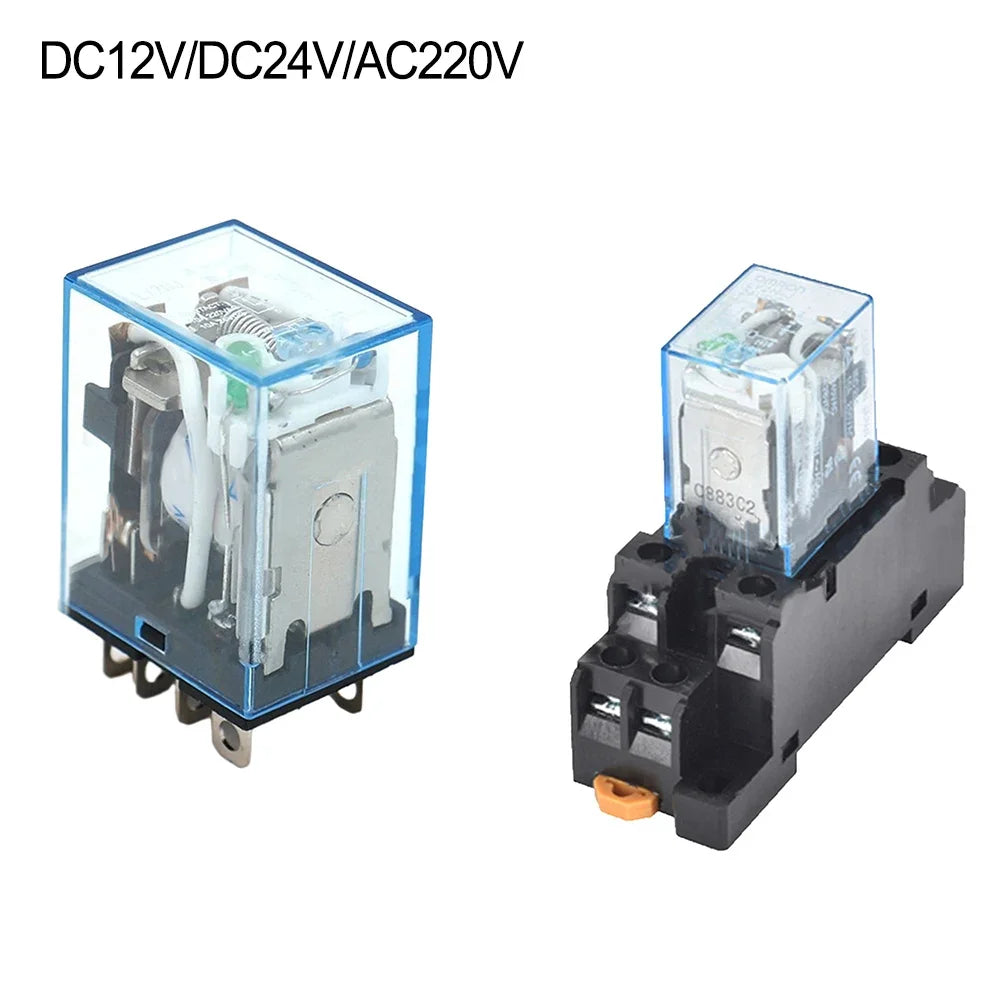

- Wide Voltage Compatibility: Works with DC 12V, DC 24V, AC 110V, and AC 220V coil inputs

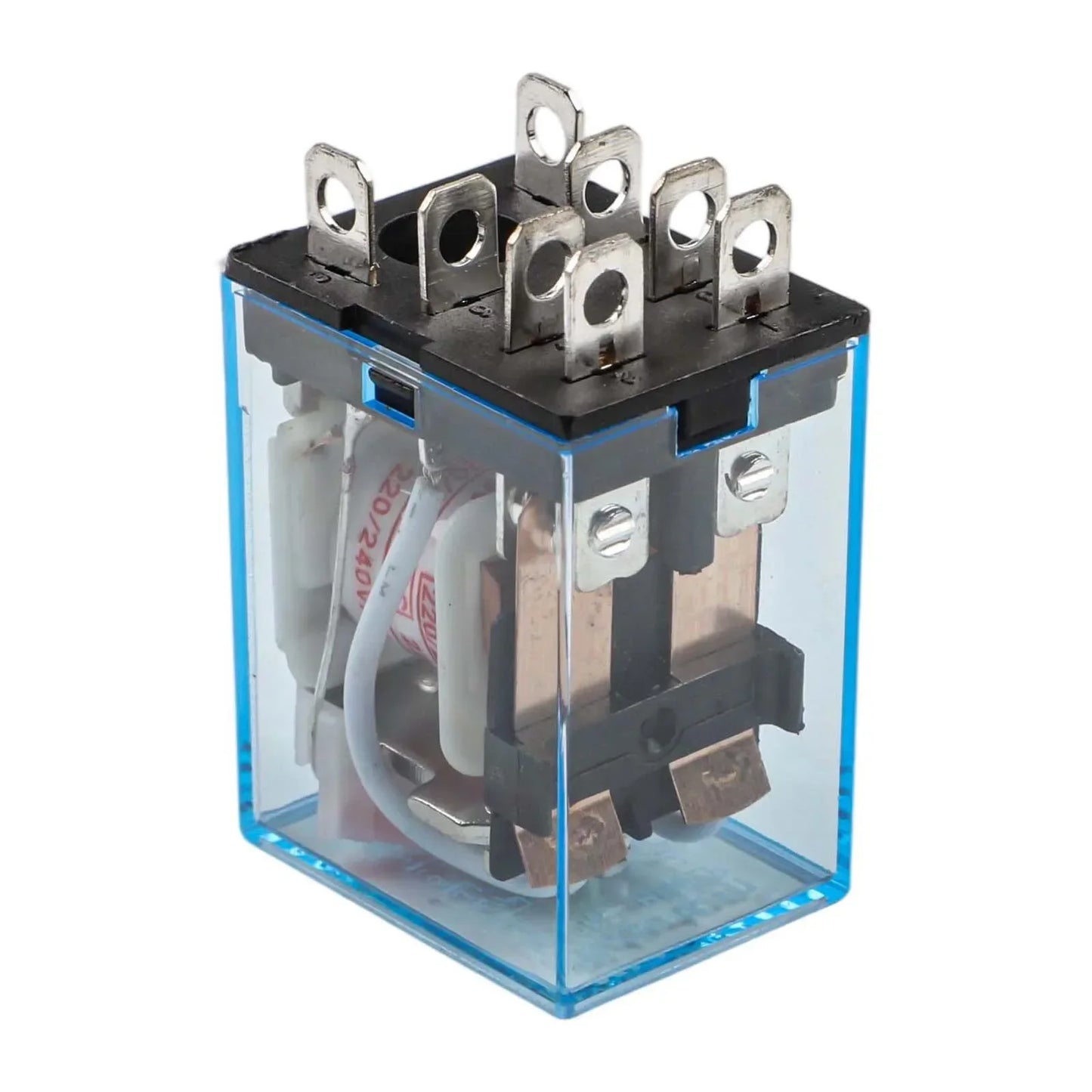

- DPDT 8-Pin Design: 2 Normally Open + 2 Normally Closed contacts for versatile switching

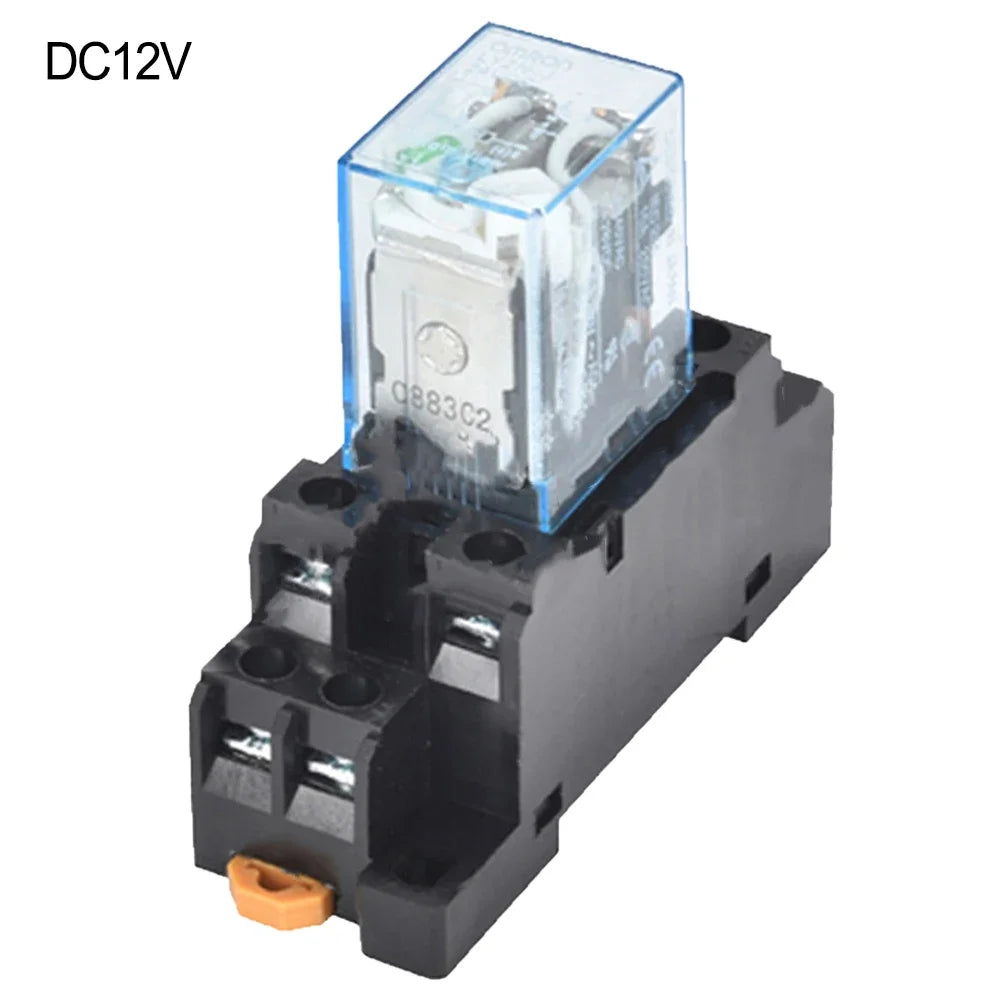

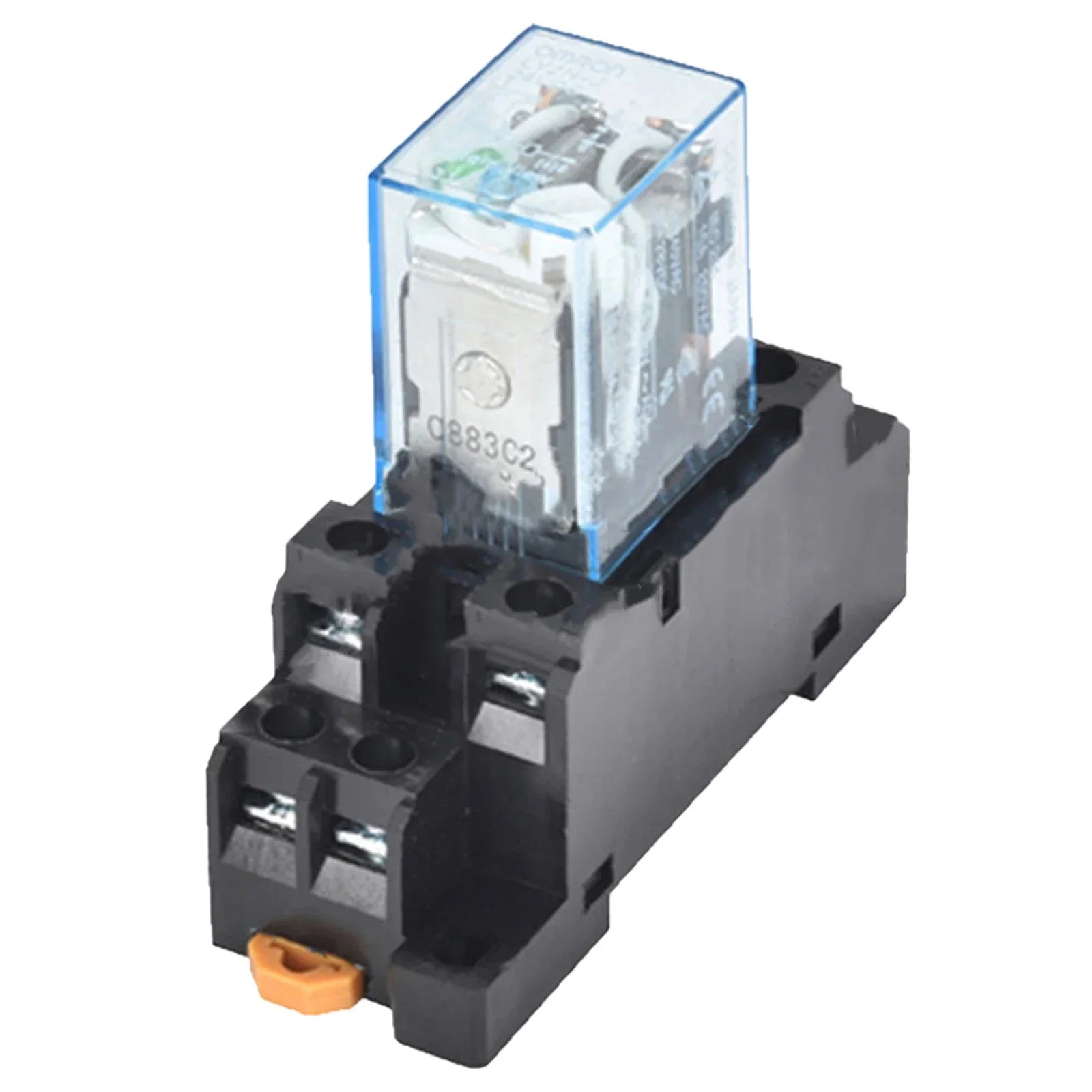

- Socket Base Included: Plug-in socket for DIN rail installation — easy replacement, no rewiring
- Low Coil Power Consumption: DC ≤0.9W / AC ≤1.2VA for energy-efficient operation
- Fast Reset Time: ≤20ms for quick, responsive switching cycles
- High Operating Frequency: Up to 18,000 mechanical cycles/hour for demanding applications
- Low Contact Resistance: ≤50mΩ for minimal voltage drop across contacts

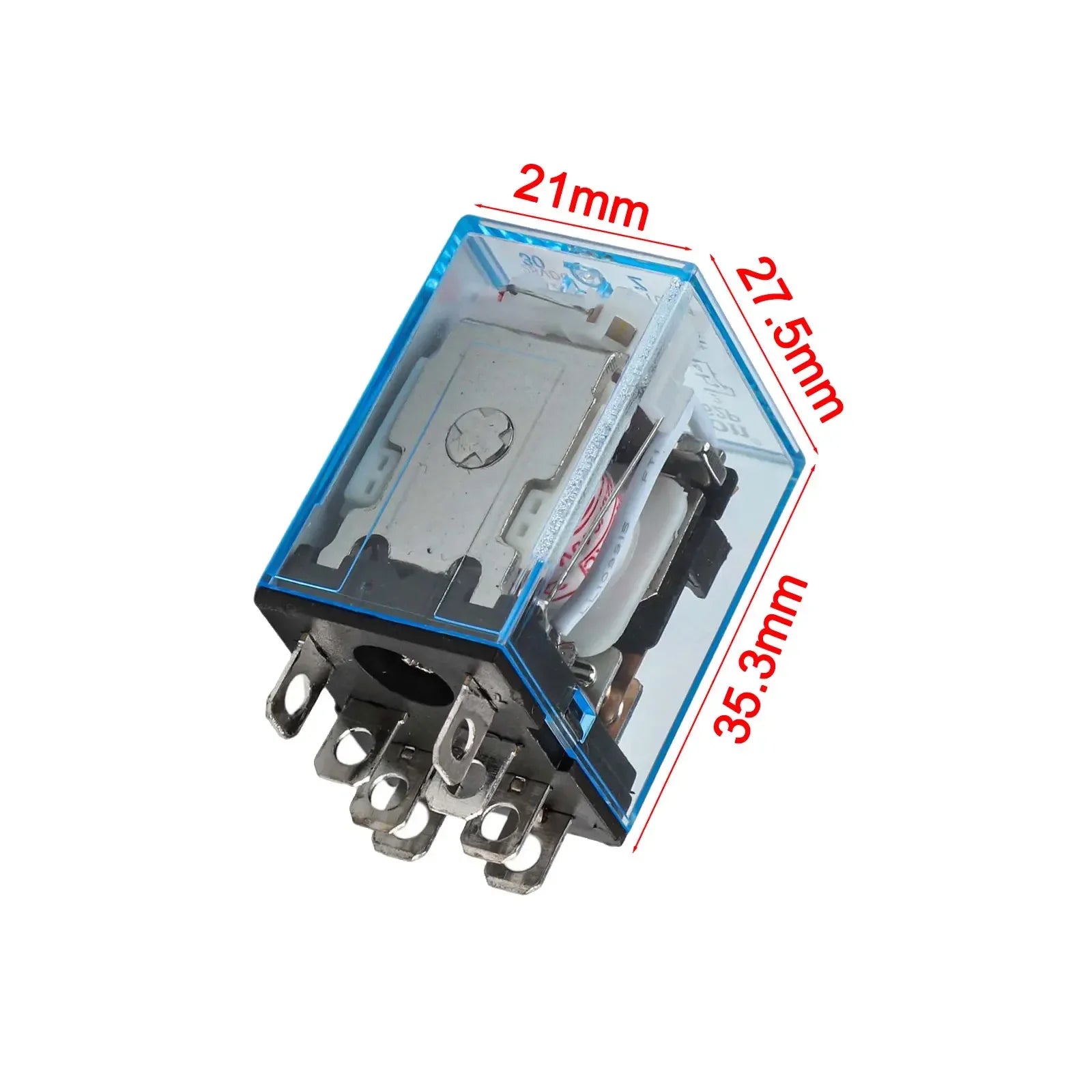

- Compact Form Factor: Dimensions approx. 27.5 × 21 × 35.3mm — space-saving for panel mounting
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HH62P / JQX-13F |

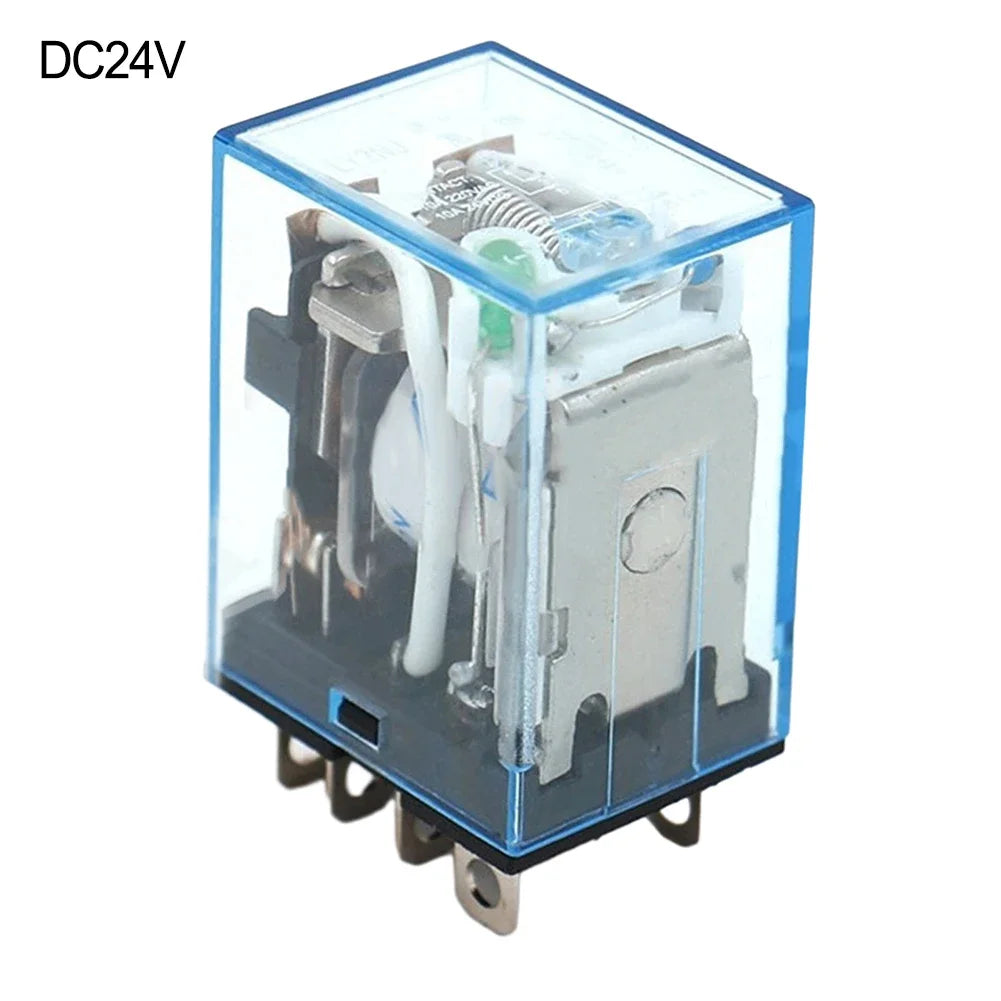

| Coil Voltage | DC 12V / DC 24V / AC 110V / AC 220V |
| Coil Power | DC ≤0.9W / AC ≤1.2VA |
| Contact Configuration | DPDT – 2NO + 2NC (8 Pins) |
| Pull-in Voltage | ≤80% rated voltage |
| Release Voltage | DC ≥10% / AC ≥30% |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≤100mΩ |
| Reset Time | ≤20ms |
| Operating Frequency | 18,000 cycles/hour (mechanical & electrical) |
| Dimensions | 27.5 × 21 × 35.3mm (approx.) |
| Terminal Form | Socket (plug-in) |
Package Contents
- 1 × HH62P JQX-13F Coil Power Relay (with Socket Base)
Common Applications
- Industrial automation and PLC control panels
- HVAC and electrical control circuits
- DIY electronics and home automation projects
- Motor control and timing circuits
- DIN rail-mounted switchgear enclosures
Related Products You May Like
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
For general electrical safety guidance on relay and control panel installations, refer to the OSHA Electrical Safety Standards.
Frequently Asked Questions
Q: What coil voltages are compatible with the HH62P JQX-13F relay?
A: This relay supports four coil voltage options: DC 12V, DC 24V, AC 110V, and AC 220V, making it suitable for a wide range of control circuits and international applications. Be sure to select the correct coil voltage version for your specific circuit.
Q: Does the HH62P relay come with the socket base included?
A: Yes! Each purchase includes 1 HH62P JQX-13F relay with the socket base already included. The plug-in socket base is designed for DIN rail mounting and allows for quick relay replacement without the need to rewire your panel.
Q: What does DPDT mean and how many circuits can this relay switch?
A: DPDT stands for Double Pole Double Throw. The HH62P features 8 pins — 2 normally open (NO) and 2 normally closed (NC) contacts — allowing it to control two independent circuits simultaneously, switching each between two states.
Q: Is this relay suitable for Arduino or DIY automation projects?
A: While the HH62P JQX-13F is primarily an industrial-grade relay, it is commonly used in DIY electronics, home automation, and hobbyist control panels. For Arduino-based projects requiring lower-voltage switching, a dedicated relay module board may be a better fit. Check our 1-Channel Relay Module for Arduino for that use case.
