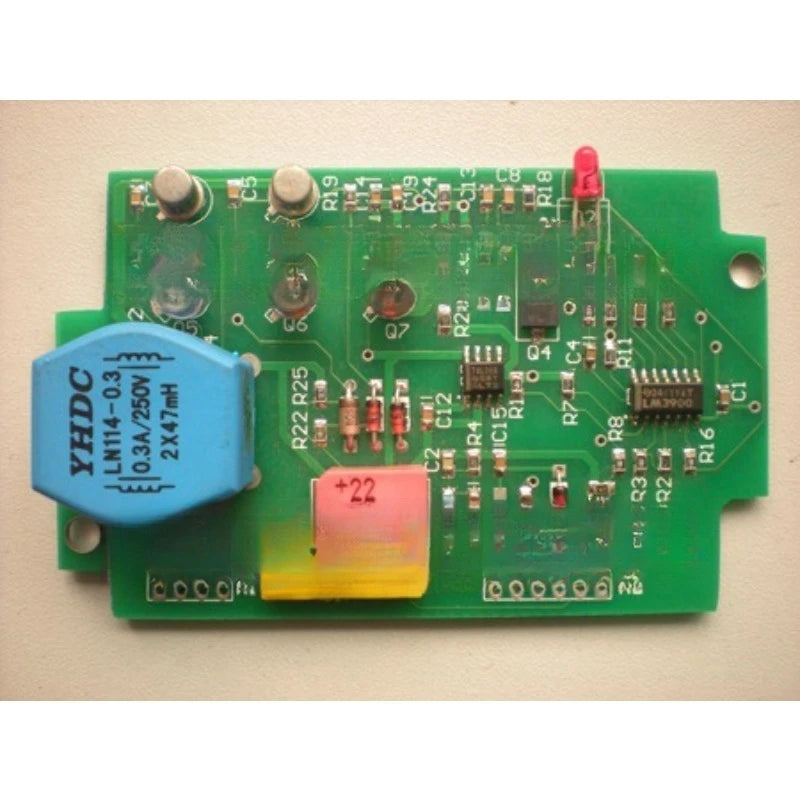

Heidelberg 00.781.2336 Pull Gauge Electric Eye Control Circuit Board

Heidelberg 00.781.2336 Pull Gauge Electric Eye Control Circuit Board

Keep your Heidelberg printing press running at peak performance with this compatible replacement control circuit board, designed to fit the 00.781.2336 pull gauge electric eye assembly. Whether you're servicing a press on the production floor or rebuilding a unit, this circuit board is a reliable solution for restoring full functionality to your Heidelberg machine's sheet-detection and pull gauge system.

Key Features

• Compatible Part Number: 00.781.2336 — designed to fit Heidelberg press pull gauge electric eye control systems
• Material: Durable plastic housing with precision-manufactured circuit components
• Function: Controls the electric eye (photoelectric sensor) circuit integral to accurate sheet registration and pull gauge operation
• Drop-In Replacement: Engineered to match OEM specifications for straightforward installation
• Reduces Downtime: A cost-effective way to restore your press's sheet-feed accuracy without replacing the entire assembly

Product Specifications

Why Choose This Circuit Board?

Heidelberg presses are precision machines, and the electric eye pull gauge control board plays a critical role in ensuring accurate sheet registration with every impression. A faulty or worn board can lead to misregistration, sheet damage, or press stoppages. This compatible replacement board allows press operators and technicians to quickly restore proper function, minimizing costly downtime and keeping your production schedule on track.

Who Is This For?

This part is ideal for:

• Print shop technicians servicing Heidelberg offset presses
• Press maintenance engineers sourcing hard-to-find replacement circuit boards
• Equipment refurbishers rebuilding Heidelberg press assemblies

Related Products You May Find Useful

Explore more tools and accessories in our store:

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Best Seat In The House" Retro Quote Canvas Wall Art Print

External Reference

For guidance on electrical safety and handling of electronic components in industrial environments, refer to OSHA's Electrical Safety guidelines.

Frequently Asked Questions

Q: What Heidelberg press models is the 00.781.2336 control circuit board compatible with?

A: This circuit board is designed as a compatible replacement for Heidelberg machines that use the 00.781.2336 pull gauge electric eye control circuit. We recommend cross-referencing the part number with your press's service manual or contacting your press technician to confirm compatibility with your specific model before installation.

Q: Is this a direct OEM part or an aftermarket replacement?

A: This is an aftermarket-compatible replacement part designed to match the specifications of the OEM 00.781.2336 circuit board. It is suitable for use in Heidelberg presses requiring this component and offers a cost-effective alternative to sourcing an original factory part.

Q: How do I install this pull gauge electric eye control circuit board?

A: Installation should be performed by a qualified press technician familiar with Heidelberg press electrical systems. Always power down and lock out the press before replacing any circuit board. Consult your Heidelberg press service manual for detailed step-by-step guidance specific to the 00.781.2336 assembly.

Q: What is the return or exchange policy if this part does not fit my machine?

A: Please verify the part number 00.781.2336 against your press documentation before ordering. If you have questions about fitment or need help sourcing a specific component, contact our support team before purchase so we can assist you in finding the correct part.
