HDMI Test Adapter Board Male Female PCB Conversion Module

HDMI Test Adapter Board – PCB Conversion Circuit Module

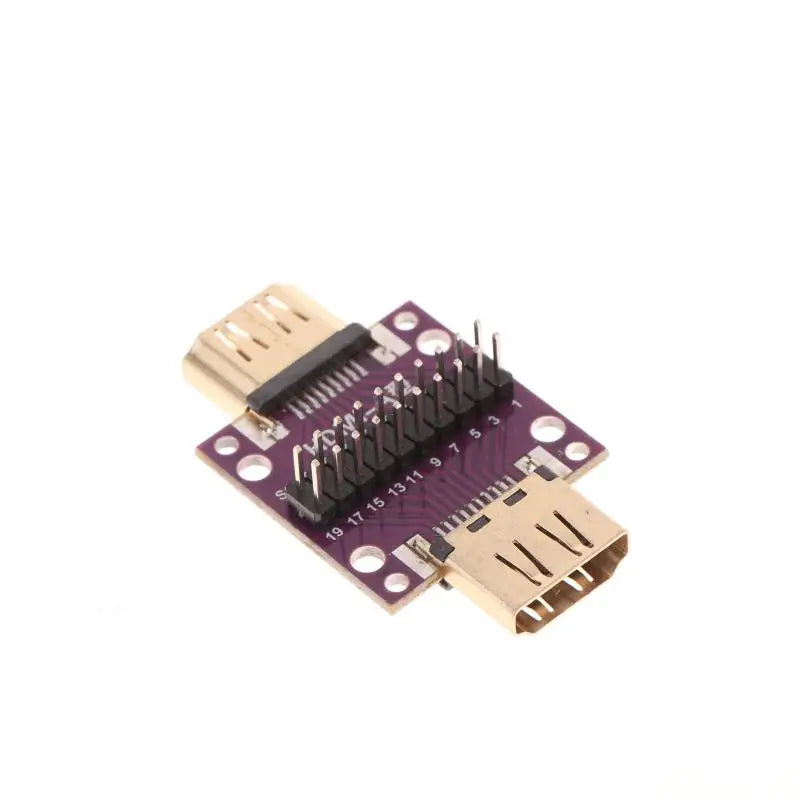

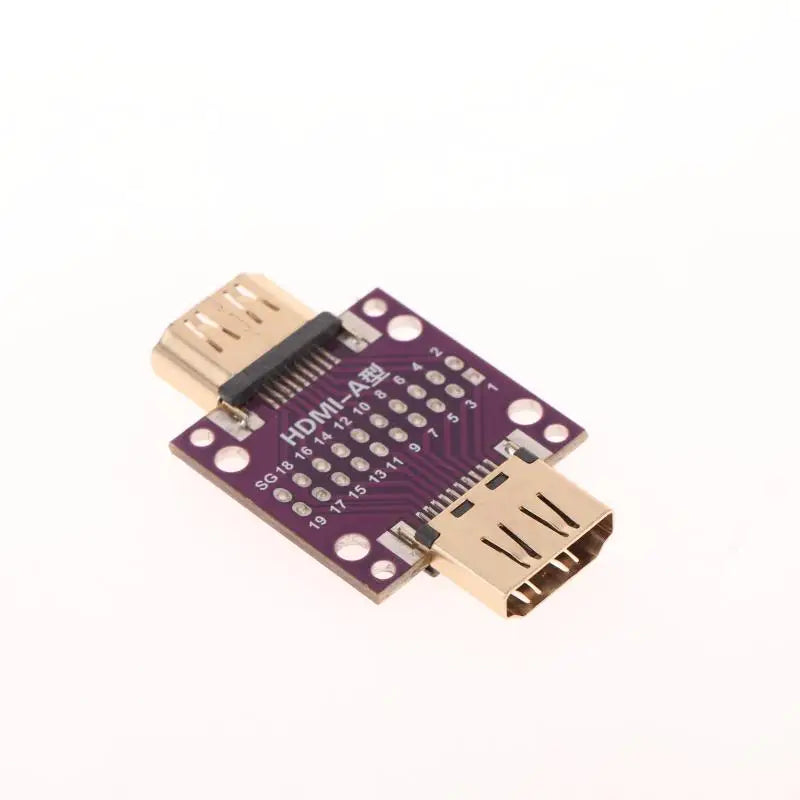

The HELTC HDMI Test Adapter Board is a compact, multi-configuration PCB module designed for electronics enthusiasts, makers, and technicians who need a reliable way to test, troubleshoot, and connect HDMI cables and devices. Available in Male-to-Female, Female-to-Female, and Male-to-Male configurations, this versatile board is an essential tool for any electronics workbench or DIY lab.

Key Features

• Durable Straight-Pin Welding: Precision straight-pin welding ensures a secure, long-lasting solder connection for stable signal integrity.
• High-Quality PCB Board: Crafted with a robust, high-grade PCB that guarantees stable and reliable HDMI signal transmission during testing and prototyping.

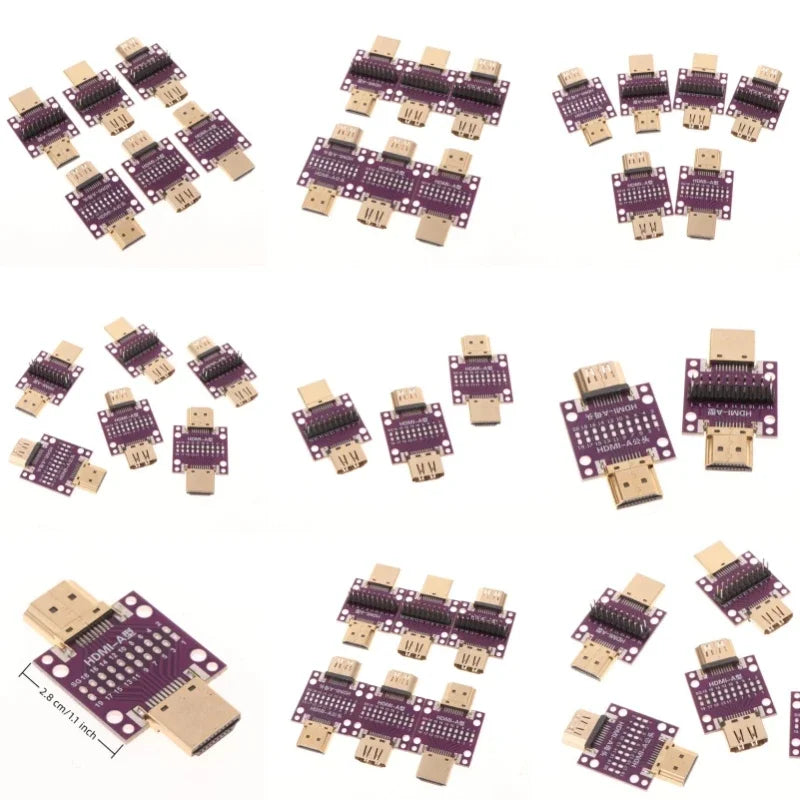

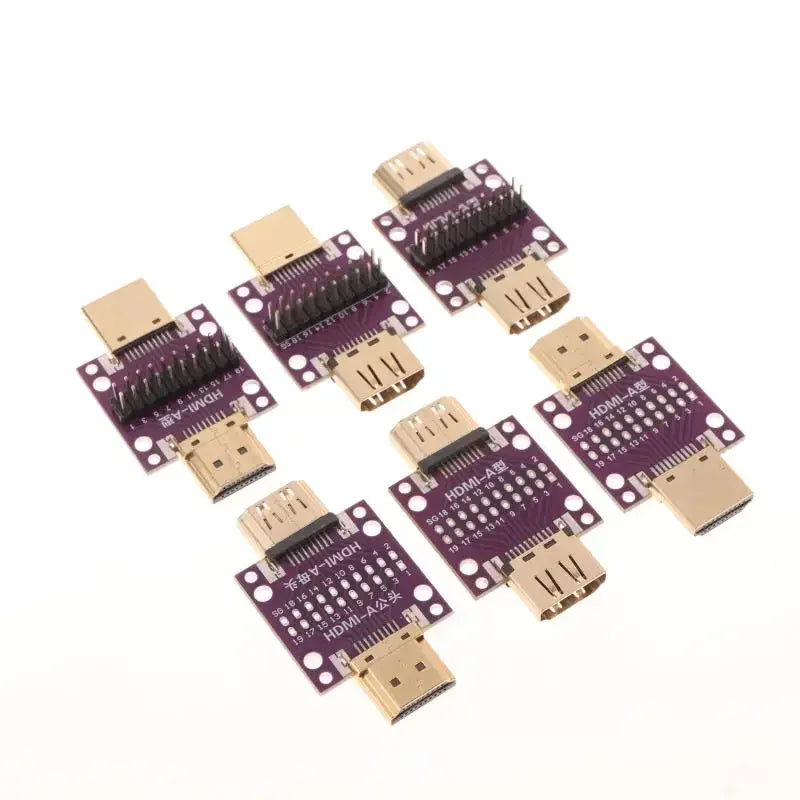

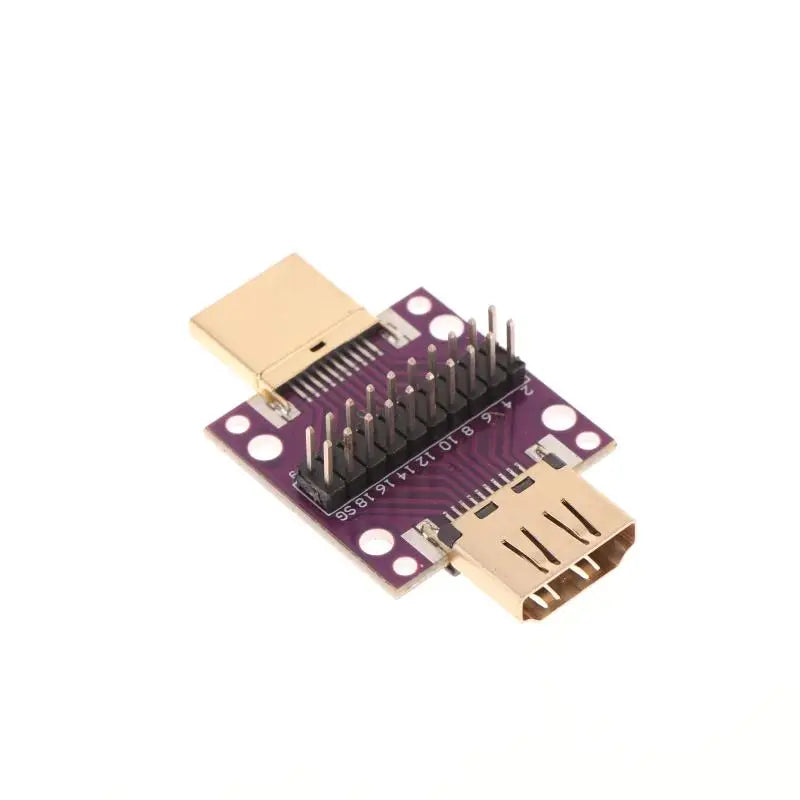

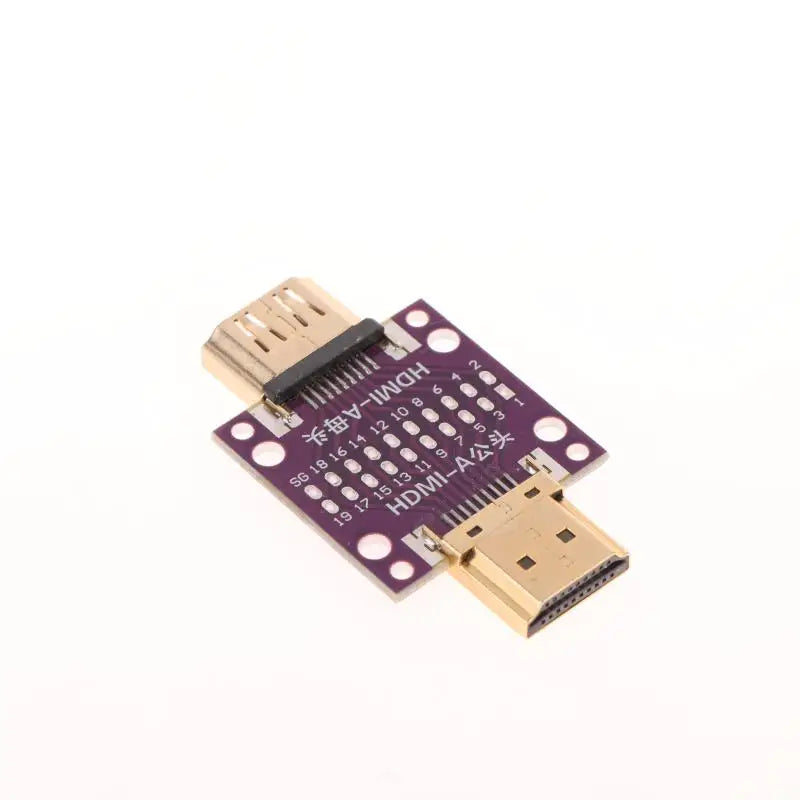

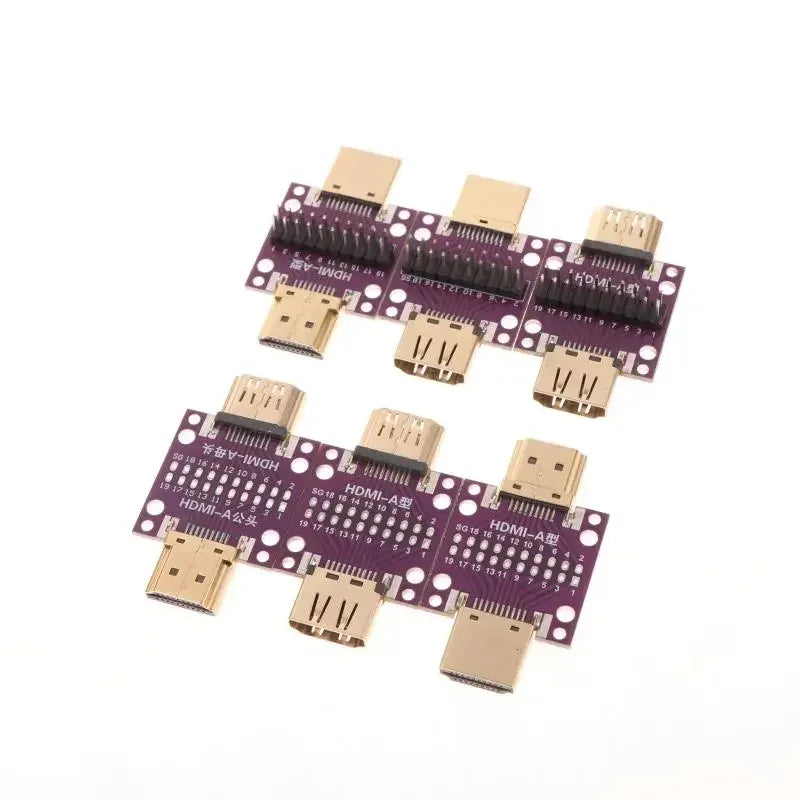

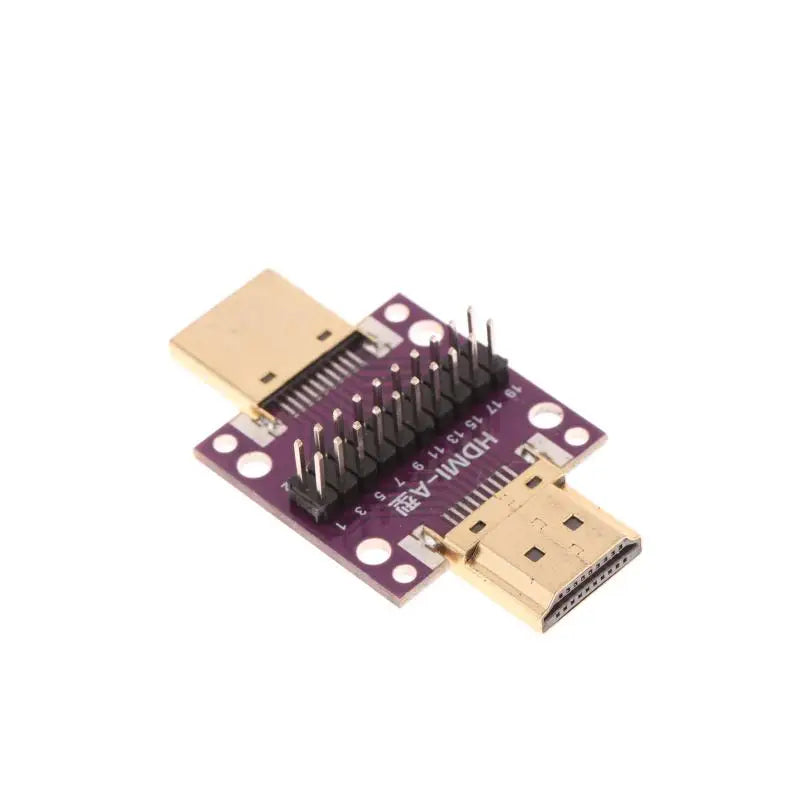

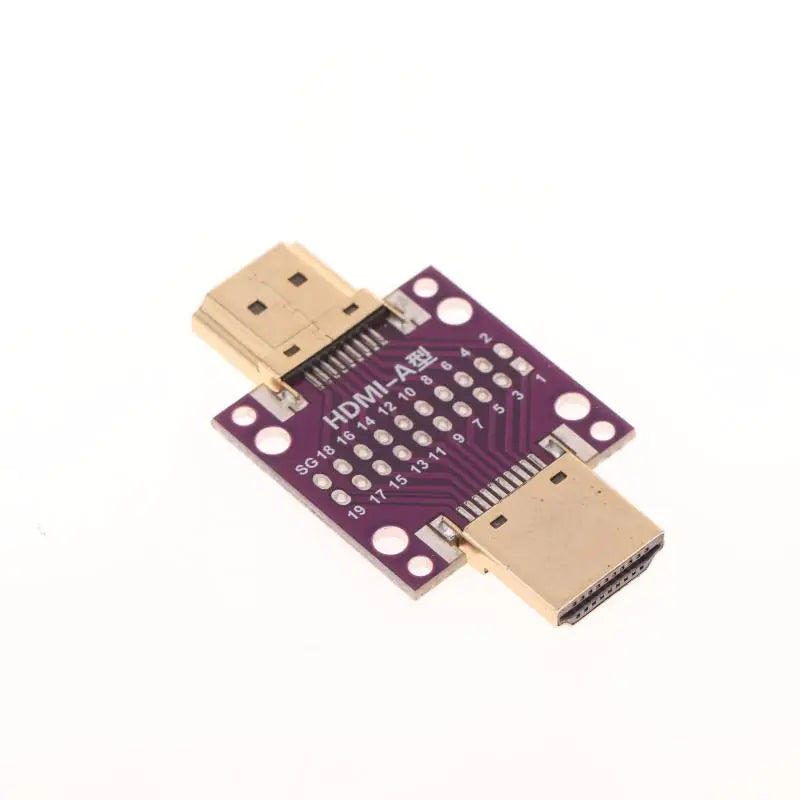

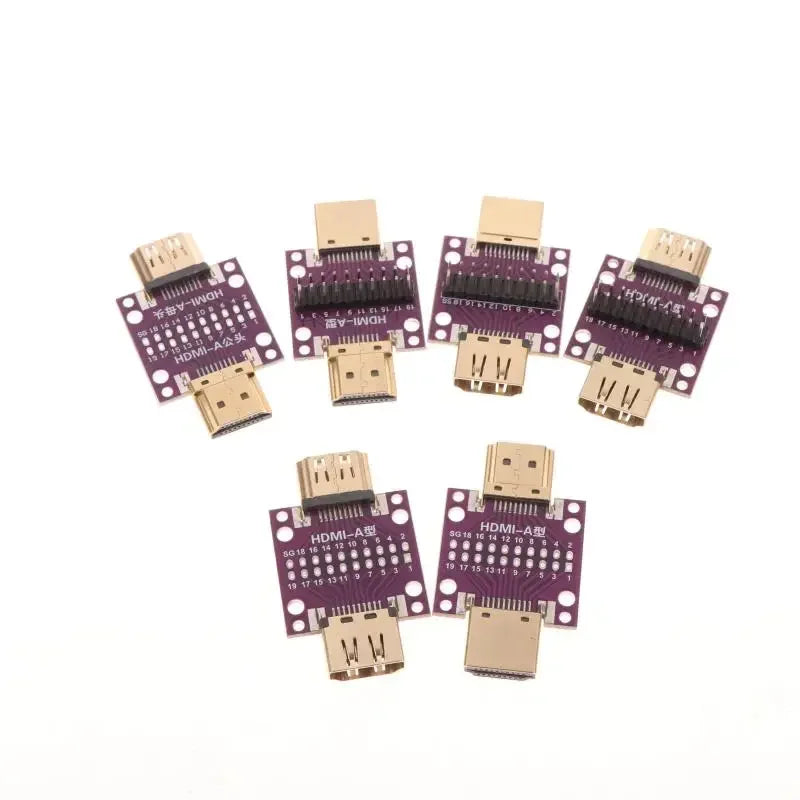

• Multiple HDMI Connector Options: Supports Male-to-Female, Female-to-Female, and Male-to-Male configurations — one board covers a wide range of connection scenarios.
• USB Interface Compatibility: Includes USB male and female socket points, expanding versatility for multi-device setups.
• Easy-to-Use Test Interface: A clearly labeled interface layout simplifies cable testing and connector troubleshooting — great for beginners and seasoned makers alike.
• Compact Size: Approximately 2.8 cm — small enough to fit in any toolkit or project enclosure.
• 24V Rated Voltage: Suitable for standard electronics projects and prototyping environments.

Specifications

Who Is This For?

Perfect for electronics hobbyists, PCB designers, hardware developers, AV technicians, and DIY makers who regularly work with HDMI connections. Whether you're diagnosing a faulty HDMI cable, prototyping a new circuit, or building a custom AV setup, this adapter board delivers the flexibility and dependability you need.

Please Note: Slight dimensional differences may occur due to manual measurement — dimensions listed are for reference. Monitor color calibration may cause minor color variation from product images.

Explore More Electronics & Maker Gear

• Looking for more maker boards? Check out our DIY & Electronics collection.

For more information on safe electronics practices and PCB handling, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What HDMI configurations does this test adapter board support?

A: This PCB test adapter board supports three configurations: HDMI Male-to-Female, Female-to-Female, and Male-to-Male, making it suitable for a wide variety of testing and prototyping scenarios.

Q: Can I use this HDMI adapter board for live signal transmission?

A: This board is primarily designed as a test and conversion module for electronics prototyping and cable testing. While it features a robust PCB construction rated at 24V, it is best suited for bench testing and development work rather than permanent AV installations.

Q: What is included in the package?

A: Each package includes 1 × HDMI Male/Female/Male-to-Male Test Adapter Board PCB Conversion Module. No additional accessories are included.

Q: Is soldering required to use this board?

A: The board uses straight-pin welding, so soldering skills are recommended for a secure and stable connection. This makes it ideal for experienced hobbyists and electronics makers comfortable with basic soldering.
