HAT310 ATS Controller for Diesel Generator Set Control Panel
Keep your power system running seamlessly with the HAT310 Automatic Transfer Switch (ATS) Controller — a compact, reliable control panel module engineered for diesel generator sets. Whether you're managing a commercial facility, industrial site, or backup power installation, this module delivers intelligent automatic transfer and restoration so your systems stay protected during mains outages.
Made in Mainland China.
Key Features
- Automatic Transfer & Restore: Instantly switches between mains and generator power, then restores mains supply automatically when it becomes available again — no manual intervention required.
- Under-Voltage & Phase Loss Detection: Continuously monitors all phases; if any phase voltage drops below the minimum working threshold or a phase loss occurs, the generator starts automatically.

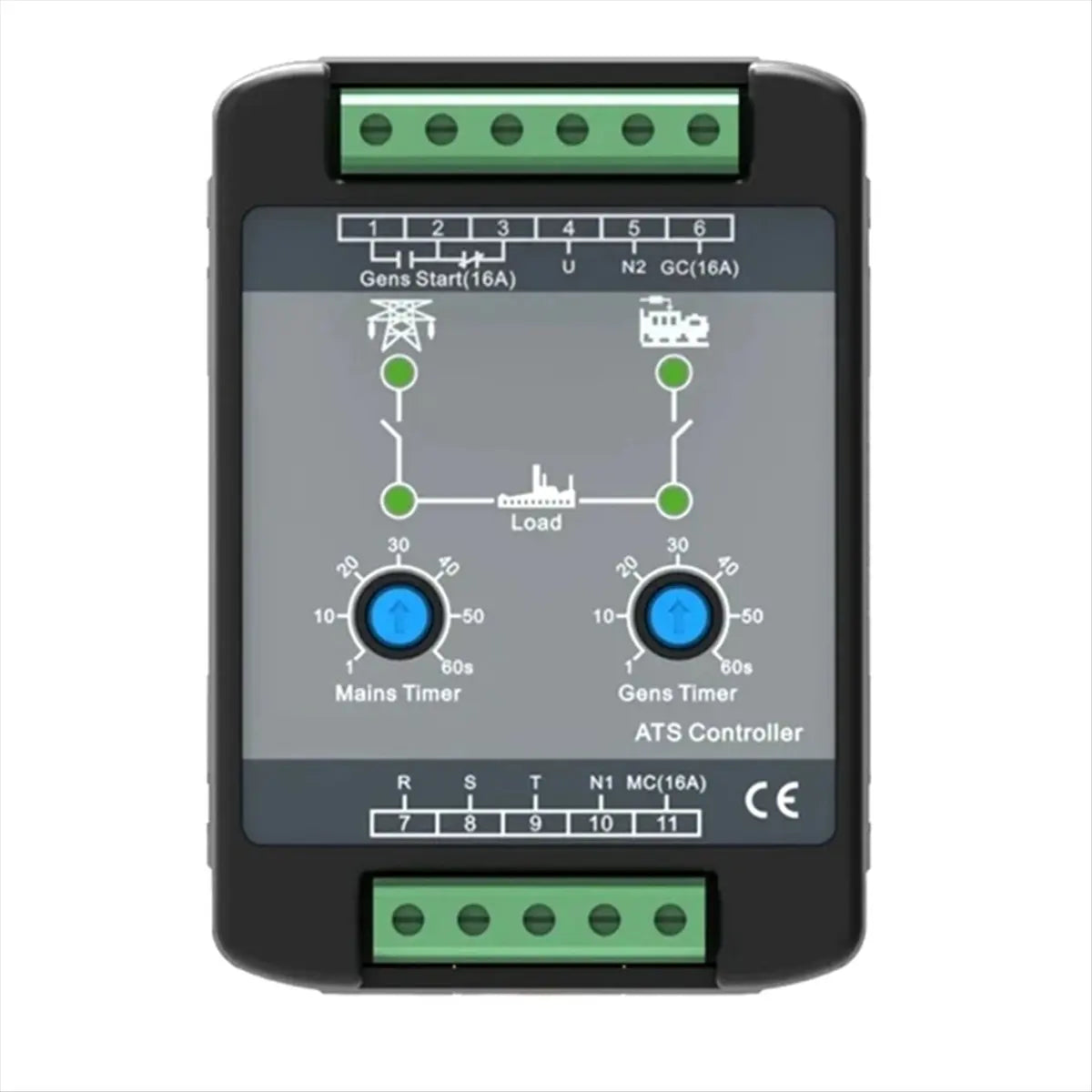

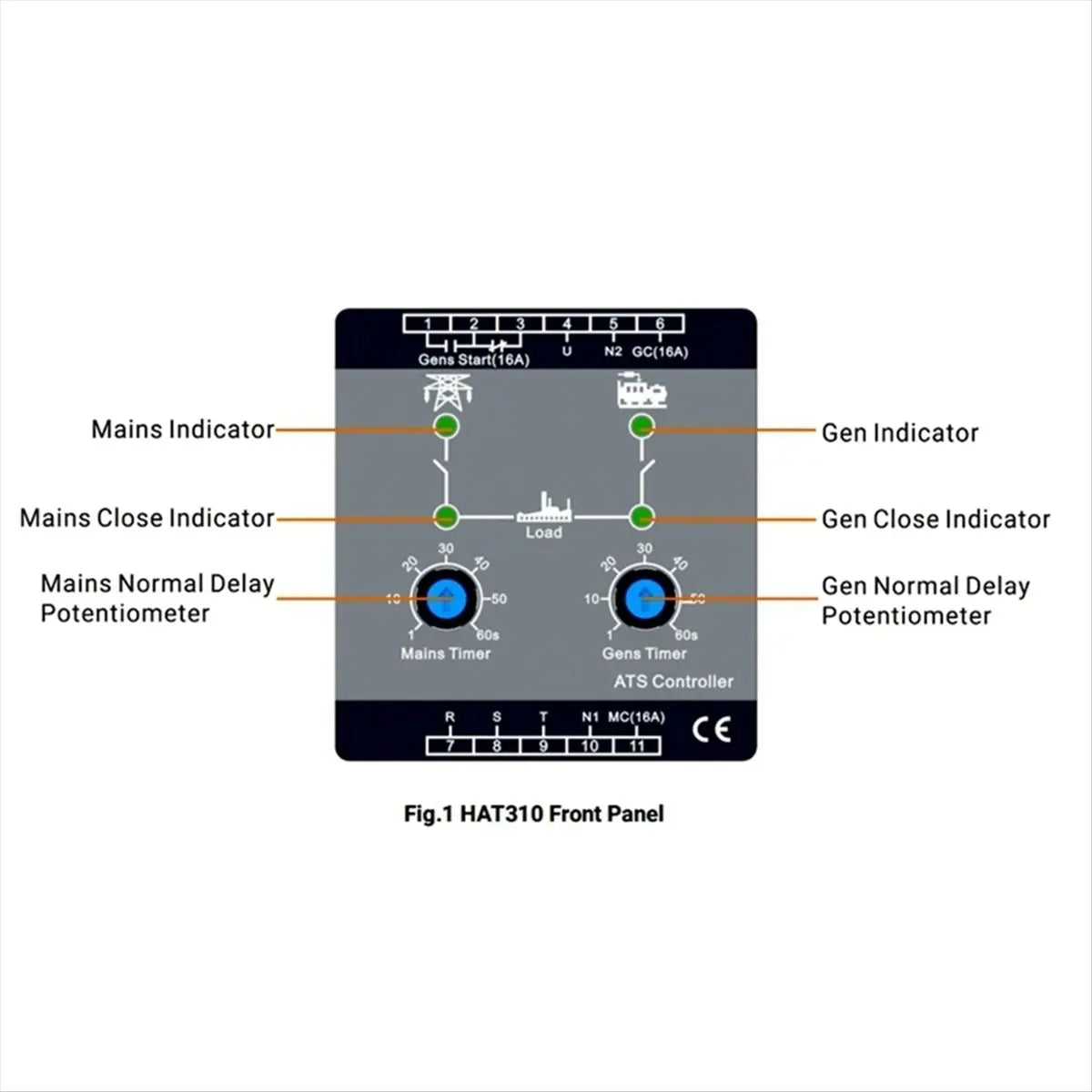

- Clear LED Status Indicators: Panel-mounted LEDs give you an at-a-glance view of the controller's current operating status.
- Dual Isolated Neutral Line Support: Compatible with systems requiring 2 isolated neutral lines.
- Adjustable Delay Timers: Mains normal delay (1–60 s) and generator normal delay (1–60 s) are both independently configurable via built-in potentiometers for precise timing control.
- High-Capacity Output Relays: Both mains/generator transfer relay and GENS START relay are rated at 16A AC250V. The transfer relay can directly drive switch conversion; the GENS START relay features volt-free normally open/normally closed contacts.
- Superior EMI Resistance: Strong anti-electromagnetic interference performance allows reliable operation even in environments with intense electromagnetic interference.

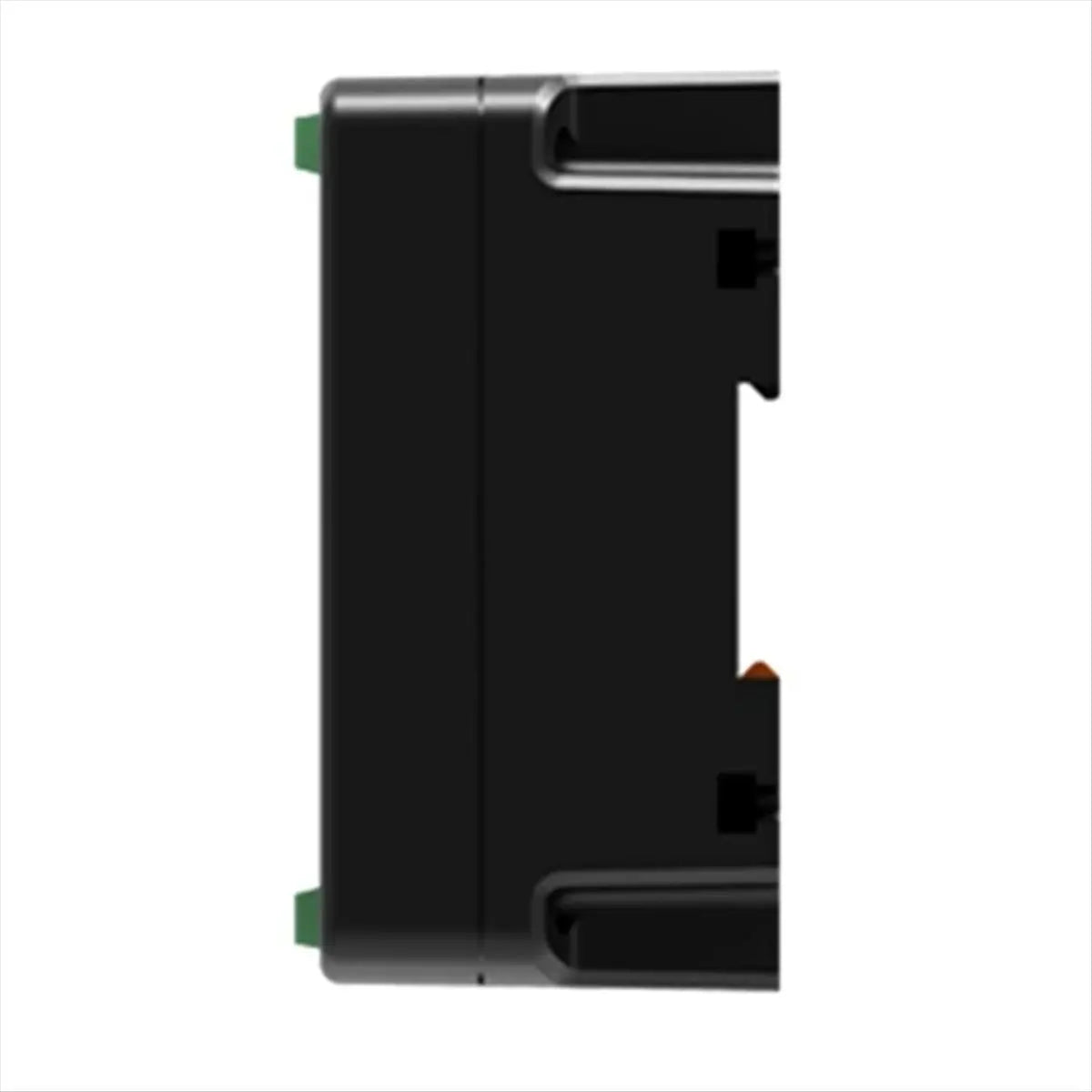

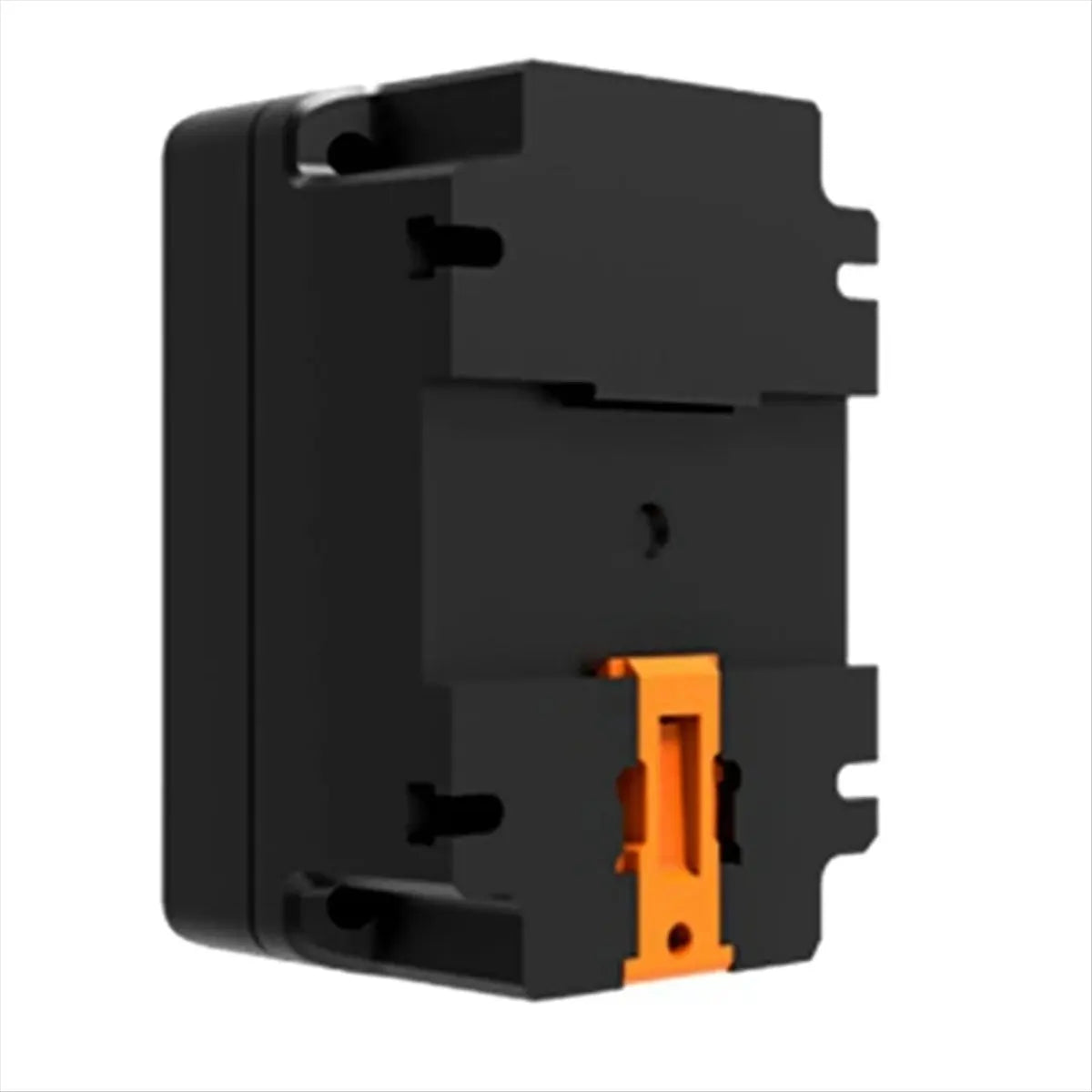

- Modular, Compact Design: Self-extinguishing ABS plastic shell with pluggable terminals for easy wiring and maintenance. Supports two installation methods: 35 mm DIN guide rail or internal screw mounting.
Technical Specifications
| Model | HAT310 |
| Function | Automatic Transfer Switch (ATS) Controller |
| Transfer Relay Rating | 16A AC250V |
| GENS START Relay Rating | 16A AC250V (Volt-free NO/NC) |
| Mains Normal Delay | 1–60 seconds (potentiometer adjustable) |
| Generator Normal Delay | 1–60 seconds (potentiometer adjustable) |
| Neutral Lines Supported | 2 isolated neutral lines |
| Shell Material | Self-extinguishing ABS Plastic |
| Installation | 35mm DIN Rail or Screw Mount |
| Origin | Mainland China |
What's in the Box?
- 1 × HAT310 ATS Controller Module
Note: Due to different product batches, the physical appearance may vary slightly but will not affect performance or functionality. Color may appear slightly different from photos due to lighting and display settings. Measurement tolerance: ±1–3 cm.
Related Products You May Like
- 1/2 Channel Tuya WiFi Smart Relay Switch | 16A, Alexa & Google Home
- Smart Relay Switch – 16A Smart Automation Module
For more information on electrical safety standards and power system best practices, visit the U.S. Occupational Safety and Health Administration (OSHA) Electrical Safety resource page.
Frequently Asked Questions
Q: What does the HAT310 ATS Controller do for a diesel generator set?
A: The HAT310 ATS Controller automatically transfers the power load from the mains supply to your diesel generator whenever it detects an under-voltage condition or phase loss on the mains. Once the mains supply is restored and stable, it automatically transfers the load back — ensuring continuous, uninterrupted power to your equipment without manual switching.
Q: How do I adjust the transfer delay timers on the HAT310?
A: The HAT310 features two built-in potentiometers — one for the mains normal delay and one for the generator normal delay. Each can be independently adjusted within a range of 1 to 60 seconds, giving you full control over how quickly the controller responds to power changes.
Q: What are the installation options for the HAT310 ATS Controller?
A: The HAT310 supports two installation methods: it can be mounted on a standard 35 mm DIN guide rail, or secured directly inside a panel enclosure using internal screw mounting. The pluggable terminal design also makes wiring quick and straightforward.
Q: Is the HAT310 suitable for use in environments with high electromagnetic interference?
A: Yes. The HAT310 is built with strong anti-electromagnetic interference (EMI) performance, making it reliable for use in industrial environments and electrical panels where EMI levels can be significant.
Descripción en Español
Controlador ATS HAT310 para Panel de Control de Grupo Electrógeno Diésel
Mantenga su sistema eléctrico funcionando sin interrupciones con el Controlador de Conmutación Automática (ATS) HAT310 — un módulo de panel de control compacto y confiable diseñado para grupos electrógenos diésel. Ya sea que administre una instalación comercial, un sitio industrial o una instalación de energía de respaldo, este módulo ofrece transferencia automática inteligente y restauración para que sus sistemas estén protegidos durante los cortes de suministro.
Fabricado en China Continental.
Características Principales
- Transferencia y Restauración Automática: Cambia instantáneamente entre la red eléctrica y el generador, y restaura automáticamente el suministro de la red cuando vuelve a estar disponible.
- Detección de Subtensión y Pérdida de Fase: Monitorea continuamente todas las fases; si el voltaje de cualquier fase cae por debajo del umbral mínimo o se detecta una pérdida de fase, el generador se inicia automáticamente.
- Indicadores LED de Estado: Los LED montados en el panel ofrecen una vista clara del estado operativo actual del controlador.
- Soporte para Doble Línea Neutral Aislada: Compatible con sistemas que requieren 2 líneas neutras aisladas.
- Temporizadores de Retardo Ajustables: El retardo normal de la red (1–60 s) y el retardo normal del generador (1–60 s) son configurables de forma independiente mediante potenciómetros integrados.
- Relés de Salida de Alta Capacidad: Tanto el relé de transferencia como el relé de INICIO DEL GENERADOR tienen una capacidad de 16A AC250V. El relé de inicio del generador cuenta con contactos normalmente abiertos/normalmente cerrados sin tensión.
- Alta Resistencia a la Interferencia Electromagnética: Permite un funcionamiento confiable incluso en entornos con intensa interferencia electromagnética.
- Diseño Modular y Compacto: Carcasa de ABS autoextinguible con terminales enchufables para un fácil cableado. Admite dos métodos de instalación: riel DIN de 35 mm o montaje con tornillos.
Especificaciones Técnicas
| Modelo | HAT310 |
| Función | Controlador de Conmutación Automática (ATS) |
| Capacidad del Relé de Transferencia | 16A AC250V |
| Capacidad del Relé de Inicio | 16A AC250V (Sin tensión NO/NC) |
| Retardo Normal de Red | 1–60 segundos (ajustable con potenciómetro) |
| Retardo Normal del Generador | 1–60 segundos (ajustable con potenciómetro) |
| Líneas Neutras Soportadas | 2 líneas neutras aisladas |
| Material de la Carcasa | Plástico ABS autoextinguible |
| Instalación | Riel DIN de 35 mm o montaje con tornillos |
| Origen | China Continental |
Contenido del Paquete
- 1 × Módulo Controlador ATS HAT310
Nota: Debido a diferentes lotes de producción, la apariencia física puede variar ligeramente sin afectar el rendimiento. El color puede diferir ligeramente de las fotos por efectos de iluminación. Tolerancia de medición: ±1–3 cm.
Preguntas Frecuentes
P: ¿Qué hace el Controlador ATS HAT310 para un grupo electrógeno diésel?
R: El Controlador ATS HAT310 transfiere automáticamente la carga eléctrica de la red al generador diésel cuando detecta una condición de subtensión o pérdida de fase. Una vez que el suministro de la red se restablece y es estable, transfiere automáticamente la carga de regreso, garantizando energía continua sin interrupciones ni intervención manual.
P: ¿Cómo ajusto los temporizadores de retardo en el HAT310?
R: El HAT310 cuenta con dos potenciómetros integrados: uno para el retardo normal de la red y otro para el retardo normal del generador. Cada uno puede ajustarse de forma independiente en un rango de 1 a 60 segundos, dándole control total sobre la velocidad de respuesta del controlador.
P: ¿Cuáles son las opciones de instalación del Controlador ATS HAT310?
R: El HAT310 admite dos métodos de instalación: puede montarse en un riel DIN estándar de 35 mm, o fijarse directamente dentro de un gabinete mediante montaje con tornillos. El diseño de terminales enchufables también facilita el cableado.
P: ¿Es el HAT310 adecuado para entornos con alta interferencia electromagnética?
R: Sí. El HAT310 está diseñado con alta resistencia a la interferencia electromagnética (EMI), lo que lo hace confiable para su uso en entornos industriales y paneles eléctricos con niveles significativos de EMI.
