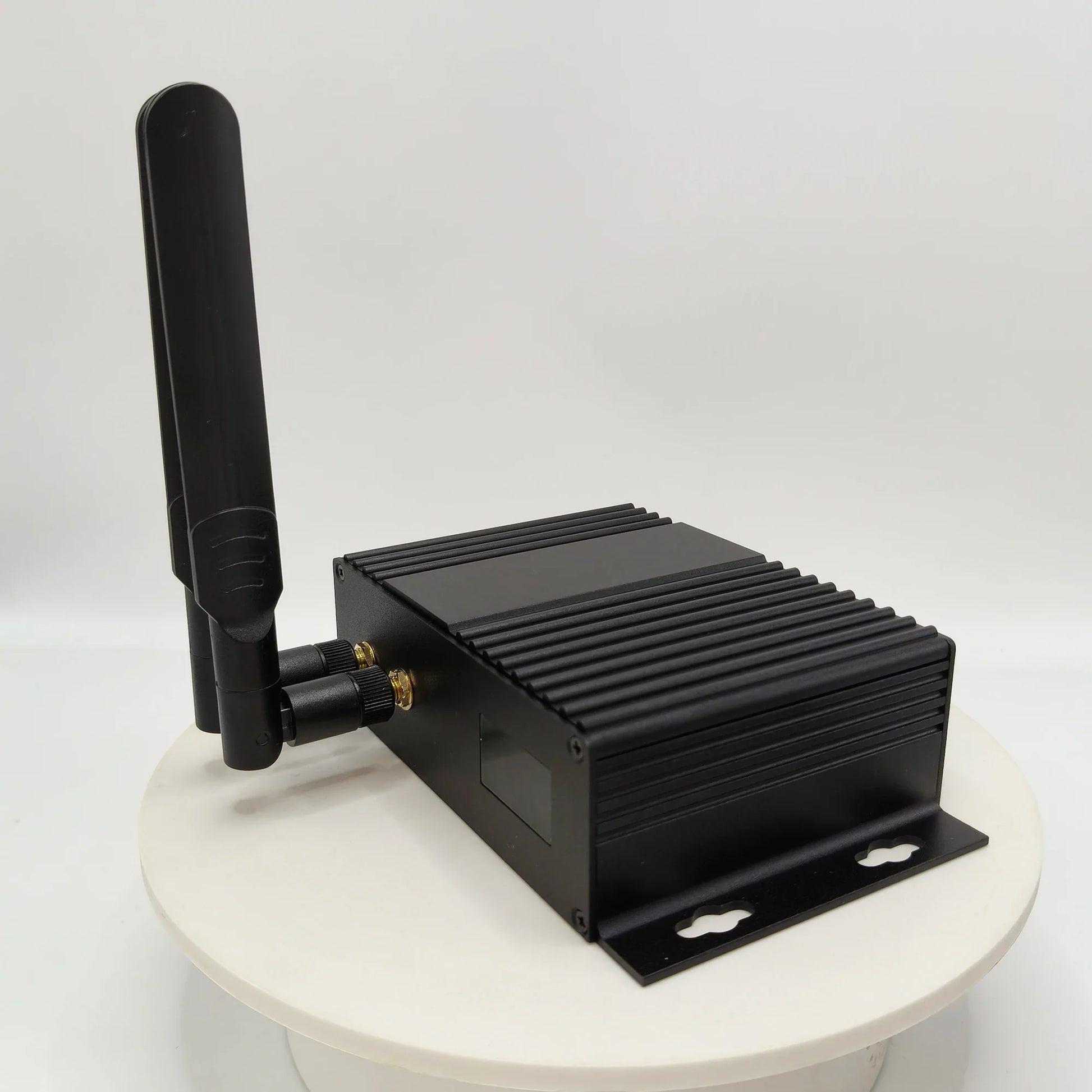

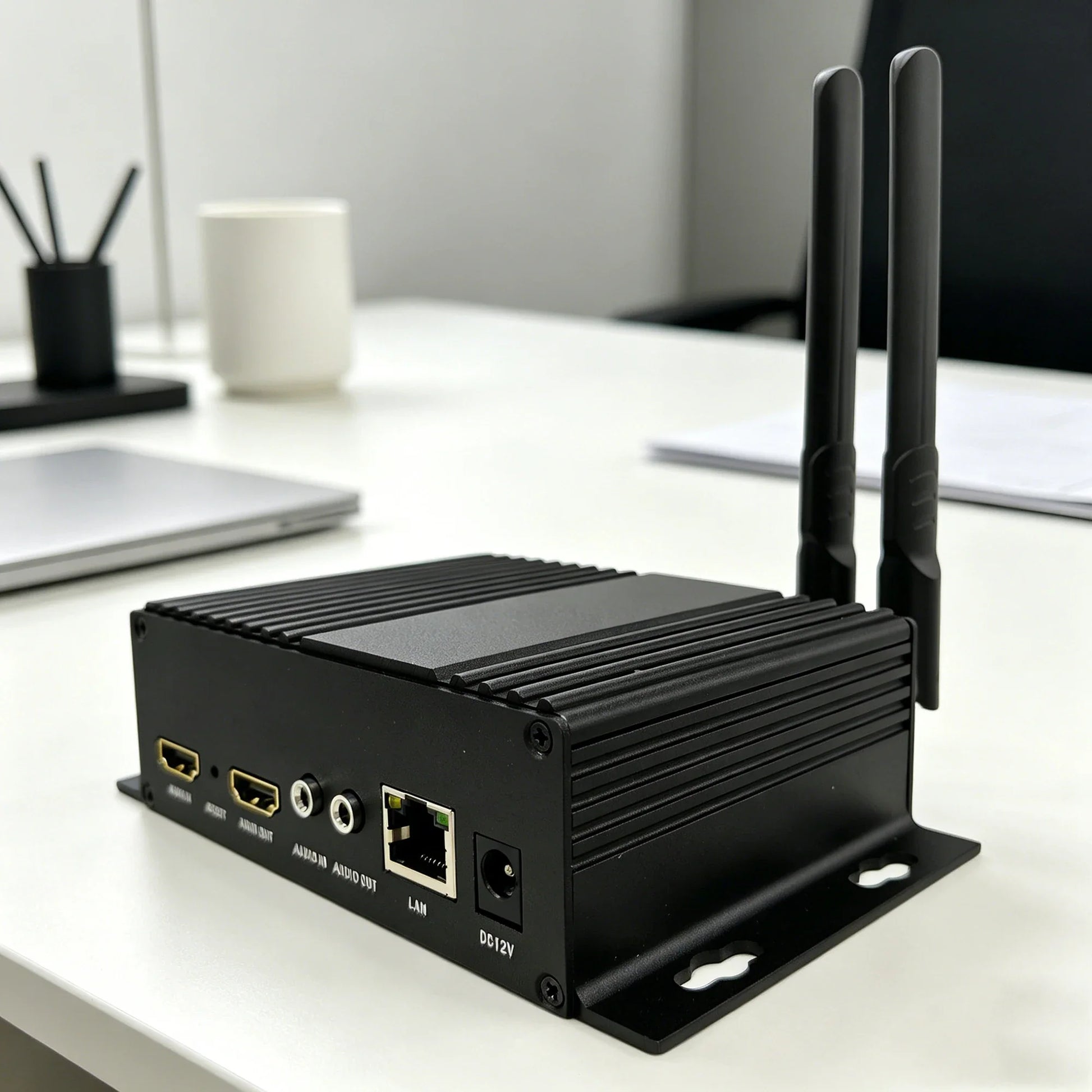

Tuoying H.265 HD Video Encoder/Decoder with OLED Display

Take full control of your video signal workflow with the Tuoying H.265 HDMI Encoder/Decoder. Featuring a compact design with an integrated OLED display, this professional-grade device captures HDMI input and converts it to IP streams — or decodes incoming IP streams back to HDMI output. Whether you're broadcasting live events, managing an IPTV system, running conference streams, or integrating with NVR surveillance setups, this encoder/decoder delivers reliable, low-latency performance. Made in Mainland China.

Key Features

• 4K UHD Support: Captures and encodes HDMI signals up to 3840×2160p @ 30fps — crystal-clear video for professional applications.
• Triple Encoding Formats: Supports H.265, H.264, and MJPEG, giving you flexibility for bandwidth efficiency and browser compatibility.

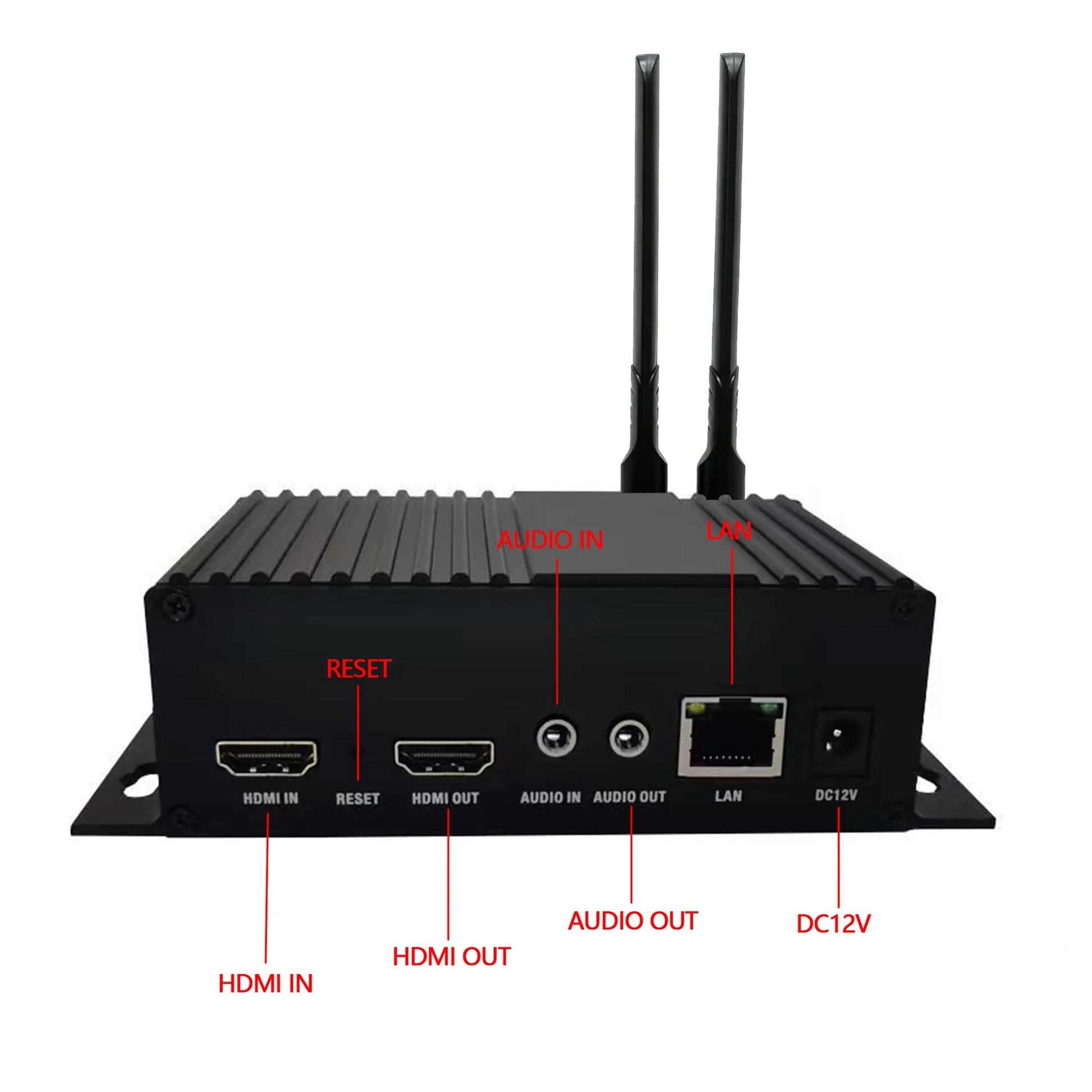

• HD Loop-Through or Decoded Output: Use the HDMI OUT port for either a direct loop-through of the input signal or a decoded output from an IP stream — all in one device.
• Low-Latency PTE Protocol: Proprietary PTE protocol delivers ultra-responsive transmission over local area networks with just 80–200 ms latency. Two devices on the same LAN can decode each other's streams for seamless two-way audio communication.
• Multi-Stream Output: Outputs 1 main stream + 3 sub-streams per channel over the network for maximum flexibility.
• Wide Protocol Support (Encoding): RTMP, RTSP, HTTP TS, HTTP FLV, HLS, HLS MP4, MP4, SRT, UDP Multicast, RTP Multicast.
• Wide Protocol Support (Decoding): HTTP FLV, RTMP, TS, RTSP, RTMPS, UDP, HLS, SRT — as well as the proprietary PTE protocol.
• ONVIF & NVR Integration: Seamlessly integrates with NVRs via the ONVIF protocol for recording and playback.
• GB28181 Protocol Support: Compatible with public security video networking standards for broader system integration.
• Live Streaming Ready: Push RTMP streams directly to live streaming platforms or local media servers for live broadcasts.
• IPTV & Multicast: Multicast protocol enables simultaneous viewing by multiple LAN clients and integrates with IPTV servers.
• Flexible Audio Input: Accepts audio via HDMI or a 3.5mm external audio input, with full stereo support and LAN voice intercom capability.
• OSD Overlay: Add logos, text, timestamps, and scrolling text banners over your video output.
• Video Rotation & Cropping: Rotate video by angle and crop by coordinates directly on the device.
• Web-Based Management: Configure all parameters and upgrade firmware conveniently through a web interface.

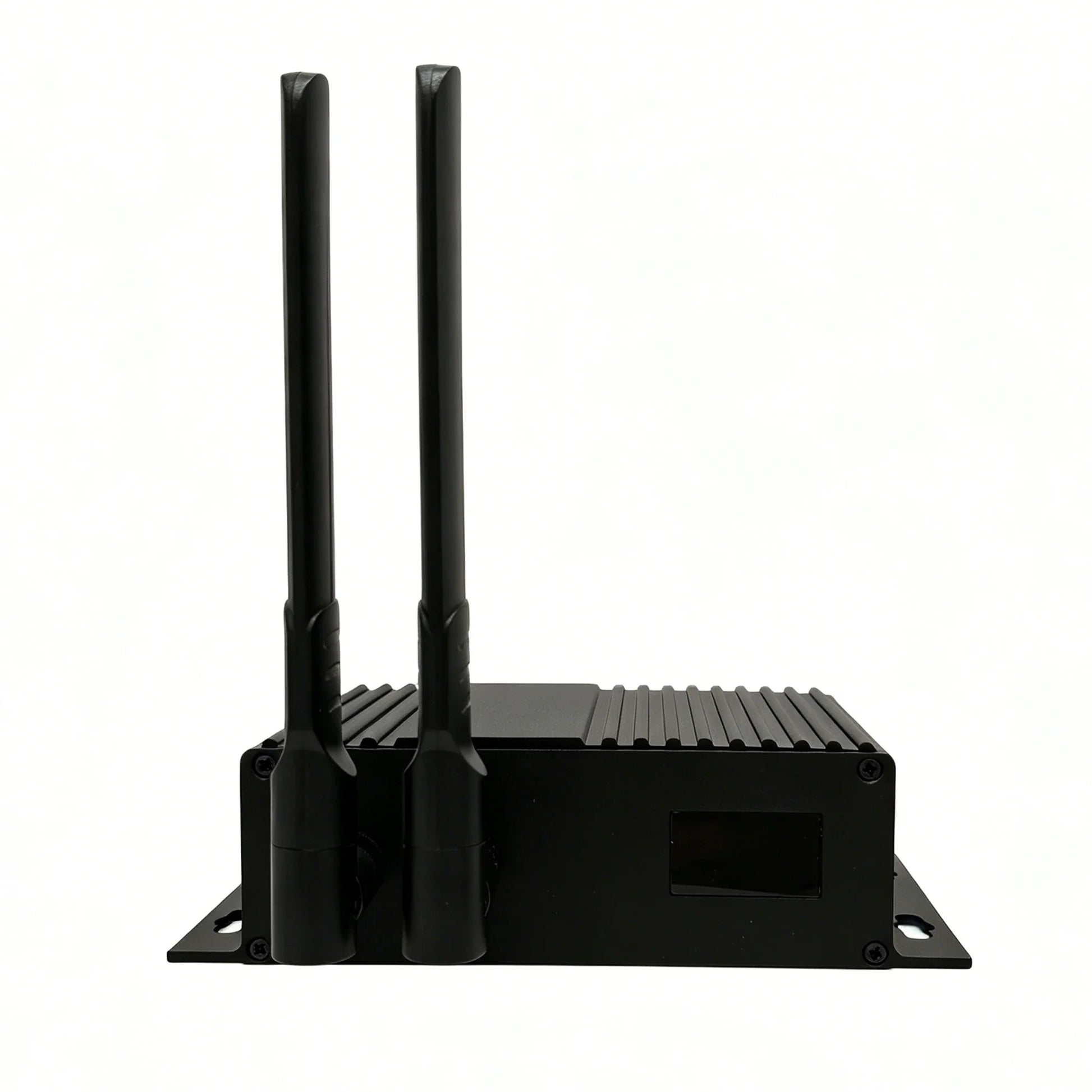

• OLED Display: Built-in OLED screen provides at-a-glance status monitoring without needing a separate monitor.
• CE Certified: Meets CE compliance standards for safety and electromagnetic compatibility.

Specifications

Ideal Use Cases

• Educational & corporate live streaming
• Conference room video distribution
• Entertainment, gaming, and esports broadcasting
• IPTV system deployment
• IP video surveillance with NVR integration
• Houses of worship & event production

Related Products

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone

For more information on video signal standards and digital broadcasting technology, visit the NIST Video Technology resources.

Learn more: Unified Video Decoder

Frequently Asked Questions

Q: What is the maximum video resolution supported by the H.265 HDMI encoder/decoder?

A: The device supports video capture and encoding up to 3840×2160p at 30 frames per second (4K UHD), ensuring high-quality video transmission over IP networks.

Q: Can this encoder/decoder be used for two-way audio communication?

A: Yes. When two units are placed on the same local area network, they can decode each other's streams simultaneously, enabling full two-way audio intercom over LAN with the low-latency PTE proprietary protocol.

Q: Which streaming platforms and protocols does this device support?

A: It supports a wide range of protocols including RTMP (for YouTube Live, Facebook Live, and other platforms), RTSP, HTTP FLV, HLS, SRT, MP4, UDP/RTP Multicast, ONVIF, GB28181, and the proprietary PTE low-latency protocol — making it highly versatile for professional broadcast and enterprise environments.

Q: How is the device configured and managed?

A: All settings — including stream parameters, OSD overlays, video rotation, and cropping — can be configured via a web-based interface. Firmware updates can also be performed through the same web portal for easy maintenance.

Q: Does the HDMI output support loop-through while encoding to IP?

A: Yes. The HDMI OUT port can function as either a loop-through of the HDMI IN signal (passing it unchanged to a local display) or as a decoded output from a received IP stream, selectable based on your setup requirements.
