H.265/H.264 VGA to IP Encoder – Live Streaming, Loop-Out
H.265/H.264 VGA to IP Encoder – Live Streaming, Loop-Out
Couldn't load pickup availability
Tuoying H.265/H.264 VGA to IP Video Encoder with Loop-Out – Real-Time Multi-Platform Live Streaming
Transform any VGA video source into a high-quality IP stream with the Tuoying VGA to IP Video Encoder. Supporting both H.265 and H.264 encoding (plus MJPEG), this compact yet powerful encoder lets you broadcast live to YouTube, Facebook, Twitch, Wowza, and virtually any RTMP-compatible platform — all in real time. With its convenient VGA loop-out, your local monitor stays connected while you stream simultaneously to the internet.
Whether you're running a live event, a lecture hall, a house of worship broadcast, or a professional production, this encoder delivers low-latency, high-definition streams up to 1920×1200 resolution at up to 60 fps — with the flexibility to adapt to your exact workflow.
Made in Mainland China.
Key Features
- Dual Codec Support: H.265 / H.264 / MJPEG encoding for maximum compatibility and bandwidth efficiency

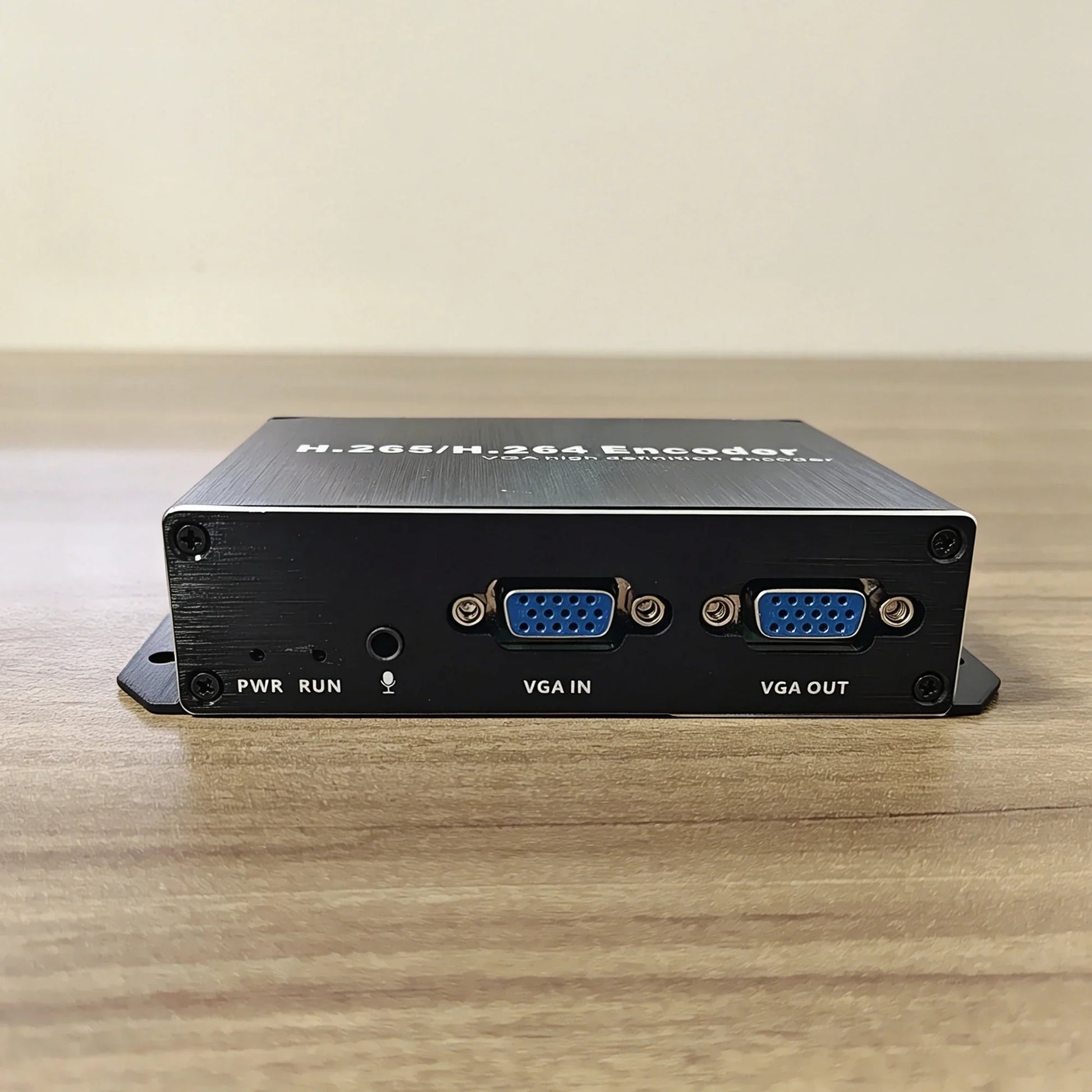

- VGA Loop-Out: Pass-through VGA output keeps your local display active while streaming
- Multi-Protocol Streaming: RTMP, RTMPS, RTSP, HTTP-TS, HTTP-FLV, HLS-TS, HLS-MP4, SRT, UDP, RTP — stream to virtually any platform or server
- High Resolution: Encode up to 1920×1200 @ 5–60 fps; supports a wide range of output resolutions
- Flexible Audio Encoding: AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 / Opus; 3.5mm analog audio input plus HDMI audio; sample rates 44100 / 48000 Hz
- OSD Overlay: Add text, scrolling text, images, or logos (up to 4 zones, 4 uploadable logos) in customizable fonts, colors, and positions
- ONVIF Support: Easily search and browse video streams with ONVIF-compatible NVRs and VMS software
- Gigabit Ethernet: 1000 Mbps network interface ensures stable, high-throughput streaming
- Bit Rate Control: CBR / VBR / Strong CBR modes; bit rate range 32–32,000 kbps
- Low Power Consumption: <3W — designed for always-on, reliable operation
- CE Certified for quality and safety assurance
Full Technical Specifications
| Specification | Parameter |
|---|---|

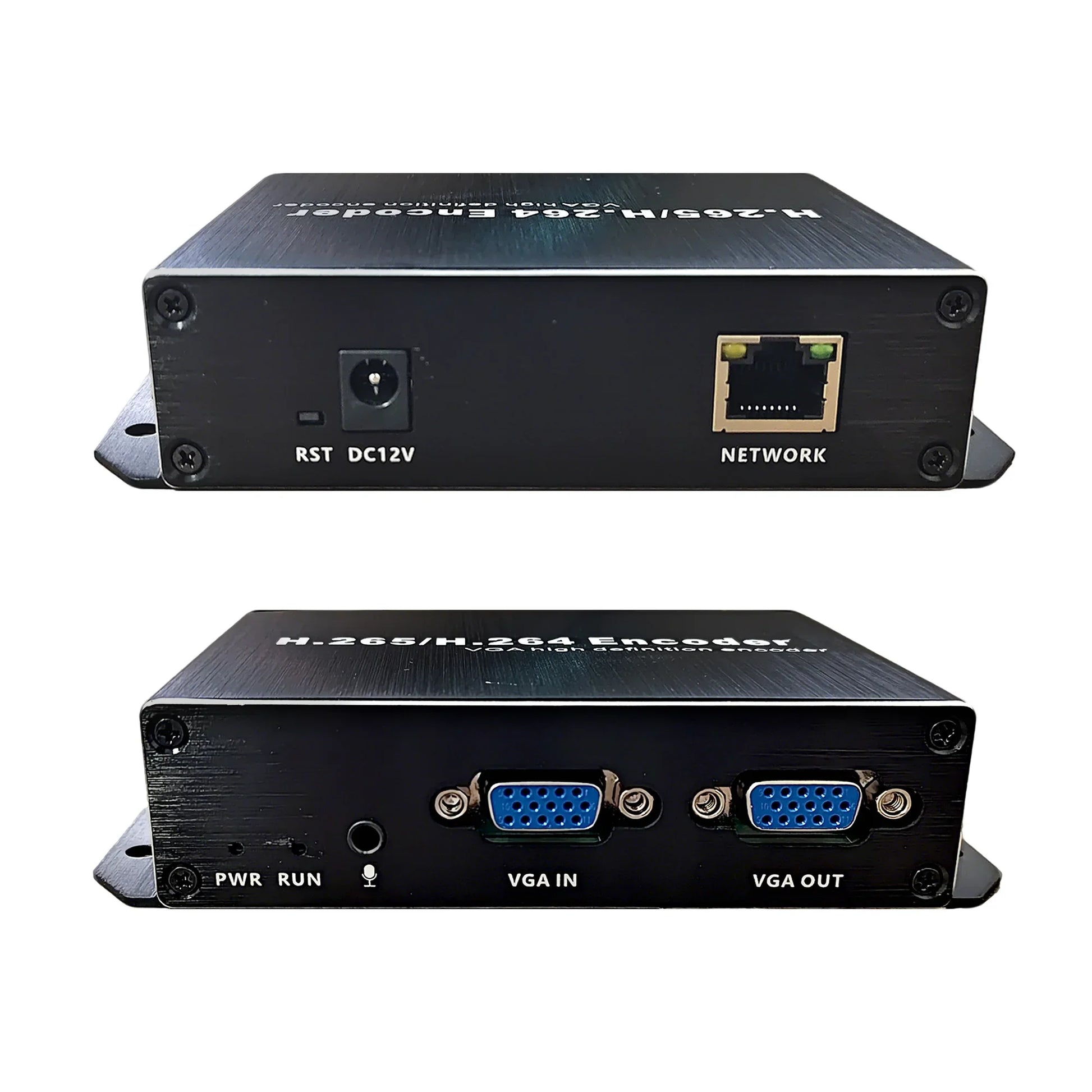

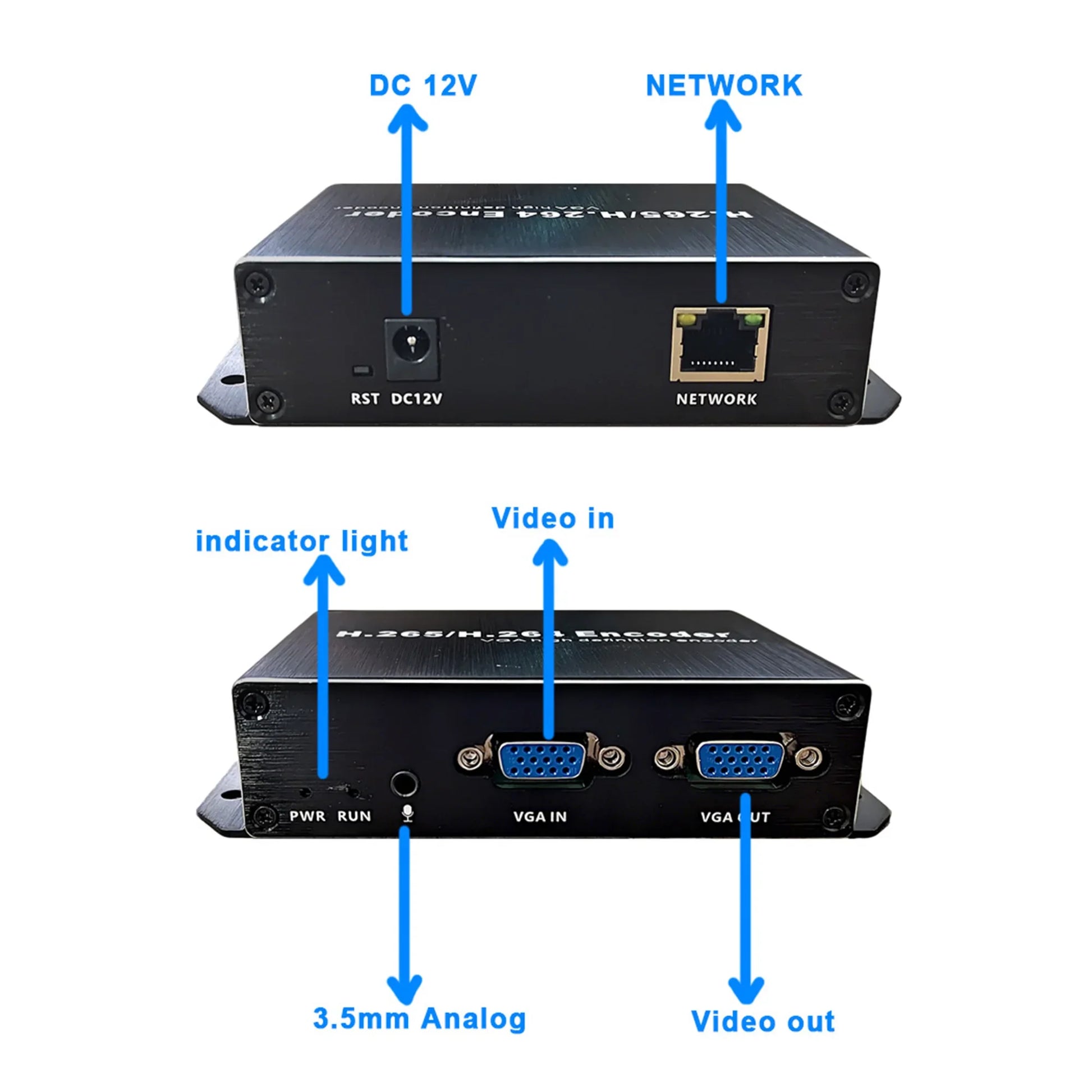

| Video Input | 1× VGA |
| Video Output (Loop-Out) | 1× VGA |
| Audio Input | VGA built-in audio; 3.5mm Analog |
| Encoding Type | H.265 / H.264 / MJPEG |
| Frame Rate (FPS) | 5–60 |
| GOP | 5–300 |
| Bit Rate | 32–32,000 kbps |
| Encoded Resolutions | 1920×1200, 1920×1080, 1680×1200, 1680×900, 1280×1024, 1280×720, 1024×768, 1024×576, 960×540, 850×480, 800×600, 720×576/540/480/404, 704×576, 640×480/360, and more; or same as input |
| H.264 Profile | Baseline / Main / High |
| Stream Types | RTMP / RTMPS / RTSP / HTTP-TS / HTTP-FLV / HLS-TS / HLS-MP4 / SRT / UDP / RTP |
| Audio Encoder | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 / Opus |
| Audio Sample Rate | 44100 / 48000 Hz (or same as input) |
| Audio Channel | L+R / L / R |
| Digital Volume | −50 to +50 |
| Denoise | 1–100 dB |
| OSD Zones | 4 zones (Text / Image / Scrolling text); 4 uploadable logos |
| OSD Font Size | 8–72 pt; RGB font color; Transparent / White / Black background |

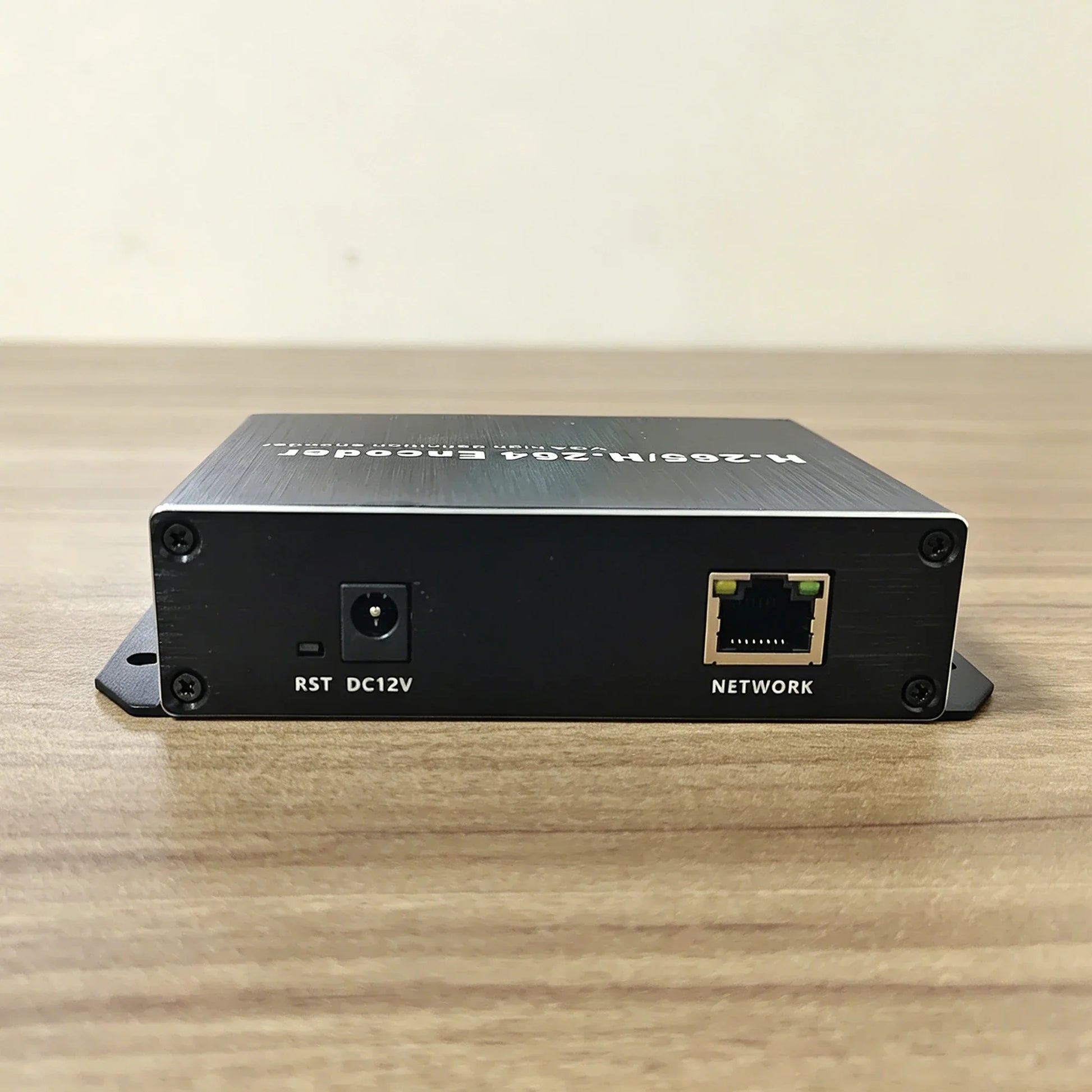

| Network | 1000 Mbps Ethernet |
| Configuration | Web browser / Upload / Reset |
| ONVIF | Supported |
| Power Supply | 12V DC, 2A |
| Power Consumption | <3W |
| Operating Temperature | −20°C to +60°C |
| Humidity | <90%, non-condensing |
| Dimensions | 18.2 × 10.4 × 3.5 cm |
| Weight | 443 g |
| Certification | CE |
| Origin | Mainland China |
Who Is This Encoder For?
- 🎓 Education & Lecture Capture — stream VGA-output projectors or laptops directly to the internet
- ⛪ Houses of Worship — broadcast services live without replacing existing VGA AV infrastructure
- 🎮 Gaming & Events — capture retro consoles or event displays with VGA output
- 📡 IPTV & Enterprise Video — integrate with ONVIF NVRs or custom streaming servers over LAN
- 🎬 Content Creators — go live to YouTube, Facebook, Twitch, and custom RTMP endpoints simultaneously
Related Products You May Like
- 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
- 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone
For guidance on broadcast video standards and streaming technology, visit the National Institute of Standards and Technology (NIST) for technical references on digital communications and networking standards.
Frequently Asked Questions
Q: Can the Tuoying VGA to IP encoder stream to YouTube and Facebook at the same time?
A: Yes. The encoder supports multiple simultaneous RTMP/RTMPS push streams, so you can broadcast to YouTube Live, Facebook Live, Twitch, or any custom RTMP server concurrently — without needing additional software or hardware.
Q: Does the VGA loop-out work while streaming?
A: Absolutely. The VGA loop-out passes the signal directly to a connected monitor or projector in real time, so your local display continues working normally at full quality while the encoder simultaneously captures and streams the video over IP.
Q: What streaming protocols does this encoder support?
A: It supports a comprehensive range of protocols including RTMP, RTMPS, RTSP, HTTP-TS, HTTP-FLV, HLS-TS, HLS-MP4, SRT, UDP, and RTP — making it compatible with virtually every major streaming platform, media server, and IP network video system.
Q: How do I configure the encoder?
A: Configuration is done through a standard web browser interface via the device's IP address on your local network. You can also upload configuration files or perform a factory reset directly from the web UI — no additional software installation required.
Q: What audio inputs does the VGA IP encoder support?
A: The encoder accepts audio via the VGA connector's built-in audio channel as well as a standard 3.5mm analog stereo input, giving you flexibility for microphones, mixers, or direct line-level sources. Multiple audio codecs (AAC, MP3, AC3, Opus, and more) are supported.
