FG300 DDS Schumann Wave Generator 0 001Hz-200KHz Module Sine Square

Discover the FG300 DDS Schumann Wave Generator 0 001Hz-200KHz Module Sine Square — a standout decor pick featuring portable, adjustable, multifunctional design for dependable, everyday performance.

Specifications

Condition: New

Package: TQFP

Quantity: 1

Type: Module

is_customized: Yes

Features:

1. Adopting low-temperature drift crystal oscillator, high-precision DDS frequency synthesis, high frequency stability, resolution up to 0.001HZ, and accuracy up to 0.001HZ at low frequencies

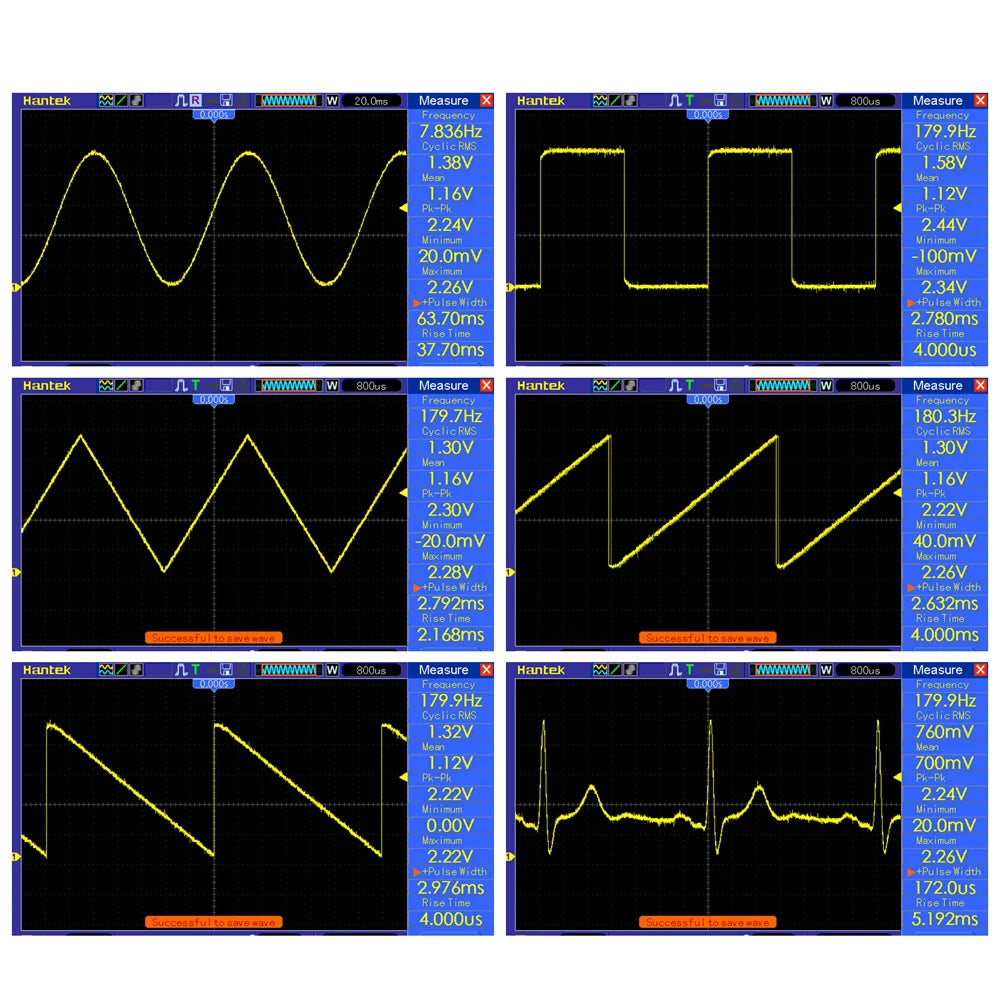

2. It can output 13 types of waveforms to meet different needs

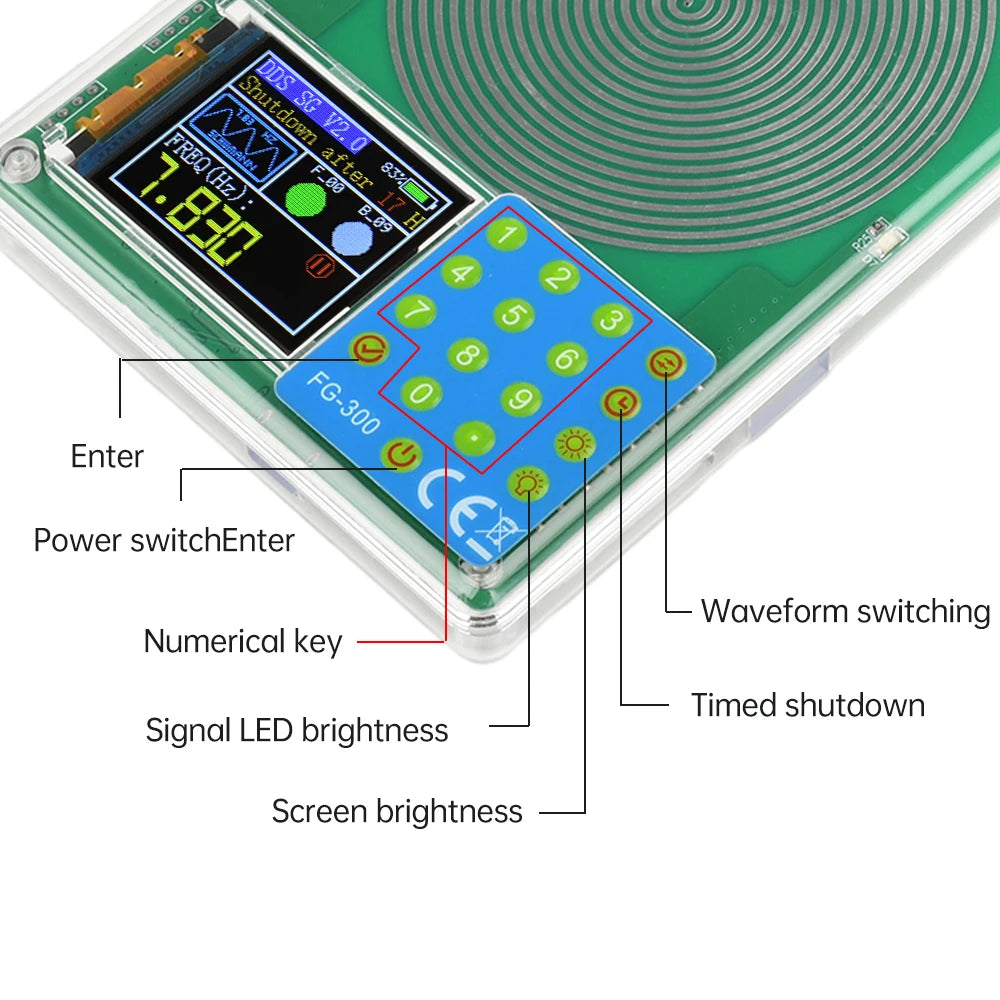

3. Color 1.8TFT LCD display, digital keyboard for direct frequency input, intuitive and convenient operation

4. Equipped with timed shutdown, signal light brightness adjustment, and screen backlight brightness adjustment

5. All setting parameters can be automatically saved, and there is no need to set them again during the next startup

Product Overview:

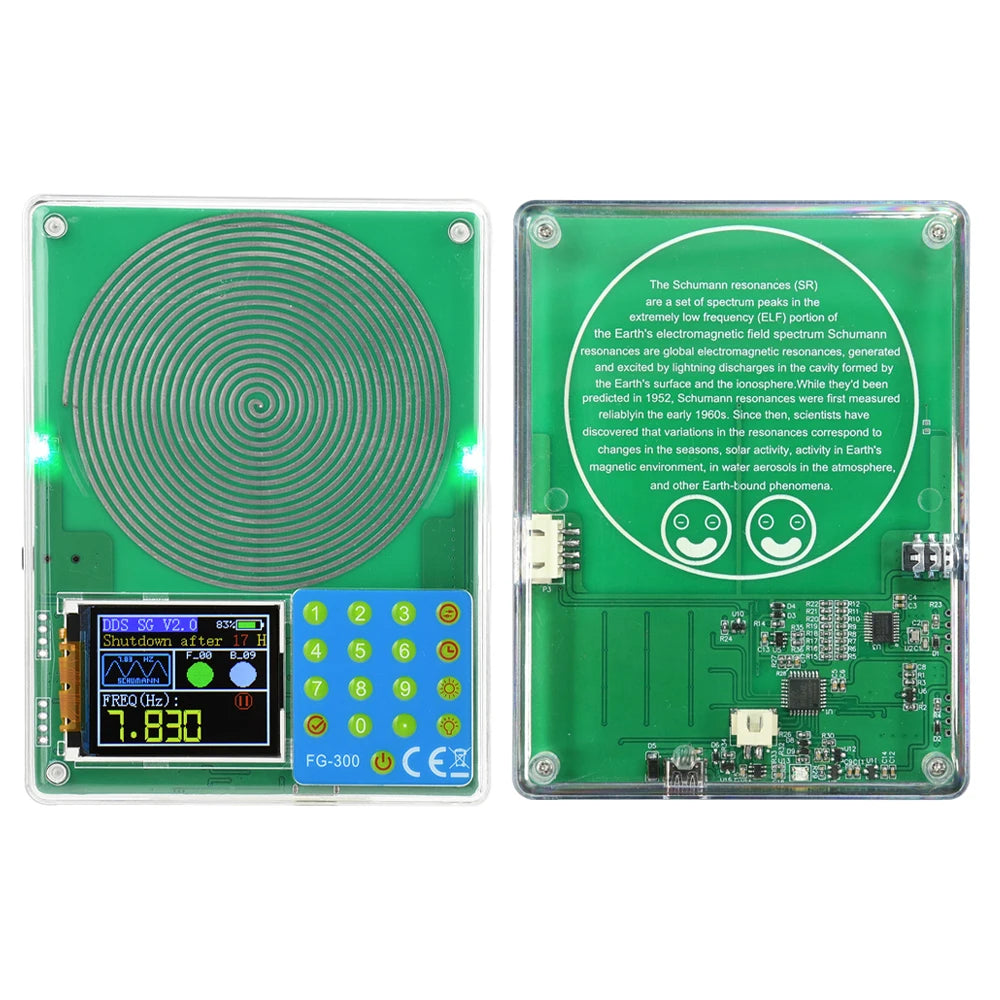

FG-300 is a multifunctional, high-precision, portable signal generator that can generate various waveforms such as sine waves, square waves, triangular waves, forward sawtooth waves, reverse sawtooth waves, electrocardiograms, half waves, Lorens, Gauss, Singh, exponential rise, exponential fall, and 7.83HZ Schumann waves. The onboard spiral antenna can be used as a high-precision Schumann wave generator and can be widely applied in electronic research and development, production testing, education and teaching, maintenance, audio testing, and other fields.

Product Parameters:

Frequency range: sine wave 0.001Hz-200kHz (where the output amplitude is flat up to 100kHz, and the output amplitude decreases and distortion increases as the frequency further increases), other waveforms 0.001Hz-20kHz (but there is no upper limit on the adjustable frequency, and if distortion and shaking requirements are not high, the frequency can be further increased)

Waveform types: sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram, half wave, Loreen, Gauss, Singer, exponential rise, exponential fall, and 7.83HZ Schumann wave

Output amplitude: 2.5V VPP

Output impedance: 330 ohms

Display mode: 1.8-inch TFT display

Power supply voltage: USB-Type C 5V

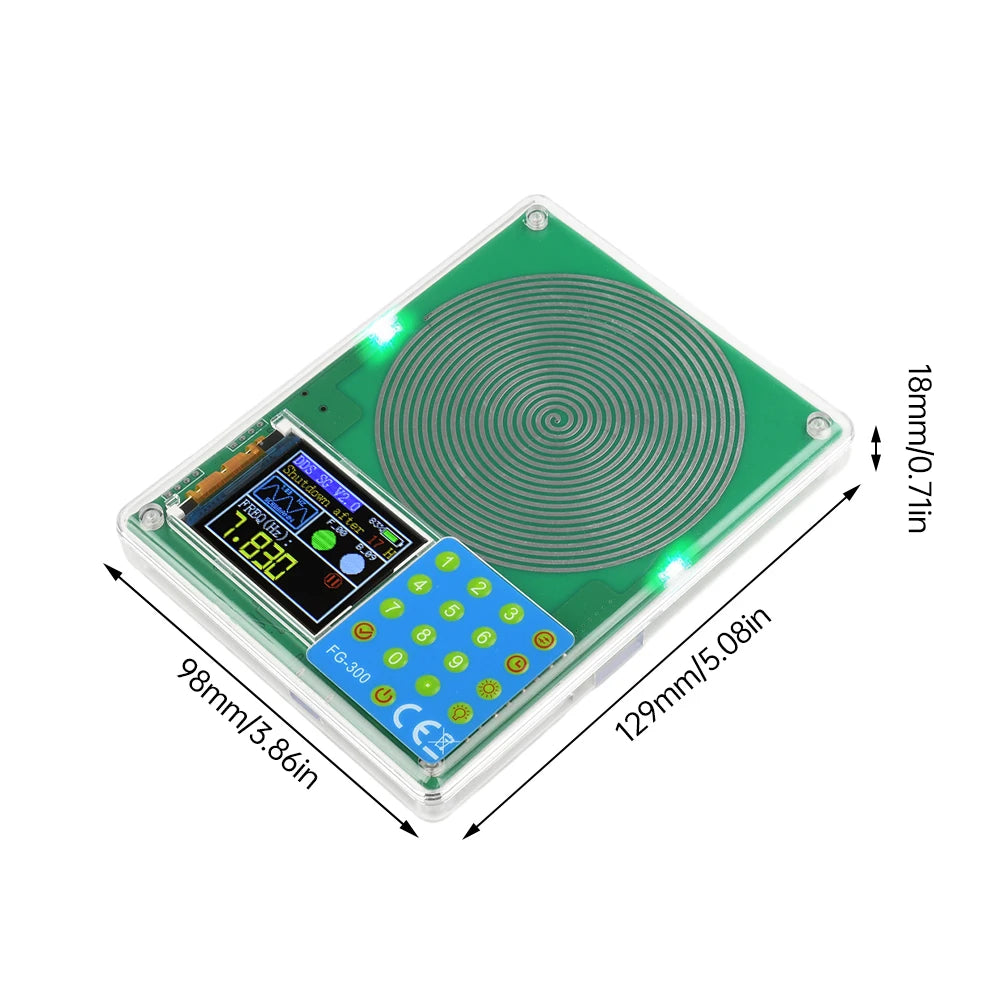

Dimensions: 127 * 98 * 18mm

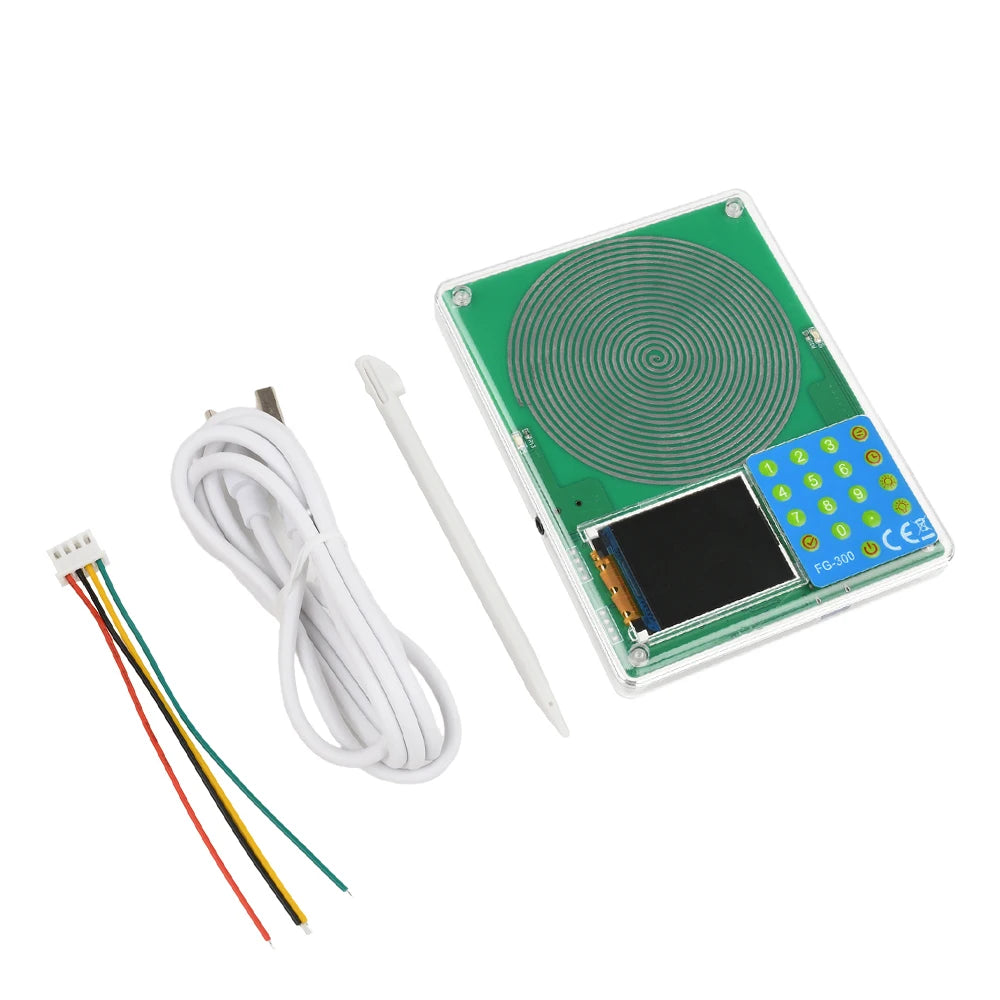

Packing List

host*1

TYPE C power cord * 1

4PIN signal output line * 1

Touch pen * 1

Options

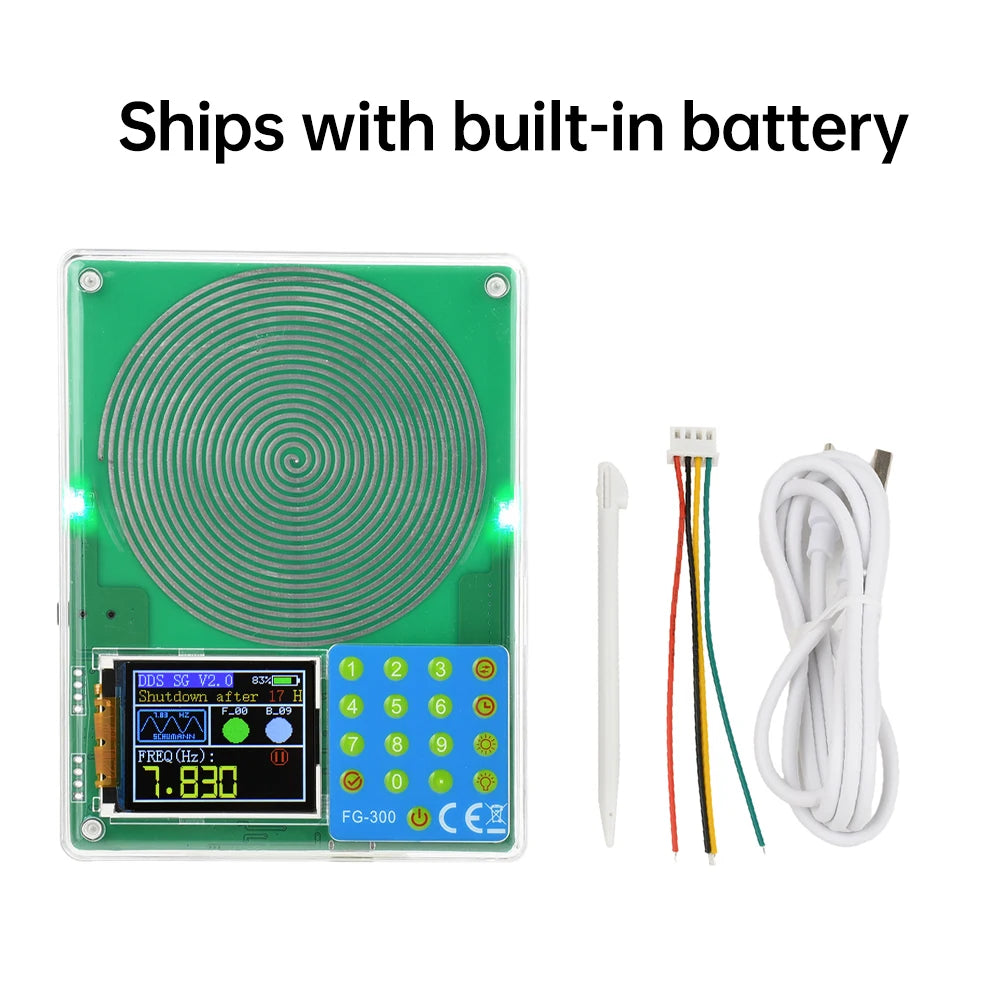

• Color: With battery
