FG-200 DDS Function Signal Generator 0 01Hz-500KHz Adjustable Module

Discover the FG-200 DDS Function Signal Generator 0 01Hz-500KHz Adjustable Module — a standout decor pick featuring adjustable, compact design for dependable, everyday performance.

Specifications

Battery Included: Yes

DIY Supplies: Electrical

Model Number: FG-200

I. The main technical parameters:

1. Output waveforms: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, ECG wave, exponential rise, exponential fall, Lorentz pulse, Gauss pulse, Sinc pulse, half-wave, full-wave, Schumann wave, noise wave, and so on 15 kinds of waveforms.
2. Power supply: DC4-9V, DCSV is recommended when using adapter, 3.7V lithium battery is recommended when using battery power(without battery).
3. Current: 180MA at voltage 5V
4. Frequency range: sine wave 0.01Hz-500.00kHz (with further increase in frequency, the output amplitude will decrease), other waveforms 0.01Hz-100.00kHz (but does not limit the upper limit of the adjustable frequency, if the distortion and jitter requirements are not high, the use of frequency can be further increased).
5. Resolution: 0.01Hz.
6. Sine wave distortion: <1% below 1kHz, <0.5% above 1kHz.
7. Output amplitude: Maximum ±10V (P-P).
8. output impedance: 50 ohms.
9. DC offset: maximum ± 10V, with shutdown function.
10. All setup parameters can be saved.
11. there are filters can be turned on and off, can be well adapted to sinusoidal and pulse waveform output.

II. Features:

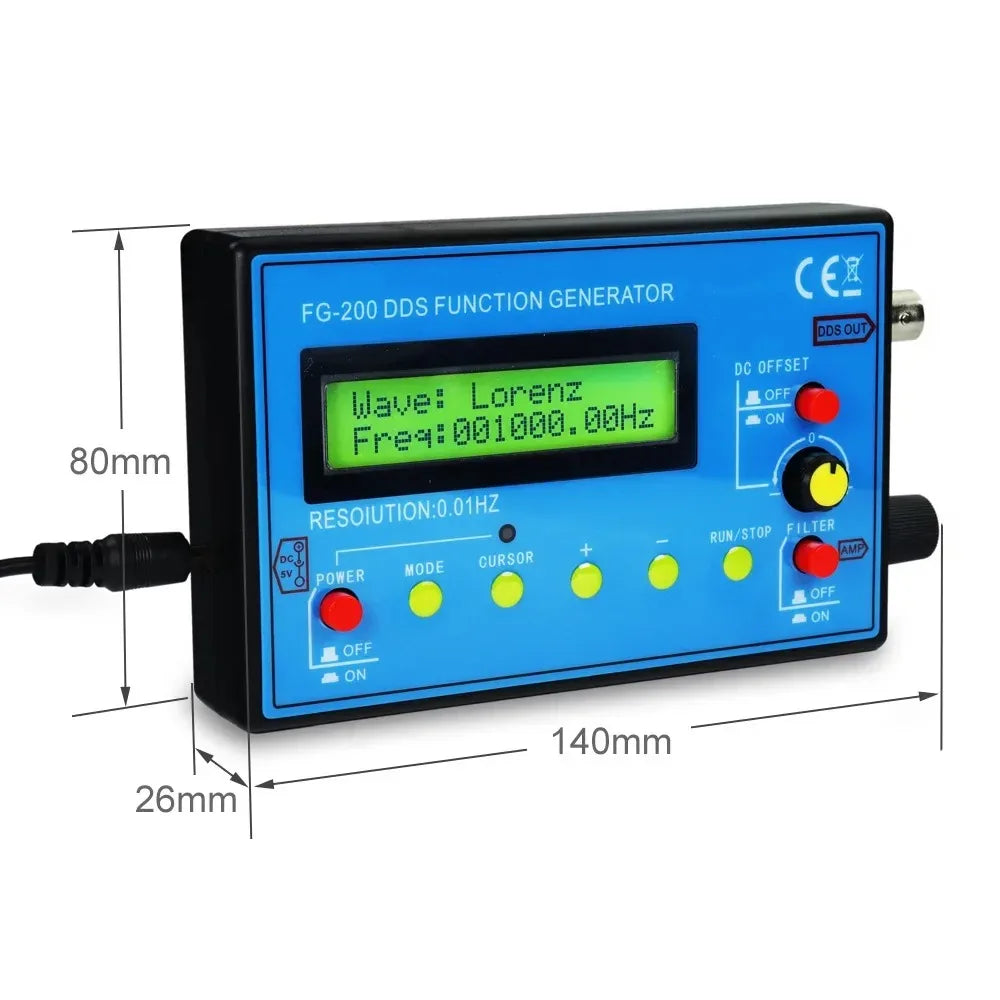

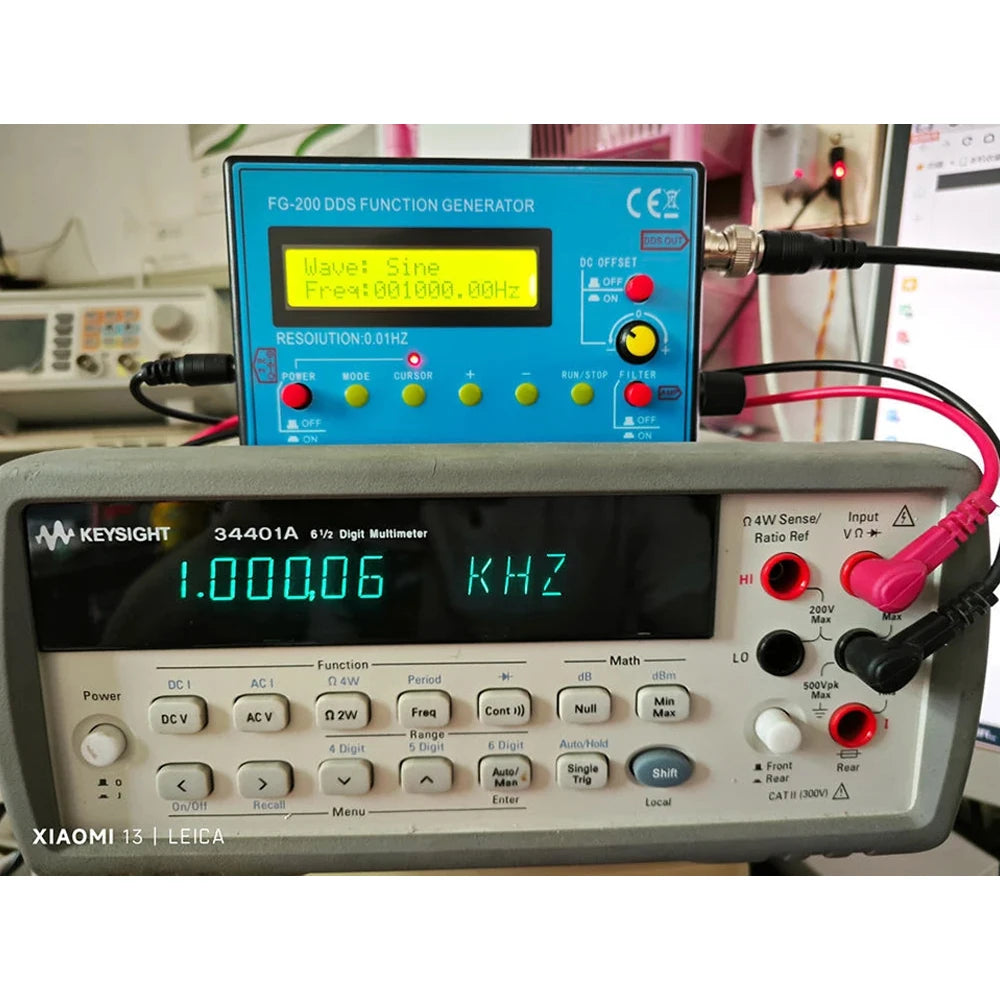

Compact size (125*80*26.5MM), weight 0.175kg, complete functions, simple operation, easy to carry. It can be powered by a power adapter or a 3.7V lithium battery. Together with an oscilloscope, it can be used for electronic circuit test and debugging, frequency characteristics and impulse response test and measurement of audio amplifiers. Due to thel good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration. The square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment.

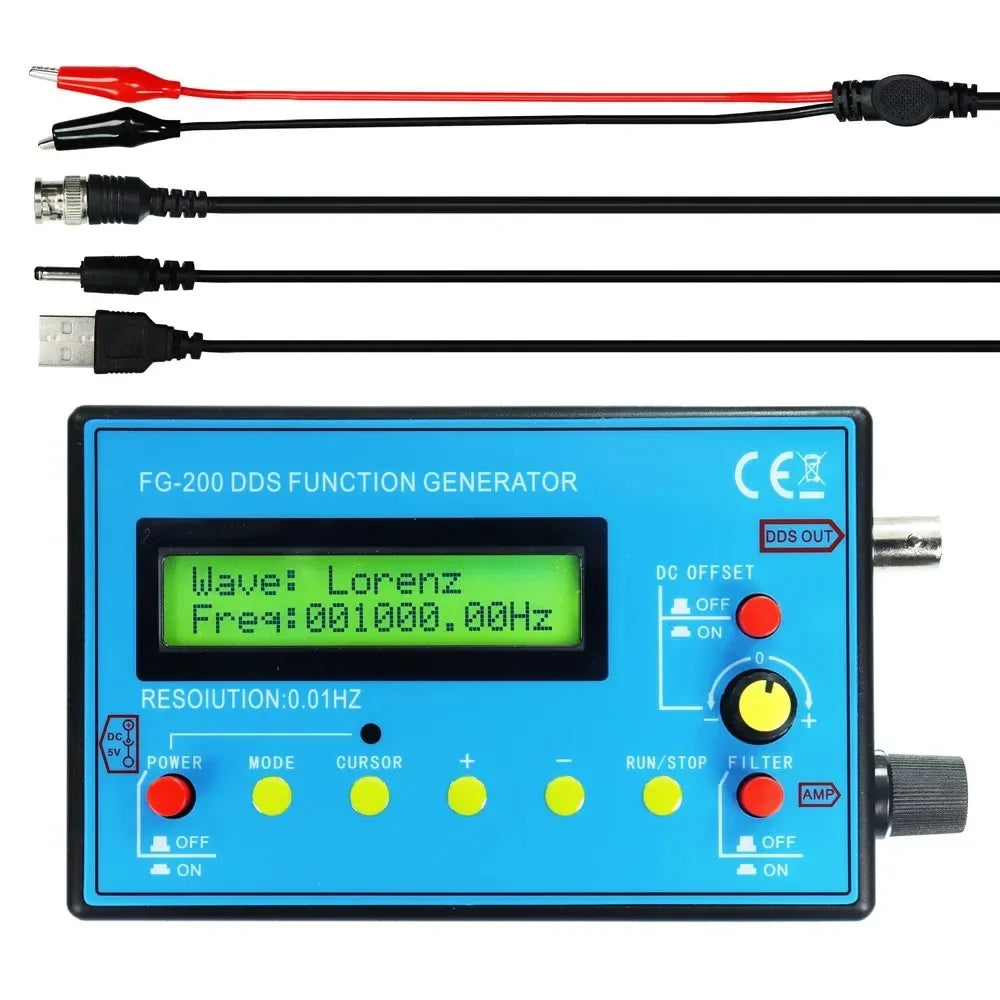

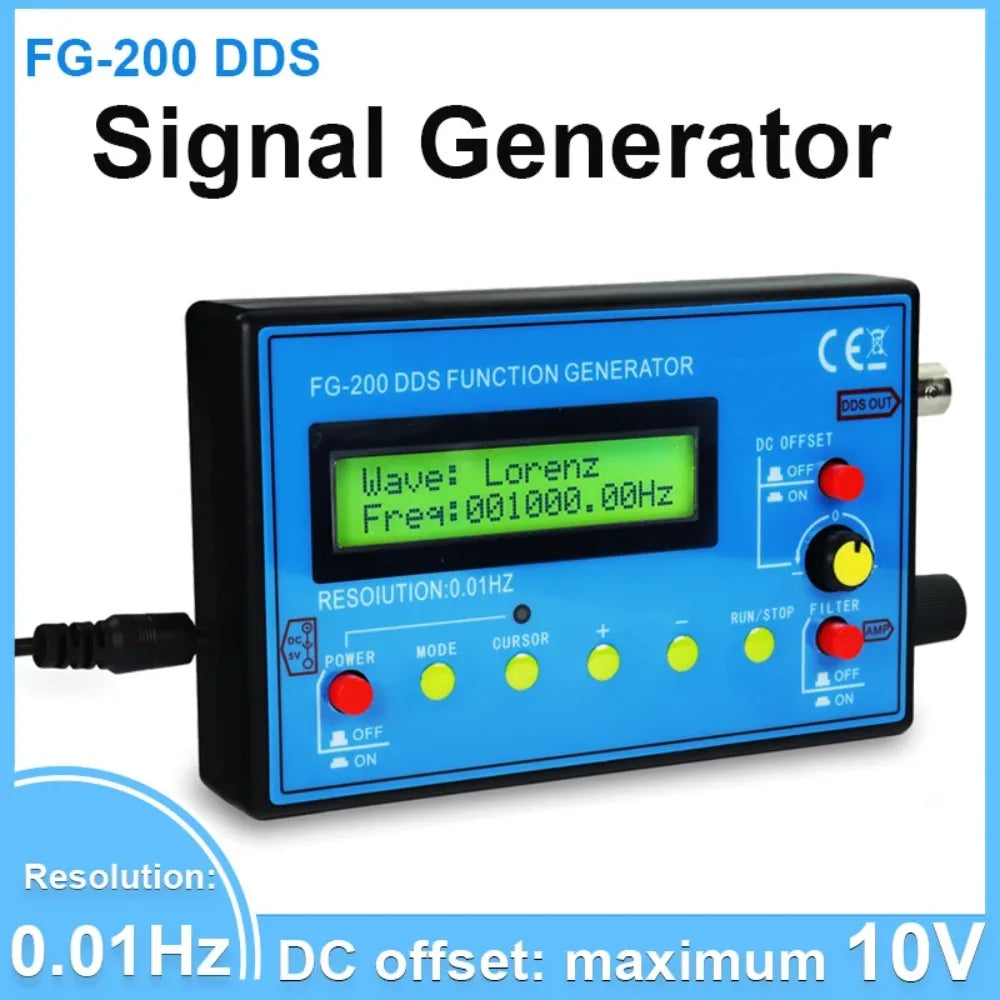

III. Key Description

When the generator is in operation mode and the cursor is not flashing (RUN/STOP is pressed), other keys are invalid, when you need to adjust the parameters, press RUN/STOP first and wait for the cursor to flash, you can use other keys to match the settings.
MODE: Mode key is used to switch the output waveform.
CURSOR: Used to move the cursor (use +-key to adjust the frequency).
RUN/STOP: Run or stop the waveform output.
When the cursor is not blinking, the waveform will be output, and other keys are invalid.
+: Frequency +
-: Frequency-
DCOFFSET: DC bias switch Press ON to adjust the yellow knob to adjust the DC component of the signal.
Pop up to OFF, the DC component of the signal is 0.
FILTER: Filter switch, when the signal is close to 300K or more sine wave, press this button, the waveform will become clean. But the signal amplitude will also become smaller AMP: Side button to adjust the signal amplitude (clockwise amplitude becomes larger)

Use steps

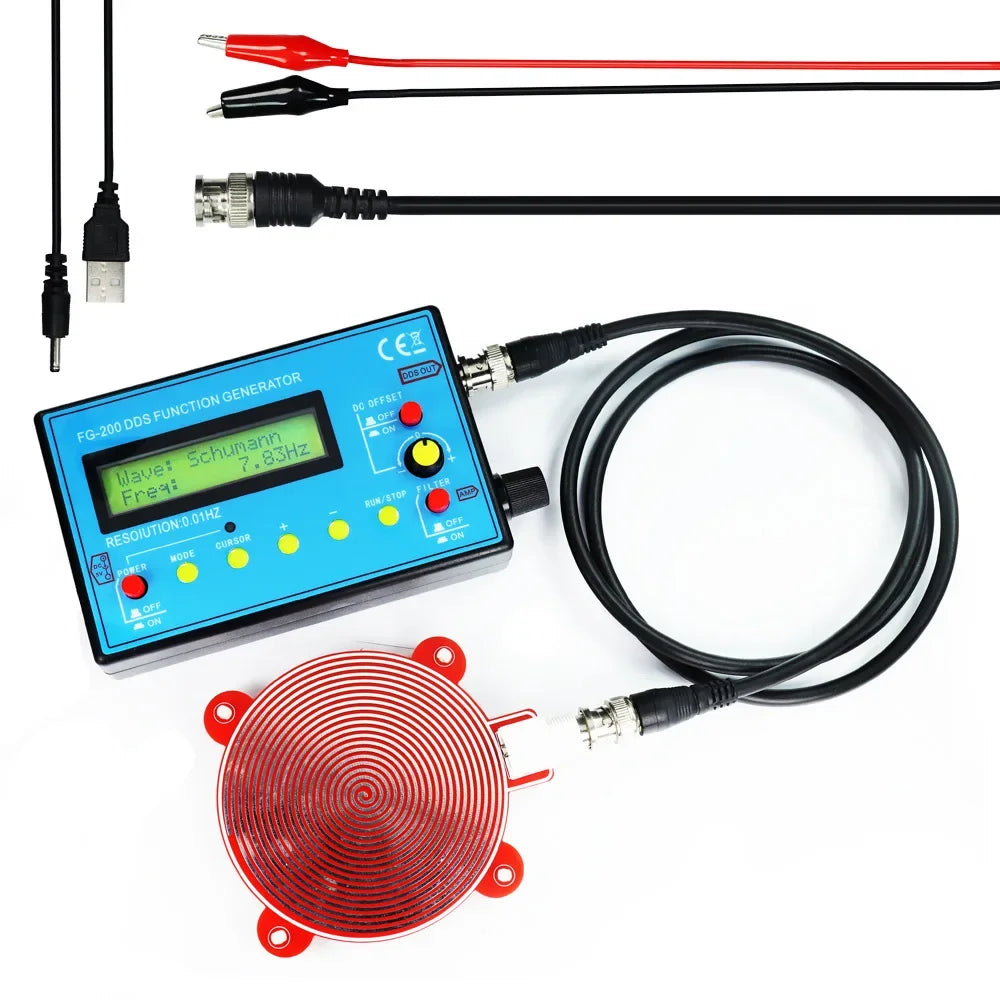

1. take out the matching USB to 3.5MM line inserted into the power input port (power can choose a computer USB interface or cell phone charging head or charging treasure, it is recommended to choose through the 3C certification of the power supply, poor power supply will make the signal generator does not work properly)
Access to the BNC to clip line, red clip access to the oscilloscope probe, black clip and oscilloscope GND clip connected.
2. press the power switch, press the MODE key to select the waveform to be output
SIN: Sine waveform
Square: Square waveform
Triangle: Triangle waveform
Sawtooth: forward sawtooth wave
Resawtooth: Anti-sawtooth waveform
ECG: Electrocardiogram
EXP-rise: Exponential rise
EXP-decay: exponential decrease
Lorenz: Lorenz pulse
Gaussian: Gaussian pulse
Sinc: Sinc pulse
Half-wave: Half-wave
Full-wave: Full wave
Schumann: Schumann wave
Noise: Noise wave

Options

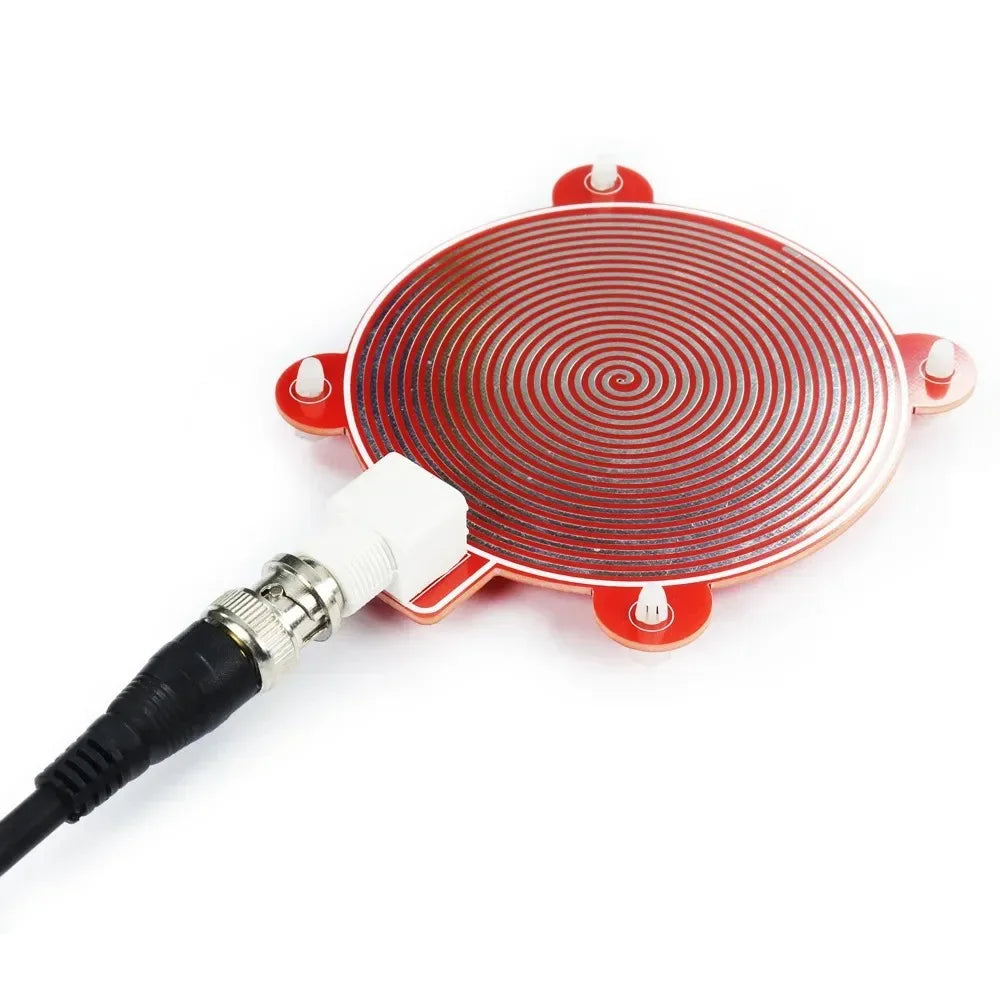

• Color: without Antenna, with Antenna
