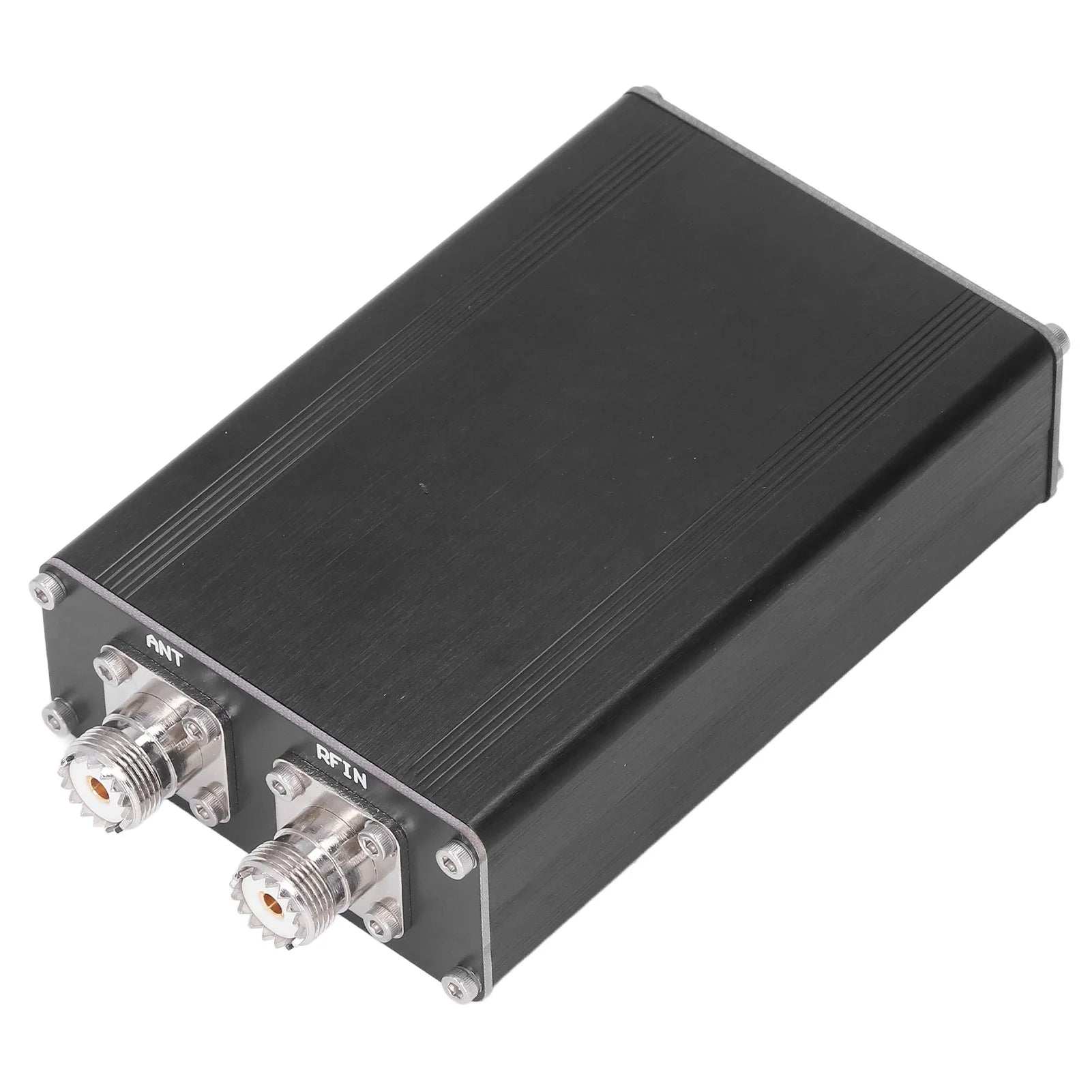

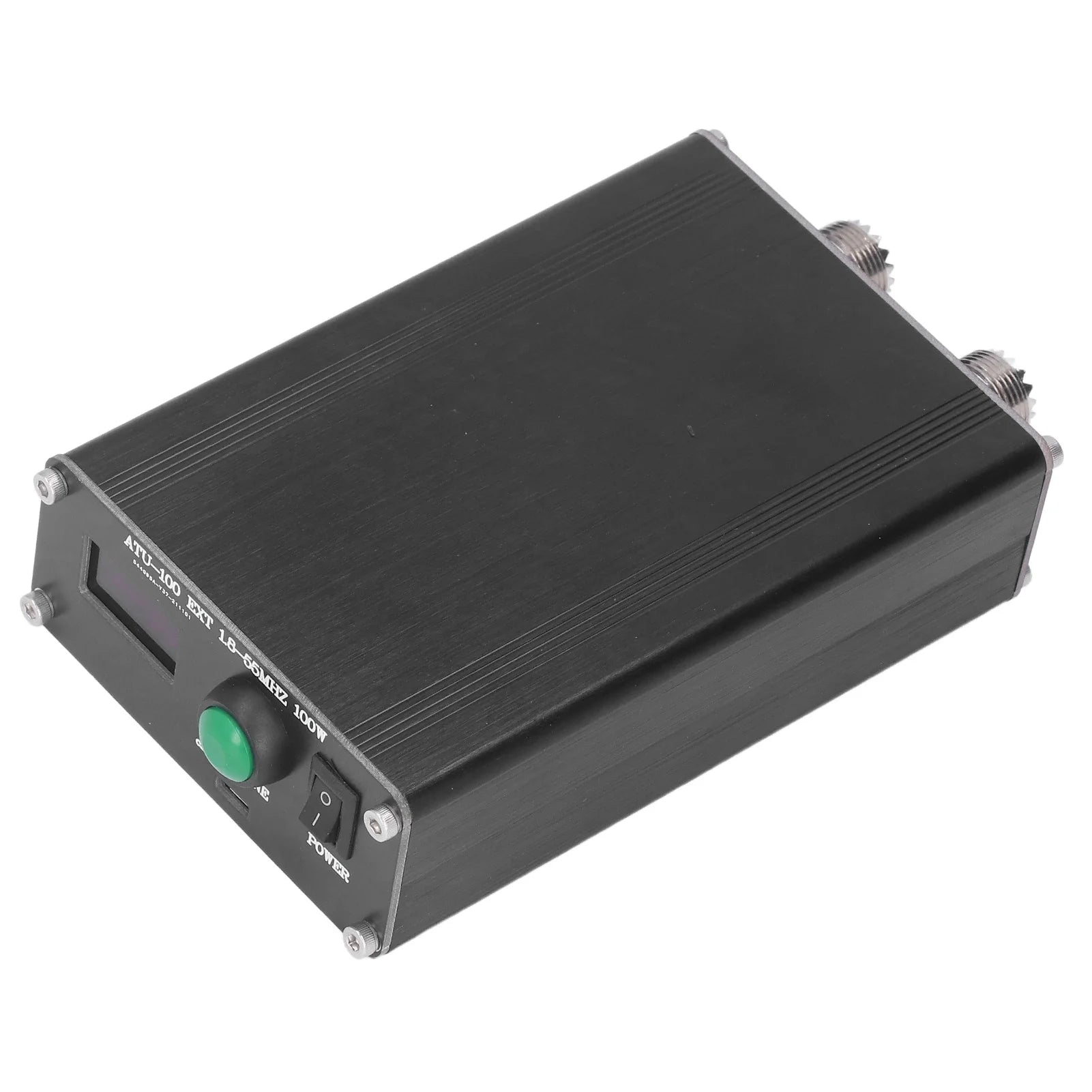

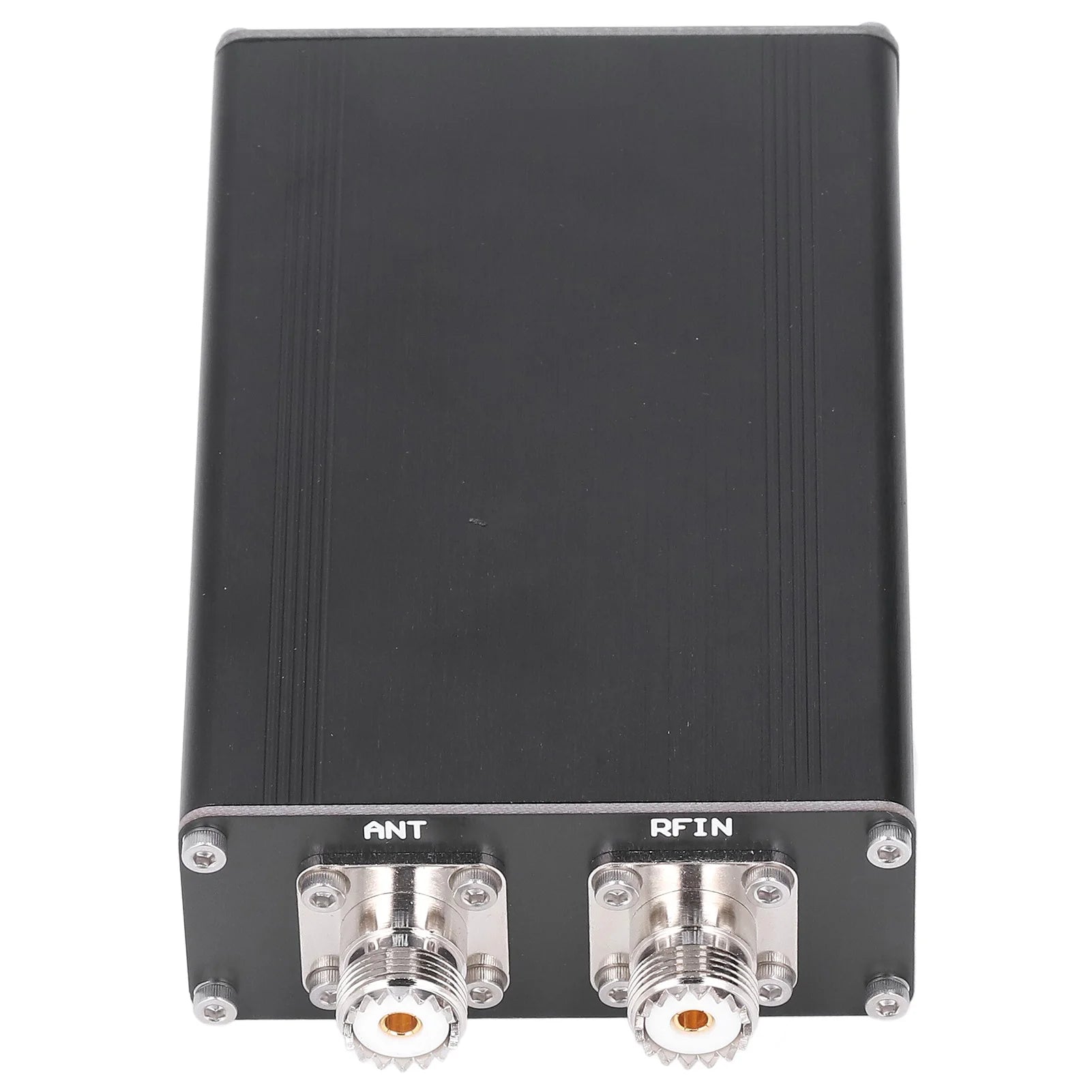

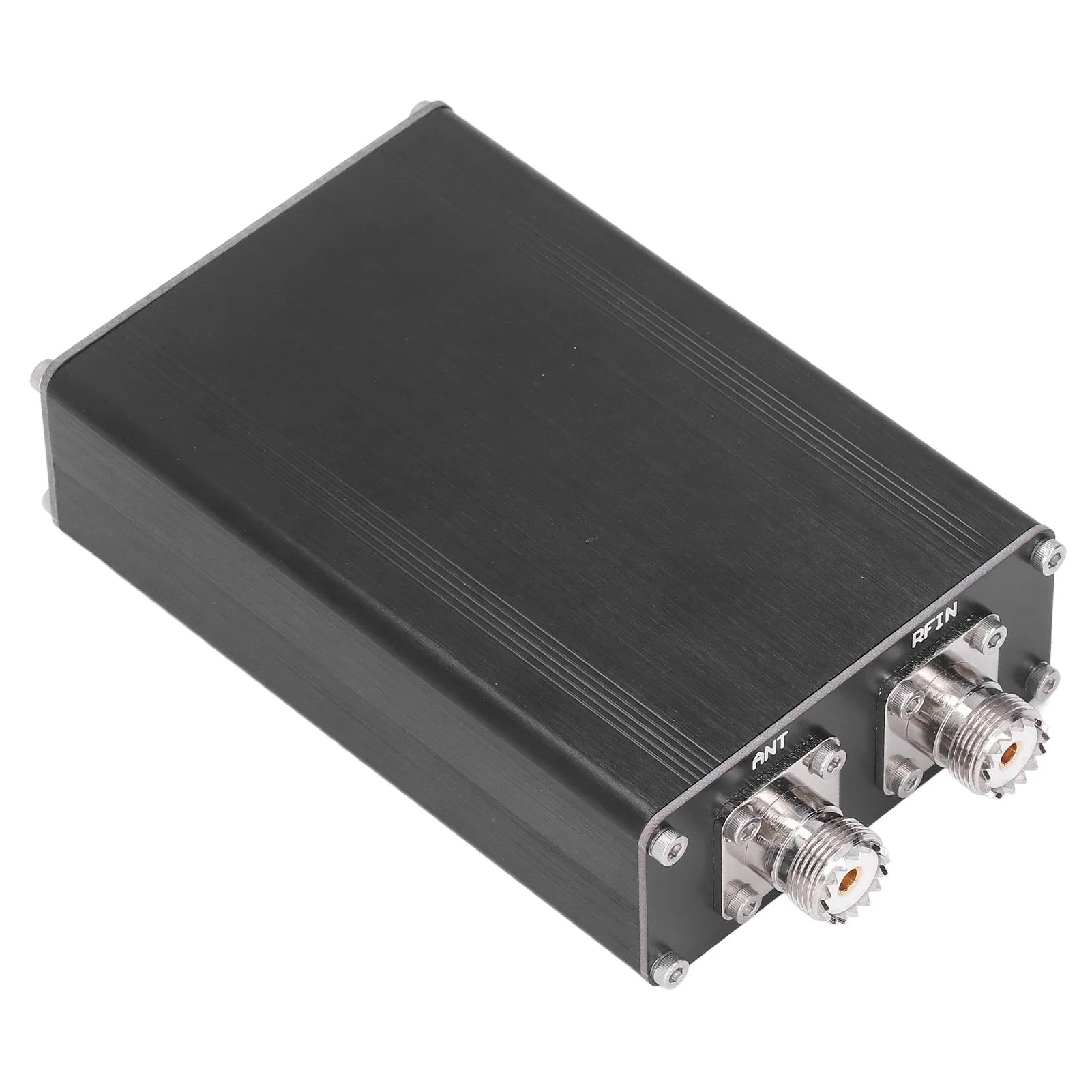

Electrical Tools Mini Antenna Tuner Automatic Radio Equipment 1 8

Discover the Electrical Tools Mini Antenna Tuner Automatic Radio Equipment 1 8, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Item Type: TV-Tuners

Antenna Tuner Mini Automatic for Radio Equipment 1.8~55MHz 0.96IN with Housing ATU‑100:

Feature:

1. STABLE AND PRACTICAL: Adopt good quality metal shell, possess stable and reliable performance, practical, easy to operate and use, long service life
2. FOR RADIO STATIONS: Antenna tuner automatically tunes without any control wires, suitable for most radio stations

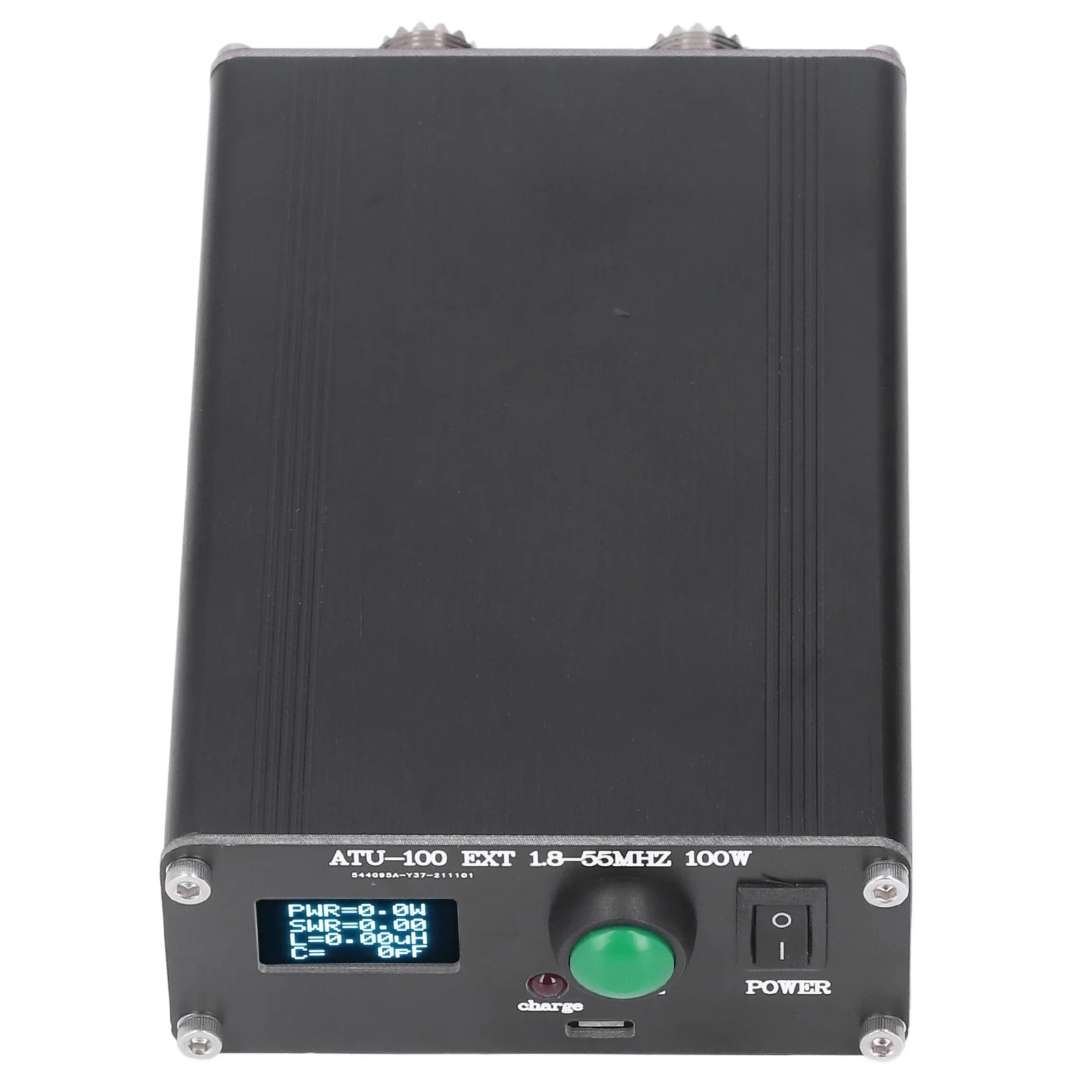

3. 0.96IN DISPLAY WITH HOUSING: Mini shortwave automatic antenna tuner come with Type C charging port, 0.96in OLED display
4. EXCELLENT CONFIGURATION: C channel capacitors adopt good quality 1000V high voltage SMD capacitors, and advanced PIC chips. UHF Connector
5. CORROSION RESISTANT ALUMINUM ALLOY: Made of good quality aluminum material, light weight, possess good strength and good corrosion resistance

Specification:

Item Type: Antenna Tuner
Material: Aluminum alloy
Model: ATU-100
Display: 0.96in OLED
Operating Frequency: 1.8-55 MHz
Battery Model: 3.6V lithium battery 1350MAH
USB Charging Current: 1A
Maximum Operating Power: 100 watts
Maximum Possible Measured Power: 150 watts
1 Watt: Necessary to start setting the minimum power
Minimum Possible Measured Power: 0.1 watts
Measurement Steps With Power Up To 10W: 0.1W
When Robust Measurement Steps STI Above 10 Watts: 1 watt
Power Measurement Accuracy: 10%
Specified Maximum Inductance: 8.53uH capacitance
Minimum Installation Step Size of Inductor: 0.05μH
Maximum Mounting Capacity: 1869 pF Capacitor
Minimum Installation Step: 10

How to Use:

ATU Antenna Tuner Instructions for Use: 1. Connect Radio, ATU Antenna Tuner, Antenna 2. When using for the first time, please set the output power of the radio or power amplifier between 20‑30W, warning that high power tuning may easily damage the antenna tuner. 3. Set radio mode, use FM mode 4. Select the antenna frequency band to use, use 20‑30W power in FM mode, press radio PPT, observe the ATU antenna tuner PWR and SWR 5. Use of ATU button TUNE: Short press (less than 1 second) ATU button, it is in reset state, long press (more than 1 second) ATU button is in adjustment state 6. If the SWR of the ATU antenna tuner shows greater than 2.0 in the transmission state, it means that the antenna has been detuned. You need to use an antenna tuner. Press and hold the ATU button TUNE to tune and observe the SWR value. If the tuned SWR is greater than 3.0, detune the antenna. Seriously, it is not recommended to use power above 30W, and the transmit power should be controlled below 30W; if the tuning is done, the SWR shows less than 2.0, and the maximum power of 100W can be used for transmission

Package List:

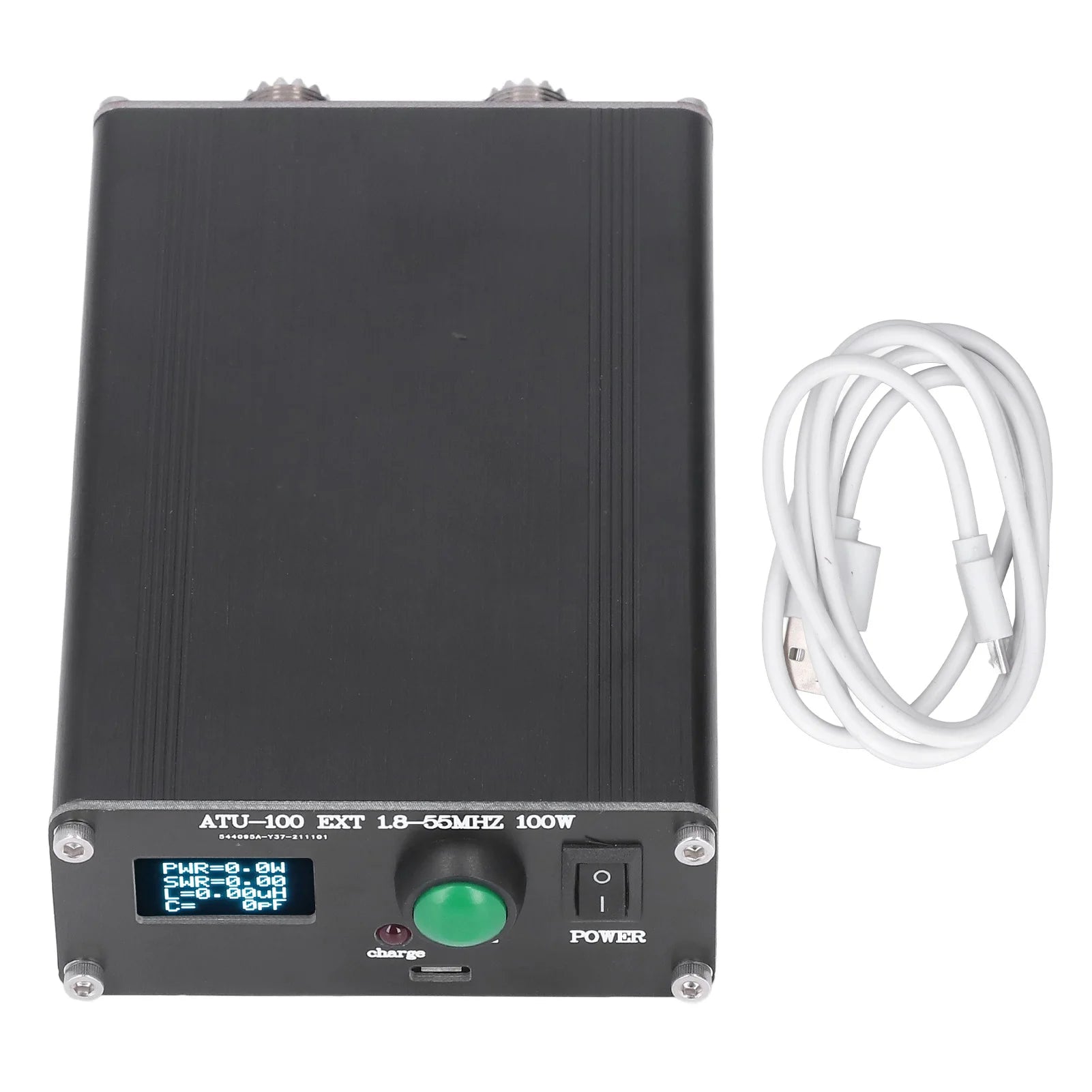

1 x Host

1 x USB Cable

1 x User Manual

1. Insufficient adjustment may occur within 5W. So don't try to go below 5W. 2. It is recommended that the maximum power should not exceed 30 watts during tuning. (it can be set to 100 watts after tuning, and work at this power, otherwise it is easy to burn) 3. You need to use 9‑12V to start the ATU‑100. If you use a power bank or computer USB port to output power, you cannot start the ATU‑100 because their voltage is too low. :

:
